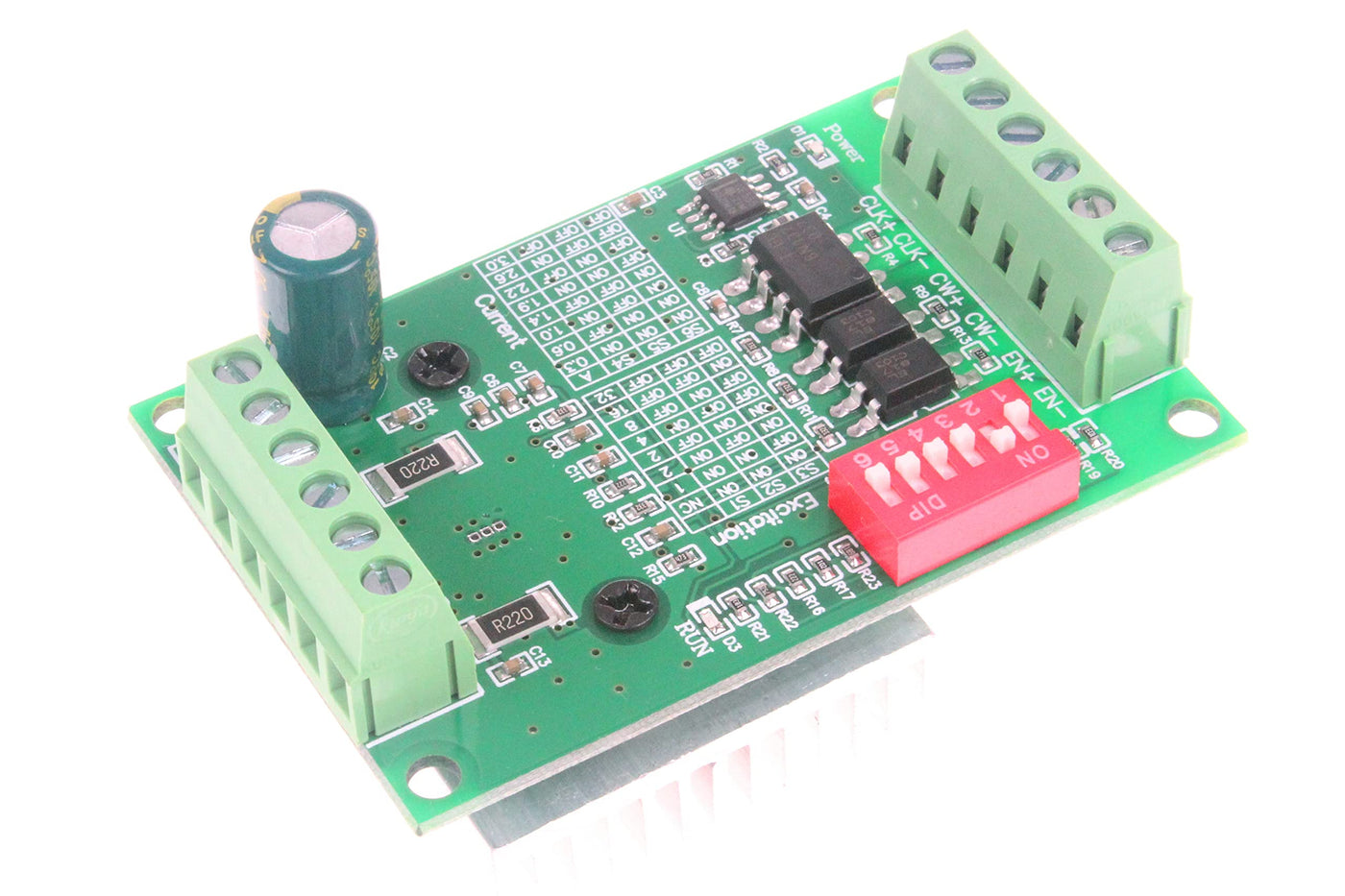

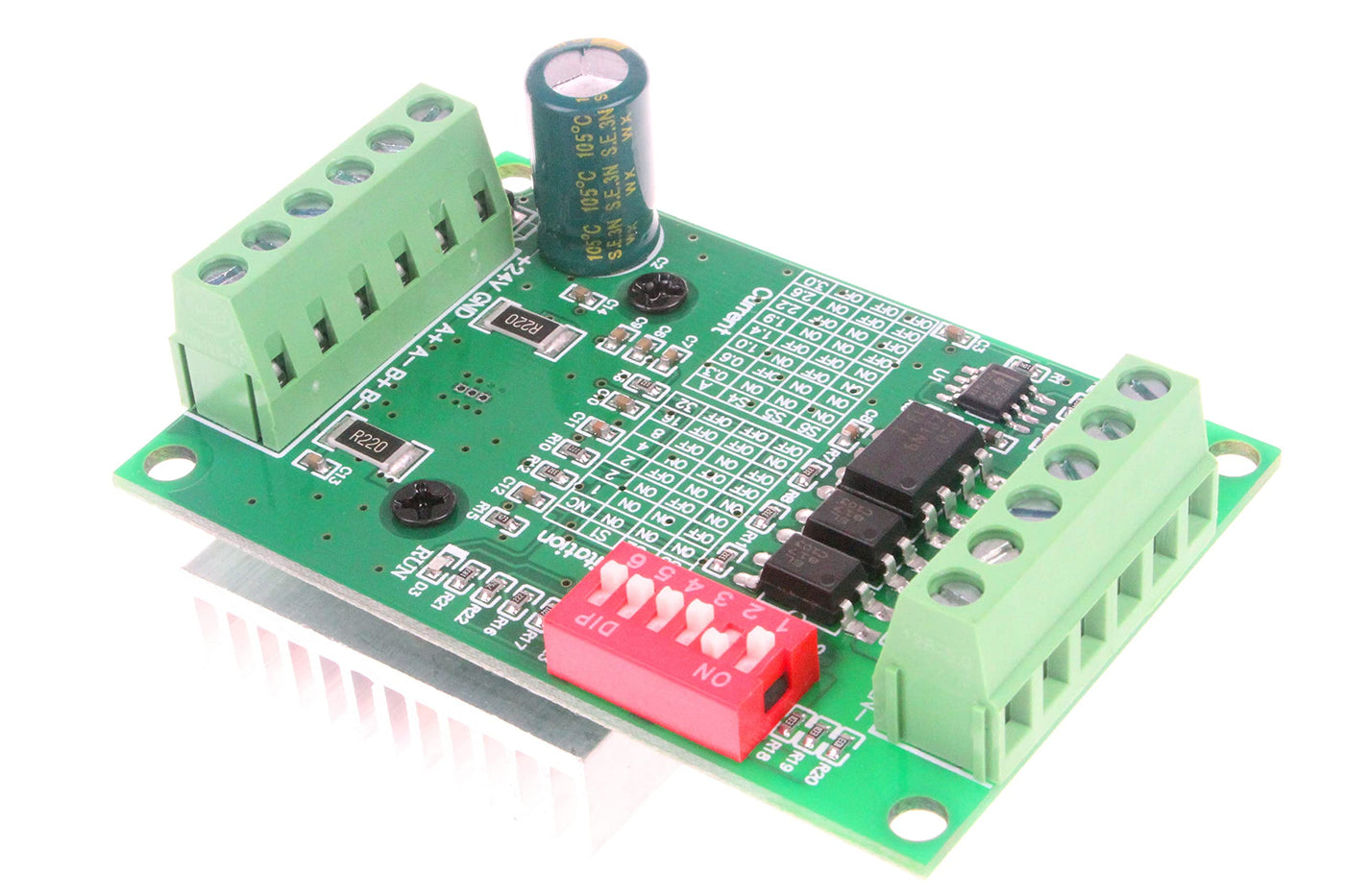

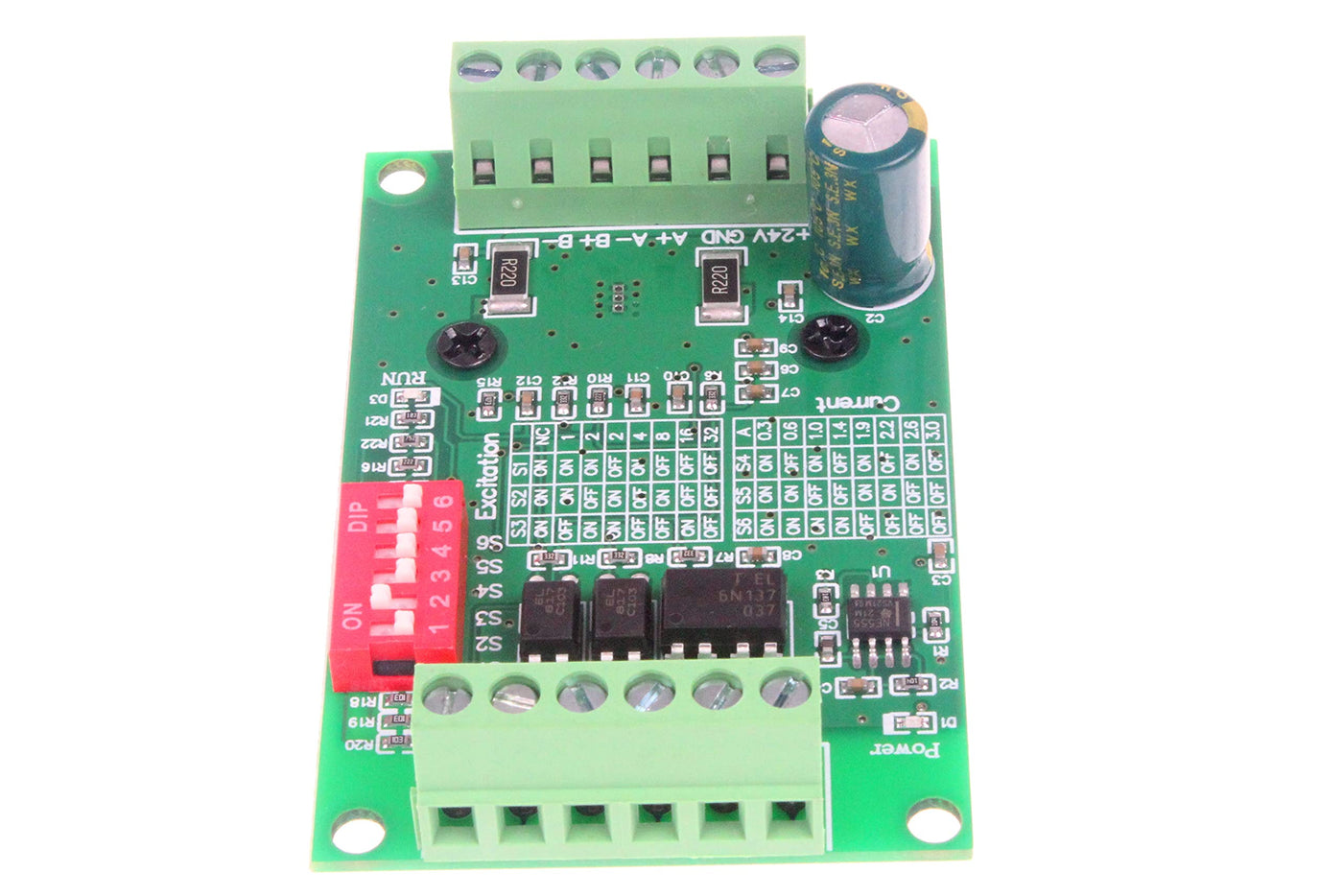

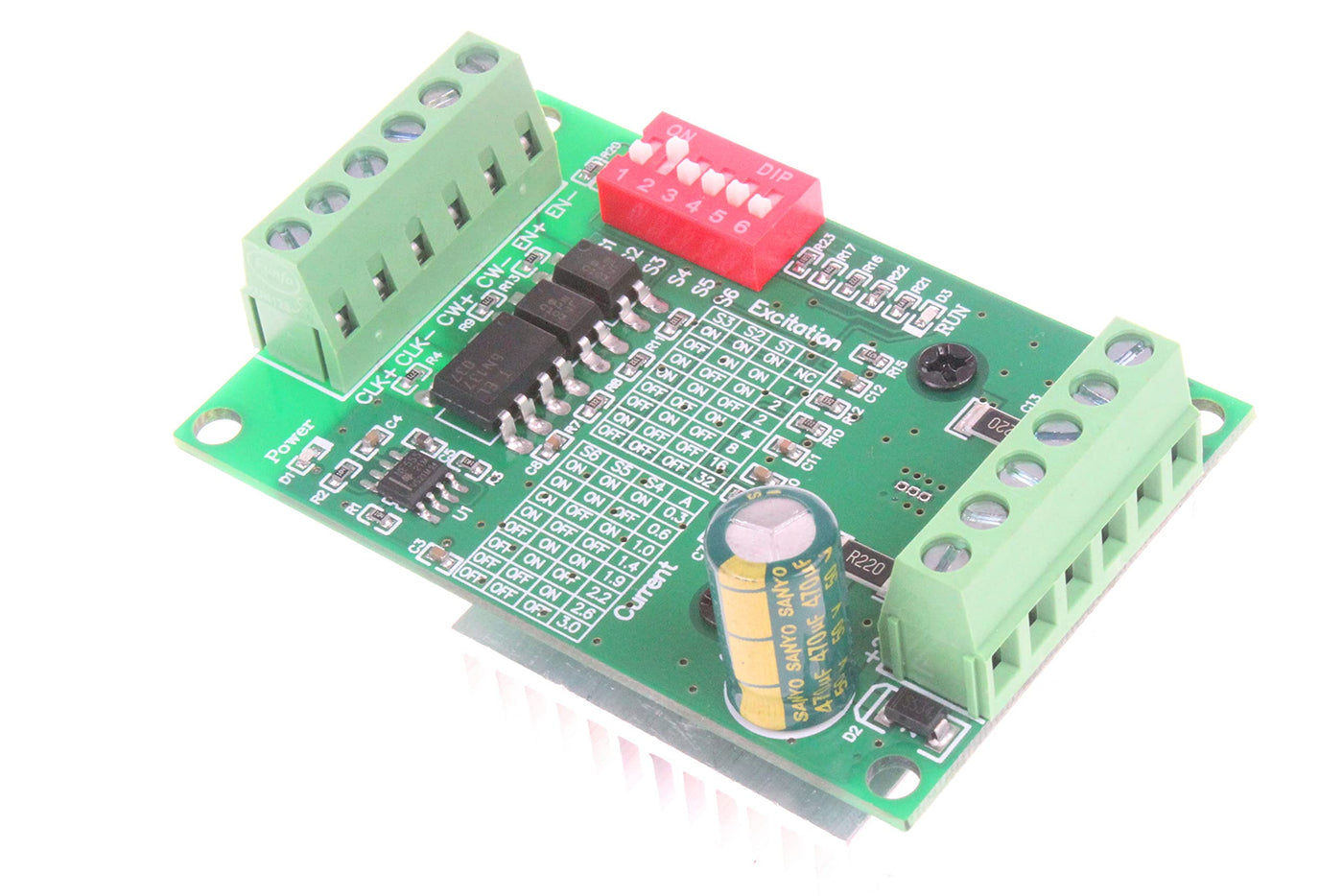

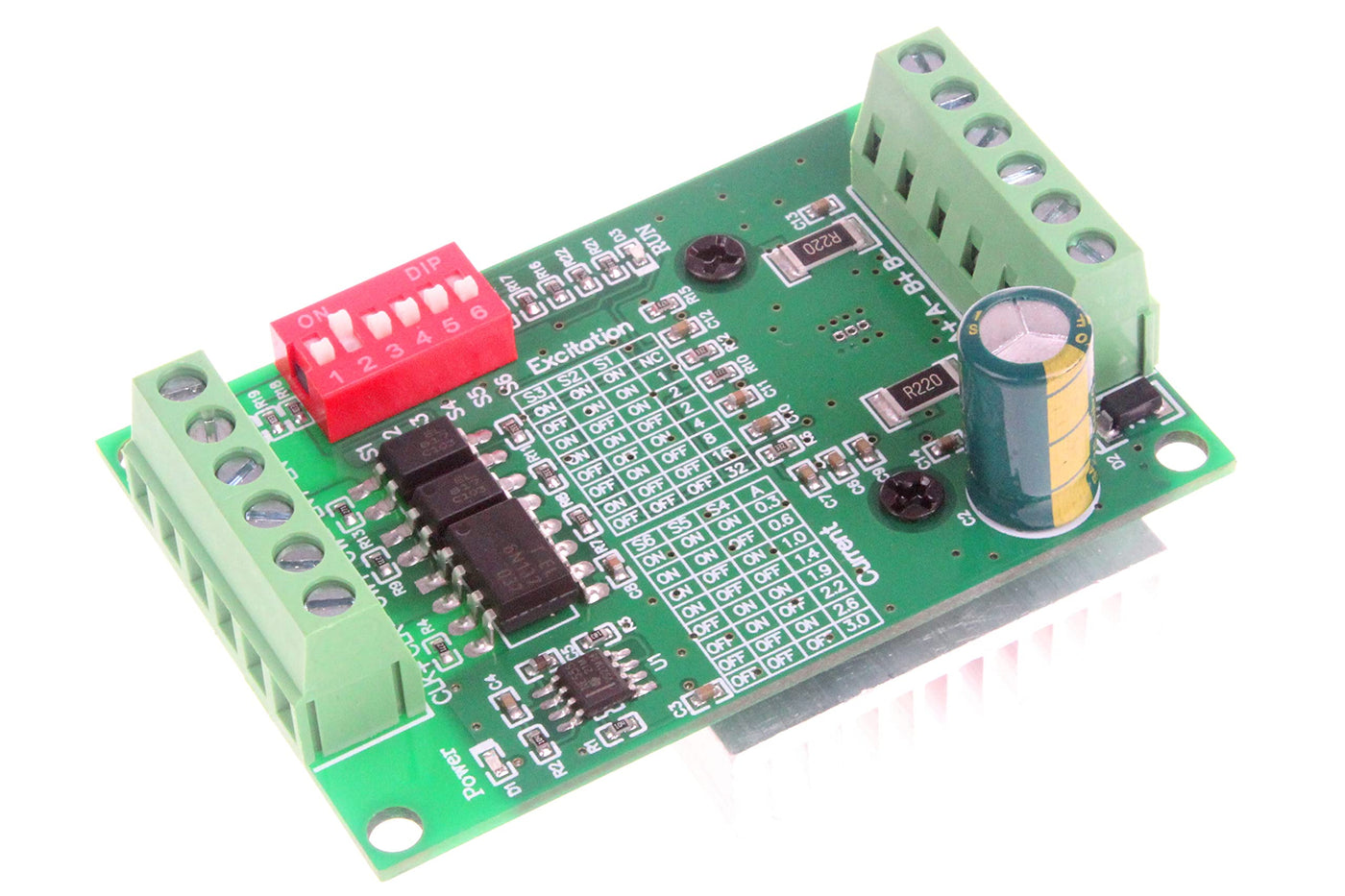

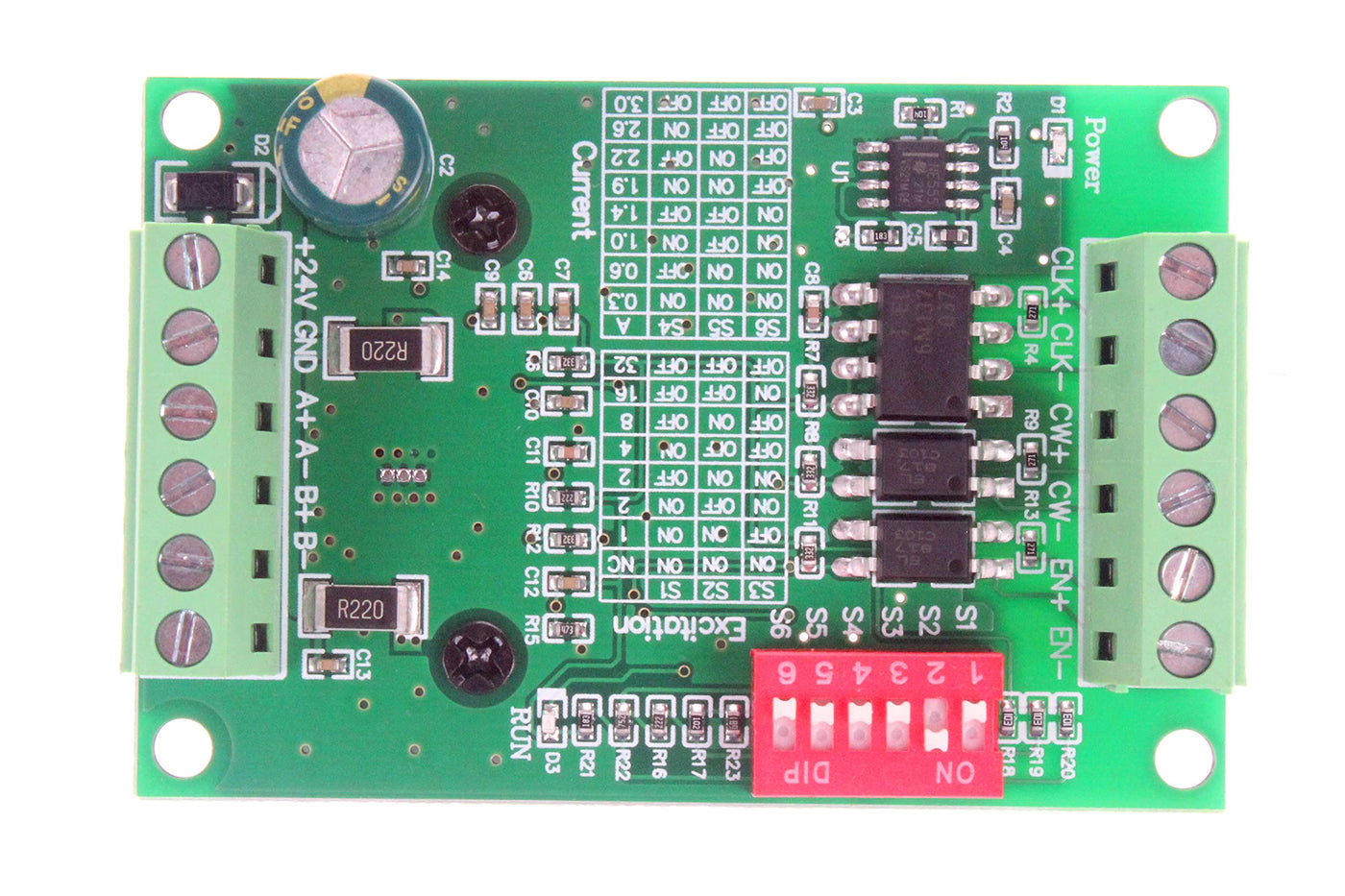

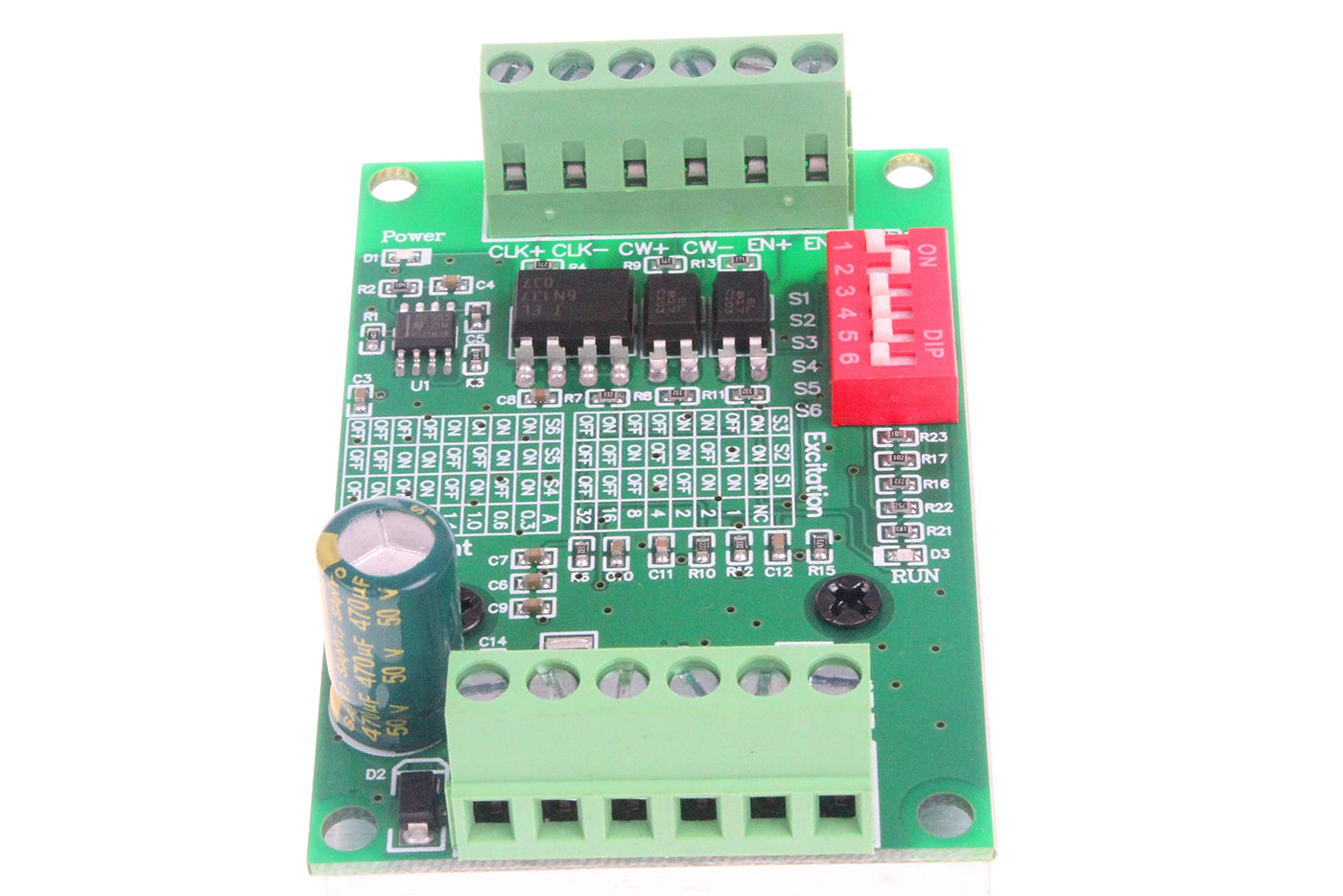

{"id":7170069856436,"title":"NOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V","handle":"noyito-tb6560-3a-single-axis-controller-stepper-motor-driver-board-10-35v","description":"\u003ch3\u003eNOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Working voltage DC 10V-35V. Recommended to use a switching power\nsupply DC24V power supply. 6N137 high-speed optical coupling, guarantee high\nspeed without losing step. Using the TB6560AHQ chip with low voltage shutdown,\noverheating stop and overcurrent protection circuit to ensure optimal\nperformance. Rated maximum output: ± 3A, peak 3.5A. For two-phase within 42,57\nstepping 3A \/ four-phase \/ of line four \/ six-wire stepper motor, and is not\nsuitable for more than 3A stepper motor. Automatic half current function.\nSubdivision: whole step, half-step, 1\/8 step, 1\/16 step, a maximum of 16\nsubdivisions. Specification: Working voltage: DC 10-35V Rated maximum output:\n± 3A, peak 3.5A Main color: Green Size: Approx. 75 x 50 x 33mm \/\n2.95x1.97x1.3inch Package Included: 1Pcs TB6560 3A Single-Axis Controller\nStepper Motor Driver Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWorking voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.\u003c\/li\u003e\n \u003cli\u003e6N137 high-speed optical coupling, guarantee high speed without losing step.\u003c\/li\u003e\n \u003cli\u003eUsing the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance.\u003c\/li\u003e\n \u003cli\u003eRated maximum output: 3A, peak 3.5A.\u003c\/li\u003e\n \u003cli\u003eFor two-phase within 42,57 stepping 3A \/ four-phase \/ four-wire \/ six-wire stepper motor, and is not suitable for more than 3A stepper motor.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-26T20:34:58+10:00","created_at":"2022-06-26T20:35:07+10:00","vendor":"NOYITO","type":"Controls","tags":["industrial"],"price":12200,"price_min":12200,"price_max":12200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41609685139636,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07BDJT71V","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V","public_title":null,"options":["Default Title"],"price":12200,"weight":91,"compare_at_price":null,"inventory_management":null,"barcode":"0667797747688","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07BDJT71V.jpg?v=1656314537","\/\/auspowers.com\/cdn\/shop\/products\/81ezAiR7PkS.jpg?v=1656239707","\/\/auspowers.com\/cdn\/shop\/products\/713Hql1gIaS.jpg?v=1656239708","\/\/auspowers.com\/cdn\/shop\/products\/71OmnZU6rlS.jpg?v=1656239708","\/\/auspowers.com\/cdn\/shop\/products\/71I2TMlIb8S.jpg?v=1656239708","\/\/auspowers.com\/cdn\/shop\/products\/810lZFvS4US.jpg?v=1656239708","\/\/auspowers.com\/cdn\/shop\/products\/81LgRZcnoXS.jpg?v=1656239708"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07BDJT71V.jpg?v=1656314537","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V ","id":26305193148596,"position":1,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07BDJT71V.jpg?v=1656314537"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07BDJT71V.jpg?v=1656314537","width":2560},{"alt":"[Australia - AusPower] - NOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V ","id":26295919247540,"position":2,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81ezAiR7PkS.jpg?v=1656239707"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81ezAiR7PkS.jpg?v=1656239707","width":2560},{"alt":"[Australia - AusPower] - NOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V ","id":26295919280308,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/713Hql1gIaS.jpg?v=1656239708"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/713Hql1gIaS.jpg?v=1656239708","width":2560},{"alt":"[Australia - AusPower] - NOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V ","id":26295919313076,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71OmnZU6rlS.jpg?v=1656239708"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71OmnZU6rlS.jpg?v=1656239708","width":2560},{"alt":"[Australia - AusPower] - NOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V ","id":26295919345844,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71I2TMlIb8S.jpg?v=1656239708"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71I2TMlIb8S.jpg?v=1656239708","width":2560},{"alt":"[Australia - AusPower] - NOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V ","id":26295919378612,"position":6,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/810lZFvS4US.jpg?v=1656239708"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/810lZFvS4US.jpg?v=1656239708","width":2560},{"alt":"[Australia - AusPower] - NOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V ","id":26295919411380,"position":7,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81LgRZcnoXS.jpg?v=1656239708"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81LgRZcnoXS.jpg?v=1656239708","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Working voltage DC 10V-35V. Recommended to use a switching power\nsupply DC24V power supply. 6N137 high-speed optical coupling, guarantee high\nspeed without losing step. Using the TB6560AHQ chip with low voltage shutdown,\noverheating stop and overcurrent protection circuit to ensure optimal\nperformance. Rated maximum output: ± 3A, peak 3.5A. For two-phase within 42,57\nstepping 3A \/ four-phase \/ of line four \/ six-wire stepper motor, and is not\nsuitable for more than 3A stepper motor. Automatic half current function.\nSubdivision: whole step, half-step, 1\/8 step, 1\/16 step, a maximum of 16\nsubdivisions. Specification: Working voltage: DC 10-35V Rated maximum output:\n± 3A, peak 3.5A Main color: Green Size: Approx. 75 x 50 x 33mm \/\n2.95x1.97x1.3inch Package Included: 1Pcs TB6560 3A Single-Axis Controller\nStepper Motor Driver Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWorking voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.\u003c\/li\u003e\n \u003cli\u003e6N137 high-speed optical coupling, guarantee high speed without losing step.\u003c\/li\u003e\n \u003cli\u003eUsing the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance.\u003c\/li\u003e\n \u003cli\u003eRated maximum output: 3A, peak 3.5A.\u003c\/li\u003e\n \u003cli\u003eFor two-phase within 42,57 stepping 3A \/ four-phase \/ four-wire \/ six-wire stepper motor, and is not suitable for more than 3A stepper motor.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
