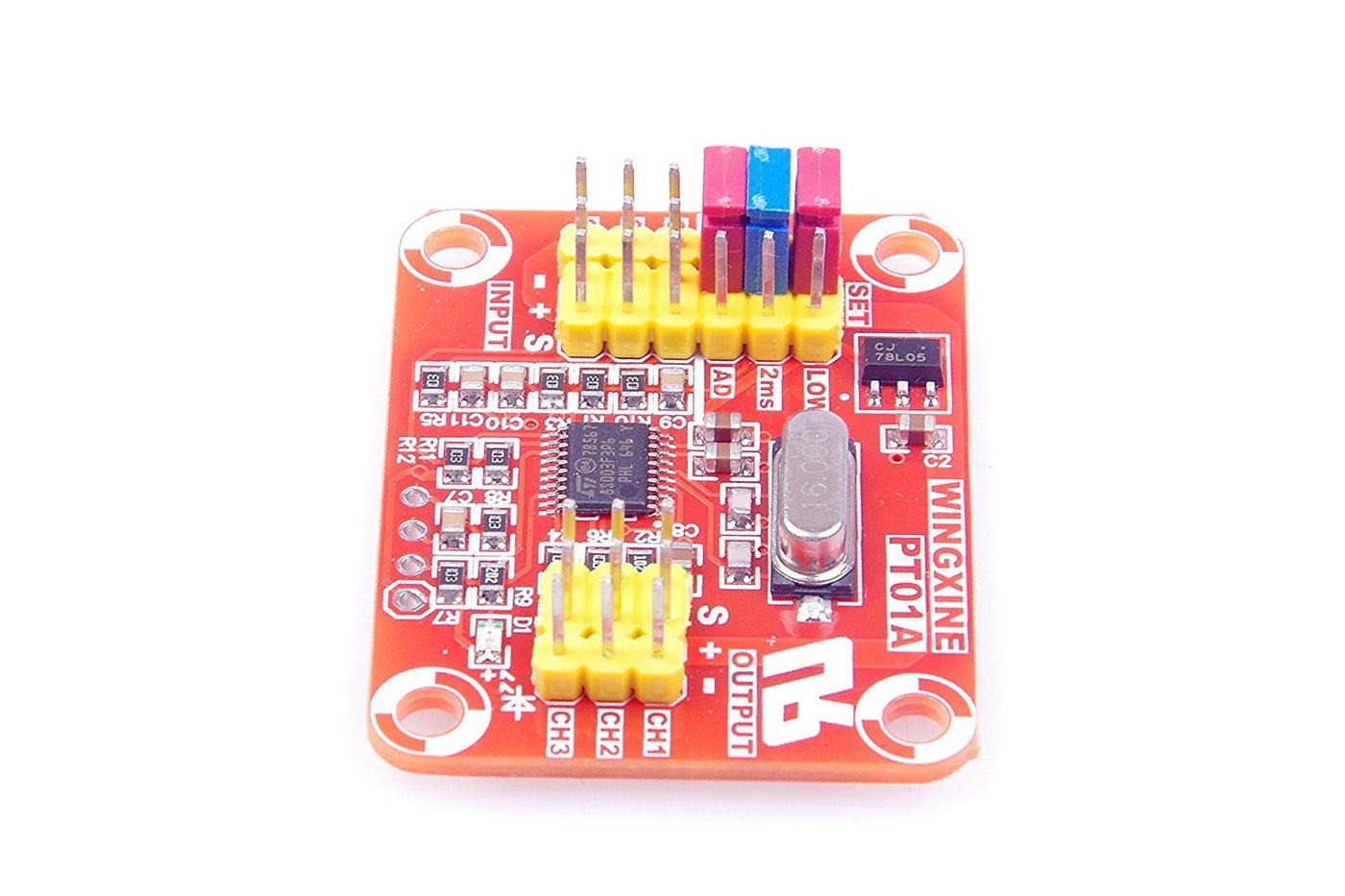

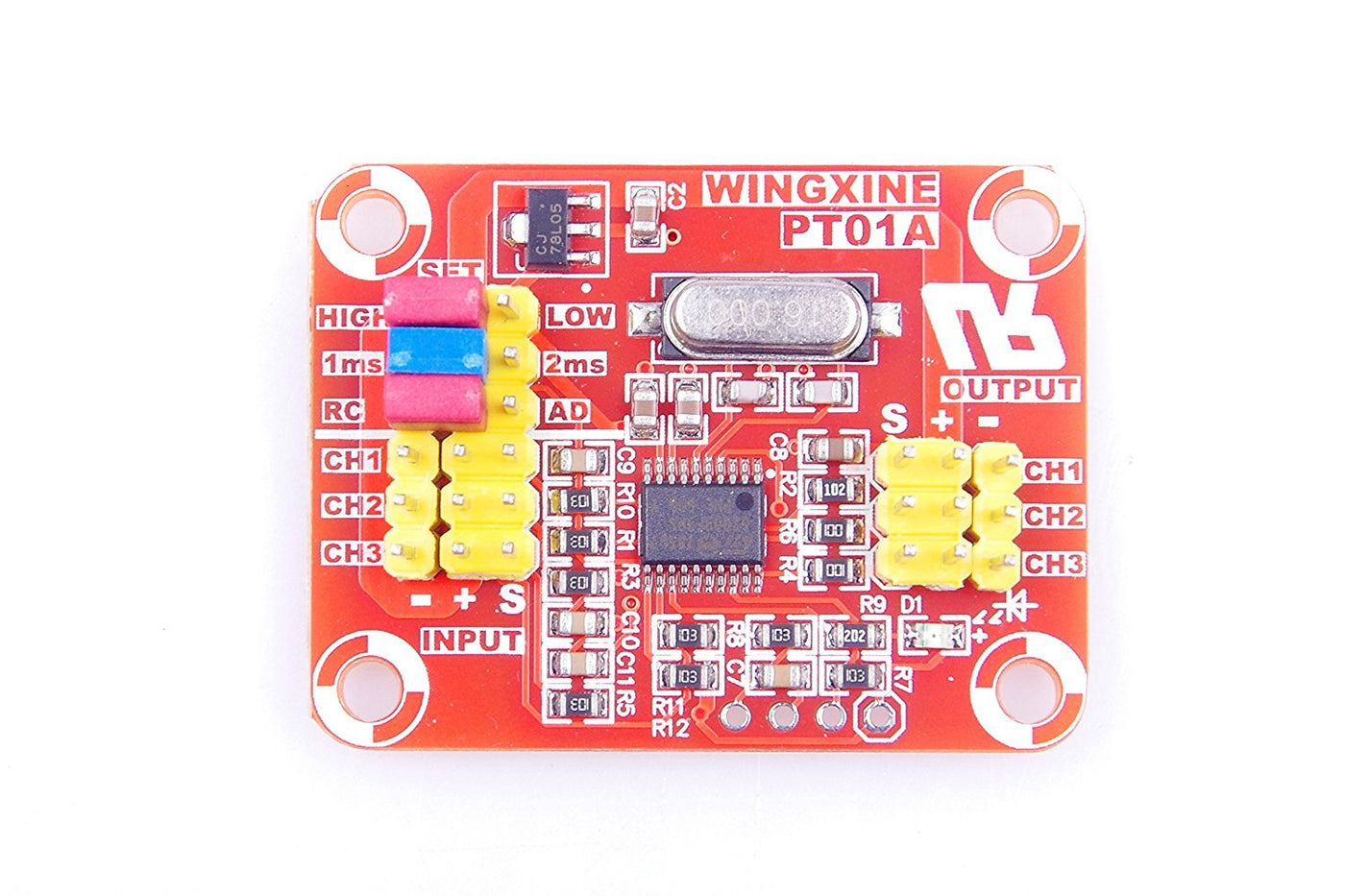

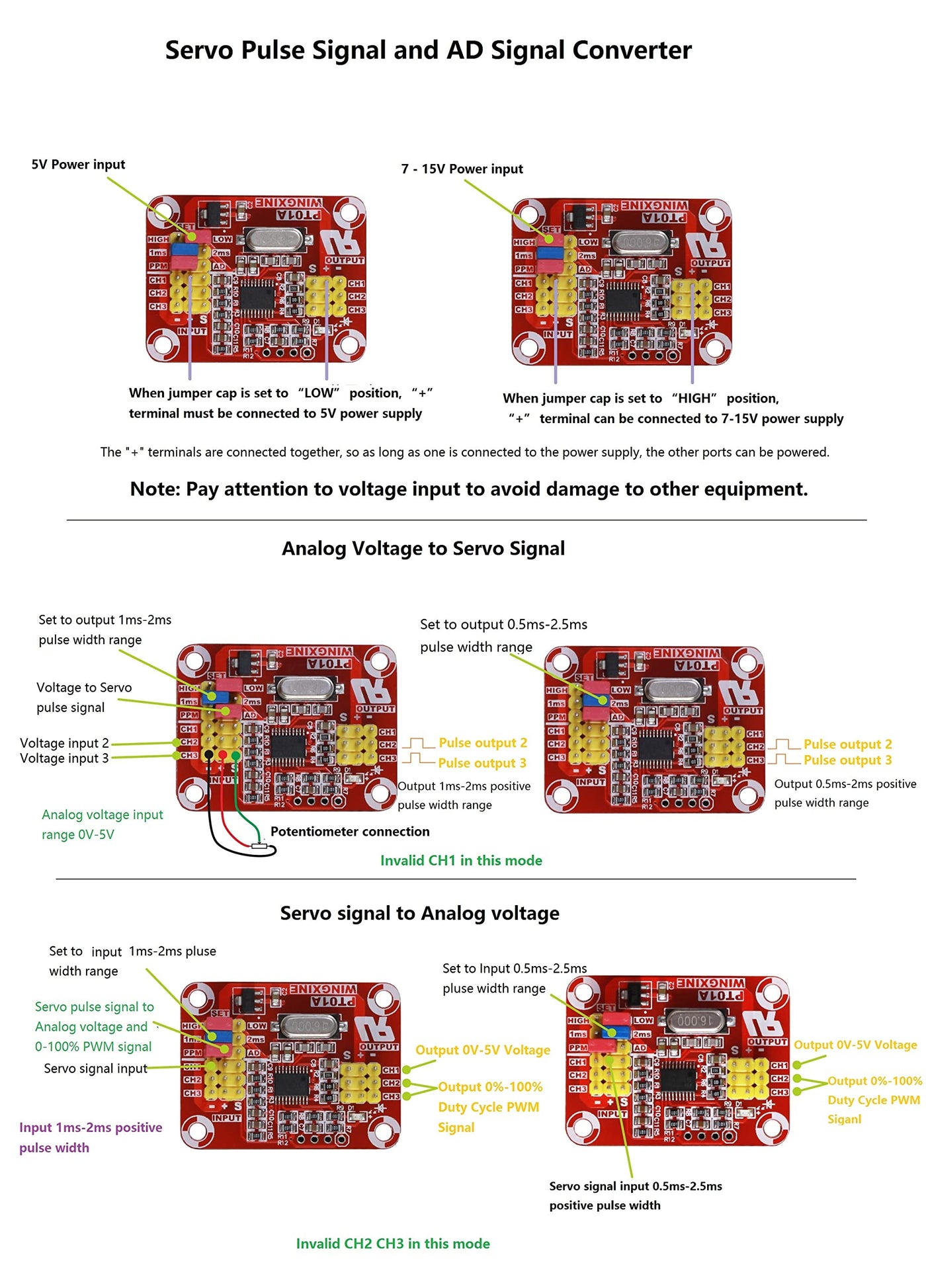

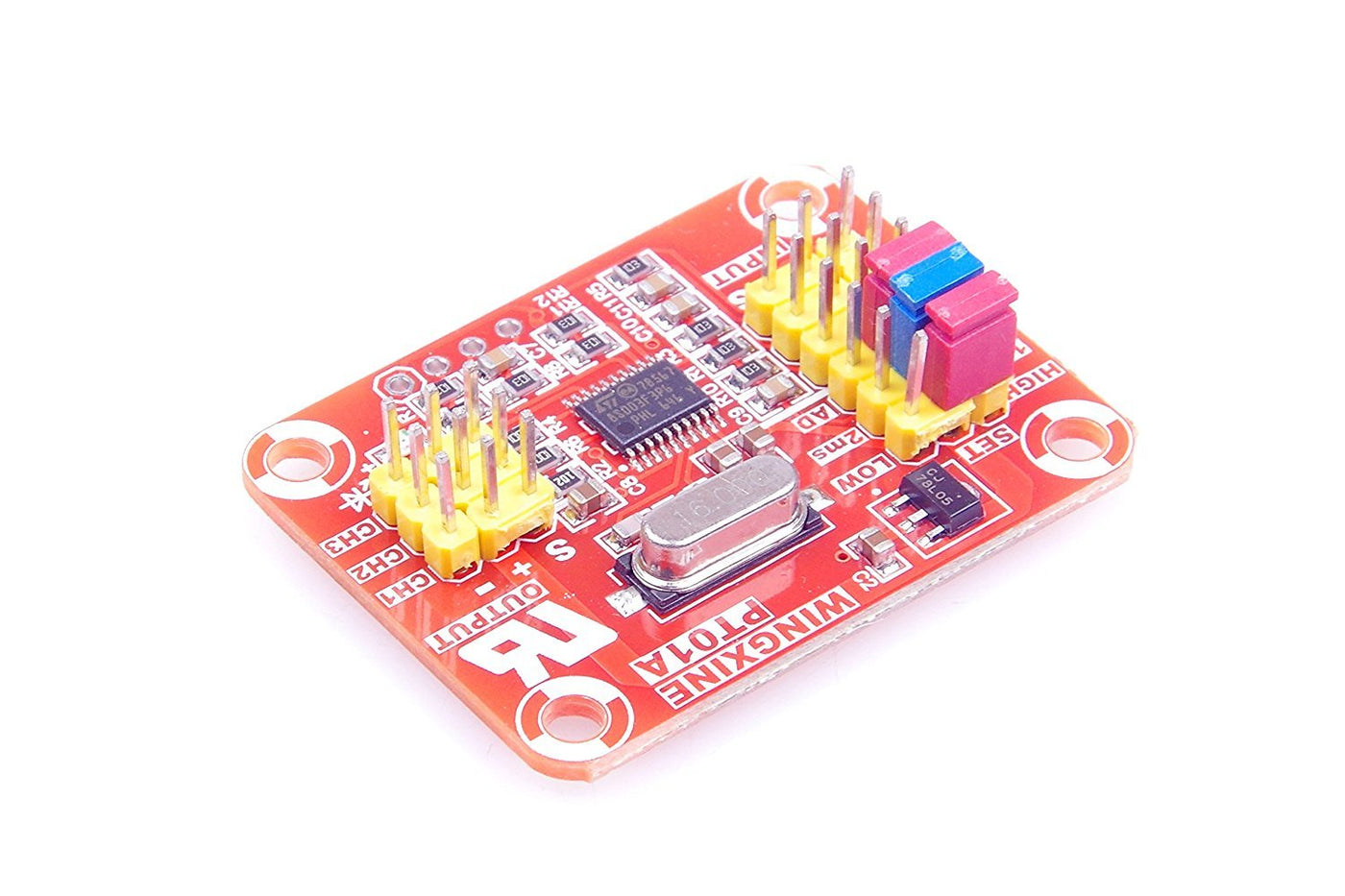

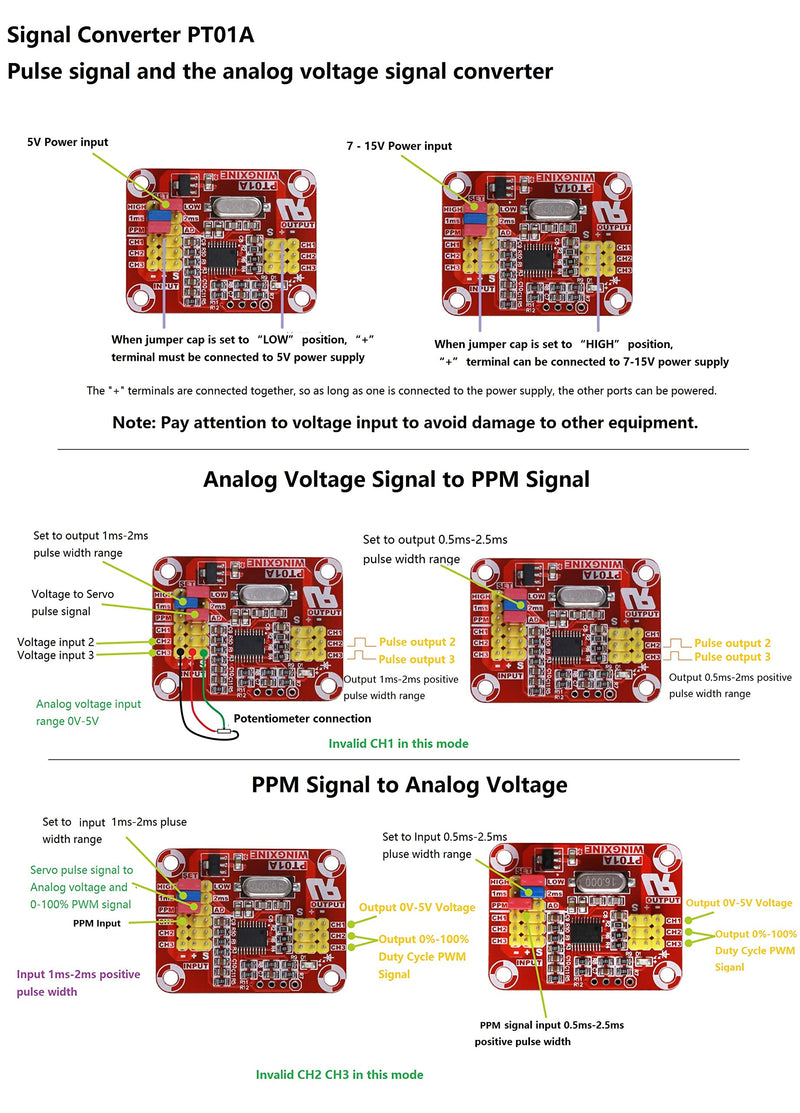

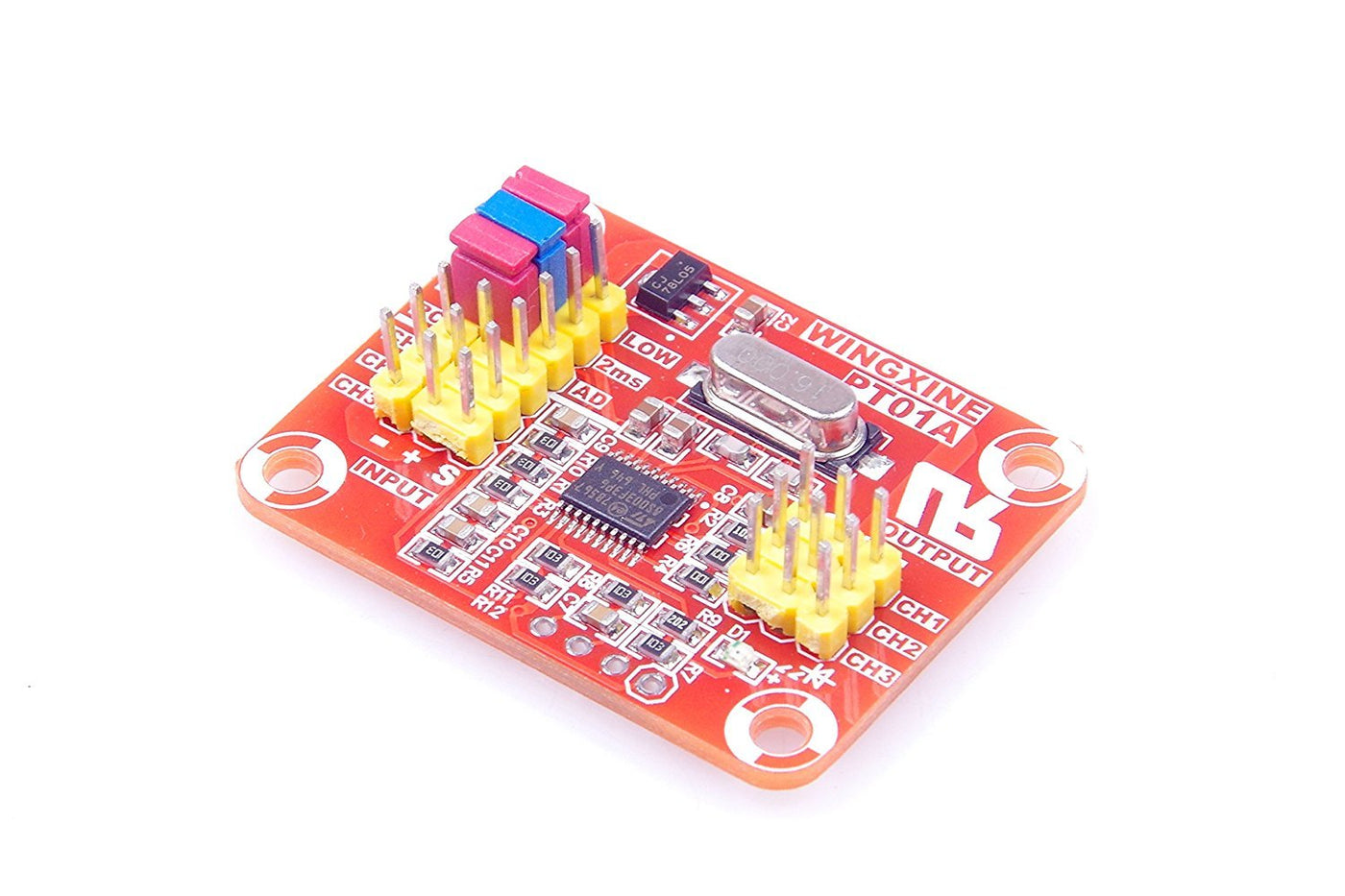

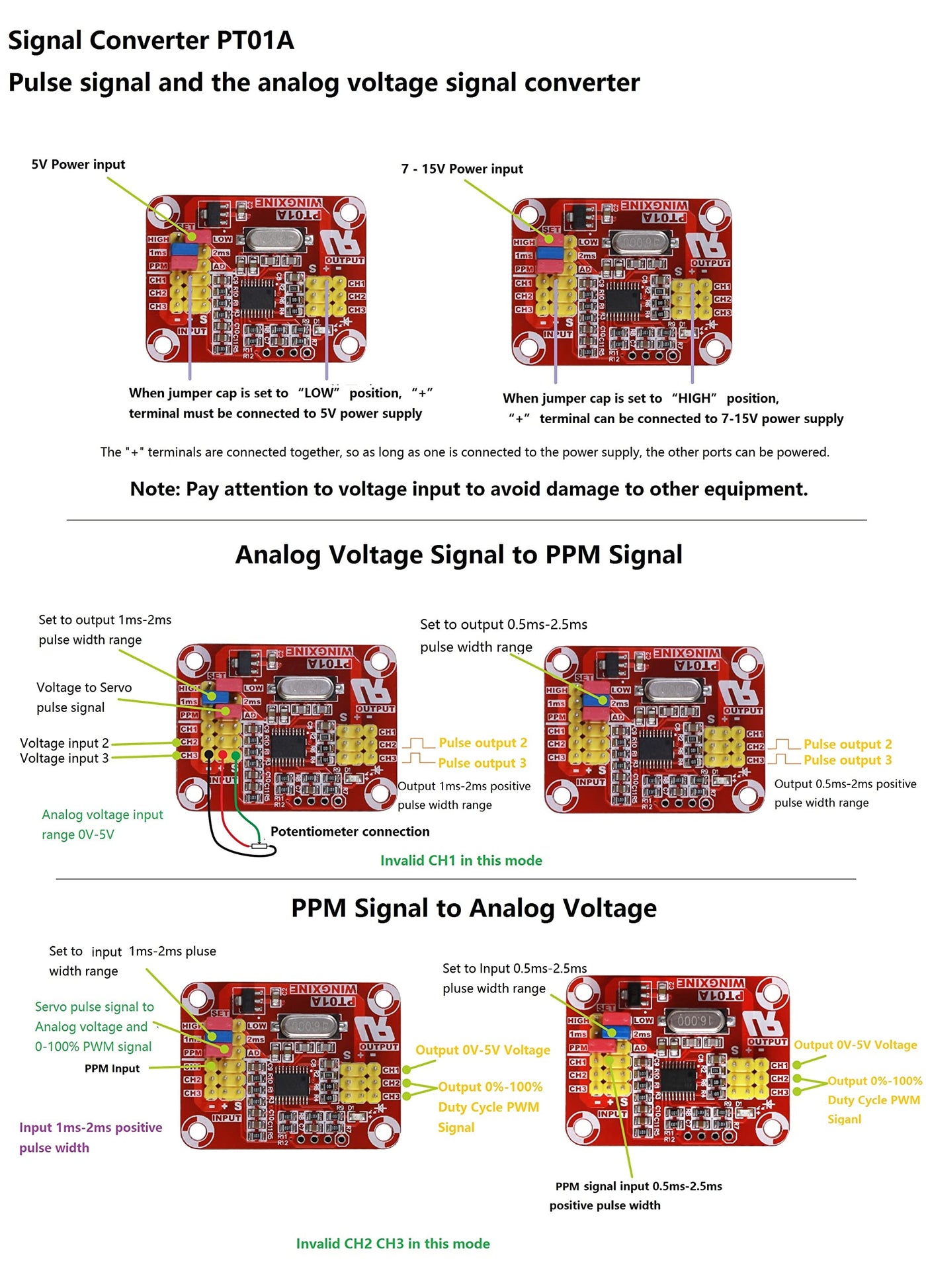

{"id":7177665216692,"title":"NOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration","handle":"noyito-multifunction-signal-converter-module-pt01a-servo-signal-to-voltage-and-pwm-signal-pulse-signal-to-analog-voltage-pwm-converter-for-servo-test-signal-calibration","description":"\u003ch3\u003eNOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTest servos : Analog voltage signal to PPM signals PPM signal to Analog\nvoltage signals PPM signal to PWM signal Features Operating Voltage : DC 5V\n±（Low jumper position ）; DC7V to DC15V (High jumper position); Limit input\nVoltage: 4.5V(MIN) , 5.5V (MAX) (Low jumper position); 6.0V(MIN) ,\n15V(MAX)(High jumper position); Limit output Current : 6.5.a \/ 7.5a; Current:\n＜10mA； Weight：7g; Dimensions:42x31x12mm \/ 1.65x1.22x0.47 inch(LWH)\nApplication: Calibration servo signal Potentiometer or joystick control servo\nRC control motor speed controller Package Included: 1Pcs Multifunction Signal\nConverter Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTest servos :Analog voltage signal to PPM signals , PPM signal to Analog voltage signals , PPM signal to PWM signal.\u003c\/li\u003e\n \u003cli\u003eOperating Voltage : DC 5V (Low jumper position ); DC7V to DC15V (High jumper position);\u003c\/li\u003e\n \u003cli\u003eLimit input Voltage:4.5V(MIN) , 5.5V (MAX) (Low jumper position); 6.0V(MIN) , 15V(MAX)(High jumper position);\u003c\/li\u003e\n \u003cli\u003eLimit output Current : 6.5.a \/ 7.5a; Current: \u0026lt;10mA;\u003c\/li\u003e\n \u003cli\u003eDimensions:42x31x12mm \/ 1.65x1.22x0.47 inch(L*W*H)\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-07-02T03:58:08+10:00","created_at":"2022-07-02T03:58:15+10:00","vendor":"NOYITO","type":"Mounts \u0026 Accessories","tags":["industrial"],"price":13200,"price_min":13200,"price_max":13200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41625768362164,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B077GNDQ8T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration","public_title":null,"options":["Default Title"],"price":13200,"weight":10,"compare_at_price":null,"inventory_management":null,"barcode":"0612957708801","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B077GNDQ8T.jpg?v=1656743154","\/\/auspowers.com\/cdn\/shop\/products\/81Jrn3yKctL.jpg?v=1656698295","\/\/auspowers.com\/cdn\/shop\/products\/71tUeFPWMfL.jpg?v=1656698295","\/\/auspowers.com\/cdn\/shop\/products\/71pQcNnq3IL.jpg?v=1656698295","\/\/auspowers.com\/cdn\/shop\/products\/71iEoOMsGgL.jpg?v=1656698295","\/\/auspowers.com\/cdn\/shop\/products\/81dmMVDkCkL.jpg?v=1656698295"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B077GNDQ8T.jpg?v=1656743154","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration ","id":26375795671220,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B077GNDQ8T.jpg?v=1656743154"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B077GNDQ8T.jpg?v=1656743154","width":1500},{"alt":"[Australia - AusPower] - NOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration ","id":26370783150260,"position":2,"preview_image":{"aspect_ratio":0.719,"height":2560,"width":1840,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81Jrn3yKctL.jpg?v=1656698295"},"aspect_ratio":0.719,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81Jrn3yKctL.jpg?v=1656698295","width":1840},{"alt":"[Australia - AusPower] - NOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration ","id":26370783183028,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71tUeFPWMfL.jpg?v=1656698295"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71tUeFPWMfL.jpg?v=1656698295","width":1500},{"alt":"[Australia - AusPower] - NOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration ","id":26370783215796,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71pQcNnq3IL.jpg?v=1656698295"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71pQcNnq3IL.jpg?v=1656698295","width":1500},{"alt":"[Australia - AusPower] - NOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration ","id":26370783248564,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71iEoOMsGgL.jpg?v=1656698295"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71iEoOMsGgL.jpg?v=1656698295","width":1500},{"alt":"[Australia - AusPower] - NOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration ","id":26370783281332,"position":6,"preview_image":{"aspect_ratio":0.719,"height":2560,"width":1840,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81dmMVDkCkL.jpg?v=1656698295"},"aspect_ratio":0.719,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81dmMVDkCkL.jpg?v=1656698295","width":1840}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO Multifunction Signal Converter Module PT01A Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTest servos : Analog voltage signal to PPM signals PPM signal to Analog\nvoltage signals PPM signal to PWM signal Features Operating Voltage : DC 5V\n±（Low jumper position ）; DC7V to DC15V (High jumper position); Limit input\nVoltage: 4.5V(MIN) , 5.5V (MAX) (Low jumper position); 6.0V(MIN) ,\n15V(MAX)(High jumper position); Limit output Current : 6.5.a \/ 7.5a; Current:\n＜10mA； Weight：7g; Dimensions:42x31x12mm \/ 1.65x1.22x0.47 inch(LWH)\nApplication: Calibration servo signal Potentiometer or joystick control servo\nRC control motor speed controller Package Included: 1Pcs Multifunction Signal\nConverter Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTest servos :Analog voltage signal to PPM signals , PPM signal to Analog voltage signals , PPM signal to PWM signal.\u003c\/li\u003e\n \u003cli\u003eOperating Voltage : DC 5V (Low jumper position ); DC7V to DC15V (High jumper position);\u003c\/li\u003e\n \u003cli\u003eLimit input Voltage:4.5V(MIN) , 5.5V (MAX) (Low jumper position); 6.0V(MIN) , 15V(MAX)(High jumper position);\u003c\/li\u003e\n \u003cli\u003eLimit output Current : 6.5.a \/ 7.5a; Current: \u0026lt;10mA;\u003c\/li\u003e\n \u003cli\u003eDimensions:42x31x12mm \/ 1.65x1.22x0.47 inch(L*W*H)\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
