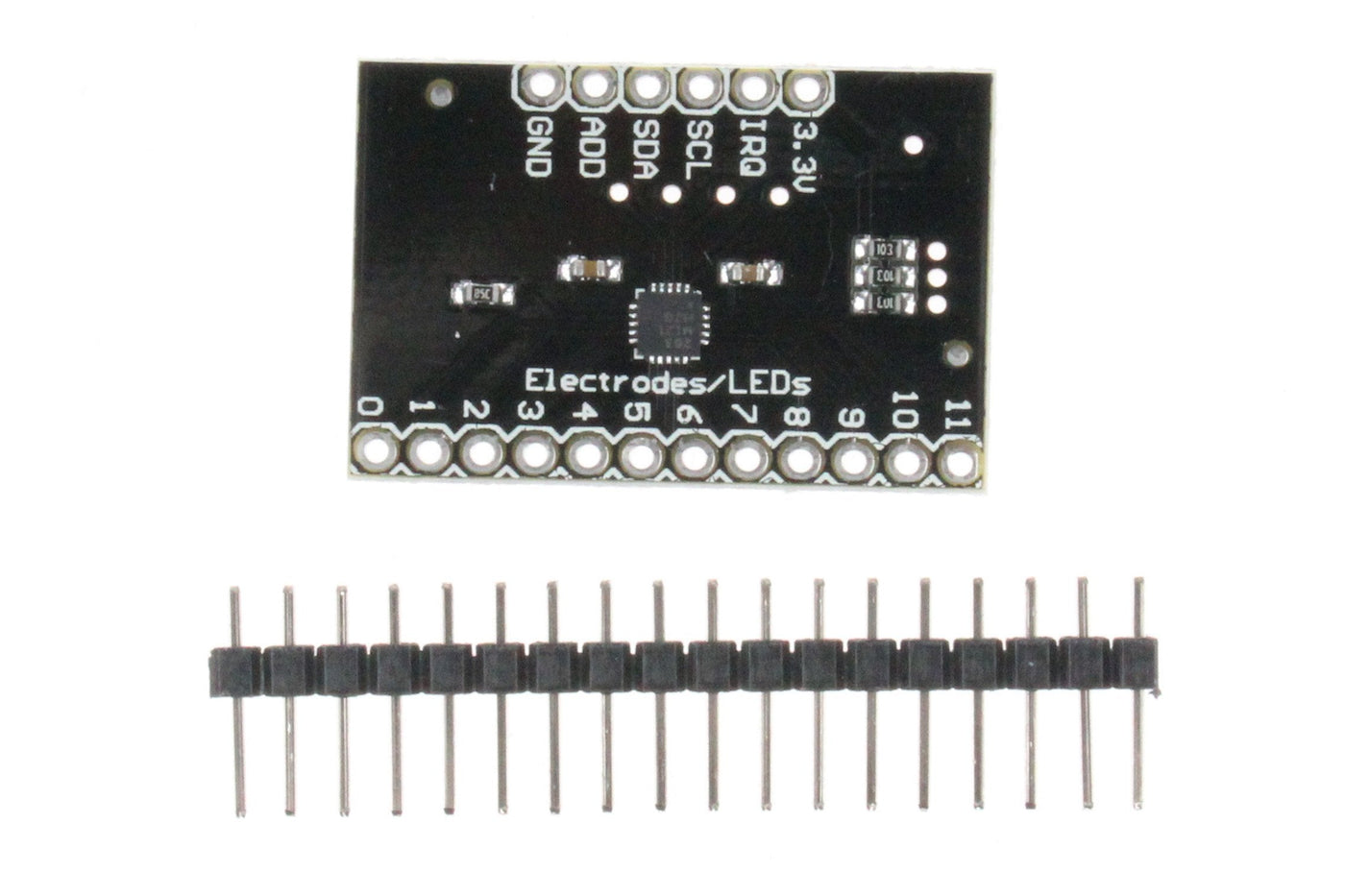

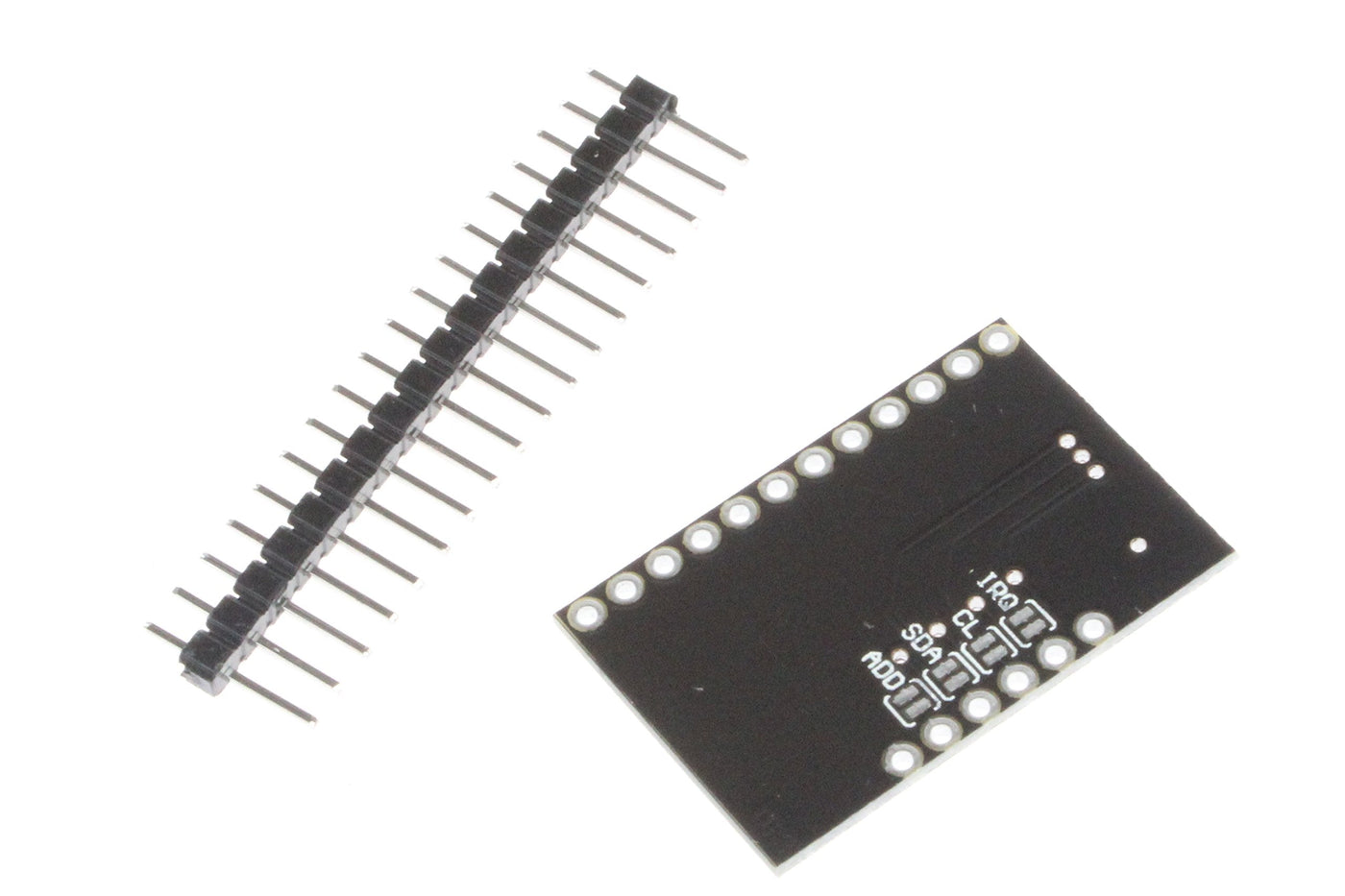

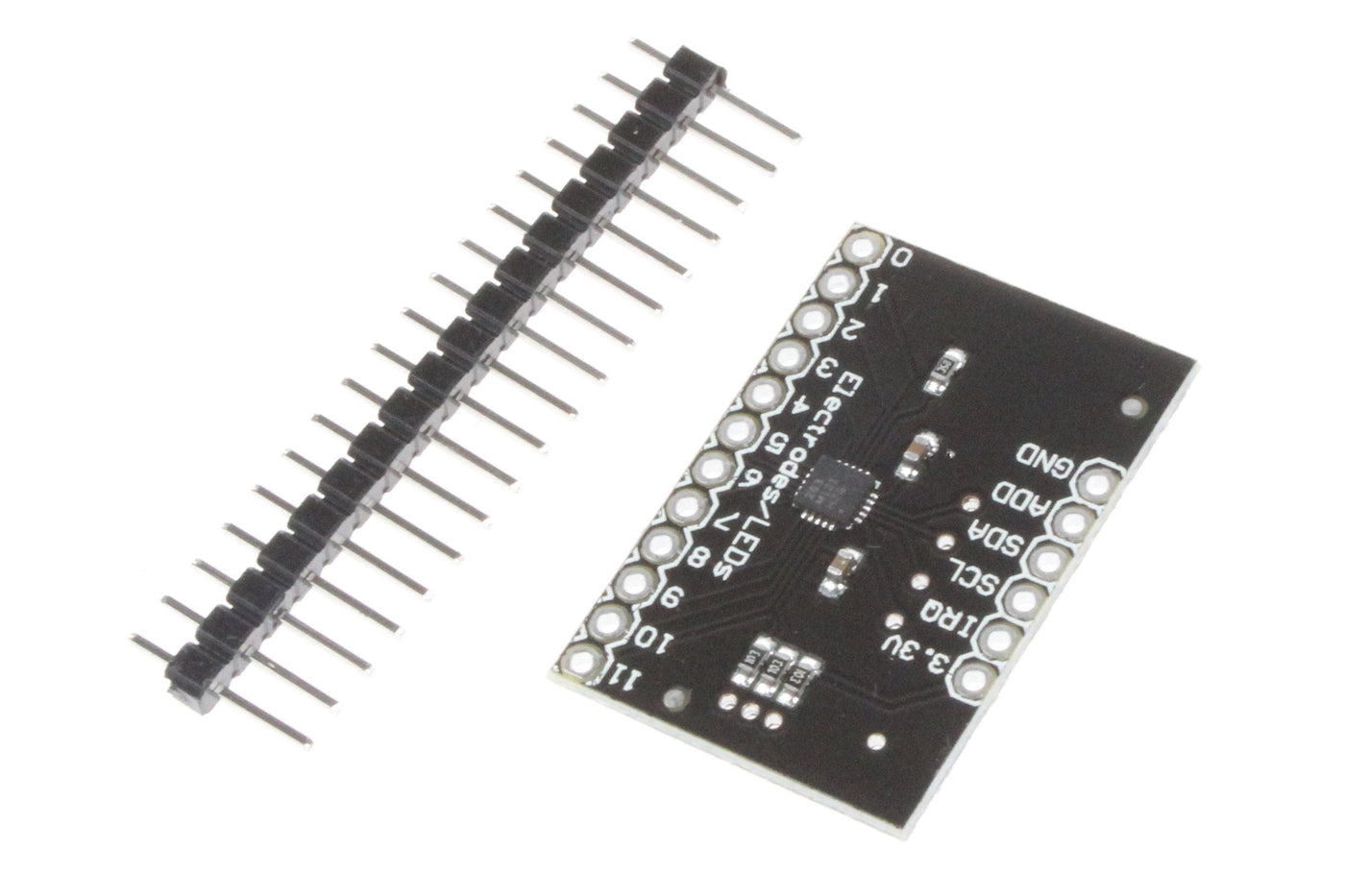

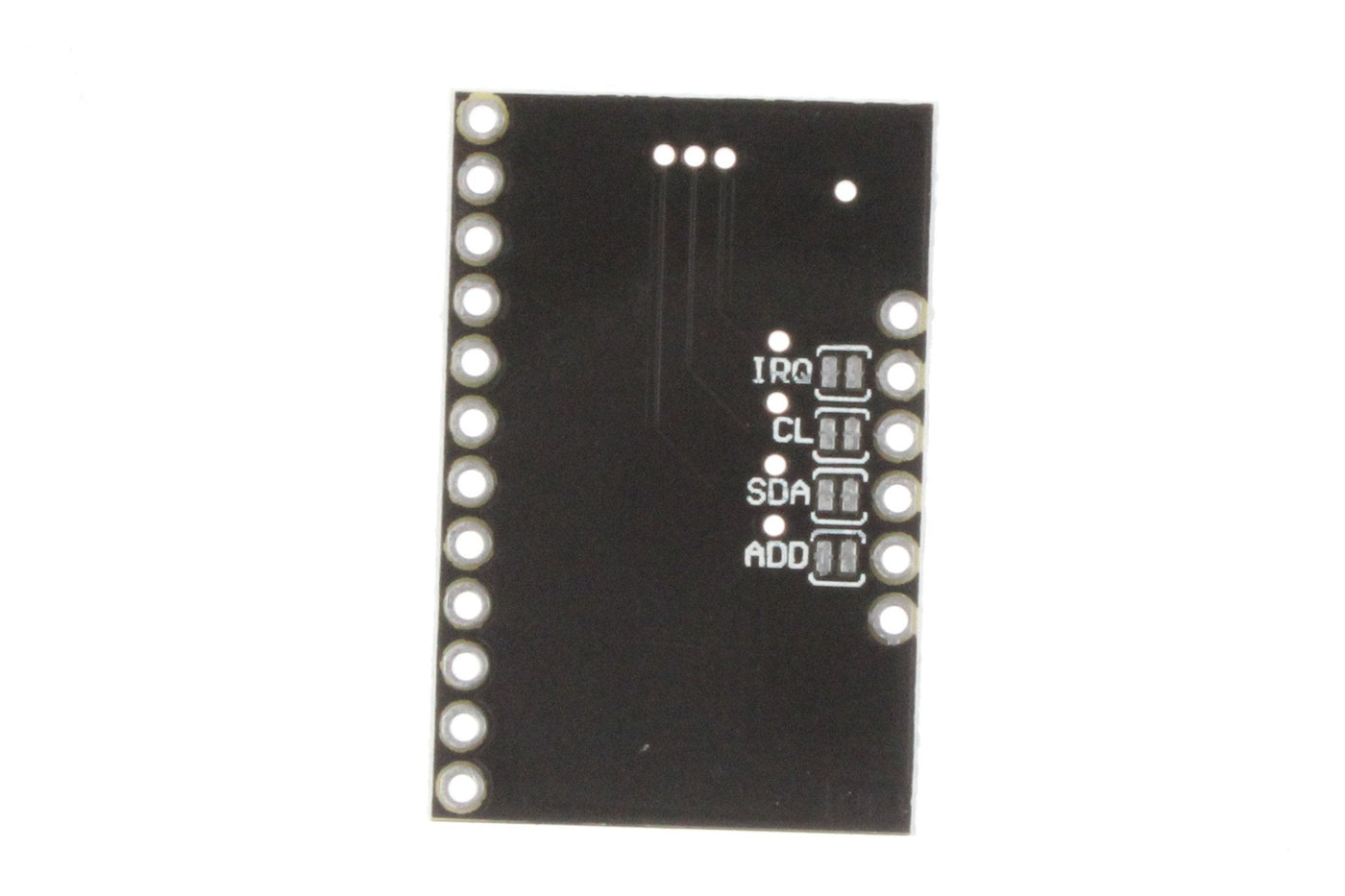

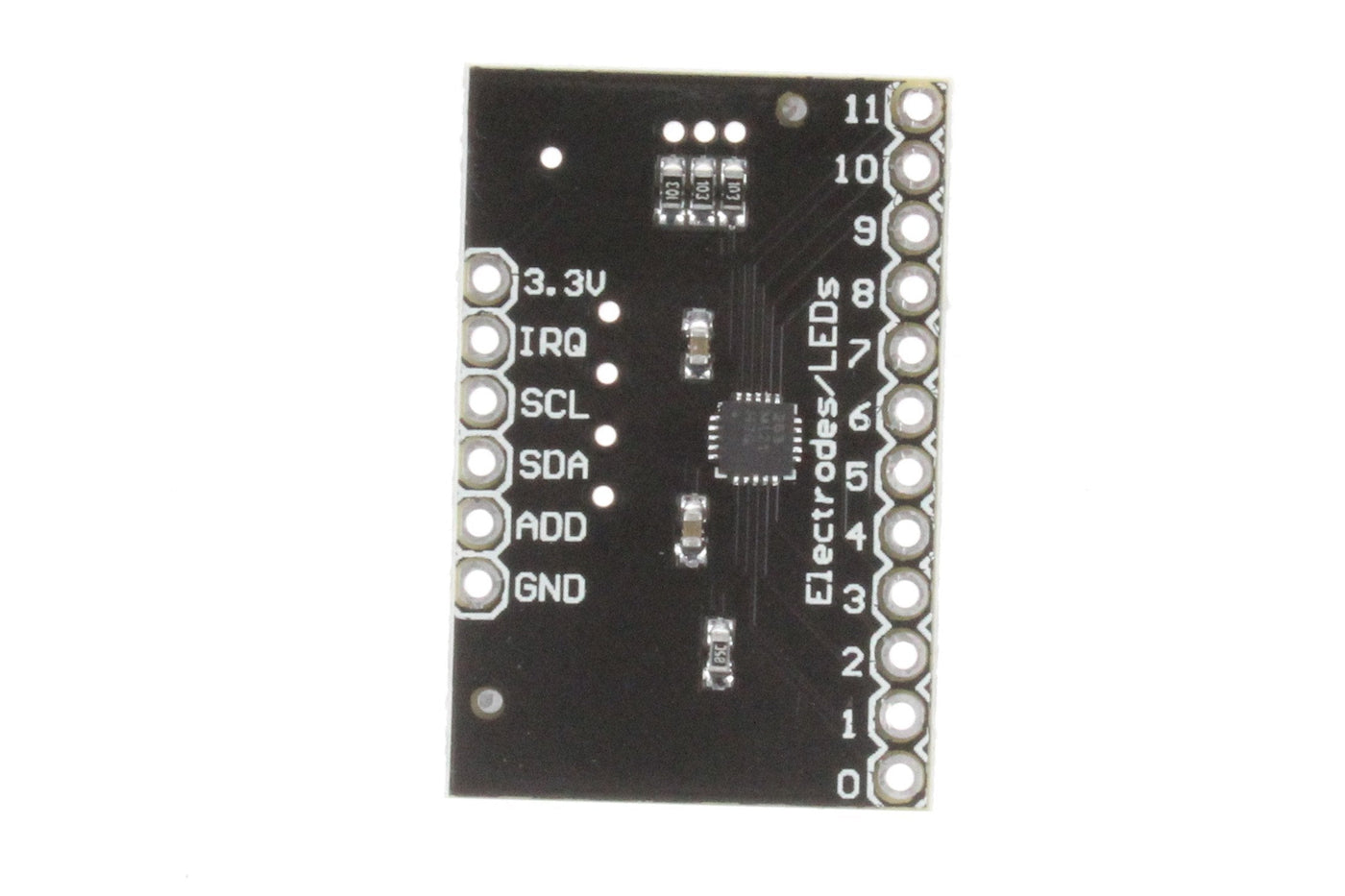

{"id":7254559817908,"title":"NOYITO MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module","handle":"noyito-mpr121-breakout-v12-proximity-capacitive-touch-sensor-module","description":" \u003ch1\u003eNOYITO MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eDescription The MPR121 is a capacitive touch sensor controller driven by an\nI2C interface. The chip can control up to twelve individual electrodes, as\nwell as a simulated thirteenth electrode. The MPR121 also features eight LED\ndriving pins. When these pins are not configured as electrodes, they may be\nused to drive LEDs. There a four jumpers on the bottom of the board, all of\nwhich are set (closed) by default. An address jumper ties the ADD pin to\nground, meaning the default I2C address of the chip will be 0x5A. If you need\nto change the address of the chip (by shorting ADD to a different pin), make\nsure you open the jumper first. Jumpers also connect SDA, SCL and the\ninterrupt pin to 10k pull-up resistors. If you don't require the pull-up\nresistors you can open the jumpers by cutting the trace connecting them. There\nis no regulation on the board, so the voltage supplied should be between 2.5\nand 3.6VDC. The VREG pin is connected through a 0.1uF capacitor to ground,\nwhich means, unless you modify the board, you can't operate the MPR121 in low-\nsupply voltage mode (1.71-2.75VDC). Features: Low power operation. 1.71 V to\n3.6 V supply operation. 29 μA supply current at 16 ms sampling interval\nperiod. 3 μA Stop mode current. 12 capacitance sensing inputs. 8 inputs are\nmultifunctional for LED driver and GPIO. Complete touch detection. Auto-\nconfiguration for each sensing input. Auto-calibration for each sensing input.\nTouch\/release threshold and debounce for touch detection. I2C interface, with\nInterrupt output. MPR121: 3 mm x 3 mm x 0.65 mm . -40°C to +85°C operating\ntemperature range. Package Included: 1Pcs MPR121 Breakout V12 Proximity\nCapacitive Touch Sensor Module\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eThe MPR121 is a capacitive touch sensor controller driven by an I2C interface. The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode.\u003c\/li\u003e\n\u003cli\u003eThe MPR121 also features eight LED driving pins. When these pins are not configured as electrodes, they may be used to drive LEDs.\u003c\/li\u003e\n\u003cli\u003eThere four jumpers on the bottom of the board, all of which are set (closed) by default. An address jumper ties the ADD pin to ground, meaning the default I2C address of the chip will be 0x5A. If you need change the address of the chip (by shorting ADD to a different pin), make sure you open the jumper first. Jumpers also connect SDA, SCL and the interrupt pin to 10k pull-up resistors. If you don't require the pull-up resistors you can open the jumpers by cutting the trace connecting them.\u003c\/li\u003e\n\u003cli\u003eThere is no regulation on the board, so the voltage supplied should be between 2.5 and 3.6VDC. The VREG pin is connected through a 0.1uF capacitor to ground, which means, unless you modify the board, you can't operate the MPR121 in low-supply voltage mode (1.71-2.75VDC).\u003c\/li\u003e\n\u003cli\u003eLow power operation. 1.71 V to 3.6 V supply operation. 29 A supply current at 16 ms sampling interval period. 3 A Stop mode current.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n ","published_at":"2022-09-10T00:13:39+10:00","created_at":"2022-09-10T00:13:46+10:00","vendor":"NOYITO","type":"Sensors","tags":["electronics3"],"price":10500,"price_min":10500,"price_max":10500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41845056176308,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07DQDHXMD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module","public_title":null,"options":["Default Title"],"price":10500,"weight":6,"compare_at_price":null,"inventory_management":null,"barcode":"8541673126","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07DQDHXMD.jpg?v=1662793662","\/\/auspowers.com\/cdn\/shop\/products\/718ifpbYZoL.jpg?v=1662732826","\/\/auspowers.com\/cdn\/shop\/products\/71bZifBmqwL.jpg?v=1662732826","\/\/auspowers.com\/cdn\/shop\/products\/713sYPpXs1L.jpg?v=1662732826","\/\/auspowers.com\/cdn\/shop\/products\/71_NmrPoB6L.jpg?v=1662732826"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07DQDHXMD.jpg?v=1662793662","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module ","id":27112549810356,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1696,"width":2544,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07DQDHXMD.jpg?v=1662793662"},"aspect_ratio":1.5,"height":1696,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07DQDHXMD.jpg?v=1662793662","width":2544},{"alt":"[Australia - AusPower] - NOYITO MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module ","id":27105815101620,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1517,"width":2276,"src":"\/\/auspowers.com\/cdn\/shop\/products\/718ifpbYZoL.jpg?v=1662732826"},"aspect_ratio":1.5,"height":1517,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/718ifpbYZoL.jpg?v=1662732826","width":2276},{"alt":"[Australia - AusPower] - NOYITO MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module ","id":27105815134388,"position":3,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71bZifBmqwL.jpg?v=1662732826"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71bZifBmqwL.jpg?v=1662732826","width":2560},{"alt":"[Australia - AusPower] - NOYITO MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module ","id":27105815167156,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1453,"width":2180,"src":"\/\/auspowers.com\/cdn\/shop\/products\/713sYPpXs1L.jpg?v=1662732826"},"aspect_ratio":1.5,"height":1453,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/713sYPpXs1L.jpg?v=1662732826","width":2180},{"alt":"[Australia - AusPower] - NOYITO MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module ","id":27105815199924,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1540,"width":2310,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71_NmrPoB6L.jpg?v=1662732826"},"aspect_ratio":1.5,"height":1540,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71_NmrPoB6L.jpg?v=1662732826","width":2310}],"requires_selling_plan":false,"selling_plan_groups":[],"content":" \u003ch1\u003eNOYITO MPR121 Breakout V12 Proximity Capacitive Touch Sensor Module\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eDescription The MPR121 is a capacitive touch sensor controller driven by an\nI2C interface. The chip can control up to twelve individual electrodes, as\nwell as a simulated thirteenth electrode. The MPR121 also features eight LED\ndriving pins. When these pins are not configured as electrodes, they may be\nused to drive LEDs. There a four jumpers on the bottom of the board, all of\nwhich are set (closed) by default. An address jumper ties the ADD pin to\nground, meaning the default I2C address of the chip will be 0x5A. If you need\nto change the address of the chip (by shorting ADD to a different pin), make\nsure you open the jumper first. Jumpers also connect SDA, SCL and the\ninterrupt pin to 10k pull-up resistors. If you don't require the pull-up\nresistors you can open the jumpers by cutting the trace connecting them. There\nis no regulation on the board, so the voltage supplied should be between 2.5\nand 3.6VDC. The VREG pin is connected through a 0.1uF capacitor to ground,\nwhich means, unless you modify the board, you can't operate the MPR121 in low-\nsupply voltage mode (1.71-2.75VDC). Features: Low power operation. 1.71 V to\n3.6 V supply operation. 29 μA supply current at 16 ms sampling interval\nperiod. 3 μA Stop mode current. 12 capacitance sensing inputs. 8 inputs are\nmultifunctional for LED driver and GPIO. Complete touch detection. Auto-\nconfiguration for each sensing input. Auto-calibration for each sensing input.\nTouch\/release threshold and debounce for touch detection. I2C interface, with\nInterrupt output. MPR121: 3 mm x 3 mm x 0.65 mm . -40°C to +85°C operating\ntemperature range. Package Included: 1Pcs MPR121 Breakout V12 Proximity\nCapacitive Touch Sensor Module\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eThe MPR121 is a capacitive touch sensor controller driven by an I2C interface. The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode.\u003c\/li\u003e\n\u003cli\u003eThe MPR121 also features eight LED driving pins. When these pins are not configured as electrodes, they may be used to drive LEDs.\u003c\/li\u003e\n\u003cli\u003eThere four jumpers on the bottom of the board, all of which are set (closed) by default. An address jumper ties the ADD pin to ground, meaning the default I2C address of the chip will be 0x5A. If you need change the address of the chip (by shorting ADD to a different pin), make sure you open the jumper first. Jumpers also connect SDA, SCL and the interrupt pin to 10k pull-up resistors. If you don't require the pull-up resistors you can open the jumpers by cutting the trace connecting them.\u003c\/li\u003e\n\u003cli\u003eThere is no regulation on the board, so the voltage supplied should be between 2.5 and 3.6VDC. The VREG pin is connected through a 0.1uF capacitor to ground, which means, unless you modify the board, you can't operate the MPR121 in low-supply voltage mode (1.71-2.75VDC).\u003c\/li\u003e\n\u003cli\u003eLow power operation. 1.71 V to 3.6 V supply operation. 29 A supply current at 16 ms sampling interval period. 3 A Stop mode current.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n "}
