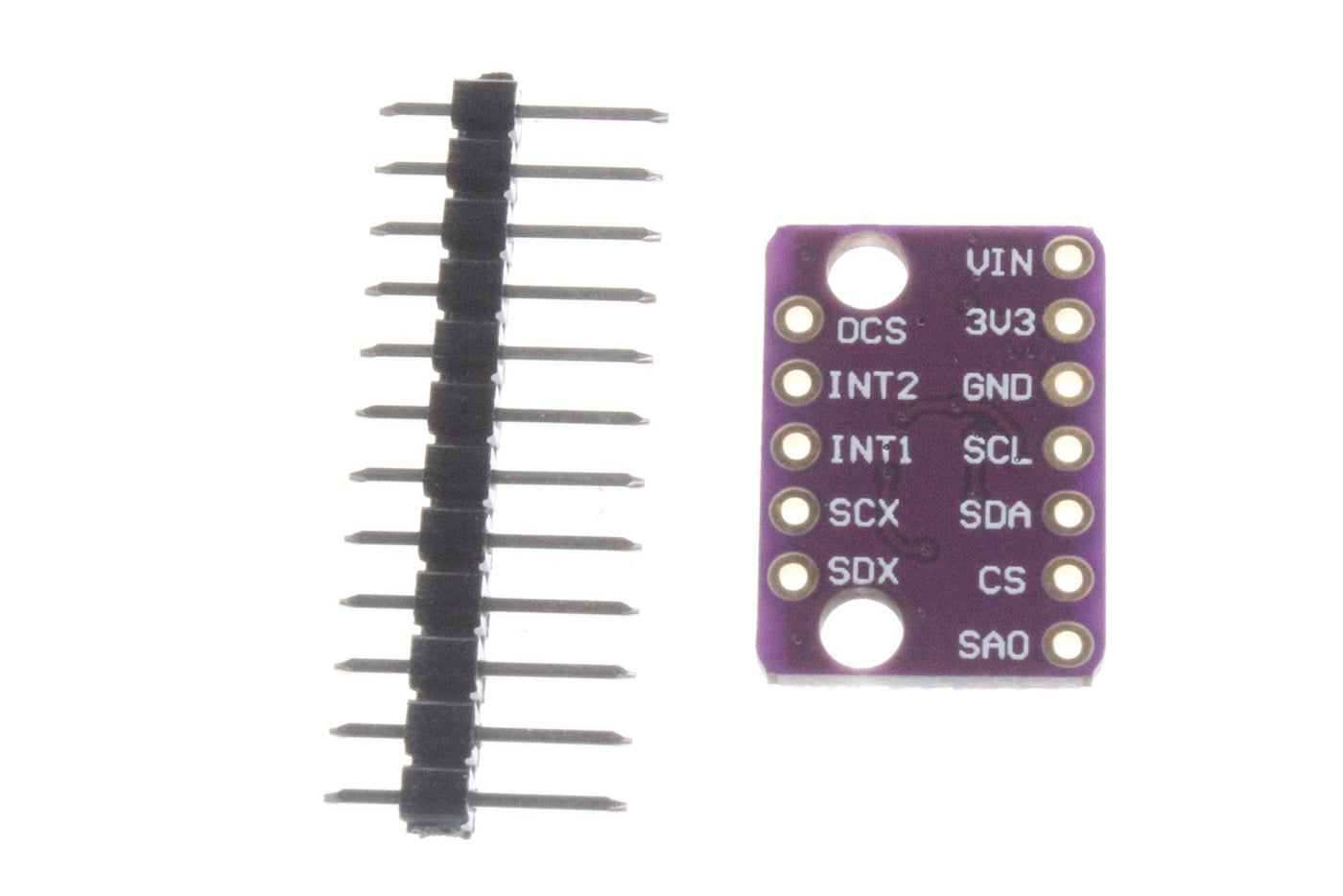

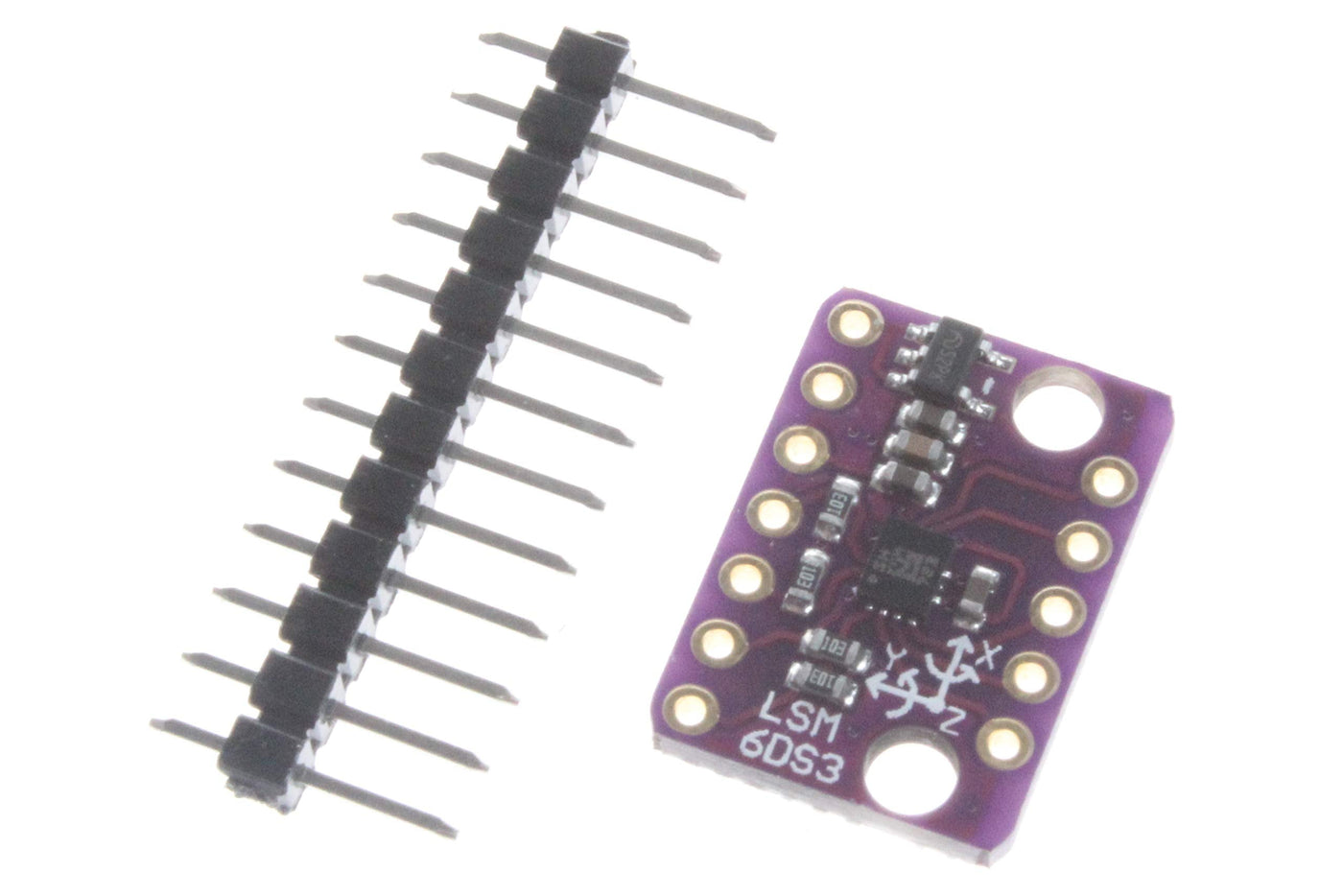

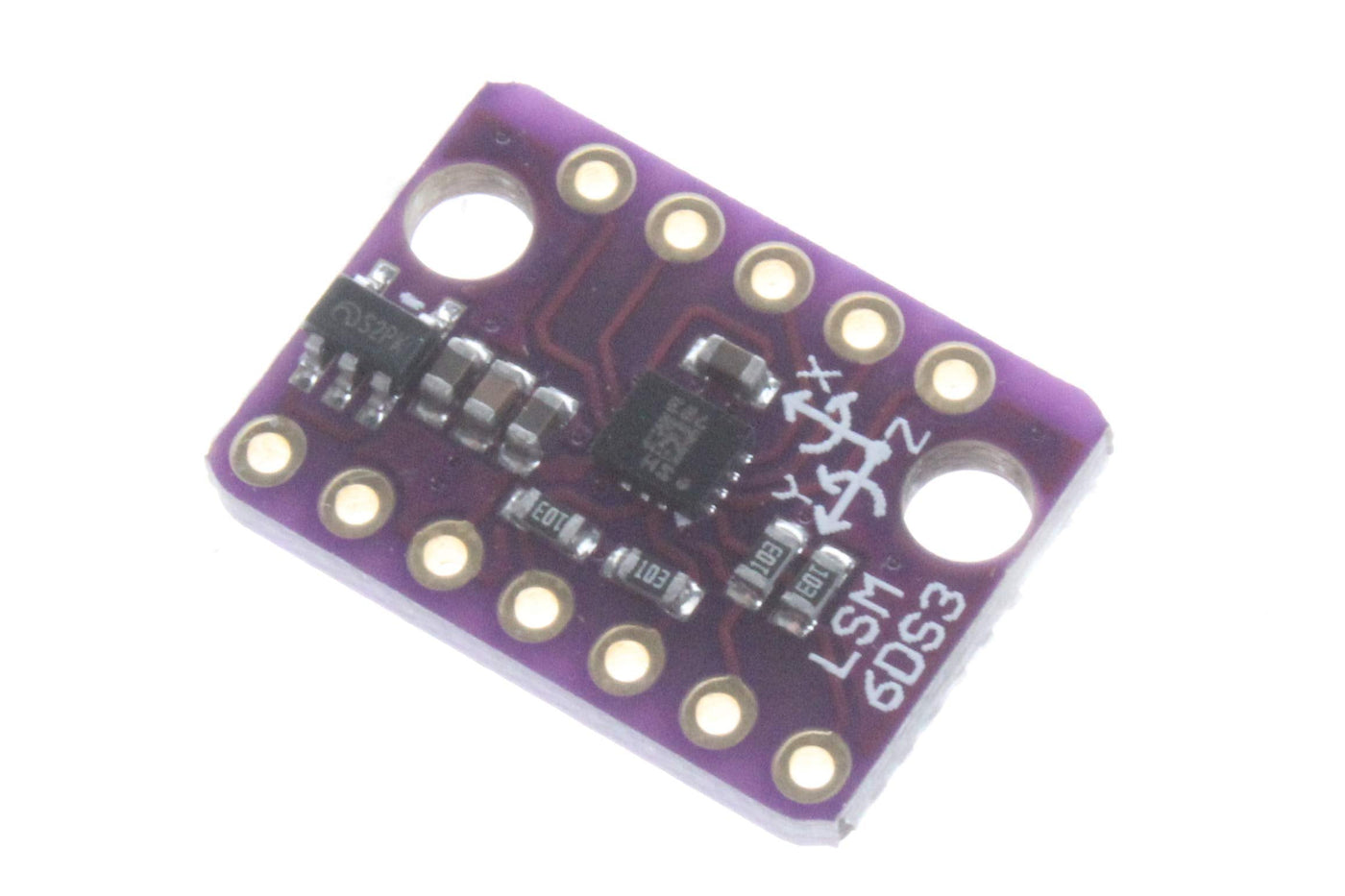

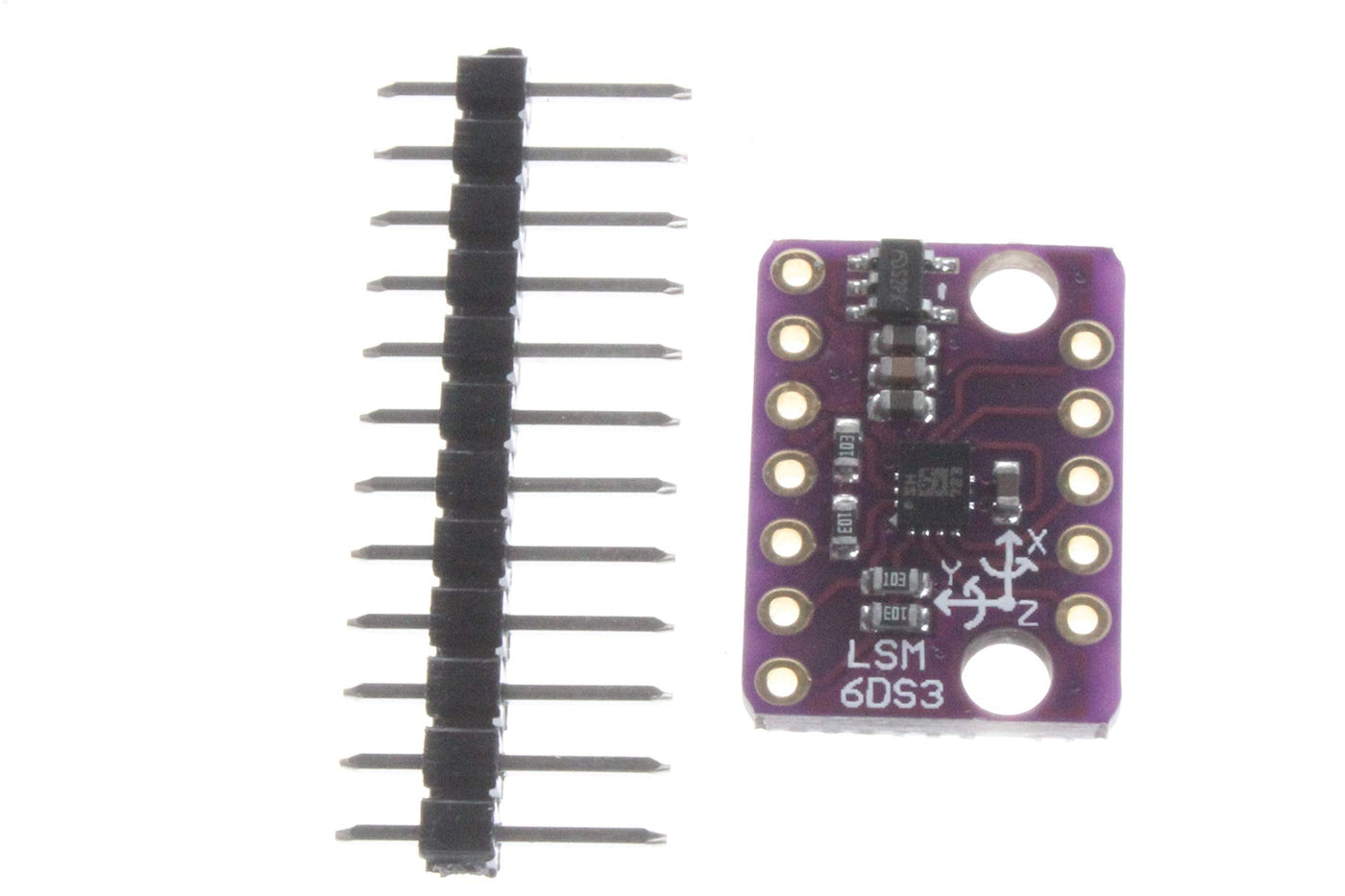

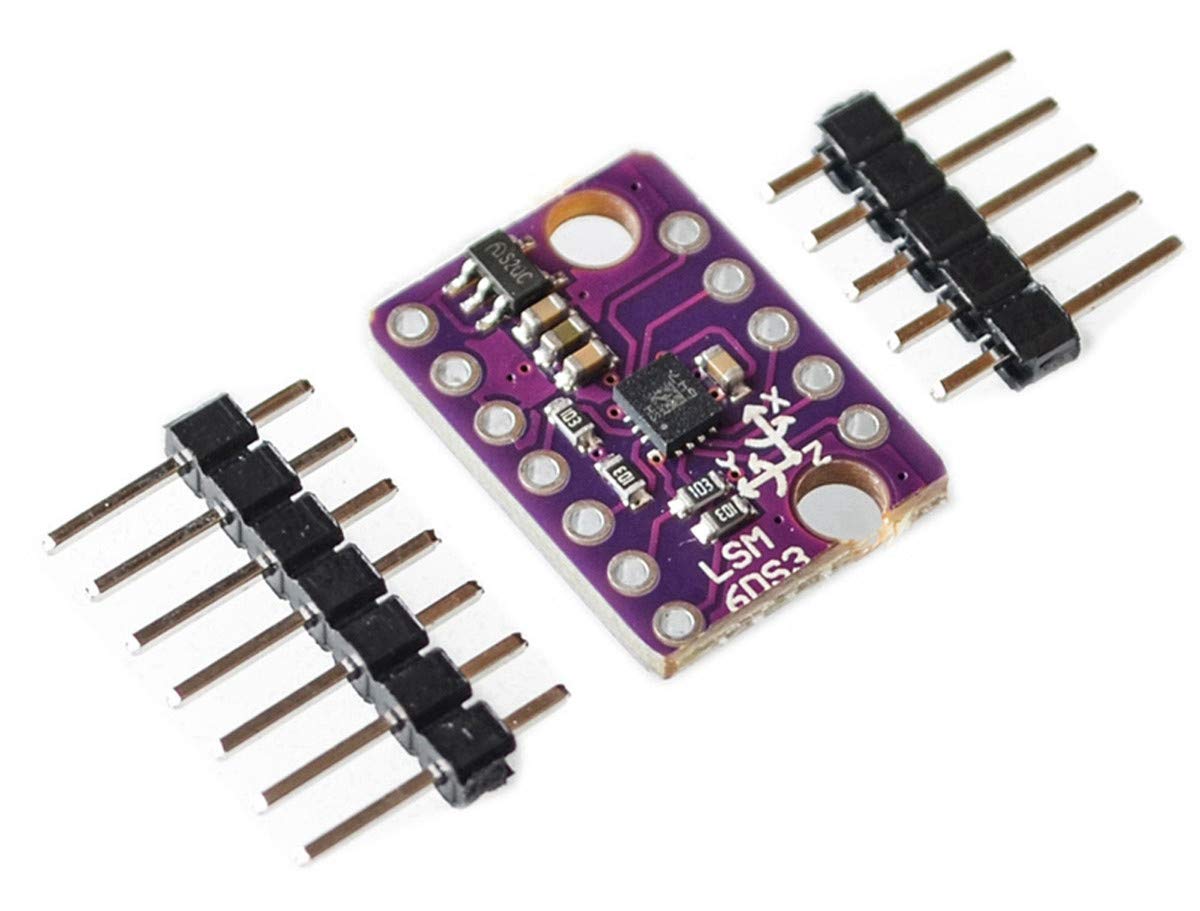

{"id":7807393267892,"title":"NOYITO LSM6DS3 3 Accelerometer 3 Gyroscope Sensor 6 Degrees of Freedom Breakout Board Tilt Angle Module 1.71 to 5V Embedded Temperature Sensor SPI IIC Serial Interface","handle":"noyito-lsm6ds3-3-accelerometer-3-gyroscope-sensor-6-degrees-of-freedom-breakout-board-tilt-angle-module-1-71-to-5v-embedded-temperature-sensor-spi-iic-serial-interface","description":"\u003ch3\u003eNOYITO LSM6DS3 3 Accelerometer 3 Gyroscope Sensor 6 Degrees of Freedom Breakout Board Tilt Angle Module 1.71 to 5V Embedded Temperature Sensor SPI IIC Serial Interface\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo\nhigh-performance mode up to 1.6 kHz. “Always on” experience with low power\nconsumption for both accelerometer and gyroscope Smart FIFO up to 8 kbyte\nbased on features set ±2\/±4\/±8\/±16 g full scale ±125\/±245\/±500\/±1000\/±2000 dps\nfull scale Analog supply voltage: 1.71 V to 5 V SPI\/I2C serial interface with\nmain processor data synchronization feature Embedded temperature sensor\nSize:13mm18mm(LW) Package Included: 1Pcs NOYITO 3 Accelerometer 3 Gyroscope\nSensor 6 Degrees of Freedom Breakout Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe LSM6DS3 is a accelerometer and gyroscope sensor with a giant 8kb FIFO buffer and embedded processing interrupt functions.\u003c\/li\u003e\n \u003cli\u003eEach LSM6DS3 Breakout has been designed to be super-flexible and can be configured specifically for many applications. With the LSM6DS3 Breakout you will be able to detect shocks, tilt, motion, taps, count steps, and even read the temperature!\u003c\/li\u003e\n \u003cli\u003eThe LSM6DS3 is capable of reading accelerometer data up to 6.7kS\/s and gyroscope data up to 1.7kS\/s for more accurate movement sensing. As stated before this breakout also has the ability to buffer up to 8kB of data between reads, host other sensors, and drive interrupt pins all thanks to the LSM6DS3s built-in FIFO.\u003c\/li\u003e\n \u003cli\u003eEach pin has been broken out on the LSM6DS3, with one side of the board featuring power and I2C functionality while the other side sporting pins that control SPI functionality and interrupt outputs.\u003c\/li\u003e\n \u003cli\u003ePlease keep in mind that the LSM6DS3 is a 3.3V device so supplying voltages greater than ~3.6V can permanently damage the IC. A logic level shifter is required for any development platform operating at 5V.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-08-02T00:28:21+10:00","created_at":"2024-08-02T00:28:21+10:00","vendor":"NOYITO","type":"Acceleration Sensors","tags":["industrial_Aug2024_update"],"price":10100,"price_min":10100,"price_max":10100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43449112887476,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07K5LVMZ2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO LSM6DS3 3 Accelerometer 3 Gyroscope Sensor 6 Degrees of Freedom Breakout Board Tilt Angle Module 1.71 to 5V Embedded Temperature Sensor SPI IIC Serial Interface","public_title":null,"options":["Default Title"],"price":10100,"weight":41,"compare_at_price":null,"inventory_management":"shopify","barcode":"680613661586","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07K5LVMZ2.jpg?v=1722581886","\/\/auspowers.com\/cdn\/shop\/files\/71GoTO2UndL.jpg?v=1722522511","\/\/auspowers.com\/cdn\/shop\/files\/71NwMZc-20L.jpg?v=1722522511","\/\/auspowers.com\/cdn\/shop\/files\/71gtvu-OzAL.jpg?v=1722522511","\/\/auspowers.com\/cdn\/shop\/files\/710jhAuGh5L.jpg?v=1722522511"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07K5LVMZ2.jpg?v=1722581886","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO LSM6DS3 3 Accelerometer 3 Gyroscope Sensor 6 Degrees of Freedom Breakout Board Tilt Angle Module 1.71 to 5V Embedded Temperature Sensor SPI IIC Serial Interface ","id":30556429189300,"position":1,"preview_image":{"aspect_ratio":1.317,"height":911,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07K5LVMZ2.jpg?v=1722581886"},"aspect_ratio":1.317,"height":911,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07K5LVMZ2.jpg?v=1722581886","width":1200},{"alt":"[Australia - AusPower] - NOYITO LSM6DS3 3 Accelerometer 3 Gyroscope Sensor 6 Degrees of Freedom Breakout Board Tilt Angle Module 1.71 to 5V Embedded Temperature Sensor SPI IIC Serial Interface ","id":30553033048244,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71GoTO2UndL.jpg?v=1722522511"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71GoTO2UndL.jpg?v=1722522511","width":2560},{"alt":"[Australia - AusPower] - NOYITO LSM6DS3 3 Accelerometer 3 Gyroscope Sensor 6 Degrees of Freedom Breakout Board Tilt Angle Module 1.71 to 5V Embedded Temperature Sensor SPI IIC Serial Interface ","id":30553033081012,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71NwMZc-20L.jpg?v=1722522511"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71NwMZc-20L.jpg?v=1722522511","width":2560},{"alt":"[Australia - AusPower] - NOYITO LSM6DS3 3 Accelerometer 3 Gyroscope Sensor 6 Degrees of Freedom Breakout Board Tilt Angle Module 1.71 to 5V Embedded Temperature Sensor SPI IIC Serial Interface ","id":30553033113780,"position":4,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71gtvu-OzAL.jpg?v=1722522511"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71gtvu-OzAL.jpg?v=1722522511","width":2560},{"alt":"[Australia - AusPower] - NOYITO LSM6DS3 3 Accelerometer 3 Gyroscope Sensor 6 Degrees of Freedom Breakout Board Tilt Angle Module 1.71 to 5V Embedded Temperature Sensor SPI IIC Serial Interface ","id":30553033146548,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1540,"width":2310,"src":"\/\/auspowers.com\/cdn\/shop\/files\/710jhAuGh5L.jpg?v=1722522511"},"aspect_ratio":1.5,"height":1540,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/710jhAuGh5L.jpg?v=1722522511","width":2310}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO LSM6DS3 3 Accelerometer 3 Gyroscope Sensor 6 Degrees of Freedom Breakout Board Tilt Angle Module 1.71 to 5V Embedded Temperature Sensor SPI IIC Serial Interface\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo\nhigh-performance mode up to 1.6 kHz. “Always on” experience with low power\nconsumption for both accelerometer and gyroscope Smart FIFO up to 8 kbyte\nbased on features set ±2\/±4\/±8\/±16 g full scale ±125\/±245\/±500\/±1000\/±2000 dps\nfull scale Analog supply voltage: 1.71 V to 5 V SPI\/I2C serial interface with\nmain processor data synchronization feature Embedded temperature sensor\nSize:13mm18mm(LW) Package Included: 1Pcs NOYITO 3 Accelerometer 3 Gyroscope\nSensor 6 Degrees of Freedom Breakout Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe LSM6DS3 is a accelerometer and gyroscope sensor with a giant 8kb FIFO buffer and embedded processing interrupt functions.\u003c\/li\u003e\n \u003cli\u003eEach LSM6DS3 Breakout has been designed to be super-flexible and can be configured specifically for many applications. With the LSM6DS3 Breakout you will be able to detect shocks, tilt, motion, taps, count steps, and even read the temperature!\u003c\/li\u003e\n \u003cli\u003eThe LSM6DS3 is capable of reading accelerometer data up to 6.7kS\/s and gyroscope data up to 1.7kS\/s for more accurate movement sensing. As stated before this breakout also has the ability to buffer up to 8kB of data between reads, host other sensors, and drive interrupt pins all thanks to the LSM6DS3s built-in FIFO.\u003c\/li\u003e\n \u003cli\u003eEach pin has been broken out on the LSM6DS3, with one side of the board featuring power and I2C functionality while the other side sporting pins that control SPI functionality and interrupt outputs.\u003c\/li\u003e\n \u003cli\u003ePlease keep in mind that the LSM6DS3 is a 3.3V device so supplying voltages greater than ~3.6V can permanently damage the IC. A logic level shifter is required for any development platform operating at 5V.\u003c\/li\u003e\n \u003c\/ul\u003e"}
