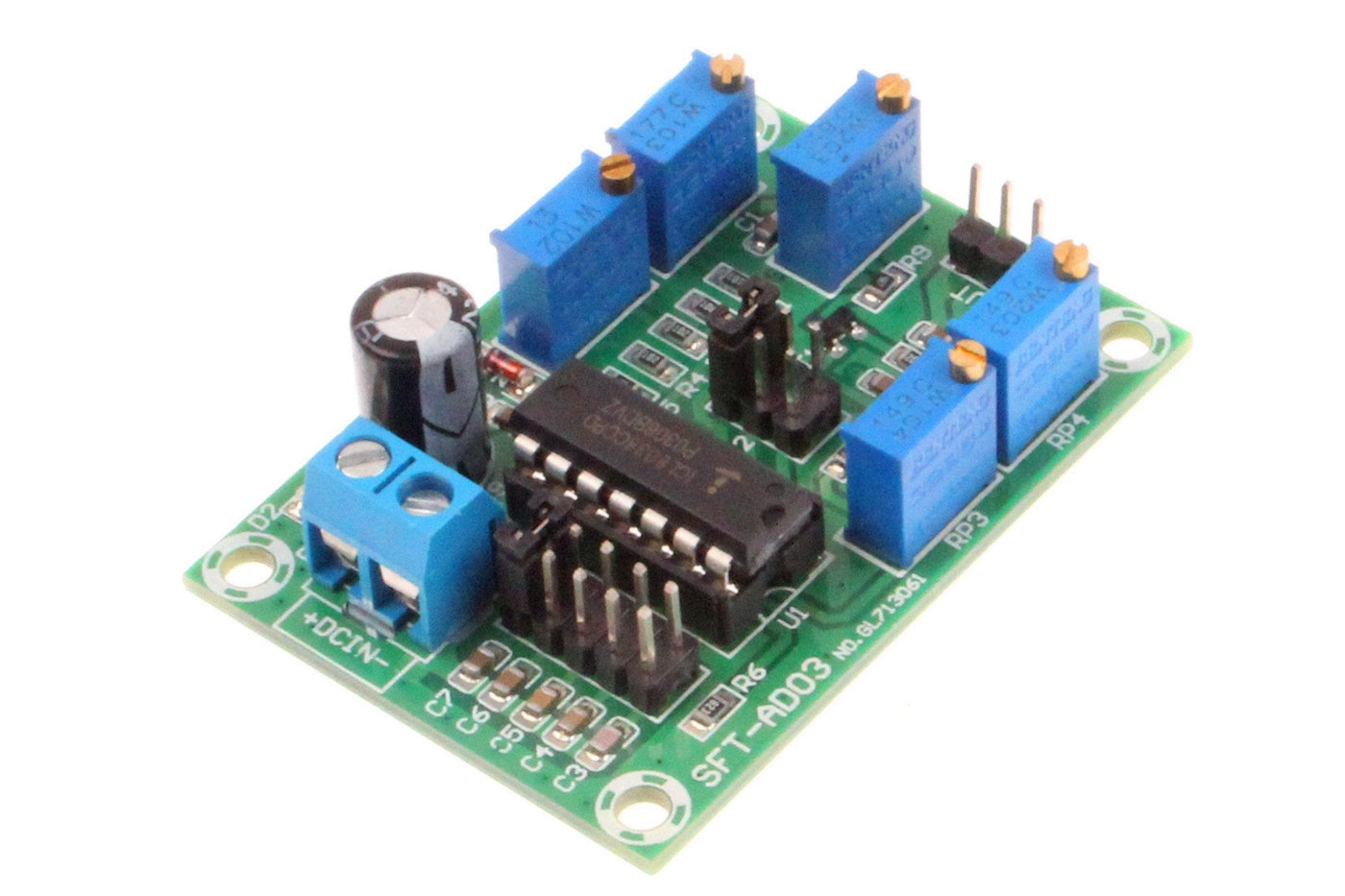

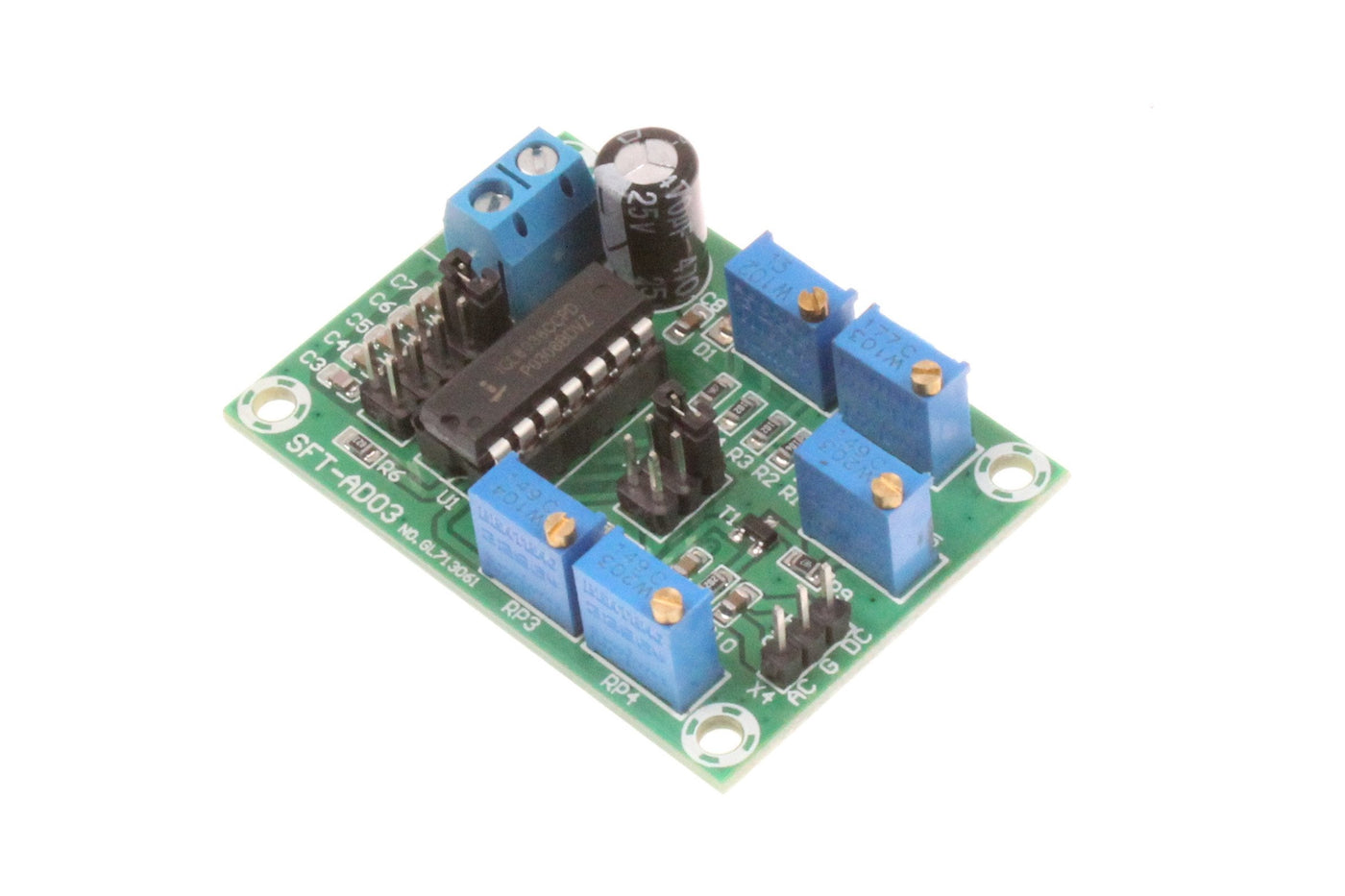

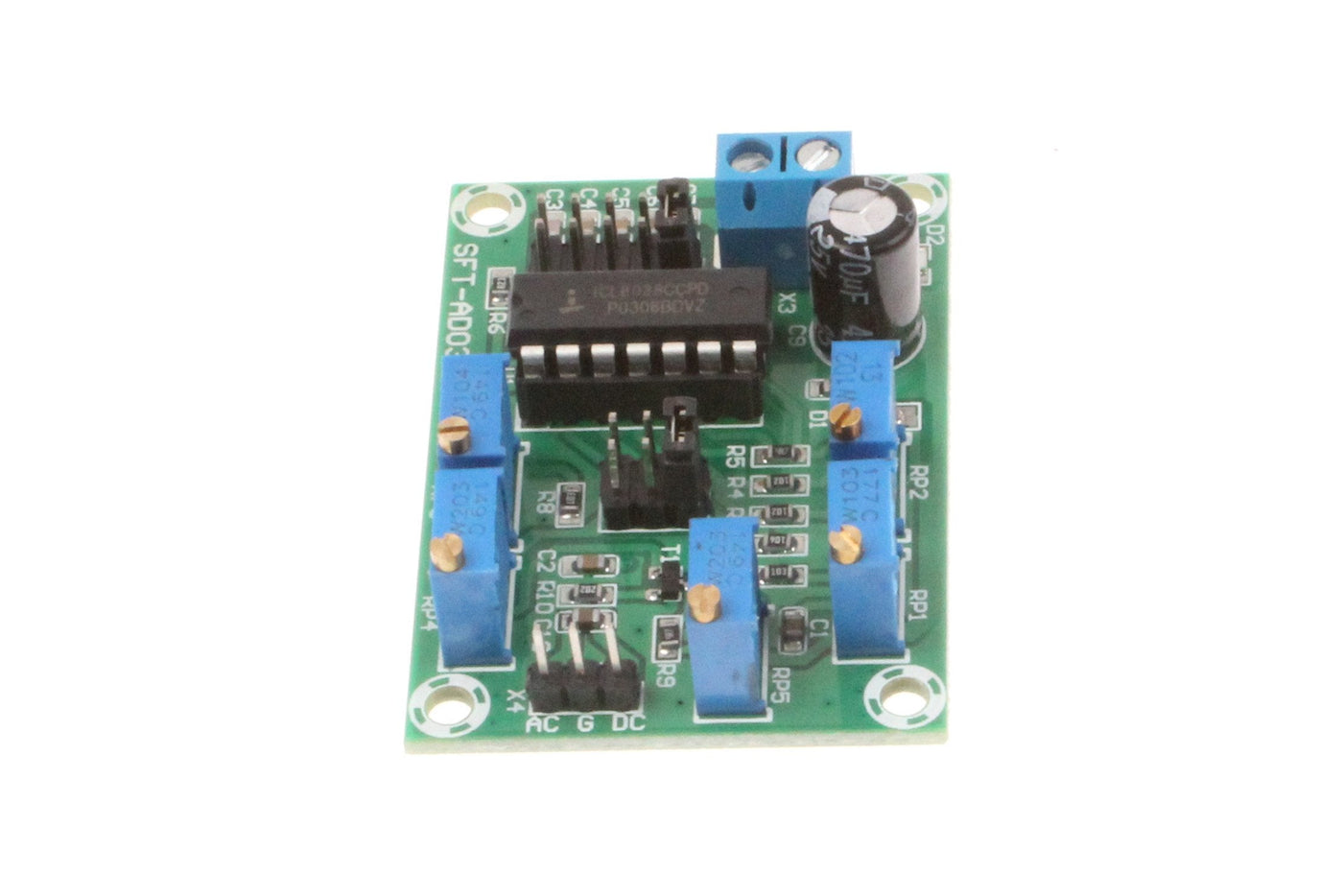

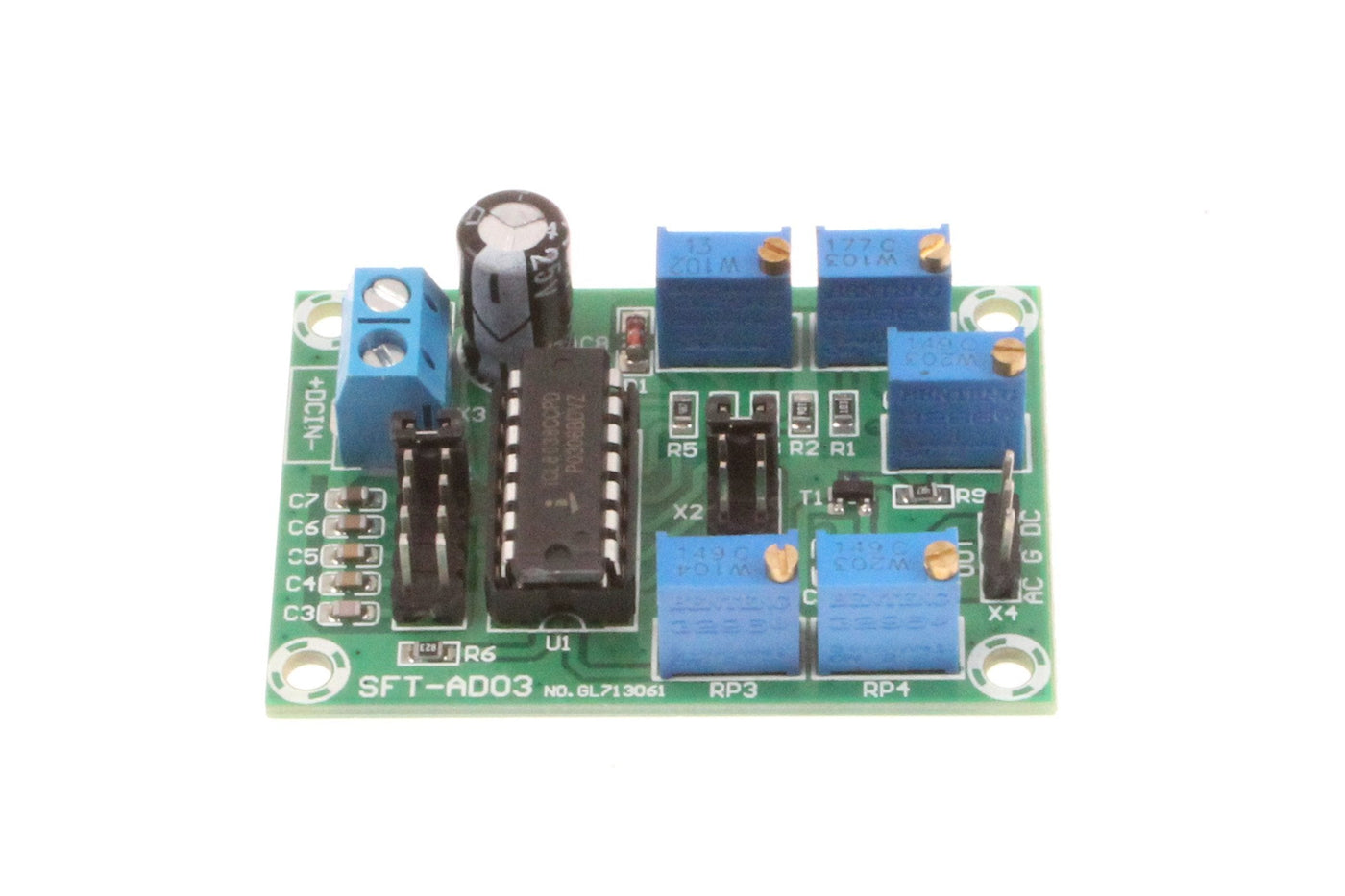

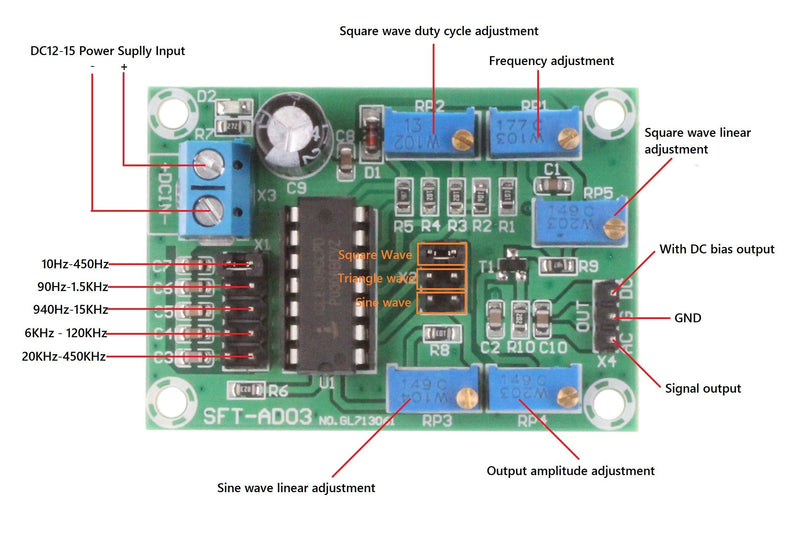

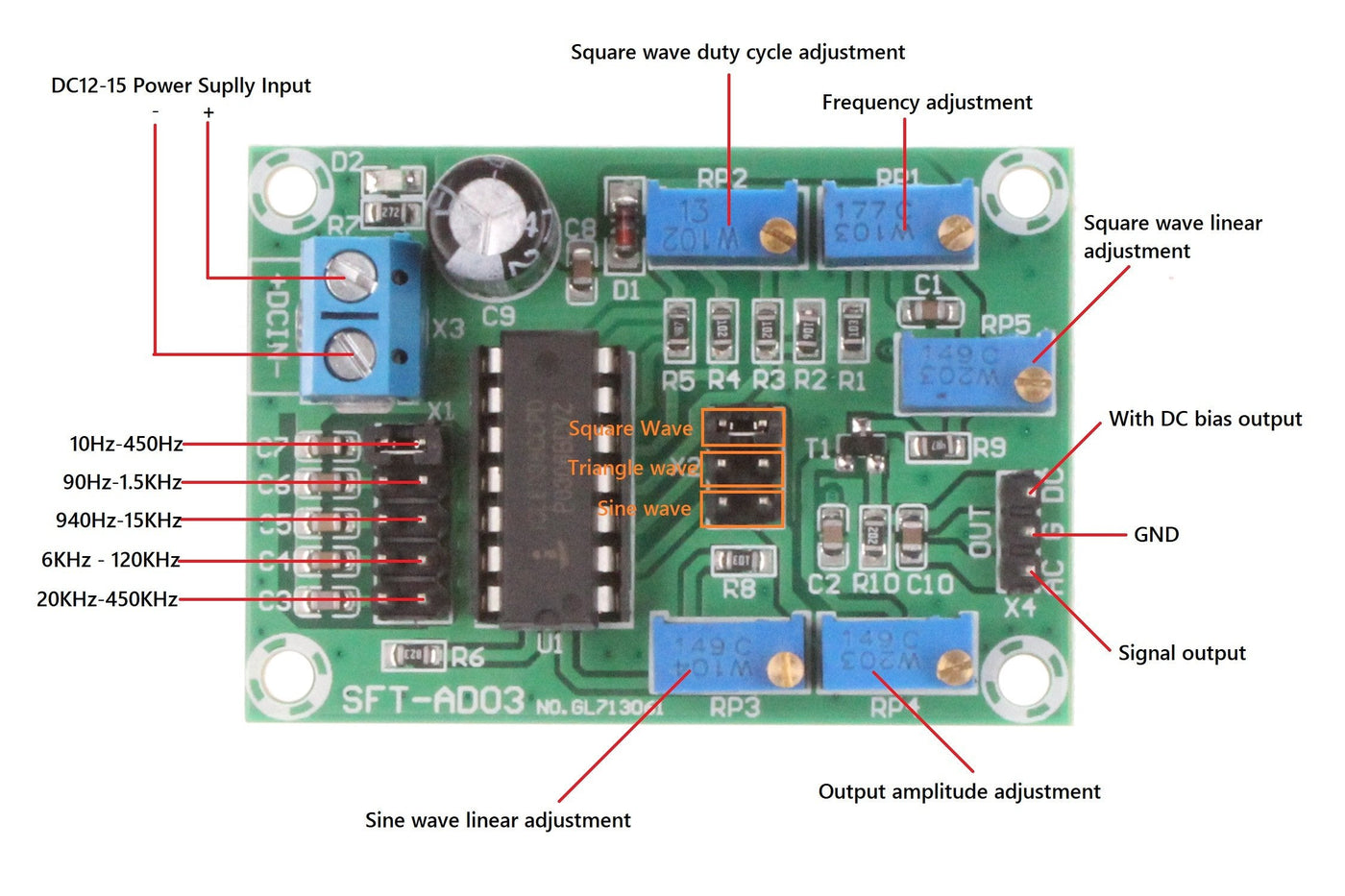

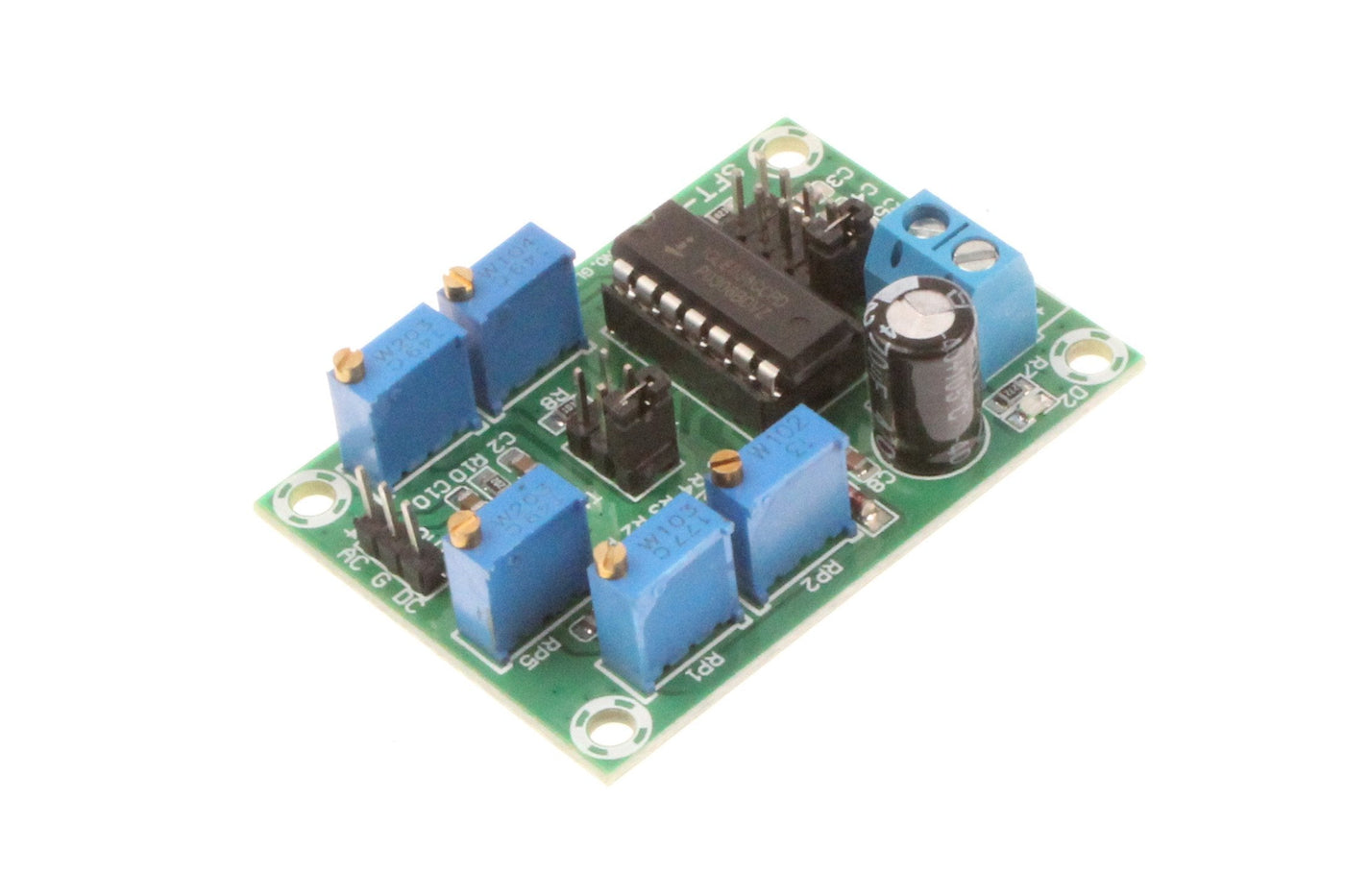

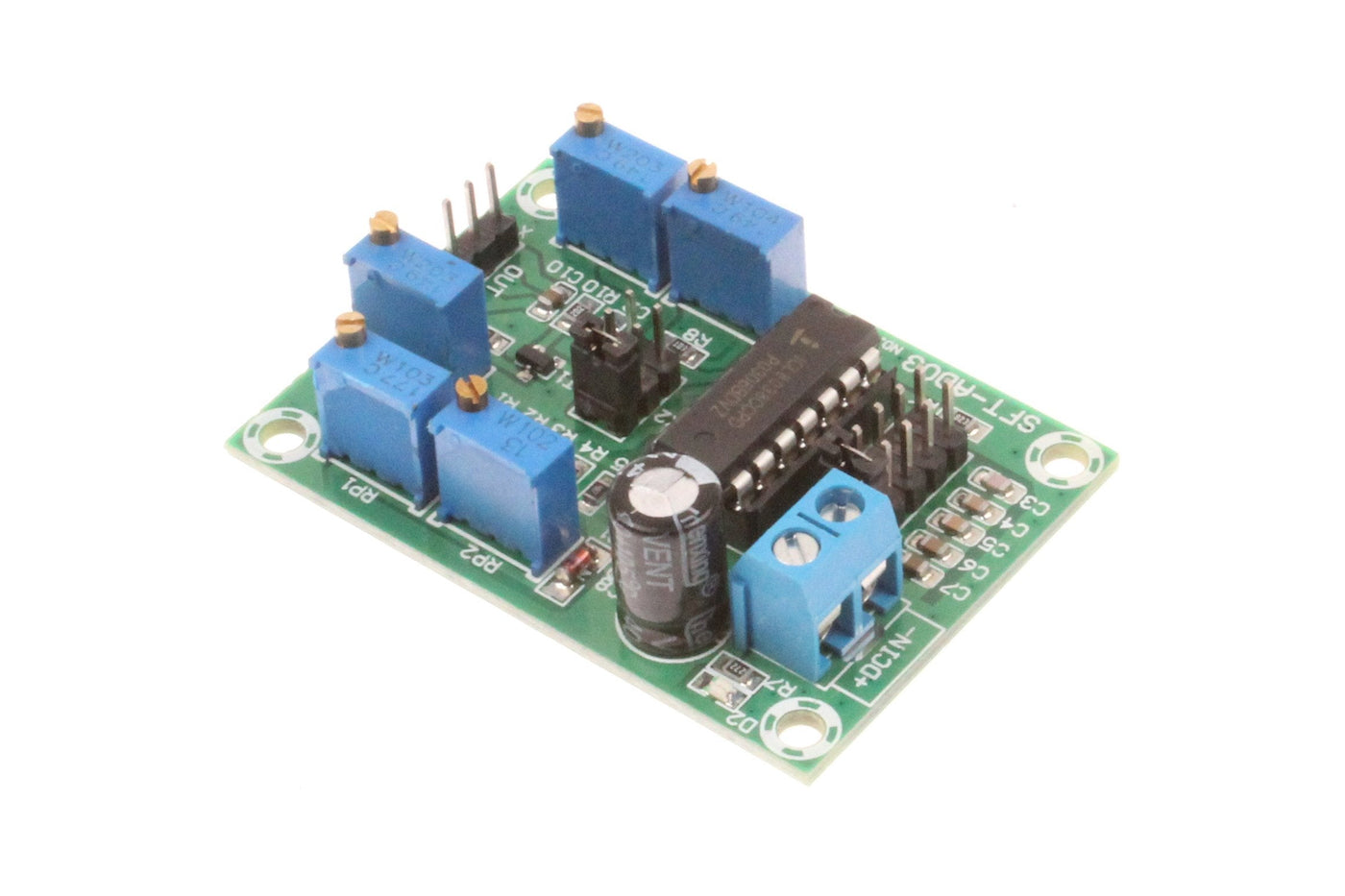

{"id":8034364063924,"title":"NOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module","handle":"noyito-icl8038-signal-generator-module-medium-low-frequency-source-sine-wave-triangle-wave-square-wave-triple-waveform-generator-module","description":"\u003ch3\u003eNOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eFeatures The ICL8038 is a precision oscillation integrated circuit with\r\nmultiple waveform outputs. The frequency and duty cycle of the output waveform\r\ncan also be controlled by current or resistance. Because the chip has a\r\nfrequency-modulated signal input, it can be used to frequency-modulate low-\r\nfrequency signals. Produced with a low frequency drift when the temperature\r\nchanges, the maximum does not exceed 50ppm \/ ℃; With sine wave, triangle wave,\r\nsquare wave and other function signal output; Sine wave output with less than\r\n1% distortion; The triangular wave output has a high linearity of 0.1%; Wide\r\nvariation of work cycle, adjustable from 2% to 98%; Easy to use, requiring\r\nonly minimal external conditions. This module is designed for the common\r\nfrequency range. It can be adjusted in 5 gears and can generate low-distortion\r\nsine wave, triangle wave, square wave and other pulse signals from 10Hz to\r\n450KHz. Sine waves can be used for test signals, drive signals, carrier\r\nfrequency signals, etc. Square wave can be used to switch signals, trigger\r\nsignals, etc. The triangular wave is mainly used for scanning signals. Product\r\nName: ICL8038 signal transmitter module. Operating voltage: Single-supply DC\r\npoint 12V-15V. Output waveforms: sine wave, square wave, triangle wave.\r\nFrequency range: 10Hz-450KHz. Distortion: less than 1% sine wave distortion.\r\nDuty cycle: 20% - 98% adjustable. Low temperature drift: less than 50ppm \/ °C.\r\nTriangle wave: Has a high linearity of 0.1%. Working temperature: 0-70°C.\r\nSize: 53.8x37.7x15mm. Weight: 20g. Package Included: 1pcs ICL8038 Signal\r\nGenerator Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe ICL8038 is a precision oscillation integrated circuit with multiple waveform outputs. The frequency and duty cycle of the output waveform can also be controlled by current or resistance. Because the chip has a frequency-modulated signal input, it can be used to frequency-modulate low-frequency signals.\u003c\/li\u003e\r\n \u003cli\u003eProduced with a low frequency drift when the temperature changes, the maximum does not exceed 50ppm \/ C; With sine wave, triangle wave, square wave and other function signal output; Sine wave output with less than 1% distortion; The triangular wave output has a high linearity of 0.1%; Wide variation of work cycle, adjustable from 2% to 98%; Easy to use, requiring only minimal external conditions.\u003c\/li\u003e\r\n \u003cli\u003eThis module is designed for the common frequency range. It can be adjusted in 5 gears and can generate low-distortion sine wave, triangle wave, square wave and other pulse signals from 10Hz to 450KHz.\u003c\/li\u003e\r\n \u003cli\u003eOperating voltage: Single-supply DC point 12V-15V. Output waveforms: sine wave, square wave, triangle wave. Frequency range: 10Hz-450KHz.Sine waves can be used for test signals, drive signals, carrier frequency signals, etc. Square wave can be used to switch signals, trigger signals, etc. The triangular wave is mainly used for scanning signals.\u003c\/li\u003e\r\n \u003cli\u003eNOYITO ICL8038 Signal Generator Module User Manual Download\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-27T17:28:42+11:00","created_at":"2026-02-27T17:28:37+11:00","vendor":"NOYITO","type":"Function Generators","tags":["industrial_selected_Nov2025"],"price":9300,"price_min":9300,"price_max":9300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154121846964,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07BJHXML4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module","public_title":null,"options":["Default Title"],"price":9300,"weight":21,"compare_at_price":null,"inventory_management":"shopify","barcode":"667797748210","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07BJHXML4.jpg?v=1775786015","\/\/auspowers.com\/cdn\/shop\/files\/716ydzOCWqL.jpg?v=1772173720","\/\/auspowers.com\/cdn\/shop\/files\/81GUrrzss2L.jpg?v=1772173720","\/\/auspowers.com\/cdn\/shop\/files\/71iLTUiQt_L.jpg?v=1772173721","\/\/auspowers.com\/cdn\/shop\/files\/71aQV0wpeZL.jpg?v=1772173720","\/\/auspowers.com\/cdn\/shop\/files\/71xBft7s3PL.jpg?v=1772173720","\/\/auspowers.com\/cdn\/shop\/files\/713k71GVuSL.jpg?v=1772173720"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07BJHXML4.jpg?v=1775786015","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module ","id":32720498196660,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1240,"width":1860,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07BJHXML4.jpg?v=1775786015"},"aspect_ratio":1.5,"height":1240,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07BJHXML4.jpg?v=1775786015","width":1860},{"alt":"[Australia - AusPower] - NOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module ","id":32720498229428,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1592,"width":2388,"src":"\/\/auspowers.com\/cdn\/shop\/files\/716ydzOCWqL.jpg?v=1772173720"},"aspect_ratio":1.5,"height":1592,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/716ydzOCWqL.jpg?v=1772173720","width":2388},{"alt":"[Australia - AusPower] - NOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module ","id":32720498262196,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1500,"width":2250,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81GUrrzss2L.jpg?v=1772173720"},"aspect_ratio":1.5,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81GUrrzss2L.jpg?v=1772173720","width":2250},{"alt":"[Australia - AusPower] - NOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module ","id":32720498294964,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1436,"width":2154,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71iLTUiQt_L.jpg?v=1772173721"},"aspect_ratio":1.5,"height":1436,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71iLTUiQt_L.jpg?v=1772173721","width":2154},{"alt":"[Australia - AusPower] - NOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module ","id":32720498327732,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1477,"width":2215,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71aQV0wpeZL.jpg?v=1772173720"},"aspect_ratio":1.5,"height":1477,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71aQV0wpeZL.jpg?v=1772173720","width":2215},{"alt":"[Australia - AusPower] - NOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module ","id":32720498360500,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1453,"width":2180,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71xBft7s3PL.jpg?v=1772173720"},"aspect_ratio":1.5,"height":1453,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71xBft7s3PL.jpg?v=1772173720","width":2180},{"alt":"[Australia - AusPower] - NOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module ","id":32720498393268,"position":7,"preview_image":{"aspect_ratio":1.5,"height":1546,"width":2319,"src":"\/\/auspowers.com\/cdn\/shop\/files\/713k71GVuSL.jpg?v=1772173720"},"aspect_ratio":1.5,"height":1546,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/713k71GVuSL.jpg?v=1772173720","width":2319}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO ICL8038 Signal Generator Module Medium Low Frequency Source Sine Wave Triangle Wave Square Wave Triple Waveform Generator Module\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eFeatures The ICL8038 is a precision oscillation integrated circuit with\r\nmultiple waveform outputs. The frequency and duty cycle of the output waveform\r\ncan also be controlled by current or resistance. Because the chip has a\r\nfrequency-modulated signal input, it can be used to frequency-modulate low-\r\nfrequency signals. Produced with a low frequency drift when the temperature\r\nchanges, the maximum does not exceed 50ppm \/ ℃; With sine wave, triangle wave,\r\nsquare wave and other function signal output; Sine wave output with less than\r\n1% distortion; The triangular wave output has a high linearity of 0.1%; Wide\r\nvariation of work cycle, adjustable from 2% to 98%; Easy to use, requiring\r\nonly minimal external conditions. This module is designed for the common\r\nfrequency range. It can be adjusted in 5 gears and can generate low-distortion\r\nsine wave, triangle wave, square wave and other pulse signals from 10Hz to\r\n450KHz. Sine waves can be used for test signals, drive signals, carrier\r\nfrequency signals, etc. Square wave can be used to switch signals, trigger\r\nsignals, etc. The triangular wave is mainly used for scanning signals. Product\r\nName: ICL8038 signal transmitter module. Operating voltage: Single-supply DC\r\npoint 12V-15V. Output waveforms: sine wave, square wave, triangle wave.\r\nFrequency range: 10Hz-450KHz. Distortion: less than 1% sine wave distortion.\r\nDuty cycle: 20% - 98% adjustable. Low temperature drift: less than 50ppm \/ °C.\r\nTriangle wave: Has a high linearity of 0.1%. Working temperature: 0-70°C.\r\nSize: 53.8x37.7x15mm. Weight: 20g. Package Included: 1pcs ICL8038 Signal\r\nGenerator Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe ICL8038 is a precision oscillation integrated circuit with multiple waveform outputs. The frequency and duty cycle of the output waveform can also be controlled by current or resistance. Because the chip has a frequency-modulated signal input, it can be used to frequency-modulate low-frequency signals.\u003c\/li\u003e\r\n \u003cli\u003eProduced with a low frequency drift when the temperature changes, the maximum does not exceed 50ppm \/ C; With sine wave, triangle wave, square wave and other function signal output; Sine wave output with less than 1% distortion; The triangular wave output has a high linearity of 0.1%; Wide variation of work cycle, adjustable from 2% to 98%; Easy to use, requiring only minimal external conditions.\u003c\/li\u003e\r\n \u003cli\u003eThis module is designed for the common frequency range. It can be adjusted in 5 gears and can generate low-distortion sine wave, triangle wave, square wave and other pulse signals from 10Hz to 450KHz.\u003c\/li\u003e\r\n \u003cli\u003eOperating voltage: Single-supply DC point 12V-15V. Output waveforms: sine wave, square wave, triangle wave. Frequency range: 10Hz-450KHz.Sine waves can be used for test signals, drive signals, carrier frequency signals, etc. Square wave can be used to switch signals, trigger signals, etc. The triangular wave is mainly used for scanning signals.\u003c\/li\u003e\r\n \u003cli\u003eNOYITO ICL8038 Signal Generator Module User Manual Download\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
