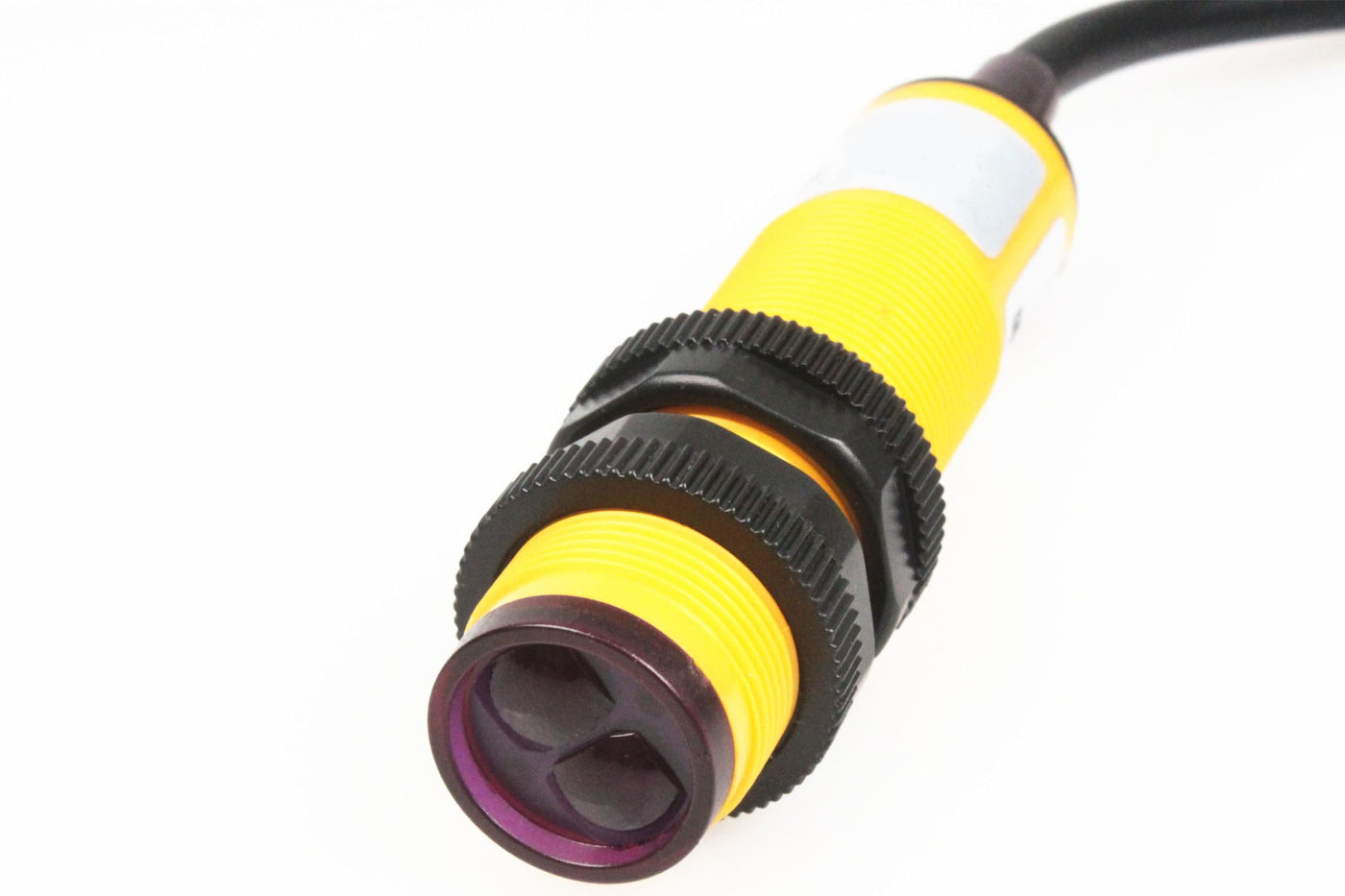

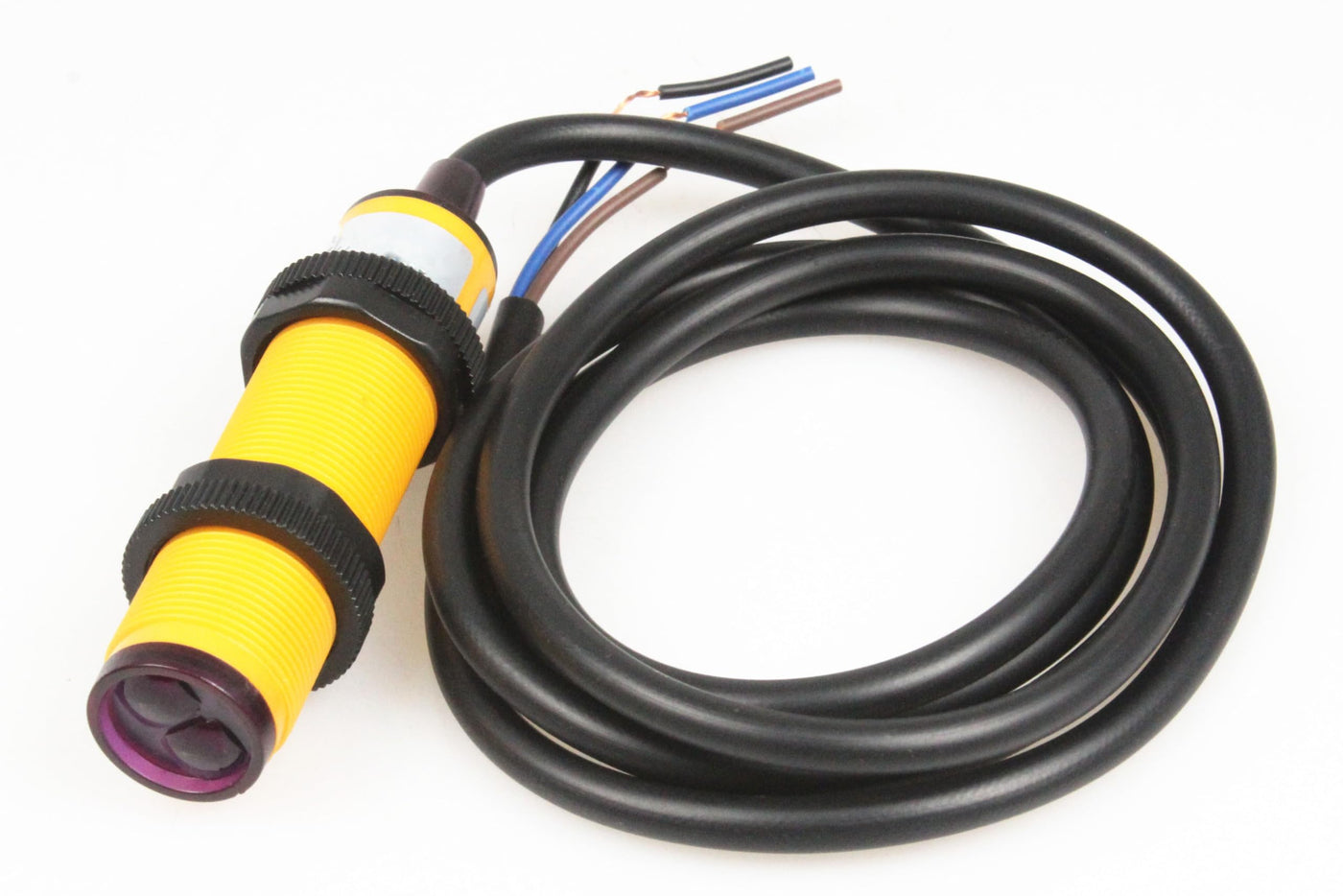

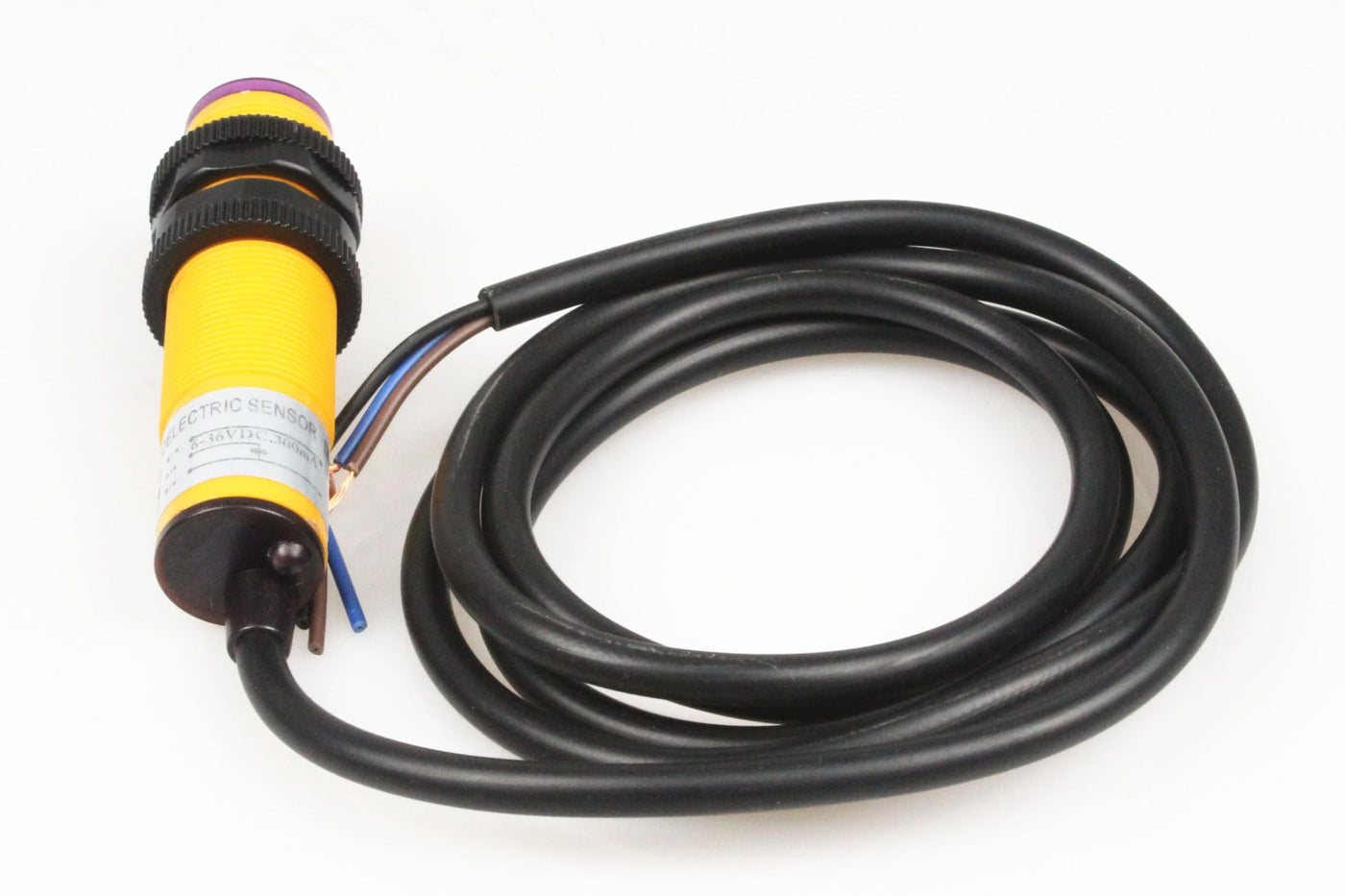

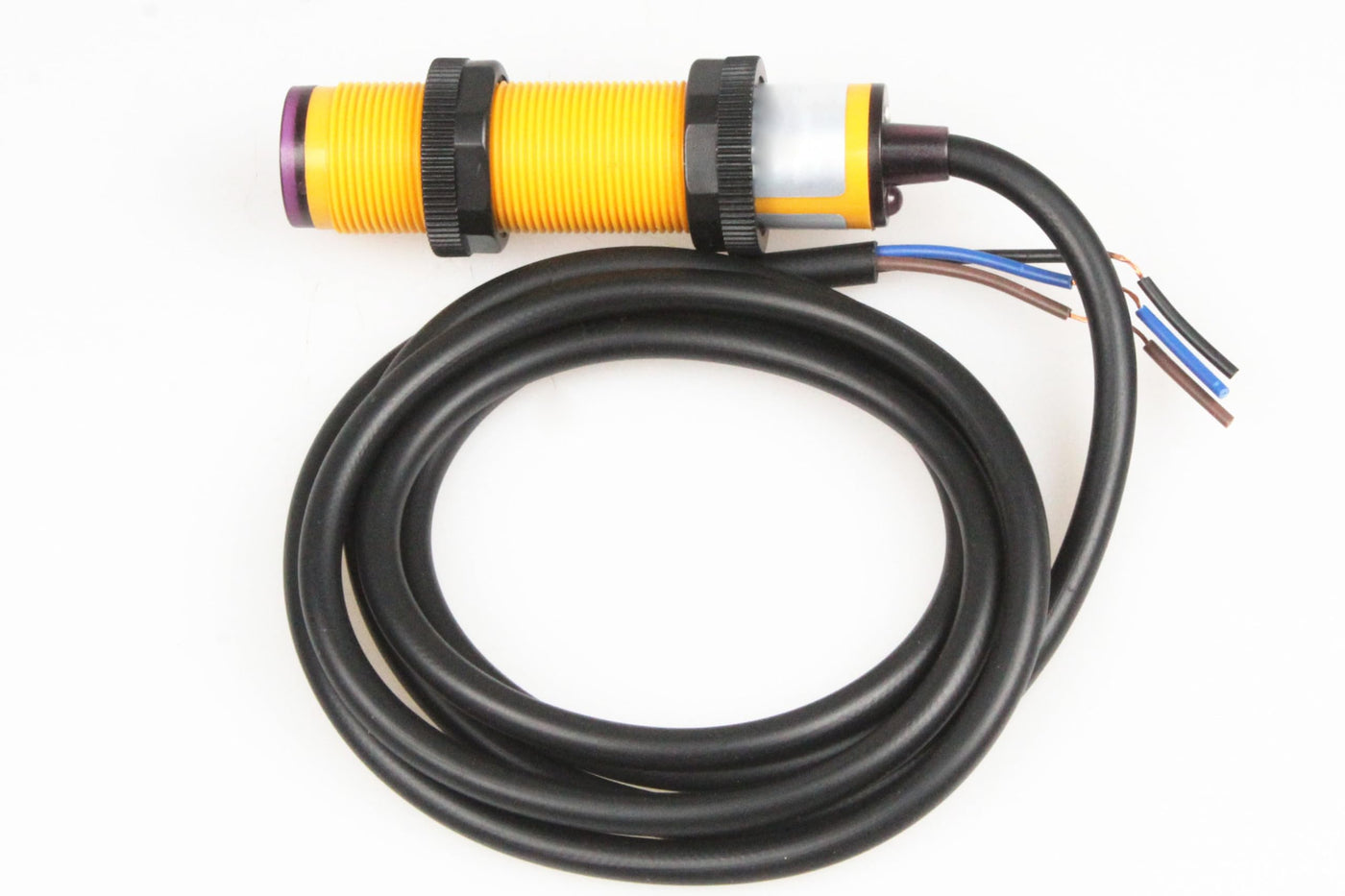

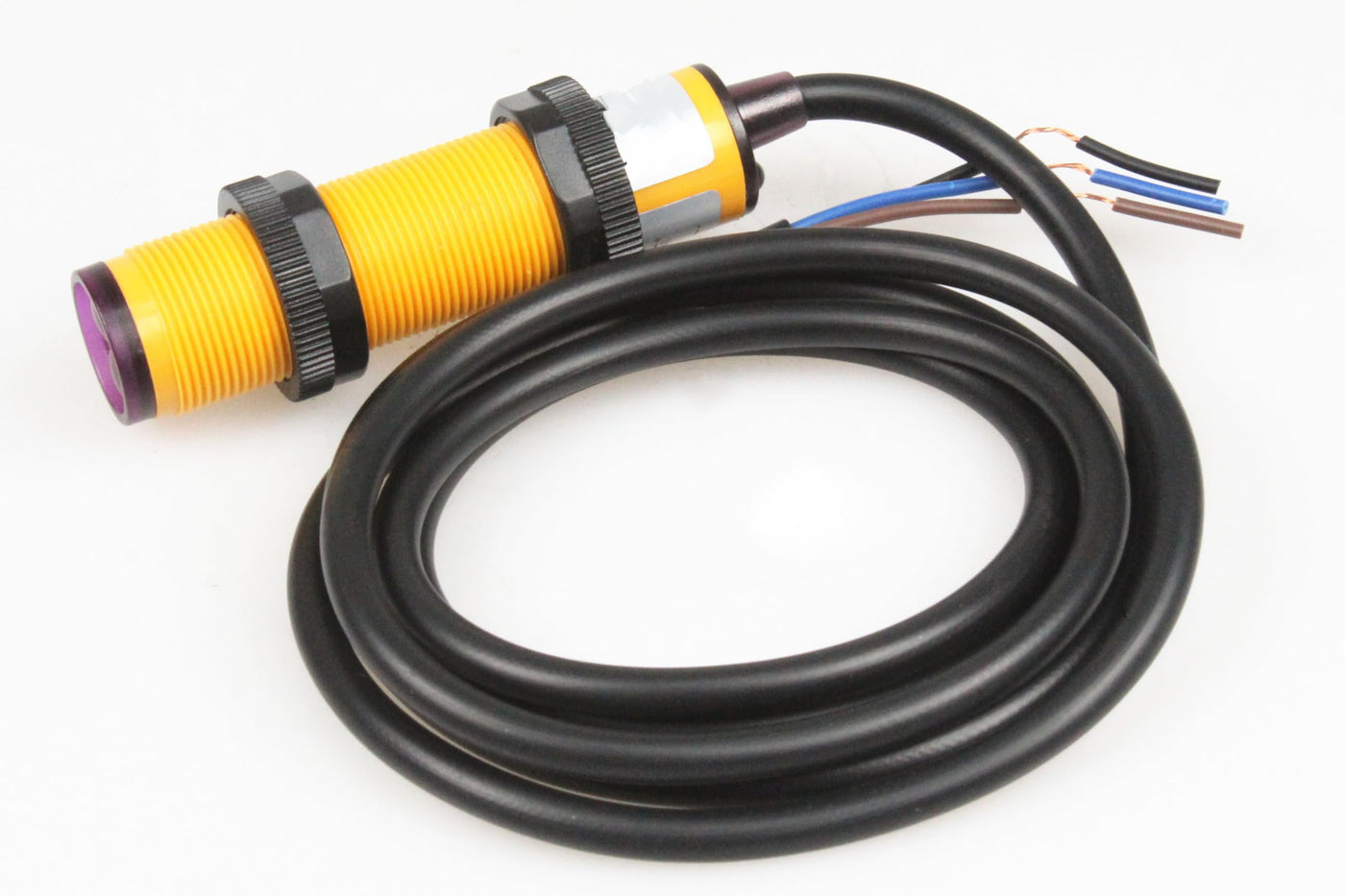

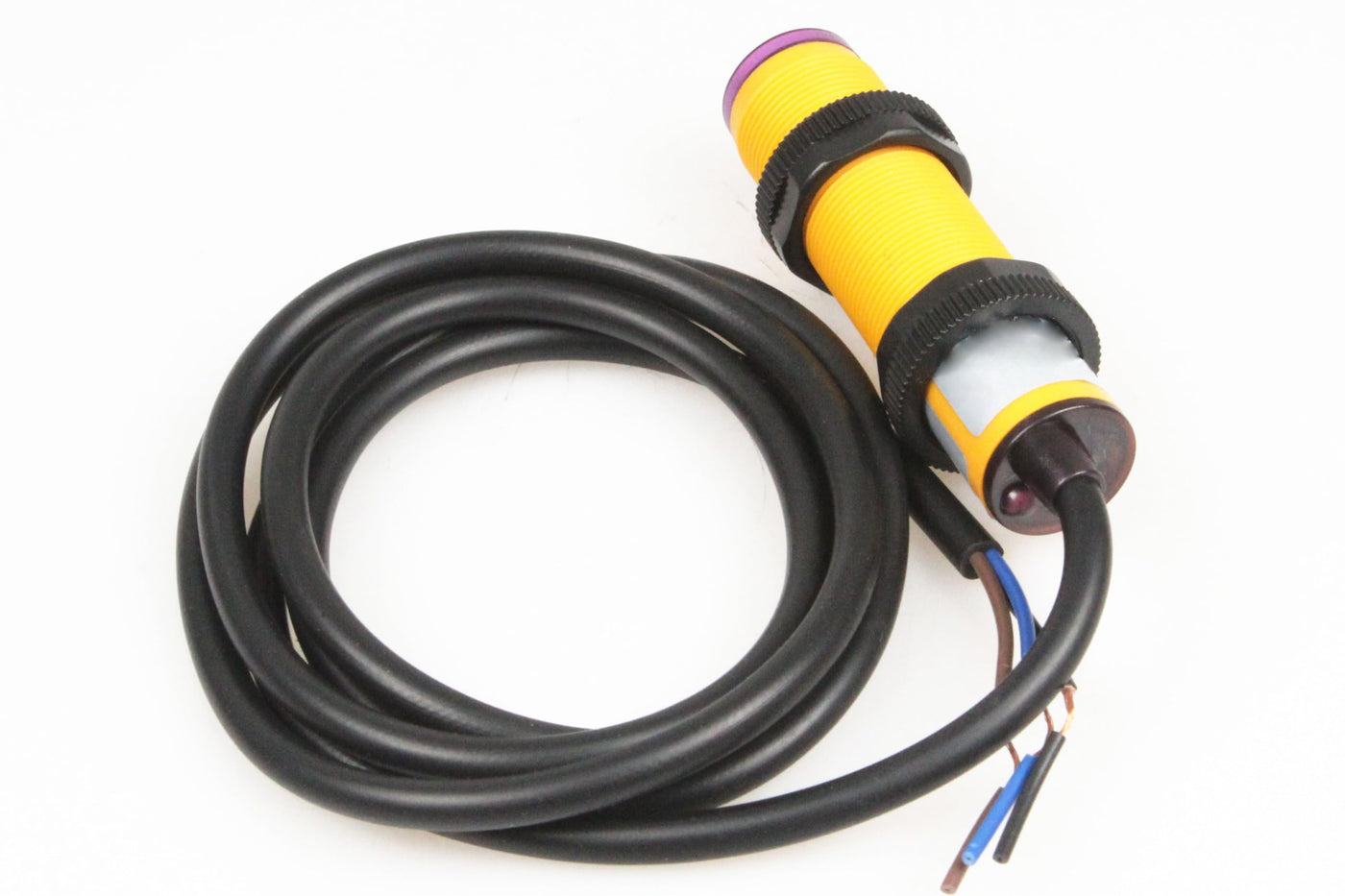

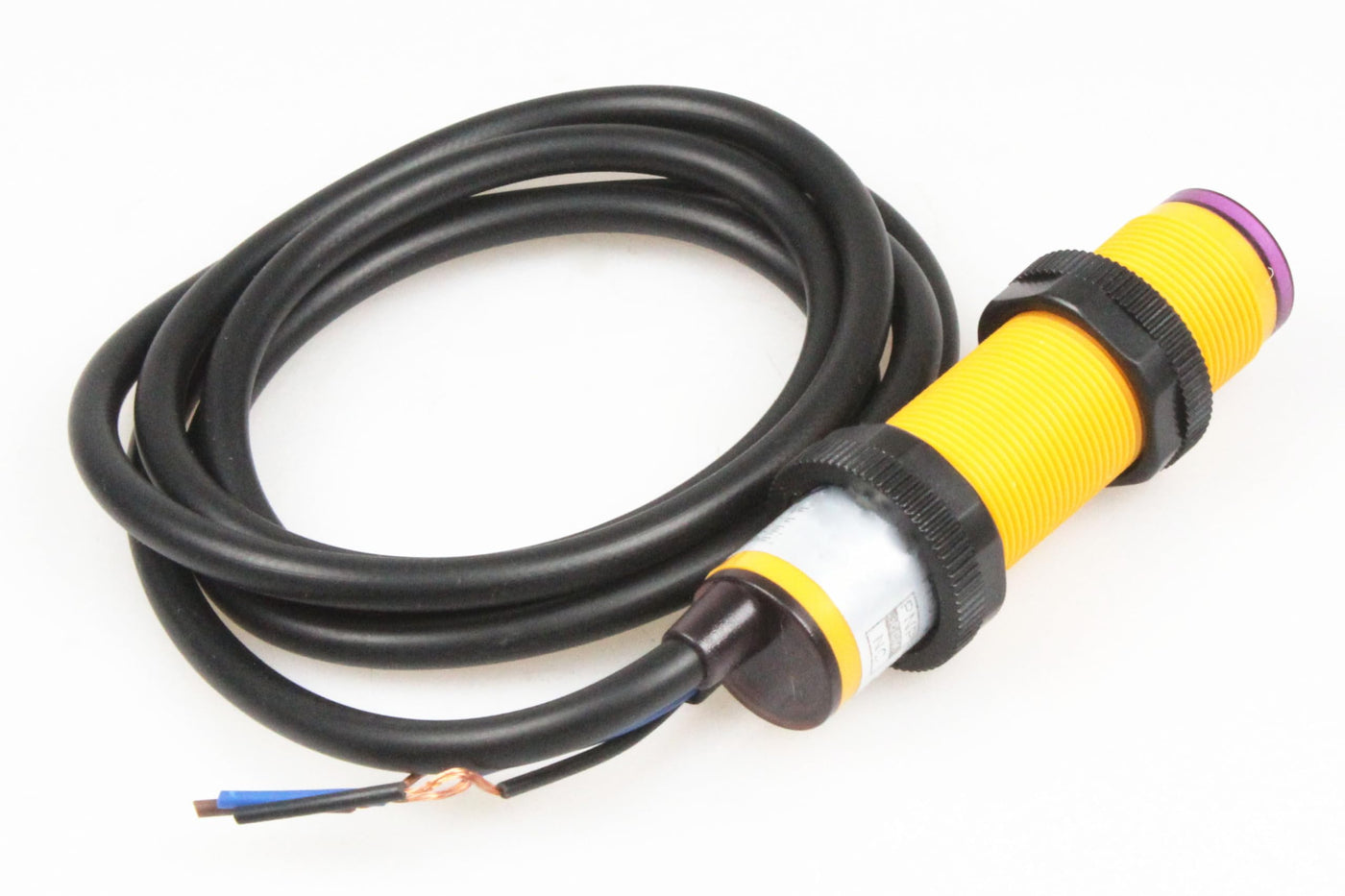

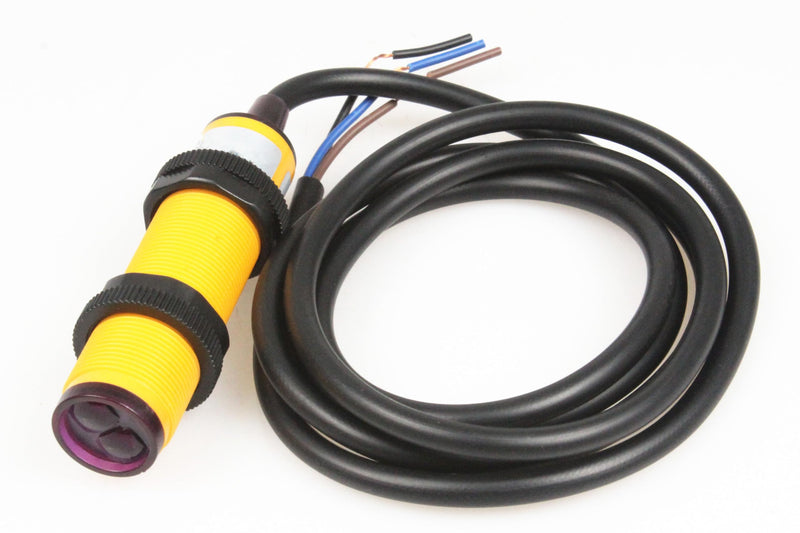

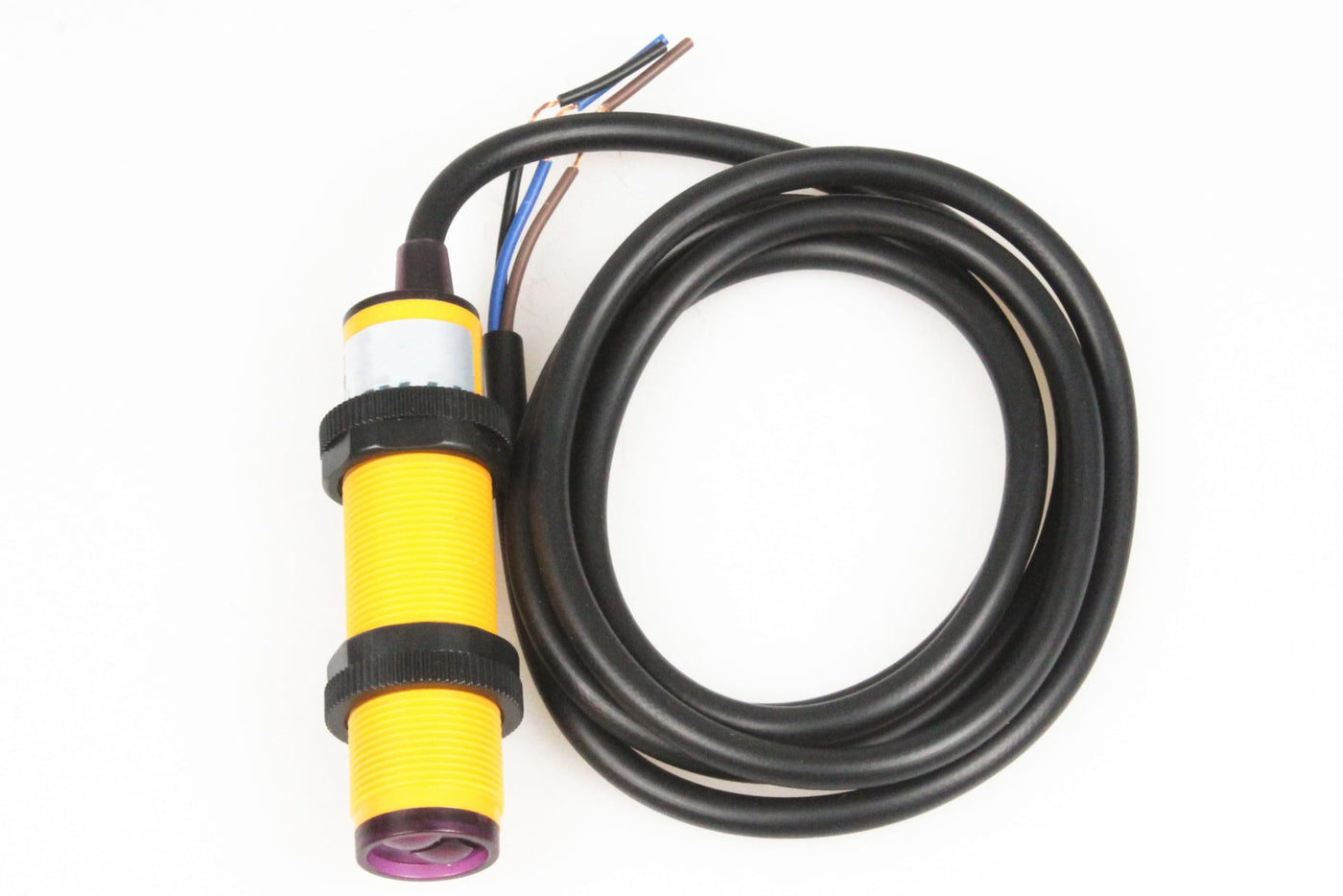

{"id":8013438550196,"title":"NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO","handle":"noyito-e3f-ds10c4-proximity-switch-photoelectric-sensor-10cm-detection-distance-diffuse-reflection-infrared-sensor-dc-6-36v-3-wire-npn-no","description":"\u003ch3\u003eNOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eProduct Model: E3F-DS10C4 Triode form: NPN Action state: NO Working voltage:\r\nDC 6-36V. Reflection form: diffuse reflection type. Wire description: brown -\r\npower positive; blue - power negative; black - signal output. Sensing\r\ndistance: 10 cm （Non-adjustable） Standard detection object: 2mm or more non-\r\ntransparent objects. Diffusion angle: cast light angle 3-5 degrees. Static\r\ncurrent: ≤20mA-35mA. Connection: wire lead, wire length 1.2 meters \/ about 3.9\r\nfeet. Maximum output current: 300mA. LED indicator status: red light is on\r\nwhen power on. Light source (wavelength): 950 Circuit protection: reverse\r\nconnection protection, short circuit protection, surge protection. Sensitivity\r\nAdjustment: Tail knob adjustment. (Clockwise adjustment, the detection\r\ndistance becomes farther; counterclockwise adjustment, the detection distance\r\nbecomes closer). Use of environmental illumination: by the light surface\r\nillumination and other effects of distance attenuation. (incandescent lamp 300\r\nlx below, sunlight 11000lx below). Operating ambient temperature: - 13F ~\r\n176F. Storage ambient temperature: -40F ~ 176F. Operating Humidity Range: 35 ~\r\n80%. Storage Humidity Positioning: 35 ～ 95%. Insulation Resistance: 20MΩ.\r\nVibration: 10 ~ 55Hz double amplitude, 1.5mm X,Y,Z each direction 2H.\r\nProtection structure: IEC specification IP65. Material: Shell-ABS plastic,\r\nLens-PMMA. Size: 68x21x21mm (length 68mm, diameter 21mm cylinder). Weight: 54\r\ngrams \/ 0.12lbs Packsge Included: 1pcs NOYITO E3F-DS10C4 Proximity Switch\r\nPhotoelectric Sensor Switch\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eNOYITO E3F series photoelectric switches are displacement sensors with switching output. It can detect the displacement of various non-totally transparent and opaque objects.\u003c\/li\u003e\r\n \u003cli\u003eThis series of switches is a position switch that can be operated without direct contact with a moving object. When an object approaches the sensing surface of the switch to the actuation distance, the switch can be activated without contact and without applying any pressure to drive a direct electric appliance or to provide control instructions to a PLC device. It can be used in automatic control system as limit, counting, positioning control and automatic protection.\u003c\/li\u003e\r\n \u003cli\u003ePlease check the third picture for product size specifications.\u003c\/li\u003e\r\n \u003cli\u003eWire description: brown - power positive; blue - power negative; black - signal output. Wire length 1.2 meters \/ about 3.9 feet\u003c\/li\u003e\r\n \u003cli\u003eSensing distance: 10 cm (Non-adjustable), Working voltage: DC 6-36V.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-09T01:55:42+11:00","created_at":"2025-12-09T01:55:38+11:00","vendor":"NOYITO","type":"Photoelectric Sensors","tags":["industrial_selected_Nov2025"],"price":8900,"price_min":8900,"price_max":8900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44103308345524,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CQZKJ3C1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO","public_title":null,"options":["Default Title"],"price":8900,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":"E3FDS10C4","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0CQZKJ3C1.jpg?v=1775783548","\/\/auspowers.com\/cdn\/shop\/files\/71kmgPg2jhL_f8c0f907-f2c9-4c0f-948e-ad82fbe7ecb5.jpg?v=1765205741","\/\/auspowers.com\/cdn\/shop\/files\/41T648uQC2L.jpg?v=1765205741","\/\/auspowers.com\/cdn\/shop\/files\/713kLlaWDBL.jpg?v=1765205741","\/\/auspowers.com\/cdn\/shop\/files\/71i9FUofNQL.jpg?v=1765205741","\/\/auspowers.com\/cdn\/shop\/files\/71zuKjGdjWL.jpg?v=1765205741","\/\/auspowers.com\/cdn\/shop\/files\/71cHOXDTEpL_1f53dd38-814e-4477-bf73-fe4882f50854.jpg?v=1765205741","\/\/auspowers.com\/cdn\/shop\/files\/61K4mjyaY2L_d2a0df09-1e1f-463d-9a9f-2e391cea7536.jpg?v=1765205741","\/\/auspowers.com\/cdn\/shop\/files\/715t_HqrTSL.jpg?v=1765205741"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0CQZKJ3C1.jpg?v=1775783548","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO ","id":32455612596404,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CQZKJ3C1.jpg?v=1775783548"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CQZKJ3C1.jpg?v=1775783548","width":2560},{"alt":"[Australia - AusPower] - NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO ","id":32455612629172,"position":2,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71kmgPg2jhL_f8c0f907-f2c9-4c0f-948e-ad82fbe7ecb5.jpg?v=1765205741"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71kmgPg2jhL_f8c0f907-f2c9-4c0f-948e-ad82fbe7ecb5.jpg?v=1765205741","width":2560},{"alt":"[Australia - AusPower] - NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO ","id":32455612661940,"position":3,"preview_image":{"aspect_ratio":2.899,"height":345,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41T648uQC2L.jpg?v=1765205741"},"aspect_ratio":2.899,"height":345,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41T648uQC2L.jpg?v=1765205741","width":1000},{"alt":"[Australia - AusPower] - NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO ","id":32455612694708,"position":4,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/713kLlaWDBL.jpg?v=1765205741"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/713kLlaWDBL.jpg?v=1765205741","width":2560},{"alt":"[Australia - AusPower] - NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO ","id":32455612727476,"position":5,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71i9FUofNQL.jpg?v=1765205741"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71i9FUofNQL.jpg?v=1765205741","width":2560},{"alt":"[Australia - AusPower] - NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO ","id":32455612760244,"position":6,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71zuKjGdjWL.jpg?v=1765205741"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71zuKjGdjWL.jpg?v=1765205741","width":2560},{"alt":"[Australia - AusPower] - NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO ","id":32455612793012,"position":7,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71cHOXDTEpL_1f53dd38-814e-4477-bf73-fe4882f50854.jpg?v=1765205741"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71cHOXDTEpL_1f53dd38-814e-4477-bf73-fe4882f50854.jpg?v=1765205741","width":2560},{"alt":"[Australia - AusPower] - NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO ","id":32455612825780,"position":8,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61K4mjyaY2L_d2a0df09-1e1f-463d-9a9f-2e391cea7536.jpg?v=1765205741"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61K4mjyaY2L_d2a0df09-1e1f-463d-9a9f-2e391cea7536.jpg?v=1765205741","width":2560},{"alt":"[Australia - AusPower] - NOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO ","id":32455612858548,"position":9,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/715t_HqrTSL.jpg?v=1765205741"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/715t_HqrTSL.jpg?v=1765205741","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO E3F-DS10C4 Proximity Switch Photoelectric Sensor 10cm Detection Distance Diffuse Reflection Infrared Sensor DC 6-36V 3-Wire NPN NO\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eProduct Model: E3F-DS10C4 Triode form: NPN Action state: NO Working voltage:\r\nDC 6-36V. Reflection form: diffuse reflection type. Wire description: brown -\r\npower positive; blue - power negative; black - signal output. Sensing\r\ndistance: 10 cm （Non-adjustable） Standard detection object: 2mm or more non-\r\ntransparent objects. Diffusion angle: cast light angle 3-5 degrees. Static\r\ncurrent: ≤20mA-35mA. Connection: wire lead, wire length 1.2 meters \/ about 3.9\r\nfeet. Maximum output current: 300mA. LED indicator status: red light is on\r\nwhen power on. Light source (wavelength): 950 Circuit protection: reverse\r\nconnection protection, short circuit protection, surge protection. Sensitivity\r\nAdjustment: Tail knob adjustment. (Clockwise adjustment, the detection\r\ndistance becomes farther; counterclockwise adjustment, the detection distance\r\nbecomes closer). Use of environmental illumination: by the light surface\r\nillumination and other effects of distance attenuation. (incandescent lamp 300\r\nlx below, sunlight 11000lx below). Operating ambient temperature: - 13F ~\r\n176F. Storage ambient temperature: -40F ~ 176F. Operating Humidity Range: 35 ~\r\n80%. Storage Humidity Positioning: 35 ～ 95%. Insulation Resistance: 20MΩ.\r\nVibration: 10 ~ 55Hz double amplitude, 1.5mm X,Y,Z each direction 2H.\r\nProtection structure: IEC specification IP65. Material: Shell-ABS plastic,\r\nLens-PMMA. Size: 68x21x21mm (length 68mm, diameter 21mm cylinder). Weight: 54\r\ngrams \/ 0.12lbs Packsge Included: 1pcs NOYITO E3F-DS10C4 Proximity Switch\r\nPhotoelectric Sensor Switch\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eNOYITO E3F series photoelectric switches are displacement sensors with switching output. It can detect the displacement of various non-totally transparent and opaque objects.\u003c\/li\u003e\r\n \u003cli\u003eThis series of switches is a position switch that can be operated without direct contact with a moving object. When an object approaches the sensing surface of the switch to the actuation distance, the switch can be activated without contact and without applying any pressure to drive a direct electric appliance or to provide control instructions to a PLC device. It can be used in automatic control system as limit, counting, positioning control and automatic protection.\u003c\/li\u003e\r\n \u003cli\u003ePlease check the third picture for product size specifications.\u003c\/li\u003e\r\n \u003cli\u003eWire description: brown - power positive; blue - power negative; black - signal output. Wire length 1.2 meters \/ about 3.9 feet\u003c\/li\u003e\r\n \u003cli\u003eSensing distance: 10 cm (Non-adjustable), Working voltage: DC 6-36V.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
