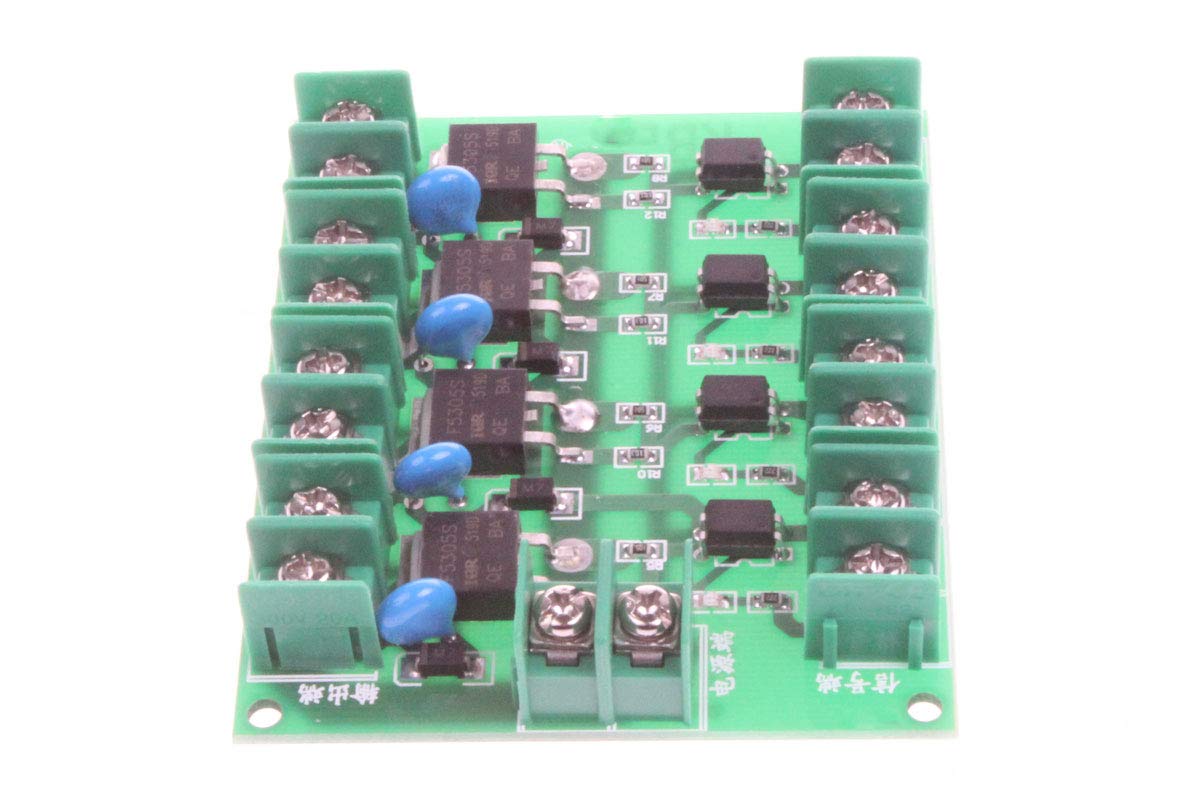

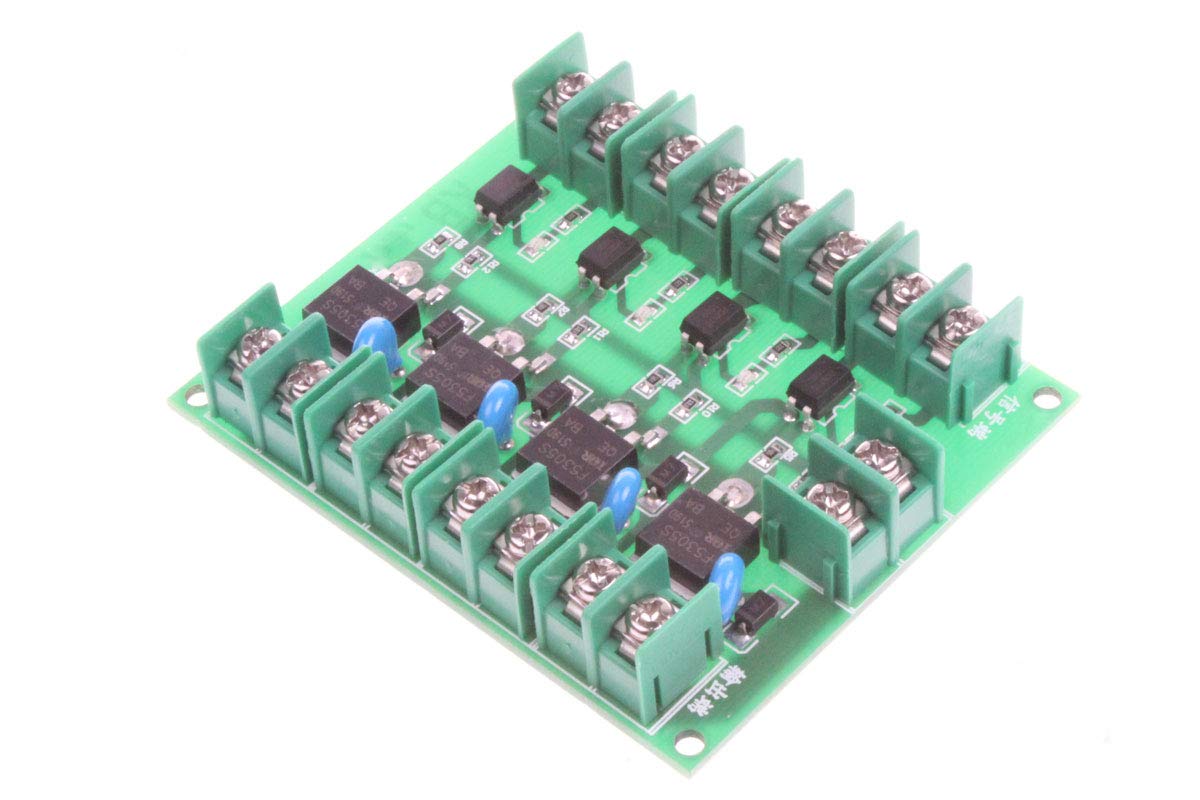

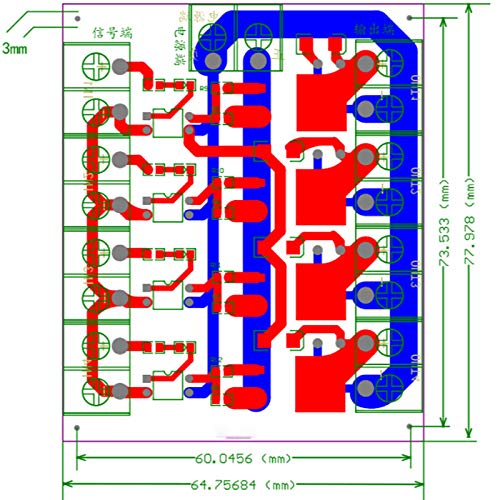

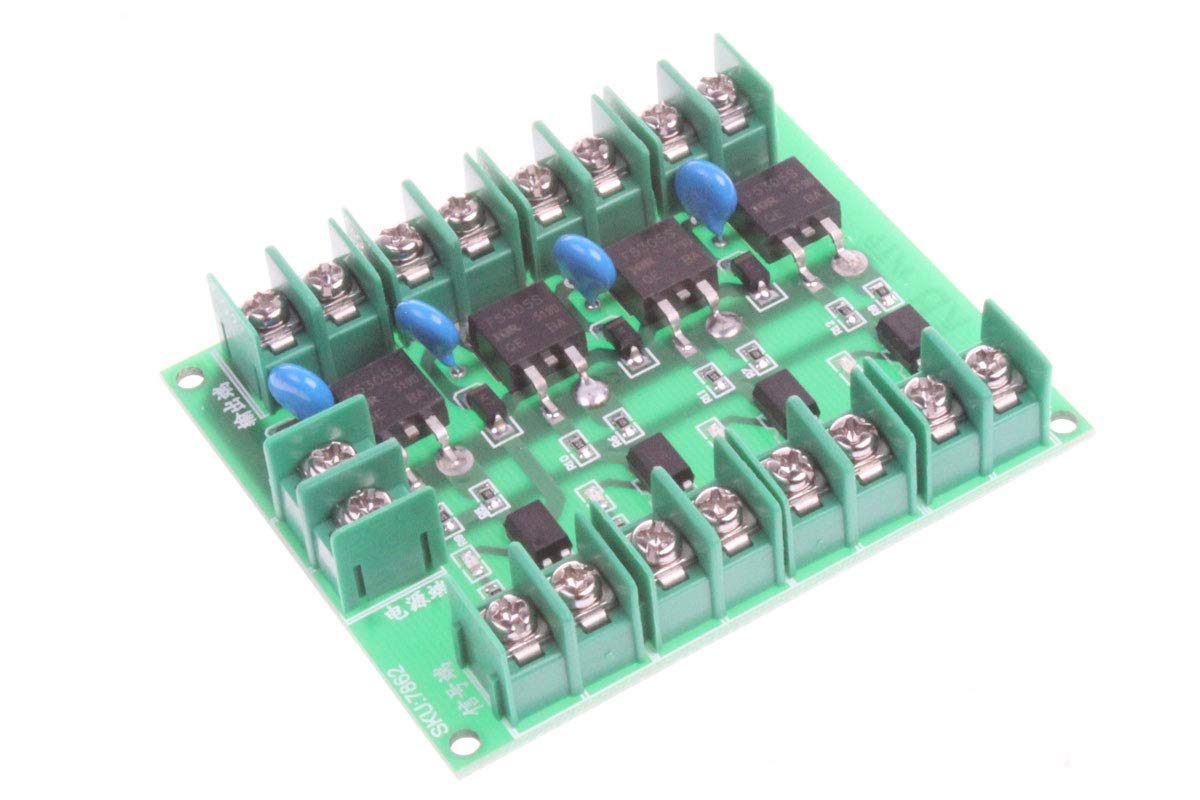

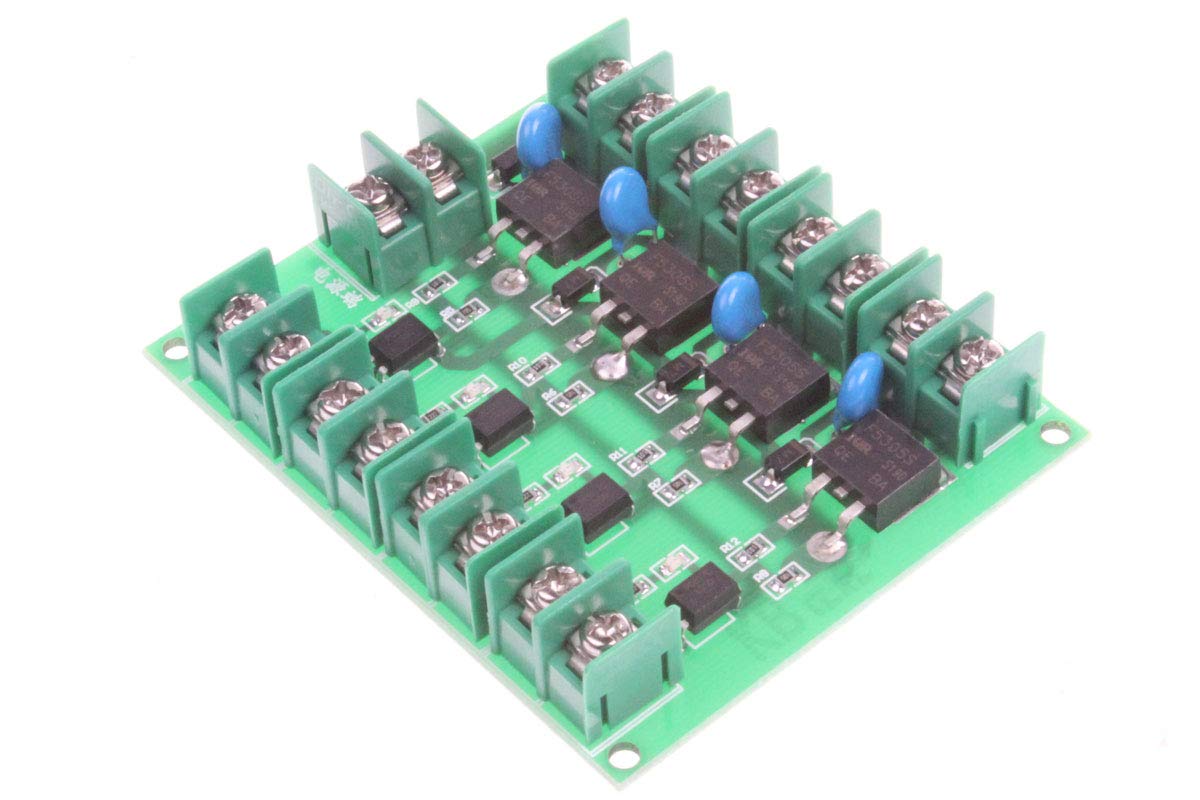

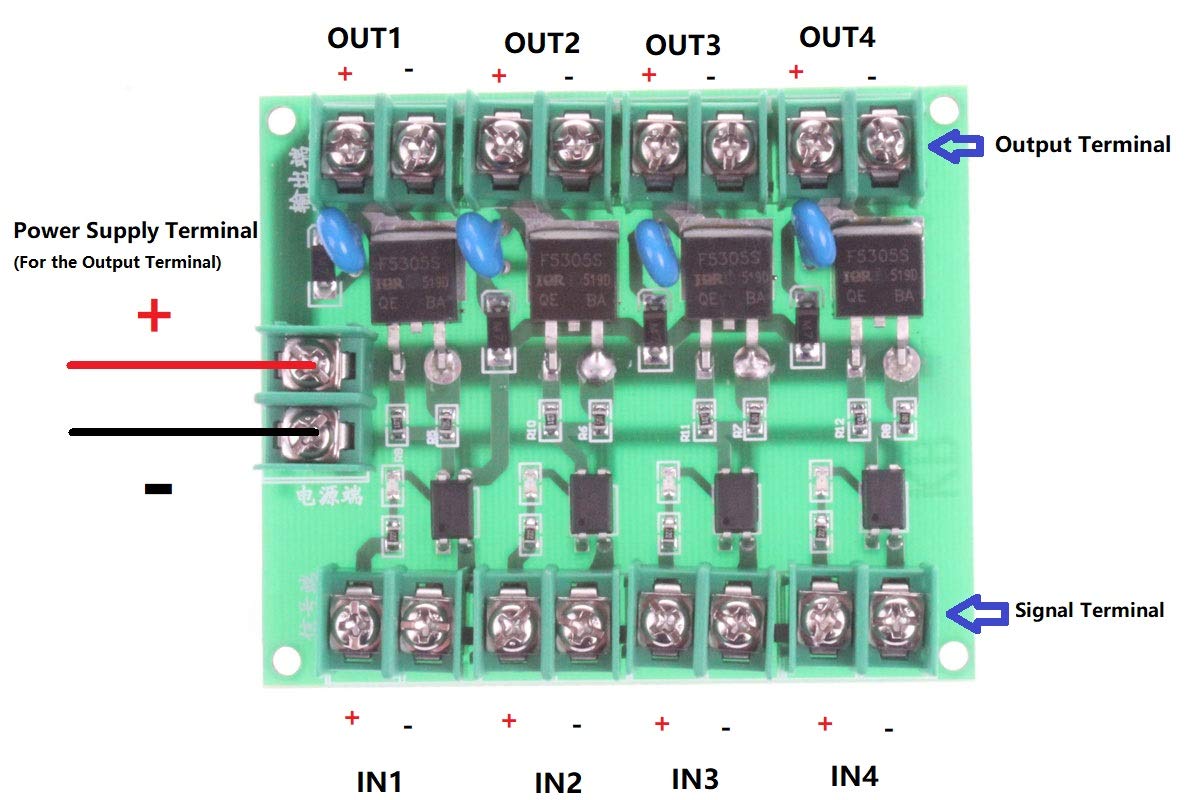

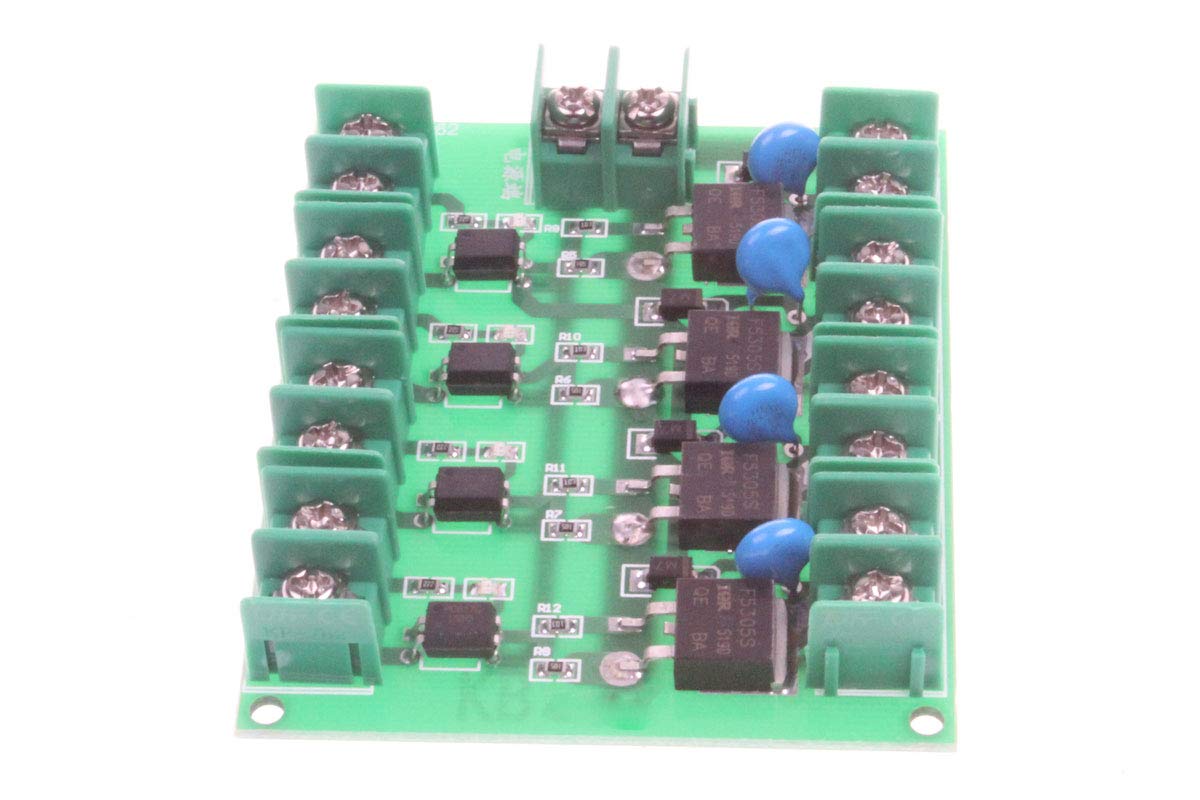

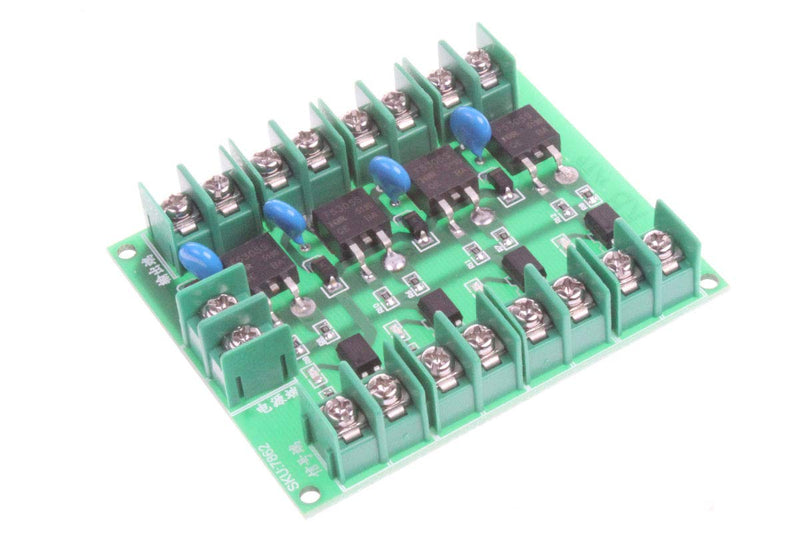

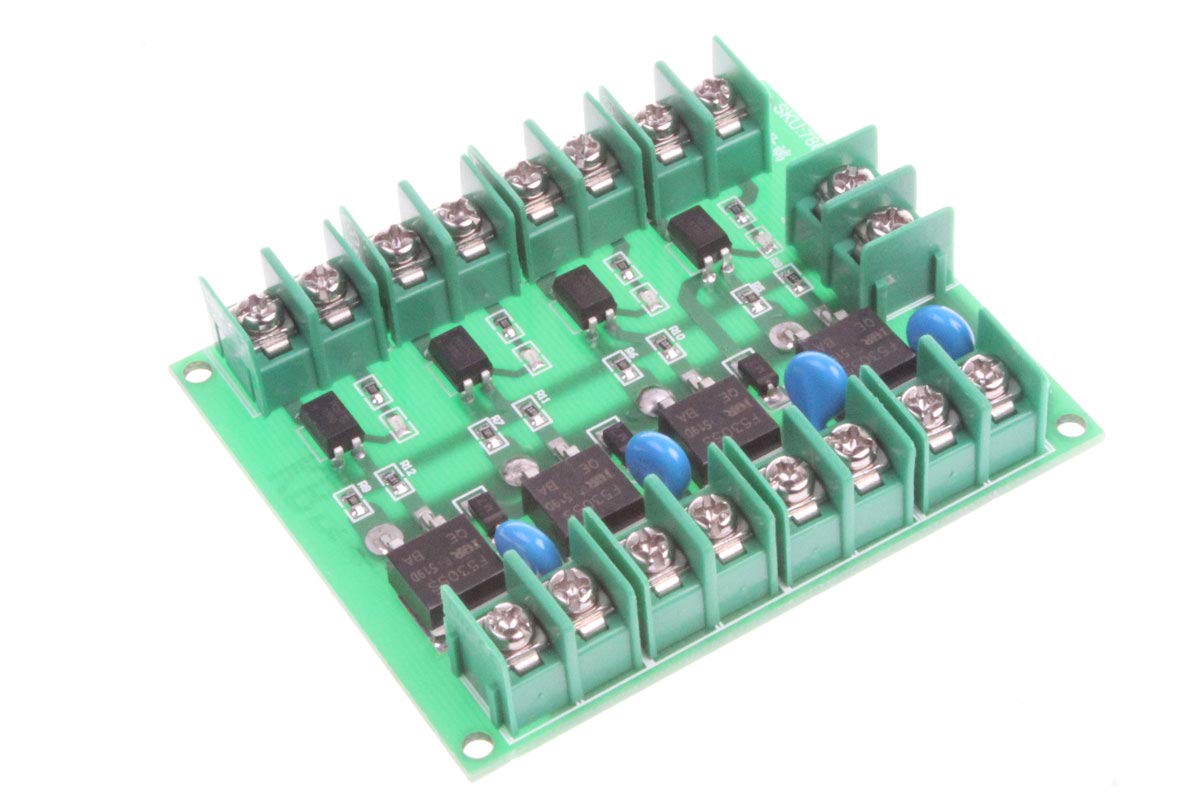

{"id":7171006693556,"title":"NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated","handle":"noyito-dc-control-4-channel-fet-module-mos-electronic-switch-control-board-output-controlled-voltage-5v-36v-5a-input-output-completely-isolated","description":"\u003ch3\u003eNOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: 1, To achieve high-frequency fast and frequent switching of the\ncircuit. 2,The on-off process will not produce noise. 3, No sparks. 4, There\nwill be no electromagnetic interference. 5, The service life is longer than\nthe common electromagnetic relay. Parameter The input and output are\ncompletely isolated. Signal trigger terminal: digital high and low level. Can\nbe connected to the microcontroller IO port, PLC interface, DC power supply,\netc. Input signal voltage: 3V-24V; current: about 5ma. Output controlled\nvoltage: 7V-36V. Current: less than 5A, more than 5A need to add heat sink,\nthe maximum can not exceed 20A. Suitable for controlling high-power equipment,\nmotors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.\nPackage Included: 1pcs NOYITO DC Control 4-Channel FET Module MOS Electronic\nSwitch Control Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDC Control 4-Channel FET Module, the input and output are completely isolated.\u003c\/li\u003e\n \u003cli\u003eSignal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.\u003c\/li\u003e\n \u003cli\u003eInput signal voltage: 3V-24V; current: about 5ma. The output is suitable for controlling high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.\u003c\/li\u003e\n \u003cli\u003eOutput controlled voltage: 7V-36V. Current: less than 5A, more than 5A need to add heat sink, the maximum can not exceed 20A.\u003c\/li\u003e\n \u003cli\u003eThe F5305S power FET is used. [Product wiring diagram, please see the second picture on the left]\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-27T21:32:12+10:00","created_at":"2022-06-27T21:32:20+10:00","vendor":"NOYITO","type":"Controls","tags":["industrial"],"price":12500,"price_min":12500,"price_max":12500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41611593941172,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07PS2C4YP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated","public_title":null,"options":["Default Title"],"price":12500,"weight":59,"compare_at_price":null,"inventory_management":null,"barcode":"0680613662262","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07PS2C4YP.jpg?v=1656401679","\/\/auspowers.com\/cdn\/shop\/products\/61pleLO1XGL.jpg?v=1656329540","\/\/auspowers.com\/cdn\/shop\/products\/61Gh4gc5TBL.jpg?v=1656329540","\/\/auspowers.com\/cdn\/shop\/products\/61fj51xvzGL.jpg?v=1656329540","\/\/auspowers.com\/cdn\/shop\/products\/61MMl0ytFLL.jpg?v=1656329540","\/\/auspowers.com\/cdn\/shop\/products\/513cNXi2zqL.jpg?v=1656329540","\/\/auspowers.com\/cdn\/shop\/products\/611nfXdzxvL.jpg?v=1656329540","\/\/auspowers.com\/cdn\/shop\/products\/61RLDaWi4KL.jpg?v=1656329540"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07PS2C4YP.jpg?v=1656401679","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated ","id":26320771449012,"position":1,"preview_image":{"aspect_ratio":1.5,"height":800,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07PS2C4YP.jpg?v=1656401679"},"aspect_ratio":1.5,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07PS2C4YP.jpg?v=1656401679","width":1200},{"alt":"[Australia - AusPower] - NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated ","id":26307506307252,"position":2,"preview_image":{"aspect_ratio":1.5,"height":800,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61pleLO1XGL.jpg?v=1656329540"},"aspect_ratio":1.5,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61pleLO1XGL.jpg?v=1656329540","width":1200},{"alt":"[Australia - AusPower] - NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated ","id":26307506340020,"position":3,"preview_image":{"aspect_ratio":1.5,"height":800,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Gh4gc5TBL.jpg?v=1656329540"},"aspect_ratio":1.5,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Gh4gc5TBL.jpg?v=1656329540","width":1200},{"alt":"[Australia - AusPower] - NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated ","id":26307506372788,"position":4,"preview_image":{"aspect_ratio":1.5,"height":800,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61fj51xvzGL.jpg?v=1656329540"},"aspect_ratio":1.5,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61fj51xvzGL.jpg?v=1656329540","width":1200},{"alt":"[Australia - AusPower] - NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated ","id":26307506405556,"position":5,"preview_image":{"aspect_ratio":1.5,"height":800,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61MMl0ytFLL.jpg?v=1656329540"},"aspect_ratio":1.5,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61MMl0ytFLL.jpg?v=1656329540","width":1200},{"alt":"[Australia - AusPower] - NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated ","id":26307506438324,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/513cNXi2zqL.jpg?v=1656329540"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/513cNXi2zqL.jpg?v=1656329540","width":500},{"alt":"[Australia - AusPower] - NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated ","id":26307506471092,"position":7,"preview_image":{"aspect_ratio":1.5,"height":800,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/611nfXdzxvL.jpg?v=1656329540"},"aspect_ratio":1.5,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/611nfXdzxvL.jpg?v=1656329540","width":1200},{"alt":"[Australia - AusPower] - NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated ","id":26307506503860,"position":8,"preview_image":{"aspect_ratio":1.5,"height":800,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61RLDaWi4KL.jpg?v=1656329540"},"aspect_ratio":1.5,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61RLDaWi4KL.jpg?v=1656329540","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: 1, To achieve high-frequency fast and frequent switching of the\ncircuit. 2,The on-off process will not produce noise. 3, No sparks. 4, There\nwill be no electromagnetic interference. 5, The service life is longer than\nthe common electromagnetic relay. Parameter The input and output are\ncompletely isolated. Signal trigger terminal: digital high and low level. Can\nbe connected to the microcontroller IO port, PLC interface, DC power supply,\netc. Input signal voltage: 3V-24V; current: about 5ma. Output controlled\nvoltage: 7V-36V. Current: less than 5A, more than 5A need to add heat sink,\nthe maximum can not exceed 20A. Suitable for controlling high-power equipment,\nmotors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.\nPackage Included: 1pcs NOYITO DC Control 4-Channel FET Module MOS Electronic\nSwitch Control Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDC Control 4-Channel FET Module, the input and output are completely isolated.\u003c\/li\u003e\n \u003cli\u003eSignal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.\u003c\/li\u003e\n \u003cli\u003eInput signal voltage: 3V-24V; current: about 5ma. The output is suitable for controlling high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.\u003c\/li\u003e\n \u003cli\u003eOutput controlled voltage: 7V-36V. Current: less than 5A, more than 5A need to add heat sink, the maximum can not exceed 20A.\u003c\/li\u003e\n \u003cli\u003eThe F5305S power FET is used. [Product wiring diagram, please see the second picture on the left]\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
