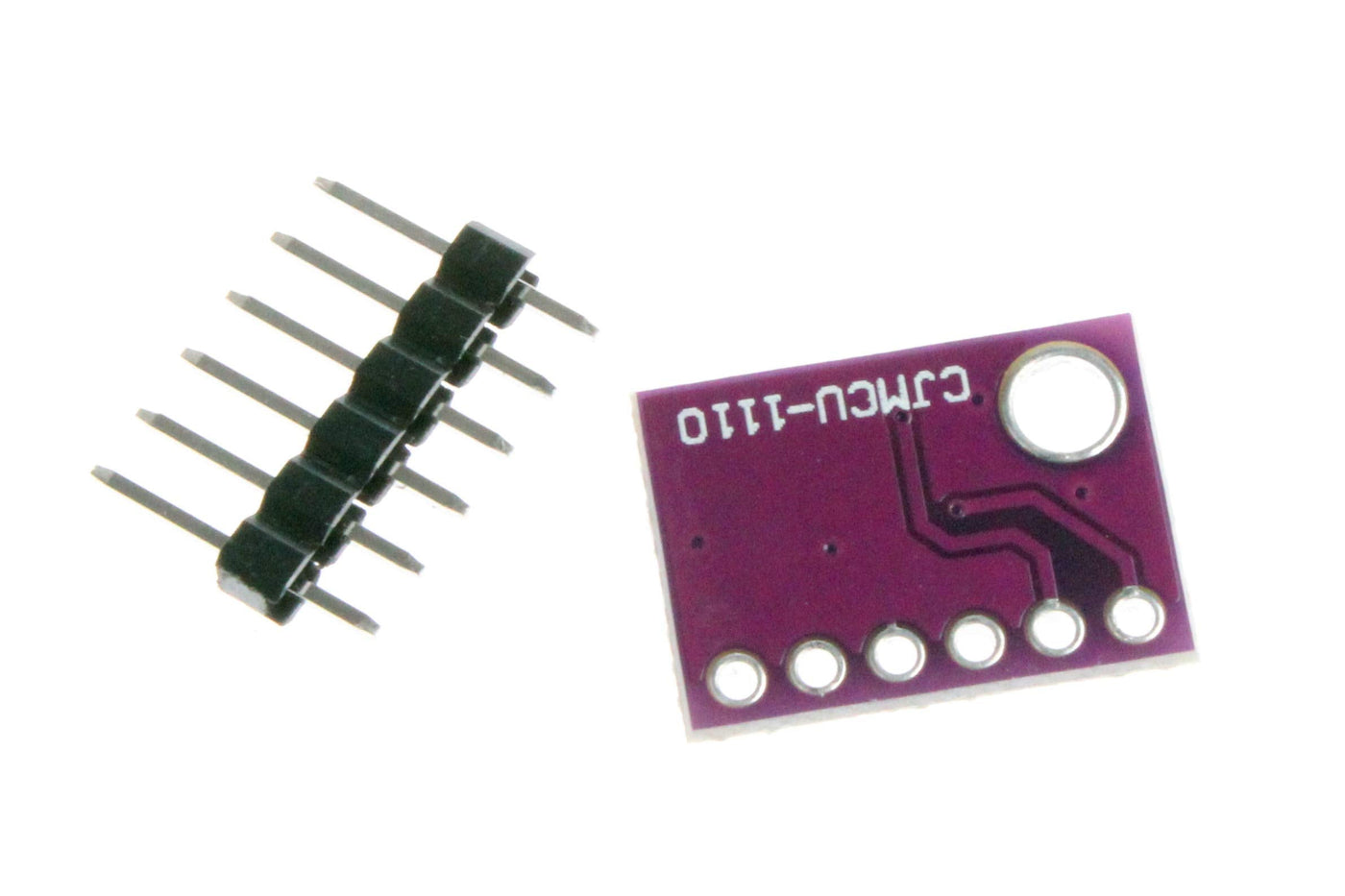

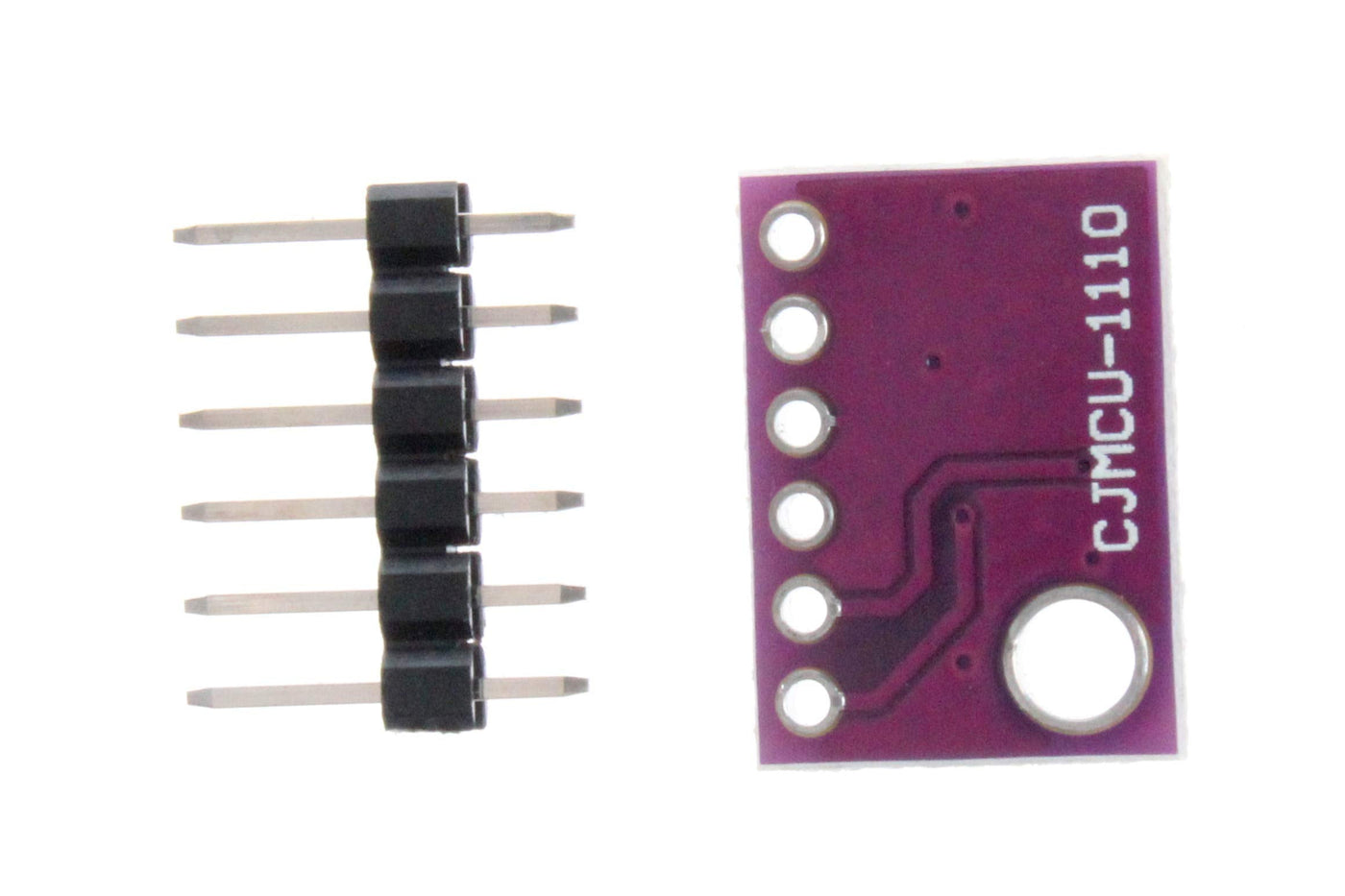

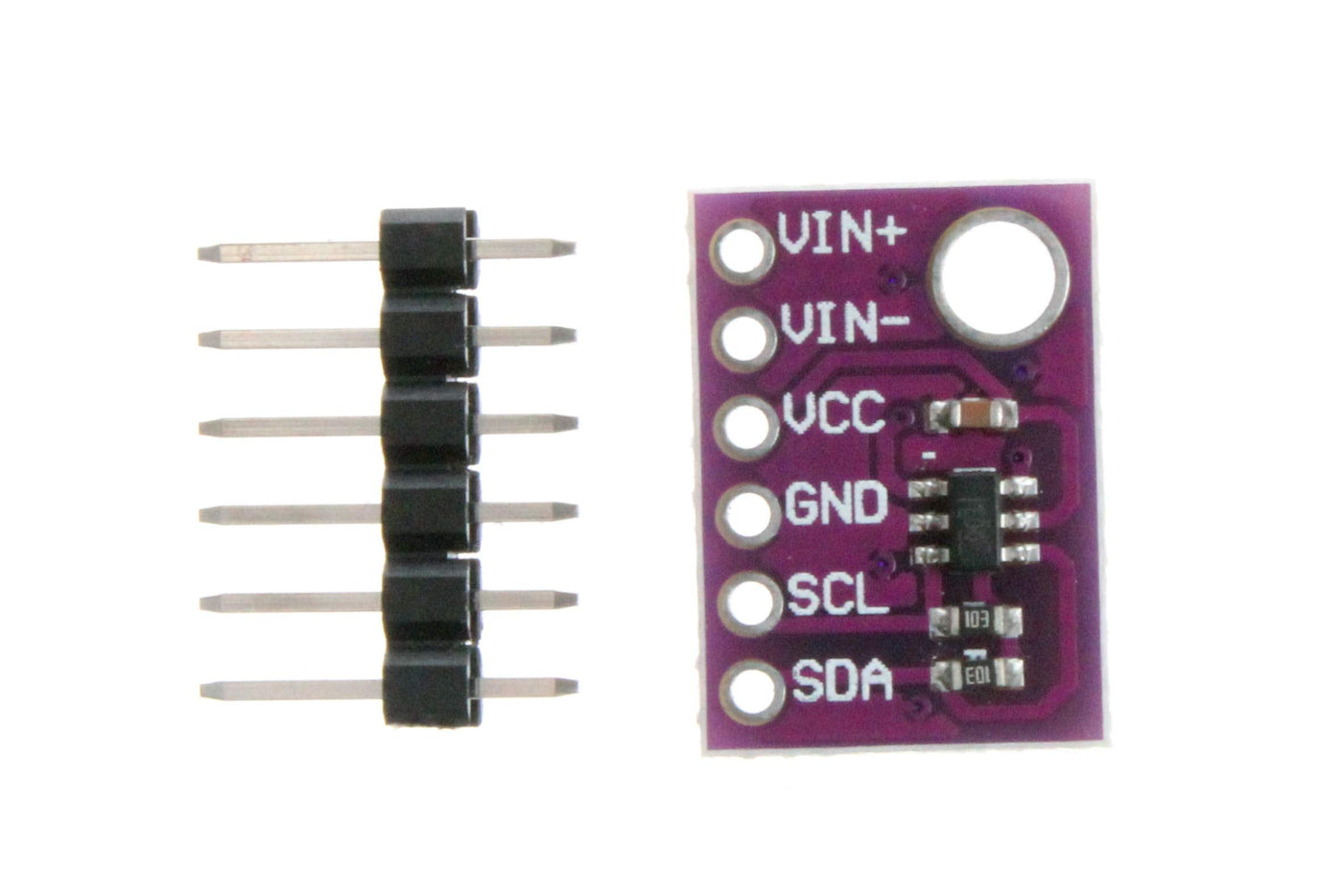

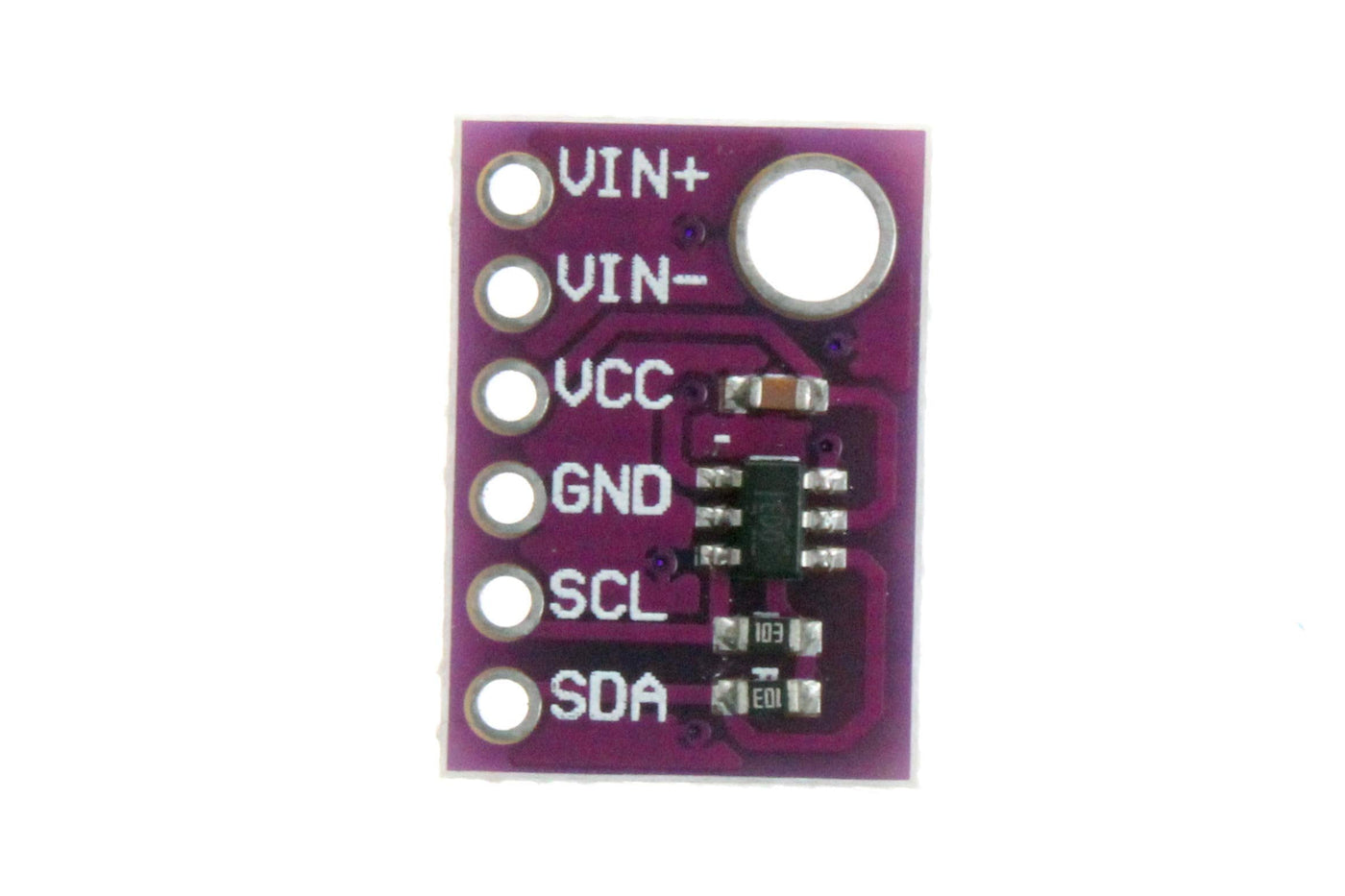

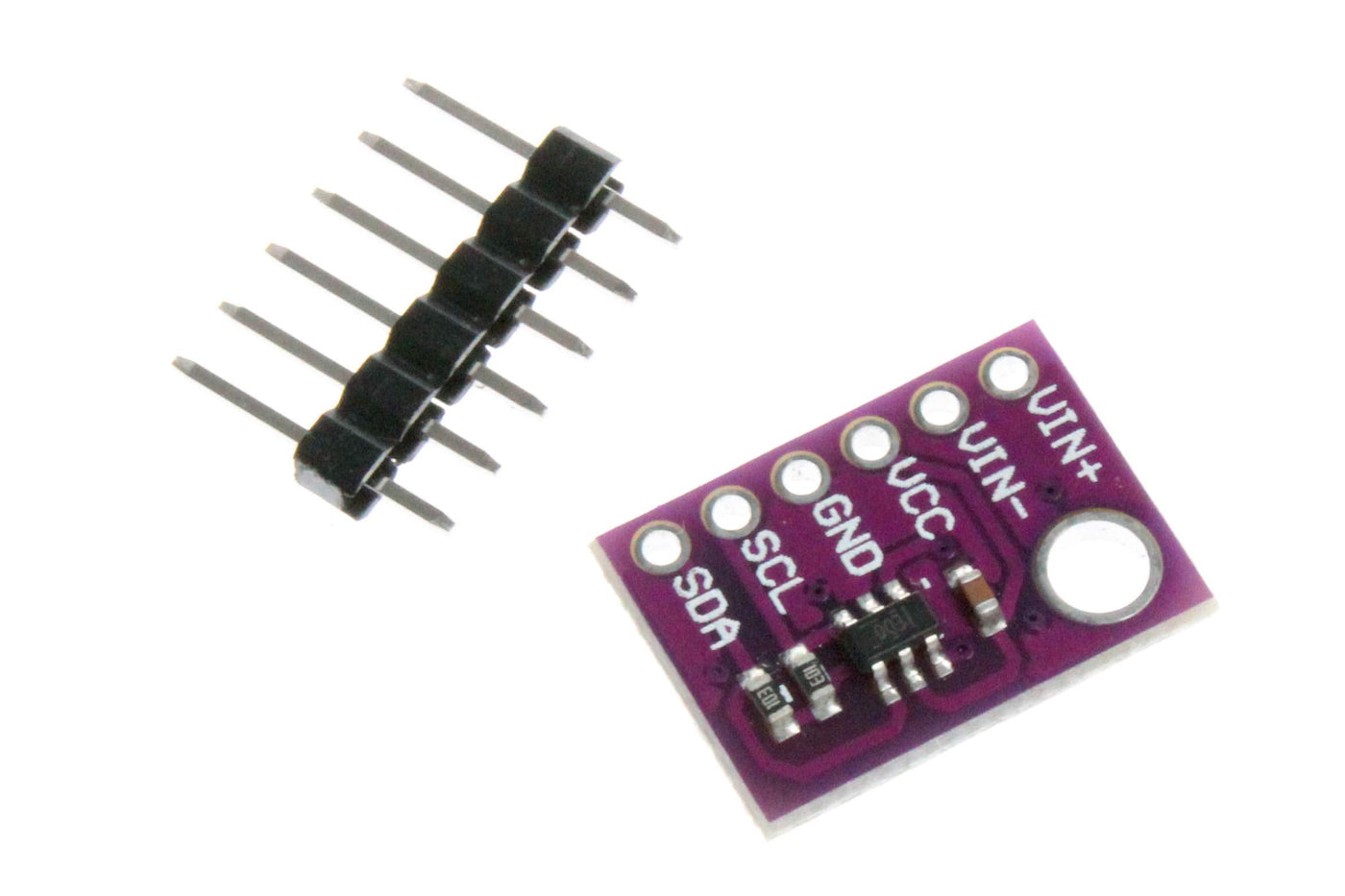

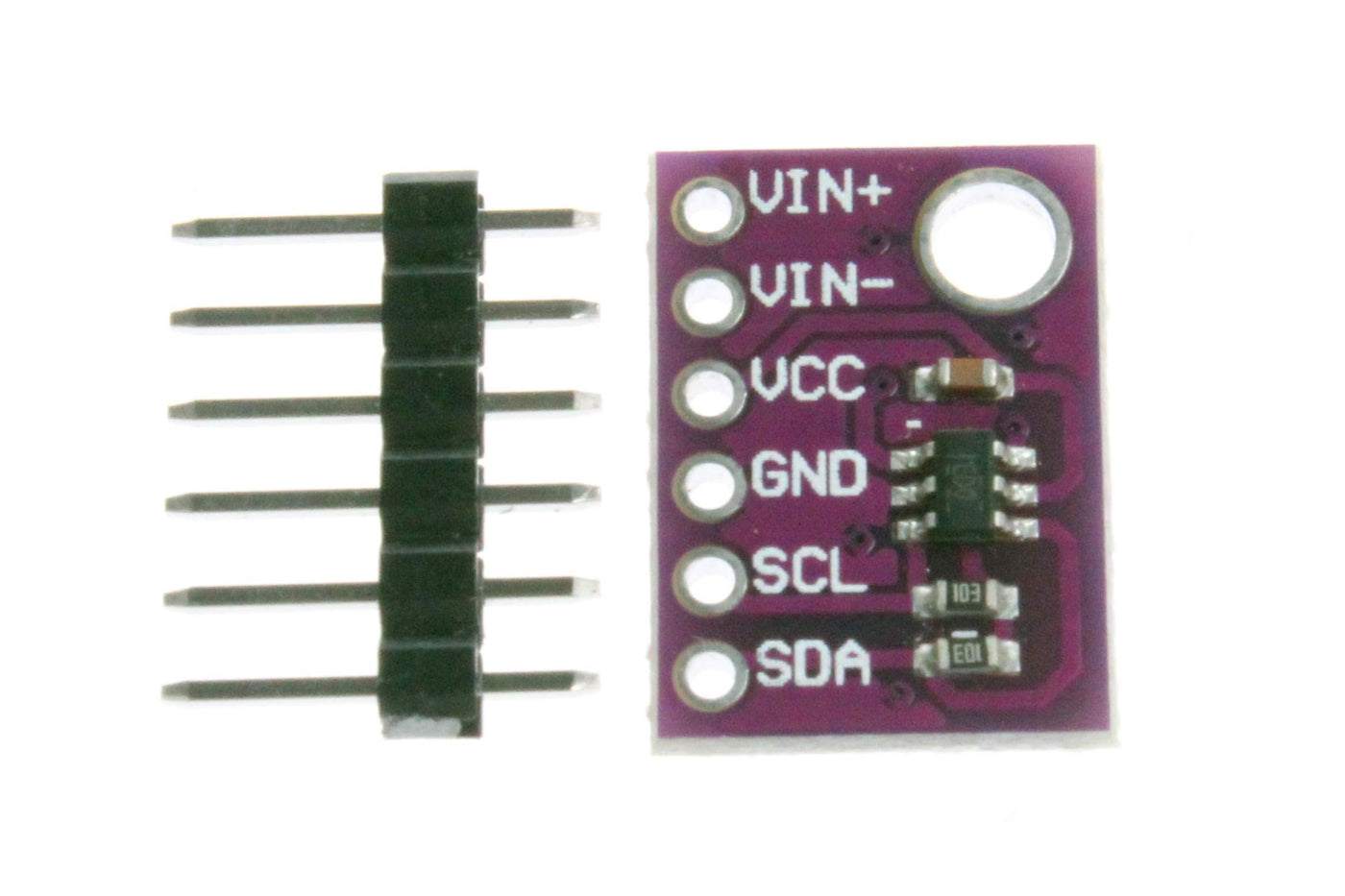

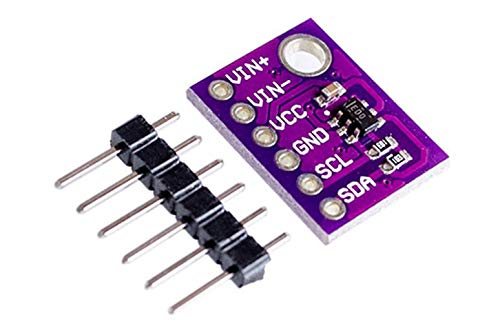

{"id":7254561751220,"title":"NOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module","handle":"noyito-ads1110-16-bit-analog-digital-ad-convertor-module-for-thermocouple-temperature-detection-sensor-module","description":" \u003ch1\u003eNOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eDescription Precision continuous self-calibrating analog\/digital A\/D converter\nwith differential input and resolution up to 16-bit resolution provides a\n2.048V input differential voltage for the small SOT23-6 on-chip 2.048V\nreference. The ADS1110 can be used. The compatible I2C serial interface\noperates from a single 2.7V to 5.5V supply. The ADS1110 can sample 15 30 60 or\n240 times per second for conversion. The on-chip programmable gain amplifier\nPGA provides up to 8x gain and allows measurement of smaller signals with high\nresolution. In single-cycle conversion, the ADS1110 is Automatic power down\nafter a conversion greatly reduces current consumption during idle periods.\nThe ADS1110 is designed for applications that require high-resolution\nmeasurements. Space and power consumption are top priorities in this\napplication Typical applications include portable instrumentation industrial\nprocess control and small transmitters. Parameter: Onboard Reference:accuracy\n2.048V+\/-0.05%;drift 5ppm\/celsius Onboard PGA,Onboard Oscillator 16-bits no\nmissing codes ,INL:0.01% of FSR max Continuous Self-calibration ,Single-Cycle\nConversion Programmable Data Rate:15SPS to 240SPS ,I2C Interface:eight\navailable addresses ,Power Supply:2.7-5.5V Package Included: 1pcs NOYITO\nADS1110 16-Bit Analog\/Digital AD Convertor Module\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003ePrecision continuous self-calibrating analog\/digital A\/D converter with differential input and resolution up to 16-bit resolution provides a 2.048V input differential voltage for the small SOT23-6 on-chip 2.048V reference. The ADS1110 can be used. The compatible I2C serial interface operates from a single 2.7V to 5.5V supply.\u003c\/li\u003e\n\u003cli\u003eThe ADS1110 can sample 15 30 60 or 240 times per second for conversion. The on-chip programmable gain amplifier PGA provides up to 8x gain and allows measurement of smaller signals with high resolution. In single-cycle conversion, the ADS1110 is Automatic power down after a conversion greatly reduces current consumption during idle periods.\u003c\/li\u003e\n\u003cli\u003eThe ADS1110 is designed for applications that require high-resolution measurements. Space and power consumption are top priorities in this application Typical applications include portable instrumentation industrial process control and small transmitters.\u003c\/li\u003e\n\u003cli\u003eOnboard Reference:accuracy 2.048V+\/-0.05%;drift 5ppm\/celsius,\u003c\/li\u003e\n\u003cli\u003eProgrammable Data Rate:15SPS to 240SPS ,I2C Interface:eight available addresses ,Power Supply:2.7-5.5V\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n ","published_at":"2022-09-10T00:17:01+10:00","created_at":"2022-09-10T00:17:10+10:00","vendor":"NOYITO","type":"Signal Converters","tags":["electronics3"],"price":11700,"price_min":11700,"price_max":11700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41845061714100,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07G6M2BXP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module","public_title":null,"options":["Default Title"],"price":11700,"weight":5,"compare_at_price":null,"inventory_management":null,"barcode":"667797752361","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07G6M2BXP.jpg?v=1662793749","\/\/auspowers.com\/cdn\/shop\/products\/710b7U93tSL.jpg?v=1662733030","\/\/auspowers.com\/cdn\/shop\/products\/71BwAZzVABL.jpg?v=1662733030","\/\/auspowers.com\/cdn\/shop\/products\/71QbH6QNi2L.jpg?v=1662733030","\/\/auspowers.com\/cdn\/shop\/products\/71mYpU-h6hL.jpg?v=1662733030","\/\/auspowers.com\/cdn\/shop\/products\/717GHiVVpnL.jpg?v=1662733030","\/\/auspowers.com\/cdn\/shop\/products\/71SJgOf0L6L.jpg?v=1662733030"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07G6M2BXP.jpg?v=1662793749","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module ","id":27112586805428,"position":1,"preview_image":{"aspect_ratio":1.502,"height":333,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07G6M2BXP.jpg?v=1662793749"},"aspect_ratio":1.502,"height":333,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07G6M2BXP.jpg?v=1662793749","width":500},{"alt":"[Australia - AusPower] - NOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module ","id":27105838170292,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1563,"width":2345,"src":"\/\/auspowers.com\/cdn\/shop\/products\/710b7U93tSL.jpg?v=1662733030"},"aspect_ratio":1.5,"height":1563,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/710b7U93tSL.jpg?v=1662733030","width":2345},{"alt":"[Australia - AusPower] - NOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module ","id":27105838203060,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1557,"width":2336,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71BwAZzVABL.jpg?v=1662733030"},"aspect_ratio":1.5,"height":1557,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71BwAZzVABL.jpg?v=1662733030","width":2336},{"alt":"[Australia - AusPower] - NOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module ","id":27105838235828,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1589,"width":2384,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71QbH6QNi2L.jpg?v=1662733030"},"aspect_ratio":1.5,"height":1589,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71QbH6QNi2L.jpg?v=1662733030","width":2384},{"alt":"[Australia - AusPower] - NOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module ","id":27105838268596,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1552,"width":2328,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71mYpU-h6hL.jpg?v=1662733030"},"aspect_ratio":1.5,"height":1552,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71mYpU-h6hL.jpg?v=1662733030","width":2328},{"alt":"[Australia - AusPower] - NOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module ","id":27105838301364,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1575,"width":2362,"src":"\/\/auspowers.com\/cdn\/shop\/products\/717GHiVVpnL.jpg?v=1662733030"},"aspect_ratio":1.5,"height":1575,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/717GHiVVpnL.jpg?v=1662733030","width":2362},{"alt":"[Australia - AusPower] - NOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module ","id":27105838334132,"position":7,"preview_image":{"aspect_ratio":1.5,"height":1546,"width":2319,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71SJgOf0L6L.jpg?v=1662733030"},"aspect_ratio":1.5,"height":1546,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71SJgOf0L6L.jpg?v=1662733030","width":2319}],"requires_selling_plan":false,"selling_plan_groups":[],"content":" \u003ch1\u003eNOYITO ADS1110 16 Bit Analog Digital AD Convertor Module for Thermocouple Temperature Detection Sensor Module\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eDescription Precision continuous self-calibrating analog\/digital A\/D converter\nwith differential input and resolution up to 16-bit resolution provides a\n2.048V input differential voltage for the small SOT23-6 on-chip 2.048V\nreference. The ADS1110 can be used. The compatible I2C serial interface\noperates from a single 2.7V to 5.5V supply. The ADS1110 can sample 15 30 60 or\n240 times per second for conversion. The on-chip programmable gain amplifier\nPGA provides up to 8x gain and allows measurement of smaller signals with high\nresolution. In single-cycle conversion, the ADS1110 is Automatic power down\nafter a conversion greatly reduces current consumption during idle periods.\nThe ADS1110 is designed for applications that require high-resolution\nmeasurements. Space and power consumption are top priorities in this\napplication Typical applications include portable instrumentation industrial\nprocess control and small transmitters. Parameter: Onboard Reference:accuracy\n2.048V+\/-0.05%;drift 5ppm\/celsius Onboard PGA,Onboard Oscillator 16-bits no\nmissing codes ,INL:0.01% of FSR max Continuous Self-calibration ,Single-Cycle\nConversion Programmable Data Rate:15SPS to 240SPS ,I2C Interface:eight\navailable addresses ,Power Supply:2.7-5.5V Package Included: 1pcs NOYITO\nADS1110 16-Bit Analog\/Digital AD Convertor Module\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003ePrecision continuous self-calibrating analog\/digital A\/D converter with differential input and resolution up to 16-bit resolution provides a 2.048V input differential voltage for the small SOT23-6 on-chip 2.048V reference. The ADS1110 can be used. The compatible I2C serial interface operates from a single 2.7V to 5.5V supply.\u003c\/li\u003e\n\u003cli\u003eThe ADS1110 can sample 15 30 60 or 240 times per second for conversion. The on-chip programmable gain amplifier PGA provides up to 8x gain and allows measurement of smaller signals with high resolution. In single-cycle conversion, the ADS1110 is Automatic power down after a conversion greatly reduces current consumption during idle periods.\u003c\/li\u003e\n\u003cli\u003eThe ADS1110 is designed for applications that require high-resolution measurements. Space and power consumption are top priorities in this application Typical applications include portable instrumentation industrial process control and small transmitters.\u003c\/li\u003e\n\u003cli\u003eOnboard Reference:accuracy 2.048V+\/-0.05%;drift 5ppm\/celsius,\u003c\/li\u003e\n\u003cli\u003eProgrammable Data Rate:15SPS to 240SPS ,I2C Interface:eight available addresses ,Power Supply:2.7-5.5V\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n "}
