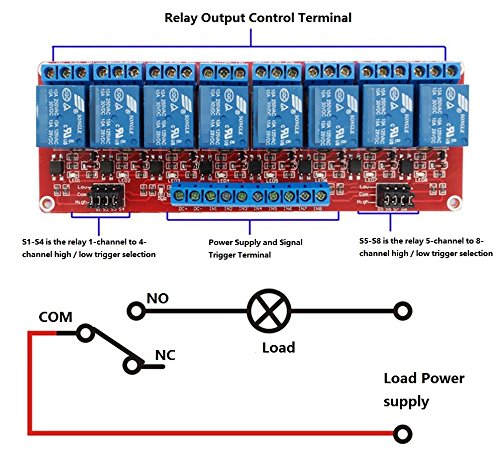

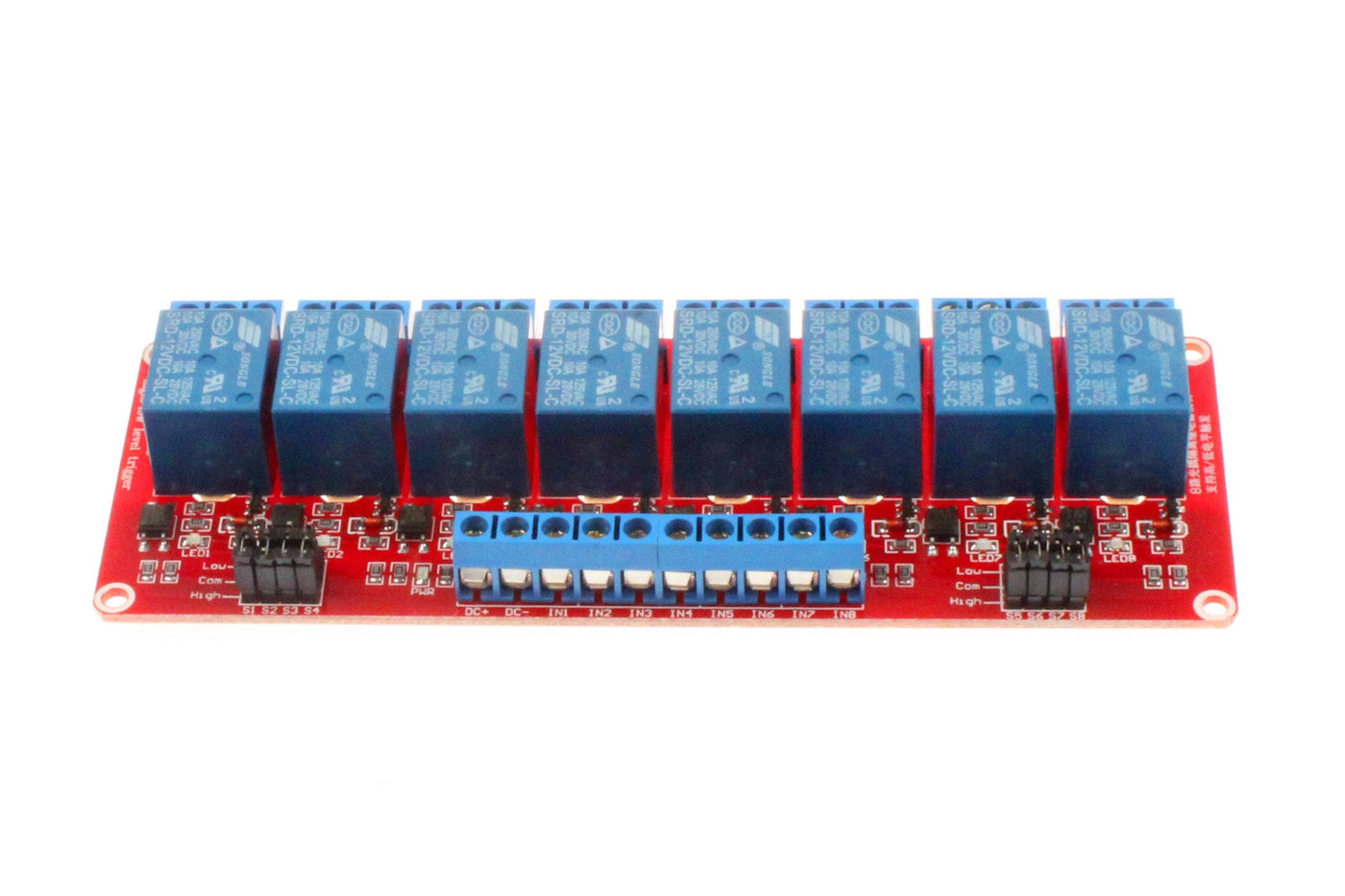

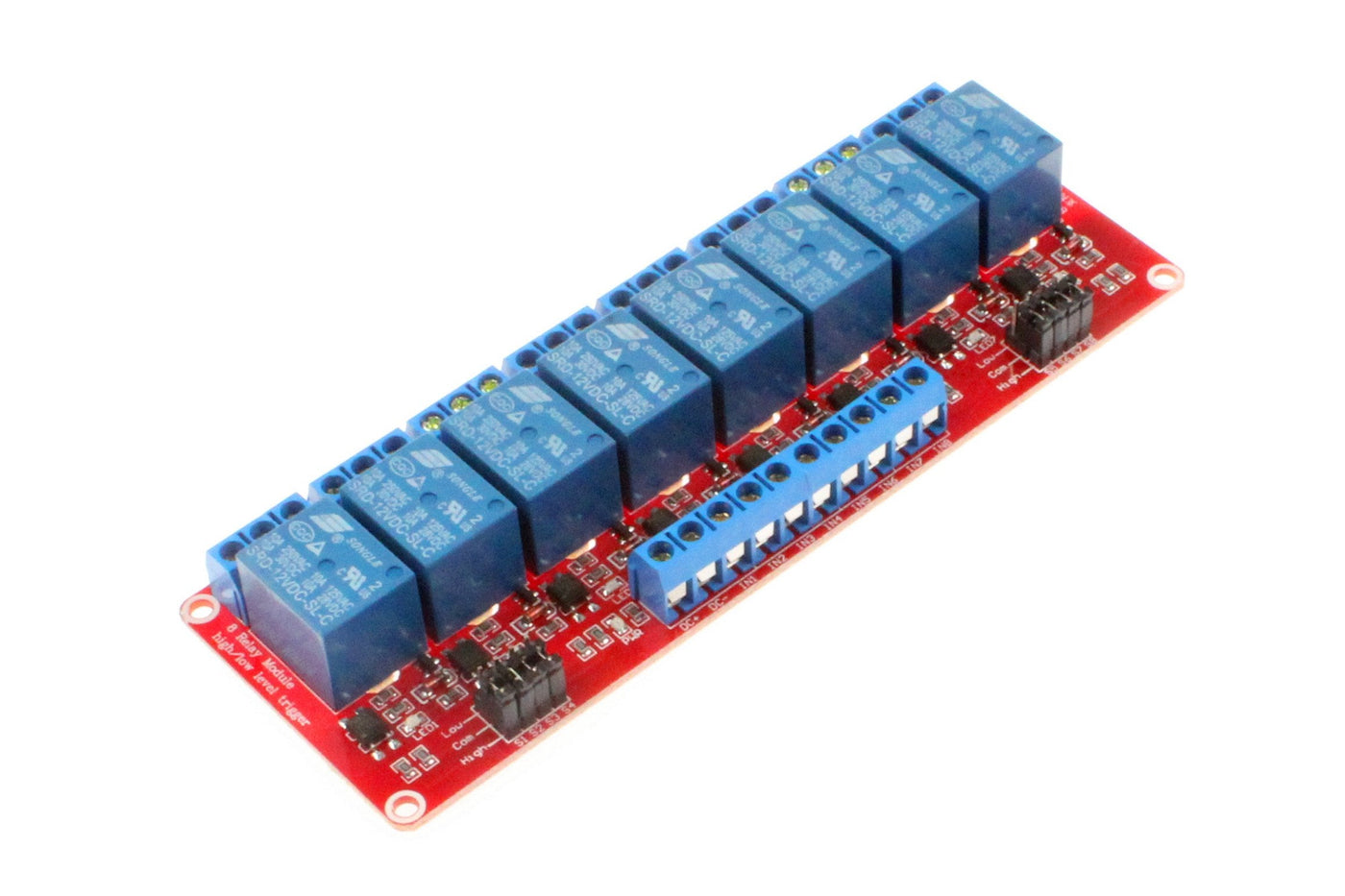

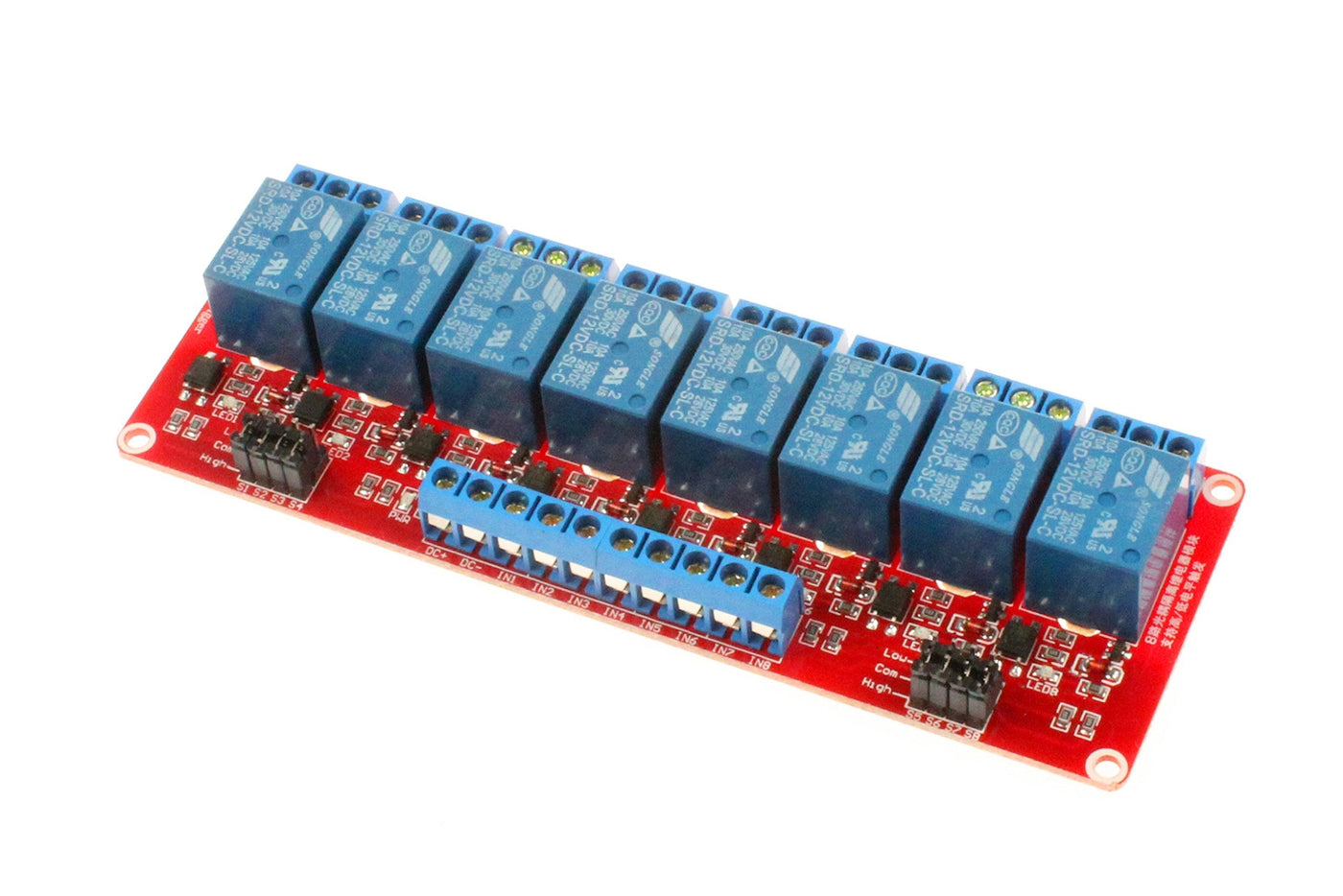

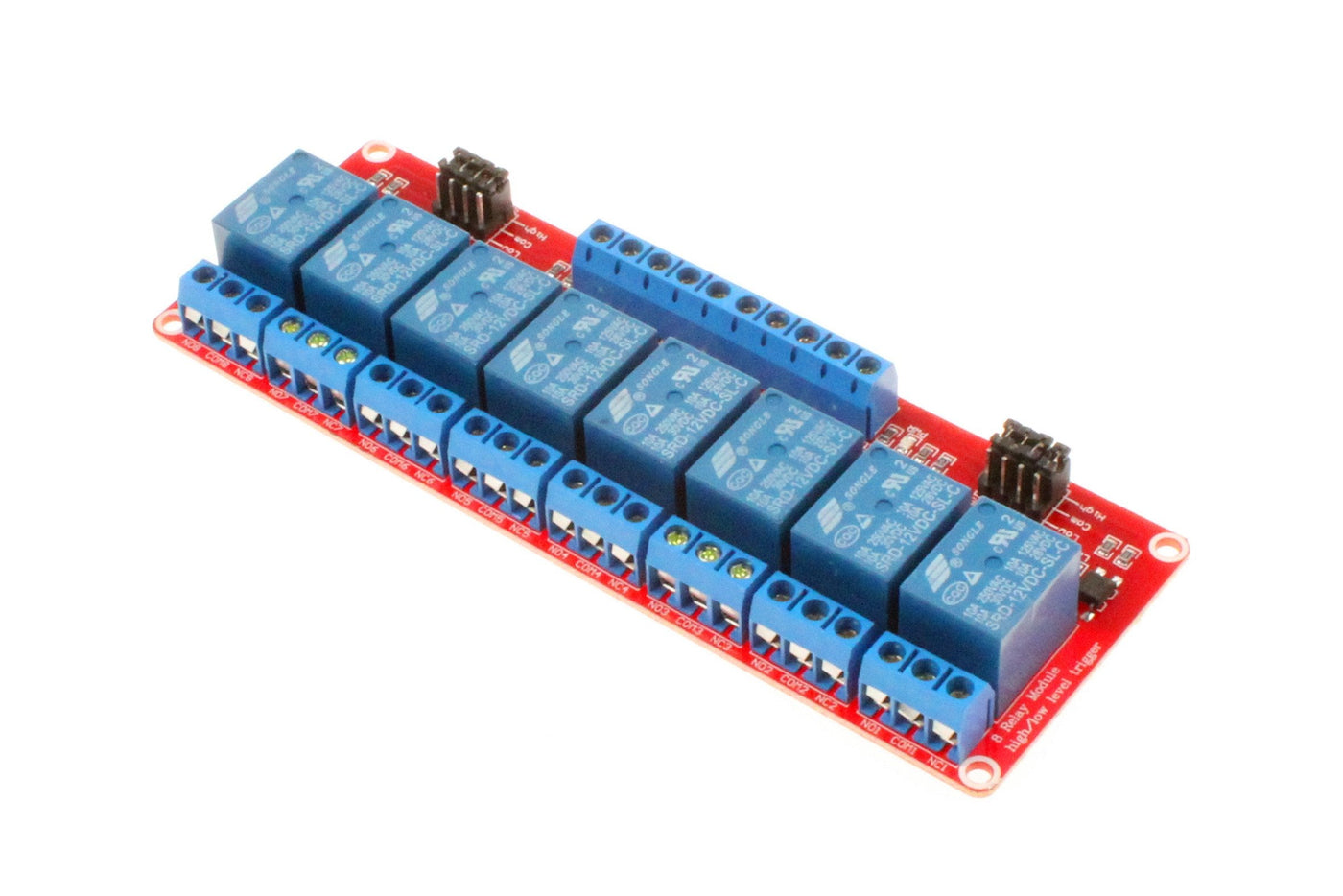

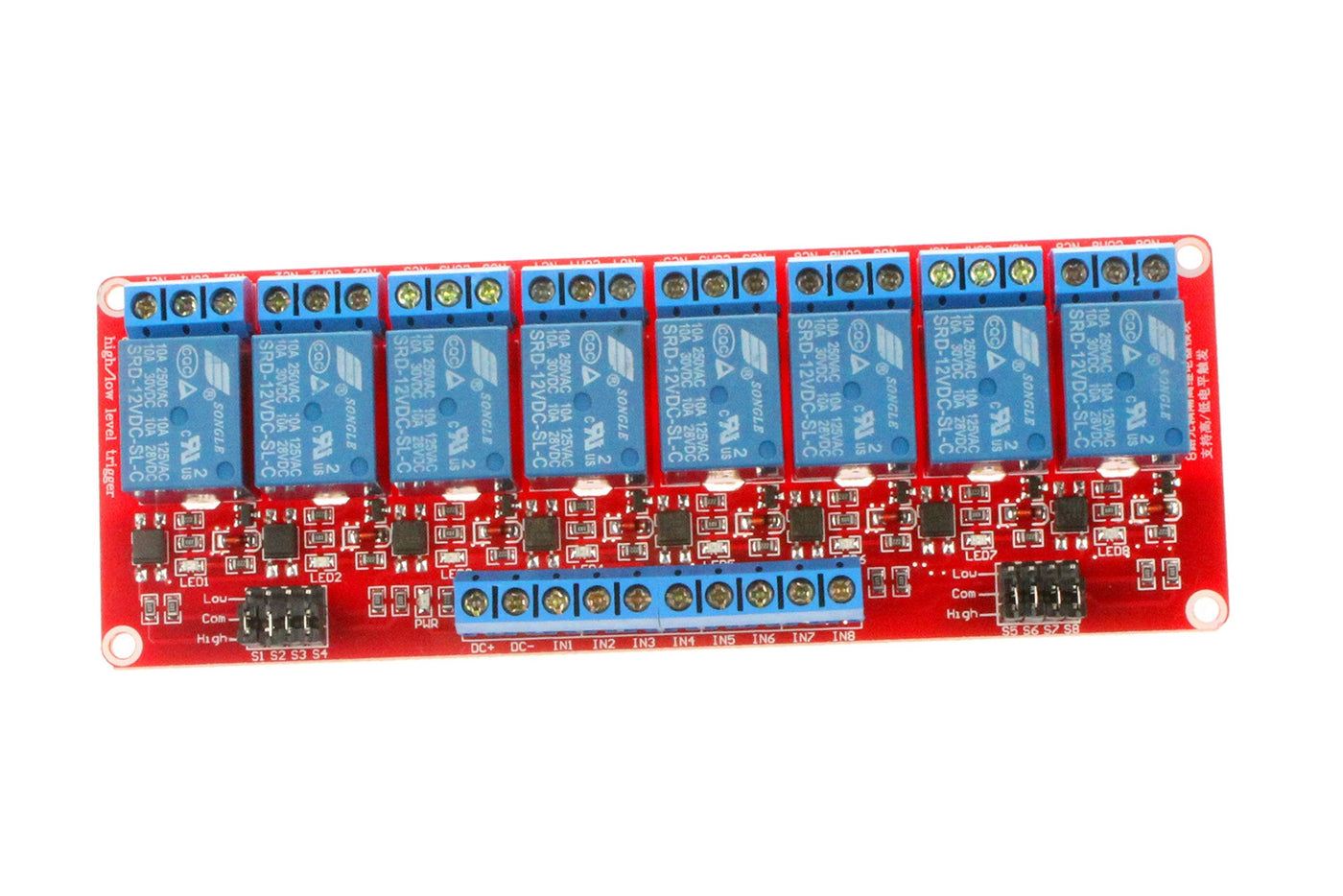

{"id":7169173618868,"title":"NOYITO 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 12V) 8-Channel 12V","handle":"noyito-8-channel-relay-module-high-low-level-trigger-with-optocoupler-isolation-load-dc-30v-ac-250v-10a-for-plc-automation-equipment-control-industrial-control-8-channel-12v-8-channel-12v","description":"\u003ch3\u003eNOYITO 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 12V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectrical parameters: Supply voltage: DC5V \/ 12V \/ 24V; Trigger mode: High \/\nLow Level Trigger; Load voltage: DC 30V \/ AC 250V; Load current: 10A; Product\nweight: 120g; Size:141.5x50x18.5mm (LxWxH); Mounting hole size:136x44.5(LxW);\nModule Interface: 1, DC +: Power supply Positive . (Module supply voltage must\nbe DC, and the voltage to be consistent with the relay voltage.) 2, DC -:\nPower supply negative . 3, IN1-IN8: According to the setting of each way, it\ncan control the corresponding relay to be high or low. Relay output: All\ninterfaces can be directly connected,user-friendly 1, NO1 - NO8: relay\nnormally open interface; 2, COM1 - COM8: relay common interface; 3, NC1 - NC8:\nnormally closed relay interface; High \/ Low Trigger Select : 1.S1-S8 is the\nrelay 1-channel to 8-channel high \/ low trigger selection; 2. COM and Low\nconnected, the relay is low-level trigger ; COM and High connected. the relay\nis high-level trigger. ; Pacakage Included: 1x8-Channel Relay Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eModule uses high-quality relay, normally open interface maximum load: AC 250V \/ 10A, DC 30V \/ 10A;\u003c\/li\u003e\n \u003cli\u003eSMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA;\u003c\/li\u003e\n \u003cli\u003eEach channel of the module can be set by jumper cap high or low level trigger;\u003c\/li\u003e\n \u003cli\u003eModule Power Supply : DC 5V \/ 12V \/ 24V(Mdule supply voltage must be DC, and the voltage to be consistent with the relay voltage.)Power indicator (green), 8 channels relay status indicator (red)\u003c\/li\u003e\n \u003cli\u003eOne-year After-sale Warranty\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-25T20:10:38+10:00","created_at":"2022-06-25T20:10:45+10:00","vendor":"NOYITO","type":"Relays","tags":["industrial"],"price":12100,"price_min":12100,"price_max":12100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41607878049972,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07BLT8TY6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 12V) 8-Channel 12V","public_title":null,"options":["Default Title"],"price":12100,"weight":116,"compare_at_price":null,"inventory_management":null,"barcode":"0667797748555","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07BLT8TY6.jpg?v=1656228597","\/\/auspowers.com\/cdn\/shop\/products\/812LWP5OmhL.jpg?v=1656151845","\/\/auspowers.com\/cdn\/shop\/products\/51QNUcOPanL.jpg?v=1656151845","\/\/auspowers.com\/cdn\/shop\/products\/81su9dbYSfL.jpg?v=1656151845","\/\/auspowers.com\/cdn\/shop\/products\/81O5LZQtjqL.jpg?v=1656151845","\/\/auspowers.com\/cdn\/shop\/products\/81396T5PlyL.jpg?v=1656151845"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07BLT8TY6.jpg?v=1656228597","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 12V) 8-Channel 12V ","id":26293317861556,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07BLT8TY6.jpg?v=1656228597"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07BLT8TY6.jpg?v=1656228597","width":2560},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 12V) 8-Channel 12V ","id":26282703716532,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1540,"width":2310,"src":"\/\/auspowers.com\/cdn\/shop\/products\/812LWP5OmhL.jpg?v=1656151845"},"aspect_ratio":1.5,"height":1540,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/812LWP5OmhL.jpg?v=1656151845","width":2310},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 12V) 8-Channel 12V ","id":26282703749300,"position":3,"preview_image":{"aspect_ratio":1.08,"height":463,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51QNUcOPanL.jpg?v=1656151845"},"aspect_ratio":1.08,"height":463,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51QNUcOPanL.jpg?v=1656151845","width":500},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 12V) 8-Channel 12V ","id":26282703782068,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1661,"width":2492,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81su9dbYSfL.jpg?v=1656151845"},"aspect_ratio":1.5,"height":1661,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81su9dbYSfL.jpg?v=1656151845","width":2492},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 12V) 8-Channel 12V ","id":26282703814836,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1575,"width":2362,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81O5LZQtjqL.jpg?v=1656151845"},"aspect_ratio":1.5,"height":1575,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81O5LZQtjqL.jpg?v=1656151845","width":2362},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 12V) 8-Channel 12V ","id":26282703847604,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81396T5PlyL.jpg?v=1656151845"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81396T5PlyL.jpg?v=1656151845","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO 8-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 12V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eElectrical parameters: Supply voltage: DC5V \/ 12V \/ 24V; Trigger mode: High \/\nLow Level Trigger; Load voltage: DC 30V \/ AC 250V; Load current: 10A; Product\nweight: 120g; Size:141.5x50x18.5mm (LxWxH); Mounting hole size:136x44.5(LxW);\nModule Interface: 1, DC +: Power supply Positive . (Module supply voltage must\nbe DC, and the voltage to be consistent with the relay voltage.) 2, DC -:\nPower supply negative . 3, IN1-IN8: According to the setting of each way, it\ncan control the corresponding relay to be high or low. Relay output: All\ninterfaces can be directly connected,user-friendly 1, NO1 - NO8: relay\nnormally open interface; 2, COM1 - COM8: relay common interface; 3, NC1 - NC8:\nnormally closed relay interface; High \/ Low Trigger Select : 1.S1-S8 is the\nrelay 1-channel to 8-channel high \/ low trigger selection; 2. COM and Low\nconnected, the relay is low-level trigger ; COM and High connected. the relay\nis high-level trigger. ; Pacakage Included: 1x8-Channel Relay Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eModule uses high-quality relay, normally open interface maximum load: AC 250V \/ 10A, DC 30V \/ 10A;\u003c\/li\u003e\n \u003cli\u003eSMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA;\u003c\/li\u003e\n \u003cli\u003eEach channel of the module can be set by jumper cap high or low level trigger;\u003c\/li\u003e\n \u003cli\u003eModule Power Supply : DC 5V \/ 12V \/ 24V(Mdule supply voltage must be DC, and the voltage to be consistent with the relay voltage.)Power indicator (green), 8 channels relay status indicator (red)\u003c\/li\u003e\n \u003cli\u003eOne-year After-sale Warranty\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
