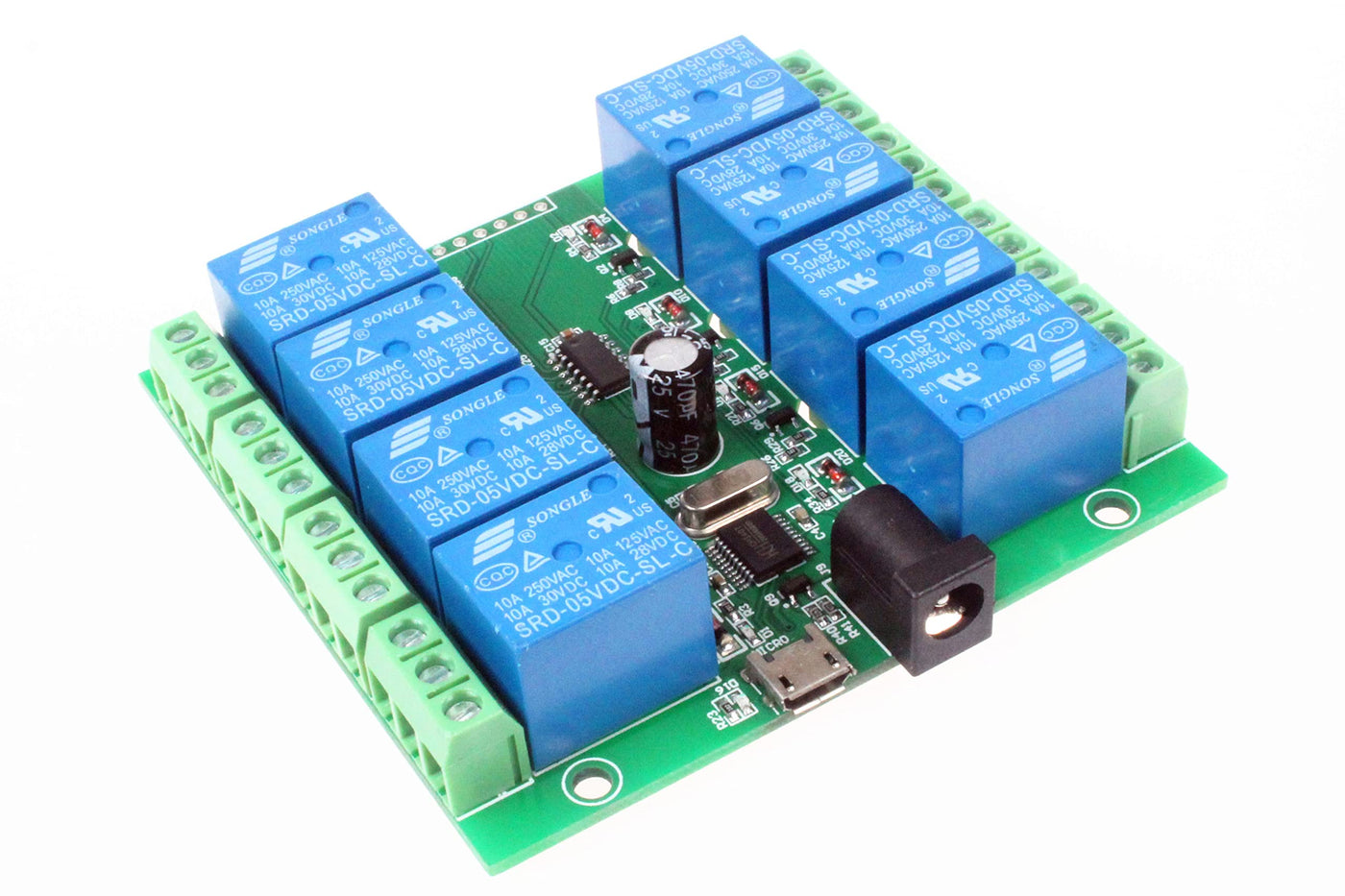

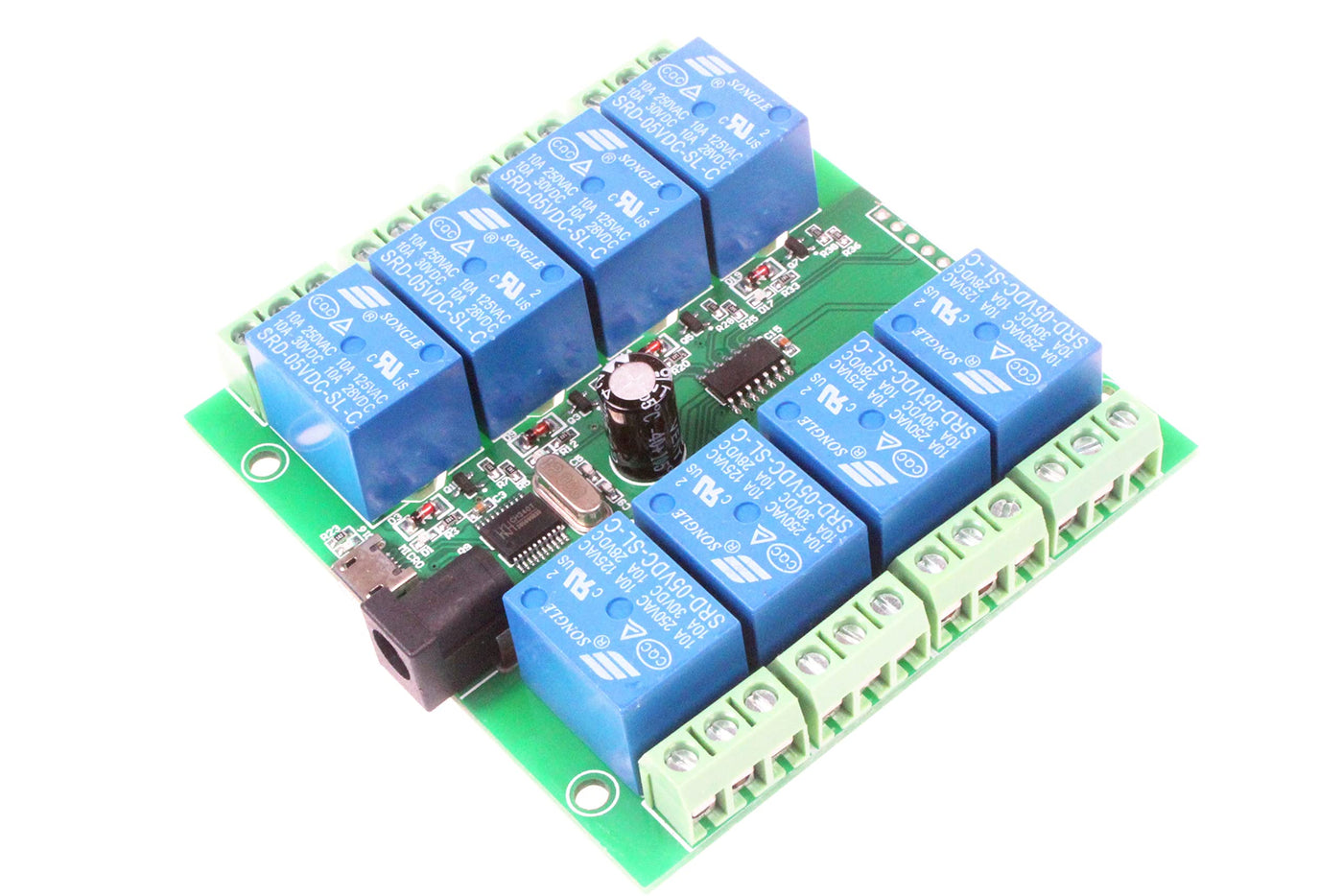

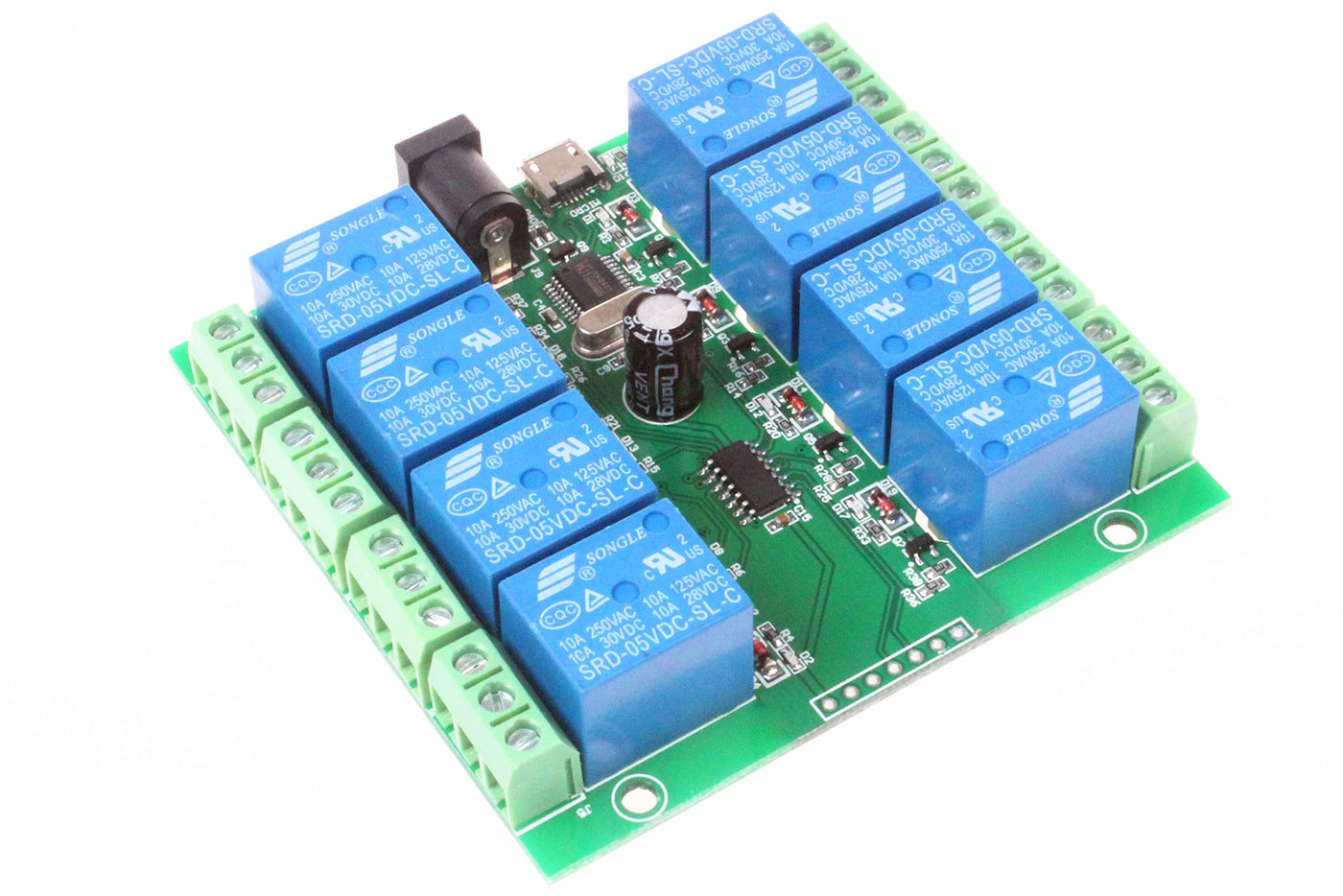

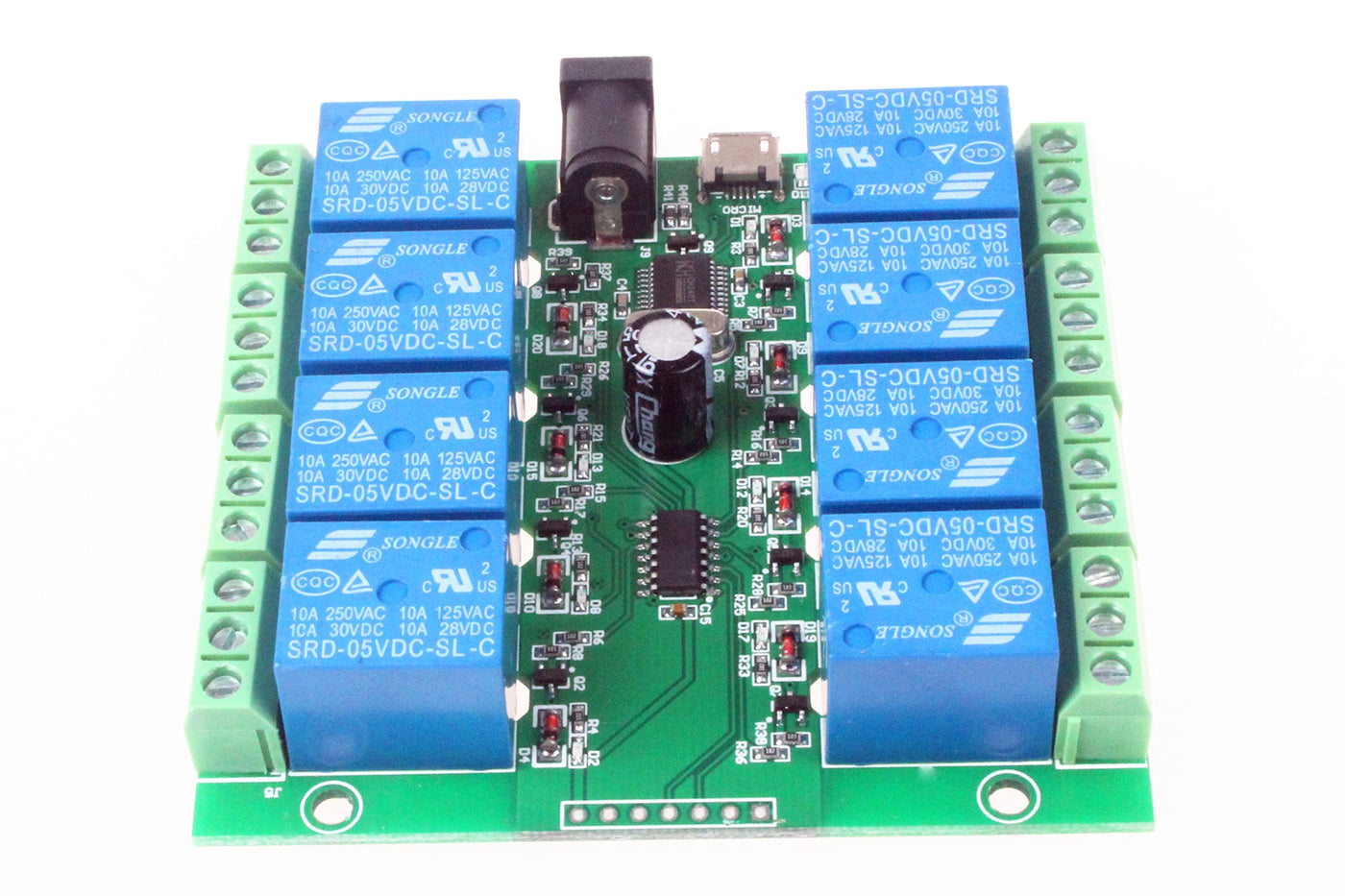

{"id":7390299947188,"title":"NOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch","handle":"noyito-8-channel-micro-usb-relay-module-usb-smart-control-switch-usb-intelligent-control-switch","description":"\u003ch3\u003eNOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHardware introduction and description Board size: 76.9 x 80.6mm Board\nInterface Description: COM1: common; NC1: normally closed; NO1: normally open.\n......... COM8: common; NC8: normally closed; NO8: normally open.\nCommunication protocol description: Default communication baud rate: 9600BPS\nTurn on the 1-channel relay switch: A0 01 01 A2 Turn off the 1-channel relay\nswitch: A0 01 00 A1 Turn on the 2-channel relay switch: A0 02 01 A3 Turn off\nthe 2-channel relay switch: A0 02 00 A2 Turn on the 3-channel relay switch: A0\n03 01 A4 Turn off the 3-channel relay switch: A0 03 00 A3 ...... Turn on the\n8-channel relay switch: A0 08 01 A9 Turn off the 8-channel relay switch: A0 08\n00 A8 Relay ON\/OFF status query command: 0xFF USB switch communication\nprotocol Data (1) --- start flag (default is 0xA0) Data (2) --- switch address\ncodes (0x01 and 0x02 represent the first and second switches, respectively)\nData (3) --- operating data (0x00 is \"off\", 0x01 is \"on\") Data (4) --- check\ncode Usage Description: 1. Connect the USB relay module to the computer and\ninstall the CH340 USB to serial chip driver 2. Open the STC-ISP, SSCOM32 such\nserial debugging software, select the baud rate of 9600, in hexadecimal (hex)\nform send A0 01 01 A2 and A0 02 01 A3 can be opened the first and second relay\n; Send in hexadecimal (hex) A0 01 00 A1 and A0 02 00 A2 can be turned off the\nfirst and second relay, respectively. Package Included: 1pcs NOYITO 8-Channel\nMicro USB Relay Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNOYITO 8-Channel Micro USB Relay Module is equipped with a stable USB to serial port chip and a microcontroller. It can use the serial port debugging software to send serial commands on the computer to control the opening and closing of the 4-channel relay.\u003c\/li\u003e\n \u003cli\u003eOnboard high performance microcontroller chip, CH340 USB control chip. Relay ON\/OFF status query command: 0xFF.\u003c\/li\u003e\n \u003cli\u003eIMPORTANT TIPSPower supply voltage: DC5V. Support USB power supply\/external power supply switching. (External power supply interface: connect to the power supply 5V, because the output current of the USB port is limited, it is recommended to use an external power supply when using more than 2 relays)\u003c\/li\u003e\n \u003cli\u003eOn-board 5V relay, 10A\/250VAC, 10A\/30VDC relay, long relay life, can work 100,000 times continuously.\u003c\/li\u003e\n \u003cli\u003eModule with overcurrent protection and relay diode freewheel protection.With power LED indicator and relay status LED.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-06-05T17:22:34+10:00","created_at":"2023-06-05T17:22:47+10:00","vendor":"NOYITO","type":"Power Converters","tags":["June2023_cocoonwix"],"price":13300,"price_min":13300,"price_max":13300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42293410267316,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09RGTSHHW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch","public_title":null,"options":["Default Title"],"price":13300,"weight":118,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/w-B09RGTSHHW.jpg?v=1685950444","\/\/auspowers.com\/cdn\/shop\/products\/818KAE8xCXL.jpg?v=1685949768","\/\/auspowers.com\/cdn\/shop\/products\/81DLrV-uksL.jpg?v=1685949768","\/\/auspowers.com\/cdn\/shop\/products\/81OkNcbpJQL.jpg?v=1685949768","\/\/auspowers.com\/cdn\/shop\/products\/81fvRs6LGoL.jpg?v=1685949768","\/\/auspowers.com\/cdn\/shop\/products\/81WsFEgEvzL.jpg?v=1685949768","\/\/auspowers.com\/cdn\/shop\/products\/71F-OQCq5wL.jpg?v=1685949768"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/w-B09RGTSHHW.jpg?v=1685950444","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch ","id":28742862405812,"position":1,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/w-B09RGTSHHW.jpg?v=1685950444"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/w-B09RGTSHHW.jpg?v=1685950444","width":2560},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch ","id":28742836027572,"position":2,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/818KAE8xCXL.jpg?v=1685949768"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/818KAE8xCXL.jpg?v=1685949768","width":2560},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch ","id":28742836060340,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81DLrV-uksL.jpg?v=1685949768"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81DLrV-uksL.jpg?v=1685949768","width":2560},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch ","id":28742836093108,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81OkNcbpJQL.jpg?v=1685949768"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81OkNcbpJQL.jpg?v=1685949768","width":2560},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch ","id":28742836125876,"position":5,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81fvRs6LGoL.jpg?v=1685949768"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81fvRs6LGoL.jpg?v=1685949768","width":2560},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch ","id":28742836158644,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81WsFEgEvzL.jpg?v=1685949768"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81WsFEgEvzL.jpg?v=1685949768","width":2560},{"alt":"[Australia - AusPower] - NOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch ","id":28742836191412,"position":7,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71F-OQCq5wL.jpg?v=1685949768"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71F-OQCq5wL.jpg?v=1685949768","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO 8-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHardware introduction and description Board size: 76.9 x 80.6mm Board\nInterface Description: COM1: common; NC1: normally closed; NO1: normally open.\n......... COM8: common; NC8: normally closed; NO8: normally open.\nCommunication protocol description: Default communication baud rate: 9600BPS\nTurn on the 1-channel relay switch: A0 01 01 A2 Turn off the 1-channel relay\nswitch: A0 01 00 A1 Turn on the 2-channel relay switch: A0 02 01 A3 Turn off\nthe 2-channel relay switch: A0 02 00 A2 Turn on the 3-channel relay switch: A0\n03 01 A4 Turn off the 3-channel relay switch: A0 03 00 A3 ...... Turn on the\n8-channel relay switch: A0 08 01 A9 Turn off the 8-channel relay switch: A0 08\n00 A8 Relay ON\/OFF status query command: 0xFF USB switch communication\nprotocol Data (1) --- start flag (default is 0xA0) Data (2) --- switch address\ncodes (0x01 and 0x02 represent the first and second switches, respectively)\nData (3) --- operating data (0x00 is \"off\", 0x01 is \"on\") Data (4) --- check\ncode Usage Description: 1. Connect the USB relay module to the computer and\ninstall the CH340 USB to serial chip driver 2. Open the STC-ISP, SSCOM32 such\nserial debugging software, select the baud rate of 9600, in hexadecimal (hex)\nform send A0 01 01 A2 and A0 02 01 A3 can be opened the first and second relay\n; Send in hexadecimal (hex) A0 01 00 A1 and A0 02 00 A2 can be turned off the\nfirst and second relay, respectively. Package Included: 1pcs NOYITO 8-Channel\nMicro USB Relay Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNOYITO 8-Channel Micro USB Relay Module is equipped with a stable USB to serial port chip and a microcontroller. It can use the serial port debugging software to send serial commands on the computer to control the opening and closing of the 4-channel relay.\u003c\/li\u003e\n \u003cli\u003eOnboard high performance microcontroller chip, CH340 USB control chip. Relay ON\/OFF status query command: 0xFF.\u003c\/li\u003e\n \u003cli\u003eIMPORTANT TIPSPower supply voltage: DC5V. Support USB power supply\/external power supply switching. (External power supply interface: connect to the power supply 5V, because the output current of the USB port is limited, it is recommended to use an external power supply when using more than 2 relays)\u003c\/li\u003e\n \u003cli\u003eOn-board 5V relay, 10A\/250VAC, 10A\/30VDC relay, long relay life, can work 100,000 times continuously.\u003c\/li\u003e\n \u003cli\u003eModule with overcurrent protection and relay diode freewheel protection.With power LED indicator and relay status LED.\u003c\/li\u003e\n \u003c\/ul\u003e"}
