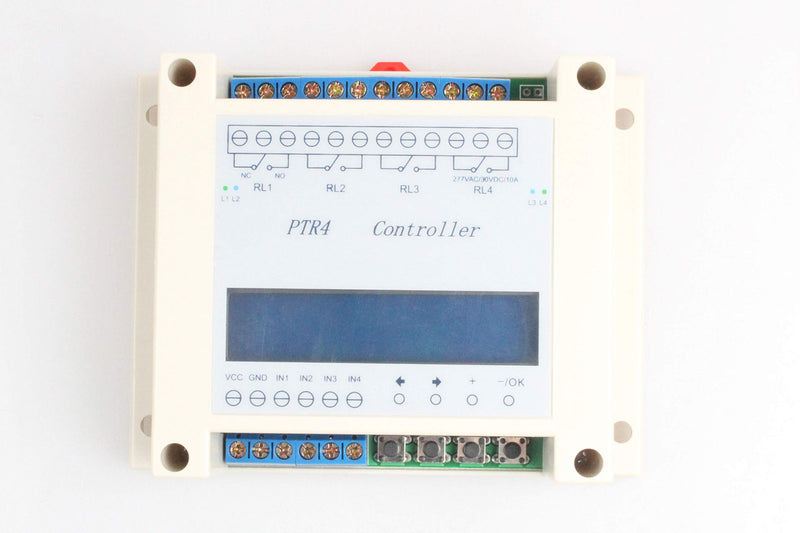

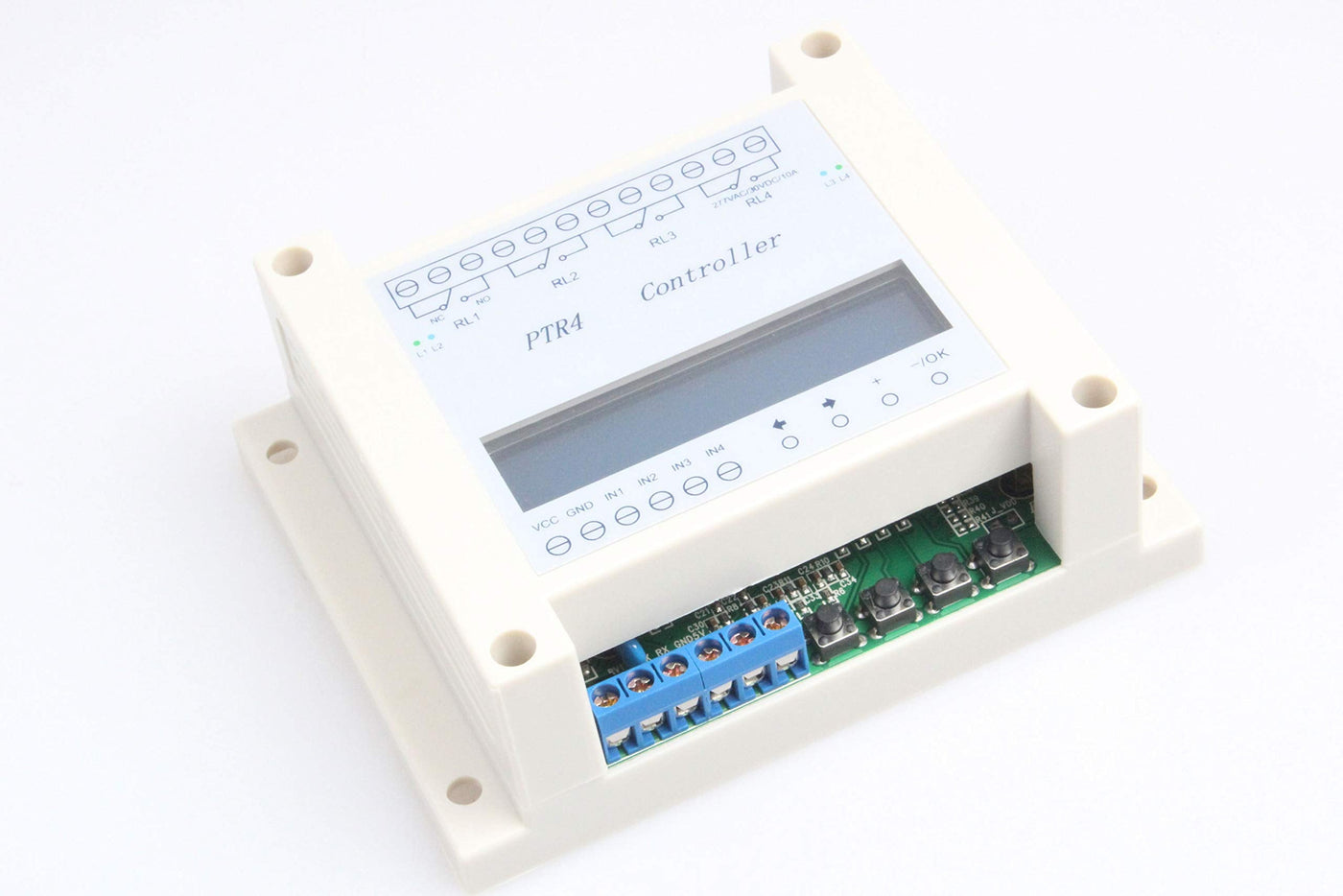

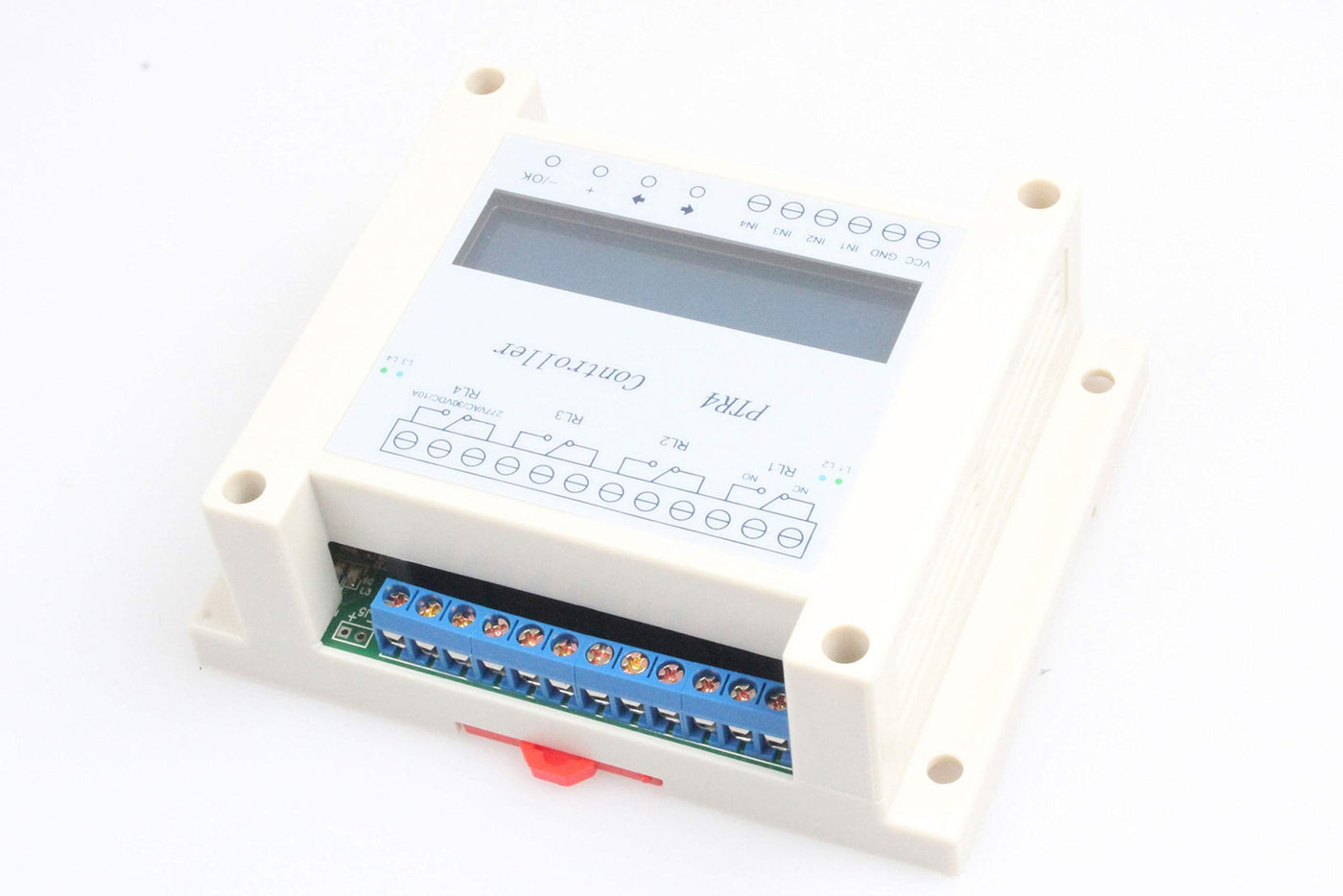

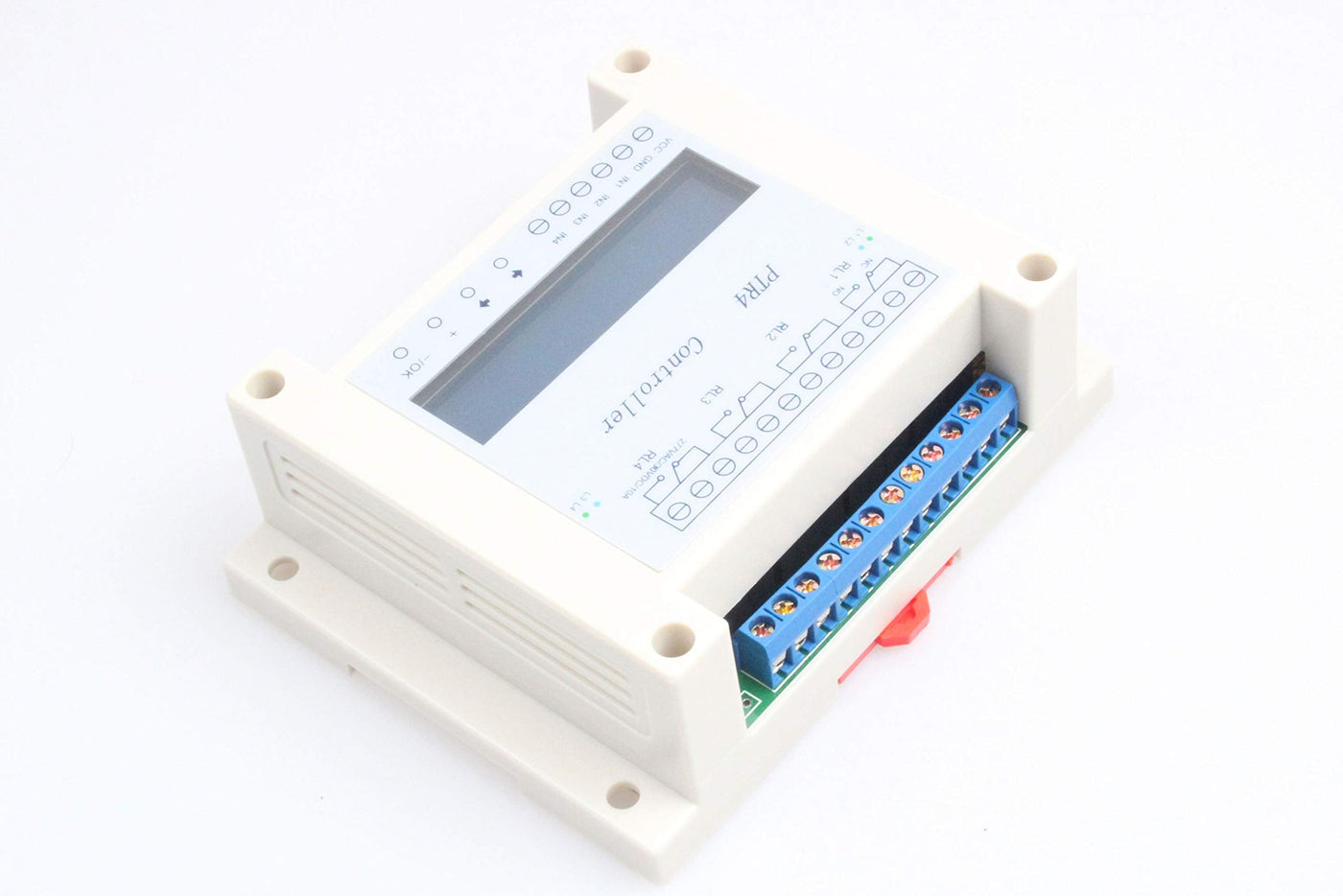

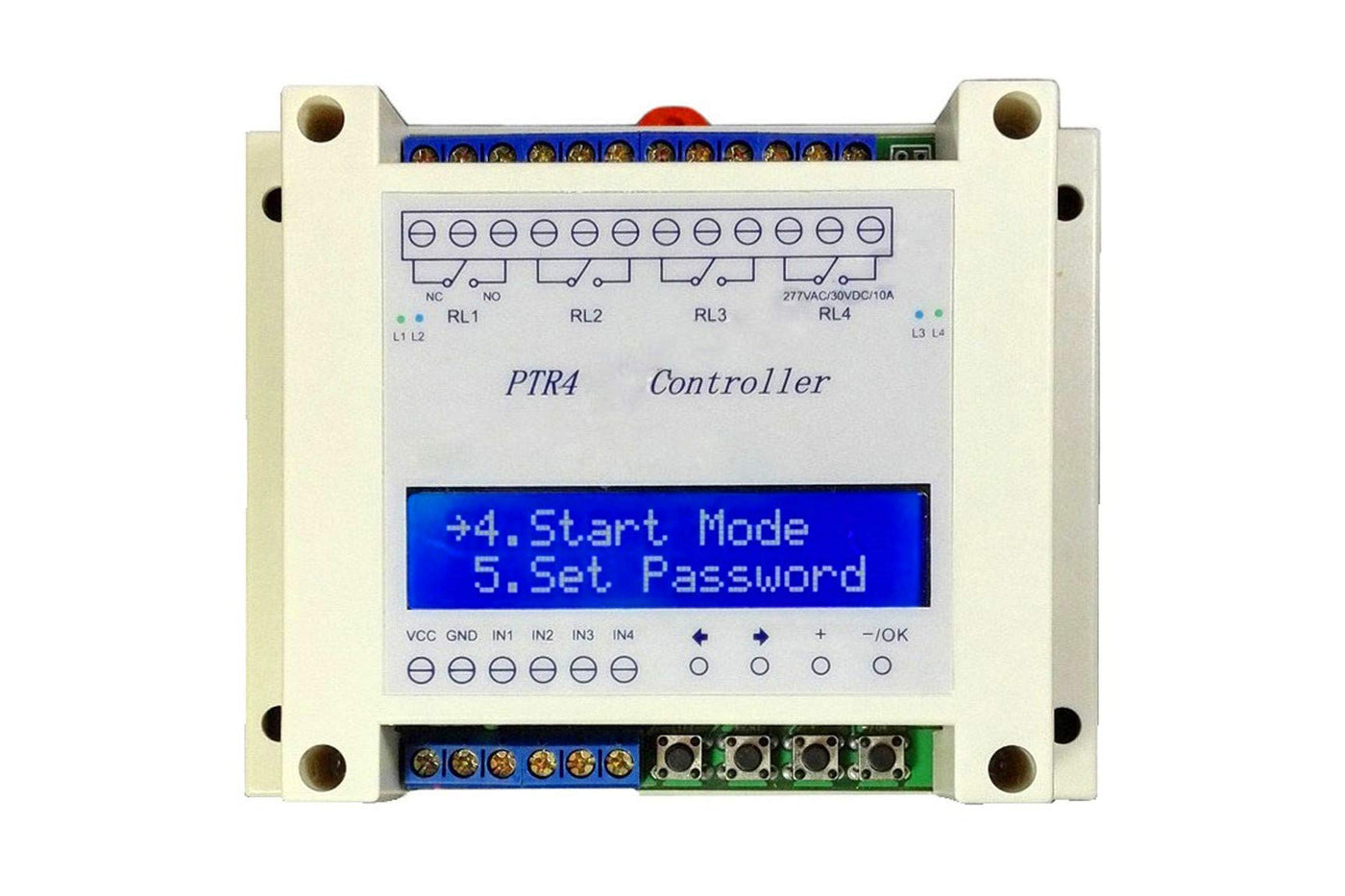

{"id":7175026376884,"title":"NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation","handle":"noyito-4-channel-programmable-time-relay-controller-99-step-multi-channel-timing-trigger-solenoid-valve-linkage-control-lcd-display-optocoupler-isolation","description":"\u003ch3\u003eNOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: 1) Industrial LCD displays, set by buttons, easy to use, has reset\nfunction. 2) High-performance microcontrollers, industrial-grade reliability,\nhigh process stability, low power, reverse power protection function, avoiding\nsurge current shock. 3) Four relays, each group of relays has common and\nnormally opened, normally closed contacts, 4 sets of conversion; 4) 99 groups\ntime, each timer range: 0.1 seconds ~ 9999 minutes adjustable, the total\nnumber of Loops is adjustable from 0 to 9999 ( “0” means run loops all the\ntime ) ; 5) Each step can be set to cyclic jump to run forward 0-999 times, 20\nlayer nesting loops support (figure 2); 6) The external input high level and\nlow level signals, achieve trigger function, wait input to run, jump to\nanother step ,stop running functions; 7) User can set the password, to prevent\nothers to change the setting parameters; 8) Shell size 1159040mm. All\nsettings can be saved. Parameters Timing Range : 0.1seconds ~ 9999 minutes can\nbe set, cycles 0 ~ 9999 times Power Supply: DC6~40V Working current: When the\nbacklight is off, the standby current is 9mA \/ 12V. When the 4-channel relay\nworks, the current is 170mA \/ 12V. Relay parameters: Four set of conversion\n(normally opened and normally closed) Contact load: 10A\/277V AC or 10A\/30V DC\nContact resistance: ≤ 100mΩ (1A 6VDC) Mechanical durability: 10 millions\nElectricity durability: \u0026gt; 100,000 (10A-250VAC) Operating Temperature: -40 ~\n85℃ Package Included: NOYITO 4-Channel Programmable Time Relay\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe PTR4-SP controller can be set 99 groups time (steps), each step the relay switch state can be set switch ON\/OFF (close or open) , use external input voltage signal or switch it can achieve many functions. The controller can be used to control four solenoid valve - linkage, sequence control as PLC, etc.\u003c\/li\u003e\n \u003cli\u003eIndustrial LCD displays, set by buttons, easy to use, has reset function. High-performance microcontrollers, industrial-grade reliability, high process stability, low power, reverse power protection function, avoiding surge current shock.\u003c\/li\u003e\n \u003cli\u003eFour relays, each group of relays has common and normally opened, normally closed contacts, 4 sets of conversion; 99 groups time, each timer range: 0.1 seconds ~ 9999 minutes adjustable, the total number of Loops is adjustable from 0 to 9999 ( 0 means run loops all the time ) ;\u003c\/li\u003e\n \u003cli\u003eEach step can be set to cyclic jump to run forward 0-999 times, 20 layer nesting loops support ; The external input high level and low level signals, achieve trigger function, wait input to run, jump to another step ,stop running functions; User can set the password, to prevent others to change the setting parameters;\u003c\/li\u003e\n \u003cli\u003eTiming Range : 0.1seconds ~ 9999 minutes can be set, cycles 0 ~ 9999 times,\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-30T00:56:50+10:00","created_at":"2022-06-30T00:56:56+10:00","vendor":"NOYITO","type":"Controls","tags":["industrial","sold2025"],"price":19400,"price_min":19400,"price_max":19400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41619627704500,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07X9GVK3C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation","public_title":null,"options":["Default Title"],"price":19400,"weight":45,"compare_at_price":null,"inventory_management":null,"barcode":"0680613663504","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07X9GVK3C.jpg?v=1656571805","\/\/auspowers.com\/cdn\/shop\/products\/7176BMSh-JL.jpg?v=1656514616","\/\/auspowers.com\/cdn\/shop\/products\/71MCtszTyTL.jpg?v=1656514616","\/\/auspowers.com\/cdn\/shop\/products\/71CE3aZ6kZL.jpg?v=1656514616","\/\/auspowers.com\/cdn\/shop\/products\/71VtaGI_OFL.jpg?v=1656514616"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07X9GVK3C.jpg?v=1656571805","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation ","id":26348768952500,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1151,"width":1727,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07X9GVK3C.jpg?v=1656571805"},"aspect_ratio":1.5,"height":1151,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07X9GVK3C.jpg?v=1656571805","width":1727},{"alt":"[Australia - AusPower] - NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation ","id":26339911270580,"position":2,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/7176BMSh-JL.jpg?v=1656514616"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/7176BMSh-JL.jpg?v=1656514616","width":2560},{"alt":"[Australia - AusPower] - NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation ","id":26339911303348,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71MCtszTyTL.jpg?v=1656514616"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71MCtszTyTL.jpg?v=1656514616","width":2560},{"alt":"[Australia - AusPower] - NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation ","id":26339911336116,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71CE3aZ6kZL.jpg?v=1656514616"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71CE3aZ6kZL.jpg?v=1656514616","width":2560},{"alt":"[Australia - AusPower] - NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation ","id":26339911368884,"position":5,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71VtaGI_OFL.jpg?v=1656514616"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71VtaGI_OFL.jpg?v=1656514616","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: 1) Industrial LCD displays, set by buttons, easy to use, has reset\nfunction. 2) High-performance microcontrollers, industrial-grade reliability,\nhigh process stability, low power, reverse power protection function, avoiding\nsurge current shock. 3) Four relays, each group of relays has common and\nnormally opened, normally closed contacts, 4 sets of conversion; 4) 99 groups\ntime, each timer range: 0.1 seconds ~ 9999 minutes adjustable, the total\nnumber of Loops is adjustable from 0 to 9999 ( “0” means run loops all the\ntime ) ; 5) Each step can be set to cyclic jump to run forward 0-999 times, 20\nlayer nesting loops support (figure 2); 6) The external input high level and\nlow level signals, achieve trigger function, wait input to run, jump to\nanother step ,stop running functions; 7) User can set the password, to prevent\nothers to change the setting parameters; 8) Shell size 1159040mm. All\nsettings can be saved. Parameters Timing Range : 0.1seconds ~ 9999 minutes can\nbe set, cycles 0 ~ 9999 times Power Supply: DC6~40V Working current: When the\nbacklight is off, the standby current is 9mA \/ 12V. When the 4-channel relay\nworks, the current is 170mA \/ 12V. Relay parameters: Four set of conversion\n(normally opened and normally closed) Contact load: 10A\/277V AC or 10A\/30V DC\nContact resistance: ≤ 100mΩ (1A 6VDC) Mechanical durability: 10 millions\nElectricity durability: \u0026gt; 100,000 (10A-250VAC) Operating Temperature: -40 ~\n85℃ Package Included: NOYITO 4-Channel Programmable Time Relay\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe PTR4-SP controller can be set 99 groups time (steps), each step the relay switch state can be set switch ON\/OFF (close or open) , use external input voltage signal or switch it can achieve many functions. The controller can be used to control four solenoid valve - linkage, sequence control as PLC, etc.\u003c\/li\u003e\n \u003cli\u003eIndustrial LCD displays, set by buttons, easy to use, has reset function. High-performance microcontrollers, industrial-grade reliability, high process stability, low power, reverse power protection function, avoiding surge current shock.\u003c\/li\u003e\n \u003cli\u003eFour relays, each group of relays has common and normally opened, normally closed contacts, 4 sets of conversion; 99 groups time, each timer range: 0.1 seconds ~ 9999 minutes adjustable, the total number of Loops is adjustable from 0 to 9999 ( 0 means run loops all the time ) ;\u003c\/li\u003e\n \u003cli\u003eEach step can be set to cyclic jump to run forward 0-999 times, 20 layer nesting loops support ; The external input high level and low level signals, achieve trigger function, wait input to run, jump to another step ,stop running functions; User can set the password, to prevent others to change the setting parameters;\u003c\/li\u003e\n \u003cli\u003eTiming Range : 0.1seconds ~ 9999 minutes can be set, cycles 0 ~ 9999 times,\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
