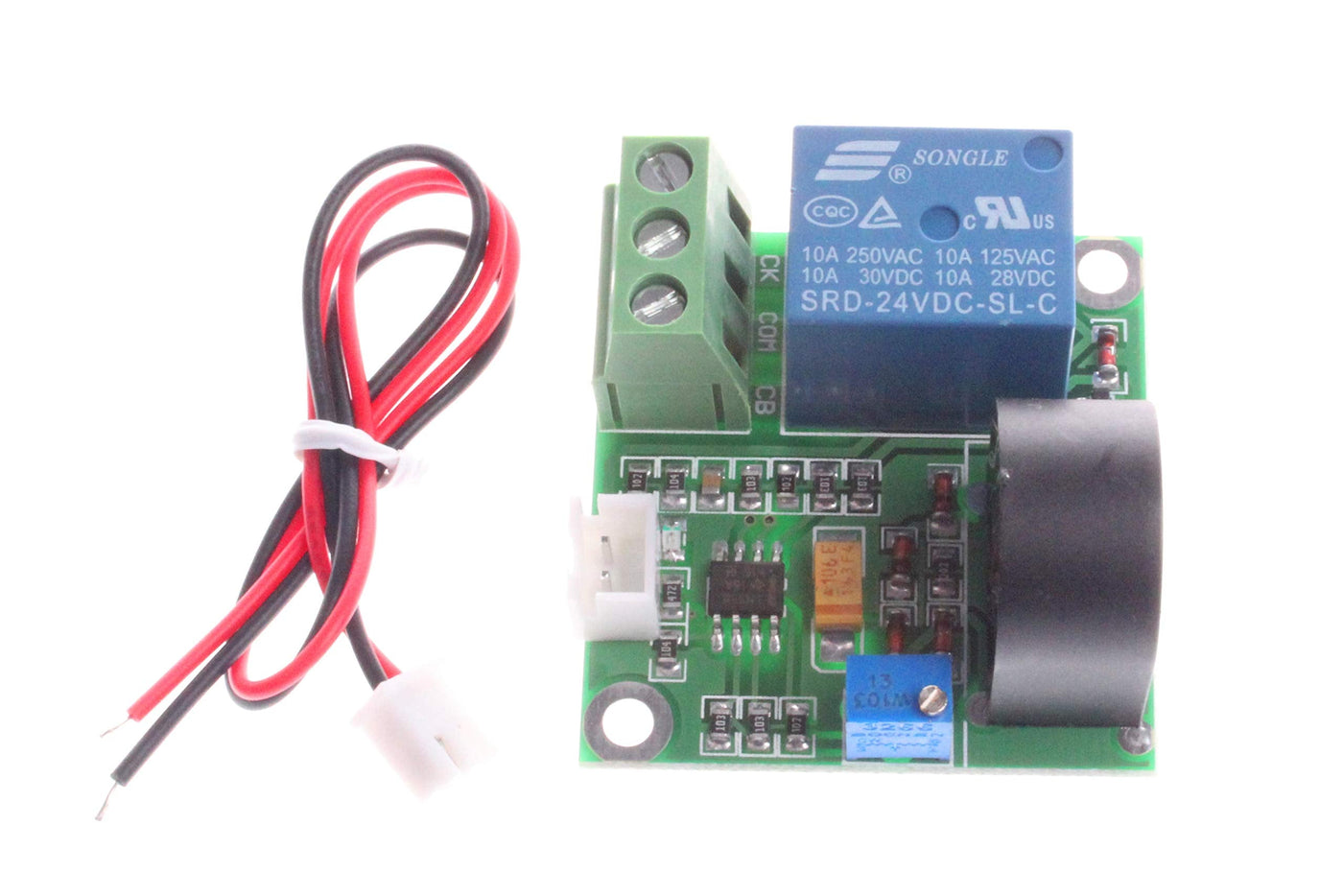

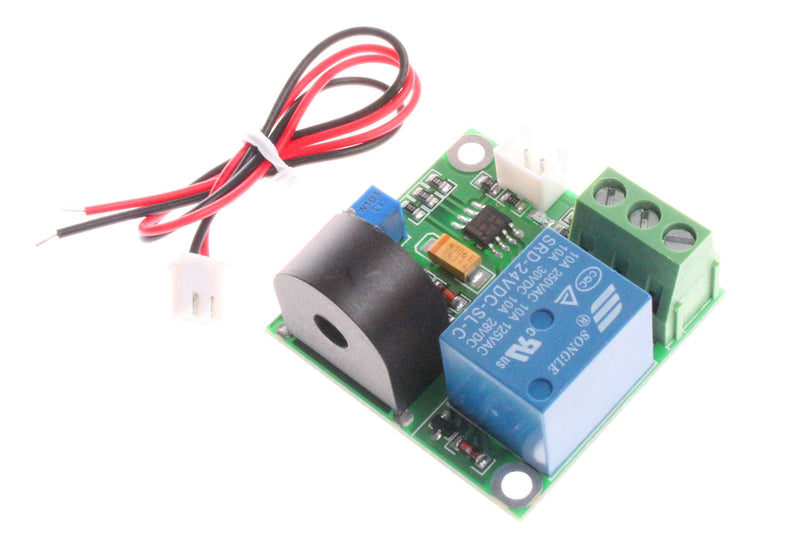

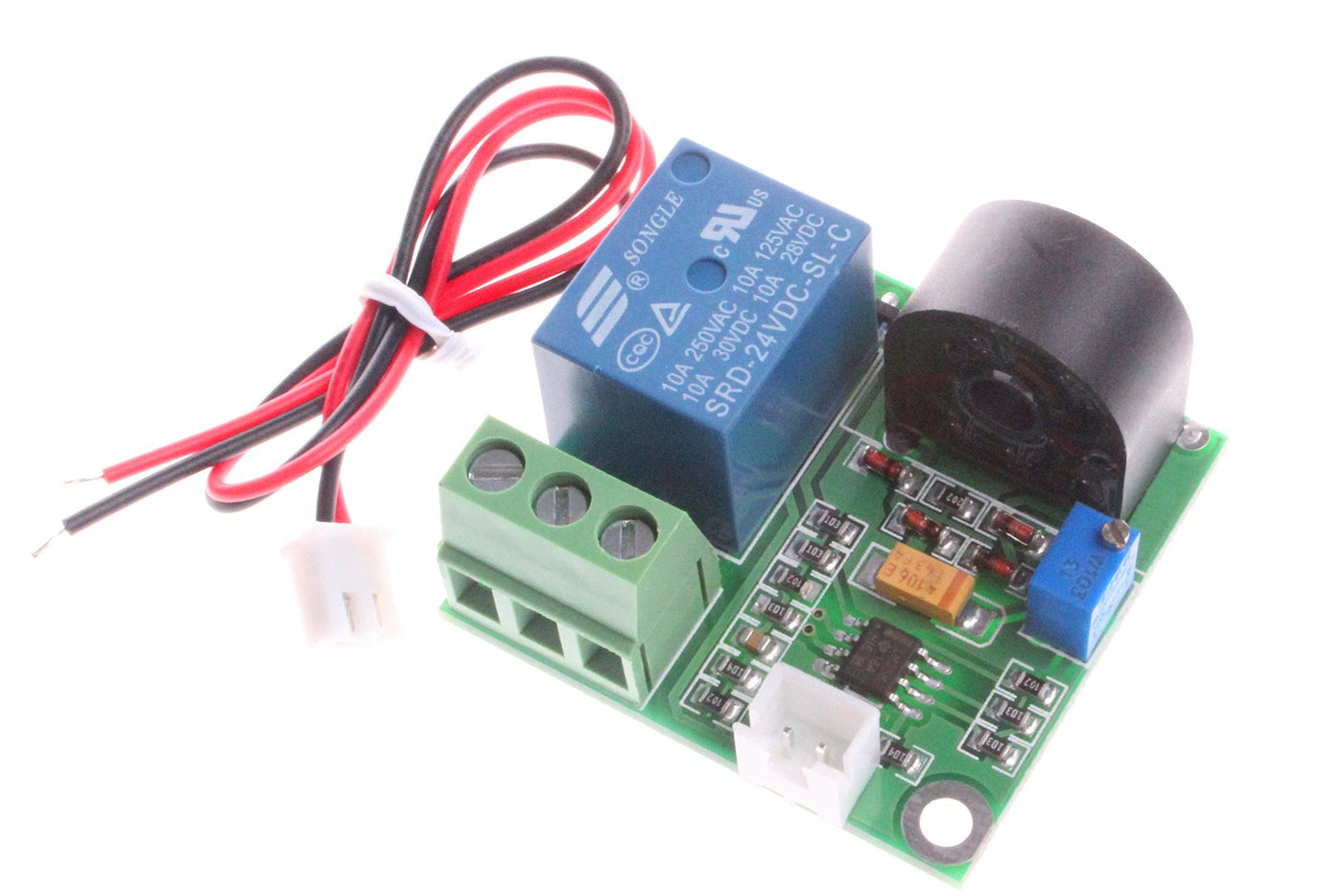

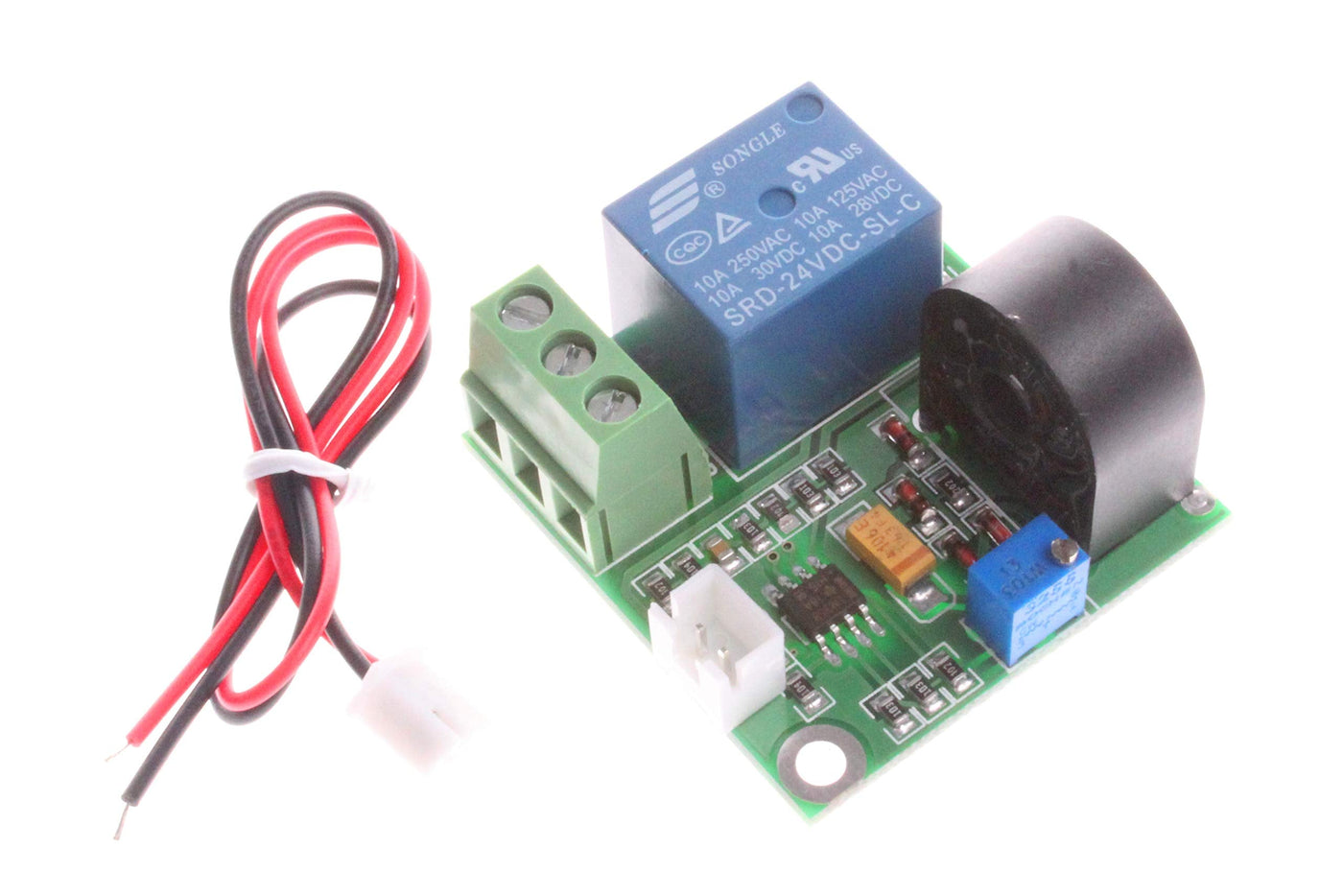

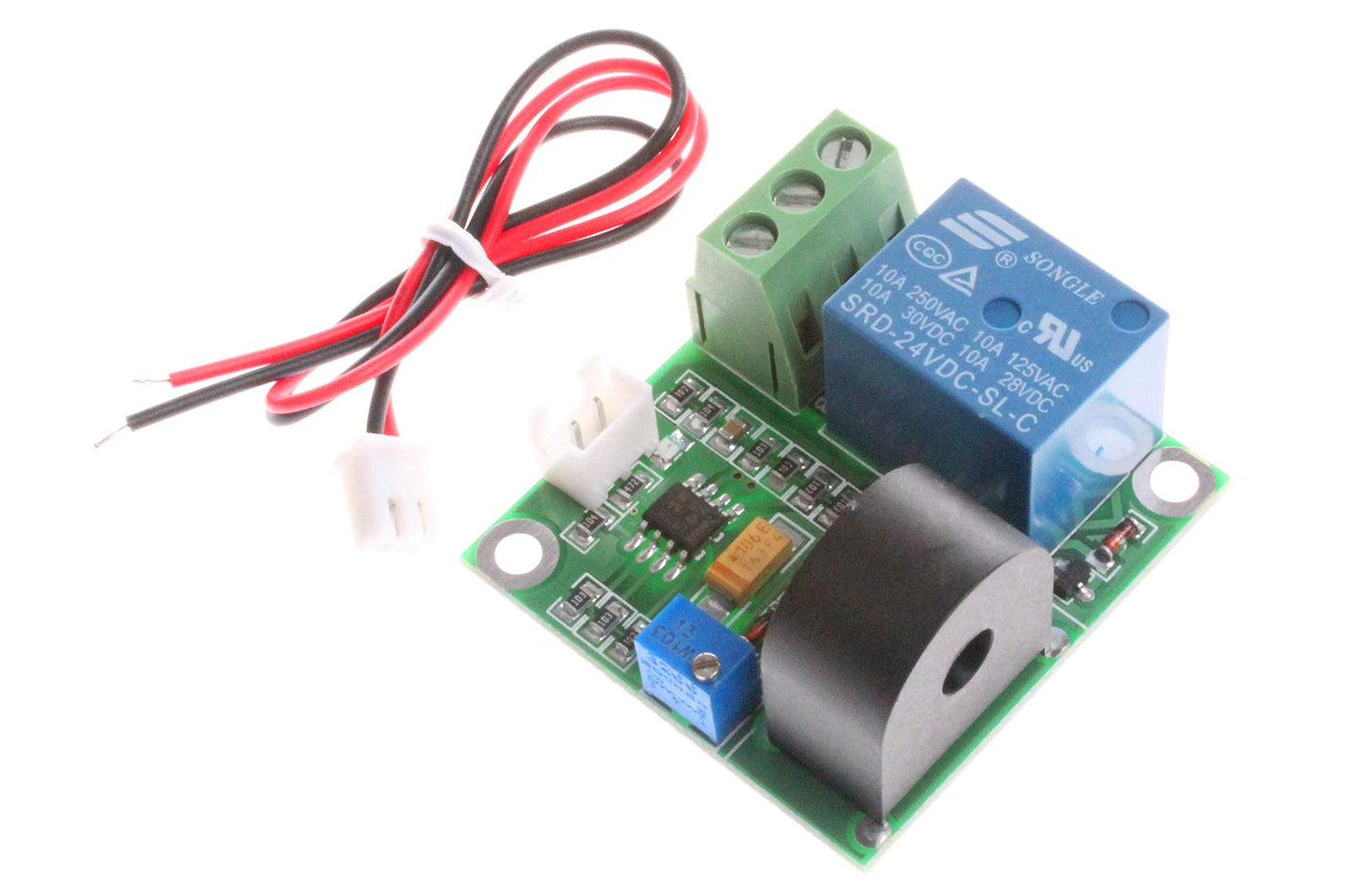

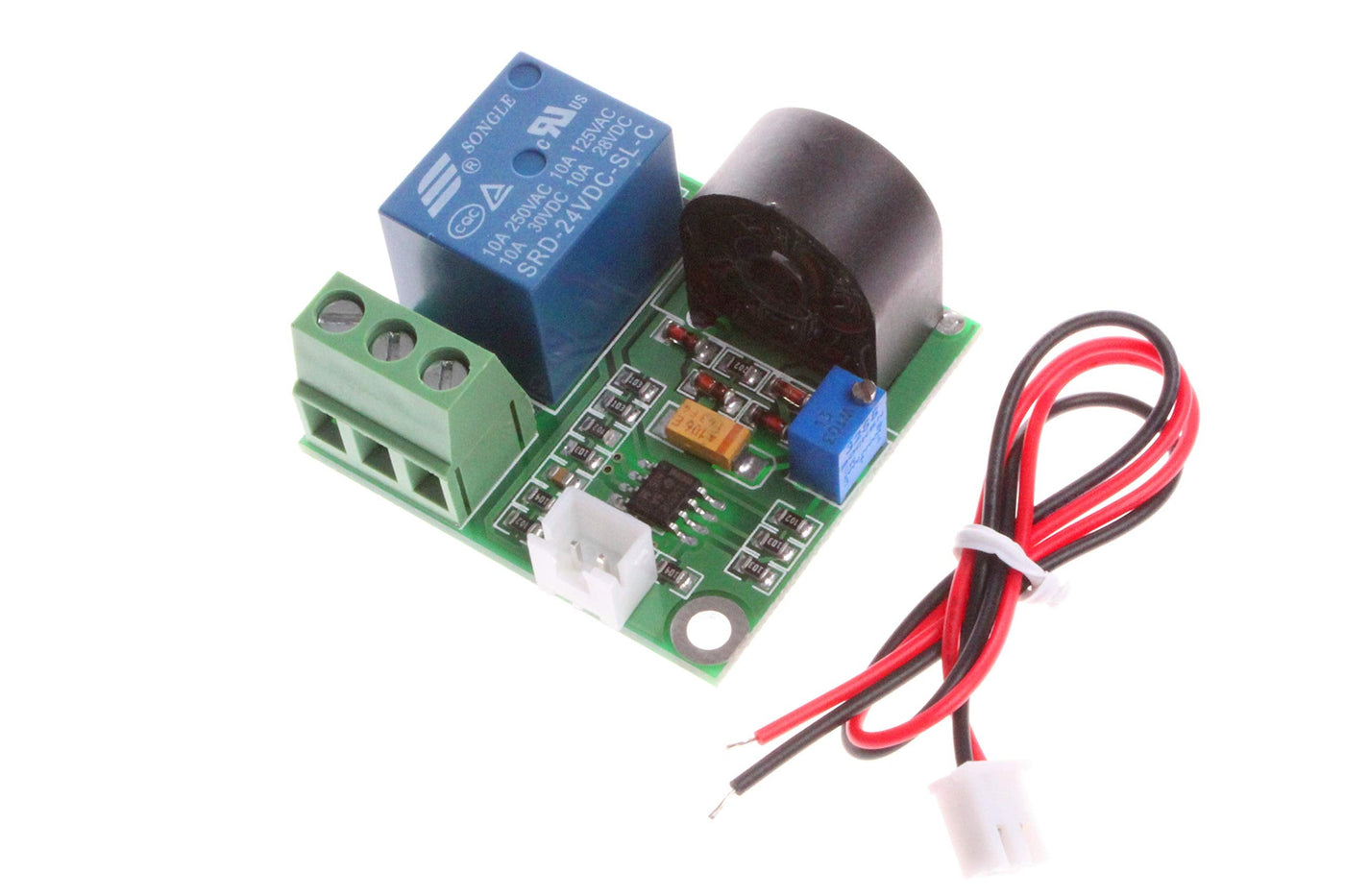

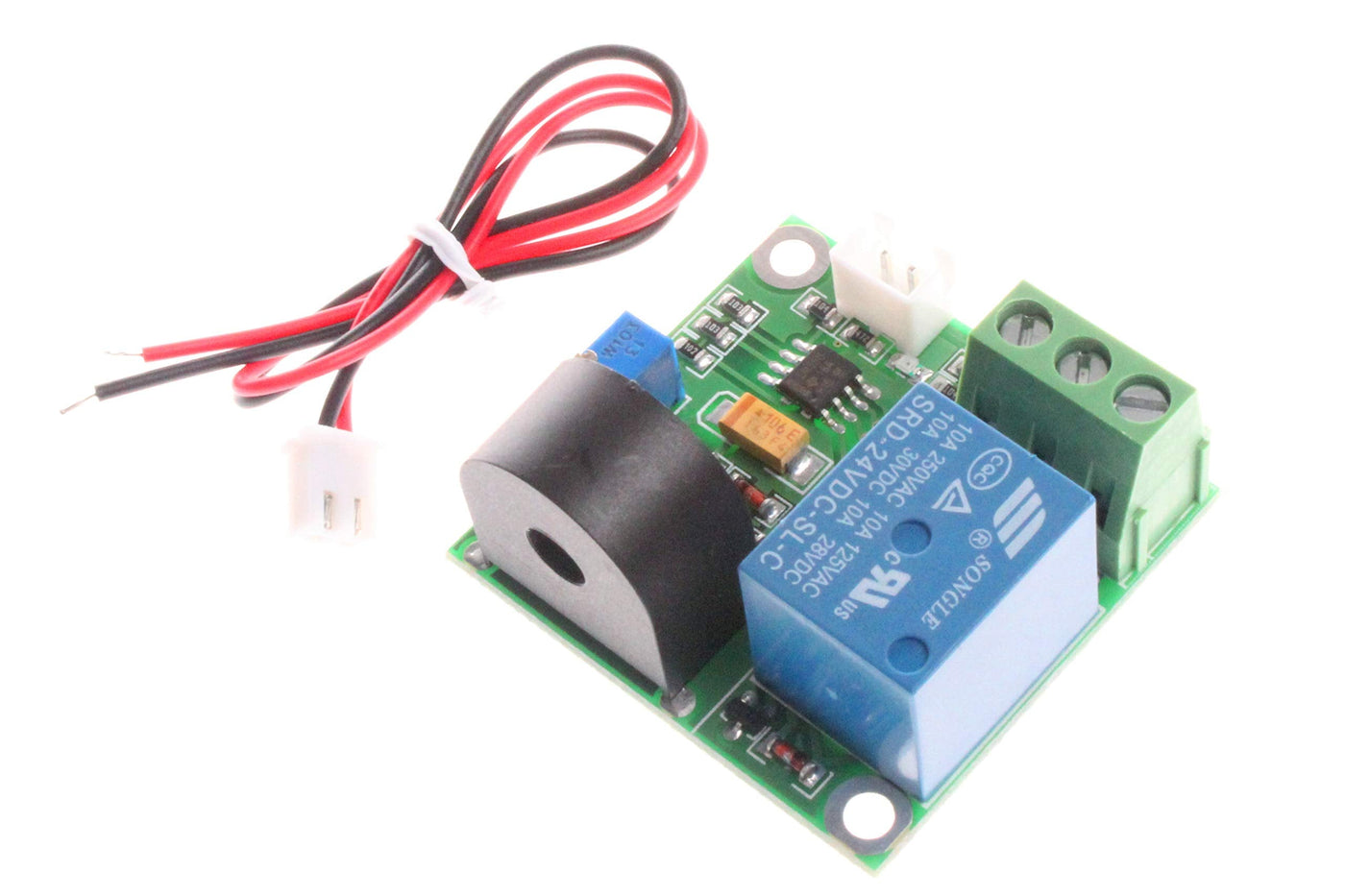

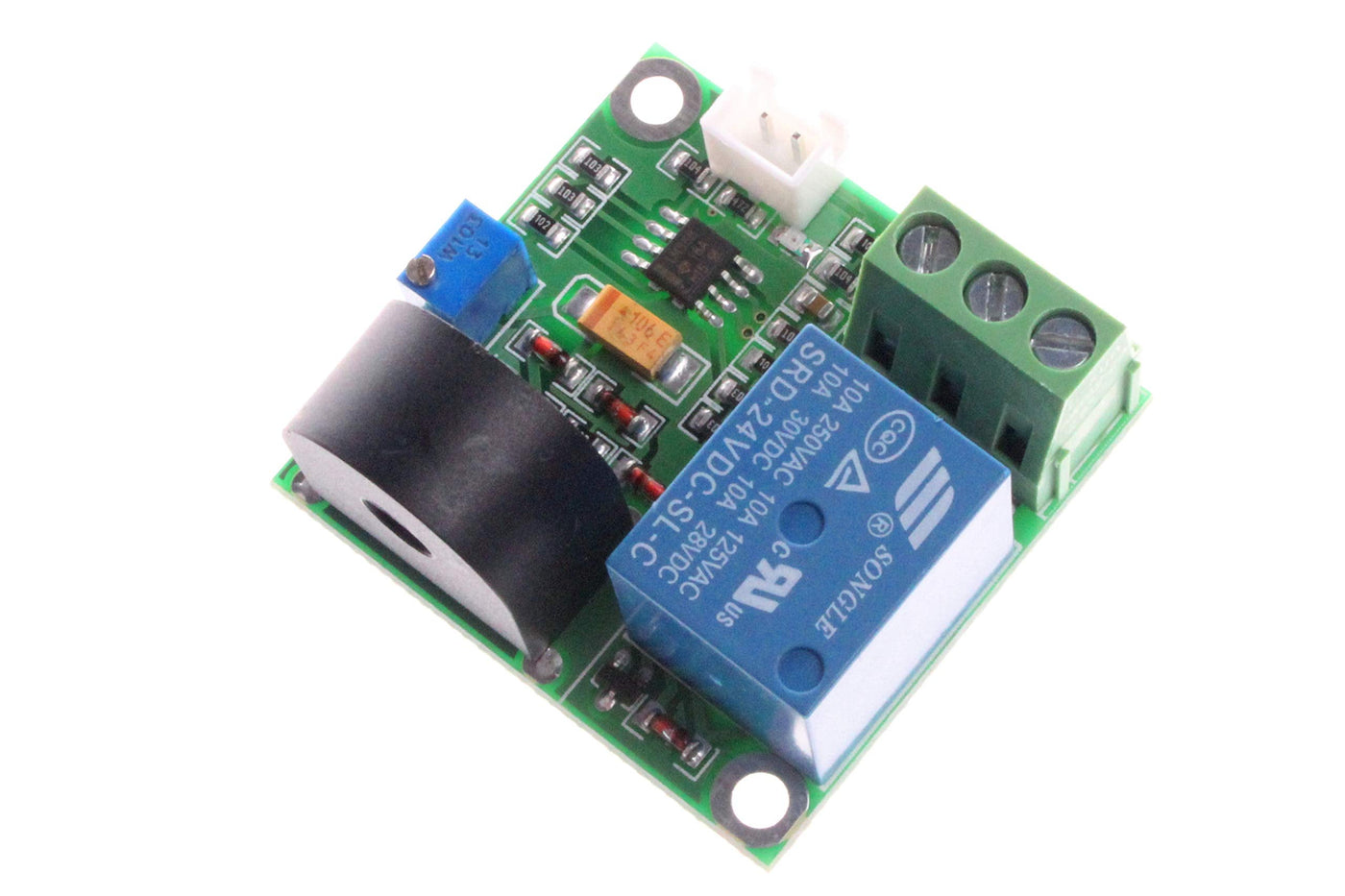

{"id":7811413016756,"title":"NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V","handle":"noyito-0-5a-ac-current-detection-sensor-module-switch-output-dc-12v-green-dc-12v","description":"\u003ch3\u003eNOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameter: Product Name: 0-5A AC Current Detection Sensor Module Output mode:\nrelay switching output. Relay load: AC 250V 10A Max , DC 30V 10A Max.\nOperating voltage: DC 5V \/ 12V \/ 24V ± 0.2V. (Select the corresponding version\nof the product according to your needs). Working current: \u0026lt;10mA. Response\ntime: \u0026lt;50ms. Induction sensitivity: Potentiometer is adjustable. The\novercurrent signal setting is adjustable and the resolution is set to 0.3A.\nThe main chip: op amp, transformer. The current detection resolution can be\nchanged by the resistance parameter setting. With fixed mounting holes. The\nmain chip: op amp, transformer. Module size: 48x40x30mm (length x width x\nheight). Working temperature: -10 - +50 °C. Working humidity: 5-95% RH.\nApplication: Intelligent trolley motor over-current detection, motor stall\nprotection current detection, short-circuit protection detection, etc. Package\nIncluded: 1pcs NOYITO 0-5A AC Current Detection Sensor Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCurrent detection range: AC 0-5A.\u003c\/li\u003e\n \u003cli\u003eOperating voltage: DC 5V \/ 12V \/ 24V 0.2V. (Select the corresponding version of the product according to your needs).\u003c\/li\u003e\n \u003cli\u003eOutput mode: relay switching output.\u003c\/li\u003e\n \u003cli\u003eRelay load: AC 250V 10A Max , DC 30V 10A Max.\u003c\/li\u003e\n \u003cli\u003eNOYITO 0-5A AC Current Detection Sensor Module User Manual\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-08-08T09:39:22+10:00","created_at":"2024-08-06T04:24:06+10:00","vendor":"NOYITO","type":"Current Sensors","tags":["industrial_Aug2024_update"],"price":10100,"price_min":10100,"price_max":10100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43457317241012,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07HWDS121","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V","public_title":null,"options":["Default Title"],"price":10100,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"680613661425","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07HWDS121.jpg?v=1775744637","\/\/auspowers.com\/cdn\/shop\/files\/81YBTDIORsL.jpg?v=1722882265","\/\/auspowers.com\/cdn\/shop\/files\/71JOk5qhf7L.jpg?v=1722882265","\/\/auspowers.com\/cdn\/shop\/files\/71i0uioSXUL.jpg?v=1722882265","\/\/auspowers.com\/cdn\/shop\/files\/71bR_-3KSNL.jpg?v=1722882265","\/\/auspowers.com\/cdn\/shop\/files\/718Kkj10FmL.jpg?v=1722882265","\/\/auspowers.com\/cdn\/shop\/files\/71NrQobBNsL.jpg?v=1722882265","\/\/auspowers.com\/cdn\/shop\/files\/71pDIuogFiL.jpg?v=1722882265","\/\/auspowers.com\/cdn\/shop\/files\/715sjp3xLZL.jpg?v=1722882265"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07HWDS121.jpg?v=1775744637","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V ","id":30570732028084,"position":1,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07HWDS121.jpg?v=1775744637"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07HWDS121.jpg?v=1775744637","width":2560},{"alt":"[Australia - AusPower] - NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V ","id":30570732093620,"position":2,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81YBTDIORsL.jpg?v=1722882265"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81YBTDIORsL.jpg?v=1722882265","width":2560},{"alt":"[Australia - AusPower] - NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V ","id":30570732159156,"position":3,"preview_image":{"aspect_ratio":1.417,"height":1488,"width":2108,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71JOk5qhf7L.jpg?v=1722882265"},"aspect_ratio":1.417,"height":1488,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71JOk5qhf7L.jpg?v=1722882265","width":2108},{"alt":"[Australia - AusPower] - NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V ","id":30570732191924,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71i0uioSXUL.jpg?v=1722882265"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71i0uioSXUL.jpg?v=1722882265","width":2560},{"alt":"[Australia - AusPower] - NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V ","id":30570732257460,"position":5,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71bR_-3KSNL.jpg?v=1722882265"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71bR_-3KSNL.jpg?v=1722882265","width":2560},{"alt":"[Australia - AusPower] - NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V ","id":30570732290228,"position":6,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/718Kkj10FmL.jpg?v=1722882265"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/718Kkj10FmL.jpg?v=1722882265","width":2560},{"alt":"[Australia - AusPower] - NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V ","id":30570732322996,"position":7,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71NrQobBNsL.jpg?v=1722882265"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71NrQobBNsL.jpg?v=1722882265","width":2560},{"alt":"[Australia - AusPower] - NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V ","id":30570732388532,"position":8,"preview_image":{"aspect_ratio":1.501,"height":1706,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71pDIuogFiL.jpg?v=1722882265"},"aspect_ratio":1.501,"height":1706,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71pDIuogFiL.jpg?v=1722882265","width":2560},{"alt":"[Australia - AusPower] - NOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green) DC 12V ","id":30570732421300,"position":9,"preview_image":{"aspect_ratio":1.5,"height":1707,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/715sjp3xLZL.jpg?v=1722882265"},"aspect_ratio":1.5,"height":1707,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/715sjp3xLZL.jpg?v=1722882265","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNOYITO 0-5A AC Current Detection Sensor Module Switch Output (DC 12V, Green)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameter: Product Name: 0-5A AC Current Detection Sensor Module Output mode:\nrelay switching output. Relay load: AC 250V 10A Max , DC 30V 10A Max.\nOperating voltage: DC 5V \/ 12V \/ 24V ± 0.2V. (Select the corresponding version\nof the product according to your needs). Working current: \u0026lt;10mA. Response\ntime: \u0026lt;50ms. Induction sensitivity: Potentiometer is adjustable. The\novercurrent signal setting is adjustable and the resolution is set to 0.3A.\nThe main chip: op amp, transformer. The current detection resolution can be\nchanged by the resistance parameter setting. With fixed mounting holes. The\nmain chip: op amp, transformer. Module size: 48x40x30mm (length x width x\nheight). Working temperature: -10 - +50 °C. Working humidity: 5-95% RH.\nApplication: Intelligent trolley motor over-current detection, motor stall\nprotection current detection, short-circuit protection detection, etc. Package\nIncluded: 1pcs NOYITO 0-5A AC Current Detection Sensor Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCurrent detection range: AC 0-5A.\u003c\/li\u003e\n \u003cli\u003eOperating voltage: DC 5V \/ 12V \/ 24V 0.2V. (Select the corresponding version of the product according to your needs).\u003c\/li\u003e\n \u003cli\u003eOutput mode: relay switching output.\u003c\/li\u003e\n \u003cli\u003eRelay load: AC 250V 10A Max , DC 30V 10A Max.\u003c\/li\u003e\n \u003cli\u003eNOYITO 0-5A AC Current Detection Sensor Module User Manual\u003c\/li\u003e\n \u003c\/ul\u003e"}
