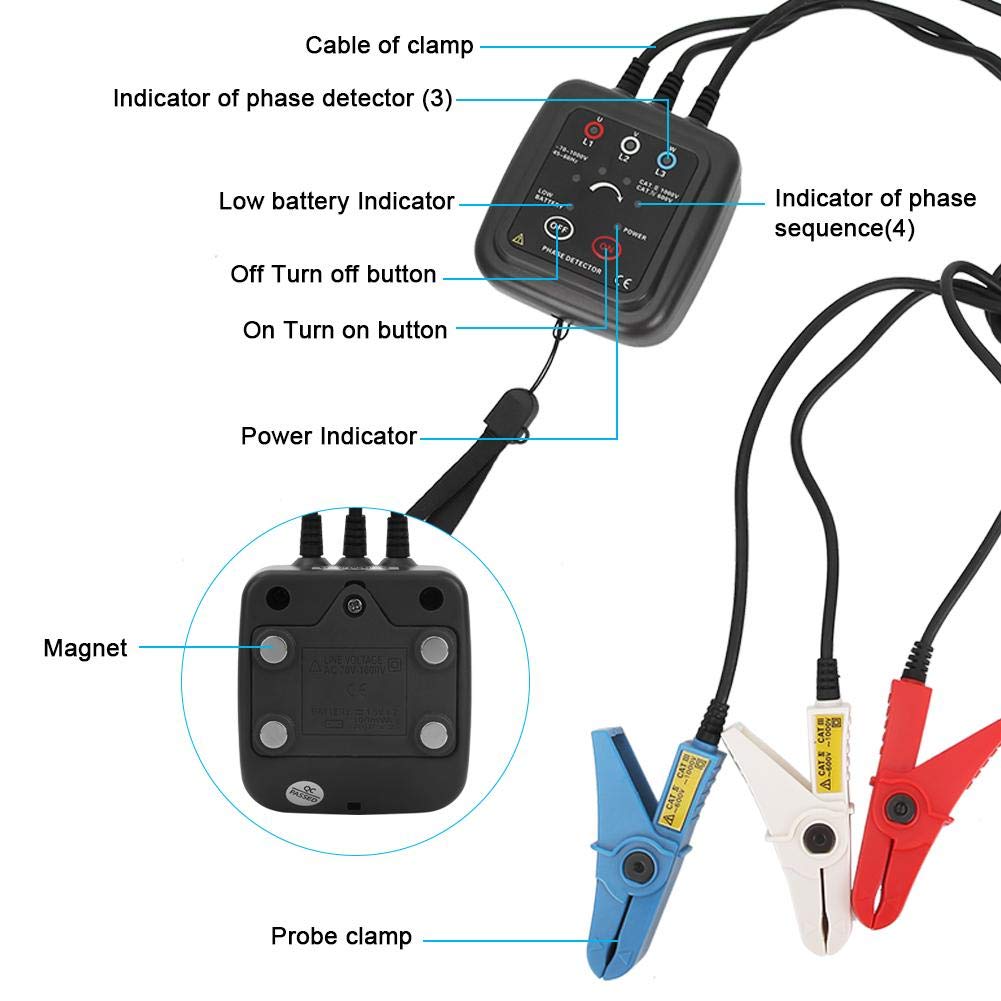

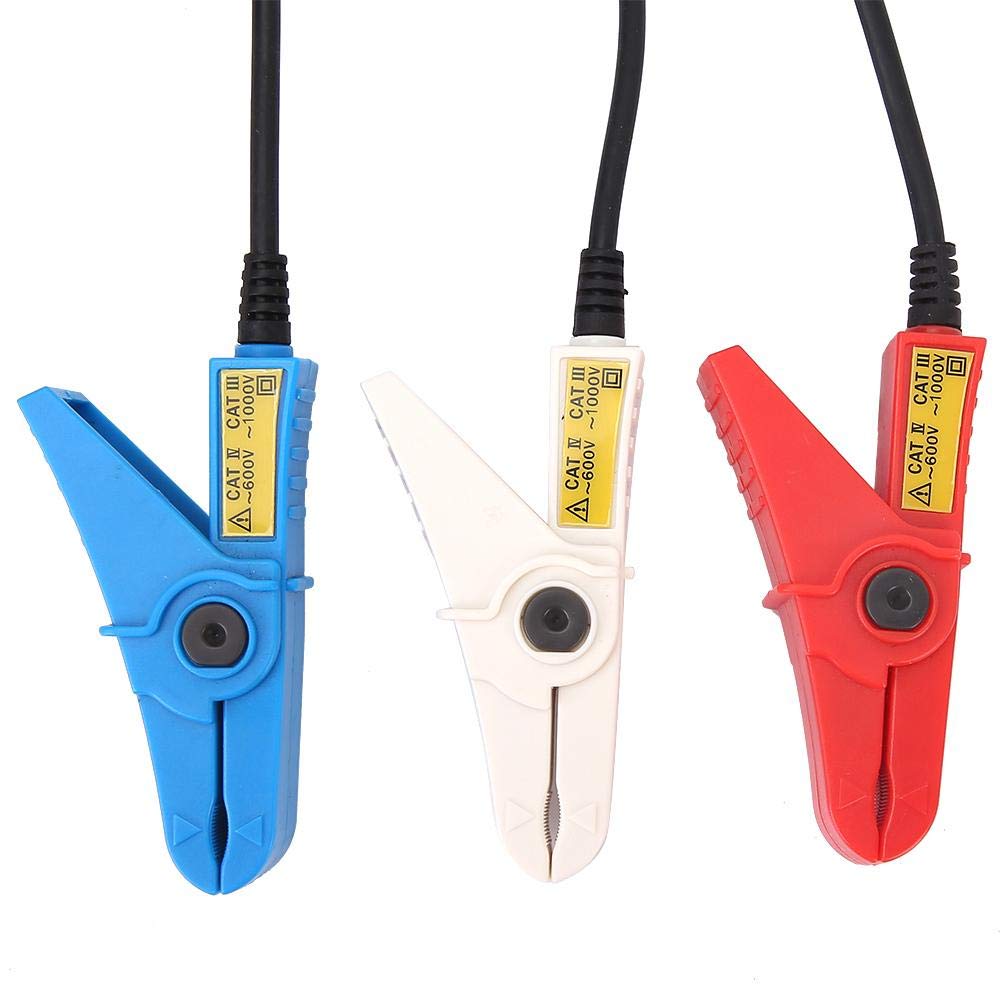

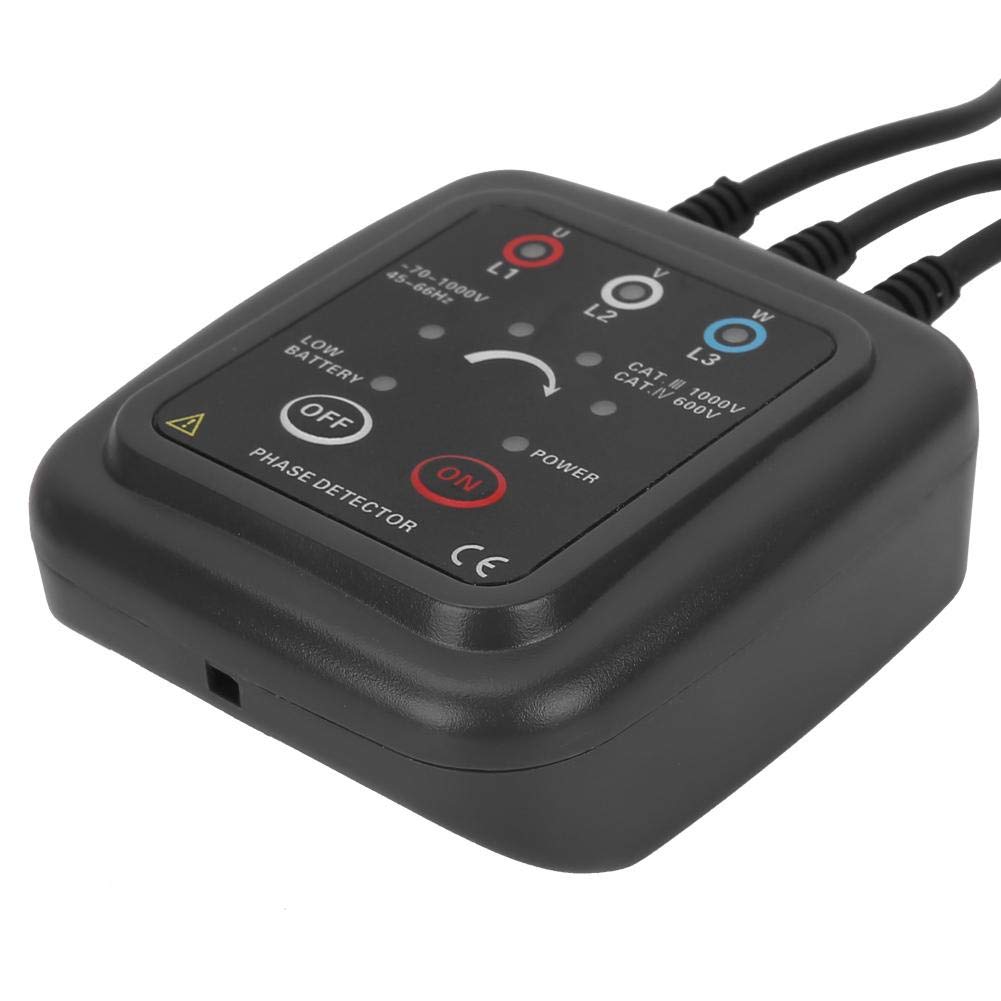

{"id":7992754897076,"title":"Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter","handle":"non-contact-phase-sequence-detector-ac-70-1000v-etcr1000c-magnetic-base-phase-meter","description":"\u003ch3\u003eNon-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Model ETCR1000C Functions: Phase detection (positive phase,\nreverse phase and phase loss), live wire testing, easy power detection,\nbreakpoint location and line maintenance. Power supply. DC 3V2 x AA alkaline\ndry battery, 70 hours continuous work. AC voltage range (V) AC 70 - 1000 V,\n40\/65 Hz (sine wave continuous input). Clamp Wire Size Outer diameter: 1.6 -\n16 mm. LED indicator. (Positive phase sequence) The four phase sequence lamps\nlight up in turn (clockwise). (Negative phase sequence) The four phase\nsequence lamps light up in turn (counterclockwise). (Live Power) The lamp L1,\nL2, L3 lights up in the voltage adjustment range. (phase loss) L1 or L2 or L3\ndoes not light up. (Short circuit) L1 or L2 or L3 does not light up. Buzz\n(Positive phase) The instrument emits intermittent short beeps; (Reverse\nphase) The instrument emits a continuous long beep. Power indicator. The power\nindicator lights up. Low power, low battery lamp on. magnetic force On the\nback of the gauge there are four magnets attached to the distribution box and\ncan withstand a quality of 800g. Automatic power off. After 5 minutes, the\nmeter automatically interrupts the power supply. Meter dimension: Width,\nheight, thickness: 70 mm x 75 mm x 30 mm. Terminal Cable Length 0.6 m. Weight:\n317 g. Working temperature and humidity. -10-55; below 80% RH storage\ntemperature and humidity. -20 - 60; below 90% RF. Maximum measured voltage.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePhase sequence detection, live line testing, simple power testing, live line identification, phase loss assessment, search for line break position, detection of DC line breakpoints, line maintenance.\u003c\/li\u003e\n \u003cli\u003eNon-contact inductive measurement of terminal type, no opening of the cable, no touching the exposed high-voltage fire escape, direct clamping of the three super inductive high insulation terminals into the insulation skin of the three-phase live cable\u003c\/li\u003e\n \u003cli\u003eNon-contact inspection for safe and fast productivity.\u003c\/li\u003e\n \u003cli\u003eThe dynamic sound and dynamic light indicate at a glance the positive or negative phase of the phase sequence of the three-phase power supply.\u003c\/li\u003e\n \u003cli\u003eThe base plate of the instrument is equipped with 4 magnets, which can be attached to the metal housing of the device during testing. The operation is comfortable and convenient.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T01:10:08+10:00","created_at":"2025-09-27T01:10:04+10:00","vendor":"Vikye","type":"Circuit Tracers \u0026 Analysers","tags":["industryDE_Sep2025"],"price":39000,"price_min":39000,"price_max":39000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44053662204084,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07X8DRQFP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter","public_title":null,"options":["Default Title"],"price":39000,"weight":260,"compare_at_price":null,"inventory_management":"shopify","barcode":"739904782957","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07X8DRQFP.jpg?v=1775771679","\/\/auspowers.com\/cdn\/shop\/files\/61FwpBdXtsL.jpg?v=1758899597","\/\/auspowers.com\/cdn\/shop\/files\/61jEldM8JBL.jpg?v=1758899598","\/\/auspowers.com\/cdn\/shop\/files\/61ZuTRXgvvL.jpg?v=1758899608","\/\/auspowers.com\/cdn\/shop\/files\/61hluWUoejL.jpg?v=1758899583","\/\/auspowers.com\/cdn\/shop\/files\/61QG4ZHpwJL.jpg?v=1758899597","\/\/auspowers.com\/cdn\/shop\/files\/512auFuymmL.jpg?v=1758899583","\/\/auspowers.com\/cdn\/shop\/files\/51FGuq2TtEL.jpg?v=1758899583","\/\/auspowers.com\/cdn\/shop\/files\/51gsihUM-EL.jpg?v=1758899597"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07X8DRQFP.jpg?v=1775771679","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter ","id":32206275870900,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07X8DRQFP.jpg?v=1775771679"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07X8DRQFP.jpg?v=1775771679","width":1001},{"alt":"[Australia - AusPower] - Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter ","id":32206275903668,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61FwpBdXtsL.jpg?v=1758899597"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61FwpBdXtsL.jpg?v=1758899597","width":1001},{"alt":"[Australia - AusPower] - Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter ","id":32206275936436,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61jEldM8JBL.jpg?v=1758899598"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61jEldM8JBL.jpg?v=1758899598","width":1001},{"alt":"[Australia - AusPower] - Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter ","id":32206275969204,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ZuTRXgvvL.jpg?v=1758899608"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ZuTRXgvvL.jpg?v=1758899608","width":1001},{"alt":"[Australia - AusPower] - Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter ","id":32206276001972,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61hluWUoejL.jpg?v=1758899583"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61hluWUoejL.jpg?v=1758899583","width":1001},{"alt":"[Australia - AusPower] - Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter ","id":32206276034740,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61QG4ZHpwJL.jpg?v=1758899597"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61QG4ZHpwJL.jpg?v=1758899597","width":1001},{"alt":"[Australia - AusPower] - Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter ","id":32206276067508,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/512auFuymmL.jpg?v=1758899583"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/512auFuymmL.jpg?v=1758899583","width":1001},{"alt":"[Australia - AusPower] - Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter ","id":32206276100276,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51FGuq2TtEL.jpg?v=1758899583"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51FGuq2TtEL.jpg?v=1758899583","width":1001},{"alt":"[Australia - AusPower] - Non-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter ","id":32206276133044,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51gsihUM-EL.jpg?v=1758899597"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51gsihUM-EL.jpg?v=1758899597","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNon-Contact Phase Sequence Detector, AC 70-1000V ETCR1000C Magnetic Base Phase Meter\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Model ETCR1000C Functions: Phase detection (positive phase,\nreverse phase and phase loss), live wire testing, easy power detection,\nbreakpoint location and line maintenance. Power supply. DC 3V2 x AA alkaline\ndry battery, 70 hours continuous work. AC voltage range (V) AC 70 - 1000 V,\n40\/65 Hz (sine wave continuous input). Clamp Wire Size Outer diameter: 1.6 -\n16 mm. LED indicator. (Positive phase sequence) The four phase sequence lamps\nlight up in turn (clockwise). (Negative phase sequence) The four phase\nsequence lamps light up in turn (counterclockwise). (Live Power) The lamp L1,\nL2, L3 lights up in the voltage adjustment range. (phase loss) L1 or L2 or L3\ndoes not light up. (Short circuit) L1 or L2 or L3 does not light up. Buzz\n(Positive phase) The instrument emits intermittent short beeps; (Reverse\nphase) The instrument emits a continuous long beep. Power indicator. The power\nindicator lights up. Low power, low battery lamp on. magnetic force On the\nback of the gauge there are four magnets attached to the distribution box and\ncan withstand a quality of 800g. Automatic power off. After 5 minutes, the\nmeter automatically interrupts the power supply. Meter dimension: Width,\nheight, thickness: 70 mm x 75 mm x 30 mm. Terminal Cable Length 0.6 m. Weight:\n317 g. Working temperature and humidity. -10-55; below 80% RH storage\ntemperature and humidity. -20 - 60; below 90% RF. Maximum measured voltage.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePhase sequence detection, live line testing, simple power testing, live line identification, phase loss assessment, search for line break position, detection of DC line breakpoints, line maintenance.\u003c\/li\u003e\n \u003cli\u003eNon-contact inductive measurement of terminal type, no opening of the cable, no touching the exposed high-voltage fire escape, direct clamping of the three super inductive high insulation terminals into the insulation skin of the three-phase live cable\u003c\/li\u003e\n \u003cli\u003eNon-contact inspection for safe and fast productivity.\u003c\/li\u003e\n \u003cli\u003eThe dynamic sound and dynamic light indicate at a glance the positive or negative phase of the phase sequence of the three-phase power supply.\u003c\/li\u003e\n \u003cli\u003eThe base plate of the instrument is equipped with 4 magnets, which can be attached to the metal housing of the device during testing. The operation is comfortable and convenient.\u003c\/li\u003e\n \u003c\/ul\u003e"}
