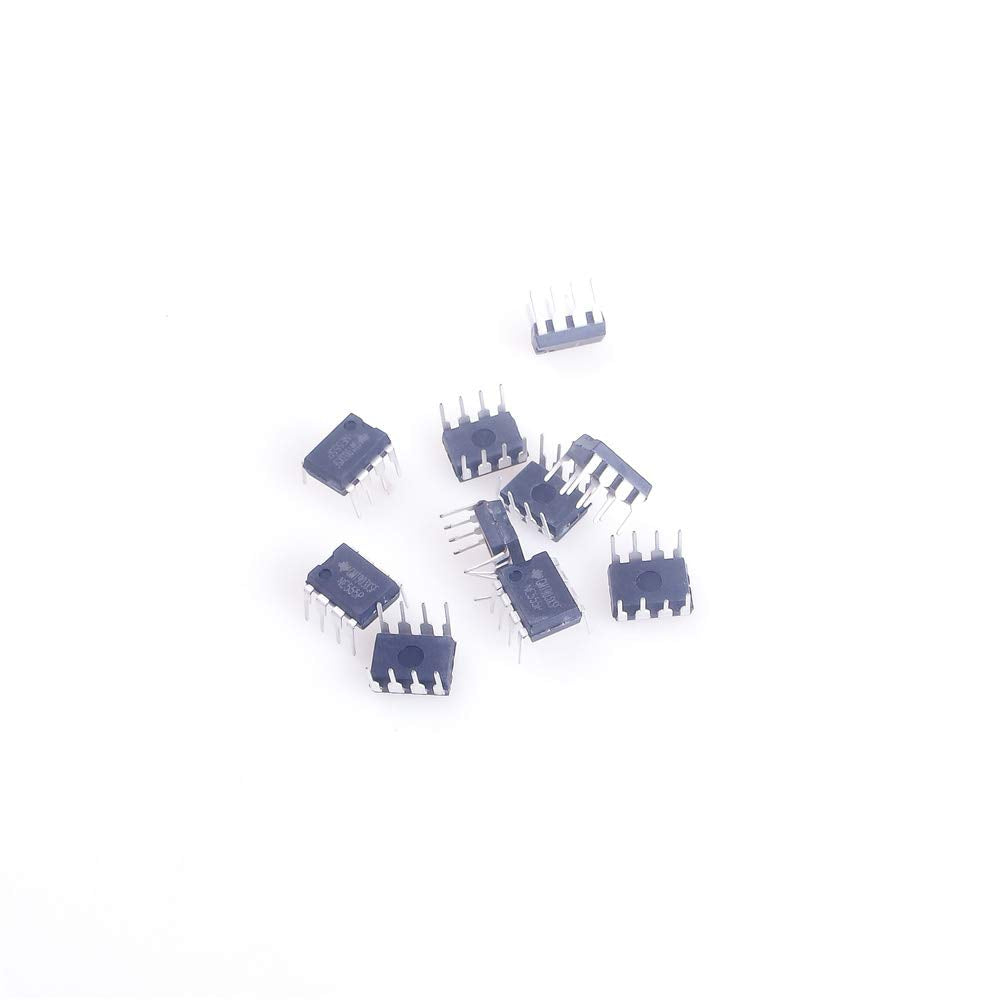

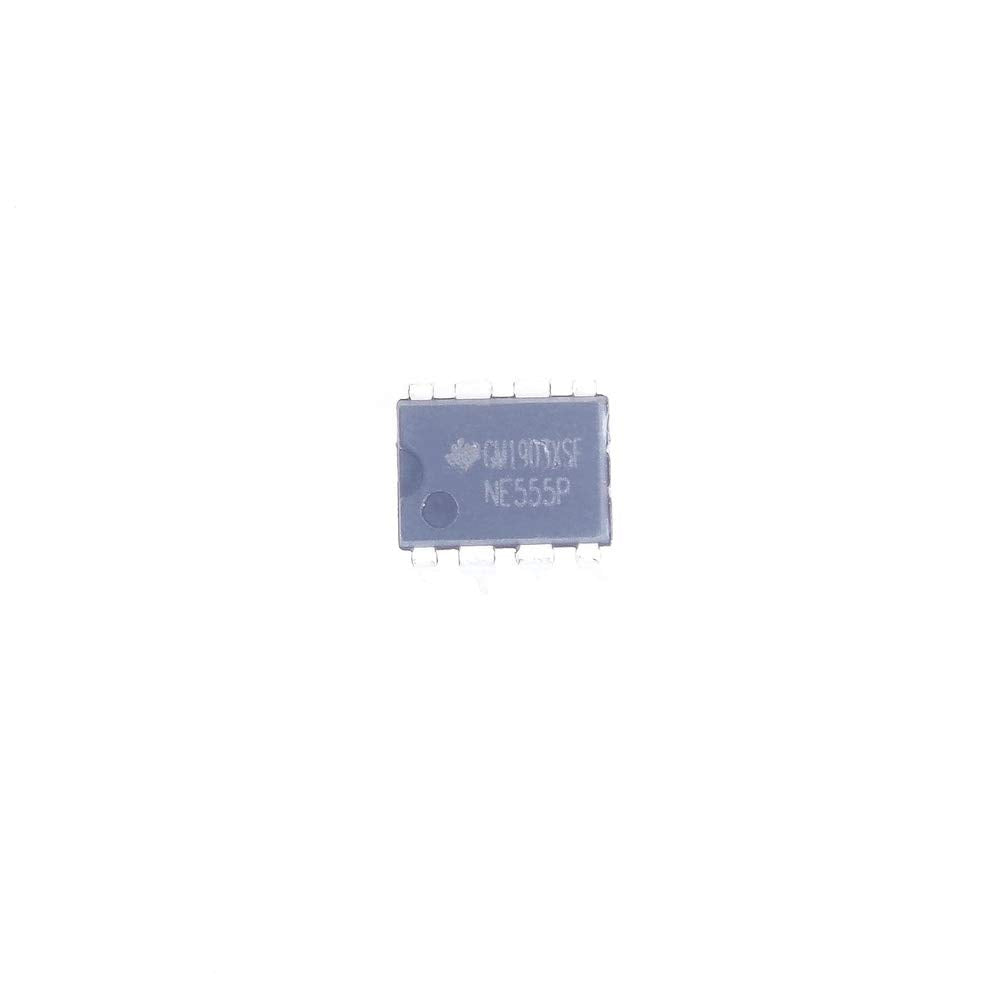

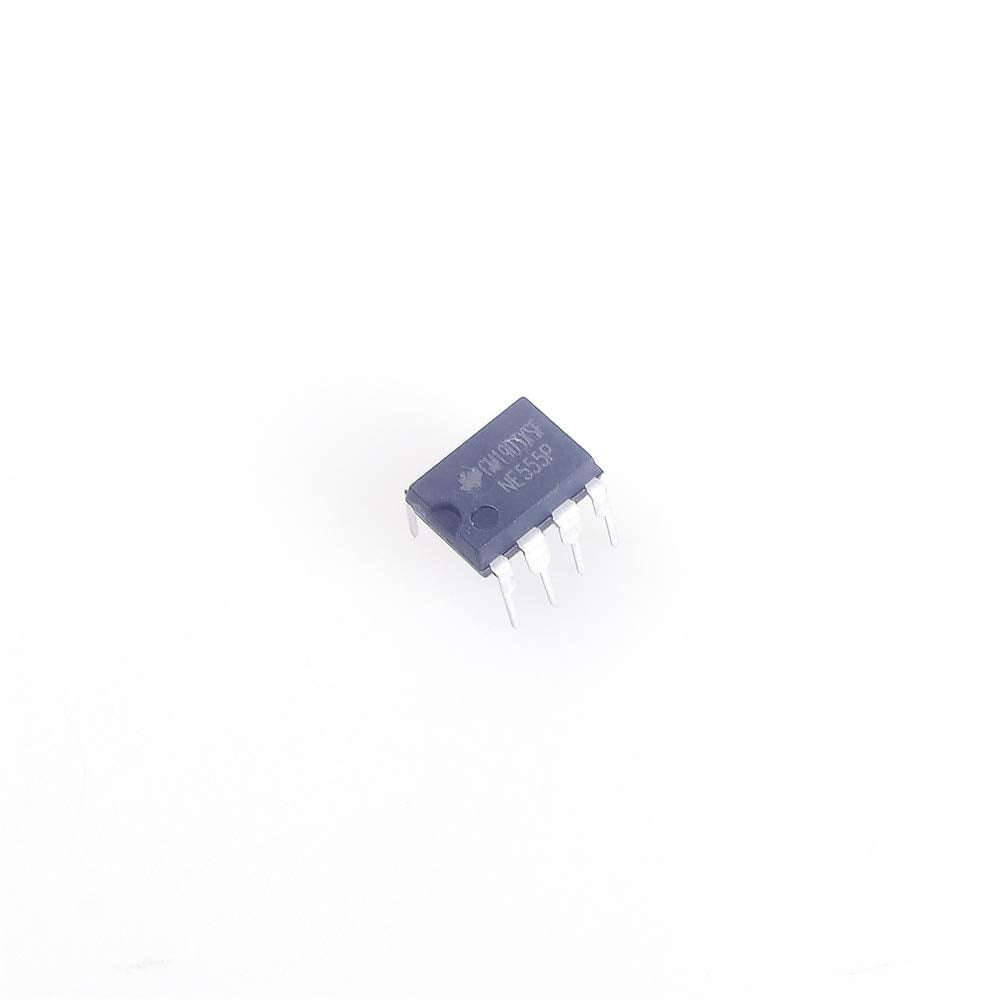

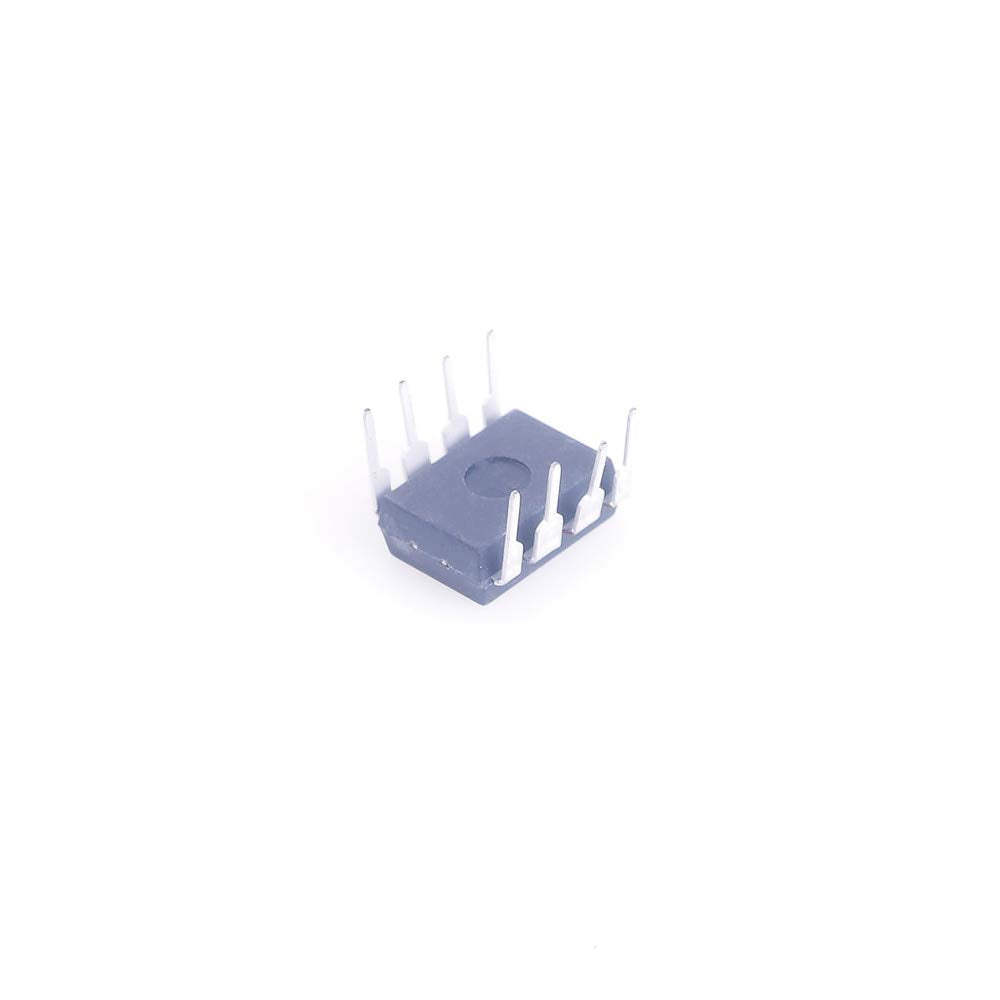

{"id":8115263766708,"title":"NE555P DIP8 Single Bipolar Timer IC NE555 Chip (Pack of 10)","handle":"ne555p-dip8-single-bipolar-timer-ic-ne555-chip-pack-of-10","description":"\u003ch3\u003eNE555P DIP8 Single Bipolar Timer IC NE555 Chip (Pack of 10)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Supply voltage: 5 V to 15 V. Max sink\/source current: 200 mA.\nTemperature range: -65 °C to 150 °C. DIP 8 Package When the trigger input\nfalls below the trigger level, the flip-flop is set, and the output goes high.\nIf the trigger input is above the trigger level and the threshold input is\nabove the threshold level, the flip-flop is reset and the output is low. The\nreset (RESET) input can override all other inputs and can be used to initiate\na new timing cycle. When RESET goes low, the flip-flop is reset, and the\noutput goes low. When the output is low, a low-impedance path is provided\nbetween discharge (DISCH) and ground. The output circuit is capable of sinking\nor sourcing current up to 200 mA. Operation is specified for supplies of 5 V\nto 15 V. With a 5-V supply, output levels are compatible with TTL inputs.\nPackage includes: 10 x NE555P.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNE555 timer chips are precision timing circuits capable of producing accurate time delays or oscillation\u003c\/li\u003e\n \u003cli\u003eIn the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network\u003c\/li\u003e\n \u003cli\u003eIn the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor\u003c\/li\u003e\n \u003cli\u003eThe threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC\u003c\/li\u003e\n \u003cli\u003eThese levels can be altered by use of the control-voltage terminal\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:21:40+10:00","created_at":"2026-09-01T23:40:09+10:00","vendor":"ANGEEK","type":"Clock Integrated Circuits","tags":["industrial_DE_Aug2026"],"price":9000,"price_min":9000,"price_max":9000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374983803060,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B086J46GSG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NE555P DIP8 Single Bipolar Timer IC NE555 Chip (Pack of 10)","public_title":null,"options":["Default Title"],"price":9000,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"708257531239","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B086J46GSG.jpg?v=1788270011","\/\/auspowers.com\/cdn\/shop\/files\/41CCBtDFmJL.jpg?v=1788270011","\/\/auspowers.com\/cdn\/shop\/files\/41XUSOqfE7L.jpg?v=1788270011","\/\/auspowers.com\/cdn\/shop\/files\/41Os9EDnkEL.jpg?v=1788270011"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B086J46GSG.jpg?v=1788270011","options":["Title"],"media":[{"alt":null,"id":33273095782580,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B086J46GSG.jpg?v=1788270011"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B086J46GSG.jpg?v=1788270011","width":1000},{"alt":null,"id":33273095815348,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41CCBtDFmJL.jpg?v=1788270011"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41CCBtDFmJL.jpg?v=1788270011","width":1000},{"alt":null,"id":33273095848116,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41XUSOqfE7L.jpg?v=1788270011"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41XUSOqfE7L.jpg?v=1788270011","width":1000},{"alt":null,"id":33273095880884,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41Os9EDnkEL.jpg?v=1788270011"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41Os9EDnkEL.jpg?v=1788270011","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNE555P DIP8 Single Bipolar Timer IC NE555 Chip (Pack of 10)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: Supply voltage: 5 V to 15 V. Max sink\/source current: 200 mA.\nTemperature range: -65 °C to 150 °C. DIP 8 Package When the trigger input\nfalls below the trigger level, the flip-flop is set, and the output goes high.\nIf the trigger input is above the trigger level and the threshold input is\nabove the threshold level, the flip-flop is reset and the output is low. The\nreset (RESET) input can override all other inputs and can be used to initiate\na new timing cycle. When RESET goes low, the flip-flop is reset, and the\noutput goes low. When the output is low, a low-impedance path is provided\nbetween discharge (DISCH) and ground. The output circuit is capable of sinking\nor sourcing current up to 200 mA. Operation is specified for supplies of 5 V\nto 15 V. With a 5-V supply, output levels are compatible with TTL inputs.\nPackage includes: 10 x NE555P.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNE555 timer chips are precision timing circuits capable of producing accurate time delays or oscillation\u003c\/li\u003e\n \u003cli\u003eIn the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network\u003c\/li\u003e\n \u003cli\u003eIn the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor\u003c\/li\u003e\n \u003cli\u003eThe threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC\u003c\/li\u003e\n \u003cli\u003eThese levels can be altered by use of the control-voltage terminal\u003c\/li\u003e\n \u003c\/ul\u003e"}
