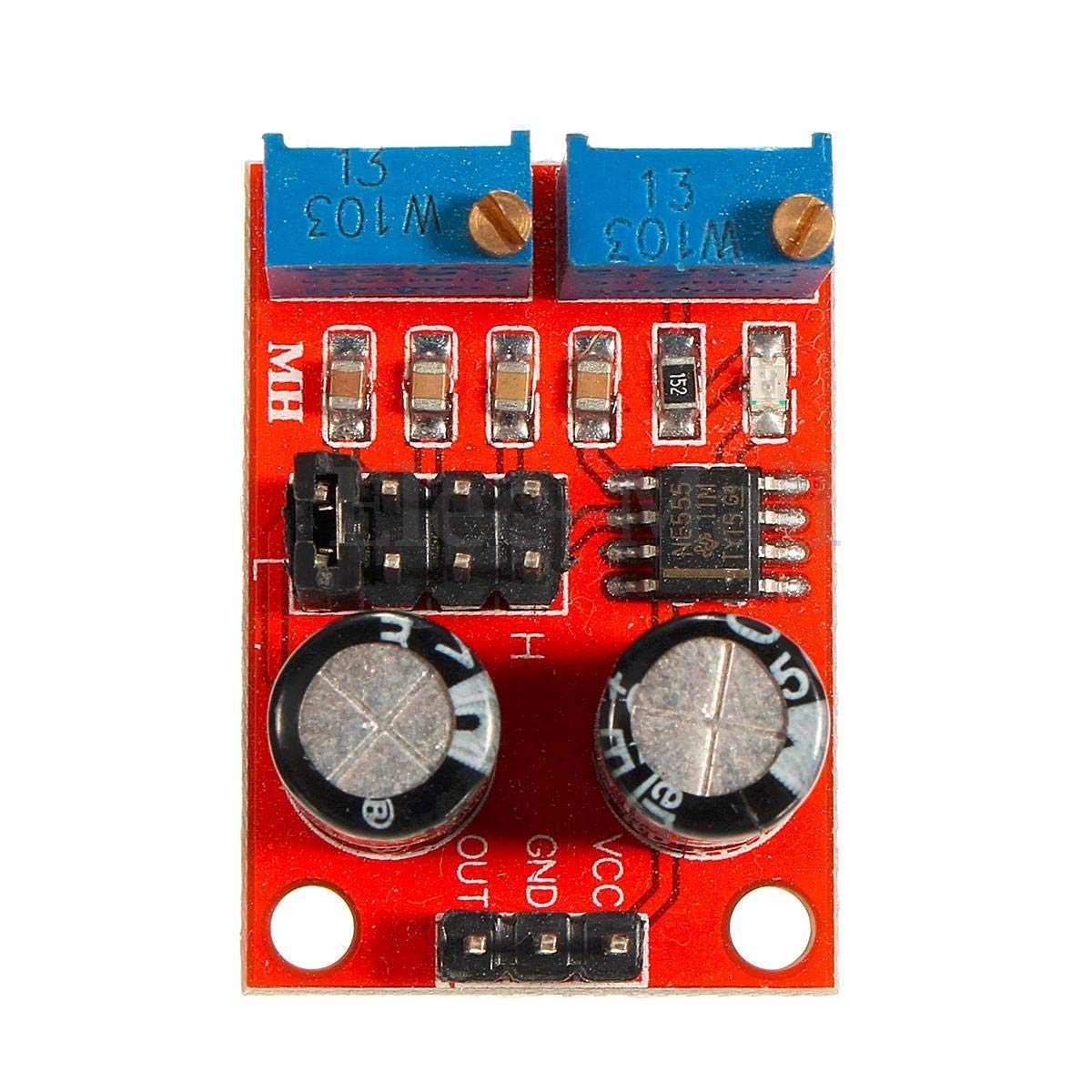

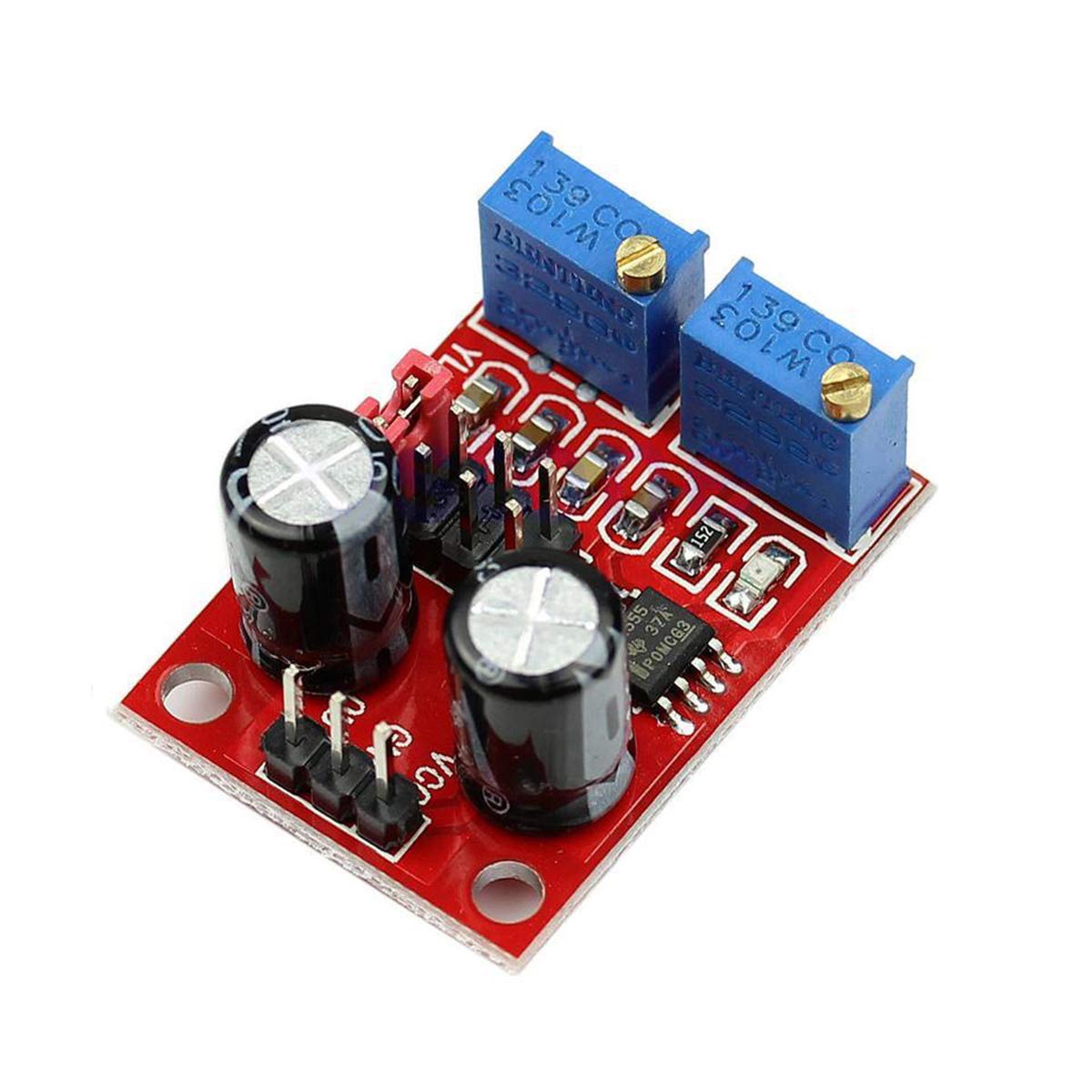

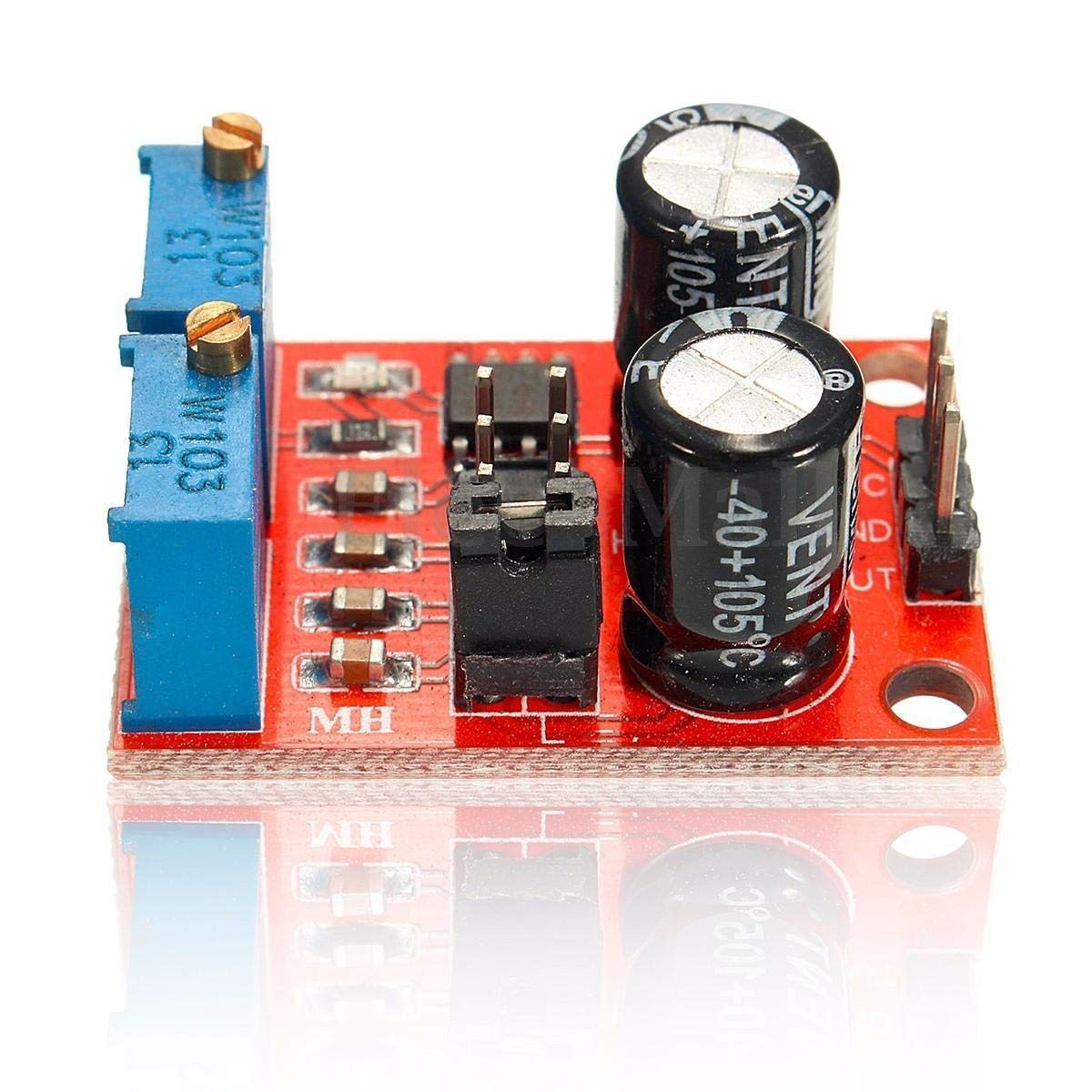

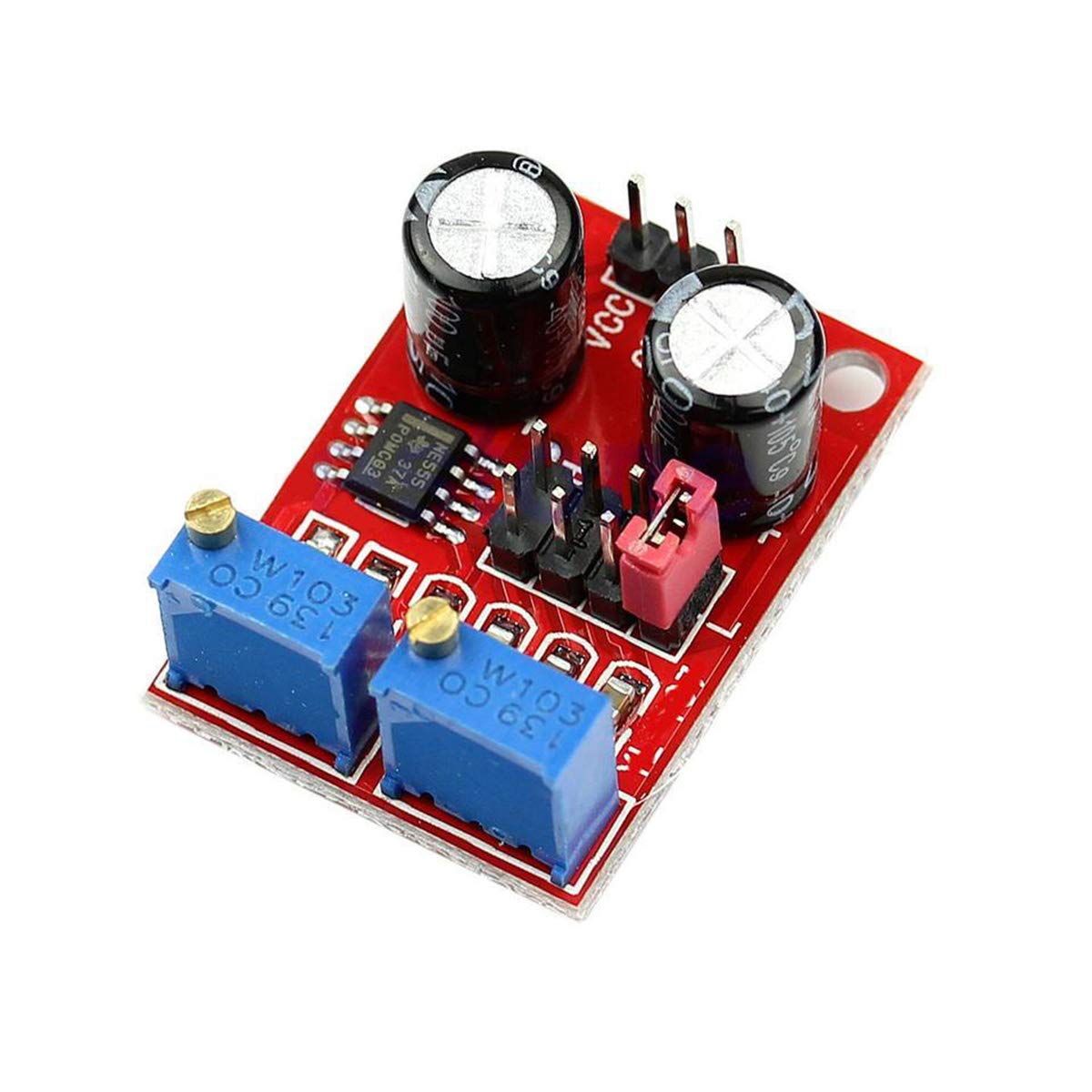

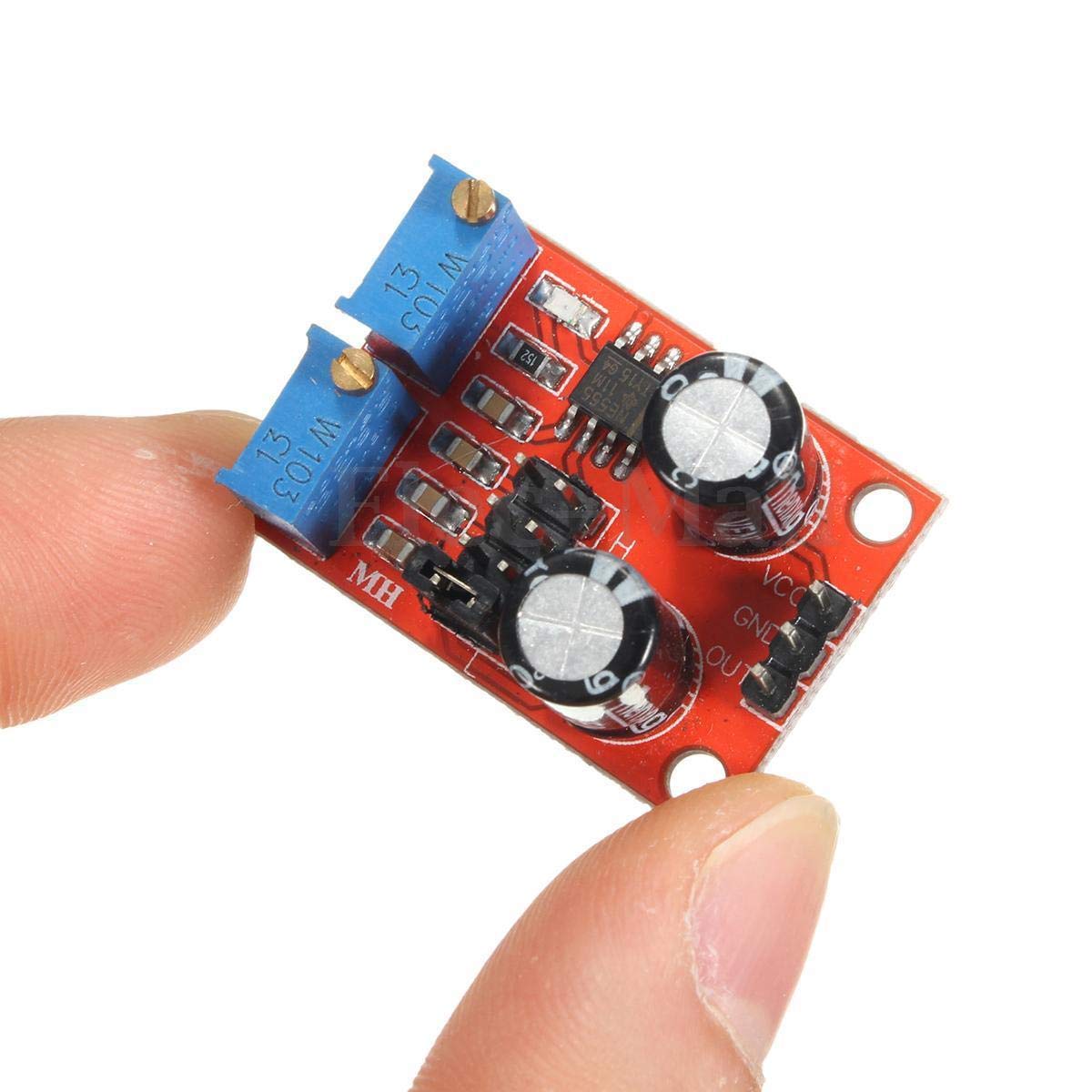

{"id":7086046183604,"title":"NE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Board Module by Envistia Mall","handle":"ne555-duty-cycle-frequency-adjustable-square-wave-signal-generator-board-module-by-envistia-mall","description":"\u003ch3\u003eNE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Board Module by Envistia Mall\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis NE555 square wave pulse generator module can be used to produce square\nwave signals for experimental development or in applications such as driving\nstepper motors, and as an adjustable pulse generator for microcontroller (MCU)\napplications. Features an NE555 timer chip configured in four frequency\nranges, 1Hz to 50Hz, 50Hz to 1kHz, 1kHz to 10kHz and 10kHz to 200kHz all\nadjustable with onboard jumpers and two trim-pots to adjust the output\nfrequency and the duty cycle. Input voltage to the module (VCC) is variable\nfrom 5V to 15V DC and draws approximately 15mA at 5v (35mA at 12v) with an\noutput amplitude of 4.2V peak-to-peak to 11.4V peak-to-peak based on the\nsupply voltage. An indicator LED illuminates on a low-level output and flashes\nrelative to the output frequency. At higher frequencies, the LED will appear\nto be on solid and without a visible flash. Features \u0026amp; Specifications: Size:\n31mm 22mm Main chip: NE555 Input Voltage (VCC): 5V-15VDC Input\ncurrent:~100MA Output amplitude: 4.2V V-PP to 11.4V V-PP. (Varries with VCC\nvoltage) Maximum output current: 15MA (VCC=5V, V-PP greater than 50%), 35MA\n(VCC=12V, V-PP greater than 50%) Output LED indicator (low level, LED is on,\nhigh level, LED is off; LED flashes with frequency The output frequency is\ncontinuously adjustable using the onboard jumpers and potentiometers. Jumper\nsettings are: 1Hz ~ 50Hz50Hz ~ 1kHz1KHz ~ 10kHz10kHz ~ 200kHz The output duty\ncycle can fine-tuned using the onboard potentiometers. Duty cycle and\nfrequency are not separately adjustable; adjusting the duty cycle will change\nthe frequency. Package Includes: 1X NE555 Duty Cycle Adjustable Pulse\nFrequency Square Wave Signal Generator Module Printed schematic, installation\nand operation instructions\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNE555 square wave pulse generator module can be used to produce square wave signals\u003c\/li\u003e\n \u003cli\u003eUse as a square wave signal generator for experimental development\u003c\/li\u003e\n \u003cli\u003eGenerate a square wave signal to drive a stepper motor\u003c\/li\u003e\n \u003cli\u003eGenerate adjustable pulses for microcontrollers (MCU)\u003c\/li\u003e\n \u003cli\u003eVariable frequency \u0026amp; duty cycle from 1Hz to 200KHz with amplitudes from 4.2V to 11.4V peak-to-peak\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-03-18T17:35:17+11:00","created_at":"2022-03-18T17:35:17+11:00","vendor":"Envistia Mall","type":"Pulse Generators","tags":["auspowers_batchone"],"price":10100,"price_min":10100,"price_max":10100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41333894217908,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07QKPLR4M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Board Module by Envistia Mall","public_title":null,"options":["Default Title"],"price":10100,"weight":23,"compare_at_price":null,"inventory_management":null,"barcode":"192090049066","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07QKPLR4M.jpg?v=1648554160","\/\/auspowers.com\/cdn\/shop\/products\/616O96OIRKL.jpg?v=1647585317","\/\/auspowers.com\/cdn\/shop\/products\/61BlzVoD95L.jpg?v=1647585317","\/\/auspowers.com\/cdn\/shop\/products\/71ZX6LSqEJL.jpg?v=1647585317","\/\/auspowers.com\/cdn\/shop\/products\/71hLdmqQa6L.jpg?v=1647585317"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07QKPLR4M.jpg?v=1648554160","options":["Title"],"media":[{"alt":"[Australia - AusPower] - NE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Board Module by Envistia Mall ","id":25345954611380,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07QKPLR4M.jpg?v=1648554160"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07QKPLR4M.jpg?v=1648554160","width":1200},{"alt":"[Australia - AusPower] - NE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Board Module by Envistia Mall ","id":25200613327028,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/616O96OIRKL.jpg?v=1647585317"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/616O96OIRKL.jpg?v=1647585317","width":1200},{"alt":"[Australia - AusPower] - NE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Board Module by Envistia Mall ","id":25200613359796,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61BlzVoD95L.jpg?v=1647585317"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61BlzVoD95L.jpg?v=1647585317","width":1200},{"alt":"[Australia - AusPower] - NE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Board Module by Envistia Mall ","id":25200613392564,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71ZX6LSqEJL.jpg?v=1647585317"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71ZX6LSqEJL.jpg?v=1647585317","width":1200},{"alt":"[Australia - AusPower] - NE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Board Module by Envistia Mall ","id":25200613425332,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71hLdmqQa6L.jpg?v=1647585317"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71hLdmqQa6L.jpg?v=1647585317","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNE555 Duty Cycle Frequency Adjustable Square Wave Signal Generator Board Module by Envistia Mall\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis NE555 square wave pulse generator module can be used to produce square\nwave signals for experimental development or in applications such as driving\nstepper motors, and as an adjustable pulse generator for microcontroller (MCU)\napplications. Features an NE555 timer chip configured in four frequency\nranges, 1Hz to 50Hz, 50Hz to 1kHz, 1kHz to 10kHz and 10kHz to 200kHz all\nadjustable with onboard jumpers and two trim-pots to adjust the output\nfrequency and the duty cycle. Input voltage to the module (VCC) is variable\nfrom 5V to 15V DC and draws approximately 15mA at 5v (35mA at 12v) with an\noutput amplitude of 4.2V peak-to-peak to 11.4V peak-to-peak based on the\nsupply voltage. An indicator LED illuminates on a low-level output and flashes\nrelative to the output frequency. At higher frequencies, the LED will appear\nto be on solid and without a visible flash. Features \u0026amp; Specifications: Size:\n31mm 22mm Main chip: NE555 Input Voltage (VCC): 5V-15VDC Input\ncurrent:~100MA Output amplitude: 4.2V V-PP to 11.4V V-PP. (Varries with VCC\nvoltage) Maximum output current: 15MA (VCC=5V, V-PP greater than 50%), 35MA\n(VCC=12V, V-PP greater than 50%) Output LED indicator (low level, LED is on,\nhigh level, LED is off; LED flashes with frequency The output frequency is\ncontinuously adjustable using the onboard jumpers and potentiometers. Jumper\nsettings are: 1Hz ~ 50Hz50Hz ~ 1kHz1KHz ~ 10kHz10kHz ~ 200kHz The output duty\ncycle can fine-tuned using the onboard potentiometers. Duty cycle and\nfrequency are not separately adjustable; adjusting the duty cycle will change\nthe frequency. Package Includes: 1X NE555 Duty Cycle Adjustable Pulse\nFrequency Square Wave Signal Generator Module Printed schematic, installation\nand operation instructions\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNE555 square wave pulse generator module can be used to produce square wave signals\u003c\/li\u003e\n \u003cli\u003eUse as a square wave signal generator for experimental development\u003c\/li\u003e\n \u003cli\u003eGenerate a square wave signal to drive a stepper motor\u003c\/li\u003e\n \u003cli\u003eGenerate adjustable pulses for microcontrollers (MCU)\u003c\/li\u003e\n \u003cli\u003eVariable frequency \u0026amp; duty cycle from 1Hz to 200KHz with amplitudes from 4.2V to 11.4V peak-to-peak\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
