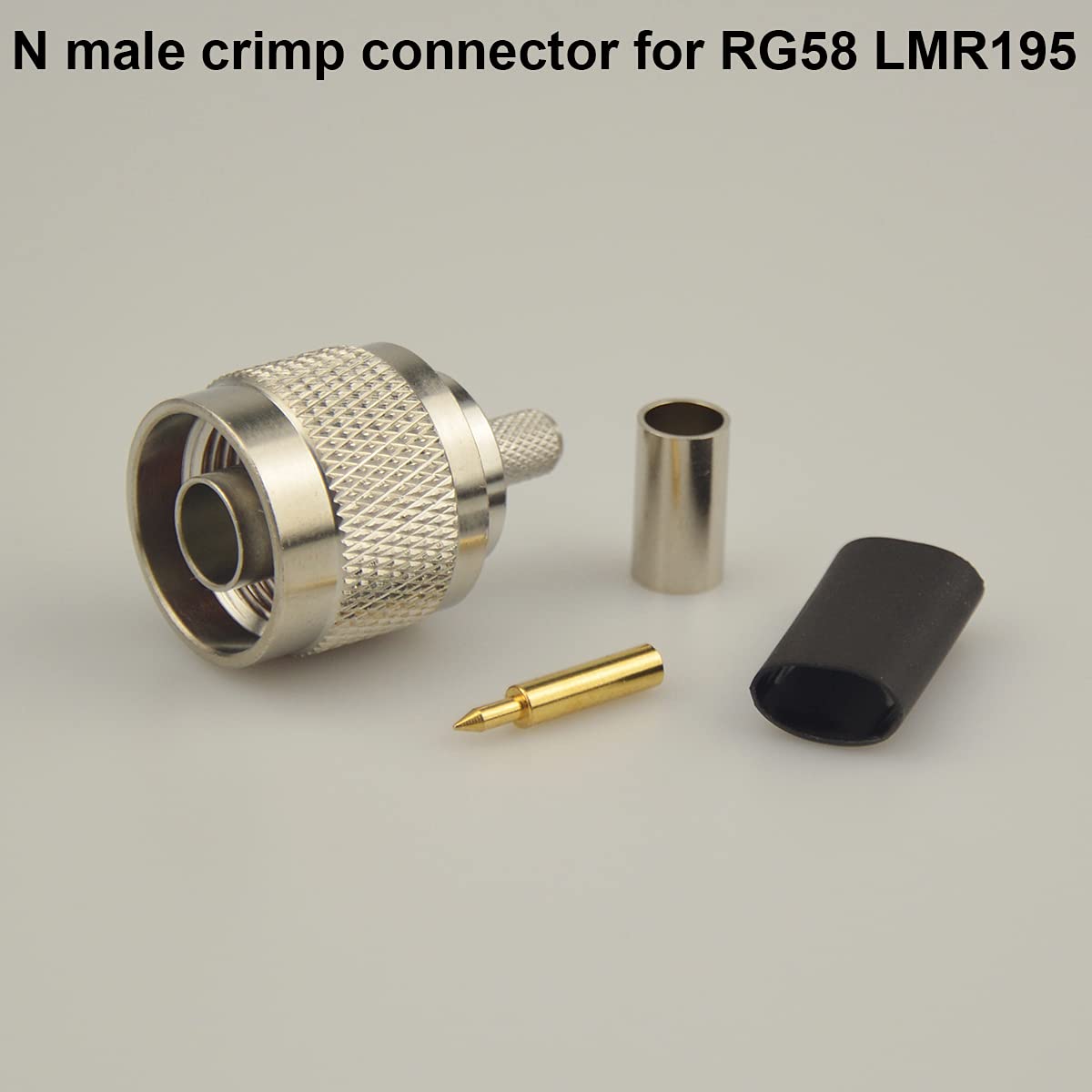

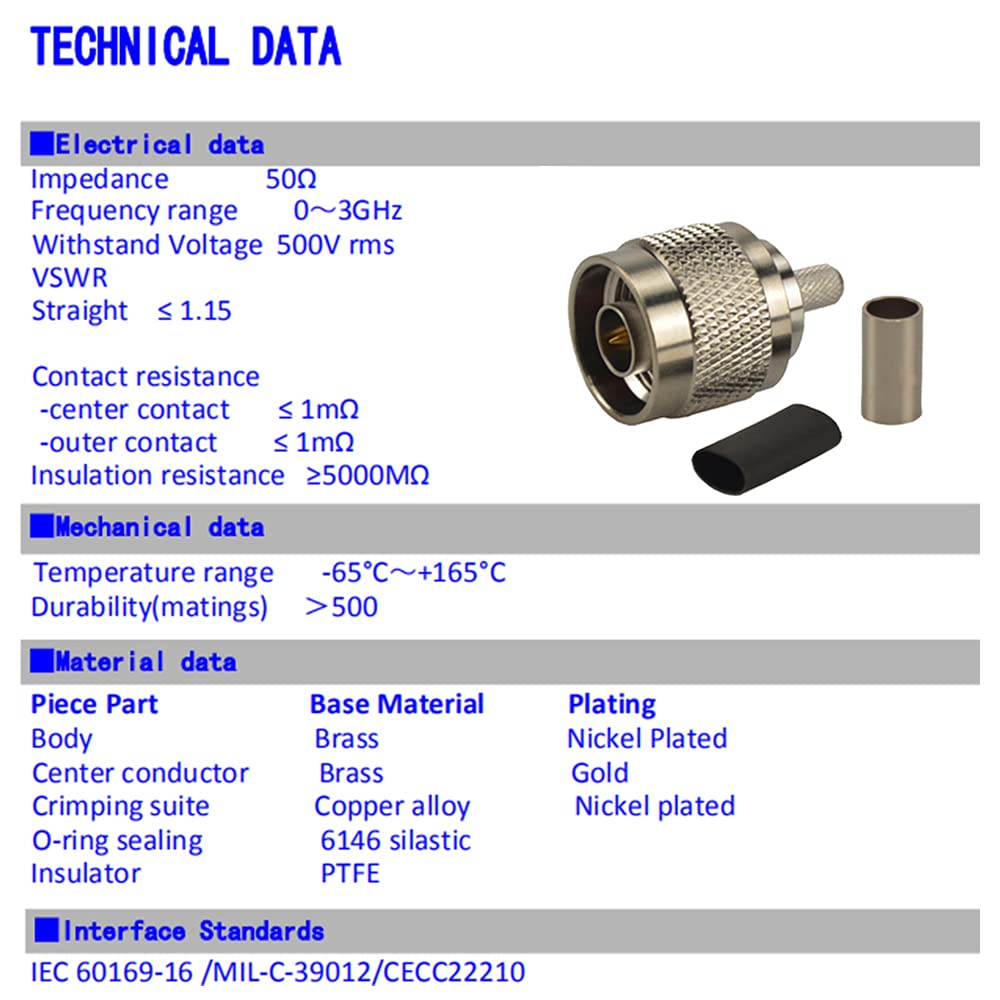

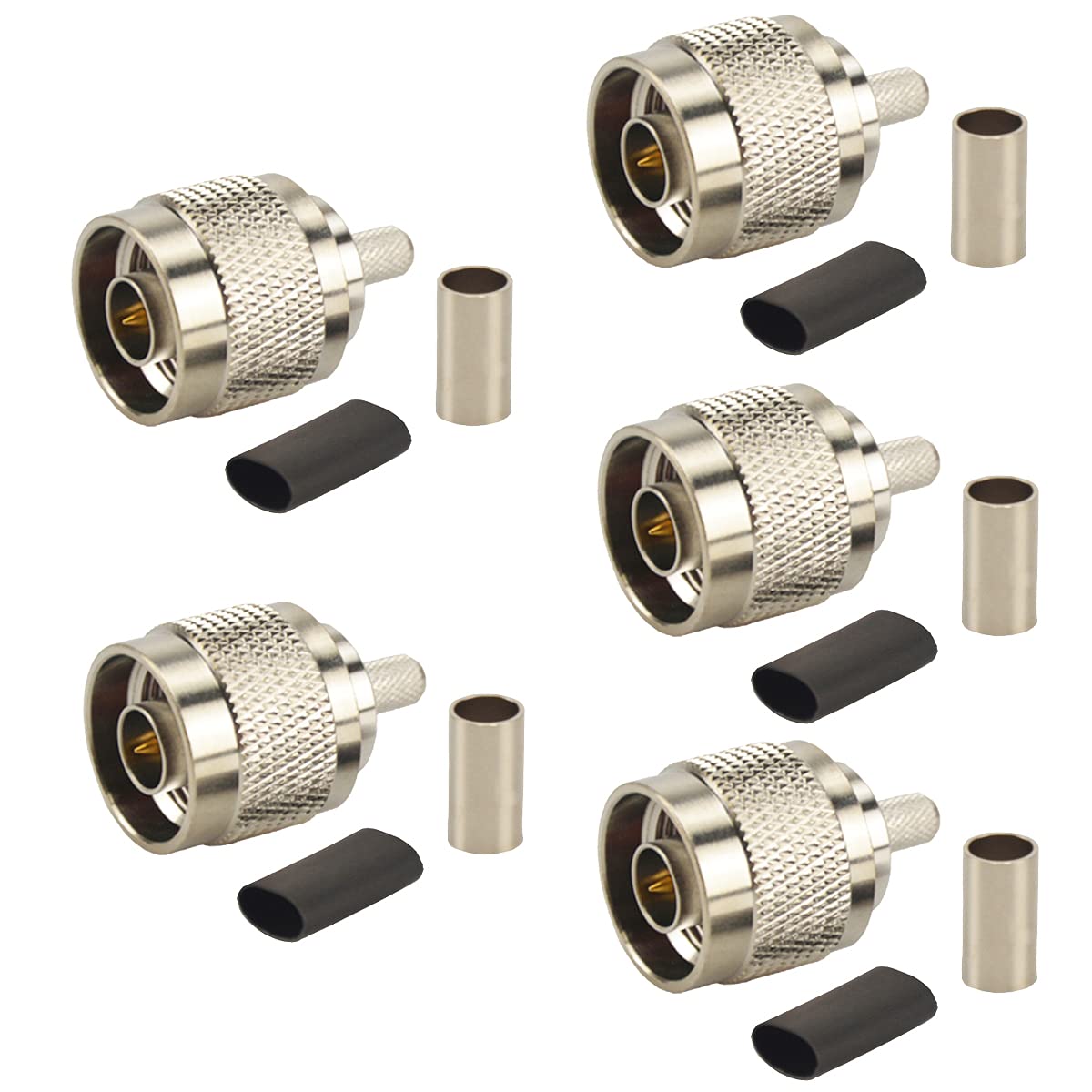

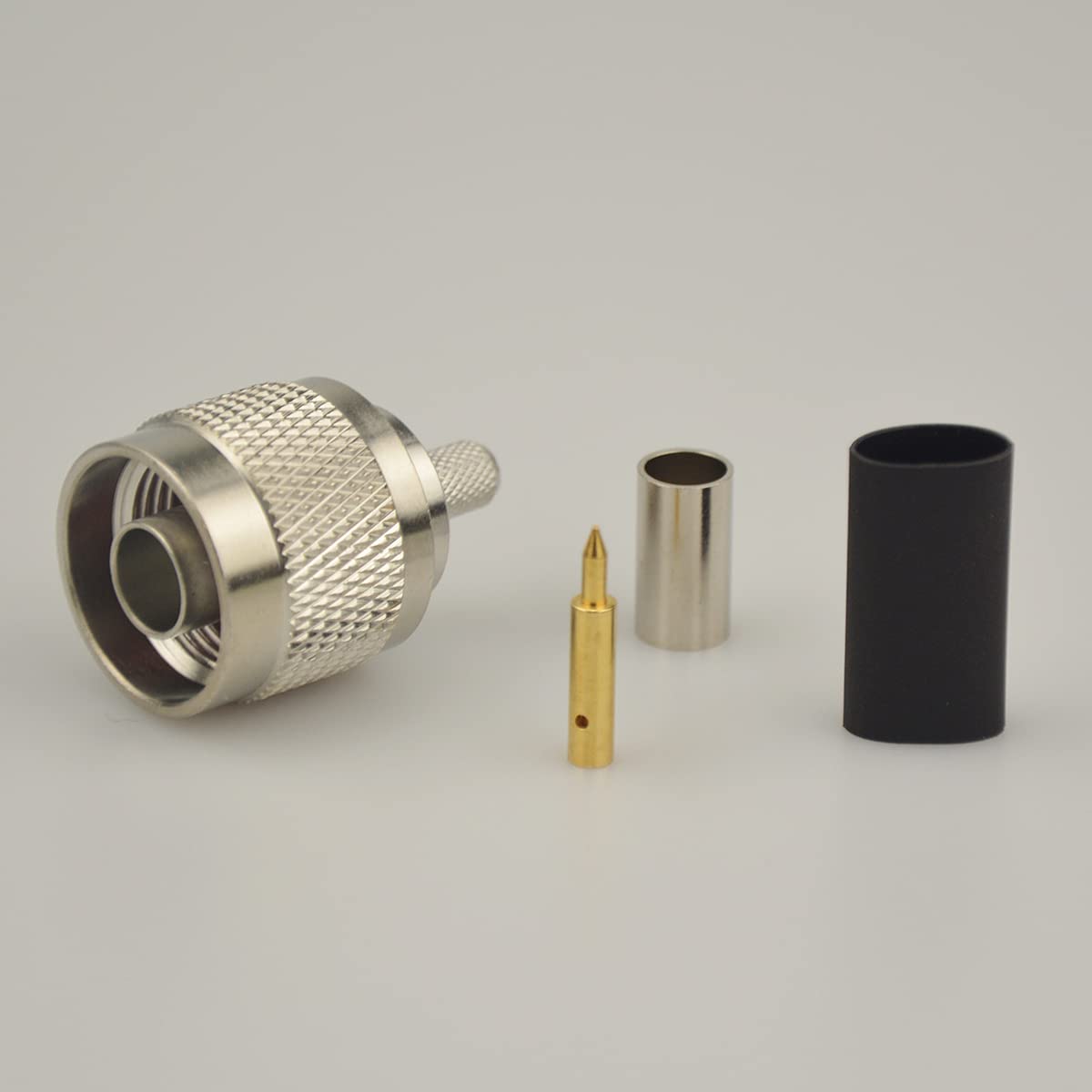

{"id":7390773444788,"title":"N Male Crimp On Plug Connector for LMR-195 RG-58 50 Ohm Low Loss RF Coaxial Cable Pack-5","handle":"n-male-crimp-on-plug-connector-for-lmr-195-rg-58-50-ohm-low-loss-rf-coaxial-cable-pack-5","description":"\u003ch3\u003eN Male Crimp On Plug Connector for LMR-195 RG-58 50 Ohm Low Loss RF Coaxial Cable Pack-5\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1.Materials \u0026amp; Plated: Body brass nickel plated, Pin brass gold plated,\nTeflon(PTFE) Insulator for a reliable signal every time . Salt spray test for\n48 hours ,VSWR below 1.2(DC-3G) 2.Electricail Characteristics: Impedance:50\nohm Dielectric Withstanding Voltage:500V (RMS) Contact Resistance:Center\nconductor ≤ 1mΩ Outer conductor ≤ 1mΩ Insulation Resistance :≥ 5000MΩ\nDurability :≥ 500 cycles Temperature range: -65°C to +165 °C 3.Package\ninclude: 5 piece N connectors 4. Build or Repair Coaxial Cable: Use to create\nyour own custom length N cable assembly with this N male crimp connector which\nis widely used in Wireless Communications Systems, Short Antenna Feeder runs\nor any other application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax,SCADA, Mobile\nAntennas). It is so easy to install, is reliable, and is built to last.Work\nwith the 50ohm low loss RF cable :LMR-195 and RG58 .Use proper crimping tool\nfor assembly It connected with any brand N female connector.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1.This N male connector work with 50 ohm low loss RF cable LMR-195 and RG-58\u003c\/li\u003e\n \u003cli\u003e2.High quality and cost effective.This N Plug connector made of brass copper,nickle plated,insulator is PTFE,metal housing with gold plated pin for good conductivity\u003c\/li\u003e\n \u003cli\u003e3.Ideal for building or repairing coaxial cables,use this N male connector to create your own N cable to a desired length which is widely used in Wireless Communications Systems,Short Antenna Feeder runs or any other application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax,SCADA, Mobile Antennas).\u003c\/li\u003e\n \u003cli\u003e4.n type connector,Insulation Resistance : 5000M Durability : 500 cycles\u003c\/li\u003e\n \u003cli\u003e5.Package include: 5PCS N male connector\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-06-07T23:15:51+10:00","created_at":"2023-06-07T23:15:59+10:00","vendor":"Riotaxy","type":"Connectors \u0026 Adapters","tags":["June2023_cocoonwix"],"price":14100,"price_min":14100,"price_max":14100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42295235510452,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07PFN17BY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"N Male Crimp On Plug Connector for LMR-195 RG-58 50 Ohm Low Loss RF Coaxial Cable Pack-5","public_title":null,"options":["Default Title"],"price":14100,"weight":130,"compare_at_price":null,"inventory_management":null,"barcode":"712317470314","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07PFN17BY.jpg?v=1777973302","\/\/auspowers.com\/cdn\/shop\/products\/51MvPIJFmXL.jpg?v=1686143760","\/\/auspowers.com\/cdn\/shop\/products\/614ce0fXteL.jpg?v=1686143760","\/\/auspowers.com\/cdn\/shop\/products\/61-kUh5TpzL.jpg?v=1686143760","\/\/auspowers.com\/cdn\/shop\/products\/411x-nHIt3L.jpg?v=1686143760"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07PFN17BY.jpg?v=1777973302","options":["Title"],"media":[{"alt":"[Australia - AusPower] - N Male Crimp On Plug Connector for LMR-195 RG-58 50 Ohm Low Loss RF Coaxial Cable Pack-5 ","id":28749741228212,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07PFN17BY.jpg?v=1777973302"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07PFN17BY.jpg?v=1777973302","width":1200},{"alt":"[Australia - AusPower] - N Male Crimp On Plug Connector for LMR-195 RG-58 50 Ohm Low Loss RF Coaxial Cable Pack-5 ","id":28747986436276,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51MvPIJFmXL.jpg?v=1686143760"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51MvPIJFmXL.jpg?v=1686143760","width":1200},{"alt":"[Australia - AusPower] - N Male Crimp On Plug Connector for LMR-195 RG-58 50 Ohm Low Loss RF Coaxial Cable Pack-5 ","id":28747986469044,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/614ce0fXteL.jpg?v=1686143760"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/614ce0fXteL.jpg?v=1686143760","width":1000},{"alt":"[Australia - AusPower] - N Male Crimp On Plug Connector for LMR-195 RG-58 50 Ohm Low Loss RF Coaxial Cable Pack-5 ","id":28747986501812,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61-kUh5TpzL.jpg?v=1686143760"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61-kUh5TpzL.jpg?v=1686143760","width":1000},{"alt":"[Australia - AusPower] - N Male Crimp On Plug Connector for LMR-195 RG-58 50 Ohm Low Loss RF Coaxial Cable Pack-5 ","id":28747986534580,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/411x-nHIt3L.jpg?v=1686143760"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/411x-nHIt3L.jpg?v=1686143760","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eN Male Crimp On Plug Connector for LMR-195 RG-58 50 Ohm Low Loss RF Coaxial Cable Pack-5\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1.Materials \u0026amp; Plated: Body brass nickel plated, Pin brass gold plated,\nTeflon(PTFE) Insulator for a reliable signal every time . Salt spray test for\n48 hours ,VSWR below 1.2(DC-3G) 2.Electricail Characteristics: Impedance:50\nohm Dielectric Withstanding Voltage:500V (RMS) Contact Resistance:Center\nconductor ≤ 1mΩ Outer conductor ≤ 1mΩ Insulation Resistance :≥ 5000MΩ\nDurability :≥ 500 cycles Temperature range: -65°C to +165 °C 3.Package\ninclude: 5 piece N connectors 4. Build or Repair Coaxial Cable: Use to create\nyour own custom length N cable assembly with this N male crimp connector which\nis widely used in Wireless Communications Systems, Short Antenna Feeder runs\nor any other application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax,SCADA, Mobile\nAntennas). It is so easy to install, is reliable, and is built to last.Work\nwith the 50ohm low loss RF cable :LMR-195 and RG58 .Use proper crimping tool\nfor assembly It connected with any brand N female connector.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1.This N male connector work with 50 ohm low loss RF cable LMR-195 and RG-58\u003c\/li\u003e\n \u003cli\u003e2.High quality and cost effective.This N Plug connector made of brass copper,nickle plated,insulator is PTFE,metal housing with gold plated pin for good conductivity\u003c\/li\u003e\n \u003cli\u003e3.Ideal for building or repairing coaxial cables,use this N male connector to create your own N cable to a desired length which is widely used in Wireless Communications Systems,Short Antenna Feeder runs or any other application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax,SCADA, Mobile Antennas).\u003c\/li\u003e\n \u003cli\u003e4.n type connector,Insulation Resistance : 5000M Durability : 500 cycles\u003c\/li\u003e\n \u003cli\u003e5.Package include: 5PCS N male connector\u003c\/li\u003e\n \u003c\/ul\u003e"}
