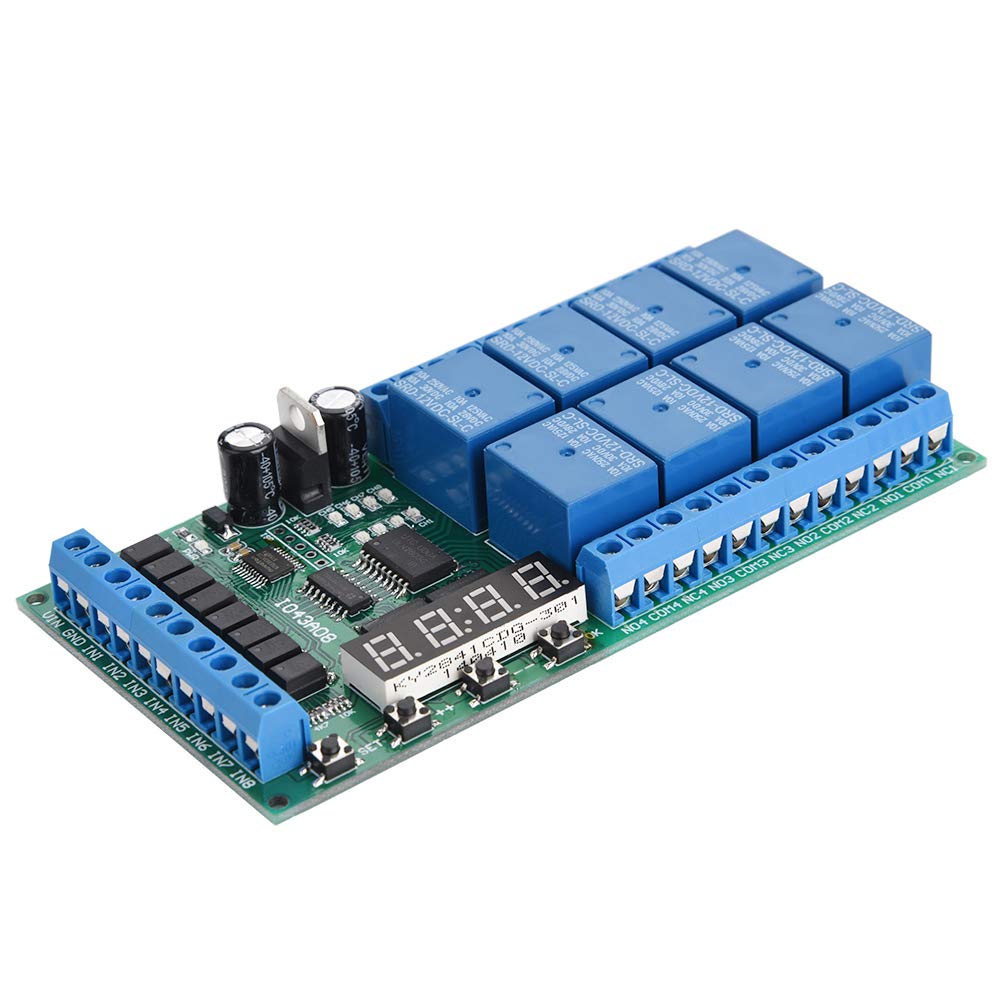

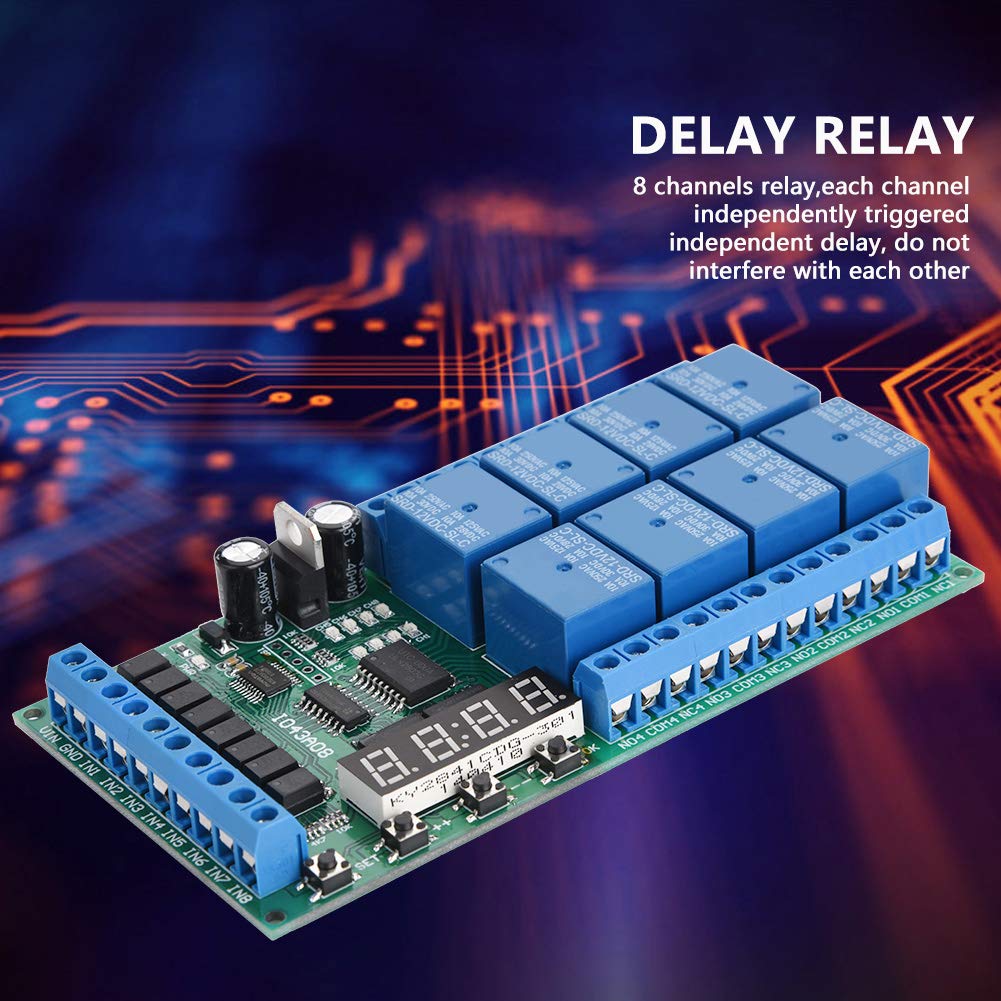

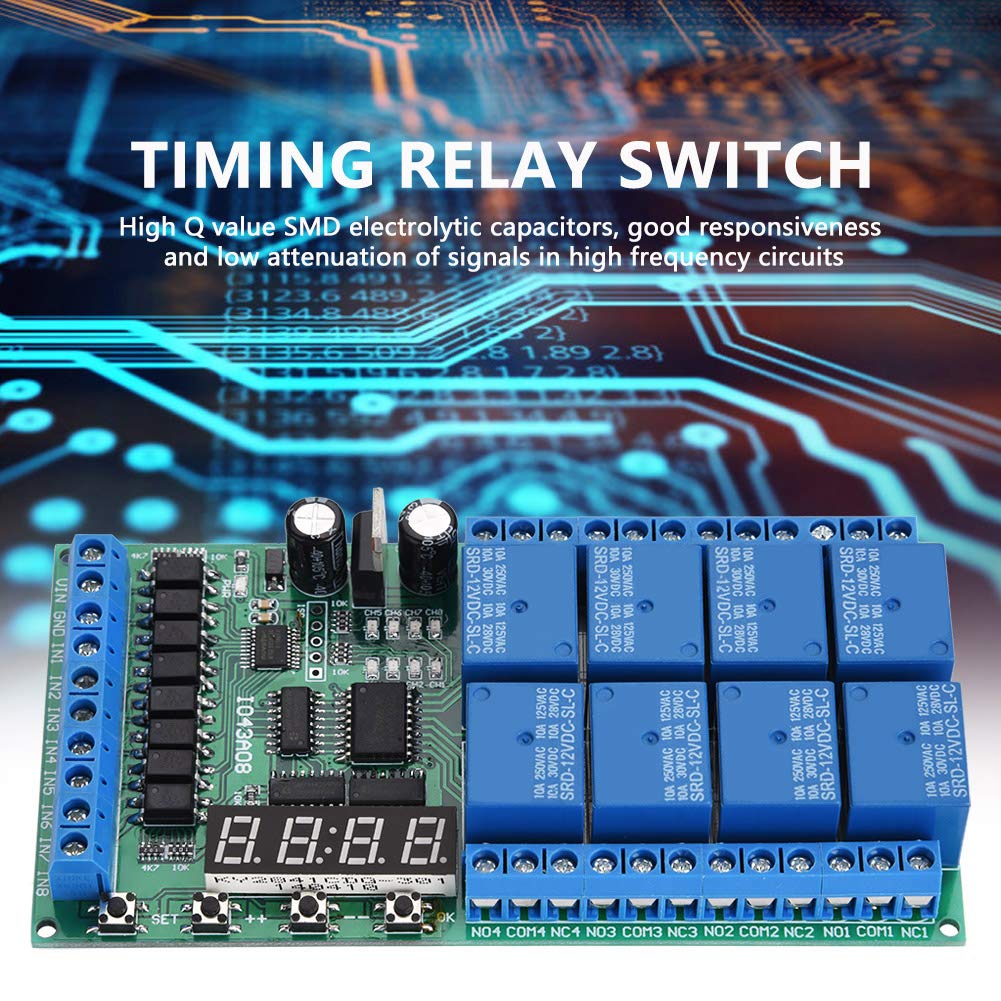

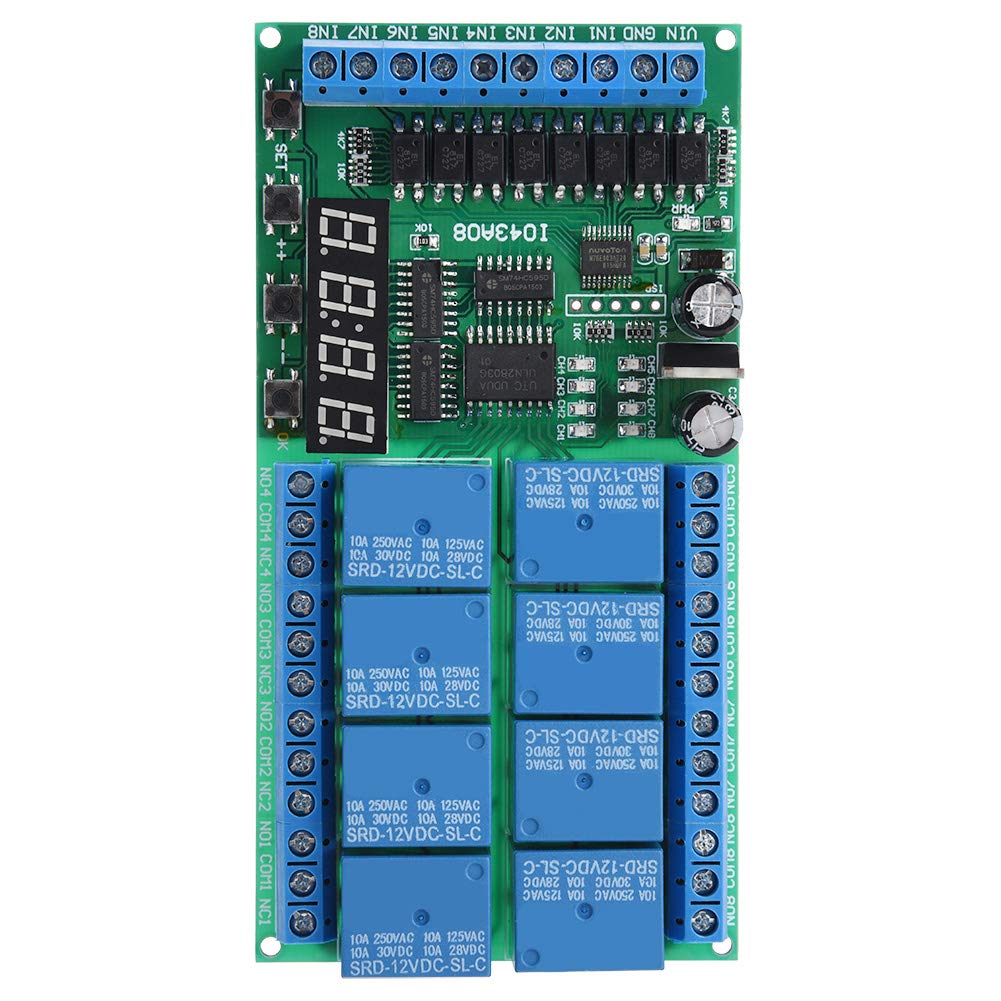

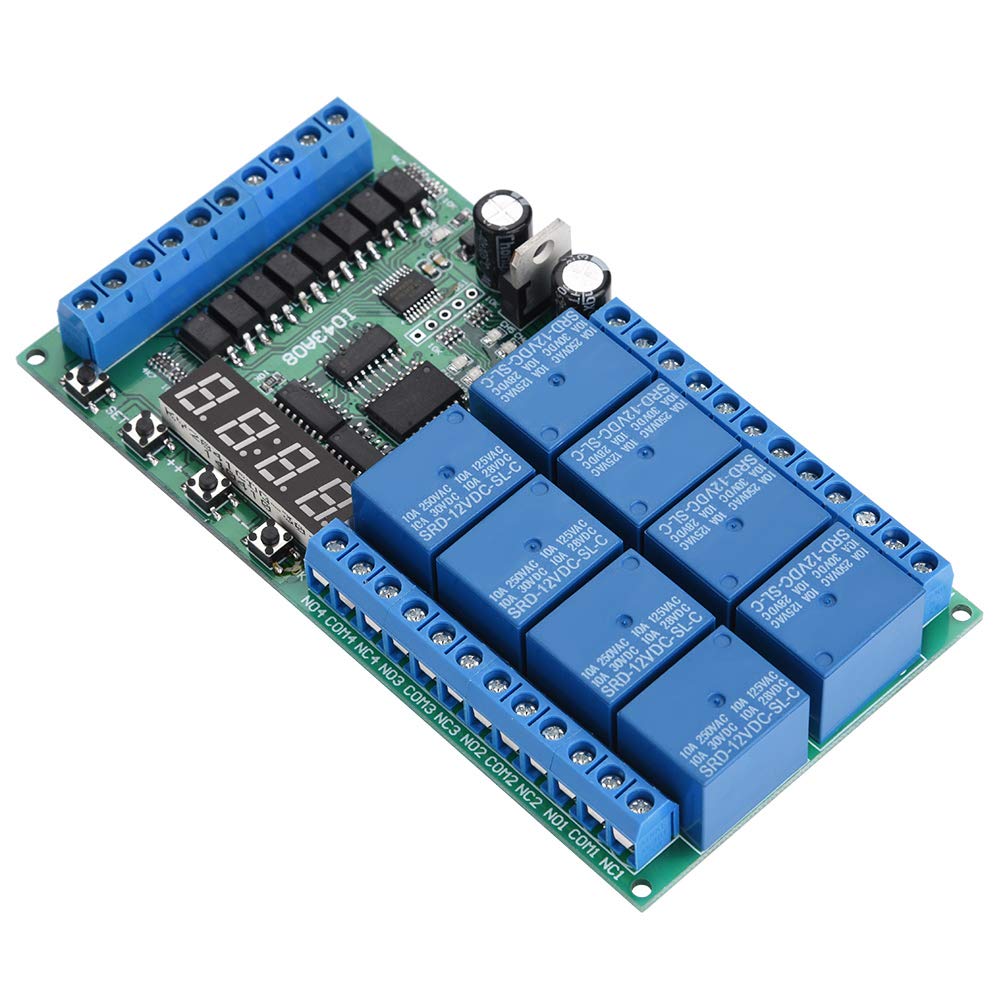

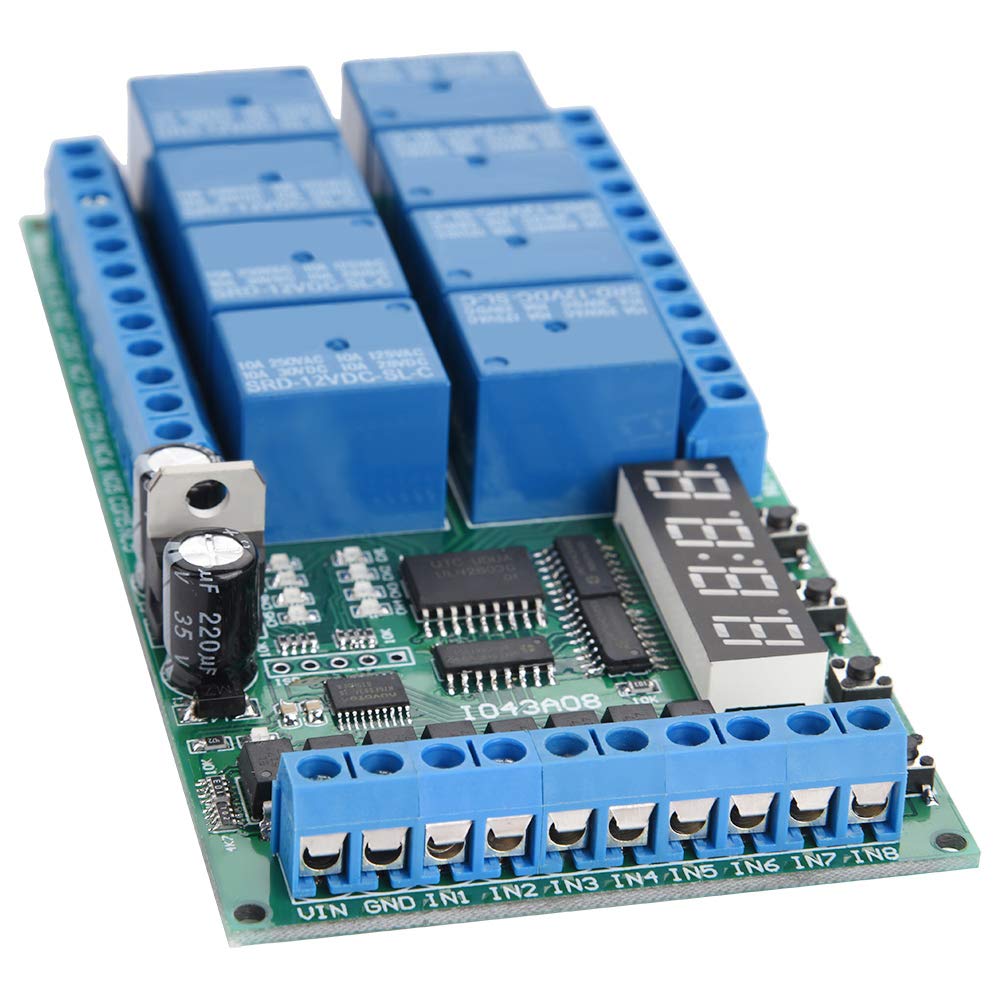

{"id":7169155891380,"title":"Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module","handle":"multifunction-time-relay-dc-12v-8ch-led-multifunction-digital-delay-time-cycle-timing-relay-switch-module","description":"\u003ch3\u003eMultifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Working voltage: DC 12V Maximum load :10A\/250VAC,10A\/125VAC,10A\n\/30VDC, 10A\/ 28VDC,10A\/ 12VDC Size:126.4cm\/4.72.5in Weight:\nApprox.132g\/4.7oz User Instructions: Short press: press key time is less than\n2 seconds; Long press: press key time more than 2 seconds; Status: working\nstatus , set status, power-saving status. working status : start work after\npowering. Displays the remaining time of 1 channel, the parameters can be\ndisplayed the \"channel select\" to set; Set status: short press the \"SET\" key\nto enter \"channel select\" Status. Short press \"OK\" button to exit the setting;\npower-saving status: in this Status,digital tubes donot display,and other\nfeatures work correctly. Long press \"OK\" button after 5 seconds to enter\npower-saving status, press again \"OK\" button for 5 seconds or re-power to exit\npower-saving status. Factory settings: press and hold \"++\" and \"--\" two button\nfor 3 seconds, to restore factory settings, and the digital tube will turn\nopen . After re-power , will run default parameters. Package list: 1 x\nMultifunction Time Relay\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGOOD FEATURE: 8 channels relay,each channel independently triggered independent delay, do not interfere with each other.\u003c\/li\u003e\n \u003cli\u003eFUNCTION: 6 kinds of functional modes, each functional module has three sub-modes (no cycle, 2-99 cycle, always cycle).\u003c\/li\u003e\n \u003cli\u003eSAFETY: High Q value SMD electrolytic capacitors, good responsiveness and low attenuation of signals in high frequency circuits.\u003c\/li\u003e\n \u003cli\u003eMAXIMUM LOAD:10A\/250VAC,10A\/125VAC,10A \/30VDC, 10A\/ 28VDC,10A\/ 12VDC\u003c\/li\u003e\n \u003cli\u003eSATISFACTION GUARANTEE: We care for every customers feeling.If this product does not meet or exceed your expectations,please send it back for a 100% refund no questions asked.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-25T19:46:26+10:00","created_at":"2022-06-25T19:46:36+10:00","vendor":"Walfront","type":"Relays","tags":["industrial"],"price":17500,"price_min":17500,"price_max":17500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41607850426548,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07HKXLXD1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module","public_title":null,"options":["Default Title"],"price":17500,"weight":129,"compare_at_price":null,"inventory_management":null,"barcode":"0792117215483","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07HKXLXD1.jpg?v=1656227587","\/\/auspowers.com\/cdn\/shop\/products\/61gzOewBjVL.jpg?v=1656150396","\/\/auspowers.com\/cdn\/shop\/products\/71fl4e_f0LL.jpg?v=1656150396","\/\/auspowers.com\/cdn\/shop\/products\/61XpaJSP4sL.jpg?v=1656150396","\/\/auspowers.com\/cdn\/shop\/products\/61JaI_iM0PL.jpg?v=1656150396","\/\/auspowers.com\/cdn\/shop\/products\/61Ihbkm87rL.jpg?v=1656150396","\/\/auspowers.com\/cdn\/shop\/products\/61mjPrLPZjL.jpg?v=1656150396","\/\/auspowers.com\/cdn\/shop\/products\/71HI0OWDj5L.jpg?v=1656150396","\/\/auspowers.com\/cdn\/shop\/products\/71UpIe447mL.jpg?v=1656150396"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07HKXLXD1.jpg?v=1656227587","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module ","id":26293092909236,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07HKXLXD1.jpg?v=1656227587"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07HKXLXD1.jpg?v=1656227587","width":1001},{"alt":"[Australia - AusPower] - Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module ","id":26282420142260,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61gzOewBjVL.jpg?v=1656150396"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61gzOewBjVL.jpg?v=1656150396","width":1001},{"alt":"[Australia - AusPower] - Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module ","id":26282420175028,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71fl4e_f0LL.jpg?v=1656150396"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71fl4e_f0LL.jpg?v=1656150396","width":1001},{"alt":"[Australia - AusPower] - Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module ","id":26282420207796,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61XpaJSP4sL.jpg?v=1656150396"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61XpaJSP4sL.jpg?v=1656150396","width":1001},{"alt":"[Australia - AusPower] - Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module ","id":26282420240564,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61JaI_iM0PL.jpg?v=1656150396"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61JaI_iM0PL.jpg?v=1656150396","width":1001},{"alt":"[Australia - AusPower] - Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module ","id":26282420273332,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Ihbkm87rL.jpg?v=1656150396"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Ihbkm87rL.jpg?v=1656150396","width":1001},{"alt":"[Australia - AusPower] - Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module ","id":26282420306100,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61mjPrLPZjL.jpg?v=1656150396"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61mjPrLPZjL.jpg?v=1656150396","width":1001},{"alt":"[Australia - AusPower] - Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module ","id":26282420338868,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71HI0OWDj5L.jpg?v=1656150396"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71HI0OWDj5L.jpg?v=1656150396","width":1001},{"alt":"[Australia - AusPower] - Multifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module ","id":26282420371636,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71UpIe447mL.jpg?v=1656150396"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71UpIe447mL.jpg?v=1656150396","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMultifunction Time Relay, DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Working voltage: DC 12V Maximum load :10A\/250VAC,10A\/125VAC,10A\n\/30VDC, 10A\/ 28VDC,10A\/ 12VDC Size:126.4cm\/4.72.5in Weight:\nApprox.132g\/4.7oz User Instructions: Short press: press key time is less than\n2 seconds; Long press: press key time more than 2 seconds; Status: working\nstatus , set status, power-saving status. working status : start work after\npowering. Displays the remaining time of 1 channel, the parameters can be\ndisplayed the \"channel select\" to set; Set status: short press the \"SET\" key\nto enter \"channel select\" Status. Short press \"OK\" button to exit the setting;\npower-saving status: in this Status,digital tubes donot display,and other\nfeatures work correctly. Long press \"OK\" button after 5 seconds to enter\npower-saving status, press again \"OK\" button for 5 seconds or re-power to exit\npower-saving status. Factory settings: press and hold \"++\" and \"--\" two button\nfor 3 seconds, to restore factory settings, and the digital tube will turn\nopen . After re-power , will run default parameters. Package list: 1 x\nMultifunction Time Relay\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGOOD FEATURE: 8 channels relay,each channel independently triggered independent delay, do not interfere with each other.\u003c\/li\u003e\n \u003cli\u003eFUNCTION: 6 kinds of functional modes, each functional module has three sub-modes (no cycle, 2-99 cycle, always cycle).\u003c\/li\u003e\n \u003cli\u003eSAFETY: High Q value SMD electrolytic capacitors, good responsiveness and low attenuation of signals in high frequency circuits.\u003c\/li\u003e\n \u003cli\u003eMAXIMUM LOAD:10A\/250VAC,10A\/125VAC,10A \/30VDC, 10A\/ 28VDC,10A\/ 12VDC\u003c\/li\u003e\n \u003cli\u003eSATISFACTION GUARANTEE: We care for every customers feeling.If this product does not meet or exceed your expectations,please send it back for a 100% refund no questions asked.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
