Multifunction Meter DIY kit, ACEIRMC Mega 328 Graphic Transistor Tester, NPN PNP Diodes Triode Capacitor ESR SCR MOSFET Resistor Inductance LCD Display Checker with case

In Stock. Leaves warehouse within 2 - 3 business days

$114.00 AUD
Maximum quantity available reached.
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

Multifunction Meter DIY kit, ACEIRMC Mega 328 Graphic Transistor Tester, NPN PNP Diodes Triode Capacitor ESR SCR MOSFET Resistor Inductance LCD Display Checker with case

Note Please make sure that capacitors are discharged before testing.Battery is not included. Please tear off the paper outside the case. Display: 128 x 64 LCD Normal Testing Speed: 2 seconds Shutdown Current: 20nA Multifunction Meter DIY kit Mega 328 Graphic Transistor Tester NPN PNP Diodes Triode Capacitor ESR SCR MOSFET Resistor Inductance LCD Display Checker Automatic detection of NPN and PNP transistors Features: 1. Support boot voltage detection function2. Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, triodes, resistors, and capacitors. Automatically testing the component leads and displaying them on the LCD3. The forward bias voltage of the emitter transistor can be determined by detecting the amplification factor and base number of a transistor, a MOSFET protection diode, and the like4. Measure gate threshold voltage and gate capacitance MOSFET5. The display uses 12864 lcd LCD (128 64 characters)6. High test speed, valid component test: In 2 seconds (except in larger capacitors, large capacitance measurement also takes a long time, the measurement time in 1 minute is normal)7. One-button operation, power-on test.8. Power Consumption Shutdown Mode: Less than 20 nA9. Automatic shutdown function can avoid unnecessary waste, save battery energy and improve battery life.

Product Features

  • Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components
  • Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage
  • Can be in the correct order and the diode symbol display two diodes , and gives the diode forward voltage
  • measure capacitanceCan measure capacitance of 30pF-100mF , resolution 1pF

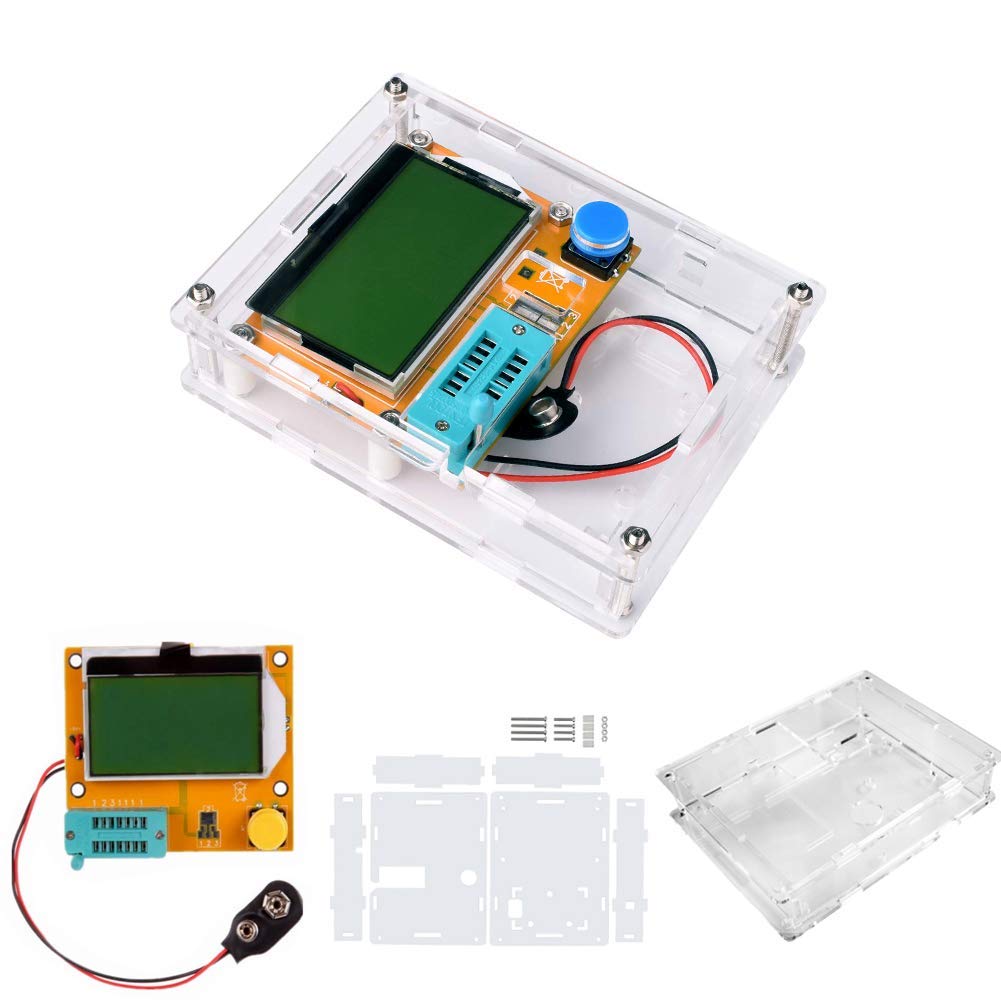

  • Package: 1 * LCR-T4 Mega328 Transistor Tester 1* LCR-T4 Mega328 Transistor Tester Case
