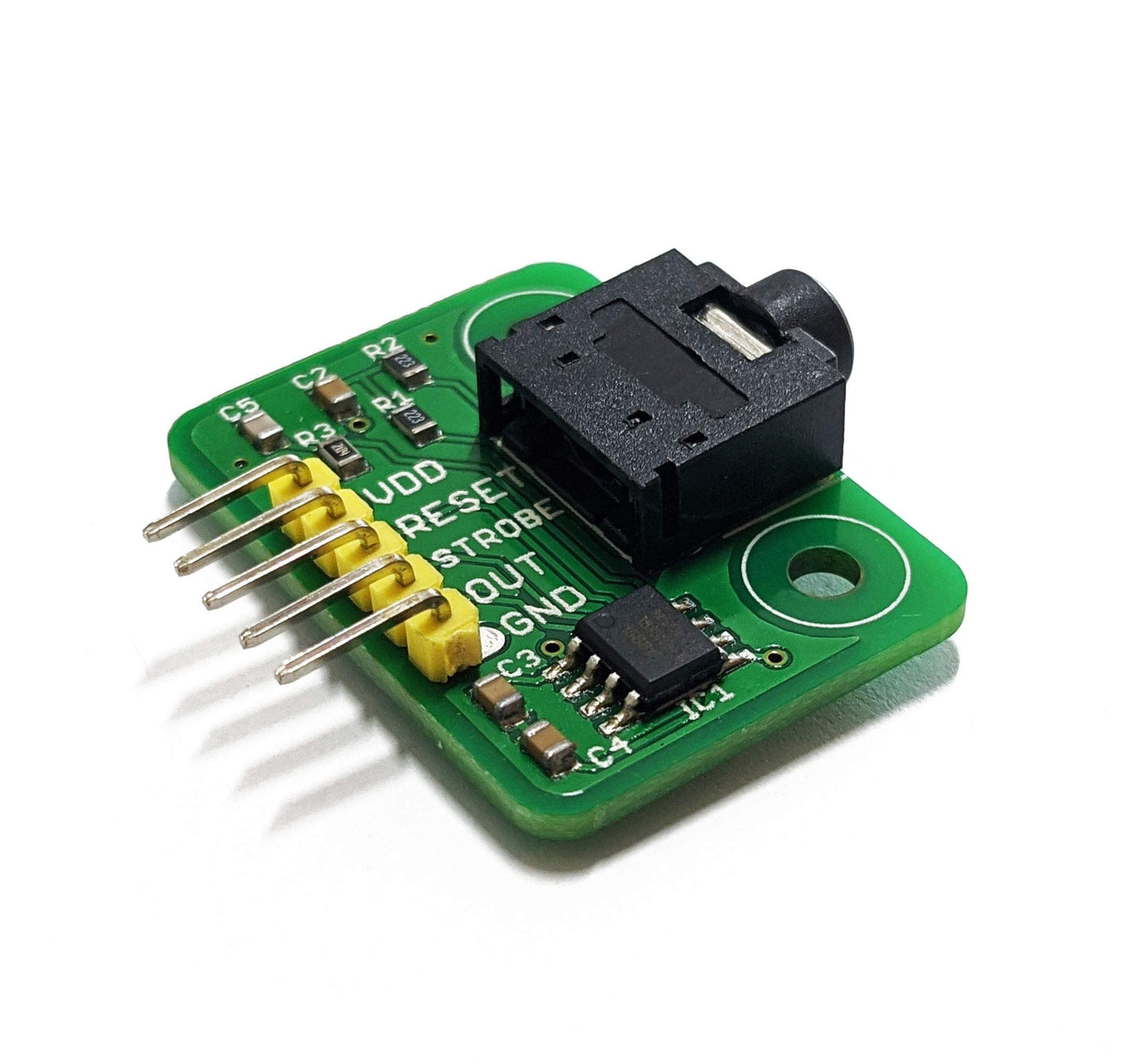

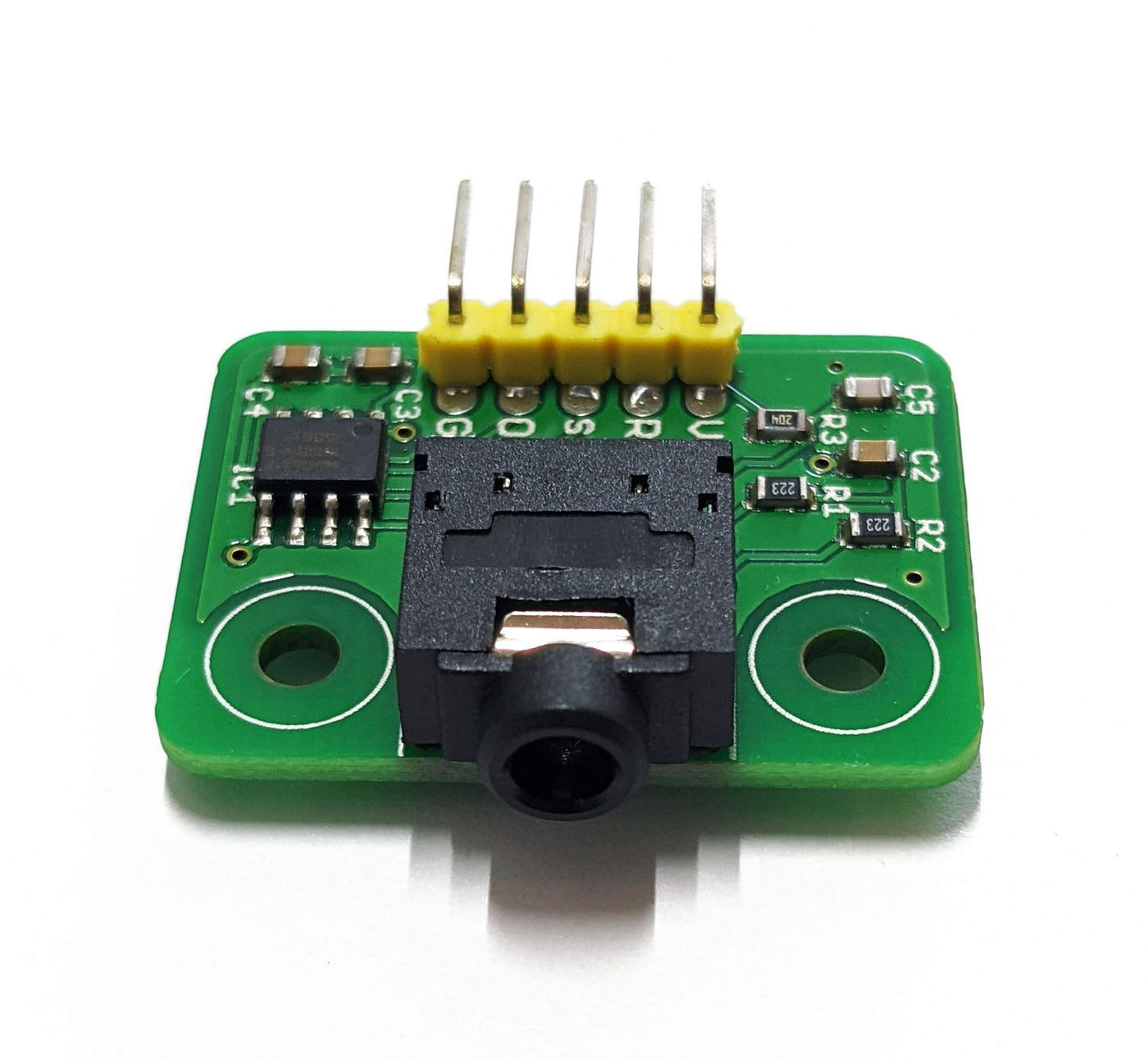

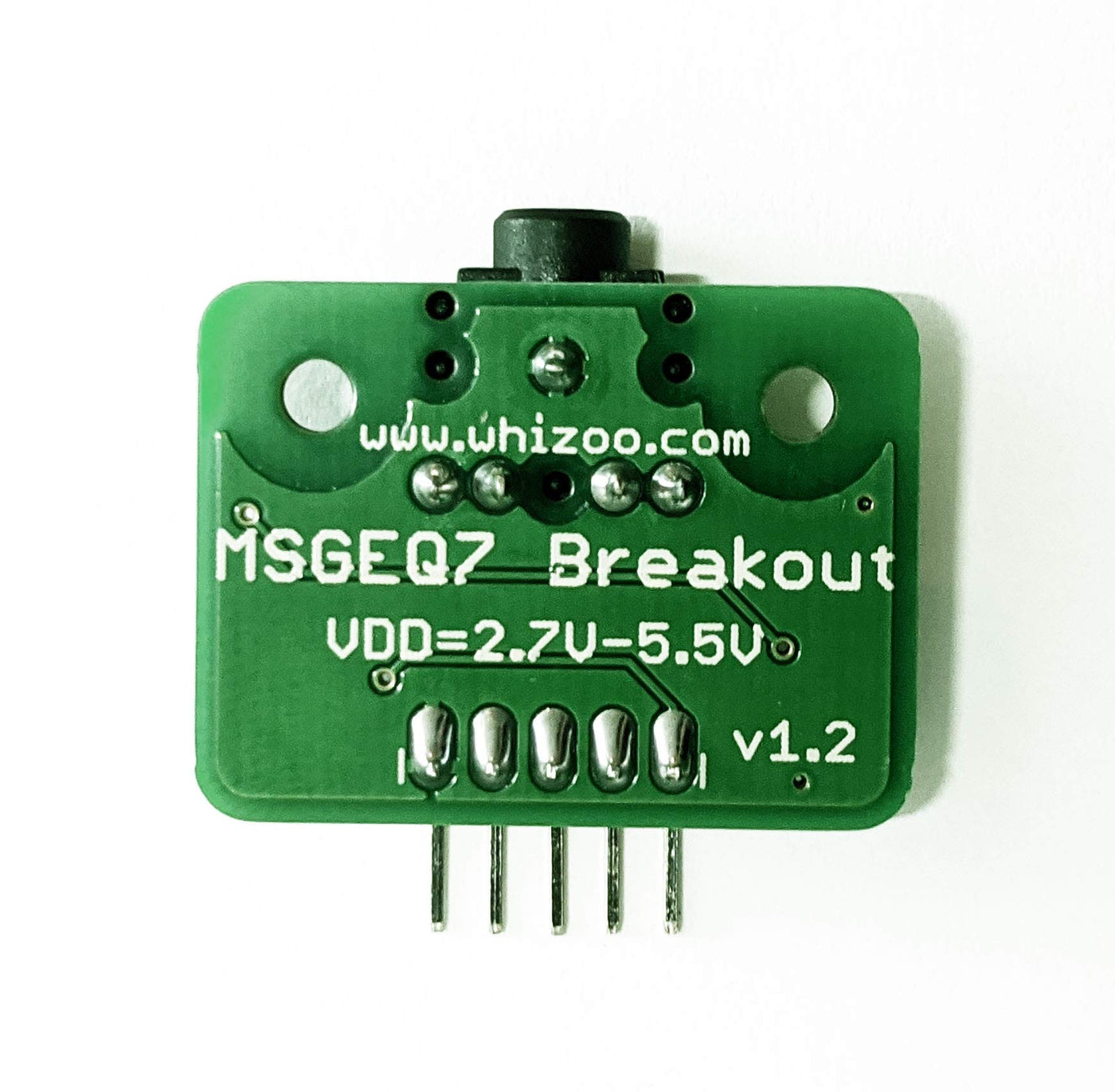

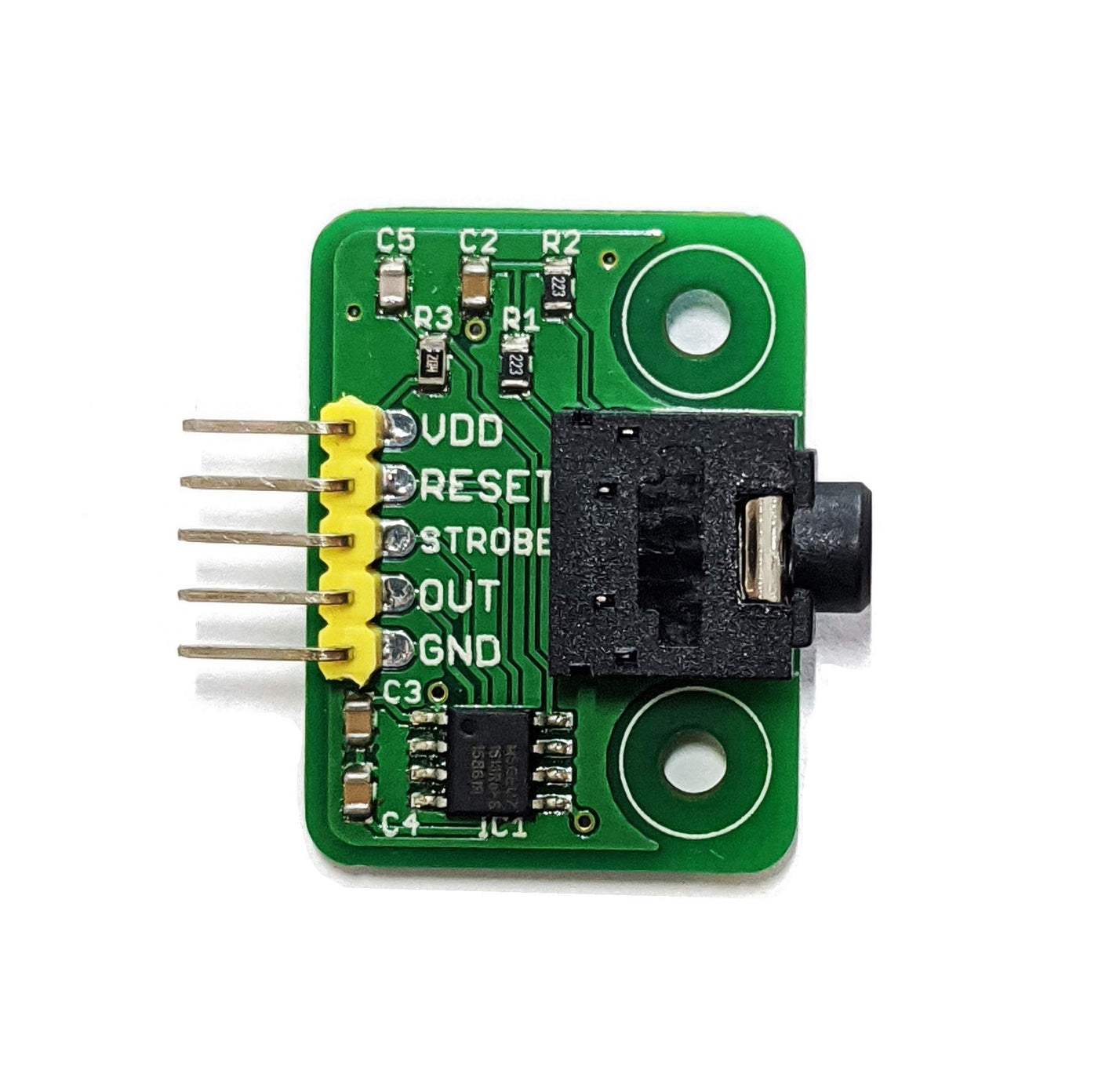

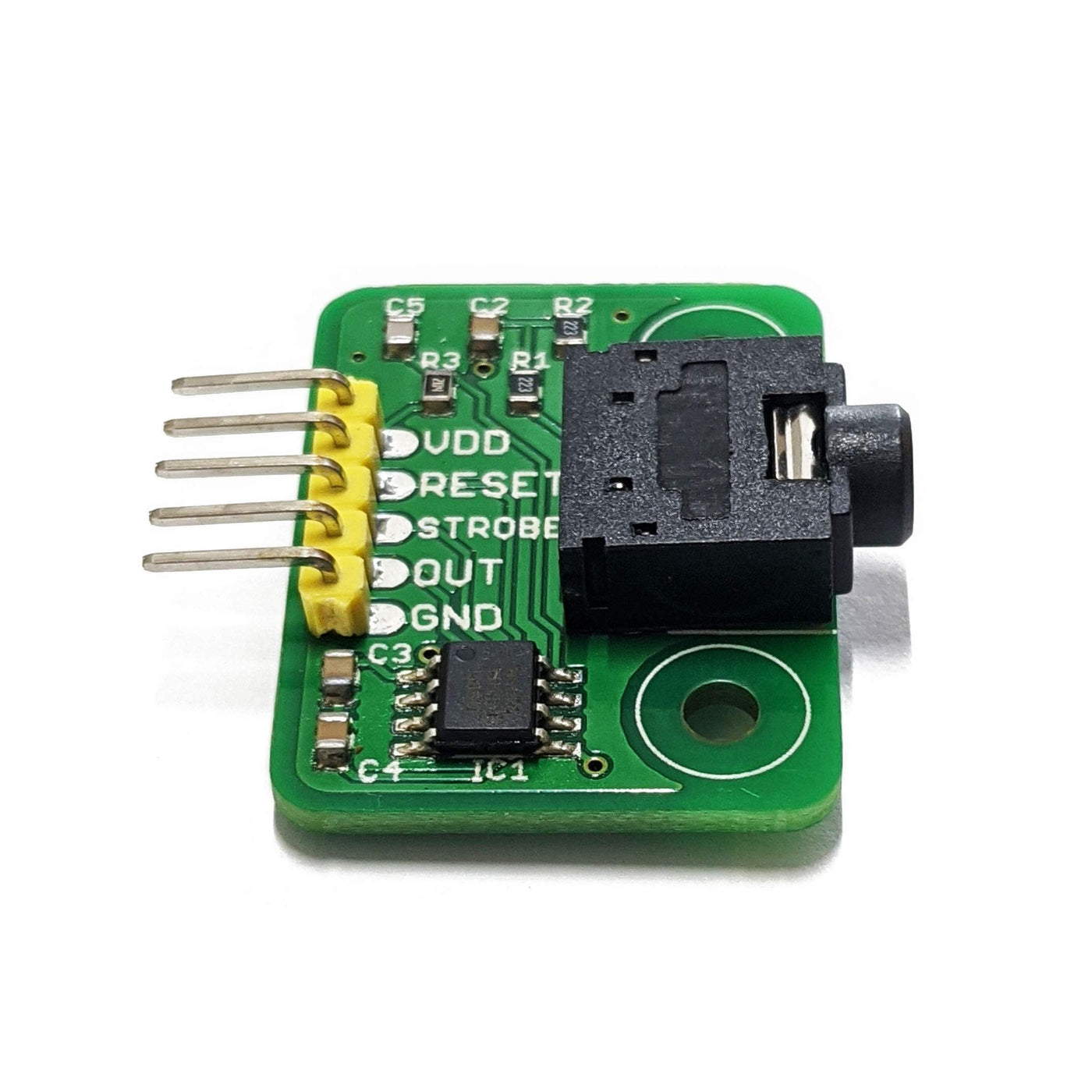

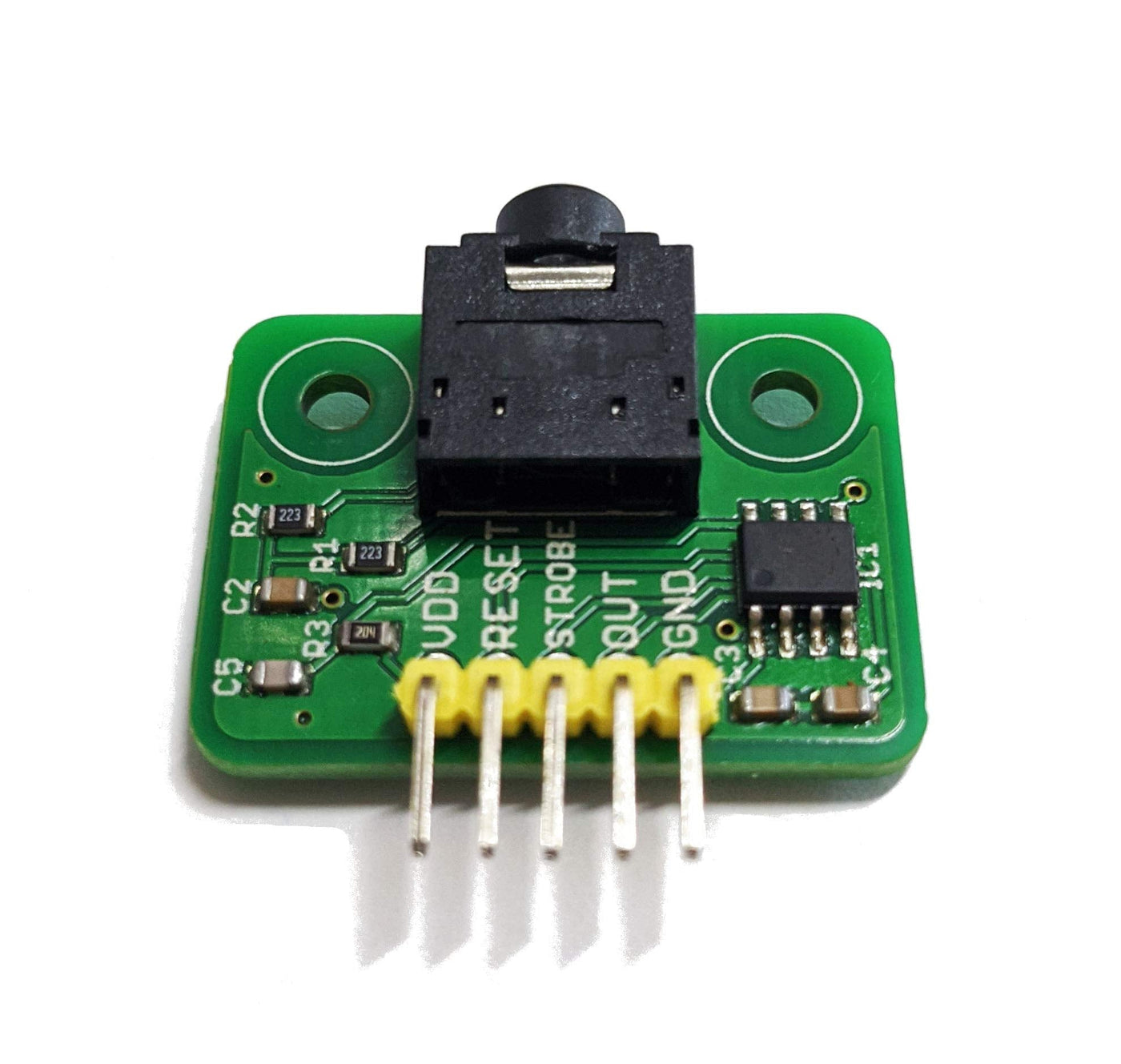

{"id":7903588712628,"title":"MSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono)","handle":"msgeq7-seven-band-spectrum-analyzer-breakout-board-mono-stereo-mono","description":"\u003ch3\u003eMSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis is an MSGEQ7 spectrum analyzer breakout board. It divides the incoming\naudio spectrum into seven bands. These seven frequencies are peak detected and\nmultiplexed to the output to provide a DC representation of each band. The\noperating voltage is 2.7V to 5.0V. The MSGEQ7 can be used to analyze audio fed\nin through the stereo jack on the board. The data can be sent to an Arduino,\nRaspberry Pi, BeagleBone, or other microcontroller. This can be useful for\ntiming lights to music. The mono version has the left and right channels fed\ninto the onboard MSGEQ7 integrated circuit. This gives a good representation\nof what is heard by your ears. The stereo version analyzes both channels\nseparately using two onboard integrated circuits. The board measures 1.3\" by\n1.0\" (33mm by 27mm).\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTiming lights to music is made simple with the seven peak-detected frequency bands multiplexed to the output.\u003c\/li\u003e\n \u003cli\u003eCompatible microcontrollers - including Raspberry Pi, Arduino, and BeagleBone - provide a quick and easy way to analyze the component frequencies of incoming audio.\u003c\/li\u003e\n \u003cli\u003eThe onboard 3.5mm stereo audio jack allows for easy analysis of audio from a phone, laptop, or other device.\u003c\/li\u003e\n \u003cli\u003ePre-soldered connectors allow for easy, out-of-the-box use. The pins use a 0.1\" pitch, making them breadboard-friendly.\u003c\/li\u003e\n \u003cli\u003eQuality control ensures that every board shipped meets our high standards and works as advertised. The board is designed and manufactured in California.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-12-26T03:07:02+11:00","created_at":"2024-12-25T04:12:49+11:00","vendor":"Neem Tech","type":"Spectrum Analyzers","tags":["industrial_Aug2024_update"],"price":14500,"price_min":14500,"price_max":14500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43777191182516,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08GY46BY8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"MSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono)","public_title":null,"options":["Default Title"],"price":14500,"weight":11,"compare_at_price":null,"inventory_management":"shopify","barcode":"NT005-006","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B08GY46BY8.jpg?v=1735112425","\/\/auspowers.com\/cdn\/shop\/files\/81EtCNjDBiL.jpg?v=1735060372","\/\/auspowers.com\/cdn\/shop\/files\/711QvuelQ_L.jpg?v=1735060372","\/\/auspowers.com\/cdn\/shop\/files\/71-szMQ2koL.jpg?v=1735060372","\/\/auspowers.com\/cdn\/shop\/files\/816hNJK1coL.jpg?v=1735060372","\/\/auspowers.com\/cdn\/shop\/files\/71mSFp_Qd8L.jpg?v=1735060372","\/\/auspowers.com\/cdn\/shop\/files\/41acLC-EgzL.jpg?v=1735060372"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B08GY46BY8.jpg?v=1735112425","options":["Title"],"media":[{"alt":"[Australia - AusPower] - MSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono) ","id":31089847140532,"position":1,"preview_image":{"aspect_ratio":1.076,"height":2052,"width":2208,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B08GY46BY8.jpg?v=1735112425"},"aspect_ratio":1.076,"height":2052,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B08GY46BY8.jpg?v=1735112425","width":2208},{"alt":"[Australia - AusPower] - MSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono) ","id":31088369729716,"position":2,"preview_image":{"aspect_ratio":1.085,"height":2124,"width":2304,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81EtCNjDBiL.jpg?v=1735060372"},"aspect_ratio":1.085,"height":2124,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81EtCNjDBiL.jpg?v=1735060372","width":2304},{"alt":"[Australia - AusPower] - MSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono) ","id":31088369762484,"position":3,"preview_image":{"aspect_ratio":1.054,"height":1877,"width":1978,"src":"\/\/auspowers.com\/cdn\/shop\/files\/711QvuelQ_L.jpg?v=1735060372"},"aspect_ratio":1.054,"height":1877,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/711QvuelQ_L.jpg?v=1735060372","width":1978},{"alt":"[Australia - AusPower] - MSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono) ","id":31088369795252,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2148,"width":2148,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71-szMQ2koL.jpg?v=1735060372"},"aspect_ratio":1.0,"height":2148,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71-szMQ2koL.jpg?v=1735060372","width":2148},{"alt":"[Australia - AusPower] - MSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono) ","id":31088369828020,"position":5,"preview_image":{"aspect_ratio":1.005,"height":2196,"width":2208,"src":"\/\/auspowers.com\/cdn\/shop\/files\/816hNJK1coL.jpg?v=1735060372"},"aspect_ratio":1.005,"height":2196,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/816hNJK1coL.jpg?v=1735060372","width":2208},{"alt":"[Australia - AusPower] - MSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono) ","id":31088369860788,"position":6,"preview_image":{"aspect_ratio":1.021,"height":1704,"width":1740,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71mSFp_Qd8L.jpg?v=1735060372"},"aspect_ratio":1.021,"height":1704,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71mSFp_Qd8L.jpg?v=1735060372","width":1740},{"alt":"[Australia - AusPower] - MSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono) ","id":31088369893556,"position":7,"preview_image":{"aspect_ratio":1.462,"height":342,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41acLC-EgzL.jpg?v=1735060372"},"aspect_ratio":1.462,"height":342,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41acLC-EgzL.jpg?v=1735060372","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMSGEQ7 Seven Band Spectrum Analyzer Breakout Board Mono\/Stereo (Mono)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis is an MSGEQ7 spectrum analyzer breakout board. It divides the incoming\naudio spectrum into seven bands. These seven frequencies are peak detected and\nmultiplexed to the output to provide a DC representation of each band. The\noperating voltage is 2.7V to 5.0V. The MSGEQ7 can be used to analyze audio fed\nin through the stereo jack on the board. The data can be sent to an Arduino,\nRaspberry Pi, BeagleBone, or other microcontroller. This can be useful for\ntiming lights to music. The mono version has the left and right channels fed\ninto the onboard MSGEQ7 integrated circuit. This gives a good representation\nof what is heard by your ears. The stereo version analyzes both channels\nseparately using two onboard integrated circuits. The board measures 1.3\" by\n1.0\" (33mm by 27mm).\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTiming lights to music is made simple with the seven peak-detected frequency bands multiplexed to the output.\u003c\/li\u003e\n \u003cli\u003eCompatible microcontrollers - including Raspberry Pi, Arduino, and BeagleBone - provide a quick and easy way to analyze the component frequencies of incoming audio.\u003c\/li\u003e\n \u003cli\u003eThe onboard 3.5mm stereo audio jack allows for easy analysis of audio from a phone, laptop, or other device.\u003c\/li\u003e\n \u003cli\u003ePre-soldered connectors allow for easy, out-of-the-box use. The pins use a 0.1\" pitch, making them breadboard-friendly.\u003c\/li\u003e\n \u003cli\u003eQuality control ensures that every board shipped meets our high standards and works as advertised. The board is designed and manufactured in California.\u003c\/li\u003e\n \u003c\/ul\u003e"}
