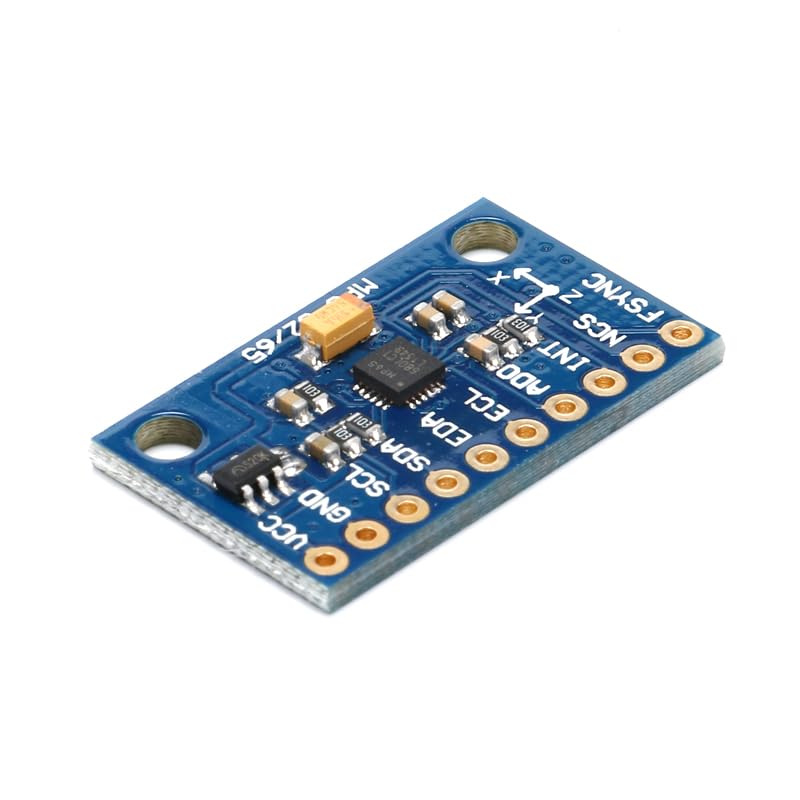

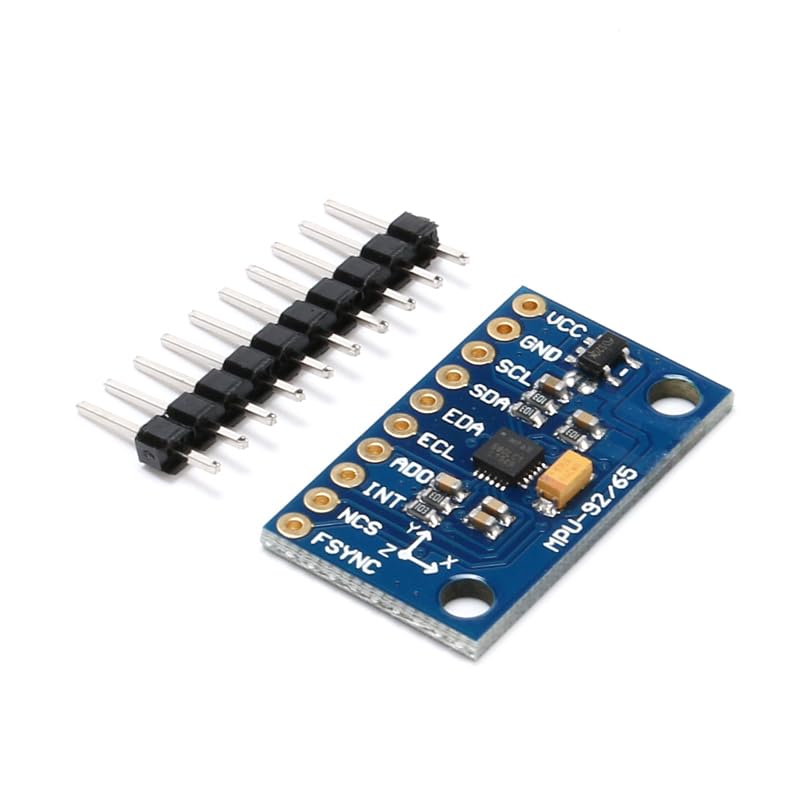

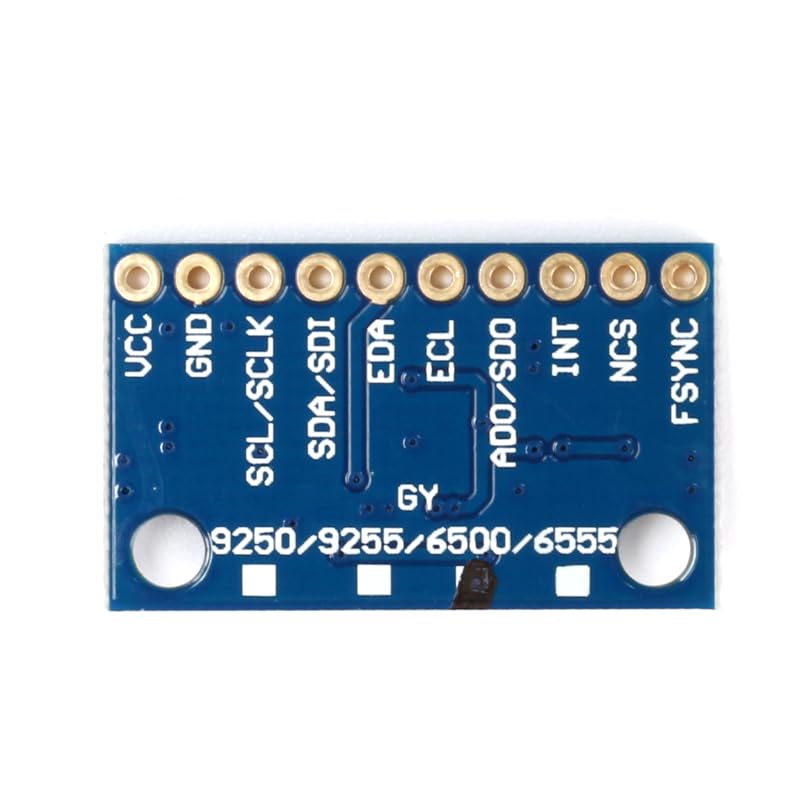

{"id":8034532917428,"title":"MPU-6500 GY-6500 6-Axis Sensor Module ±250\/500\/1000\/2000°\/s Gyro ±2\/4\/8\/16g Accel 16-bit ADC -40°C~85°C 20MHz SPI for STM32 Arduino Robotics","handle":"mpu-6500-gy-6500-6-axis-sensor-module-250-500-1000-2000-s-gyro-2-4-8-16g-accel-16-bit-adc-40-c-85-c-20mhz-spi-for-stm32-arduino-robotics","description":"\u003ch3\u003eMPU-6500 GY-6500 6-Axis Sensor Module ±250\/500\/1000\/2000°\/s Gyro ±2\/4\/8\/16g Accel 16-bit ADC -40°C~85°C 20MHz SPI for STM32 Arduino Robotics\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eKey Features 6-Axis Integration: Combines 3-axis gyroscope\r\n(±\/2000°\/s) and 3-axis accelerometer (±2\/4\/8\/16g) . DMP (Digital\r\nMotion Processor): On-chip processing reduces host MCU load and optimizes\r\npower . Dual Interfaces: Supports I2C (400kHz) and SPI (20MHz) for flexible\r\nconnectivity . Ultra-Compact: QFN package (3.0×3.0×0.9mm), Suitable for space-\r\nconstrained designs . Technical Specifications Operating Voltage: 2.375V–3.46V\r\nDC . ADC Resolution: 16-bit for gyroscope and accelerometer . Temperature\r\nRange: –40°C to +85°C . FIFO Buffer: 512-byte data storage for low-power\r\noperation . Pin Functions VDD: Power supply (2.375V–3.46V DC) . GND: Ground .\r\nSCL: I2C serial clock line . SDA: I2C serial data line . CS: SPI chip select\r\n(active low) . INT: Interrupt output (motion detection) . Frequently Asked\r\nQuestions (FAQ) Q1: Why does the module fail to power on? A: Check VDD voltage\r\n(must be 2.375V–3.46V). Verify connections and ensure no short circuits . Q2:\r\nHow to reduce data noise? A: Enable the built-in digital low-pass filter via\r\nregister configuration. Use shielded wiring for SPI\/I2C lines . Q3: Can it\r\nreplace MPU-6000\/6050? A: Yes. Pin-compatible and offers higher SPI speed\r\n(20MHz vs. 1MHz) . Q4: How to calibrate the sensor? A: Run on-chip self-test\r\nroutines. For precision, perform dynamic calibration in a flat position . Q5:\r\nDoes it support third-party sensors? A: Yes. Auxiliary I2C port connects\r\nexternal sensors (e.g., magnetometers) .\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e6-Axis Motion Sensor16-bit ADC resolution; 2g to 16g accelerometer range; 250\/s to 2000\/s gyroscope range for accurate motion detection\u003c\/li\u003e\r\n \u003cli\u003eDual Interface CompatibilitySupports I2C (400kHz) and SPI (20MHz); pin-compatible with MPU-6000\/6050 for easy integration\u003c\/li\u003e\r\n \u003cli\u003eOn-Chip Digital ProcessingIncludes DMP for motion processing; reduces host MCU load and improves power efficiency\u003c\/li\u003e\r\n \u003cli\u003eRobust Enviro nmental PerformanceOperates in -40C to +85C; built-in low-pass filter minimizes noise interference\u003c\/li\u003e\r\n \u003cli\u003eCompact and Reliable DesignQFN package (3.03.00.9mm); 512-byte FIFO buffer for low-power data storage\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T20:13:03+11:00","created_at":"2026-02-28T20:13:00+11:00","vendor":"MusRock","type":"Current Sensors","tags":["industrial_selected_Nov2025"],"price":10000,"price_min":10000,"price_max":10000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154581680308,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0FMN3L7D6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"MPU-6500 GY-6500 6-Axis Sensor Module ±250\/500\/1000\/2000°\/s Gyro ±2\/4\/8\/16g Accel 16-bit ADC -40°C~85°C 20MHz SPI for STM32 Arduino Robotics","public_title":null,"options":["Default Title"],"price":10000,"weight":5,"compare_at_price":null,"inventory_management":"shopify","barcode":"MPU-6500 GY-6500","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0FMN3L7D6.jpg?v=1775787895","\/\/auspowers.com\/cdn\/shop\/files\/51oN0Oxy0jL.jpg?v=1772269983","\/\/auspowers.com\/cdn\/shop\/files\/516zeH9JkML.jpg?v=1772269983","\/\/auspowers.com\/cdn\/shop\/files\/51Nd76dTO9L.jpg?v=1772269983","\/\/auspowers.com\/cdn\/shop\/files\/51Y3wpKd5EL.jpg?v=1772269983"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0FMN3L7D6.jpg?v=1775787895","options":["Title"],"media":[{"alt":"[Australia - AusPower] - MPU-6500 GY-6500 6-Axis Sensor Module ±250\/500\/1000\/2000°\/s Gyro ±2\/4\/8\/16g Accel 16-bit ADC -40°C~85°C 20MHz SPI for STM32 Arduino Robotics ","id":32724412727476,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FMN3L7D6.jpg?v=1775787895"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FMN3L7D6.jpg?v=1775787895","width":800},{"alt":"[Australia - AusPower] - MPU-6500 GY-6500 6-Axis Sensor Module ±250\/500\/1000\/2000°\/s Gyro ±2\/4\/8\/16g Accel 16-bit ADC -40°C~85°C 20MHz SPI for STM32 Arduino Robotics ","id":32724412760244,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51oN0Oxy0jL.jpg?v=1772269983"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51oN0Oxy0jL.jpg?v=1772269983","width":800},{"alt":"[Australia - AusPower] - MPU-6500 GY-6500 6-Axis Sensor Module ±250\/500\/1000\/2000°\/s Gyro ±2\/4\/8\/16g Accel 16-bit ADC -40°C~85°C 20MHz SPI for STM32 Arduino Robotics ","id":32724412793012,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/516zeH9JkML.jpg?v=1772269983"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/516zeH9JkML.jpg?v=1772269983","width":800},{"alt":"[Australia - AusPower] - MPU-6500 GY-6500 6-Axis Sensor Module ±250\/500\/1000\/2000°\/s Gyro ±2\/4\/8\/16g Accel 16-bit ADC -40°C~85°C 20MHz SPI for STM32 Arduino Robotics ","id":32724412825780,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Nd76dTO9L.jpg?v=1772269983"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Nd76dTO9L.jpg?v=1772269983","width":800},{"alt":"[Australia - AusPower] - MPU-6500 GY-6500 6-Axis Sensor Module ±250\/500\/1000\/2000°\/s Gyro ±2\/4\/8\/16g Accel 16-bit ADC -40°C~85°C 20MHz SPI for STM32 Arduino Robotics ","id":32724412858548,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Y3wpKd5EL.jpg?v=1772269983"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Y3wpKd5EL.jpg?v=1772269983","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMPU-6500 GY-6500 6-Axis Sensor Module ±250\/500\/1000\/2000°\/s Gyro ±2\/4\/8\/16g Accel 16-bit ADC -40°C~85°C 20MHz SPI for STM32 Arduino Robotics\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eKey Features 6-Axis Integration: Combines 3-axis gyroscope\r\n(±\/2000°\/s) and 3-axis accelerometer (±2\/4\/8\/16g) . DMP (Digital\r\nMotion Processor): On-chip processing reduces host MCU load and optimizes\r\npower . Dual Interfaces: Supports I2C (400kHz) and SPI (20MHz) for flexible\r\nconnectivity . Ultra-Compact: QFN package (3.0×3.0×0.9mm), Suitable for space-\r\nconstrained designs . Technical Specifications Operating Voltage: 2.375V–3.46V\r\nDC . ADC Resolution: 16-bit for gyroscope and accelerometer . Temperature\r\nRange: –40°C to +85°C . FIFO Buffer: 512-byte data storage for low-power\r\noperation . Pin Functions VDD: Power supply (2.375V–3.46V DC) . GND: Ground .\r\nSCL: I2C serial clock line . SDA: I2C serial data line . CS: SPI chip select\r\n(active low) . INT: Interrupt output (motion detection) . Frequently Asked\r\nQuestions (FAQ) Q1: Why does the module fail to power on? A: Check VDD voltage\r\n(must be 2.375V–3.46V). Verify connections and ensure no short circuits . Q2:\r\nHow to reduce data noise? A: Enable the built-in digital low-pass filter via\r\nregister configuration. Use shielded wiring for SPI\/I2C lines . Q3: Can it\r\nreplace MPU-6000\/6050? A: Yes. Pin-compatible and offers higher SPI speed\r\n(20MHz vs. 1MHz) . Q4: How to calibrate the sensor? A: Run on-chip self-test\r\nroutines. For precision, perform dynamic calibration in a flat position . Q5:\r\nDoes it support third-party sensors? A: Yes. Auxiliary I2C port connects\r\nexternal sensors (e.g., magnetometers) .\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e6-Axis Motion Sensor16-bit ADC resolution; 2g to 16g accelerometer range; 250\/s to 2000\/s gyroscope range for accurate motion detection\u003c\/li\u003e\r\n \u003cli\u003eDual Interface CompatibilitySupports I2C (400kHz) and SPI (20MHz); pin-compatible with MPU-6000\/6050 for easy integration\u003c\/li\u003e\r\n \u003cli\u003eOn-Chip Digital ProcessingIncludes DMP for motion processing; reduces host MCU load and improves power efficiency\u003c\/li\u003e\r\n \u003cli\u003eRobust Enviro nmental PerformanceOperates in -40C to +85C; built-in low-pass filter minimizes noise interference\u003c\/li\u003e\r\n \u003cli\u003eCompact and Reliable DesignQFN package (3.03.00.9mm); 512-byte FIFO buffer for low-power data storage\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
