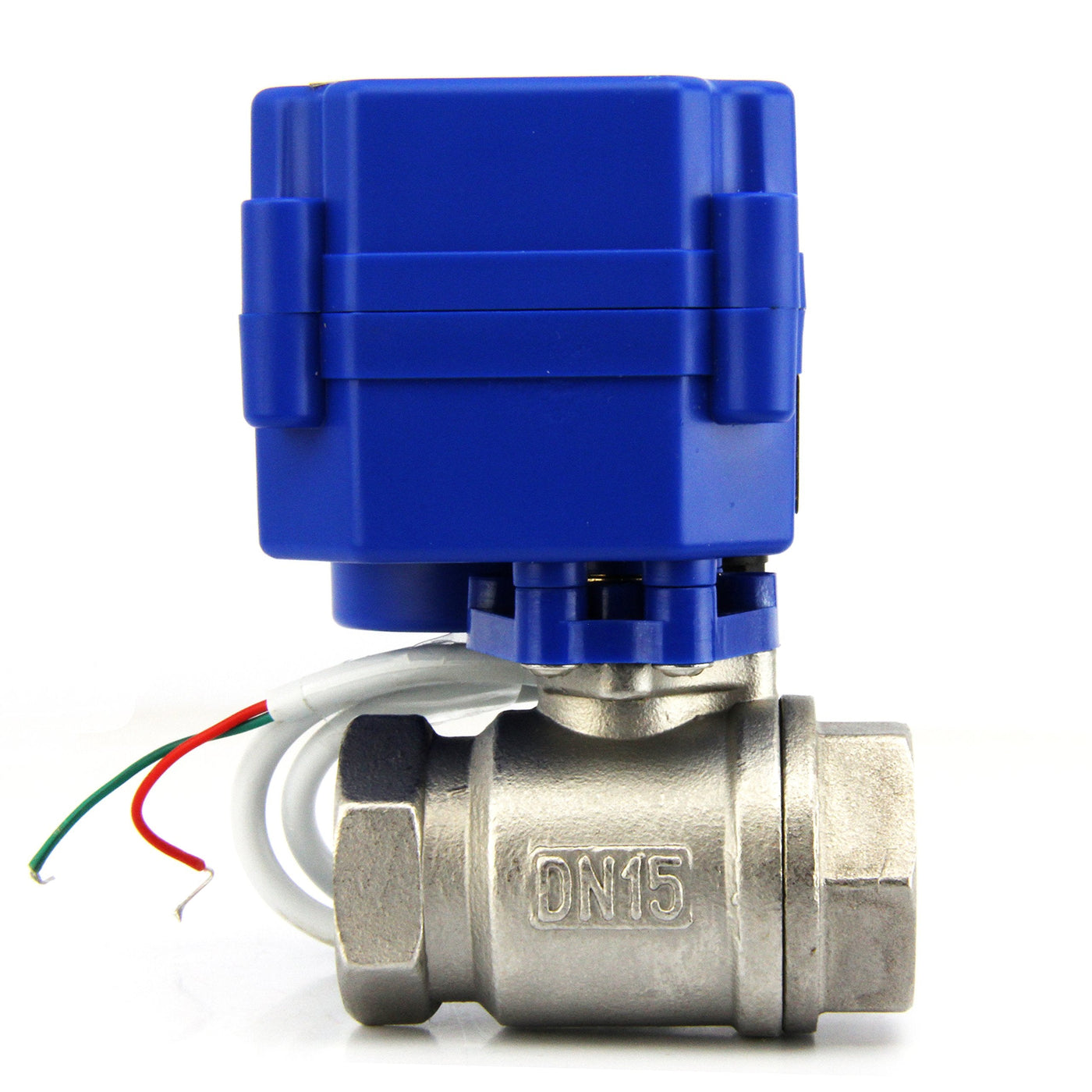

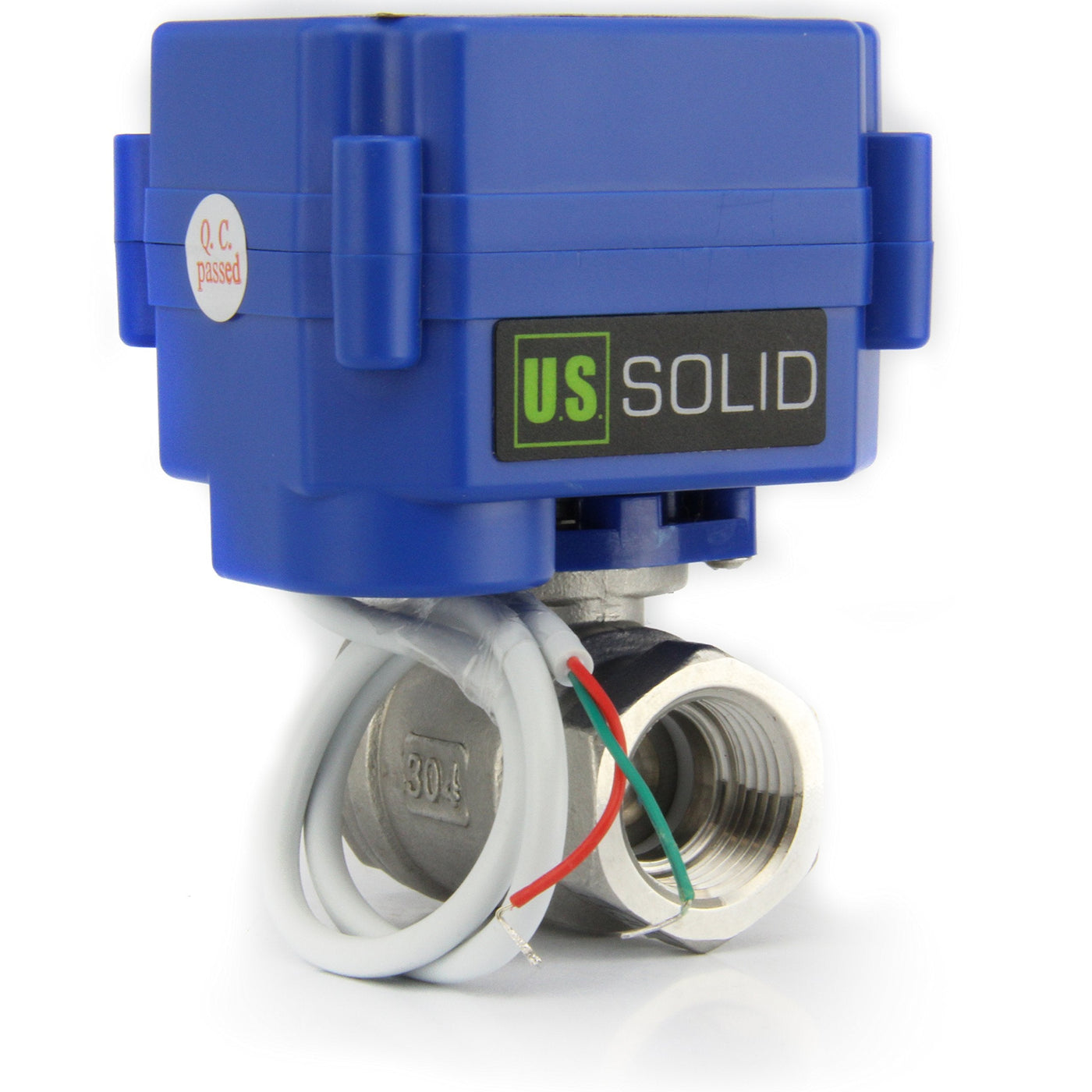

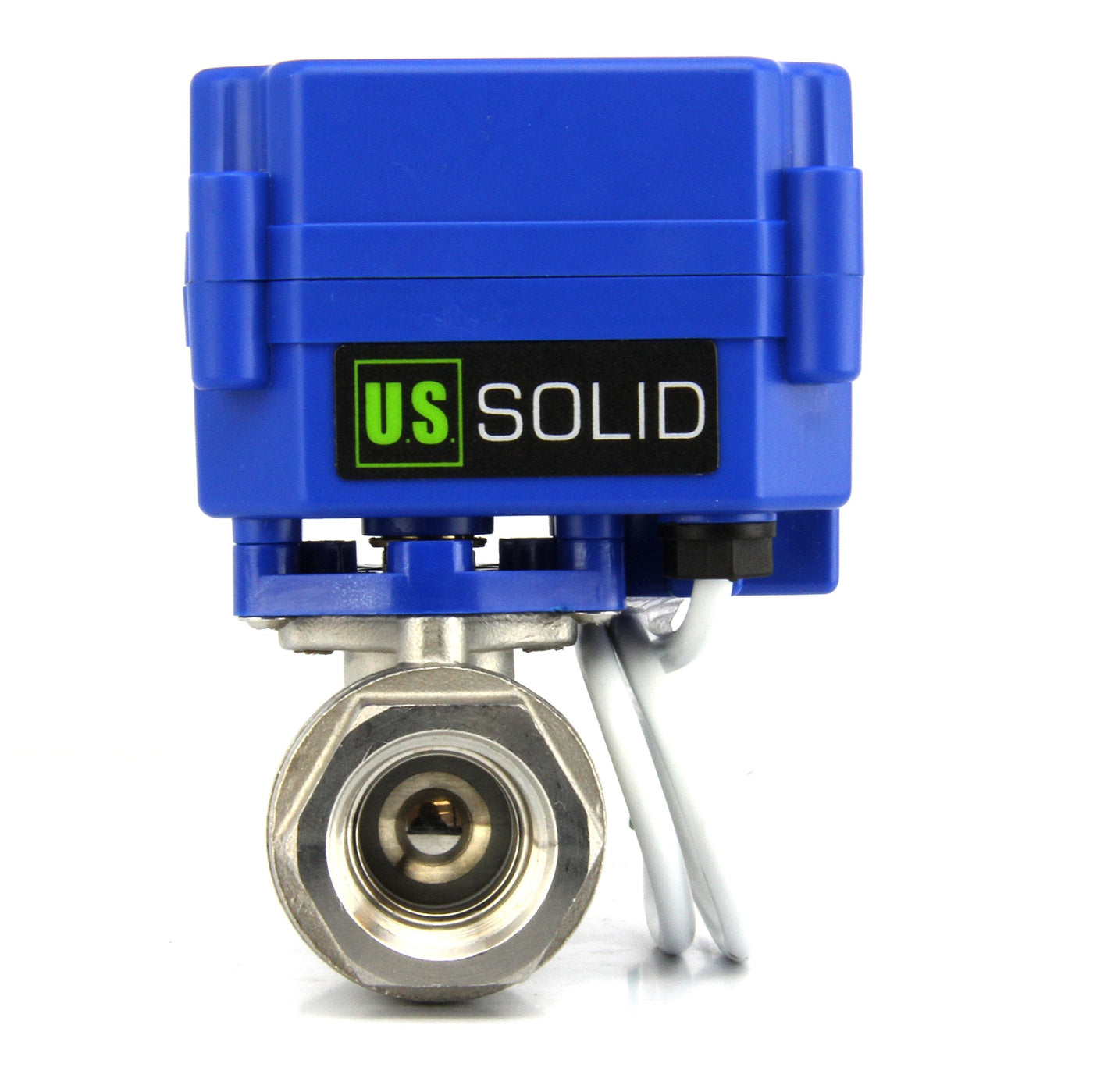

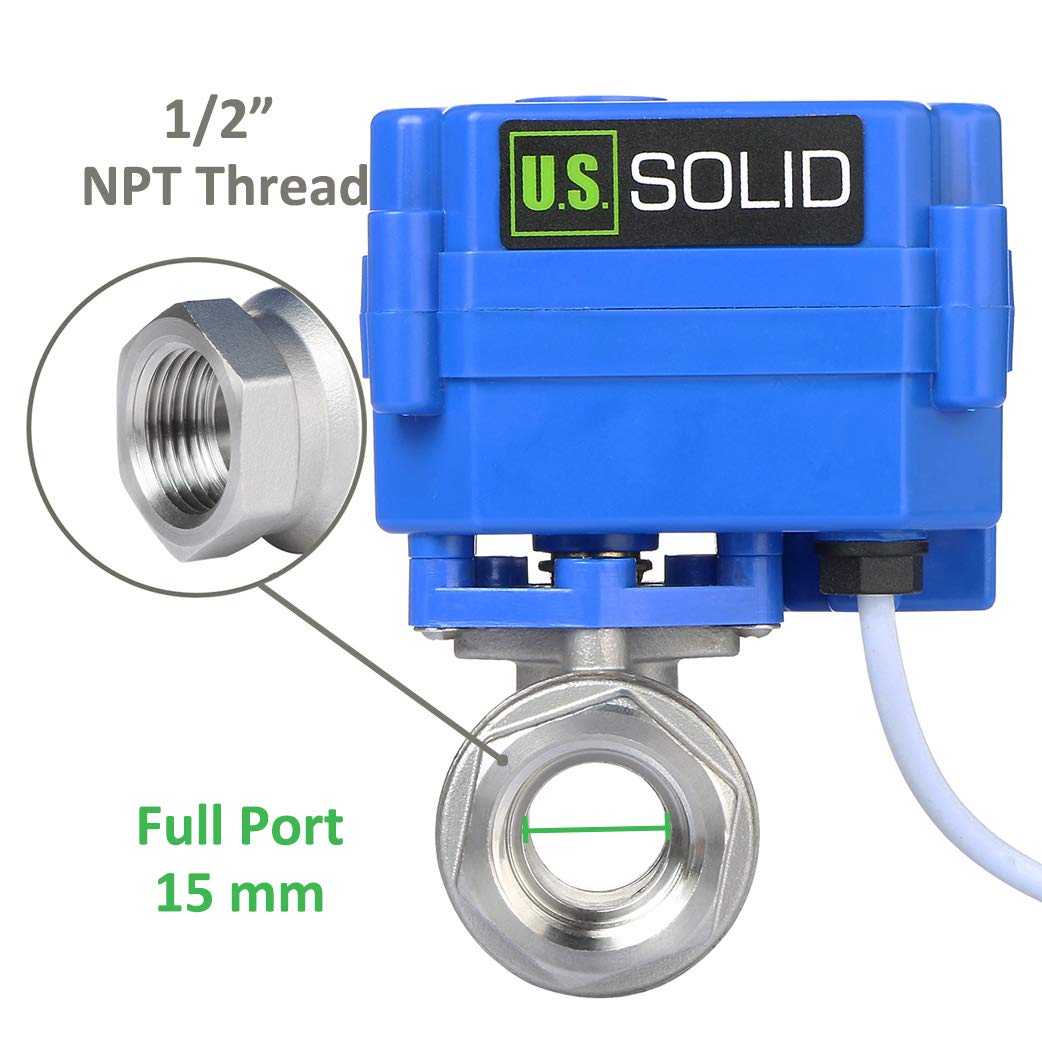

{"id":7134771249332,"title":"Motorized Ball Valve- Stainless Steel Ball Valve with Full Port, 9-24V DC and 2 Wire Reverse Polarity by U.S. Solid (1\/2 inch)","handle":"motorized-ball-valve-stainless-steel-ball-valve-with-full-port-9-24v-dc-and-2-wire-reverse-polarity-by-u-s-solid-1-2-inch","description":"\u003ch3\u003eMotorized Ball Valve- Stainless Steel Ball Valve with Full Port, 9-24V DC and 2 Wire Reverse Polarity by U.S. Solid (1\/2 inch)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis 1\/2\" stainless steel motorized ball valve is affordable enough for the\nhome hobbyist, while durable enough for titans of industry. The valve body and\nstem are made of SS304 steel, which is lead free and safe for drinking water.\nIt actuates using 9V to 24V of DC power, and will fully open or fully close in\n3-5 seconds. Once in position, it automatically stops using energy. This is\nimportant as it will never overheat.This is a key difference between motorized\nball valves and solenoid valves. Most solenoid valves are constantly\nenergized, while these electrical ball valves are not, making them a safer and\nmore eco-friendly option. The attention to detail in this valve extends beyond\nthe metal. The casing is rated as IP65. This ingress protection rating is used\nto define how well the casing does at sealing. For U.S. Solid motorized ball\nvalves, they have the highest IP rating possible against solids (6),\nrepresenting a seal that protects against all solids, even dust. For water,\nthe rating (5) represents seal protection against water spray from all\ndirections. This means the casing and body are all built to last. Motorized\nball valves have a variety of interesting and convenient uses. Many choose to\nuse them in home water systems. They are also a great tool for use in home\nautomation projects. Home brewery systems typically need several of these\nvalves, and the SS304 is great for fermented liquids. Lastly, all of the U.S.\nSolid motorized ball valves work well with Arduino automation systems.\nSpecifications Valve Material: SS304 Ball Seat: PTFE Seal: EPDM Close\/Open\nTime: 3-5 Seconds Working Voltage: 9-24V DC Max Power: 2W Max Torque: 2 N m\nMax Pressure: 1.0Mpa Temperature range for Flow Medium: 0°C to 90°C Ambient\nTemperature Range: -10°C to 40°C Enclosure Rating: IP65 Life Expectancy:\n80,000-100,000 Cycles Bore Type: Full Thread Type: NPT\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-15T20:55:35+10:00","created_at":"2022-05-15T20:55:44+10:00","vendor":"U.S. Solid Industrial","type":"Ball Valves","tags":["industrial"],"price":21800,"price_min":21800,"price_max":21800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41498082771124,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B06X99PHJJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Motorized Ball Valve- Stainless Steel Ball Valve with Full Port, 9-24V DC and 2 Wire Reverse Polarity by U.S. Solid (1\/2 inch)","public_title":null,"options":["Default Title"],"price":21800,"weight":431,"compare_at_price":null,"inventory_management":null,"barcode":"888107082941","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B06X99PHJJ.jpg?v=1652684638","\/\/auspowers.com\/cdn\/shop\/products\/81aVdfkWoxL.jpg?v=1652612144","\/\/auspowers.com\/cdn\/shop\/products\/91qI2W9g-dL_d9b4946f-c6fa-44b1-85fe-bb233e47ce96.jpg?v=1652612144","\/\/auspowers.com\/cdn\/shop\/products\/91V5oq6amPL_1e3556f1-1864-41dc-9448-5bb79c3d5e7e.jpg?v=1652612144","\/\/auspowers.com\/cdn\/shop\/products\/81VlL5gK7oL_897f4c10-dc57-4e4c-b5c2-82593ec66579.jpg?v=1652612144","\/\/auspowers.com\/cdn\/shop\/products\/61k8pFTf7LL_af27cb8e-c03a-4415-be3c-438071b8ccc7.jpg?v=1652612144"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B06X99PHJJ.jpg?v=1652684638","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Motorized Ball Valve- Stainless Steel Ball Valve with Full Port, 9-24V DC and 2 Wire Reverse Polarity by U.S. Solid (1\/2 inch) ","id":25875593494708,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2559,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B06X99PHJJ.jpg?v=1652684638"},"aspect_ratio":1.0,"height":2559,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B06X99PHJJ.jpg?v=1652684638","width":2560},{"alt":"[Australia - AusPower] - Motorized Ball Valve- Stainless Steel Ball Valve with Full Port, 9-24V DC and 2 Wire Reverse Polarity by U.S. Solid (1\/2 inch) ","id":25868744458420,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81aVdfkWoxL.jpg?v=1652612144"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81aVdfkWoxL.jpg?v=1652612144","width":2560},{"alt":"[Australia - AusPower] - Motorized Ball Valve- Stainless Steel Ball Valve with Full Port, 9-24V DC and 2 Wire Reverse Polarity by U.S. Solid (1\/2 inch) ","id":25868744491188,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/91qI2W9g-dL_d9b4946f-c6fa-44b1-85fe-bb233e47ce96.jpg?v=1652612144"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/91qI2W9g-dL_d9b4946f-c6fa-44b1-85fe-bb233e47ce96.jpg?v=1652612144","width":2560},{"alt":"[Australia - AusPower] - Motorized Ball Valve- Stainless Steel Ball Valve with Full Port, 9-24V DC and 2 Wire Reverse Polarity by U.S. Solid (1\/2 inch) ","id":25868744523956,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/91V5oq6amPL_1e3556f1-1864-41dc-9448-5bb79c3d5e7e.jpg?v=1652612144"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/91V5oq6amPL_1e3556f1-1864-41dc-9448-5bb79c3d5e7e.jpg?v=1652612144","width":2560},{"alt":"[Australia - AusPower] - Motorized Ball Valve- Stainless Steel Ball Valve with Full Port, 9-24V DC and 2 Wire Reverse Polarity by U.S. Solid (1\/2 inch) ","id":25868744556724,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2096,"width":2096,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81VlL5gK7oL_897f4c10-dc57-4e4c-b5c2-82593ec66579.jpg?v=1652612144"},"aspect_ratio":1.0,"height":2096,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81VlL5gK7oL_897f4c10-dc57-4e4c-b5c2-82593ec66579.jpg?v=1652612144","width":2096},{"alt":"[Australia - AusPower] - Motorized Ball Valve- Stainless Steel Ball Valve with Full Port, 9-24V DC and 2 Wire Reverse Polarity by U.S. Solid (1\/2 inch) ","id":25868744589492,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1042,"width":1042,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61k8pFTf7LL_af27cb8e-c03a-4415-be3c-438071b8ccc7.jpg?v=1652612144"},"aspect_ratio":1.0,"height":1042,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61k8pFTf7LL_af27cb8e-c03a-4415-be3c-438071b8ccc7.jpg?v=1652612144","width":1042}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMotorized Ball Valve- Stainless Steel Ball Valve with Full Port, 9-24V DC and 2 Wire Reverse Polarity by U.S. Solid (1\/2 inch)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis 1\/2\" stainless steel motorized ball valve is affordable enough for the\nhome hobbyist, while durable enough for titans of industry. The valve body and\nstem are made of SS304 steel, which is lead free and safe for drinking water.\nIt actuates using 9V to 24V of DC power, and will fully open or fully close in\n3-5 seconds. Once in position, it automatically stops using energy. This is\nimportant as it will never overheat.This is a key difference between motorized\nball valves and solenoid valves. Most solenoid valves are constantly\nenergized, while these electrical ball valves are not, making them a safer and\nmore eco-friendly option. The attention to detail in this valve extends beyond\nthe metal. The casing is rated as IP65. This ingress protection rating is used\nto define how well the casing does at sealing. For U.S. Solid motorized ball\nvalves, they have the highest IP rating possible against solids (6),\nrepresenting a seal that protects against all solids, even dust. For water,\nthe rating (5) represents seal protection against water spray from all\ndirections. This means the casing and body are all built to last. Motorized\nball valves have a variety of interesting and convenient uses. Many choose to\nuse them in home water systems. They are also a great tool for use in home\nautomation projects. Home brewery systems typically need several of these\nvalves, and the SS304 is great for fermented liquids. Lastly, all of the U.S.\nSolid motorized ball valves work well with Arduino automation systems.\nSpecifications Valve Material: SS304 Ball Seat: PTFE Seal: EPDM Close\/Open\nTime: 3-5 Seconds Working Voltage: 9-24V DC Max Power: 2W Max Torque: 2 N m\nMax Pressure: 1.0Mpa Temperature range for Flow Medium: 0°C to 90°C Ambient\nTemperature Range: -10°C to 40°C Enclosure Rating: IP65 Life Expectancy:\n80,000-100,000 Cycles Bore Type: Full Thread Type: NPT\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003c\/ul\u003e\n\n"}
