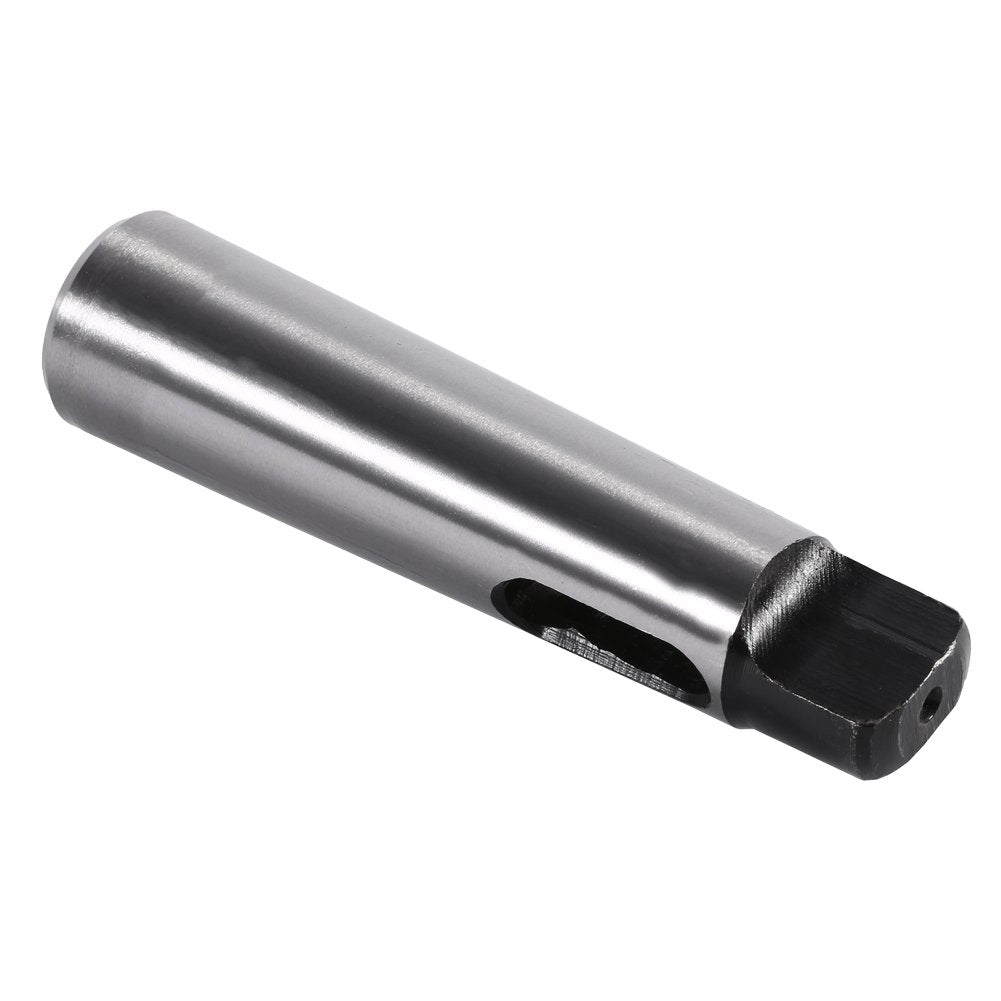

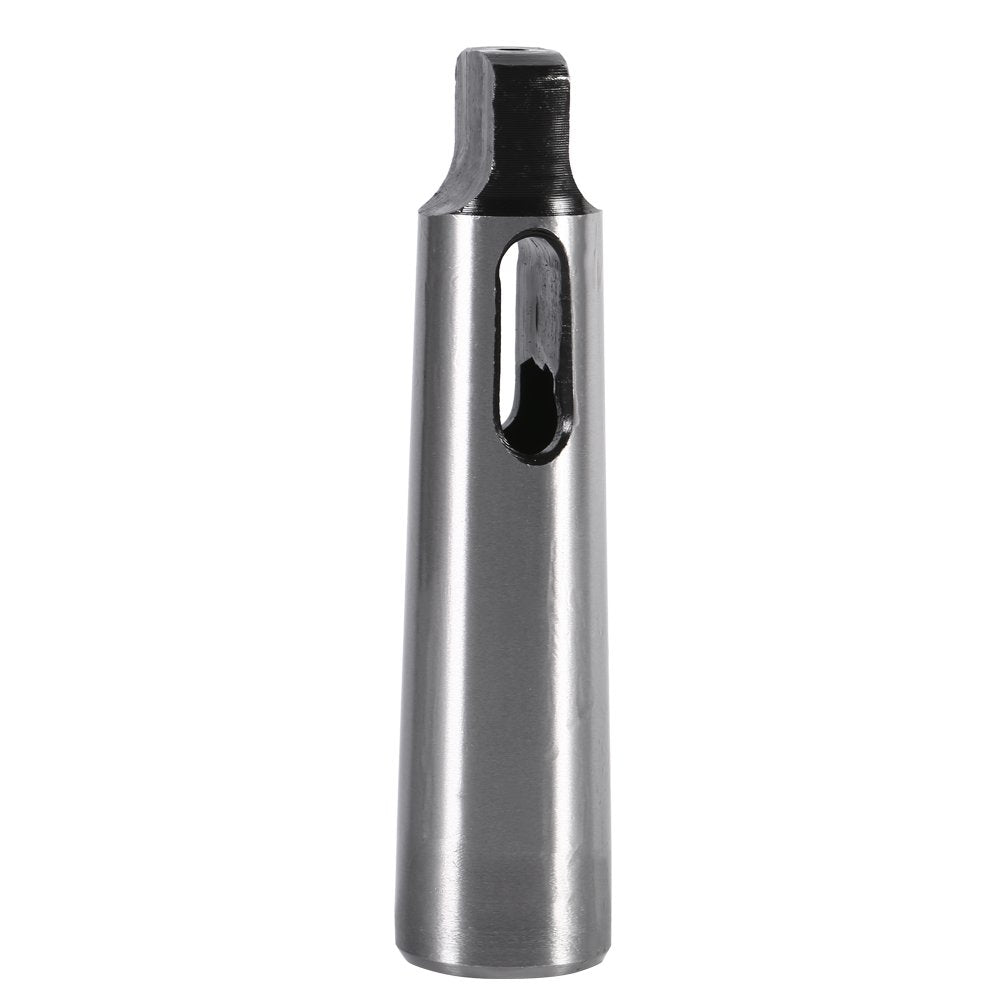

Morse Taper Adapter Drill Sleeve Reducer Adapter 45# Adapter for Reducing Steel Drill Sleeve MT1 to MT2, MT2 to MT3, MT3 to MT4, MT4 to (3-4) 3-4
Morse Taper Adapter Drill Sleeve Reducer Adapter 45# Adapter for Reducing Steel Drill Sleeve MT1 to MT2, MT2 to MT3, MT3 to MT4, MT4 to (3-4)
Description These adapters are made of high quality steel, hardened and tempered, precision ground inside and outside for high concentricity. The tapered shank allows the tool to be inserted directly into the spindle of the machine to facilitate high torque applications such as large cutting diameters. Product Features: 1 piece. Made of high-quality 45 steel, durable, wear-resistant and long service life. 2. Adopting the entire hardening process, strong shock resistance. 3. High precision, fine workmanship, very smooth inside and outside. 4. Easy to store and maintain, very useful. There are 4 types for your 5. Used for the use of taper shank mills, taper shank drills, reamers with tapered shank, improve work efficiency. Specification Material:45 Steel Type: MT1 to MT2, MT2 to MT3, MT3 to MT4, MT4 to MT5 (optional) Hardness: 50 HRC. Type D(mm) d(mm) L(mm) Outer Cone (MT.NO.S) Internal Cone (MT.NO.T) Length of Inner Hole (mm) Weight (g) MT1 to MT2 17.78 12.065 92 2 1 56 89 MT2 to MT3 23.825 17.78 112 3 2 67 174 MT3 to MT4 31.267 23.825 140 4 3 84 350 MT4 to MT5 44.399 31.267 171 5 4 107 1000 Package includes: 1 x Cone Sleeve Note: Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
Product Features
- Premium Material: Made of high quality 45# steel, durable, wear-resistant and long service life.
- Strong shock resistance: adopts the entire quenching process, strong shock resistance.
- High Precision: High precision, fine workmanship, very smooth inside and outside.
- Easy Storage: Easy to store and maintain, very useful. There are 4 types for your
- Suitable for:Used for taper end mills, taper shank drills, taper shank reamers, and improve work efficiency.
