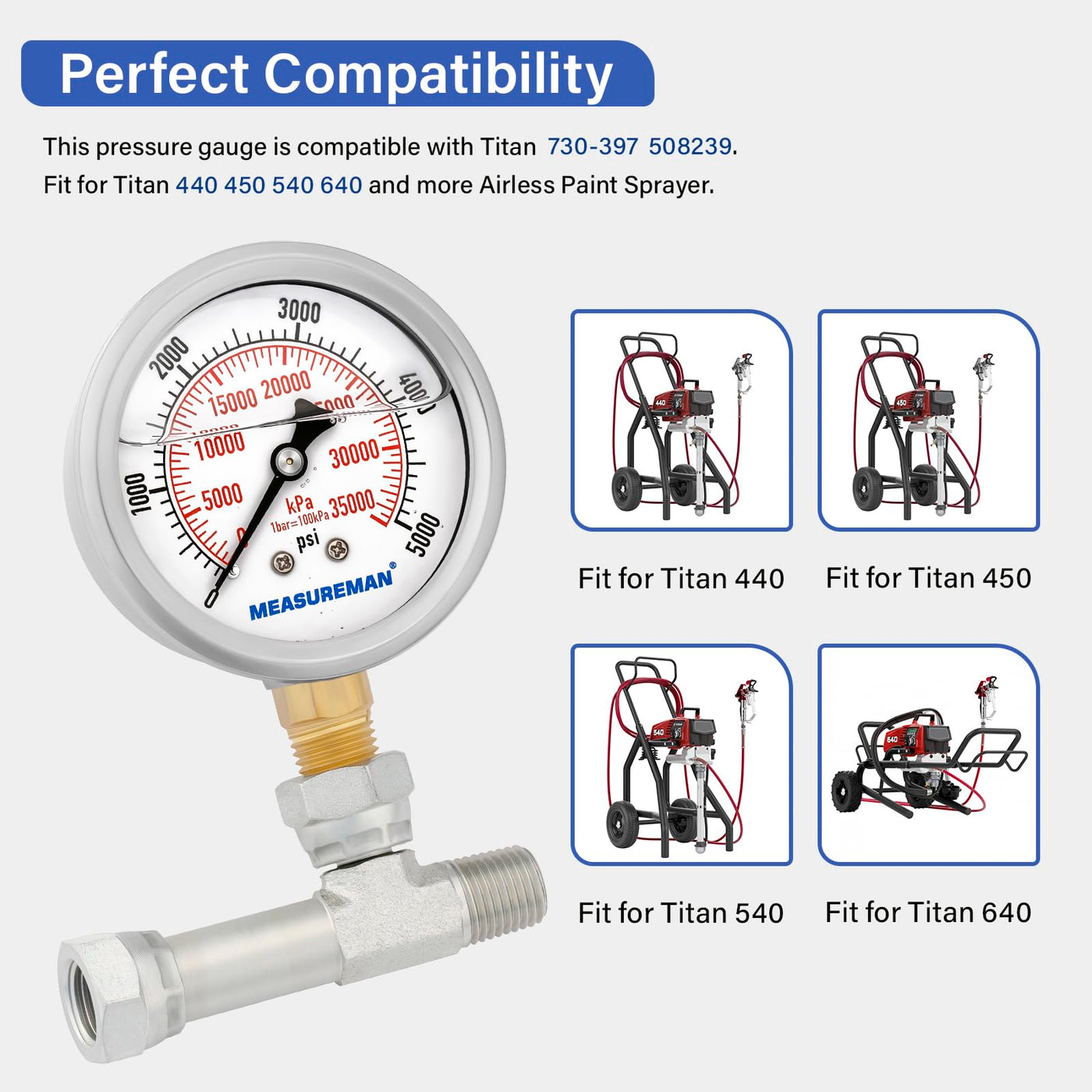

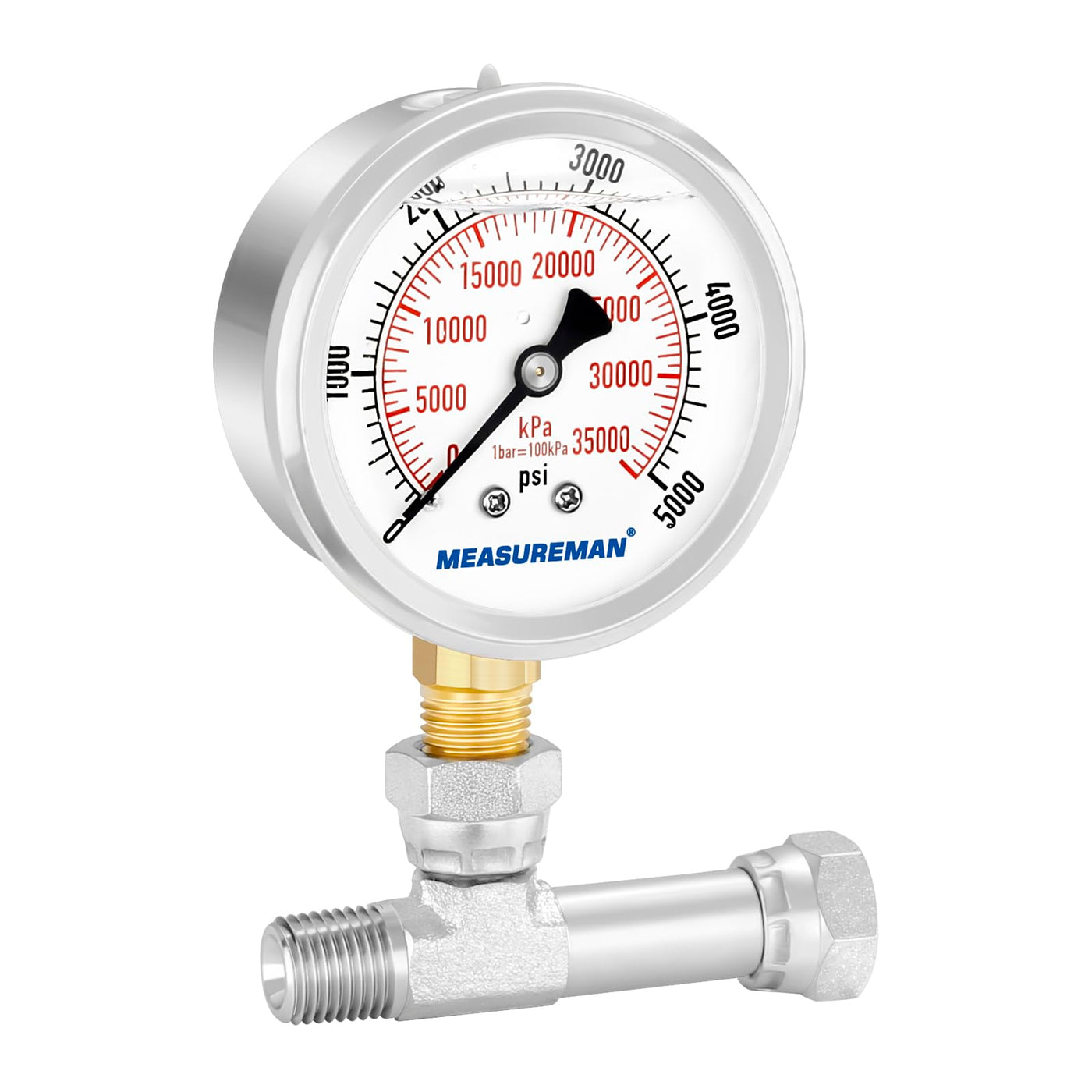

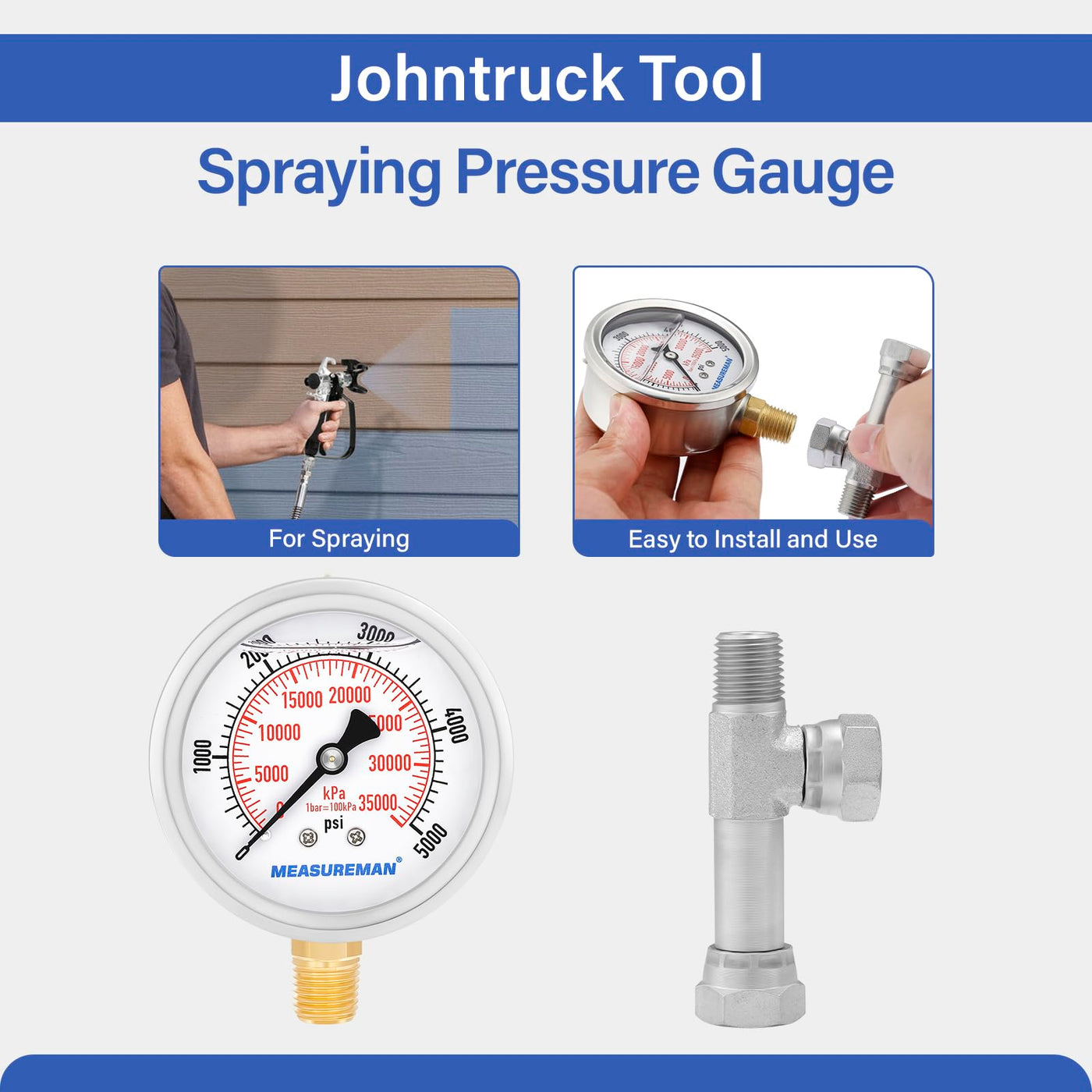

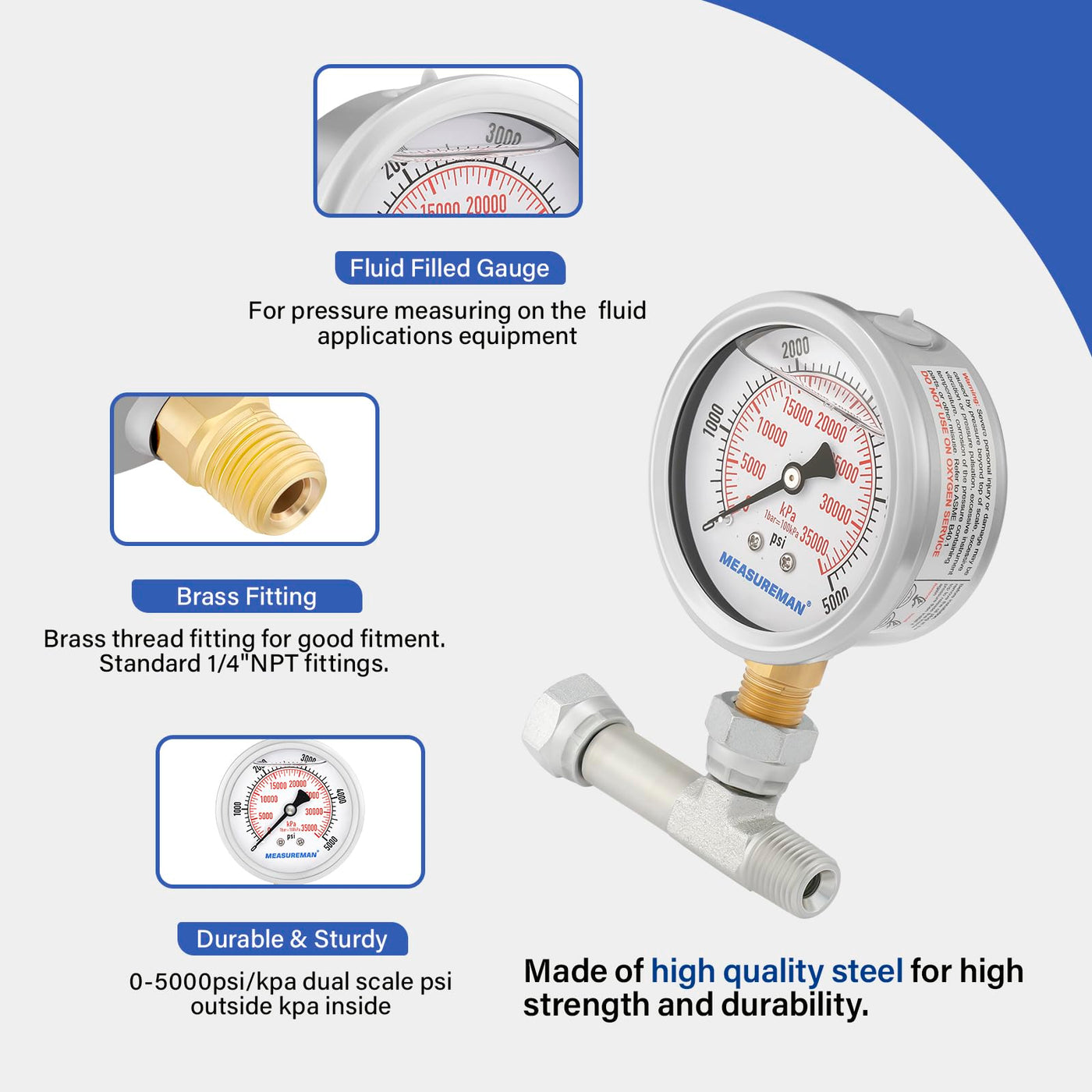

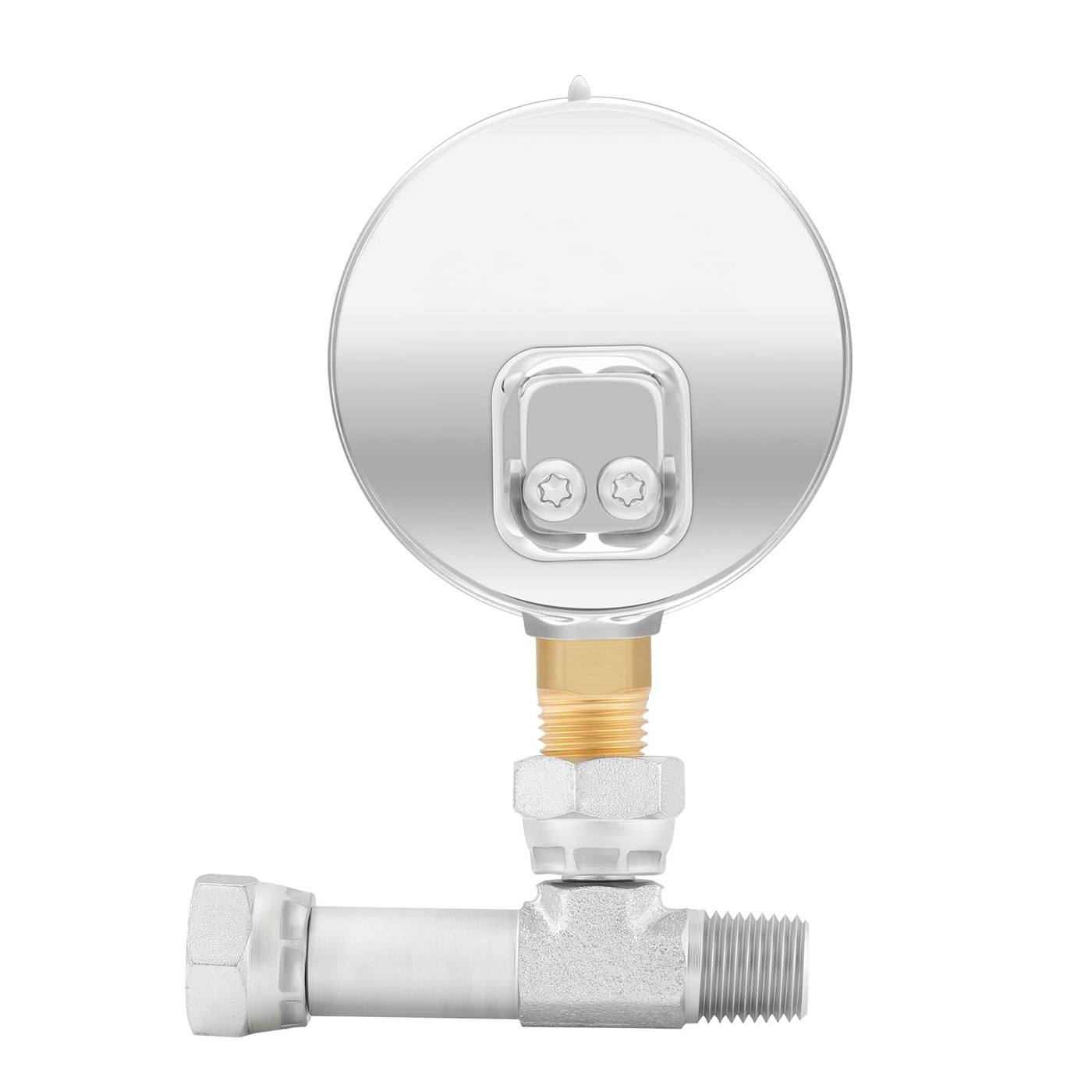

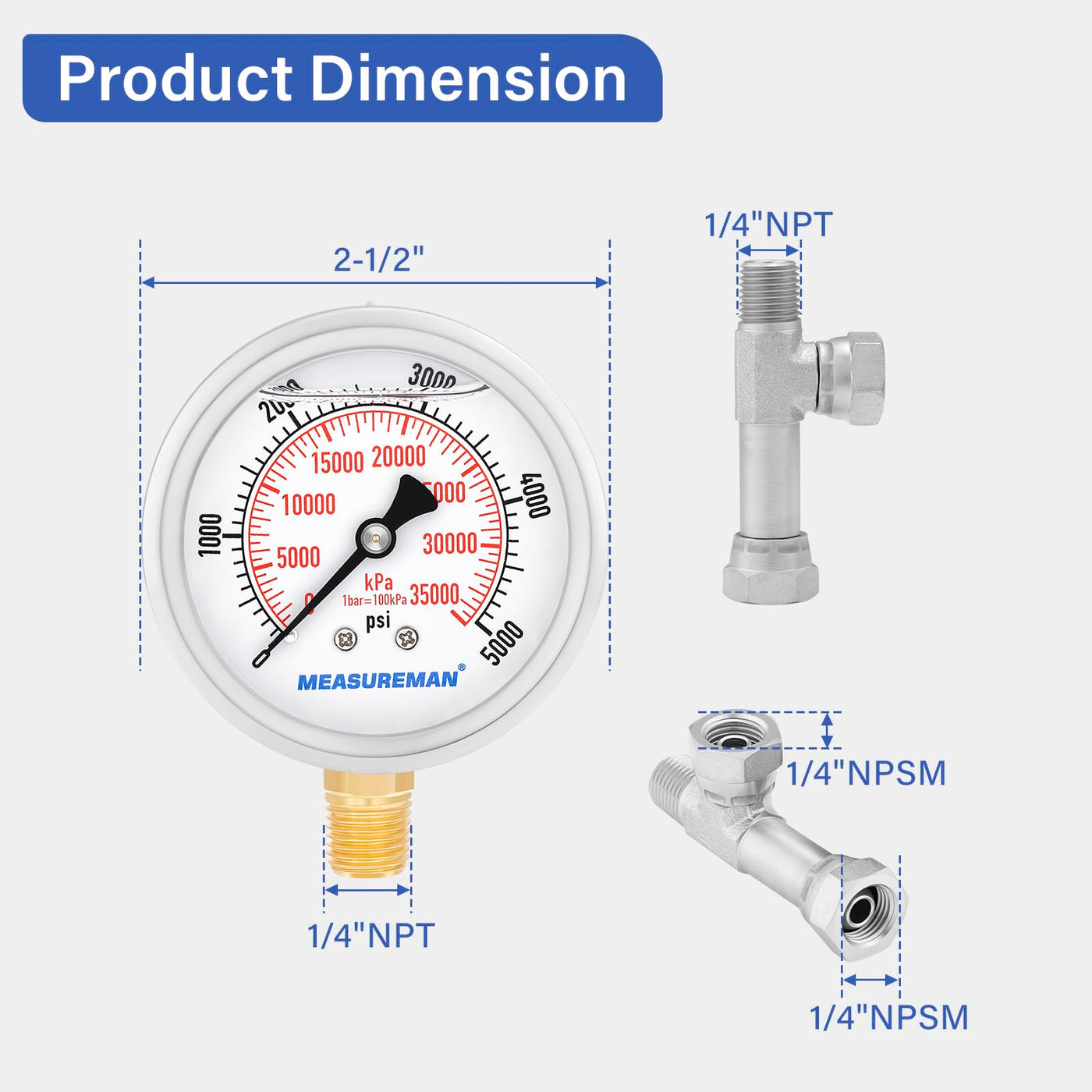

{"id":8089084231860,"title":"MEASUREMAN Spraying Pressure Gauge Assembly High Pressure Fluid Gauge 1\/4\" NPT Threads with T Fitting, 0-5000 PSI, Glycerin Filled","handle":"measureman-spraying-pressure-gauge-assembly-high-pressure-fluid-gauge-1-4-npt-threads-with-t-fitting-0-5000-psi-glycerin-filled","description":"\u003ch3\u003eMEASUREMAN Spraying Pressure Gauge Assembly High Pressure Fluid Gauge 1\/4\" NPT Threads with T Fitting, 0-5000 PSI, Glycerin Filled\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\"This Pressure Gauge Assembly for Airless Sprayers Replaces for Titan 730-397\n\/ 730397 \/ 508239, 1\/4”NPT Threads Dial size : 2-1\/2\"\" Process connection :\n1\/4\"\"NPT lower mount Case : 304 stainless steel case and crimped ring Window :\nPolycarbonate Dial plate : aluminum, with pointer stop Pointer : Aluminum,\nblack, DIN style Bourdon tube : Copper alloy Movement : Brass Connection :\nBrass, one piece design Oil cap : rubber, gray color Filling : Glycerin\nfilled, dampens the effect of vibration and pulsation; lubricates the movement\nand extends the life of gauge. IP class : IP67 Accuracy : +\/-3-2-3% Range :\n0-5000psi\/kpa dual scale, psi outside, kpa inside Working temperature : -4 to\n140 deg F\/-20 to 60 deg C Ambient temperature : 140 deg F\/60 deg C maximum \"\nMeasureman has 20 years rich experience in the measuring of pressure,\ntemperature, flow, level industries, The \"Measureman\" branded products are the\ncombination of continuous good quality and affordable price. \"Measureman\"\nproducts are selected and designed by professional engineers.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompatiblityPressure gauge assembly it for Titan airless sprayers, for Impact 340 400 540 640 740 840, for Elite 3000 3500. Replaces for 730-397 \/ 730397 \/ 0508239\/ 508239 \/ 580495.\u003c\/li\u003e\n \u003cli\u003ePressure Gauge AssemblyOur pressure gauge assembly comes complete with tee and fittings, 1\/4NPT Threads 0-5000PSI, fluid filled glass face. You install our pressure gauge assembly on the output of the airless paint sprayer and is able to monitor the pressure setting for project you are working on. With the correct sprayer nozzle, without over pressuring and no over spray.\u003c\/li\u003e\n \u003cli\u003eEasy to InstallInstall it directly between the gun extension tool and the hose. It can run not only on the pump but also on the gun so that you can see the pressure drop as you add multiple hoses.\u003c\/li\u003e\n \u003cli\u003eHigh QualityThis pressure gauge is a pressure gauge filled with liquid, and there is a bubble on the surface of the pressure gauge to suppress the internal pressure and obtain accurate readings. Made of high-quality steel, with high strength, durability and durability. Brass threaded joint, good fit and no leakage. Durable and clear plastic dial for easy viewing. The pressure reading is accurate and the error is small. Good wear resistance, rust resistance and corrosion resistance.\u003c\/li\u003e\n \u003cli\u003eT-FittingT-Fitting adopts hydraulic joint, which is easy to install and fix in the required direction.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-24T14:58:31+10:00","created_at":"2026-07-21T19:59:04+10:00","vendor":"MEASUREMAN","type":"Pressure Gauges","tags":["home_industrial_July2026"],"price":13900,"price_min":13900,"price_max":13900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44288746225844,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0C3713JC1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"MEASUREMAN Spraying Pressure Gauge Assembly High Pressure Fluid Gauge 1\/4\" NPT Threads with T Fitting, 0-5000 PSI, Glycerin Filled","public_title":null,"options":["Default Title"],"price":13900,"weight":299,"compare_at_price":null,"inventory_management":"shopify","barcode":"MA192","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0C3713JC1.jpg?v=1784627946","\/\/auspowers.com\/cdn\/shop\/files\/71lQBnL5Y7L.jpg?v=1784627946","\/\/auspowers.com\/cdn\/shop\/files\/71RXCwWUP0L.jpg?v=1784627946","\/\/auspowers.com\/cdn\/shop\/files\/71kmYHYFu9L.jpg?v=1784627947","\/\/auspowers.com\/cdn\/shop\/files\/71iGgKL4WUL.jpg?v=1784627947","\/\/auspowers.com\/cdn\/shop\/files\/61DDZcEe2gL.jpg?v=1784627946","\/\/auspowers.com\/cdn\/shop\/files\/61r_Dj1uLYL.jpg?v=1784627946"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0C3713JC1.jpg?v=1784627946","options":["Title"],"media":[{"alt":null,"id":33132174508212,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C3713JC1.jpg?v=1784627946"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C3713JC1.jpg?v=1784627946","width":1600},{"alt":null,"id":33132174540980,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71lQBnL5Y7L.jpg?v=1784627946"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71lQBnL5Y7L.jpg?v=1784627946","width":1600},{"alt":null,"id":33132174573748,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71RXCwWUP0L.jpg?v=1784627946"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71RXCwWUP0L.jpg?v=1784627946","width":1600},{"alt":null,"id":33132174606516,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71kmYHYFu9L.jpg?v=1784627947"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71kmYHYFu9L.jpg?v=1784627947","width":1600},{"alt":null,"id":33132174639284,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71iGgKL4WUL.jpg?v=1784627947"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71iGgKL4WUL.jpg?v=1784627947","width":1600},{"alt":null,"id":33132174672052,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61DDZcEe2gL.jpg?v=1784627946"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61DDZcEe2gL.jpg?v=1784627946","width":1600},{"alt":null,"id":33132174704820,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61r_Dj1uLYL.jpg?v=1784627946"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61r_Dj1uLYL.jpg?v=1784627946","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMEASUREMAN Spraying Pressure Gauge Assembly High Pressure Fluid Gauge 1\/4\" NPT Threads with T Fitting, 0-5000 PSI, Glycerin Filled\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\"This Pressure Gauge Assembly for Airless Sprayers Replaces for Titan 730-397\n\/ 730397 \/ 508239, 1\/4”NPT Threads Dial size : 2-1\/2\"\" Process connection :\n1\/4\"\"NPT lower mount Case : 304 stainless steel case and crimped ring Window :\nPolycarbonate Dial plate : aluminum, with pointer stop Pointer : Aluminum,\nblack, DIN style Bourdon tube : Copper alloy Movement : Brass Connection :\nBrass, one piece design Oil cap : rubber, gray color Filling : Glycerin\nfilled, dampens the effect of vibration and pulsation; lubricates the movement\nand extends the life of gauge. IP class : IP67 Accuracy : +\/-3-2-3% Range :\n0-5000psi\/kpa dual scale, psi outside, kpa inside Working temperature : -4 to\n140 deg F\/-20 to 60 deg C Ambient temperature : 140 deg F\/60 deg C maximum \"\nMeasureman has 20 years rich experience in the measuring of pressure,\ntemperature, flow, level industries, The \"Measureman\" branded products are the\ncombination of continuous good quality and affordable price. \"Measureman\"\nproducts are selected and designed by professional engineers.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompatiblityPressure gauge assembly it for Titan airless sprayers, for Impact 340 400 540 640 740 840, for Elite 3000 3500. Replaces for 730-397 \/ 730397 \/ 0508239\/ 508239 \/ 580495.\u003c\/li\u003e\n \u003cli\u003ePressure Gauge AssemblyOur pressure gauge assembly comes complete with tee and fittings, 1\/4NPT Threads 0-5000PSI, fluid filled glass face. You install our pressure gauge assembly on the output of the airless paint sprayer and is able to monitor the pressure setting for project you are working on. With the correct sprayer nozzle, without over pressuring and no over spray.\u003c\/li\u003e\n \u003cli\u003eEasy to InstallInstall it directly between the gun extension tool and the hose. It can run not only on the pump but also on the gun so that you can see the pressure drop as you add multiple hoses.\u003c\/li\u003e\n \u003cli\u003eHigh QualityThis pressure gauge is a pressure gauge filled with liquid, and there is a bubble on the surface of the pressure gauge to suppress the internal pressure and obtain accurate readings. Made of high-quality steel, with high strength, durability and durability. Brass threaded joint, good fit and no leakage. Durable and clear plastic dial for easy viewing. The pressure reading is accurate and the error is small. Good wear resistance, rust resistance and corrosion resistance.\u003c\/li\u003e\n \u003cli\u003eT-FittingT-Fitting adopts hydraulic joint, which is easy to install and fix in the required direction.\u003c\/li\u003e\n \u003c\/ul\u003e"}
