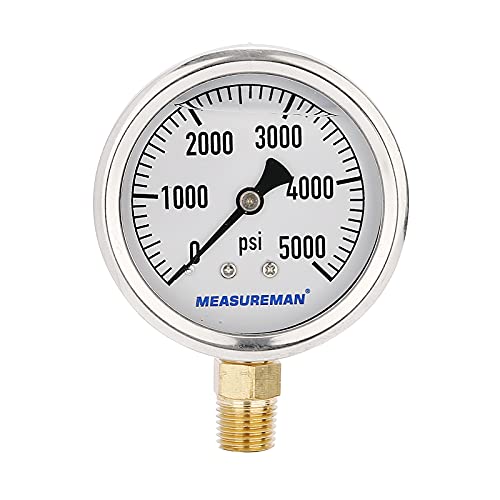

MEASUREMAN 2-1/2inch Dial Size, Glycerin Filled Plumbing Pressure Gauge, 0-5000psi, Stainless Steel Case, 1/4inchNPT Lower Mount 0-5000 psi
MEASUREMAN 2-1/2inch Dial Size, Glycerin Filled Plumbing Pressure Gauge, 0-5000psi, Stainless Steel Case, 1/4inchNPT Lower Mount

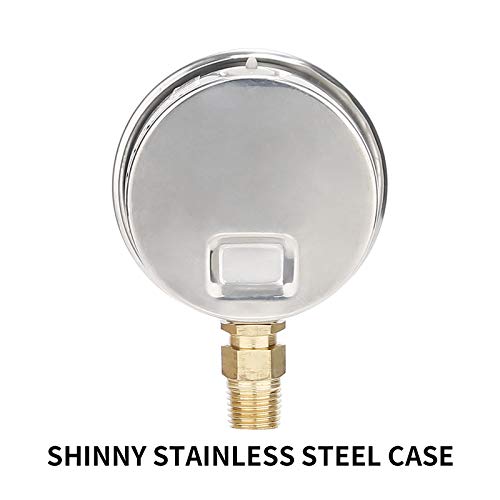

Description This oil filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern, typical use for plumbing, gardening, agriculature etc.Dial size: 2-1/2"Process connection: 1/4"NPT lower mountCase: 304 stainless steel case and crimped ringWindow: PolycarbonateDial plate: aluminum, with pointer stopPointer: Aluminum, black, DIN styleBoudon tube: Copper alloyMovement: BrassConnection: Brass, two piece designOil cap: rubber, gray colorFilling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.IP class: IP67Accuracy: +/-3-2-3%Range: 0-5000psi single scaleWorking temperature:-4 to 140 deg F/-20 to 60 deg CAmbient temperature:140 deg F/60 deg C maximum Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
Product Features
- For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern

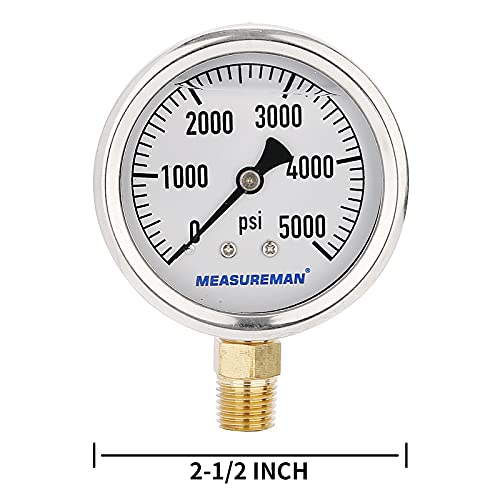

- 2-1/2" dial size, 1/4"NPT Lower mount

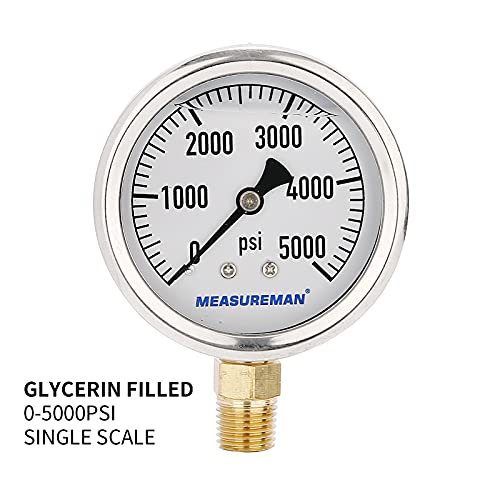

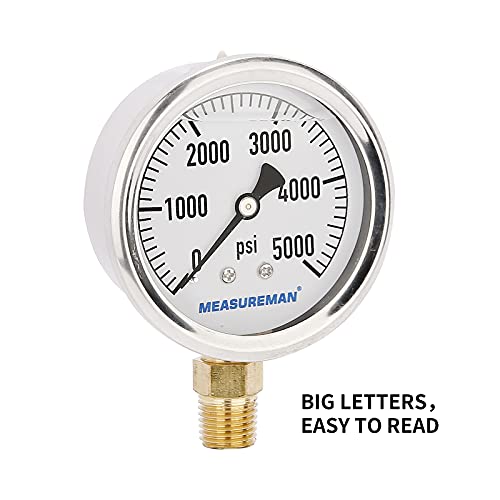

- Pressure range: 0-5000psi single scale, big letters, easy to read

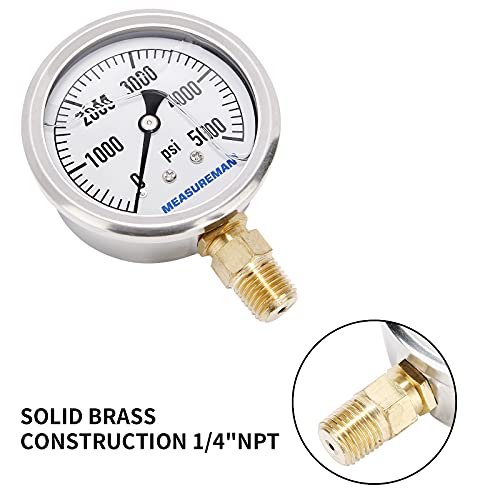

- Stainless steel case, brass wetted parts, glycerin filled
- Accuracy: +/-3-2-3%
