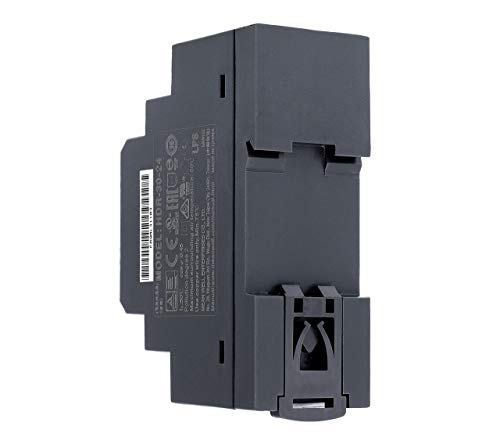

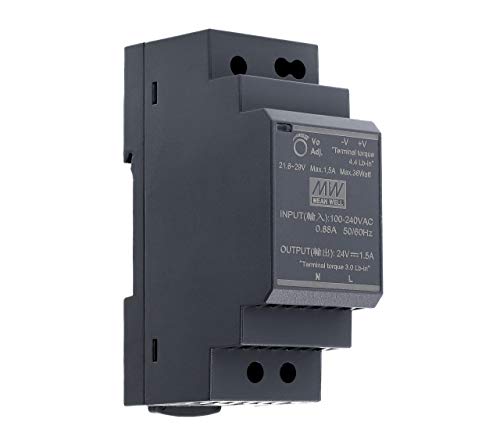

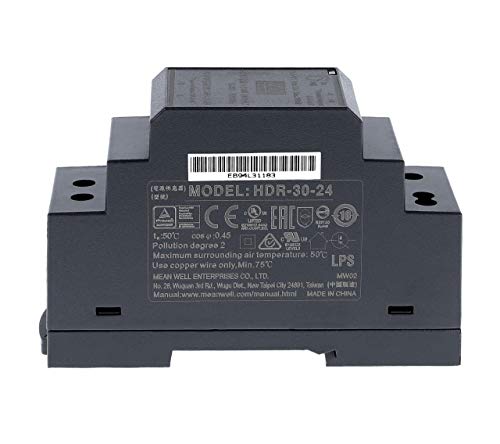

{"id":8115253936308,"title":"Mean Well HDR-30-24 DIN Rail Power Supply DIN-Rail 24 VDC 1.5 A 36 Watt Single Pack Single","handle":"mean-well-hdr-30-24-din-rail-power-supply-din-rail-24-vdc-1-5-a-36-watt-einzelpack-single","description":"\u003ch3\u003eMean Well HDR-30-24 DIN Rail Power Supply DIN-Rail 24 VDC 1.5 A 36 Watt\u003c\/h3\u003e \u003cp id=\"b\"\u003eSingle-phase MEANWELL switching power supply series HDR-30, primarily clocked for DIN rail mounting in plastic housing. Can be mounted directly on the DIN rail. Closed design, touch-protected screw connections. Universal input. Overload protection thanks to current limitation, auto recovery. Protected against short circuit, overload, overvoltage. Compact size: 2 TE (DIN EN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type: Clocked. Technology: constant voltage Mounting type: DIN rail power supply. Model: HDR Series No-load power: 0.3 watts. Power On\/Off: LED indicator Operating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC. Voltage input DC: 120 - 370 V DC. Mains frequency: 50\/60Hz Voltage: output voltage | 24VDC. Adjustable voltage: adjustable | from 21.6V to 29VDC. Current: output current: 1.5A\/1500mA. Power: output power | 36 watts Efficiency: 89%. Inrush current: 45 A. Dimmable: no. Overload protection: yes. Overload protection in %: 105 - 160%. Surge Protection: Yes Short circuit resistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation voltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour: anthracite. Material: plastic. Length: 90mm. Width: 35 mm \/ 2TE Height: 58.4 mm. Power connection: screw terminals. Output connection: screw terminals. Manufacturer: MEAN WELL Manufacturer number: HDR-30-24. Package weight: 120g. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eOutput voltage: 24 VDC\u003c\/li\u003e \u003cli\u003eOutput current: 1.5 A \/ 1500 mA\u003c\/li\u003e \u003cli\u003eOutput power: 36 watts\u003c\/li\u003e \u003cli\u003eConstant Voltage\u003c\/li\u003e \u003cli\u003eAdjustable | from 21.6 V to 29 VDC\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2026-09-02T11:25:23+10:00","created_at":"2026-09-01T23:36:43+10:00","vendor":"MEAN WELL","type":"Industrial Power Supply","tags":["industrial_DE_Aug2026"],"price":14400,"price_min":14400,"price_max":14400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374973874356,"title":"Einzelpack \/ Single","option1":"Einzelpack","option2":"Single","option3":null,"sku":"de-B0713TLR11","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mean Well HDR-30-24 DIN Rail Power Supply DIN-Rail 24 VDC 1.5 A 36 Watt Single Pack Single - Einzelpack \/ Single","public_title":"Einzelpack \/ Single","options":["Einzelpack","Single"],"price":14400,"weight":120,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0713TLR11.jpg?v=1788269806","\/\/auspowers.com\/cdn\/shop\/files\/41fI9xxKREL.jpg?v=1788269806","\/\/auspowers.com\/cdn\/shop\/files\/31ezYOZnayL.jpg?v=1788269806","\/\/auspowers.com\/cdn\/shop\/files\/41HJWwvFS8L.jpg?v=1788269806","\/\/auspowers.com\/cdn\/shop\/files\/31ubp29D-cL_1011f01e-2660-43fd-ab09-7f27e1954bde.jpg?v=1788269806","\/\/auspowers.com\/cdn\/shop\/files\/519HTWfMxCL_5850bde4-0435-49cb-a18e-810197d25dd4.jpg?v=1788269805","\/\/auspowers.com\/cdn\/shop\/files\/51TzB6nlsbL._SX35_SY46.jpg?v=1788269805"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0713TLR11.jpg?v=1788269806","options":["Size Name","Style Name"],"media":[{"alt":null,"id":33273034571956,"position":1,"preview_image":{"aspect_ratio":1.126,"height":444,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0713TLR11.jpg?v=1788269806"},"aspect_ratio":1.126,"height":444,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0713TLR11.jpg?v=1788269806","width":500},{"alt":null,"id":33273034604724,"position":2,"preview_image":{"aspect_ratio":1.433,"height":349,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41fI9xxKREL.jpg?v=1788269806"},"aspect_ratio":1.433,"height":349,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41fI9xxKREL.jpg?v=1788269806","width":500},{"alt":null,"id":33273034637492,"position":3,"preview_image":{"aspect_ratio":1.126,"height":444,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31ezYOZnayL.jpg?v=1788269806"},"aspect_ratio":1.126,"height":444,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31ezYOZnayL.jpg?v=1788269806","width":500},{"alt":null,"id":33273034670260,"position":4,"preview_image":{"aspect_ratio":1.126,"height":444,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41HJWwvFS8L.jpg?v=1788269806"},"aspect_ratio":1.126,"height":444,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41HJWwvFS8L.jpg?v=1788269806","width":500},{"alt":null,"id":33273034703028,"position":5,"preview_image":{"aspect_ratio":1.433,"height":349,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31ubp29D-cL_1011f01e-2660-43fd-ab09-7f27e1954bde.jpg?v=1788269806"},"aspect_ratio":1.433,"height":349,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31ubp29D-cL_1011f01e-2660-43fd-ab09-7f27e1954bde.jpg?v=1788269806","width":500},{"alt":null,"id":33273034735796,"position":6,"preview_image":{"aspect_ratio":1.433,"height":349,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/519HTWfMxCL_5850bde4-0435-49cb-a18e-810197d25dd4.jpg?v=1788269805"},"aspect_ratio":1.433,"height":349,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/519HTWfMxCL_5850bde4-0435-49cb-a18e-810197d25dd4.jpg?v=1788269805","width":500},{"alt":null,"id":33273034768564,"position":7,"preview_image":{"aspect_ratio":0.565,"height":46,"width":26,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51TzB6nlsbL._SX35_SY46.jpg?v=1788269805"},"aspect_ratio":0.565,"height":46,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51TzB6nlsbL._SX35_SY46.jpg?v=1788269805","width":26}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMean Well HDR-30-24 DIN Rail Power Supply DIN-Rail 24 VDC 1.5 A 36 Watt\u003c\/h3\u003e \u003cp id=\"b\"\u003eSingle-phase MEANWELL switching power supply series HDR-30, primarily clocked for DIN rail mounting in plastic housing. Can be mounted directly on the DIN rail. Closed design, touch-protected screw connections. Universal input. Overload protection thanks to current limitation, auto recovery. Protected against short circuit, overload, overvoltage. Compact size: 2 TE (DIN EN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type: Clocked. Technology: constant voltage Mounting type: DIN rail power supply. Model: HDR Series No-load power: 0.3 watts. Power On\/Off: LED indicator Operating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC. Voltage input DC: 120 - 370 V DC. Mains frequency: 50\/60Hz Voltage: output voltage | 24VDC. Adjustable voltage: adjustable | from 21.6V to 29VDC. Current: output current: 1.5A\/1500mA. Power: output power | 36 watts Efficiency: 89%. Inrush current: 45 A. Dimmable: no. Overload protection: yes. Overload protection in %: 105 - 160%. Surge Protection: Yes Short circuit resistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation voltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour: anthracite. Material: plastic. Length: 90mm. Width: 35 mm \/ 2TE Height: 58.4 mm. Power connection: screw terminals. Output connection: screw terminals. Manufacturer: MEAN WELL Manufacturer number: HDR-30-24. Package weight: 120g. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eOutput voltage: 24 VDC\u003c\/li\u003e \u003cli\u003eOutput current: 1.5 A \/ 1500 mA\u003c\/li\u003e \u003cli\u003eOutput power: 36 watts\u003c\/li\u003e \u003cli\u003eConstant Voltage\u003c\/li\u003e \u003cli\u003eAdjustable | from 21.6 V to 29 VDC\u003c\/li\u003e\n\u003c\/ul\u003e"}
