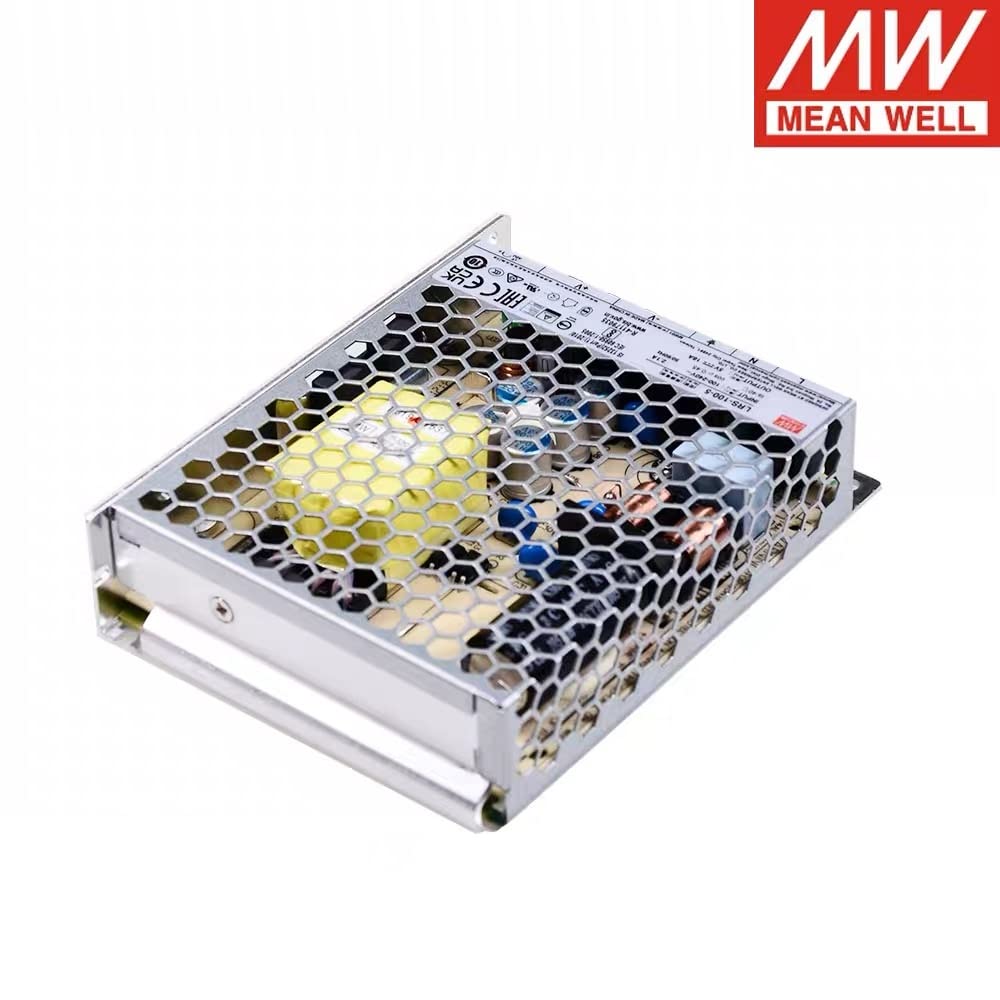

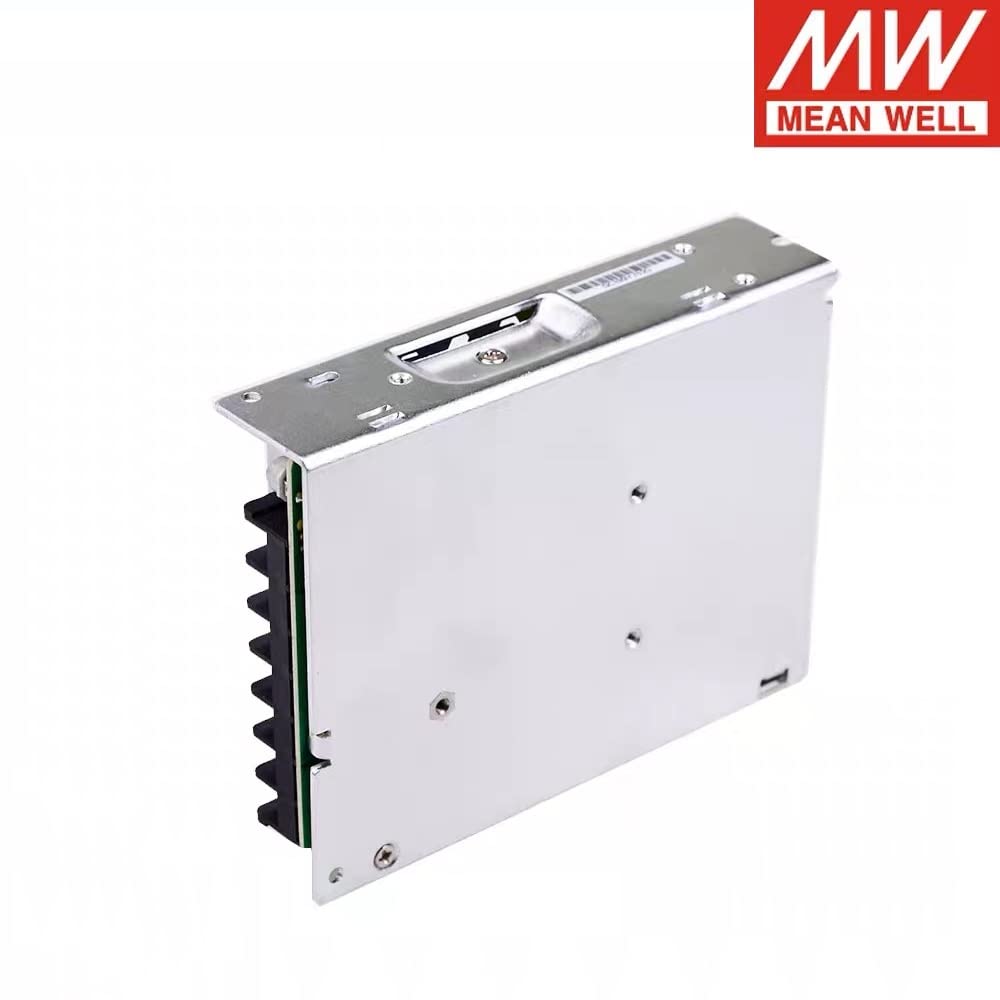

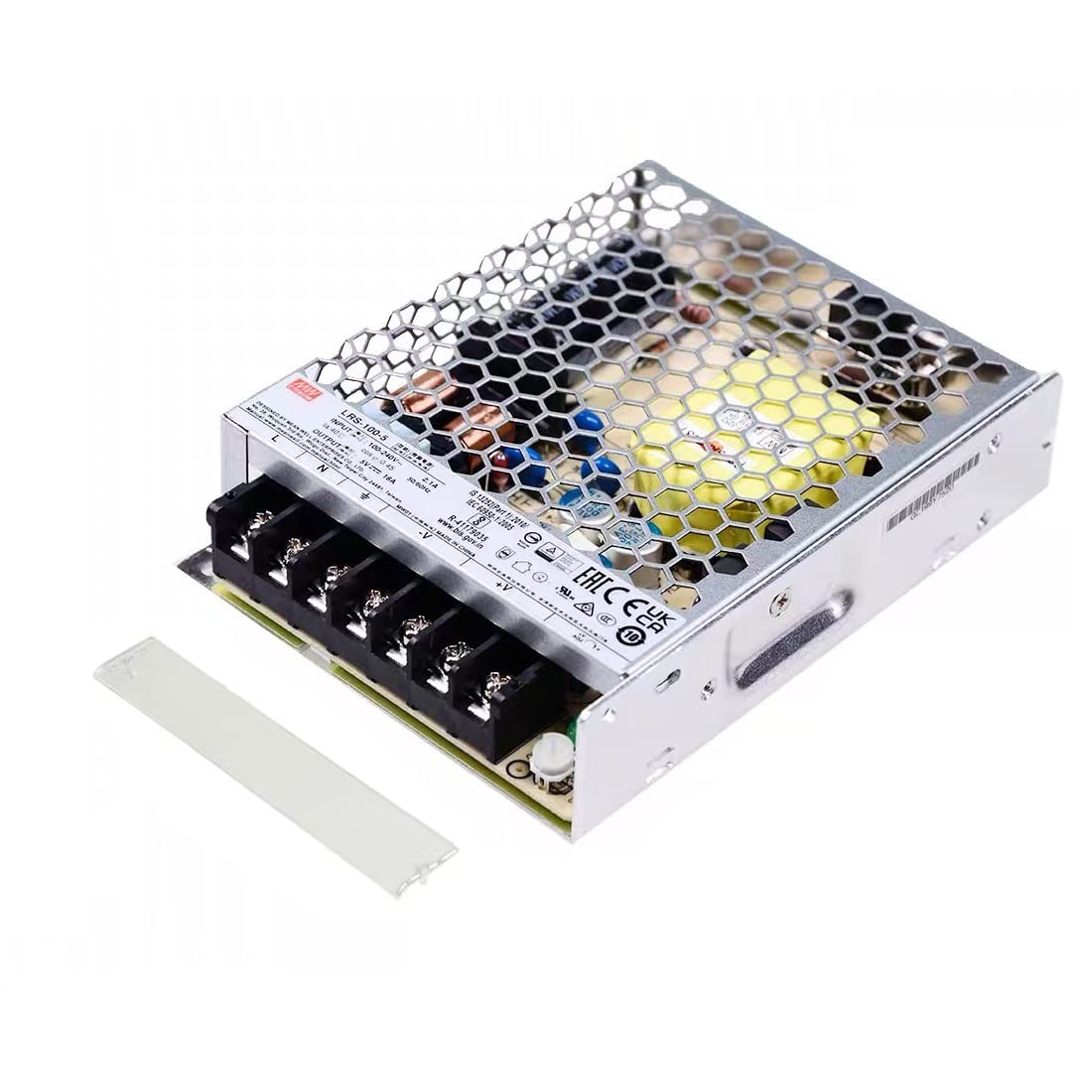

{"id":7231012274356,"title":"Mean Well 5V Power Supply LRS-100-5, Enclosed DC 90W 18A Single Output Switching Power Supply with a Terminal Cover","handle":"mean-well-5v-power-supply-lrs-100-5-enclosed-dc-90w-18a-single-output-switching-power-supply-with-a-terminal-cover","description":" \u003ch1\u003eMean Well 5V Power Supply LRS-100-5, Enclosed DC 90W 18A Single Output Switching Power Supply with a Terminal Cover\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eLRS-100 series is a 100W single-output enclosed type power supply with 30mm of\nlow profile design. Adopting the full range 85~264VAC input, the model\nLRS-100-5 provides an output voltage of 5V. In addition to the high efficiency\nup to 91%, the design of metallic mesh case enhances the heat dissipation of\nLRS-100 that the whole series operates from -30℃ through 70℃ under air\nconvection without a fan. Delivering an extremely low no-load power\nconsumption(less than 0.3W). It is complied with the international safety\nregulations such as TUV BS EN\/EN2368-1, BS EN\/EN60335-1, BS\nEN\/EN61558-1\/-2-16, UL62368-1 and GB4943. LRS-100 series serves as a high\nprice-to-performance power supply solution for various industrial\napplications. SPECS Input Voltage rang: 85~264VAC 120~373VDC(Withstand 300VAC\nsurge for 5sec. Without damage) Frequency range: 47 ~ 63Hz Efficiency: 86% AC\ncurrent: 1.9A\/115VAC, 1.2A\/230VAC Leakage current: \u0026lt;0.75mA \/ 240VAC Output DC\nvoltage: 5V Rated current: 18A Current range: 0 ~ 18A Rated power: 90W Voltage\nADJ. range: 4.5 ~ 5.5V Environment Working temp.: -30℃ ~ +70℃ Working\nhunidity: 20 ~ 90% RH non-condensing Storage temp., humidity: -40℃ ~ +85℃, 10\n~ 95% RH Dimension: 1299730mm(5.08\"3.82\"1.18\") (LWH) Weight:\n0.34kg(0.75lb) NOTE 1. The actual output current depends on circuit loads. 2.\nThis Unit \"DOES NOT\" comes with an installation instruction, wiring cable,\nplease go to the official website to get the detailed instruction. Package\nContents 1 × MEAN WELL switching power supply LRS-100-5 1 × Plastic cover for\nthe terminals\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eMEAN WELL genuine switching power supply, you can check the unique serial number on the official website, whose power switch is known as high efficiency, long life and high reliablity.\u003c\/li\u003e\n\u003cli\u003eIt also comes with a plastic cover to cover over the terminals.\u003c\/li\u003e\n\u003cli\u003eInput: Voltage rang 85~264VAC 120~373VDC(Withstand 300VAC surge for 5sec. Without damage); AC current: 1.9A\/115VAC, 1.2A\/230VAC; Output: DC 5V, 0 ~ 18A, rated power 90W.\u003c\/li\u003e\n\u003cli\u003eMultiple Protection Mechanism: Short-circuit protection, overvoltage protection (OVP), overload protection (OPP).\u003c\/li\u003e\n\u003cli\u003eHigh Heat Dissipation Efficiency: The design of metallic mesh case enhances the heat dissipation that the whole series operates from -30C through 70C (-22F ~ 158F) under air convection without a fan.\u003c\/li\u003e\n\u003cli\u003eApplications: Industrial automation machinery, industrial control system, mechanical and electrical equipment, electronic instruments, equipments or apparatus.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n ","published_at":"2022-08-18T23:35:36+10:00","created_at":"2022-08-18T23:35:42+10:00","vendor":"TRENDVEI","type":"Uninterruptible Power Supply (UPS)","tags":["electronics3"],"price":20800,"price_min":20800,"price_max":20800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41766764675252,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B27J5FHN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mean Well 5V Power Supply LRS-100-5, Enclosed DC 90W 18A Single Output Switching Power Supply with a Terminal Cover","public_title":null,"options":["Default Title"],"price":20800,"weight":350,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0B27J5FHN.jpg?v=1660893458","\/\/auspowers.com\/cdn\/shop\/products\/61ROfIKKmrL.jpg?v=1660829742","\/\/auspowers.com\/cdn\/shop\/products\/51muD9gKRJL.jpg?v=1660829742","\/\/auspowers.com\/cdn\/shop\/products\/61wr0JnP2xL.jpg?v=1660829742","\/\/auspowers.com\/cdn\/shop\/products\/41nGSZtyJgL.jpg?v=1660829742"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0B27J5FHN.jpg?v=1660893458","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Mean Well 5V Power Supply LRS-100-5, Enclosed DC 90W 18A Single Output Switching Power Supply with a Terminal Cover ","id":26874470531252,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0B27J5FHN.jpg?v=1660893458"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0B27J5FHN.jpg?v=1660893458","width":1100},{"alt":"[Australia - AusPower] - Mean Well 5V Power Supply LRS-100-5, Enclosed DC 90W 18A Single Output Switching Power Supply with a Terminal Cover ","id":26867682574516,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61ROfIKKmrL.jpg?v=1660829742"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61ROfIKKmrL.jpg?v=1660829742","width":1000},{"alt":"[Australia - AusPower] - Mean Well 5V Power Supply LRS-100-5, Enclosed DC 90W 18A Single Output Switching Power Supply with a Terminal Cover ","id":26867682607284,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51muD9gKRJL.jpg?v=1660829742"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51muD9gKRJL.jpg?v=1660829742","width":1000},{"alt":"[Australia - AusPower] - Mean Well 5V Power Supply LRS-100-5, Enclosed DC 90W 18A Single Output Switching Power Supply with a Terminal Cover ","id":26867682640052,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61wr0JnP2xL.jpg?v=1660829742"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61wr0JnP2xL.jpg?v=1660829742","width":1000},{"alt":"[Australia - AusPower] - Mean Well 5V Power Supply LRS-100-5, Enclosed DC 90W 18A Single Output Switching Power Supply with a Terminal Cover ","id":26867682672820,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41nGSZtyJgL.jpg?v=1660829742"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41nGSZtyJgL.jpg?v=1660829742","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":" \u003ch1\u003eMean Well 5V Power Supply LRS-100-5, Enclosed DC 90W 18A Single Output Switching Power Supply with a Terminal Cover\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eLRS-100 series is a 100W single-output enclosed type power supply with 30mm of\nlow profile design. Adopting the full range 85~264VAC input, the model\nLRS-100-5 provides an output voltage of 5V. In addition to the high efficiency\nup to 91%, the design of metallic mesh case enhances the heat dissipation of\nLRS-100 that the whole series operates from -30℃ through 70℃ under air\nconvection without a fan. Delivering an extremely low no-load power\nconsumption(less than 0.3W). It is complied with the international safety\nregulations such as TUV BS EN\/EN2368-1, BS EN\/EN60335-1, BS\nEN\/EN61558-1\/-2-16, UL62368-1 and GB4943. LRS-100 series serves as a high\nprice-to-performance power supply solution for various industrial\napplications. SPECS Input Voltage rang: 85~264VAC 120~373VDC(Withstand 300VAC\nsurge for 5sec. Without damage) Frequency range: 47 ~ 63Hz Efficiency: 86% AC\ncurrent: 1.9A\/115VAC, 1.2A\/230VAC Leakage current: \u0026lt;0.75mA \/ 240VAC Output DC\nvoltage: 5V Rated current: 18A Current range: 0 ~ 18A Rated power: 90W Voltage\nADJ. range: 4.5 ~ 5.5V Environment Working temp.: -30℃ ~ +70℃ Working\nhunidity: 20 ~ 90% RH non-condensing Storage temp., humidity: -40℃ ~ +85℃, 10\n~ 95% RH Dimension: 1299730mm(5.08\"3.82\"1.18\") (LWH) Weight:\n0.34kg(0.75lb) NOTE 1. The actual output current depends on circuit loads. 2.\nThis Unit \"DOES NOT\" comes with an installation instruction, wiring cable,\nplease go to the official website to get the detailed instruction. Package\nContents 1 × MEAN WELL switching power supply LRS-100-5 1 × Plastic cover for\nthe terminals\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eMEAN WELL genuine switching power supply, you can check the unique serial number on the official website, whose power switch is known as high efficiency, long life and high reliablity.\u003c\/li\u003e\n\u003cli\u003eIt also comes with a plastic cover to cover over the terminals.\u003c\/li\u003e\n\u003cli\u003eInput: Voltage rang 85~264VAC 120~373VDC(Withstand 300VAC surge for 5sec. Without damage); AC current: 1.9A\/115VAC, 1.2A\/230VAC; Output: DC 5V, 0 ~ 18A, rated power 90W.\u003c\/li\u003e\n\u003cli\u003eMultiple Protection Mechanism: Short-circuit protection, overvoltage protection (OVP), overload protection (OPP).\u003c\/li\u003e\n\u003cli\u003eHigh Heat Dissipation Efficiency: The design of metallic mesh case enhances the heat dissipation that the whole series operates from -30C through 70C (-22F ~ 158F) under air convection without a fan.\u003c\/li\u003e\n\u003cli\u003eApplications: Industrial automation machinery, industrial control system, mechanical and electrical equipment, electronic instruments, equipments or apparatus.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n "}
