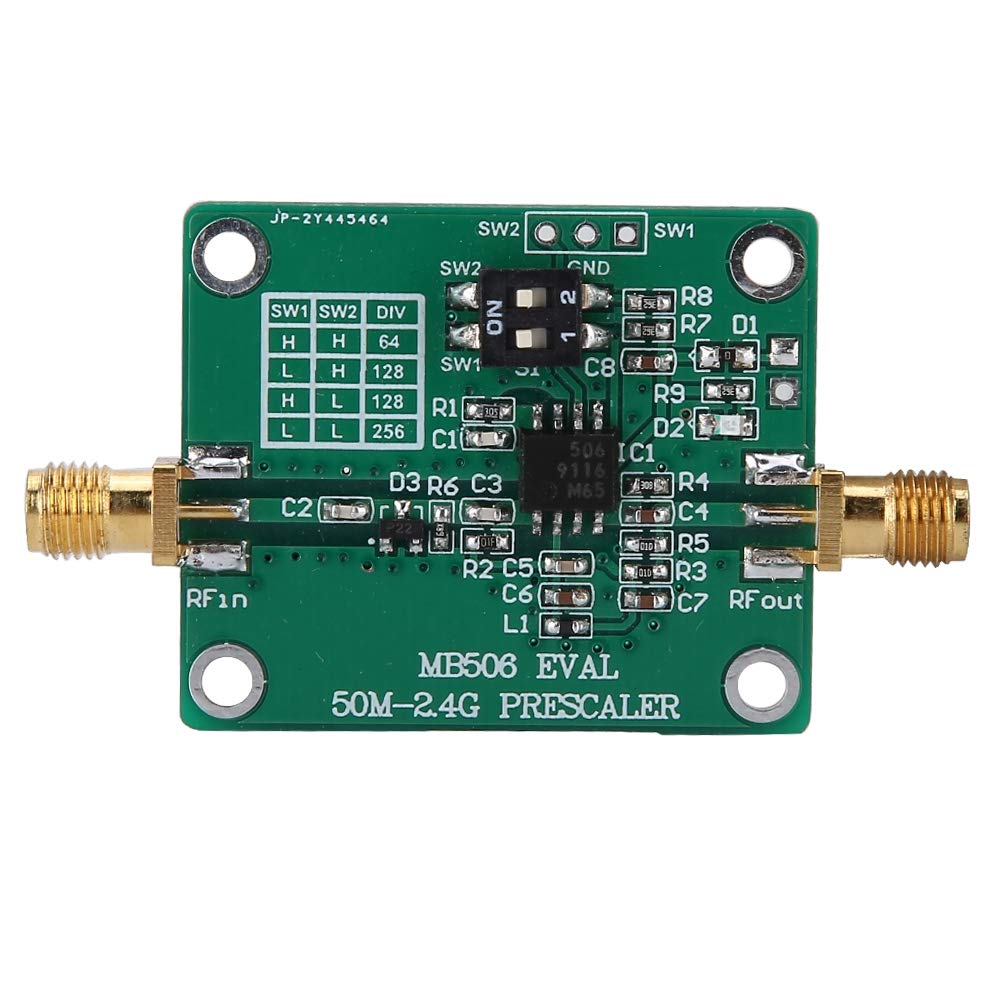

{"id":7390540726452,"title":"MB506 Frequency Divider Module,Microwave Prescaler 64 128 256 Frequency Divider For DBS CATV Transceiver","handle":"mb506-frequency-divider-module-microwave-prescaler-64-128-256-frequency-divider-for-dbs-catv-transceiver","description":"\u003ch3\u003eMB506 Frequency Divider Module,Microwave Prescaler 64 128 256 Frequency Divider For DBS CATV Transceiver\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Material: PCB Model: MB506 Frequency: 50m-2.4g Power\nconsumption: 90mW Operating temperature: -40 °C to 85 °C Output amplitude:\nVOUT = 1.6Vp-p Input frequency: 30M-3G, typical: 50MHz-2.4GHz Input signal\namplitude: -16dBm-5.5dBm (the higher the frequency, the higher the input\nrequirement) Single power supply: 4.5V - 5.5V, typical: 5V Input and output\ninterface: SMA female, input impedance 50 ohms Size: approx. 6.7 3.3 0.5cm\n\/ 2.64 1.3 0.2in Weight: 10g Package list: 1 Frequency Divider\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMB506 is a high frequency prescaler with a frequency up to 2.4GHz.\u003c\/li\u003e\n \u003cli\u003eThe impedance change is lower, which can get better classification performance and improve the dynamic range.\u003c\/li\u003e\n \u003cli\u003eIt divides the input frequency by the modulus of 128 or 256, and the output level is 1.6V at the peak-to-peak value at the ECL level.\u003c\/li\u003e\n \u003cli\u003eThe divider ratio can realize 64, 128 and 256 divider by two-digit dialing switch or external interface.\u003c\/li\u003e\n \u003cli\u003eComplete Phase Locked Loop synthesizer circuit with MB87006A, Phase Locked Loop synthesizer IC.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-06-06T19:10:07+10:00","created_at":"2023-06-06T19:10:13+10:00","vendor":"Vbestlife","type":"Unknown","tags":["June2023_cocoonwix"],"price":11100,"price_min":11100,"price_max":11100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42294334161076,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"w-B084YXJV4S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"MB506 Frequency Divider Module,Microwave Prescaler 64 128 256 Frequency Divider For DBS CATV Transceiver","public_title":null,"options":["Default Title"],"price":11100,"weight":5,"compare_at_price":null,"inventory_management":null,"barcode":"738673225870","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/w-B084YXJV4S.jpg?v=1686123008","\/\/auspowers.com\/cdn\/shop\/products\/611uKvbh0yL.jpg?v=1686042614","\/\/auspowers.com\/cdn\/shop\/products\/61xbJtNbigL.jpg?v=1686042614","\/\/auspowers.com\/cdn\/shop\/products\/51ogWlC7J-L.jpg?v=1686042614","\/\/auspowers.com\/cdn\/shop\/products\/51bxRWBJmoL.jpg?v=1686042614"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/w-B084YXJV4S.jpg?v=1686123008","options":["Title"],"media":[{"alt":"[Australia - AusPower] - MB506 Frequency Divider Module,Microwave Prescaler 64 128 256 Frequency Divider For DBS CATV Transceiver ","id":28747137122484,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/w-B084YXJV4S.jpg?v=1686123008"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/w-B084YXJV4S.jpg?v=1686123008","width":1001},{"alt":"[Australia - AusPower] - MB506 Frequency Divider Module,Microwave Prescaler 64 128 256 Frequency Divider For DBS CATV Transceiver ","id":28744685682868,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/611uKvbh0yL.jpg?v=1686042614"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/611uKvbh0yL.jpg?v=1686042614","width":1001},{"alt":"[Australia - AusPower] - MB506 Frequency Divider Module,Microwave Prescaler 64 128 256 Frequency Divider For DBS CATV Transceiver ","id":28744685715636,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61xbJtNbigL.jpg?v=1686042614"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61xbJtNbigL.jpg?v=1686042614","width":1001},{"alt":"[Australia - AusPower] - MB506 Frequency Divider Module,Microwave Prescaler 64 128 256 Frequency Divider For DBS CATV Transceiver ","id":28744685748404,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51ogWlC7J-L.jpg?v=1686042614"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51ogWlC7J-L.jpg?v=1686042614","width":1001},{"alt":"[Australia - AusPower] - MB506 Frequency Divider Module,Microwave Prescaler 64 128 256 Frequency Divider For DBS CATV Transceiver ","id":28744685781172,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51bxRWBJmoL.jpg?v=1686042614"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51bxRWBJmoL.jpg?v=1686042614","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMB506 Frequency Divider Module,Microwave Prescaler 64 128 256 Frequency Divider For DBS CATV Transceiver\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Material: PCB Model: MB506 Frequency: 50m-2.4g Power\nconsumption: 90mW Operating temperature: -40 °C to 85 °C Output amplitude:\nVOUT = 1.6Vp-p Input frequency: 30M-3G, typical: 50MHz-2.4GHz Input signal\namplitude: -16dBm-5.5dBm (the higher the frequency, the higher the input\nrequirement) Single power supply: 4.5V - 5.5V, typical: 5V Input and output\ninterface: SMA female, input impedance 50 ohms Size: approx. 6.7 3.3 0.5cm\n\/ 2.64 1.3 0.2in Weight: 10g Package list: 1 Frequency Divider\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMB506 is a high frequency prescaler with a frequency up to 2.4GHz.\u003c\/li\u003e\n \u003cli\u003eThe impedance change is lower, which can get better classification performance and improve the dynamic range.\u003c\/li\u003e\n \u003cli\u003eIt divides the input frequency by the modulus of 128 or 256, and the output level is 1.6V at the peak-to-peak value at the ECL level.\u003c\/li\u003e\n \u003cli\u003eThe divider ratio can realize 64, 128 and 256 divider by two-digit dialing switch or external interface.\u003c\/li\u003e\n \u003cli\u003eComplete Phase Locked Loop synthesizer circuit with MB87006A, Phase Locked Loop synthesizer IC.\u003c\/li\u003e\n \u003c\/ul\u003e"}
