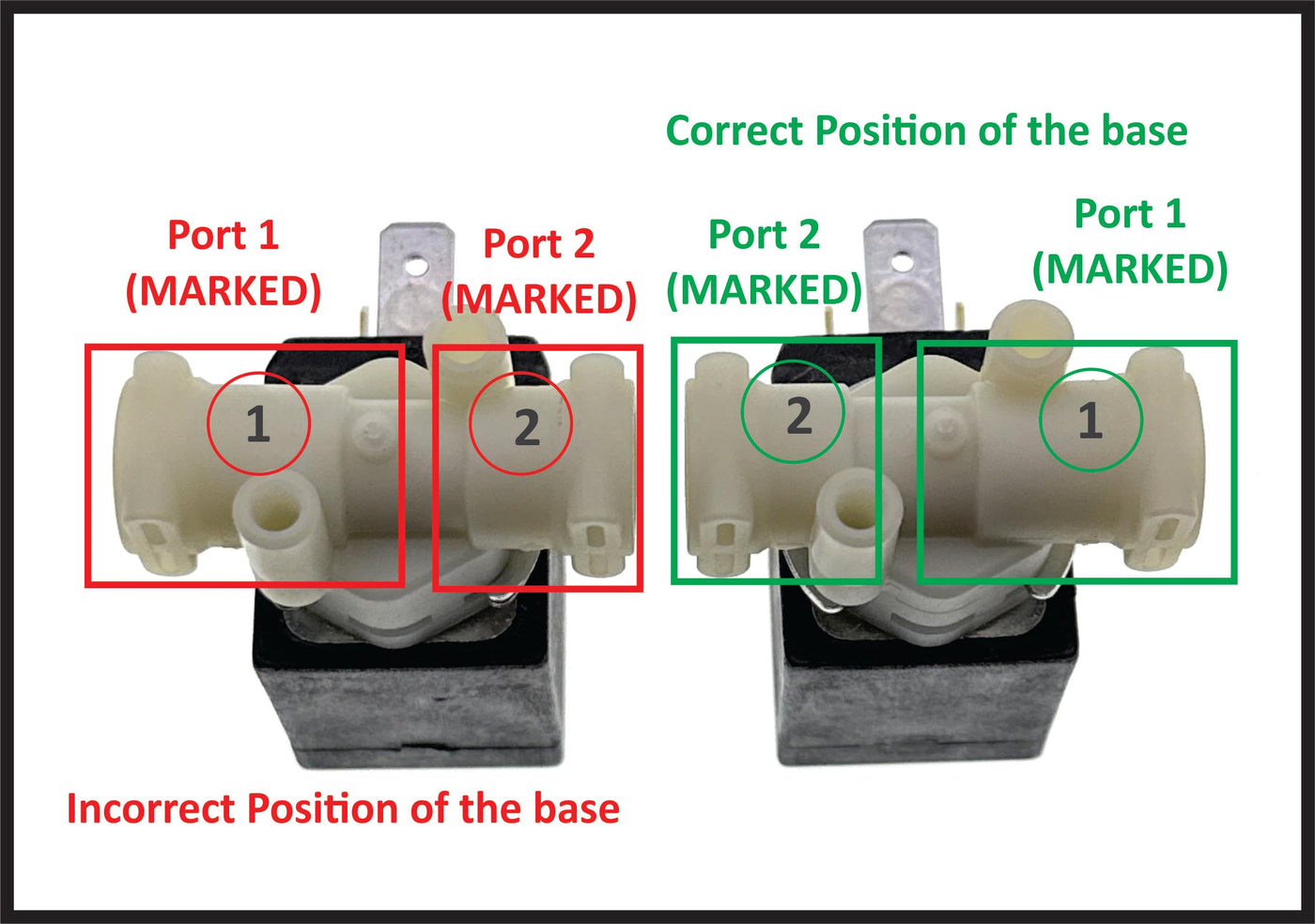

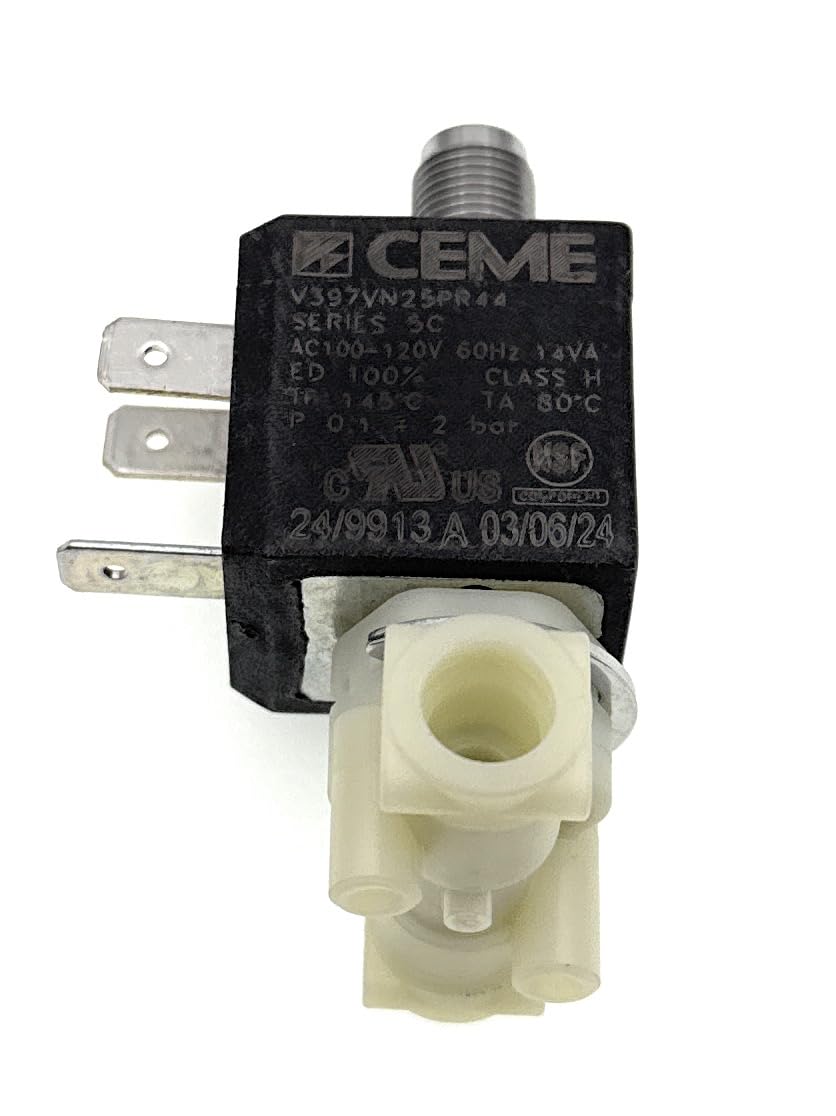

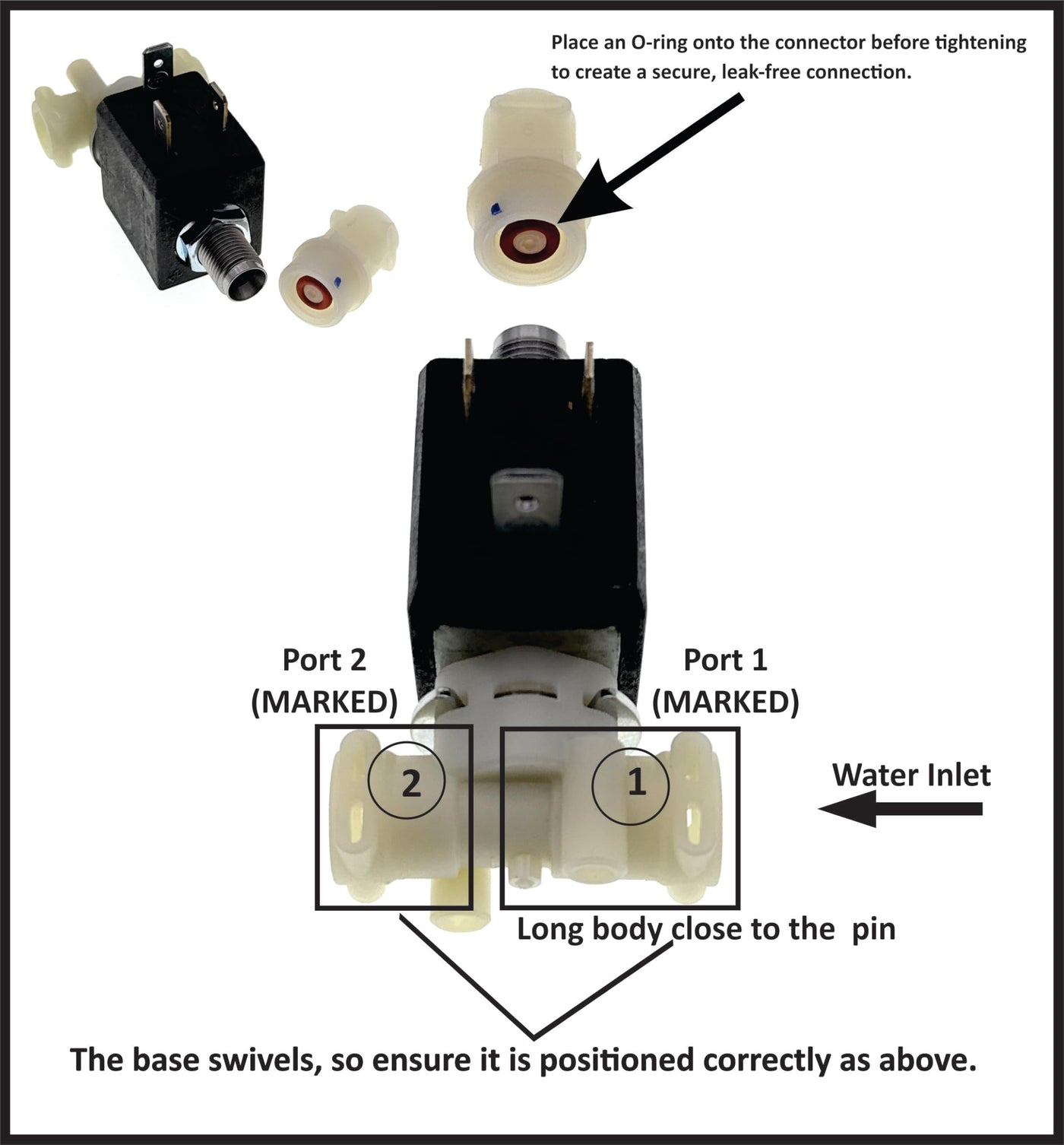

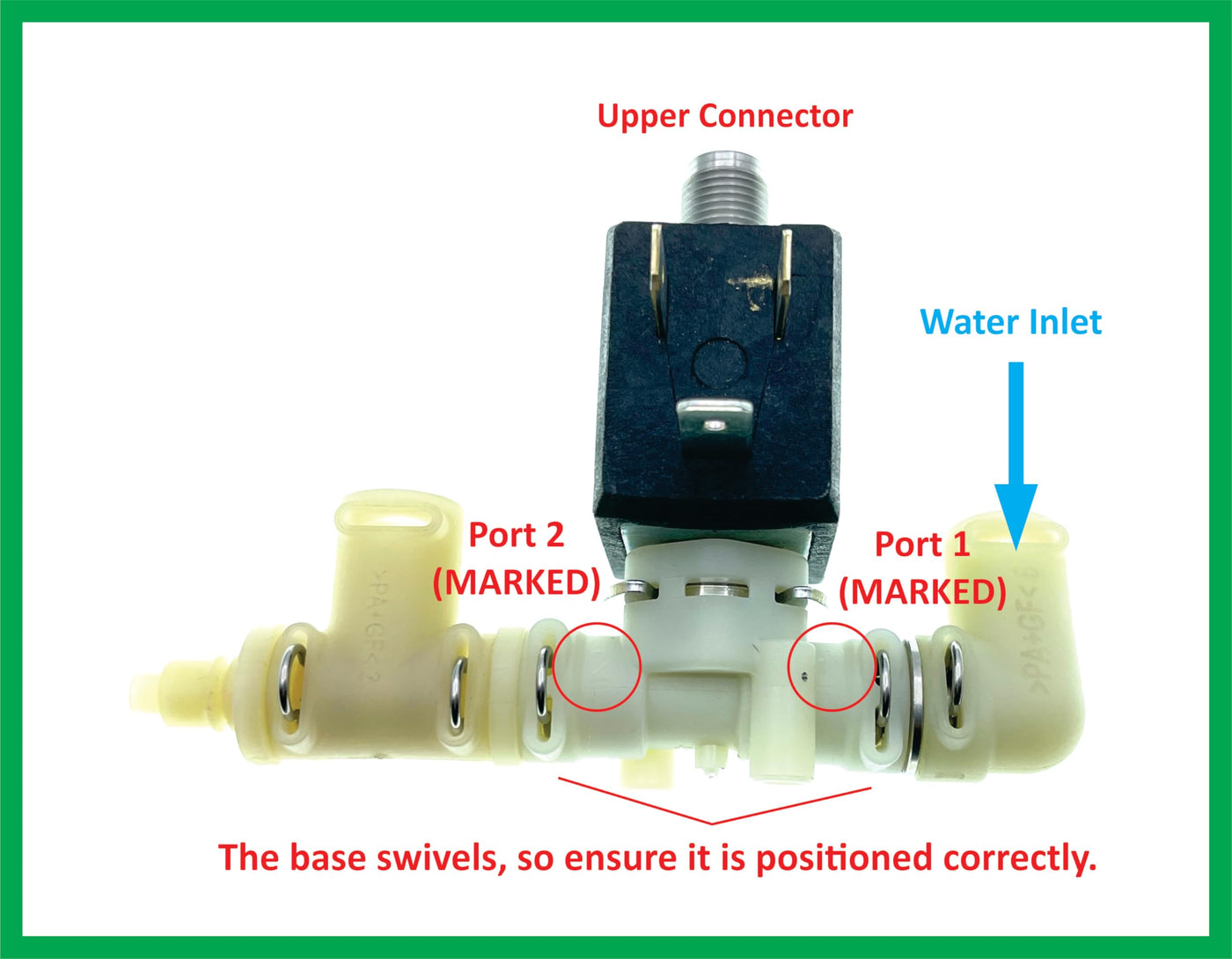

{"id":8050997330100,"title":"MacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines","handle":"macmaxe-3-2-way-solenoid-valve-ceme-v397vn25pr44-110-120v-60hz-replacement-for-breville-espresso-machines","description":"\u003ch3\u003eMacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e3-Way Solenoid Valve Setup Instructions Port Functionality and Operation: Port\r\n1 (Water Inlet - Common Port): This is the water inlet port in both the\r\nenergized and de-energized states. Water always enters through Port 1, which\r\nis clearly marked on the plastic connector. Upper Connector (Normally Open -\r\nWater Path when Solenoid is Off): When the solenoid is not energized (off),\r\nwater flows from Port 1 to the Upper Connector. This is the default state,\r\nwhere water exits through the upper connector. Port 2 (Normally Closed - Water\r\nPath when Solenoid is On): When the solenoid is energized (on), water is\r\nredirected from Port 1 to Port 2. The Upper Connector is closed, preventing\r\nany water flow through it in this state. Port 2 is also marked on the plastic\r\nconnector for easy identification. Correct Operating Mechanism: 1. When the\r\nsolenoid is off (de-energized): Water flows from Port 1 to the Upper\r\nConnector. The connection between Port 1 and Port 2 is closed. 2. When the\r\nsolenoid is on (energized): Water is redirected from Port 1 to Port 2. The\r\nUpper Connector is closed, stopping water flow through it. Important Notes for\r\nProper Installation: 1. Port Markings: Port 1 and Port 2 are clearly marked on\r\nthe plastic connector, making it easier to correctly identify the inlet and\r\noutlet connections. Be sure to connect the system properly based on these\r\nmarkings to ensure correct operation. 2. Bottom Plastic Connector Swivels: The\r\nbottom plastic connector swivels and must be correctly adjusted according to\r\nyour system setup. Incorrect positioning may prevent the valve from\r\nfunctioning properly. Ensure the alignment of the swiveling bottom connector\r\nis correct before installation. If the order of connections is mixed up, the\r\nsolenoid valve will not work as intended. 3. O-Ring Installation: Place the\r\nO-rings (included in the package) on the connectors that will be inserted into\r\nthe ports. These O-rings are essential for creating a proper seal between the\r\nconnectors and the ports to prevent any leaks. Ensure that each O-ring is\r\nproperly seated on the connector before inserting it into Port 1, Port 2, and\r\nthe Upper Connector to secure a leak-proof fit. Flow Summary: Solenoid Off:\r\nWater flows from Port 1 (inlet, marked on the connector) to the Upper\r\nConnector. Solenoid On: Water flows from Port 1 (inlet) to Port 2 (outlet,\r\nmarked on the connector), and the Upper Connector is closed.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eFits various Breville models\u003c\/li\u003e\r\n \u003cli\u003eReplacement for Part Number BES870XL\/02.149A\u003c\/li\u003e\r\n \u003cli\u003eThis part SP0020446 replaces obsolete part #: BES870XL\/02.149A, BES870XL02.149A\u003c\/li\u003e\r\n \u003cli\u003eO-rings provided in the package to use when connecting the pipes.\u003c\/li\u003e\r\n \u003cli\u003eIf you can't pour a shot before it buzzes and stops, you likely need a 3-Way Solenoid Valve to fix the issue. If you're buzzes after a shot but otherwise works, the 2-Way Solenoid Valve is the solution, as it handles pressure relief after brewing.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-05-05T17:45:53+10:00","created_at":"2026-05-05T17:45:49+10:00","vendor":"MacMaxe","type":"Espresso Machine Replacement Parts","tags":["industrial_April2026"],"price":22500,"price_min":22500,"price_max":22500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44215386538164,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08TRDK4W1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"MacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines","public_title":null,"options":["Default Title"],"price":22500,"weight":91,"compare_at_price":null,"inventory_management":"shopify","barcode":"BES870XL\/02.149","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B08TRDK4W1.jpg?v=1777994561","\/\/auspowers.com\/cdn\/shop\/files\/51sDPlfzTkL.jpg?v=1777967151","\/\/auspowers.com\/cdn\/shop\/files\/51rCk99tH-L.jpg?v=1777967151","\/\/auspowers.com\/cdn\/shop\/files\/71_6fAdtZnL.jpg?v=1777967152","\/\/auspowers.com\/cdn\/shop\/files\/51VyQ_RJfRL.jpg?v=1777967151","\/\/auspowers.com\/cdn\/shop\/files\/71ZQZK8z-VL.jpg?v=1777967152","\/\/auspowers.com\/cdn\/shop\/files\/71VQ0oJbjHL.jpg?v=1777967152"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B08TRDK4W1.jpg?v=1777994561","options":["Title"],"media":[{"alt":"[Australia - AusPower] - MacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines ","id":32914225103028,"position":1,"preview_image":{"aspect_ratio":0.749,"height":1116,"width":836,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B08TRDK4W1.jpg?v=1777994561"},"aspect_ratio":0.749,"height":1116,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B08TRDK4W1.jpg?v=1777994561","width":836},{"alt":"[Australia - AusPower] - MacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines ","id":32914225135796,"position":2,"preview_image":{"aspect_ratio":0.75,"height":1082,"width":812,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51sDPlfzTkL.jpg?v=1777967151"},"aspect_ratio":0.75,"height":1082,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51sDPlfzTkL.jpg?v=1777967151","width":812},{"alt":"[Australia - AusPower] - MacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines ","id":32914225168564,"position":3,"preview_image":{"aspect_ratio":0.75,"height":1326,"width":994,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51rCk99tH-L.jpg?v=1777967151"},"aspect_ratio":0.75,"height":1326,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51rCk99tH-L.jpg?v=1777967151","width":994},{"alt":"[Australia - AusPower] - MacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines ","id":32914225201332,"position":4,"preview_image":{"aspect_ratio":1.284,"height":1993,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71_6fAdtZnL.jpg?v=1777967152"},"aspect_ratio":1.284,"height":1993,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71_6fAdtZnL.jpg?v=1777967152","width":2560},{"alt":"[Australia - AusPower] - MacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines ","id":32914225234100,"position":5,"preview_image":{"aspect_ratio":1.24,"height":850,"width":1054,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51VyQ_RJfRL.jpg?v=1777967151"},"aspect_ratio":1.24,"height":850,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51VyQ_RJfRL.jpg?v=1777967151","width":1054},{"alt":"[Australia - AusPower] - MacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines ","id":32914225266868,"position":6,"preview_image":{"aspect_ratio":1.423,"height":1596,"width":2271,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71ZQZK8z-VL.jpg?v=1777967152"},"aspect_ratio":1.423,"height":1596,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71ZQZK8z-VL.jpg?v=1777967152","width":2271},{"alt":"[Australia - AusPower] - MacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines ","id":32914225299636,"position":7,"preview_image":{"aspect_ratio":0.93,"height":2560,"width":2380,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71VQ0oJbjHL.jpg?v=1777967152"},"aspect_ratio":0.93,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71VQ0oJbjHL.jpg?v=1777967152","width":2380}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMacMaxe 3\/2 Way Solenoid Valve – CEME V397VN25PR44 – 110-120V 60Hz – Replacement for Breville Espresso Machines\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e3-Way Solenoid Valve Setup Instructions Port Functionality and Operation: Port\r\n1 (Water Inlet - Common Port): This is the water inlet port in both the\r\nenergized and de-energized states. Water always enters through Port 1, which\r\nis clearly marked on the plastic connector. Upper Connector (Normally Open -\r\nWater Path when Solenoid is Off): When the solenoid is not energized (off),\r\nwater flows from Port 1 to the Upper Connector. This is the default state,\r\nwhere water exits through the upper connector. Port 2 (Normally Closed - Water\r\nPath when Solenoid is On): When the solenoid is energized (on), water is\r\nredirected from Port 1 to Port 2. The Upper Connector is closed, preventing\r\nany water flow through it in this state. Port 2 is also marked on the plastic\r\nconnector for easy identification. Correct Operating Mechanism: 1. When the\r\nsolenoid is off (de-energized): Water flows from Port 1 to the Upper\r\nConnector. The connection between Port 1 and Port 2 is closed. 2. When the\r\nsolenoid is on (energized): Water is redirected from Port 1 to Port 2. The\r\nUpper Connector is closed, stopping water flow through it. Important Notes for\r\nProper Installation: 1. Port Markings: Port 1 and Port 2 are clearly marked on\r\nthe plastic connector, making it easier to correctly identify the inlet and\r\noutlet connections. Be sure to connect the system properly based on these\r\nmarkings to ensure correct operation. 2. Bottom Plastic Connector Swivels: The\r\nbottom plastic connector swivels and must be correctly adjusted according to\r\nyour system setup. Incorrect positioning may prevent the valve from\r\nfunctioning properly. Ensure the alignment of the swiveling bottom connector\r\nis correct before installation. If the order of connections is mixed up, the\r\nsolenoid valve will not work as intended. 3. O-Ring Installation: Place the\r\nO-rings (included in the package) on the connectors that will be inserted into\r\nthe ports. These O-rings are essential for creating a proper seal between the\r\nconnectors and the ports to prevent any leaks. Ensure that each O-ring is\r\nproperly seated on the connector before inserting it into Port 1, Port 2, and\r\nthe Upper Connector to secure a leak-proof fit. Flow Summary: Solenoid Off:\r\nWater flows from Port 1 (inlet, marked on the connector) to the Upper\r\nConnector. Solenoid On: Water flows from Port 1 (inlet) to Port 2 (outlet,\r\nmarked on the connector), and the Upper Connector is closed.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eFits various Breville models\u003c\/li\u003e\r\n \u003cli\u003eReplacement for Part Number BES870XL\/02.149A\u003c\/li\u003e\r\n \u003cli\u003eThis part SP0020446 replaces obsolete part #: BES870XL\/02.149A, BES870XL02.149A\u003c\/li\u003e\r\n \u003cli\u003eO-rings provided in the package to use when connecting the pipes.\u003c\/li\u003e\r\n \u003cli\u003eIf you can't pour a shot before it buzzes and stops, you likely need a 3-Way Solenoid Valve to fix the issue. If you're buzzes after a shot but otherwise works, the 2-Way Solenoid Valve is the solution, as it handles pressure relief after brewing.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
