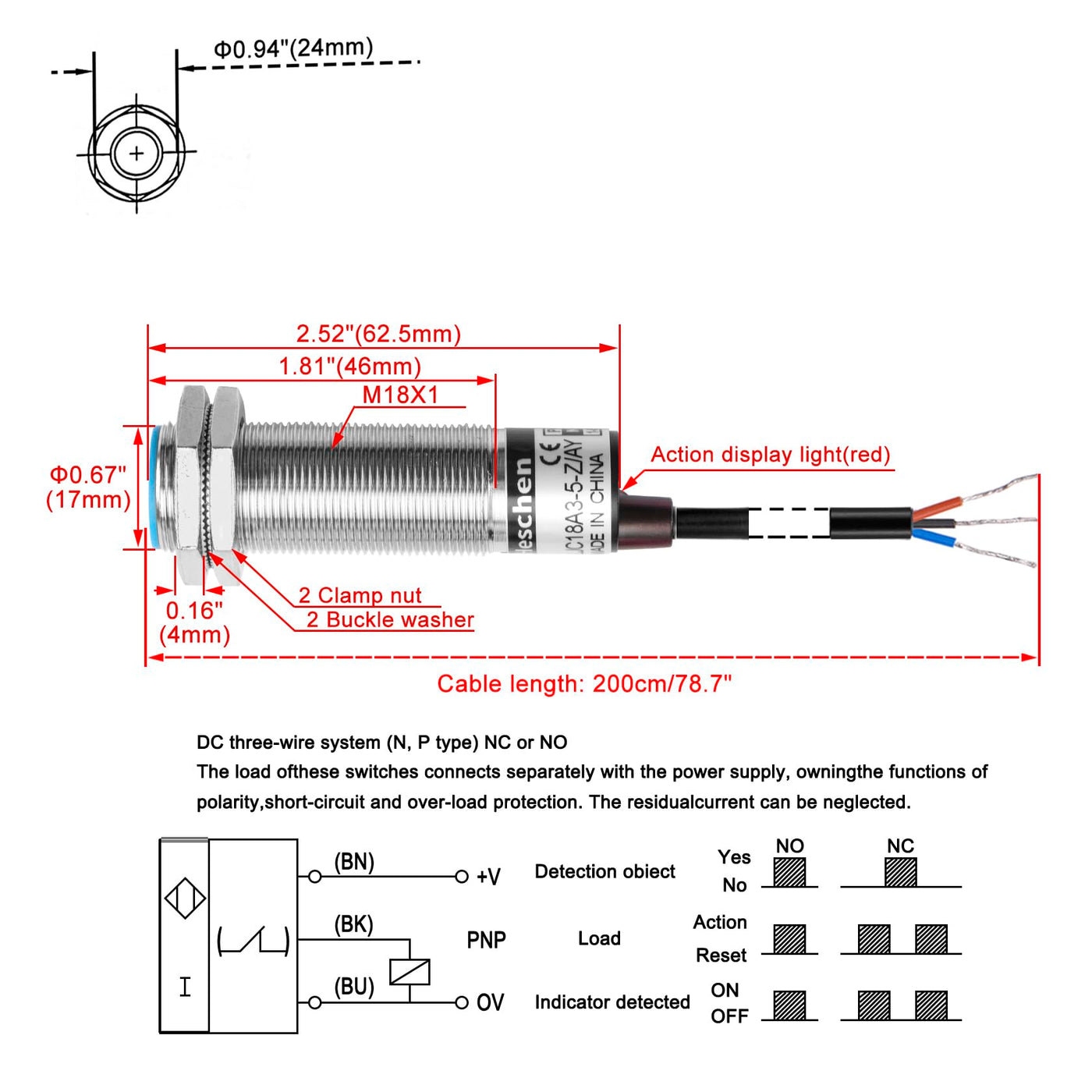

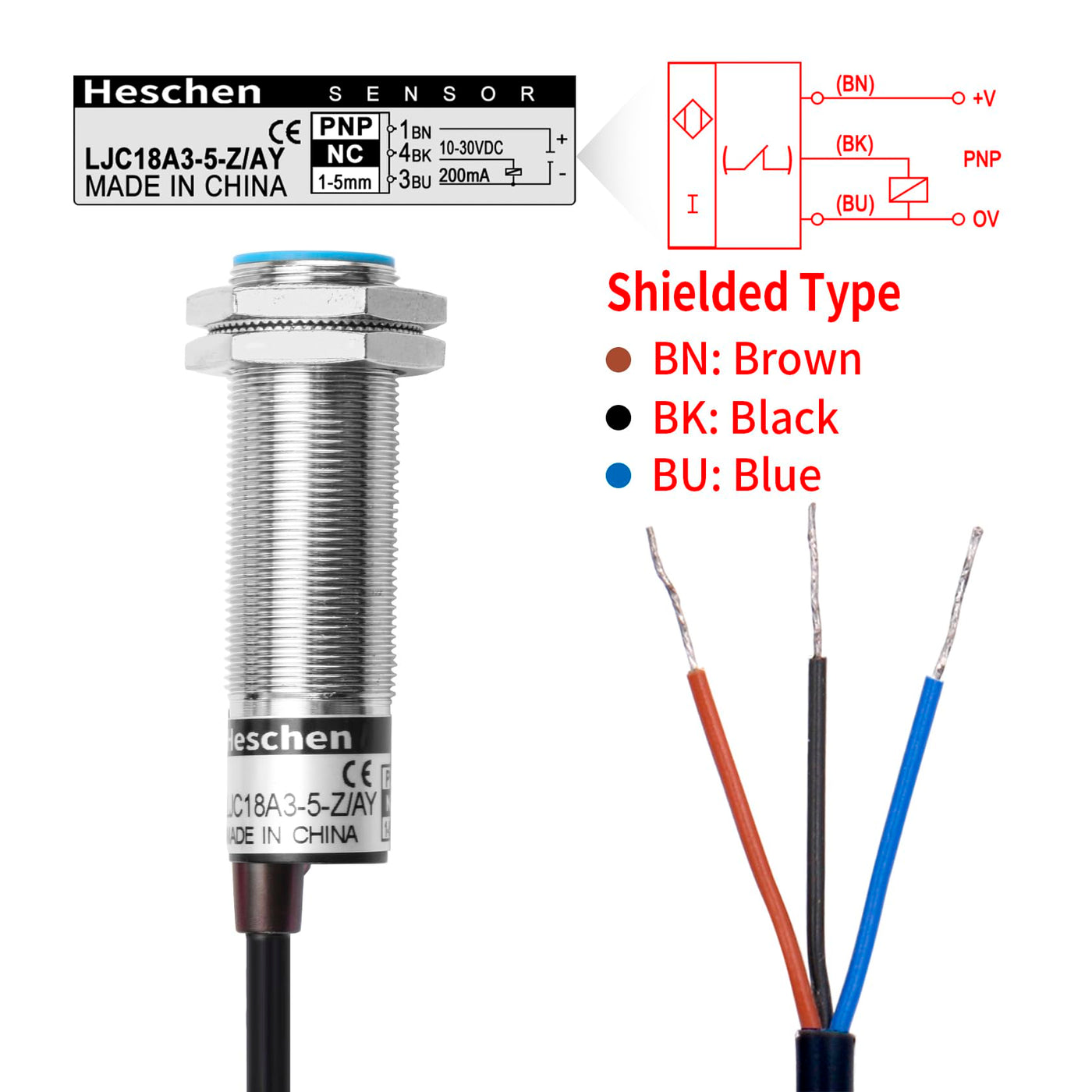

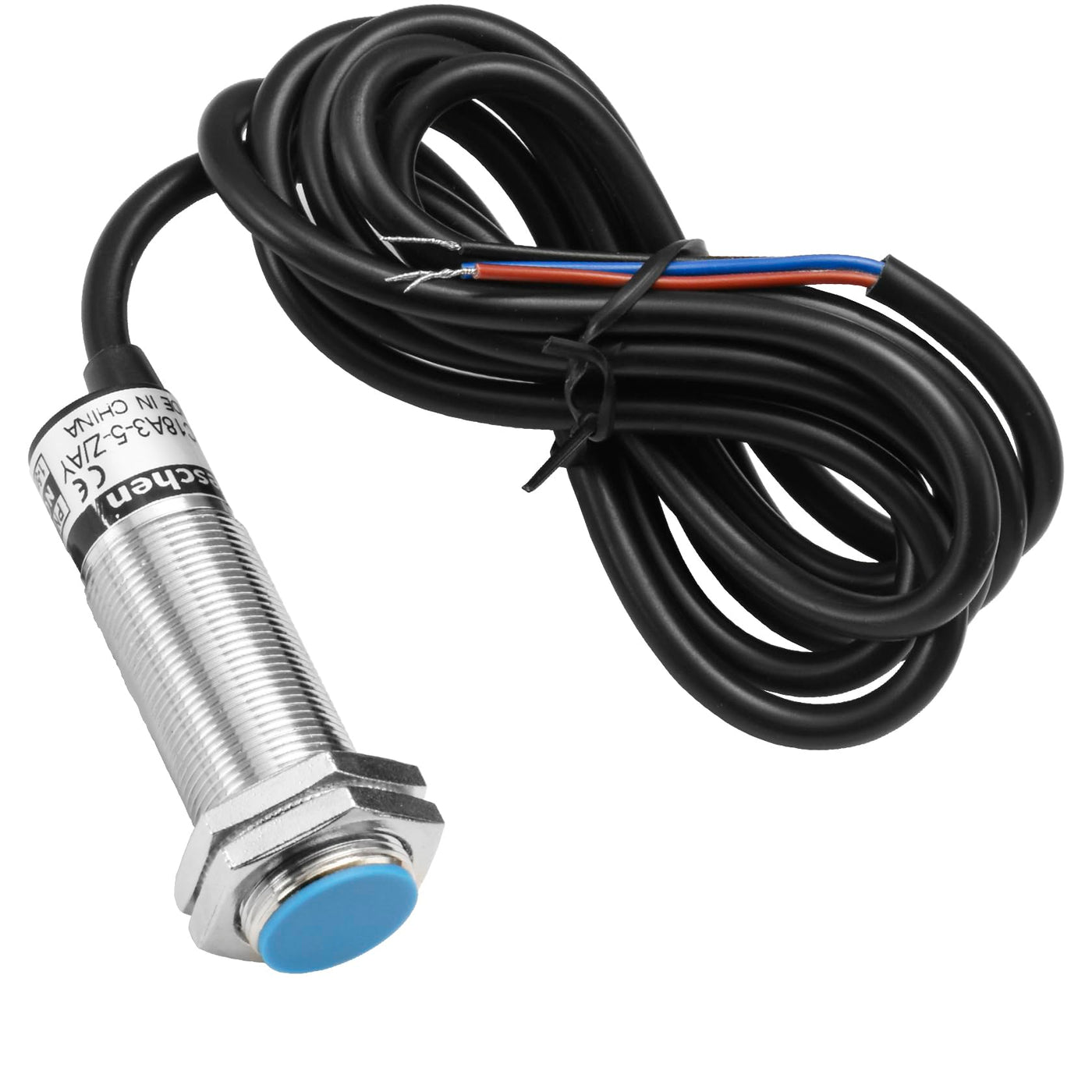

{"id":7975763509428,"title":"M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires","handle":"m18-capacitive-proximity-sensor-switch-shield-type-ljc18a3-5-z-ay-detection-5mm-10-30vdc-200ma-pnp-normally-closednc-3-wires","description":"\u003ch3\u003eM18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10%\nbelow.Comsuption Current:13mA below.Control Output:200mA below.Loop Protection\n:reversal connection protection,surge absorption,load short-circuit\nprotection.Ambient Temperature \u0026amp; Humidity:During operation , storage :\nindividually-30～＋65℃(no freeze ,no drew ) ,During\noperation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above (\nDC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V\n50\/60Hz 1 min. between charging part and shell.Temperature Influence :\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5%\nrated supply voltage range,at rated supply voltage value ,inside ± 10 %\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 18mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 5mm10%; Set distance:0-4mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: PNP Normally Closed(NC), Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30VDC\u003c\/li\u003e\n \u003cli\u003eDetection Object:Can detect any dielectric\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-07-27T22:47:34+10:00","created_at":"2025-07-27T22:47:29+10:00","vendor":"Heschen","type":"Capacitive","tags":["industrial_best_sellers_Jun2025"],"price":9400,"price_min":9400,"price_max":9400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43994565673140,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07XMG27BC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires","public_title":null,"options":["Default Title"],"price":9400,"weight":90,"compare_at_price":null,"inventory_management":"shopify","barcode":"670534183892","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07XMG27BC.jpg?v=1775764330","\/\/auspowers.com\/cdn\/shop\/files\/71t4fiiECHL.jpg?v=1753620452","\/\/auspowers.com\/cdn\/shop\/files\/71puGEdiEvL.jpg?v=1753620452","\/\/auspowers.com\/cdn\/shop\/files\/71Tv75DmIIL.jpg?v=1753620452","\/\/auspowers.com\/cdn\/shop\/files\/61xtKhUYMdL.jpg?v=1753620452","\/\/auspowers.com\/cdn\/shop\/files\/7190QODj60L.jpg?v=1753620453","\/\/auspowers.com\/cdn\/shop\/files\/71tS7ZXGrVL.jpg?v=1753620452","\/\/auspowers.com\/cdn\/shop\/files\/61YHrvdqNgL.jpg?v=1753620452","\/\/auspowers.com\/cdn\/shop\/files\/71yayzSWSHL.jpg?v=1753620452"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07XMG27BC.jpg?v=1775764330","options":["Title"],"media":[{"alt":"[Australia - AusPower] - M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires ","id":31885603373236,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1680,"width":1680,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07XMG27BC.jpg?v=1775764330"},"aspect_ratio":1.0,"height":1680,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07XMG27BC.jpg?v=1775764330","width":1680},{"alt":"[Australia - AusPower] - M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires ","id":31885603406004,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1680,"width":1680,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71t4fiiECHL.jpg?v=1753620452"},"aspect_ratio":1.0,"height":1680,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71t4fiiECHL.jpg?v=1753620452","width":1680},{"alt":"[Australia - AusPower] - M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires ","id":31885603438772,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1680,"width":1680,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71puGEdiEvL.jpg?v=1753620452"},"aspect_ratio":1.0,"height":1680,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71puGEdiEvL.jpg?v=1753620452","width":1680},{"alt":"[Australia - AusPower] - M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires ","id":31885603471540,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1680,"width":1680,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Tv75DmIIL.jpg?v=1753620452"},"aspect_ratio":1.0,"height":1680,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Tv75DmIIL.jpg?v=1753620452","width":1680},{"alt":"[Australia - AusPower] - M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires ","id":31885603504308,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1680,"width":1680,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61xtKhUYMdL.jpg?v=1753620452"},"aspect_ratio":1.0,"height":1680,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61xtKhUYMdL.jpg?v=1753620452","width":1680},{"alt":"[Australia - AusPower] - M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires ","id":31885603537076,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1680,"width":1680,"src":"\/\/auspowers.com\/cdn\/shop\/files\/7190QODj60L.jpg?v=1753620453"},"aspect_ratio":1.0,"height":1680,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/7190QODj60L.jpg?v=1753620453","width":1680},{"alt":"[Australia - AusPower] - M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires ","id":31885603569844,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1680,"width":1680,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71tS7ZXGrVL.jpg?v=1753620452"},"aspect_ratio":1.0,"height":1680,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71tS7ZXGrVL.jpg?v=1753620452","width":1680},{"alt":"[Australia - AusPower] - M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires ","id":31885603602612,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1680,"width":1680,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61YHrvdqNgL.jpg?v=1753620452"},"aspect_ratio":1.0,"height":1680,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61YHrvdqNgL.jpg?v=1753620452","width":1680},{"alt":"[Australia - AusPower] - M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires ","id":31885603635380,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1680,"width":1680,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71yayzSWSHL.jpg?v=1753620452"},"aspect_ratio":1.0,"height":1680,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71yayzSWSHL.jpg?v=1753620452","width":1680}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eM18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/AY Detection 5mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\ndetection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10%\nbelow.Comsuption Current:13mA below.Control Output:200mA below.Loop Protection\n:reversal connection protection,surge absorption,load short-circuit\nprotection.Ambient Temperature \u0026amp; Humidity:During operation , storage :\nindividually-30～＋65℃(no freeze ,no drew ) ,During\noperation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above (\nDC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V\n50\/60Hz 1 min. between charging part and shell.Temperature Influence :\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5%\nrated supply voltage range,at rated supply voltage value ,inside ± 10 %\ndetection distance.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMounting Hole Diameter: 18mm\u003c\/li\u003e\n \u003cli\u003eDetecting Distance: 5mm10%; Set distance:0-4mm\u003c\/li\u003e\n \u003cli\u003eOutput Type: PNP Normally Closed(NC), Shield Type\u003c\/li\u003e\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30VDC\u003c\/li\u003e\n \u003cli\u003eDetection Object:Can detect any dielectric\u003c\/li\u003e\n \u003c\/ul\u003e"}
