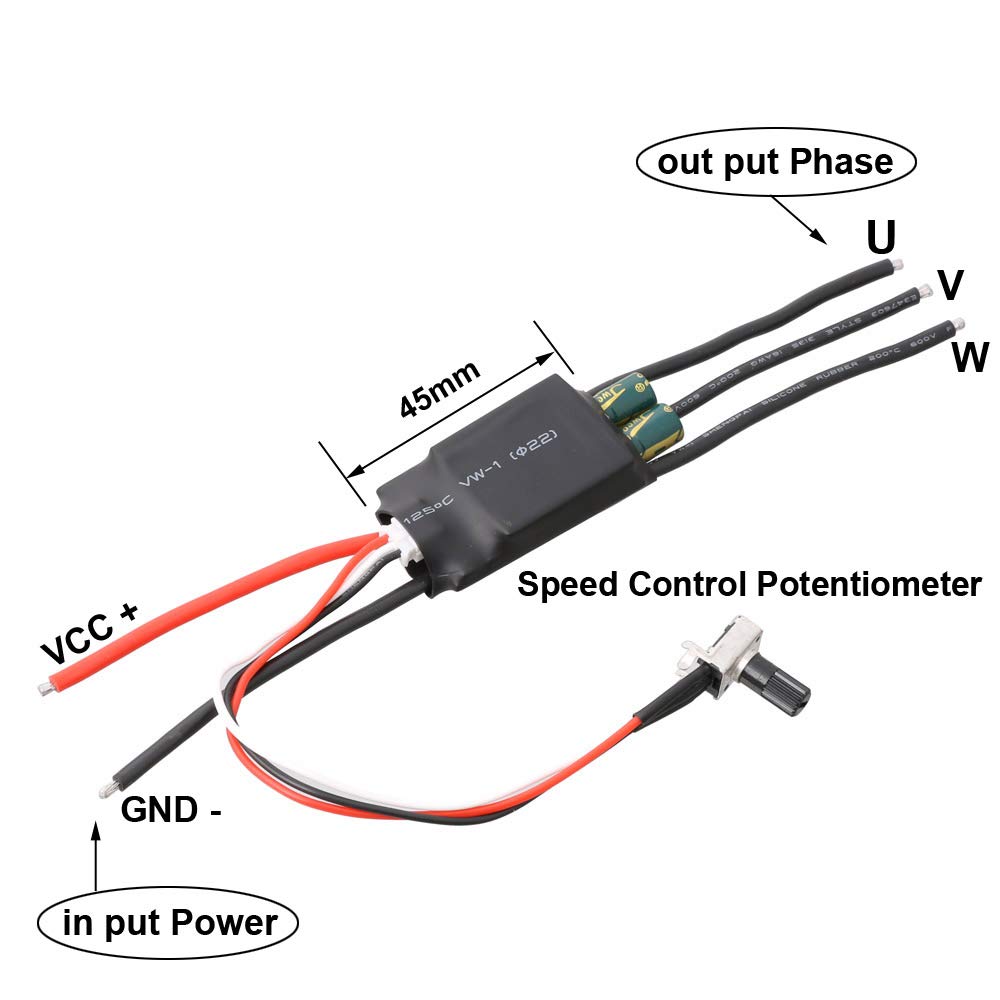

{"id":7175163510964,"title":"LYWS High Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC w\/Potentiometer","handle":"lyws-high-speed-three-phase-dc-7-24v-brushless-hallless-bldc-controller-esc-w-potentiometer","description":"\u003ch3\u003eLYWS High Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC w\/Potentiometer\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis drive is a DC three-phase brushless Hall less control board. The motor\ncan work normally even without Hall. How it Work: The standard speed control\nof the potentiometer does not require an external control signal. It increases\nclockwise and decreases counterclockwise. Also applicable to external PLC 0-5\nanalog quantity control Unplug the potentiometer cable, external 0-5 analog\nquantity control signal and ground line, Respectively connected with the\nbrushless driver board input signal end, as long as the two lines are OK\nProduct Parameters: Working voltage: 6.5-24V Drive current: Rated 15A (if add\nfan for Cold 30A) Maximum Speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole\nmotor), 40000 RPM (12-pole motor), 35000RPM (14-pole motor). Features: The ESC\nis specially designed for the design of all kinds of industrial power tools\nsuch as air pump, water pump, oil pump and fan which use DC three-phase\nbrushless motor. The default medium angle and longtime high current work, we\nsuggest add fan cold as overheat protection. The external heat dissipation\ncondition of the ESC is poor, and the power is automatically reduced when the\ntemperature exceeds 100 degrees. The temperature drops to 100 degrees and\nreturns to normal.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis drive is a DC three-phase brushless Hallless control board. The motor can work normally even without Hall.\u003c\/li\u003e\n \u003cli\u003eWorking voltage: 6.5-24V\u003c\/li\u003e\n \u003cli\u003eDrive current: Rated 15A (if add fan for Cold 30A)\u003c\/li\u003e\n \u003cli\u003eMaximum Speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000RPM (14-pole motor).\u003c\/li\u003e\n \u003cli\u003eplease connect the wire correctly to avoid damage.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-30T01:43:09+10:00","created_at":"2022-06-30T01:43:13+10:00","vendor":"LYWS","type":"Controls","tags":["industrial"],"price":14000,"price_min":14000,"price_max":14000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41619829751988,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08NC2DDP3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LYWS High Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC w\/Potentiometer","public_title":null,"options":["Default Title"],"price":14000,"weight":41,"compare_at_price":null,"inventory_management":null,"barcode":"0682838156199","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B08NC2DDP3.jpg?v=1656573930","\/\/auspowers.com\/cdn\/shop\/products\/51vxHU1wlBL.jpg?v=1656517393","\/\/auspowers.com\/cdn\/shop\/products\/517-S09uziL.jpg?v=1656517393","\/\/auspowers.com\/cdn\/shop\/products\/51ATIf03_wL.jpg?v=1656517394","\/\/auspowers.com\/cdn\/shop\/products\/51nQqcHVzhL.jpg?v=1656517394"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B08NC2DDP3.jpg?v=1656573930","options":["Title"],"media":[{"alt":"[Australia - AusPower] - LYWS High Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC w\/Potentiometer ","id":26349031751860,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B08NC2DDP3.jpg?v=1656573930"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B08NC2DDP3.jpg?v=1656573930","width":1000},{"alt":"[Australia - AusPower] - LYWS High Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC w\/Potentiometer ","id":26340879794356,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51vxHU1wlBL.jpg?v=1656517393"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51vxHU1wlBL.jpg?v=1656517393","width":1000},{"alt":"[Australia - AusPower] - LYWS High Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC w\/Potentiometer ","id":26340879827124,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/517-S09uziL.jpg?v=1656517393"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/517-S09uziL.jpg?v=1656517393","width":1000},{"alt":"[Australia - AusPower] - LYWS High Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC w\/Potentiometer ","id":26340879859892,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51ATIf03_wL.jpg?v=1656517394"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51ATIf03_wL.jpg?v=1656517394","width":1000},{"alt":"[Australia - AusPower] - LYWS High Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC w\/Potentiometer ","id":26340879892660,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51nQqcHVzhL.jpg?v=1656517394"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51nQqcHVzhL.jpg?v=1656517394","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eLYWS High Speed Three-Phase DC 7-24V Brushless Hallless BLDC Controller ESC w\/Potentiometer\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis drive is a DC three-phase brushless Hall less control board. The motor\ncan work normally even without Hall. How it Work: The standard speed control\nof the potentiometer does not require an external control signal. It increases\nclockwise and decreases counterclockwise. Also applicable to external PLC 0-5\nanalog quantity control Unplug the potentiometer cable, external 0-5 analog\nquantity control signal and ground line, Respectively connected with the\nbrushless driver board input signal end, as long as the two lines are OK\nProduct Parameters: Working voltage: 6.5-24V Drive current: Rated 15A (if add\nfan for Cold 30A) Maximum Speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole\nmotor), 40000 RPM (12-pole motor), 35000RPM (14-pole motor). Features: The ESC\nis specially designed for the design of all kinds of industrial power tools\nsuch as air pump, water pump, oil pump and fan which use DC three-phase\nbrushless motor. The default medium angle and longtime high current work, we\nsuggest add fan cold as overheat protection. The external heat dissipation\ncondition of the ESC is poor, and the power is automatically reduced when the\ntemperature exceeds 100 degrees. The temperature drops to 100 degrees and\nreturns to normal.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis drive is a DC three-phase brushless Hallless control board. The motor can work normally even without Hall.\u003c\/li\u003e\n \u003cli\u003eWorking voltage: 6.5-24V\u003c\/li\u003e\n \u003cli\u003eDrive current: Rated 15A (if add fan for Cold 30A)\u003c\/li\u003e\n \u003cli\u003eMaximum Speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000RPM (14-pole motor).\u003c\/li\u003e\n \u003cli\u003eplease connect the wire correctly to avoid damage.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
