LoRa ESP Module, SX1276 LoRa V2 Board with OLED Display and Antenna, V2 ESP WiFi Bluetooth IOT Board CP2012 868MHz-915MHz for Arduino

In Stock. Leaves warehouse within 2 - 3 business days

$178.00 AUD
Maximum quantity available reached.
Start shopping today and enjoy free shipping on every purchase.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

LoRa ESP Module, SX1276 LoRa V2 Board with OLED Display and Antenna, V2 ESP WiFi Bluetooth IOT Board CP2012 868MHz-915MHz for Arduino

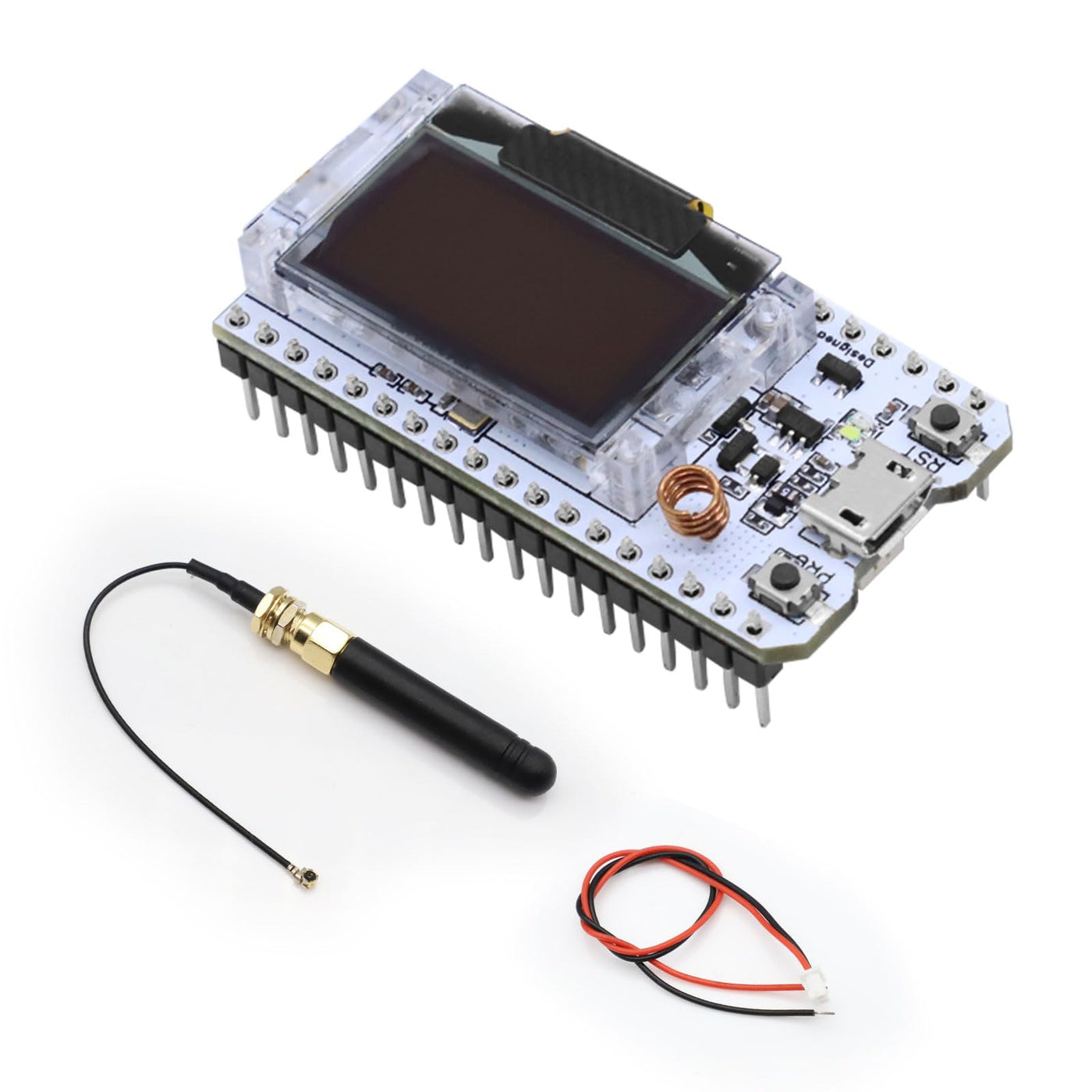

LoRa ESP Module, SX1276 LoRa V2 Board with OLED Display and Antenna, V2 ESP WiFi Bluetooth IOT Board CP2012 SX1276 868MHz-915MHz for Arduino Specification: Predominant frequency: 240 MHz. Processor: Tensilica-LX6 Dual Core Main chip: ESP chip LoRa Chip: SX1276 (868 and 915 version); Supported frequency bands: 868-915MHZ Operating voltage: 3.3-7 V. Computing power Up to 600 dmips. Display: 0.96 inch 12864 OLED display Flash: 8MB (64M bits) SPI Flash Low current design, deep sleep: 800uA LoRa maximum output power: 18 dB ± 2 dB. Hardware resources: UART x 3; SPI x 2; I2C x 2; I2S x 1 12 - bits ADC; 8 - bits DAC 29 General GPIO Interface: Micro-USB x 1; LoRa antenna interface (IPEX) x 1 Package includes: 1 x LoRa V2 board

Product Features

  • Highly efficient microprocessor: ESP (dual core 32-bit MCU + ULP core), an LX6 dual-core processor with a main frequency of 240 MHz, which offers a computing capacity of up to 600 DMIPS.With LoRa Node Chip SX1276.
  • LoRa V2 ESP board: with micro USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding and other protection measures
  • Perfect Design: Meshtastic ESP Display Built-in WiFi, LoRa, three Bluetooth network connections, built-in WiFi, dedicated Bluetooth 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.
  • Good quality: LoRa V2 board is based on the WLAN kit 32 additional SX1276 chip, i.e. LoRa remote modem, over -148 dBm high sensitivity, +20 dBm output power, high reliability, transmission distance (measured communication distance 2.6 km).

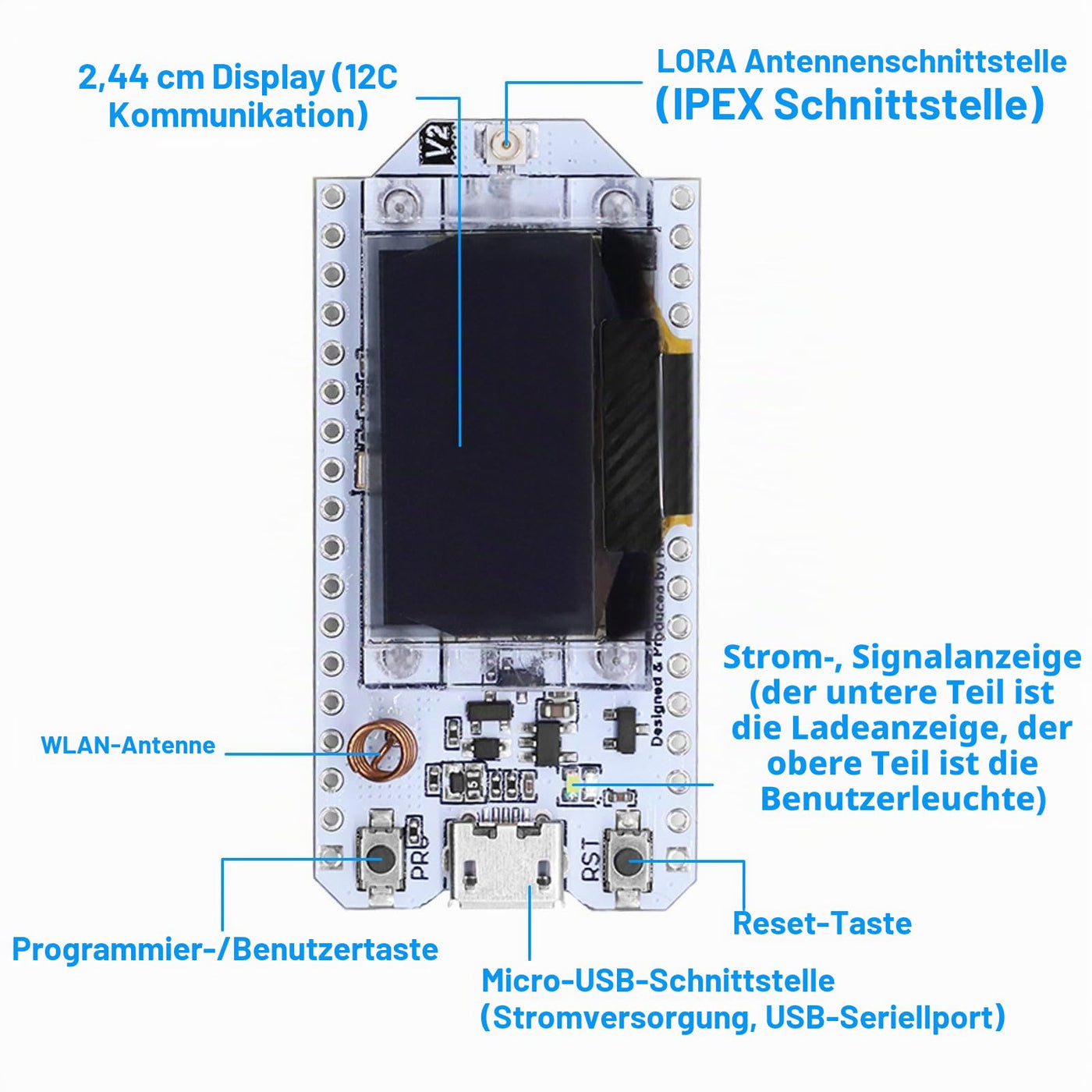

  • OLED Display: The built-in 0.96 inch OLED display with 128 x 64 dot matrix provides important information such as debugging data, battery power and other important information.
