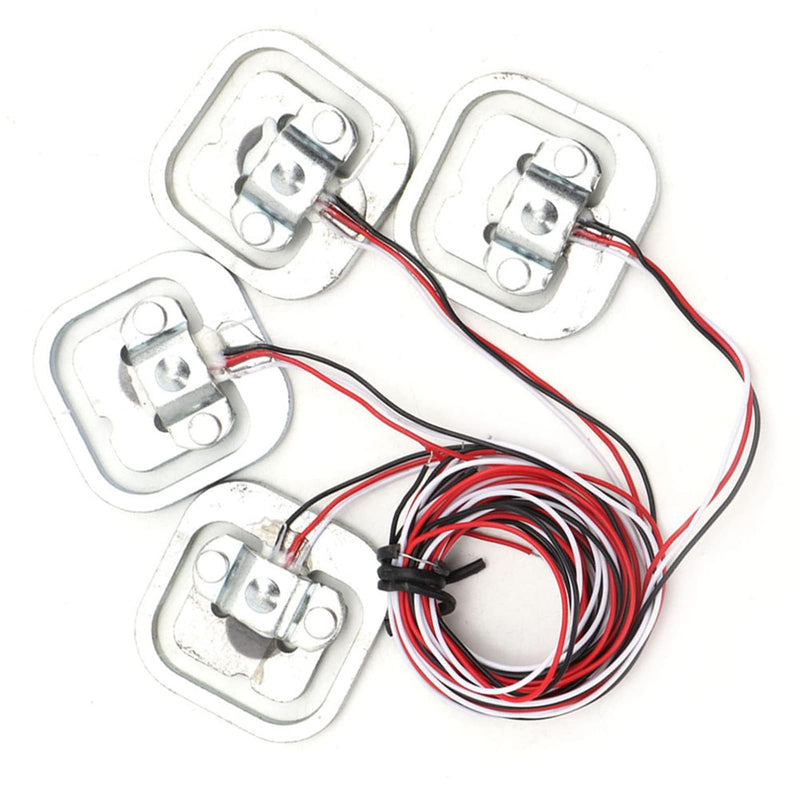

Load Cell Kit Half Bridge 100kg Force Sensor Strain Gauges HX711 Modules + 4 Individual 50kg
Load Cell Kit Half Bridge 100 kg Force Sensor Strain Gauges HX711 Modules + 4 Individual 50 kg

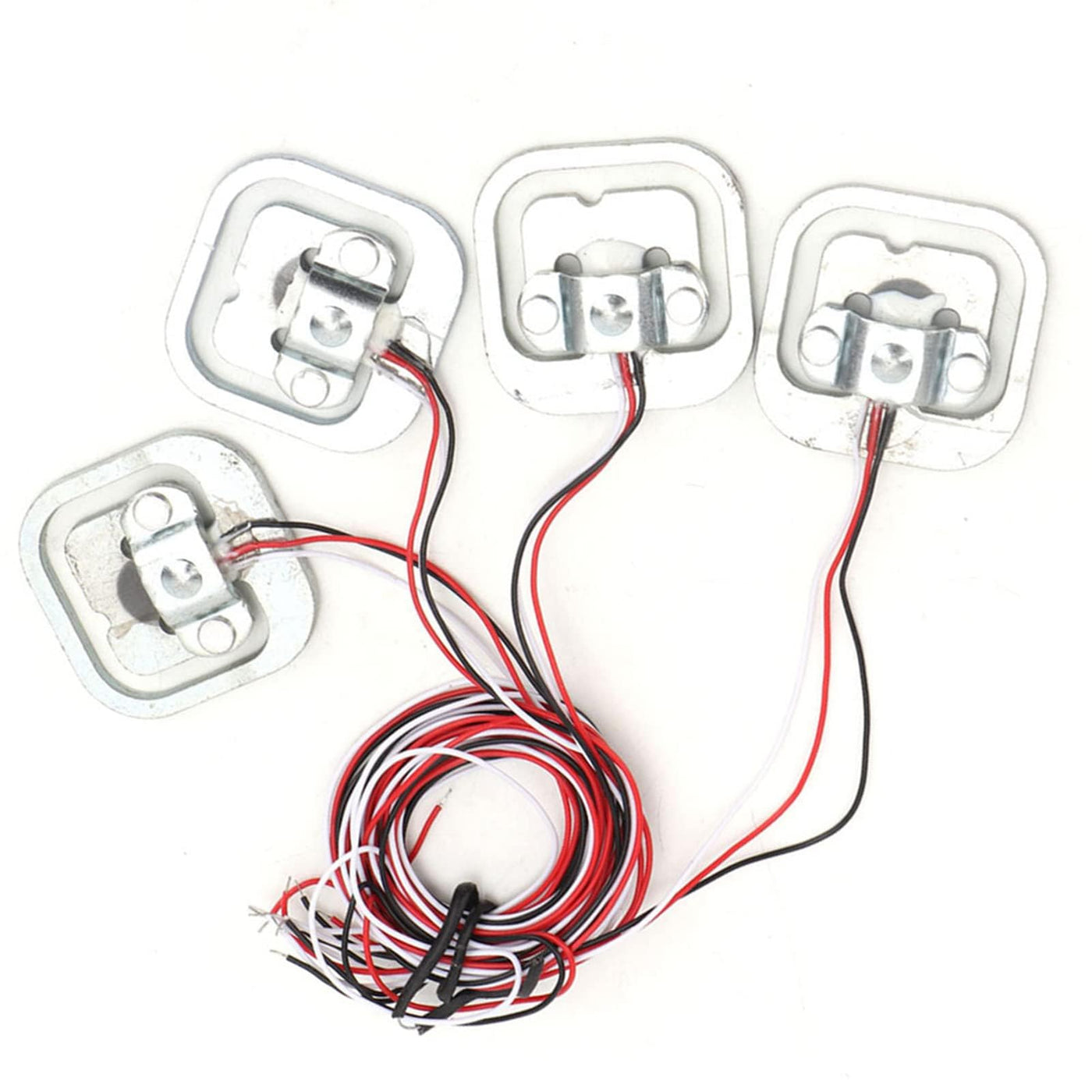

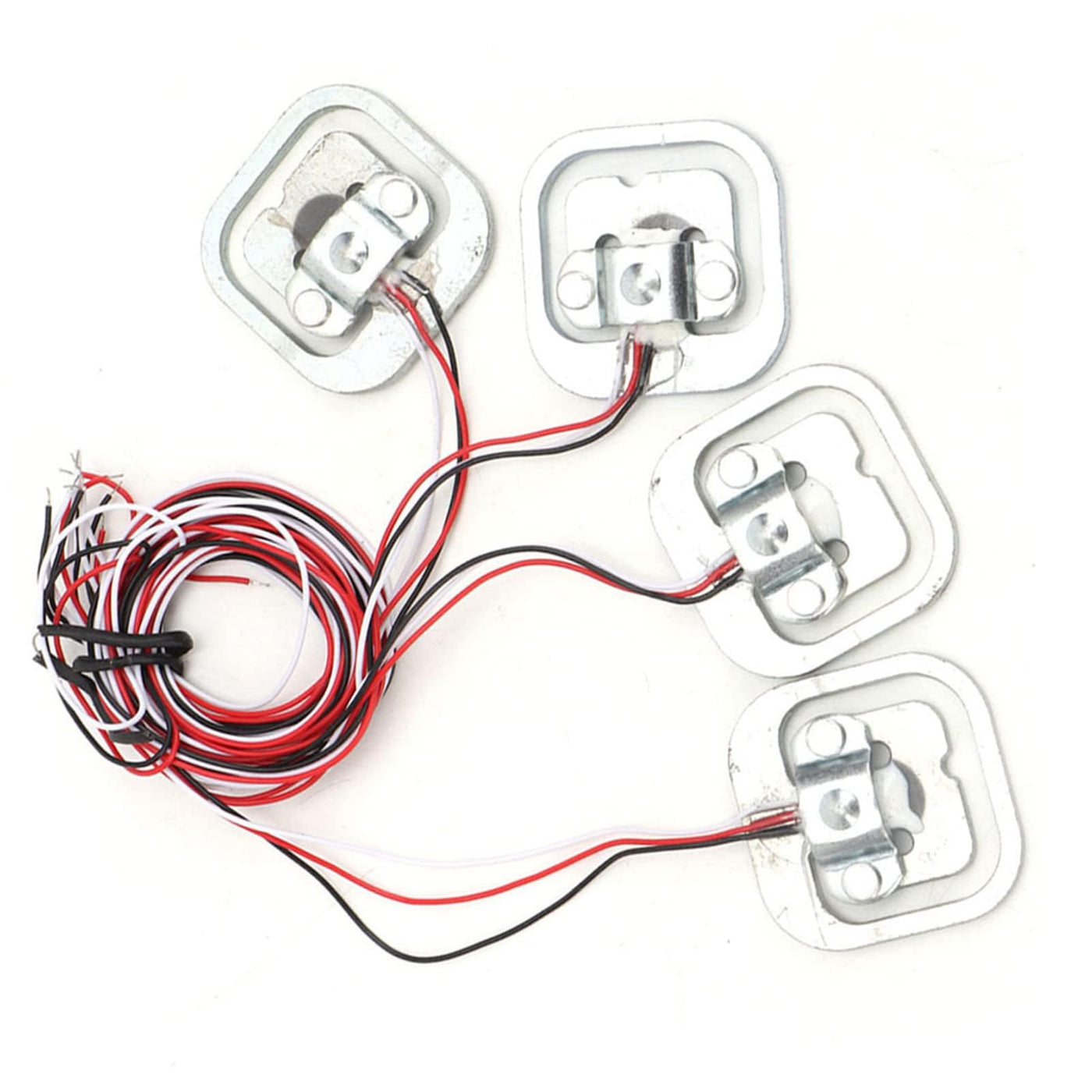

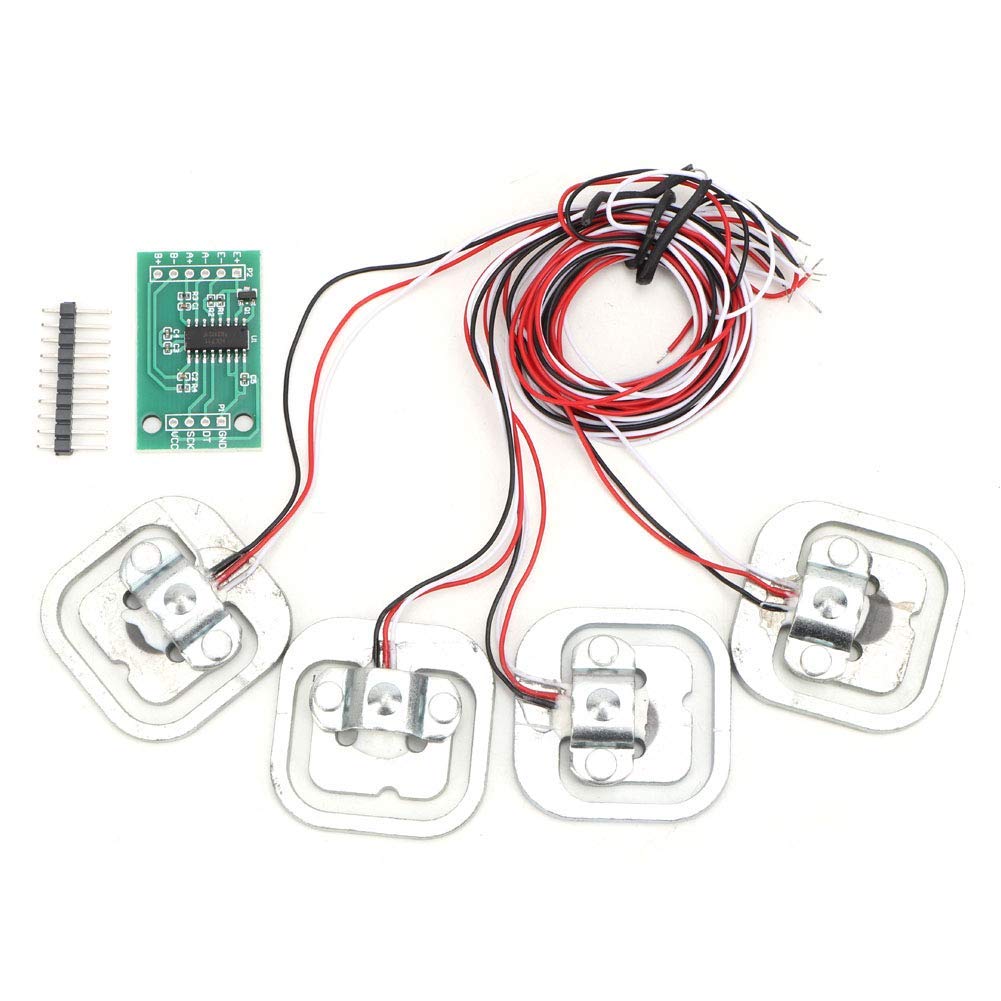

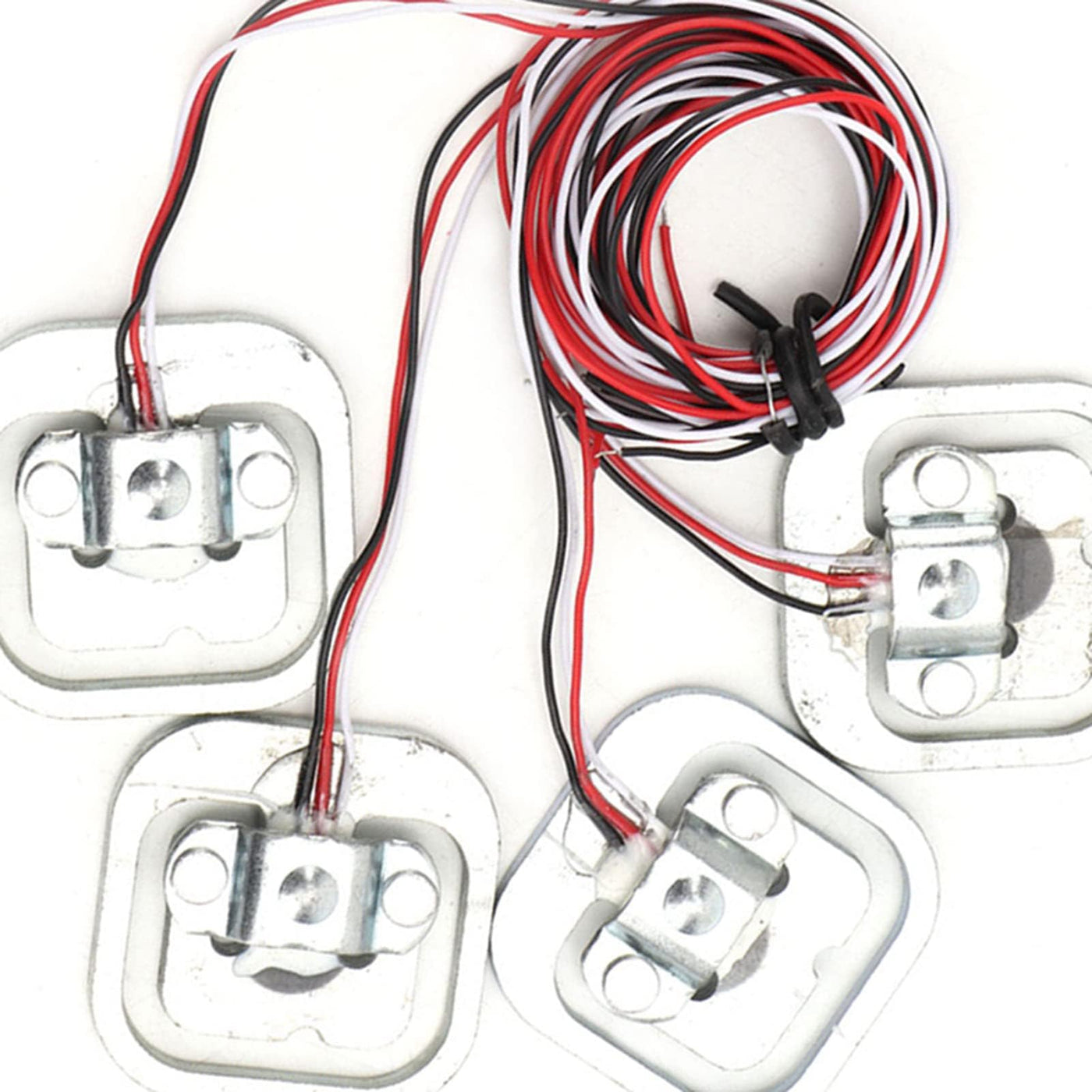

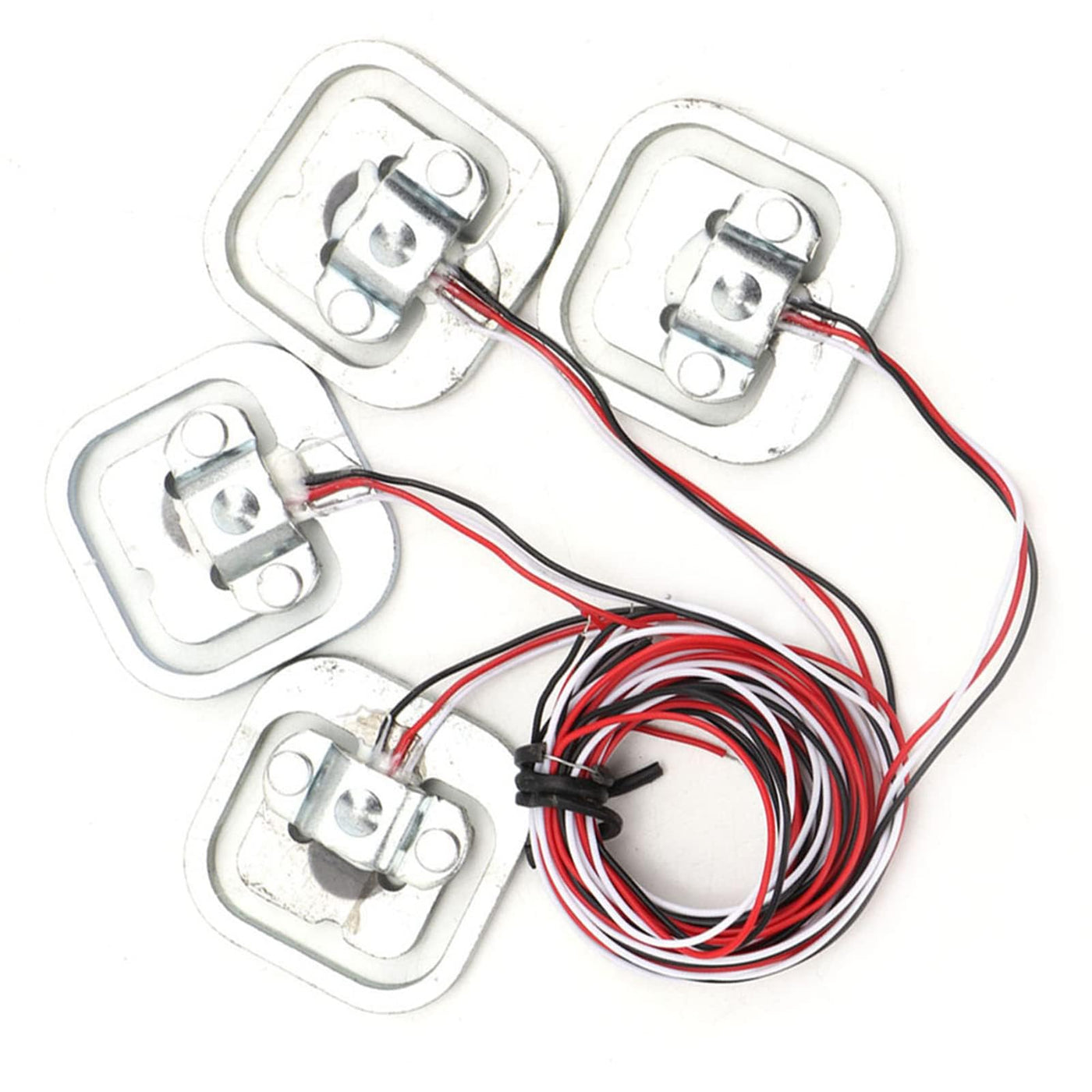

Specification: Sensor size: 34 x 34 mm/1.34 x 1.34 inches. Sensor interior construction: 1000 ohm half bridge strain gauges Measuring range: 50kg/100kg/200kg Package list: 4 x weighing sensors. 1 x HX711 modules. User manual: When measuring, external force is applied correctly to the outside. The expansion beam part of the E-shaped sensor (ie the beam arm with the white rubber in the middle of the strain gauge) and the outside should form a shear force in the opposite direction, ie in the middle, the expansion beam must suffer bending changes under load, and no obstacle must be present on the other side of the expansion bar. Inside the sensor there is a set of half bridge strain gauges that can be used in the following three ways: 1. Use an external resistance sensor to form a full bridge measurement. The range corresponds to the range of a sensor: 50 kg. Requires higher external resistance requirements. 2. Use two sensors to form a full bridge measurement. The range is the sum of the ranges of the two sensors: 50 kg x 2 = 100 kg. 3. When using four sensors to form a full bridge measurement, the range is the sum of the ranges of four sensors: 50 kg x 4 = 200 kg. Note: Please note that the new type and old type of this product are sent at random, and make sure you do not mind before ordering.
Product Features

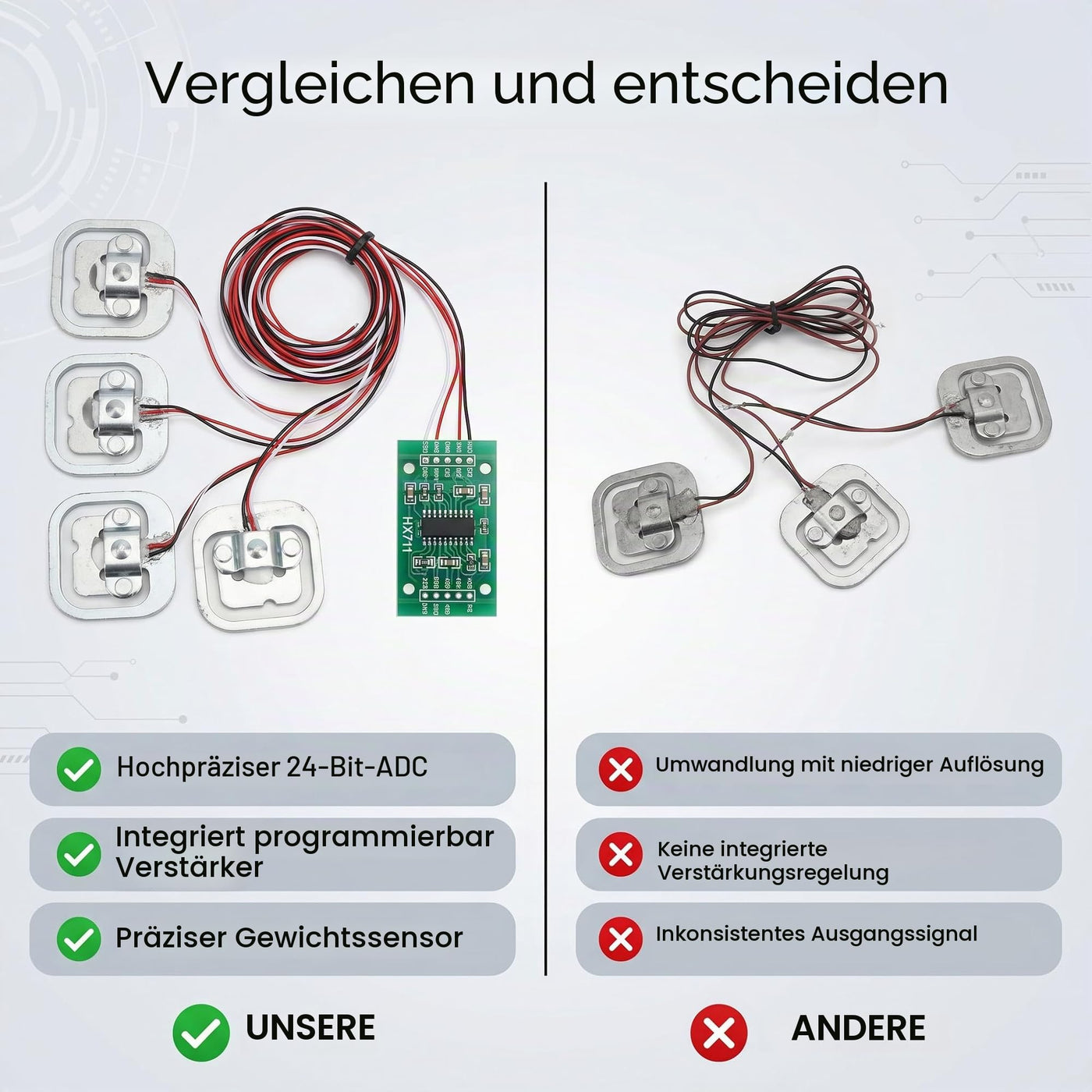

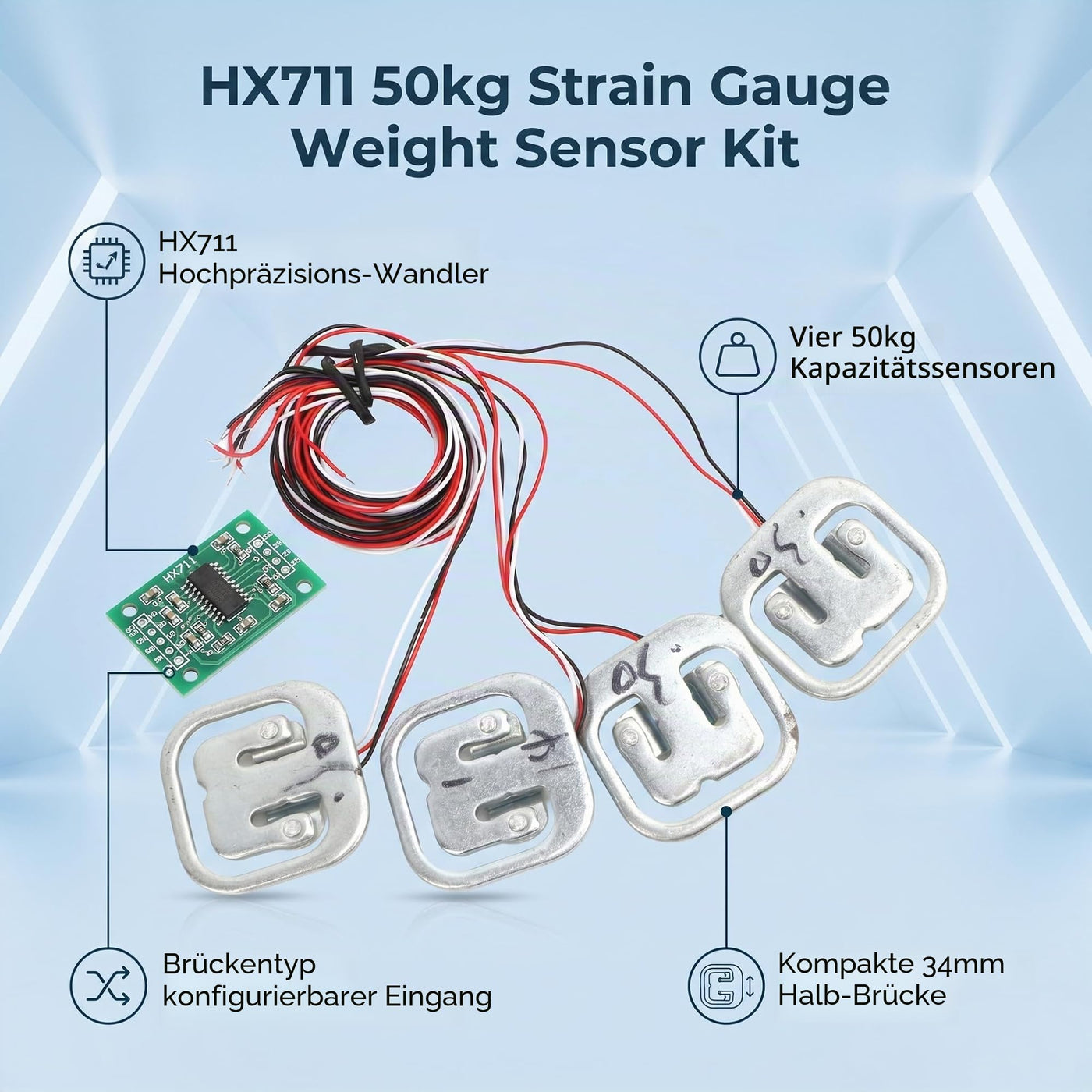

- This module uses a high-precision 24-bit A/D converter chip HX711, which is designed for high-precision electronic scales.
- Two analogue channel inputs with integrated programmable amplifier with 128x gain.
- The input circuit can be configured as a bridge sensor, the bridge pressure sensor modes (eg pressure, weighing), making it an ideal, high-precision, cost-effective scanning front-end module.
- The weighing sensor is accurate and sensitive with a small volume.
- The sensor is a set of half bridge strain gauges with three modes of use.
