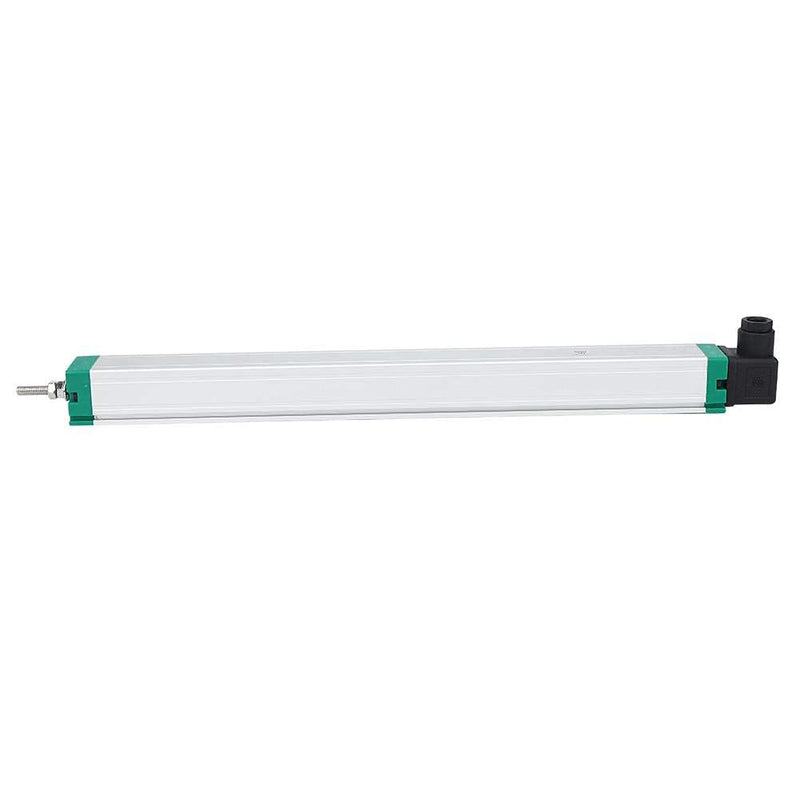

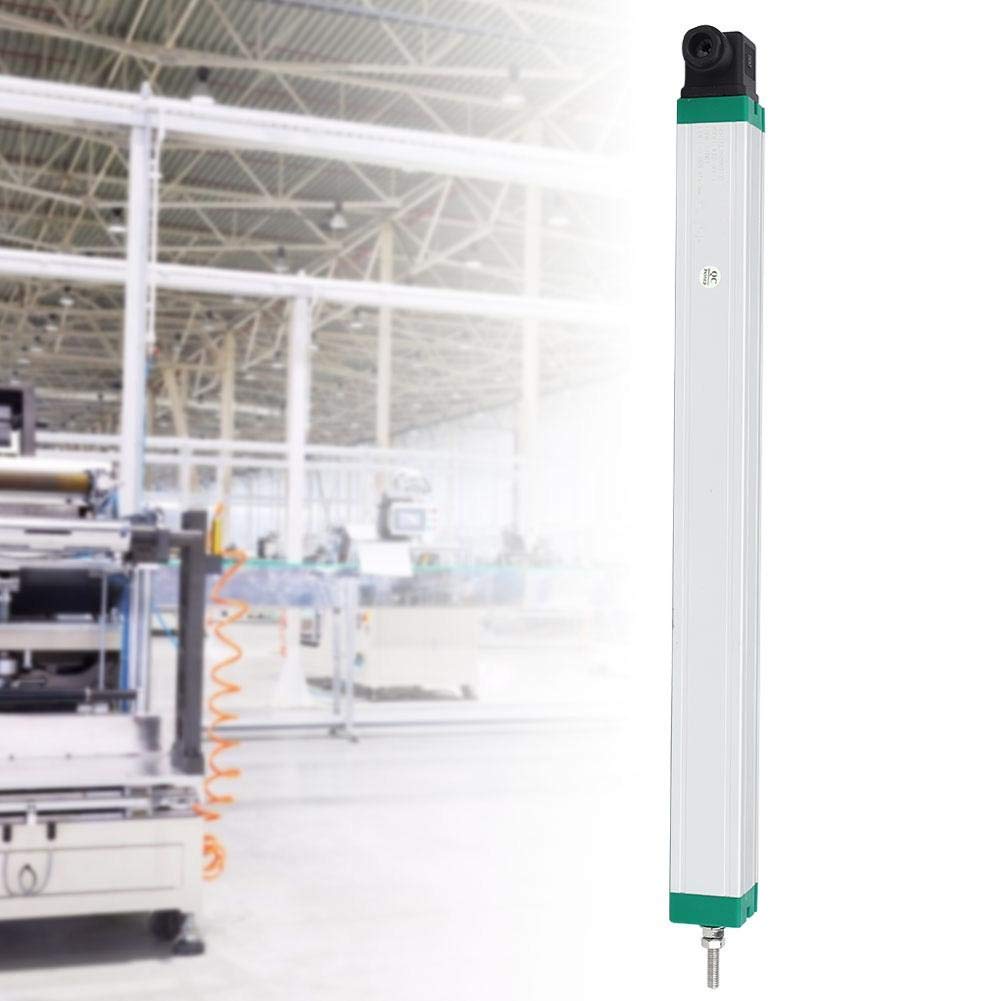

{"id":8115084361908,"title":"Linear Scale IP67 Electronic Linear Pop-up Rod Displacement Sensor for Injection Molding Stainless Steel Universal Position Sensor (KTC-300)","handle":"linear-scale-ip67-electronic-linear-pop-up-rod-displacement-sensor-for-injection-moulding-stainless-steel-universal-position-sensor-ktc-300","description":"\u003ch3\u003eLinear Scale IP67 Electronic Linear Pop-up Rod Displacement Sensor for Injection Molding Stainless Steel Universal Position Sensor (KTC-300)\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecification: Item Type: Displacement Sensor Optional models: KTC-100, KTC-300 Material: stainless steel. Electric stroke: range + 3 mm. Resolution\/Resolution: Infinite Continuous Analysis Repeatability: 0.01 mm. Normal working current of the sliding brush: ≤ 10 μA. The maximum current of the sliding brush in case of fault causes: 10 mA. Maximum permissible working voltage: 42 V. Effective temperature coefficient ratio of output voltage to input voltage: normally 5ppm\/K Insulation resistance (500 VDC, 50 Hz): ≥ 10 MΩ. Insulation strength (500 VAC, 50 Hz): ≤ 100 μA. Shell length (A): range + 78.5 mm. Mechanical stroke (B): range + 8 mm. Maximum load of the pull bar: 50 kg. Workforce: Horizontal direction \u0026lt;10N. Vertical direction ≤ 10 N. Vibration resistance standard: 5 ... 2000 Hz, Amax = 0.8 mm, Amax = 20 g. Shock Resistance Standard:50g 11ms Operating temperature range: -60 to +150 °C. Lifespan: \u0026gt; 100 × 10^6 times. Maximum operating speed: 10 m\/s, maximum operating acceleration 10 m\/s². Protection level: highest IP67 (DIN40500\/IEC529). Package list: 1 x path sensor. 1 x plug. 3 x accessories. 4 x screws.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003ePotentiometer principle: the sensor is highly compatible adopts the potentiometer principle with stable performance and fast response at 0-100% input voltage.\u003c\/li\u003e \u003cli\u003ePractical: this electronic ruler uses a plug type noiseless smooth rod resolution infinite repeatability 0.01 mm.\u003c\/li\u003e \u003cli\u003eGood Performance This displacement sensor supports high definition signal quality is compatible with all devices with wide range of applications.\u003c\/li\u003e \u003cli\u003eFeature The electronic ruler uses a connector of oxidation and corrosion resists reduces signal transmission loss.\u003c\/li\u003e \u003cli\u003eSafety: stainless steel with long service life, highest protection class IP67 for safe use in demanding environments.\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2026-09-02T12:23:32+10:00","created_at":"2026-09-01T21:57:40+10:00","vendor":"Fafeicy","type":"Linear Displacement Sensors","tags":["industrial_DE_Aug2026","translate"],"price":33500,"price_min":33500,"price_max":33500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374792306868,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B08BZRNNGN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Linear Scale IP67 Electronic Linear Pop-up Rod Displacement Sensor for Injection Molding Stainless Steel Universal Position Sensor (KTC-300)","public_title":null,"options":["Default Title"],"price":33500,"weight":411,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B08BZRNNGN.jpg?v=1788263862","\/\/auspowers.com\/cdn\/shop\/files\/61RavtMXLXL.jpg?v=1788263862","\/\/auspowers.com\/cdn\/shop\/files\/71LgF14f0wL.jpg?v=1788263862","\/\/auspowers.com\/cdn\/shop\/files\/61oAxT6hvOL.jpg?v=1788263862","\/\/auspowers.com\/cdn\/shop\/files\/51M3sfrAEtL.jpg?v=1788263862","\/\/auspowers.com\/cdn\/shop\/files\/51hkz6l6xFL.jpg?v=1788263863","\/\/auspowers.com\/cdn\/shop\/files\/51u-sTVZShL.jpg?v=1788263862","\/\/auspowers.com\/cdn\/shop\/files\/51VQmU5DfVL.jpg?v=1788263862","\/\/auspowers.com\/cdn\/shop\/files\/31uyM_bbxLS.jpg?v=1788263862"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B08BZRNNGN.jpg?v=1788263862","options":["Title"],"media":[{"alt":null,"id":33272019091636,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B08BZRNNGN.jpg?v=1788263862"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B08BZRNNGN.jpg?v=1788263862","width":1001},{"alt":null,"id":33272019124404,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61RavtMXLXL.jpg?v=1788263862"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61RavtMXLXL.jpg?v=1788263862","width":1001},{"alt":null,"id":33272019157172,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71LgF14f0wL.jpg?v=1788263862"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71LgF14f0wL.jpg?v=1788263862","width":1601},{"alt":null,"id":33272019189940,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61oAxT6hvOL.jpg?v=1788263862"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61oAxT6hvOL.jpg?v=1788263862","width":1601},{"alt":null,"id":33272019222708,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51M3sfrAEtL.jpg?v=1788263862"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51M3sfrAEtL.jpg?v=1788263862","width":1001},{"alt":null,"id":33272019255476,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51hkz6l6xFL.jpg?v=1788263863"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51hkz6l6xFL.jpg?v=1788263863","width":1001},{"alt":null,"id":33272019288244,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51u-sTVZShL.jpg?v=1788263862"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51u-sTVZShL.jpg?v=1788263862","width":1001},{"alt":null,"id":33272019321012,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51VQmU5DfVL.jpg?v=1788263862"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51VQmU5DfVL.jpg?v=1788263862","width":1001},{"alt":null,"id":33272019353780,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31uyM_bbxLS.jpg?v=1788263862"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31uyM_bbxLS.jpg?v=1788263862","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eLinear Scale IP67 Electronic Linear Pop-up Rod Displacement Sensor for Injection Molding Stainless Steel Universal Position Sensor (KTC-300)\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecification: Item Type: Displacement Sensor Optional models: KTC-100, KTC-300 Material: stainless steel. Electric stroke: range + 3 mm. Resolution\/Resolution: Infinite Continuous Analysis Repeatability: 0.01 mm. Normal working current of the sliding brush: ≤ 10 μA. The maximum current of the sliding brush in case of fault causes: 10 mA. Maximum permissible working voltage: 42 V. Effective temperature coefficient ratio of output voltage to input voltage: normally 5ppm\/K Insulation resistance (500 VDC, 50 Hz): ≥ 10 MΩ. Insulation strength (500 VAC, 50 Hz): ≤ 100 μA. Shell length (A): range + 78.5 mm. Mechanical stroke (B): range + 8 mm. Maximum load of the pull bar: 50 kg. Workforce: Horizontal direction \u0026lt;10N. Vertical direction ≤ 10 N. Vibration resistance standard: 5 ... 2000 Hz, Amax = 0.8 mm, Amax = 20 g. Shock Resistance Standard:50g 11ms Operating temperature range: -60 to +150 °C. Lifespan: \u0026gt; 100 × 10^6 times. Maximum operating speed: 10 m\/s, maximum operating acceleration 10 m\/s². Protection level: highest IP67 (DIN40500\/IEC529). Package list: 1 x path sensor. 1 x plug. 3 x accessories. 4 x screws.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003ePotentiometer principle: the sensor is highly compatible adopts the potentiometer principle with stable performance and fast response at 0-100% input voltage.\u003c\/li\u003e \u003cli\u003ePractical: this electronic ruler uses a plug type noiseless smooth rod resolution infinite repeatability 0.01 mm.\u003c\/li\u003e \u003cli\u003eGood Performance This displacement sensor supports high definition signal quality is compatible with all devices with wide range of applications.\u003c\/li\u003e \u003cli\u003eFeature The electronic ruler uses a connector of oxidation and corrosion resists reduces signal transmission loss.\u003c\/li\u003e \u003cli\u003eSafety: stainless steel with long service life, highest protection class IP67 for safe use in demanding environments.\u003c\/li\u003e \u003c\/ul\u003e"}
