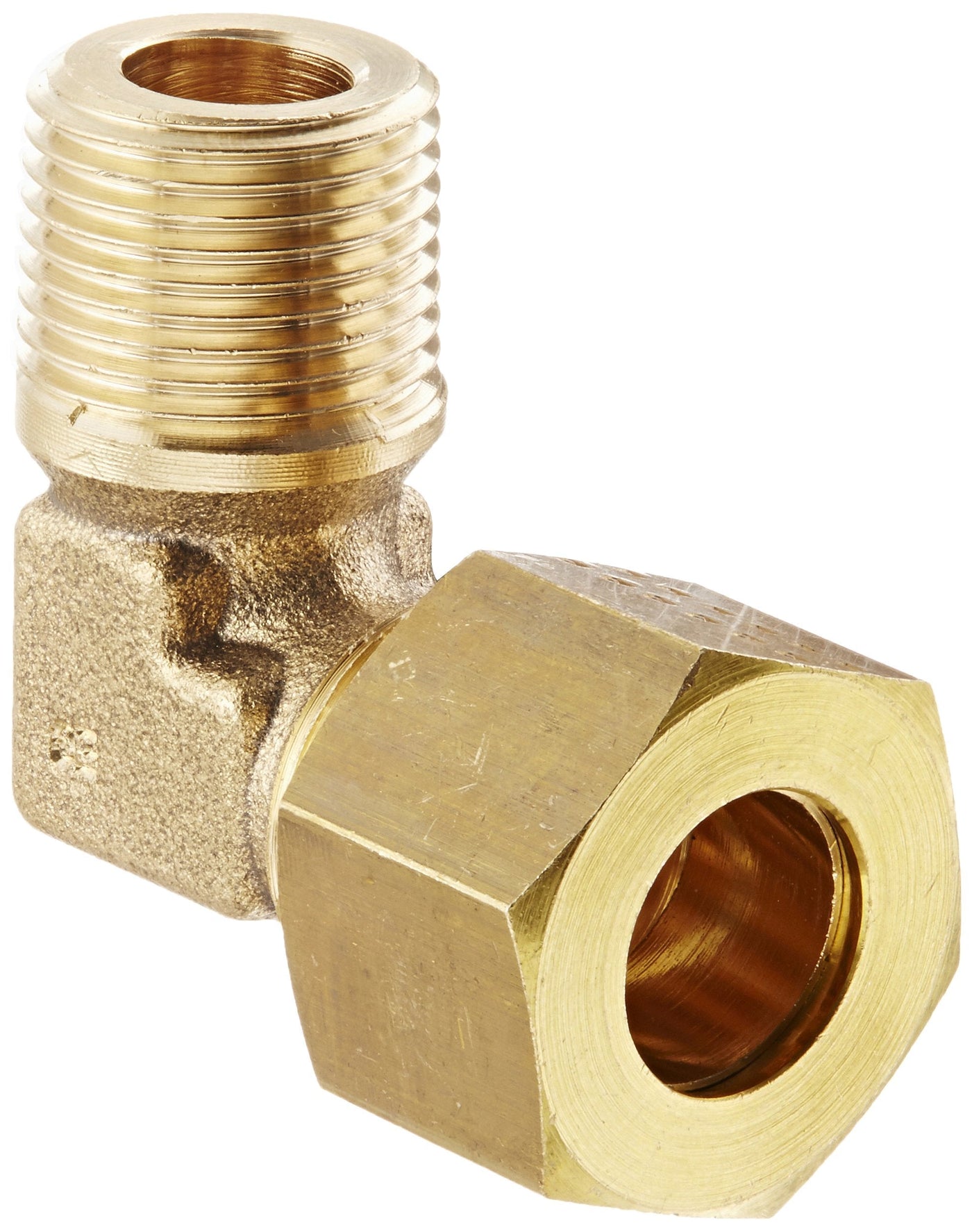

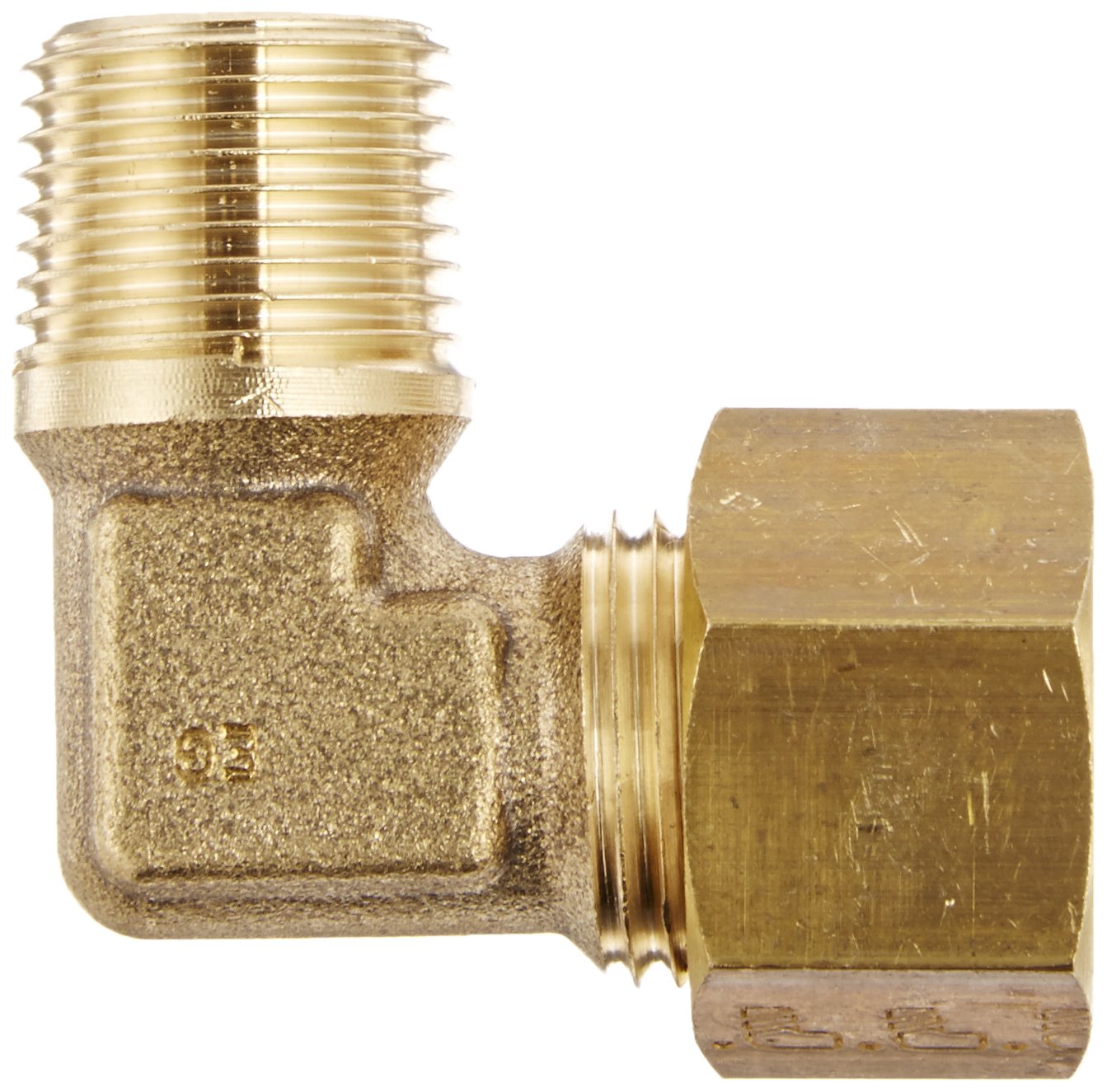

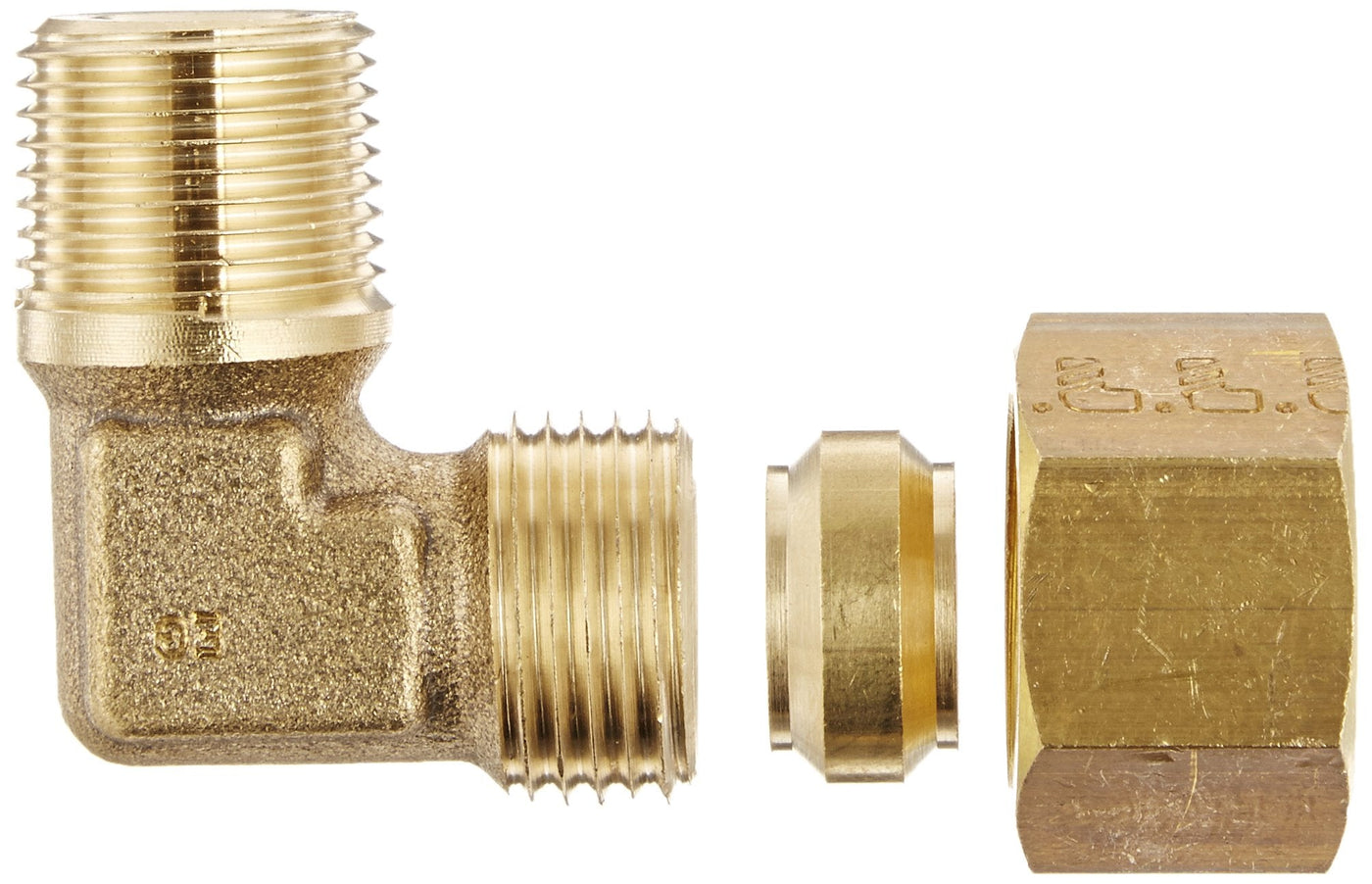

{"id":7143769735348,"title":"Legris 0109 12 17 Brass Compression Tube Fitting, 90 Degree Elbow, 12 mm Tube OD x 3\/8\" BSPT Male","handle":"legris-0109-12-17-brass-compression-tube-fitting-90-degree-elbow-12-mm-tube-od-x-3-8-bspt-male","description":"\u003ch3\u003eLegris 0109 12 17 Brass Compression Tube Fitting, 90 Degree Elbow, 12 mm Tube OD x 3\/8\" BSPT Male\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis Legris 0109 series 90-degree elbow is a metric brass compression tube\nfitting. The 90-degree male elbow fitting, or \"ell,\" connects a tube to a\nfemale threaded connection at a 90-degree angle. It has a female compression\ntube fitting with three-piece construction – nut, sleeve, and body with\nattached insert – on one end that connects to tubing for a leak-resistant seal\nin high-pressure, high-vacuum, and high-vibration applications and male\nBritish Standard Pipe Taper (BSPT) threads on the other for connecting to\nfemale threaded pipes. The BSPT threads create a tighter seal than straight\nthreads. This fitting is made of brass for corrosion resistance, ductility at\nhigh temperatures, and low magnetic permeability. Brass can be connected to\ncopper, brass, plastic, aluminum, and welded steel. The fitting has an\noperating temperature range of -40 to +100 degrees C (-40 to +212 degrees F).\nThis 90-degree elbow compression is suitable for use in water, oil, natural\ngas, and steam applications.Tube fittings are components used for connecting,\nbranching, terminating, and changing the direction of tubing in pneumatic and\nhydraulic systems. They are made of brass, stainless steel, PBT (polybutylene\nterephthalate), and other materials that resist corrosion and wear. Tube\nfittings have various types of connections, including threaded, welded,\nbarbed, and push-to-connect (also called one-touch). Push-to-connect\nconnections do not require tools or sealants. Tube fittings are used in\nvarious applications, including machine tools, airplane and truck controls,\nand automated production lines, among others.Parker Hannifin manufactures\nelectromechanical, hydraulic, and pneumatic motion technologies and systems\nfor fluid handling, filtration, sealing and shielding, climate control,\nprocess control, and aerospace applications. The company, founded in 1918, is\nheadquartered in Cleveland, OH.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e90-degree male elbow to connect a tube to a female threaded connection at a 90-degree angle\u003c\/li\u003e\n \u003cli\u003eFemale compression tube fitting on one end and male BSPT threads on the other\u003c\/li\u003e\n \u003cli\u003eBrass for corrosion resistance, ductility at high temperatures, and low magnetic permeability\u003c\/li\u003e\n \u003cli\u003eOperating temperature range of -40 to +100 degrees C (-40 to +212 degrees F)\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-26T16:57:58+10:00","created_at":"2022-05-26T16:58:03+10:00","vendor":"Parker Legris","type":"Push-to-Connect Fittings","tags":["industrial"],"price":10200,"price_min":10200,"price_max":10200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41529949585588,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B009PSVQRY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Legris 0109 12 17 Brass Compression Tube Fitting, 90 Degree Elbow, 12 mm Tube OD x 3\/8\" BSPT Male","public_title":null,"options":["Default Title"],"price":10200,"weight":68,"compare_at_price":null,"inventory_management":null,"barcode":"0444444444684","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B009PSVQRY.jpg?v=1653549999","\/\/auspowers.com\/cdn\/shop\/products\/71p8S6LoIwL.jpg?v=1653548283","\/\/auspowers.com\/cdn\/shop\/products\/81xVnv4OLNL.jpg?v=1653548283"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B009PSVQRY.jpg?v=1653549999","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Legris 0109 12 17 Brass Compression Tube Fitting, 90 Degree Elbow, 12 mm Tube OD x 3\/8\" BSPT Male ","id":25976348377268,"position":1,"preview_image":{"aspect_ratio":0.789,"height":2504,"width":1976,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B009PSVQRY.jpg?v=1653549999"},"aspect_ratio":0.789,"height":2504,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B009PSVQRY.jpg?v=1653549999","width":1976},{"alt":"[Australia - AusPower] - Legris 0109 12 17 Brass Compression Tube Fitting, 90 Degree Elbow, 12 mm Tube OD x 3\/8\" BSPT Male ","id":25976124637364,"position":2,"preview_image":{"aspect_ratio":1.014,"height":1325,"width":1343,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71p8S6LoIwL.jpg?v=1653548283"},"aspect_ratio":1.014,"height":1325,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71p8S6LoIwL.jpg?v=1653548283","width":1343},{"alt":"[Australia - AusPower] - Legris 0109 12 17 Brass Compression Tube Fitting, 90 Degree Elbow, 12 mm Tube OD x 3\/8\" BSPT Male ","id":25976124670132,"position":3,"preview_image":{"aspect_ratio":1.552,"height":1294,"width":2008,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81xVnv4OLNL.jpg?v=1653548283"},"aspect_ratio":1.552,"height":1294,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81xVnv4OLNL.jpg?v=1653548283","width":2008}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eLegris 0109 12 17 Brass Compression Tube Fitting, 90 Degree Elbow, 12 mm Tube OD x 3\/8\" BSPT Male\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis Legris 0109 series 90-degree elbow is a metric brass compression tube\nfitting. The 90-degree male elbow fitting, or \"ell,\" connects a tube to a\nfemale threaded connection at a 90-degree angle. It has a female compression\ntube fitting with three-piece construction – nut, sleeve, and body with\nattached insert – on one end that connects to tubing for a leak-resistant seal\nin high-pressure, high-vacuum, and high-vibration applications and male\nBritish Standard Pipe Taper (BSPT) threads on the other for connecting to\nfemale threaded pipes. The BSPT threads create a tighter seal than straight\nthreads. This fitting is made of brass for corrosion resistance, ductility at\nhigh temperatures, and low magnetic permeability. Brass can be connected to\ncopper, brass, plastic, aluminum, and welded steel. The fitting has an\noperating temperature range of -40 to +100 degrees C (-40 to +212 degrees F).\nThis 90-degree elbow compression is suitable for use in water, oil, natural\ngas, and steam applications.Tube fittings are components used for connecting,\nbranching, terminating, and changing the direction of tubing in pneumatic and\nhydraulic systems. They are made of brass, stainless steel, PBT (polybutylene\nterephthalate), and other materials that resist corrosion and wear. Tube\nfittings have various types of connections, including threaded, welded,\nbarbed, and push-to-connect (also called one-touch). Push-to-connect\nconnections do not require tools or sealants. Tube fittings are used in\nvarious applications, including machine tools, airplane and truck controls,\nand automated production lines, among others.Parker Hannifin manufactures\nelectromechanical, hydraulic, and pneumatic motion technologies and systems\nfor fluid handling, filtration, sealing and shielding, climate control,\nprocess control, and aerospace applications. The company, founded in 1918, is\nheadquartered in Cleveland, OH.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e90-degree male elbow to connect a tube to a female threaded connection at a 90-degree angle\u003c\/li\u003e\n \u003cli\u003eFemale compression tube fitting on one end and male BSPT threads on the other\u003c\/li\u003e\n \u003cli\u003eBrass for corrosion resistance, ductility at high temperatures, and low magnetic permeability\u003c\/li\u003e\n \u003cli\u003eOperating temperature range of -40 to +100 degrees C (-40 to +212 degrees F)\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
