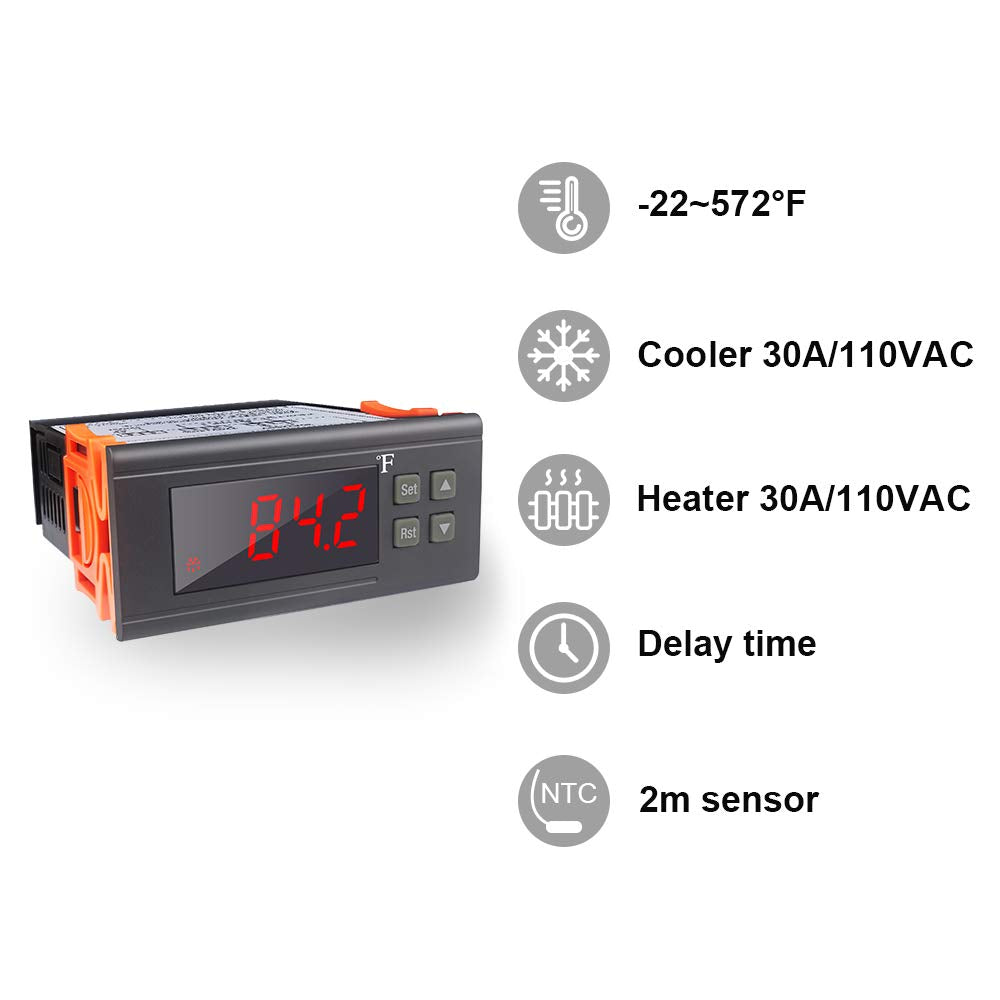

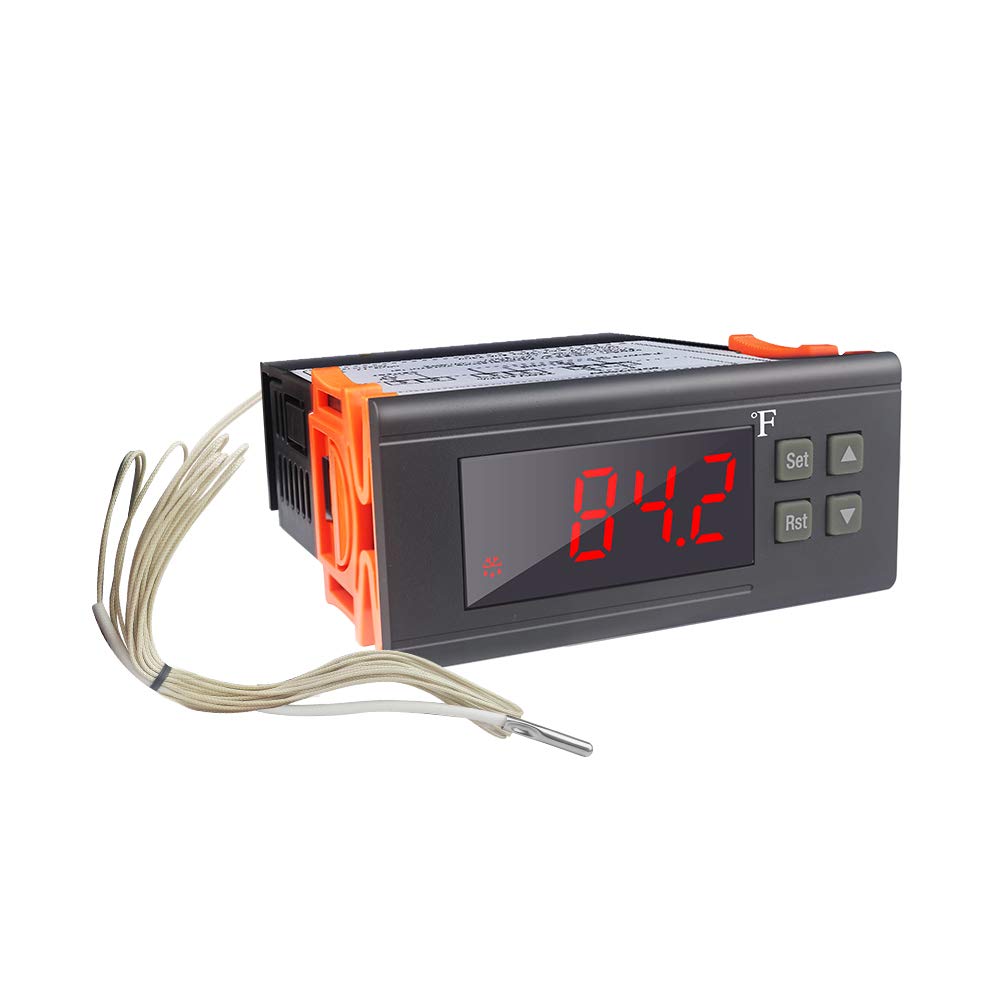

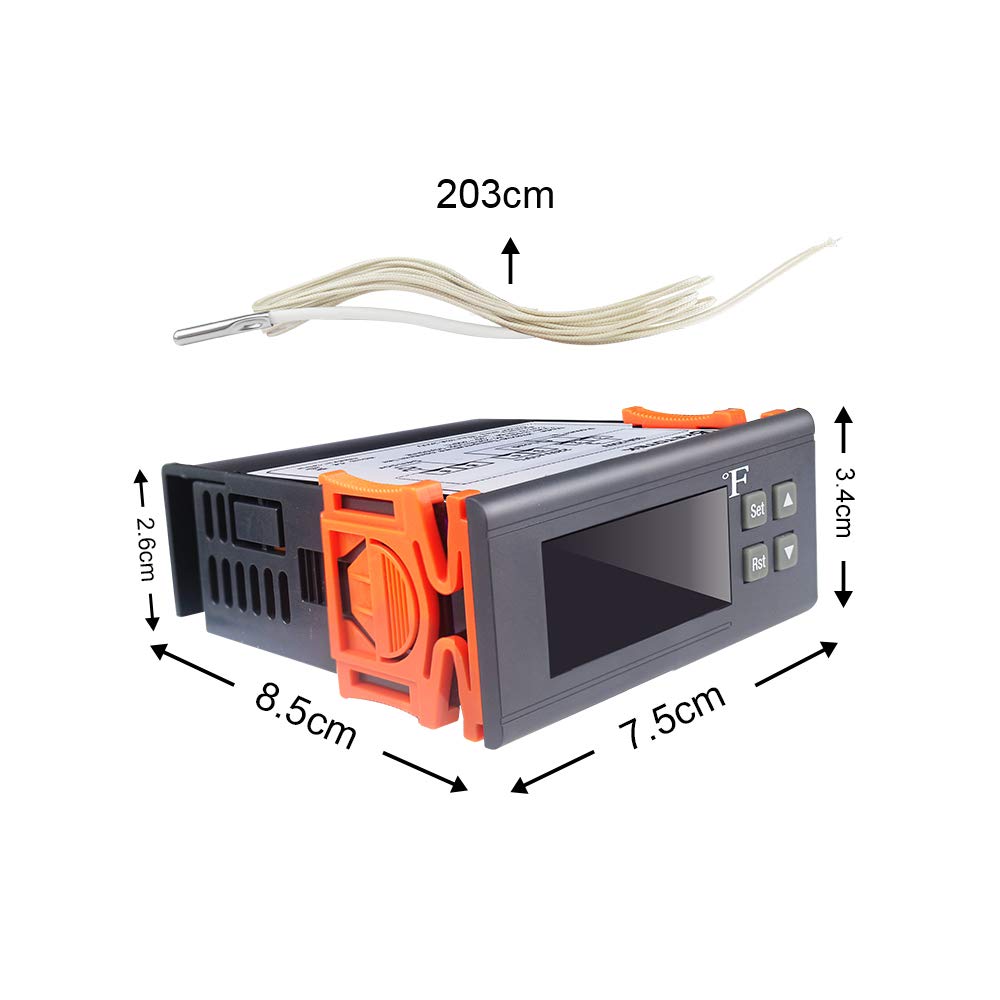

{"id":7165801693364,"title":"KT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile","handle":"kt8230-digital-temperature-controller-thermostat-regulator-120vac-30a-fahrenheit-22-572-heating-cooling-for-incubator-brooder-refrigerator-fermenter-greenhouse-reptile","description":"\u003ch3\u003eKT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications Power supply 120V AC+10% 50\/ 60hz\nTemperature control range: -22~572°F Input: 2m NTC sensor Output: one relay\n30A\/110VAC Accuracy:士1°F Consumption:≤3W Cutting size 71mm X 29mm Package\nContent 1 x Thermostat1 x English Manual KT8230 °F Temperature Controller The\ntemperature range can reach 572℉ . Output 30A relay.Control temperature by\nsetting mode, temperature set value and difference value.Support delay start\nand temperature calibration.Alarm when temp exceed temperature limit or sensor\nerror.All parameters setting can be saved after restart. Heating, Cooling mode\nCooling mode: Measured temperature ≥ setting temperature + differentialHeating\nMode: Measured temperature ≤ setting temperature - differential Read more Can\nbe used for domestic freezer, refrigerator,industrial chiller, steamer,\nindustrial equipment and other temperature control applications. Freezer\nGreenhouse\/Breeding Incubator Read more Error Code EE1 Sensor fault. Check if\nthe sensor is broken or poor contact. HH1 High temp. alarm . Measured\ntemperature exceed limit LL1 Low temp. alarm . Measured temperature exceed\nlimit Read more 2 Wire Connection Note Q: Why there is no output voltage？ A:\nThis is a relay temperature controller, There is no voltage output directly,\nyou need to connect additional power supply for the load, then it can turn\non\/off the load. Q: There is a way to calibrate when temperature gives error?\nA: Yes, In normal working status, press SET for 3 seconds to enter into\nsetting parameter mode. When display HC, press UP or DOWN button to switch\ncodes to CA ( -30.0°F～30.0°F ) Q: Why it does not turn off the light as\nsetting ? A: Please check if you set the value for PL, if PL≠0, the display\nwill flash, the cooler or heater only start to work after the time of PL. Q:\nWhy it only can be set in limited range, not as description -22~572℉ A: HS and\nLS can set the high and low limit of setting temperature: For example: if HS =\n+60, LS = -10, the setting temperature only can be set between -10~+60°F. so\nif you want to set a value beyond this range, please change HS and LS at\nfirst. KT8230 30A Temperature Controller KT3100 15A Thermostat Socket KT99 10A\nTemperature Controller KT100 10A Temperature Humidity Controller Temperature\nControl Range -22~572°F -72~176℉\/-40~120°C -58~248°F -58~176°F Humidity\ncontrol range 10~ 99%RH Output 30A, one Relay Output Max. 15A,one direct\noutput Max10A, two directly output each Max10A, two directly output each\nLength of cable 2m 3m 1.5m 1.5m Reset Function ✓ ✓ ✓ ✓ Temperature Calibration\nFunction -30.0°F～30.0°F -9.9~9.9℃\/℉ -30°F~30°F -30~30°F\/-30~30%RH\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWide temperature range.The range for KT8230 is -22~572F, This is a relay temperature controller, There is no voltage output directly, you need to connect additional power supply for the load, then it can be set by differential (1~80F) to turn on\/off the load, it is like a switch.\u003c\/li\u003e\n \u003cli\u003eOutput is 30A relay, more accurate.The temperature controller 120V can be used for big power equipment, like incubator, brooder, refrigerator,Fermenter,Greenhouse,etc. 1F accuracy to keep the temperature in desired range.\u003c\/li\u003e\n \u003cli\u003eSupport delay start function and temperature correction.The cooler and heater will delay to work if you set the delay time(PL: 0~7min) not 0, You can set depend on what you need. -30.0F~30.0F calibrate the temperature when there is error.\u003c\/li\u003e\n \u003cli\u003eSafe protection.Temperature Regulator will alarm when it exceed temperature limit or sensor error, alert you when something wrong happened. You can also set the low(LS) and high temperature limit(HS) to change the temperature range, LS \u0026lt; Setting Temperature \u0026lt; HS.\u003c\/li\u003e\n \u003cli\u003eSimple operation. All parameters setting can be saved after restart, you dont need to set the thermostat regulator when power off, or restart it from vacation. 2m NTC sensor allows more possibility for home\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-23T05:55:55+10:00","created_at":"2022-06-23T05:56:04+10:00","vendor":"KETOTEK","type":"Temperature Controllers","tags":["industrial"],"price":20400,"price_min":20400,"price_max":20400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41600704577716,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08Y587VB3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"KT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile","public_title":null,"options":["Default Title"],"price":20400,"weight":233,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B08Y587VB3.jpg?v=1655968330","\/\/auspowers.com\/cdn\/shop\/products\/51PQDkygn8L.jpg?v=1655927764","\/\/auspowers.com\/cdn\/shop\/products\/61qRAo241wL.jpg?v=1655927764","\/\/auspowers.com\/cdn\/shop\/products\/61H2v2l09pL.jpg?v=1655927764","\/\/auspowers.com\/cdn\/shop\/products\/51bE9Bos8sL.jpg?v=1655927764","\/\/auspowers.com\/cdn\/shop\/products\/51uOeKhIkuL.jpg?v=1655927764","\/\/auspowers.com\/cdn\/shop\/products\/51Z_aqZ3HyS.jpg?v=1655927764"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B08Y587VB3.jpg?v=1655968330","options":["Title"],"media":[{"alt":"[Australia - AusPower] - KT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile ","id":26257131110580,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B08Y587VB3.jpg?v=1655968330"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B08Y587VB3.jpg?v=1655968330","width":1000},{"alt":"[Australia - AusPower] - KT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile ","id":26250342465716,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51PQDkygn8L.jpg?v=1655927764"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51PQDkygn8L.jpg?v=1655927764","width":1000},{"alt":"[Australia - AusPower] - KT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile ","id":26250342498484,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61qRAo241wL.jpg?v=1655927764"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61qRAo241wL.jpg?v=1655927764","width":1000},{"alt":"[Australia - AusPower] - KT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile ","id":26250342531252,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61H2v2l09pL.jpg?v=1655927764"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61H2v2l09pL.jpg?v=1655927764","width":1000},{"alt":"[Australia - AusPower] - KT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile ","id":26250342564020,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51bE9Bos8sL.jpg?v=1655927764"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51bE9Bos8sL.jpg?v=1655927764","width":1000},{"alt":"[Australia - AusPower] - KT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile ","id":26250342596788,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51uOeKhIkuL.jpg?v=1655927764"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51uOeKhIkuL.jpg?v=1655927764","width":1000},{"alt":"[Australia - AusPower] - KT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile ","id":26250342629556,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51Z_aqZ3HyS.jpg?v=1655927764"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51Z_aqZ3HyS.jpg?v=1655927764","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eKT8230 Digital Temperature Controller Thermostat Regulator 120VAC 30A Fahrenheit -22~572℉ Heating Cooling for Incubator Brooder Refrigerator Fermenter Greenhouse Reptile\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications Power supply 120V AC+10% 50\/ 60hz\nTemperature control range: -22~572°F Input: 2m NTC sensor Output: one relay\n30A\/110VAC Accuracy:士1°F Consumption:≤3W Cutting size 71mm X 29mm Package\nContent 1 x Thermostat1 x English Manual KT8230 °F Temperature Controller The\ntemperature range can reach 572℉ . Output 30A relay.Control temperature by\nsetting mode, temperature set value and difference value.Support delay start\nand temperature calibration.Alarm when temp exceed temperature limit or sensor\nerror.All parameters setting can be saved after restart. Heating, Cooling mode\nCooling mode: Measured temperature ≥ setting temperature + differentialHeating\nMode: Measured temperature ≤ setting temperature - differential Read more Can\nbe used for domestic freezer, refrigerator,industrial chiller, steamer,\nindustrial equipment and other temperature control applications. Freezer\nGreenhouse\/Breeding Incubator Read more Error Code EE1 Sensor fault. Check if\nthe sensor is broken or poor contact. HH1 High temp. alarm . Measured\ntemperature exceed limit LL1 Low temp. alarm . Measured temperature exceed\nlimit Read more 2 Wire Connection Note Q: Why there is no output voltage？ A:\nThis is a relay temperature controller, There is no voltage output directly,\nyou need to connect additional power supply for the load, then it can turn\non\/off the load. Q: There is a way to calibrate when temperature gives error?\nA: Yes, In normal working status, press SET for 3 seconds to enter into\nsetting parameter mode. When display HC, press UP or DOWN button to switch\ncodes to CA ( -30.0°F～30.0°F ) Q: Why it does not turn off the light as\nsetting ? A: Please check if you set the value for PL, if PL≠0, the display\nwill flash, the cooler or heater only start to work after the time of PL. Q:\nWhy it only can be set in limited range, not as description -22~572℉ A: HS and\nLS can set the high and low limit of setting temperature: For example: if HS =\n+60, LS = -10, the setting temperature only can be set between -10~+60°F. so\nif you want to set a value beyond this range, please change HS and LS at\nfirst. KT8230 30A Temperature Controller KT3100 15A Thermostat Socket KT99 10A\nTemperature Controller KT100 10A Temperature Humidity Controller Temperature\nControl Range -22~572°F -72~176℉\/-40~120°C -58~248°F -58~176°F Humidity\ncontrol range 10~ 99%RH Output 30A, one Relay Output Max. 15A,one direct\noutput Max10A, two directly output each Max10A, two directly output each\nLength of cable 2m 3m 1.5m 1.5m Reset Function ✓ ✓ ✓ ✓ Temperature Calibration\nFunction -30.0°F～30.0°F -9.9~9.9℃\/℉ -30°F~30°F -30~30°F\/-30~30%RH\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWide temperature range.The range for KT8230 is -22~572F, This is a relay temperature controller, There is no voltage output directly, you need to connect additional power supply for the load, then it can be set by differential (1~80F) to turn on\/off the load, it is like a switch.\u003c\/li\u003e\n \u003cli\u003eOutput is 30A relay, more accurate.The temperature controller 120V can be used for big power equipment, like incubator, brooder, refrigerator,Fermenter,Greenhouse,etc. 1F accuracy to keep the temperature in desired range.\u003c\/li\u003e\n \u003cli\u003eSupport delay start function and temperature correction.The cooler and heater will delay to work if you set the delay time(PL: 0~7min) not 0, You can set depend on what you need. -30.0F~30.0F calibrate the temperature when there is error.\u003c\/li\u003e\n \u003cli\u003eSafe protection.Temperature Regulator will alarm when it exceed temperature limit or sensor error, alert you when something wrong happened. You can also set the low(LS) and high temperature limit(HS) to change the temperature range, LS \u0026lt; Setting Temperature \u0026lt; HS.\u003c\/li\u003e\n \u003cli\u003eSimple operation. All parameters setting can be saved after restart, you dont need to set the thermostat regulator when power off, or restart it from vacation. 2m NTC sensor allows more possibility for home\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
