JZK 2 x HLK-PM01 AC DC 220V to 5V Household Power Supply Module Power Supply Module

In Stock. Leaves warehouse within 2 - 3 business days

$113.00 AUD
Maximum quantity available reached.
Start shopping today and enjoy free shipping on every purchase.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

JZK 2 x HLK-PM01 AC DC 220V to 5V Household Power Supply Module Power Supply Module

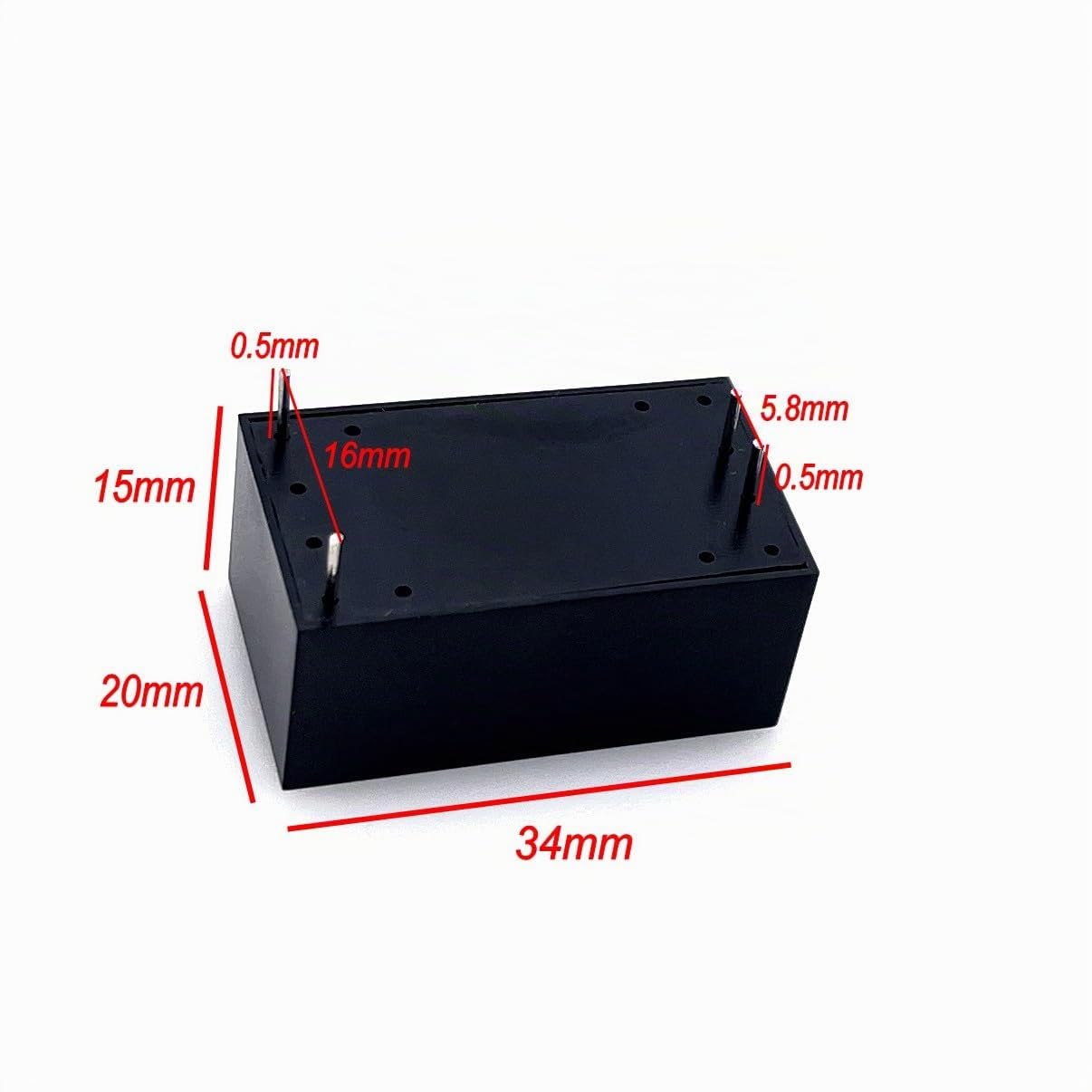

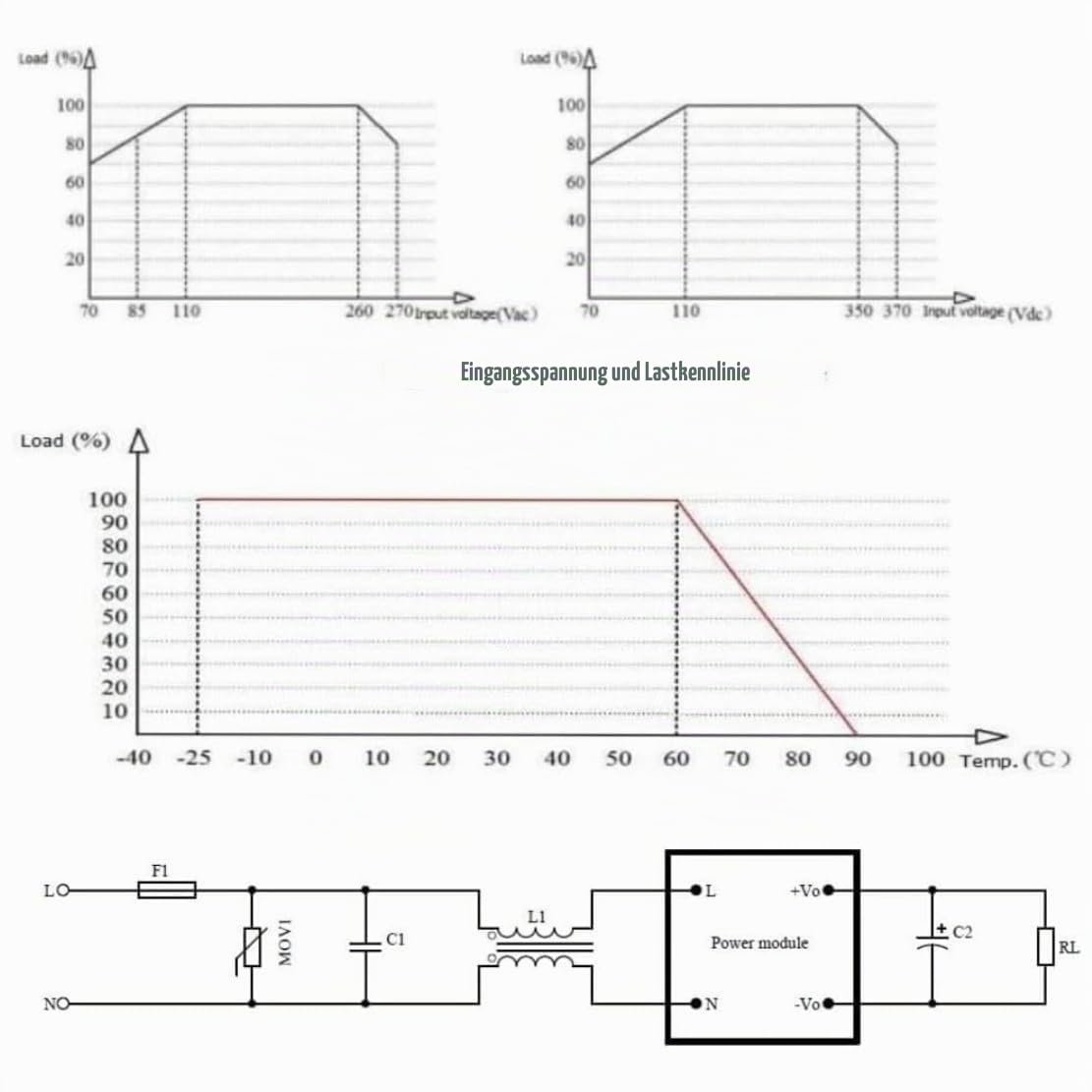

JZK 2 x HLK-PM01 DC 220V to 5V DC Power Module Insulated Power Module HLK-PM01 Mini size 3.2 x 2 x 1.5 cm (length x width x height). Weight: 21 g. Rated input voltage: 100-240 V AC. Input voltage range: 90~264V AC Maximum input current: ≤0.2A Input inrush current: ≤ 10 A. Maximum input voltage: ≤ 270 V AC. Slow start input: ≤ 50mS Input Low Voltage Efficiency: Wine=110V AC, Output Full Load ≥69% Input High Voltage Efficiency: Wine = 220VAC, Output Full Load ≥70% Long-term reliability: MTBF ≥ 100,000 H. Nominal output voltage without load: 5±0.1V DC. Output voltage at full load 5 ± 0.2 V DC. Short current maximum output current: ≥ 1000 mA. Long time maximum output current: ≥ 600 mA. Voltage regulation: ± 0.2% load control: ± 0.5%. Inverter and output noise: (MVp-p) ≤ 50 MV - Rated input voltage, output full load In an oscilloscope with 20 MHz bandwidth, the load side is tested with capacitors of 10 uF and 0.1 μF. Machine overflow: (Nominal input voltage, output plus 10% load) ≤ 5% VO. Output overcurrent protection - maximum load output of 150-200% A. Output short circuit protection. Note: Temperature rise regulation: At room temperature, the supply capacitor, main transformer and other internal surface temperature rises must not exceed 90°C. The temperature rise of the shell surface must not exceed 60 °C. Package includes: 2 x HLK-PM01 Power Module

Product Features

  • * Rated Input Voltage: AC 100-240V, 0.1A, 50-60Hz * Full voltage input (90-264V AC) * Output: DC 5V 0.6A * Part Number: HLK-PM01 3W
  • JZK 2 x HLK-PM01 DC Power Supply Module DC 220V to 5V Insulated Power Supply Module
  • The latest Hi-Link power module, suitable for intelligent switch control devices, small volume, low current, input voltage range, is the best choice for smart home.
  • Low ripple and low noise. Output overload short circuit protection function. High efficiency and power density. Low energy consumption. 100% load test
  • Meet the requirements of UL, CE, EMV and safety tests. Quality guarantee of at least 10 years.
