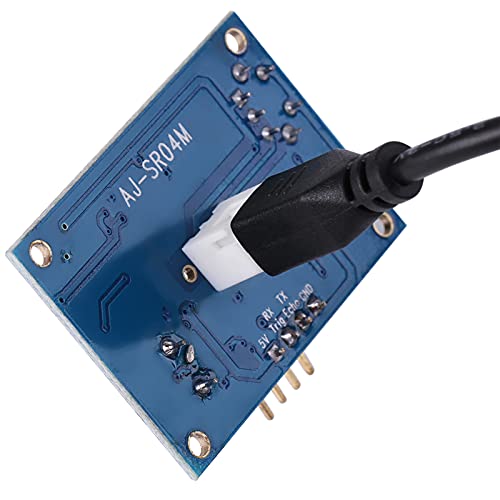

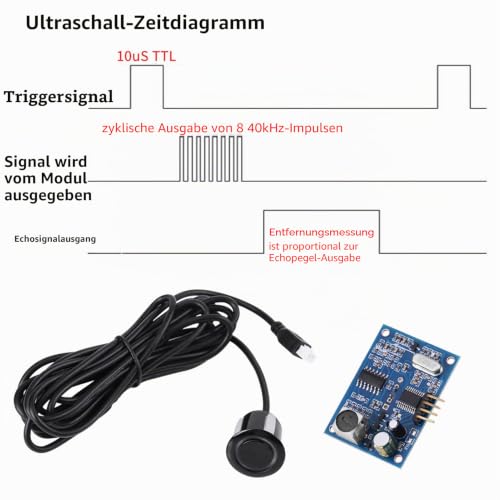

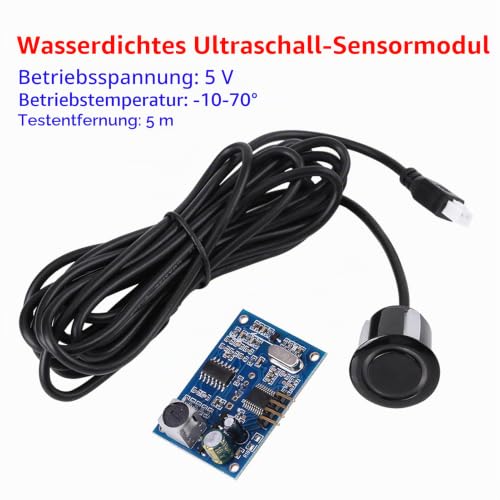

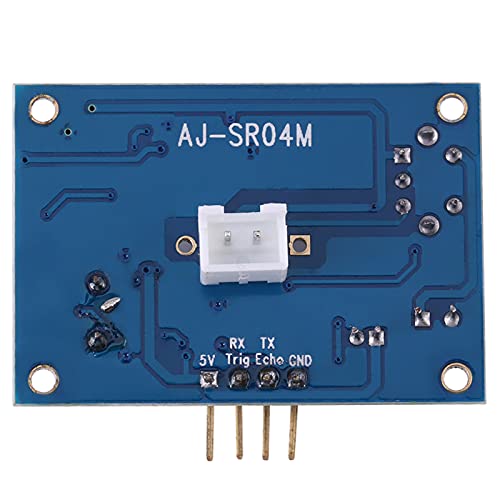

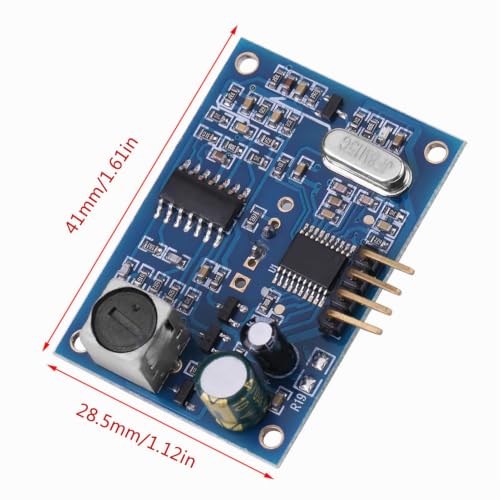

{"id":8115168018612,"title":"JSN‑SR04T 5V Level Sensor Ultrasonic Sensor Waterproof Ultrasonic Distance Sensor with 5 m Range for Horizontal Distance Measurement, Level Indicator Water Tank","handle":"jsn-sr04t-5v-level-sensor-ultrasonic-sensor-waterproof-ultrasonic-distance-sensor-with-5-m-range-for-horizontal-distance-measurement-level-indicator-water-tank","description":"\u003ch3\u003eJSN‑SR04T 5V Level Sensor Ultrasonic Sensor Waterproof Ultrasonic Distance Sensor with 5 m Range for Horizontal Distance Measurement, Level Indicator Water Tank\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOperating voltage: DC 5 V. Quiescent current: 5 mA. Total current: 30 mA. Wave\ntransmission frequency: 40 kHz. Max. Measuring distance: 5 m. Blind spot: 25\ncm. Size: 28.5 x 41 mm Resolution: approx. 0.5 cm. Angle: \u0026lt;50 degrees.\nOperating temperature: -10°C to 70°C. Storage temperature: -20°C to 80°C.\nWiring: +5 V (power supply positive). Trig (control) RX Echo (reception) TX\nGND (Power Supply Negative) Basic working principle: (1) With the IO port TRIG\nthe measuring distance is triggered, high level signal for at least 10 µS. (2)\nThe module automatically sends eight 40kHz square waves and automatically\ndetects if there is a return signal. (3) If there is a return signal, the IO\nport ECHO outputs a high level. The duration of the high level is the time\nfrom the transmission to the return of the ultrasonic wave. Test distance =\n(time for high level sound speed (340 m\/s))\/2; This module is easy to use. A\nport sends a high level of more than 10 µs and then waits for the output of\nthe high level at the receiving port. The timer is activated as soon as an\noutput occurs, and reads the time when this port reaches a low level, which is\nthe time of this measurement. Use the time to calculate the distance. Through\ncontinuous cycle measurement, you can achieve your mobile readings. The\nultrasonic time chart shows that you only need to provide a pulse trigger\nsignal of more than 10 µs. The module inside sends eight 40 kHz cycle levels\nand detects the return wave. Output an echo signal once the return signal has\nbeen detected. The pulse width of the echo signal is proportional to the\nmeasured distance. Therefore, calculate the distance with the interval between\nsending the signal and receiving the echo signal. Formula: µS\/58 = cm or\nµS\/148 = inches.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh measurement accuracy: the JSN-SR04T ultrasonic sensor delivers precise distance measurements with a resolution of approx. 0.5 cm and a maximum range of 5 m. This ultrasonic sensor is ideal for applications that require accurate and reliable measurement data - perfect as an electronic sensor for industrial control systems. Delivery note: random delivery of new and old versions. AJSR04M is fully compatible with JSNSR04T.\u003c\/li\u003e\n \u003cli\u003eWATERPROOF DESIGN: Thanks to the integrated, wire-encapsulated housing, this Ultrasonic Distance Sensor Module is fully waterproof and suitable for harsh environments. The JSN-SR04T works reliably at temperatures from -10C to 70C - ideal for outdoor applications and humid environments\u003c\/li\u003e\n \u003cli\u003eLow power consumption: With an operating voltage of only 5 V DC and a total current consumption of only 30 mA, this ultrasonic sensor is particularly energy efficient. The ultrasonic sensor is therefore perfect for battery-operated applications and environmentally conscious projects\u003c\/li\u003e\n \u003cli\u003eEASY INTEGRATION: The JSN-SR04T module can be easily integrated into existing systems thanks to the simple trigger echo principle. The electronic sensor requires only a short trigger signal of \u0026gt;10S and delivers precise distance values - plug \u0026amp; play for your level indicator water tank projects\u003c\/li\u003e\n \u003cli\u003eVersatile applications: this ultrasonic sensor module is ideal for level measurement in tanks, obstacle avoidance in robots, automatic control systems and safety applications. The ultrasonic distance sensor is the ideal solution for anyone who needs a reliable and waterproof distance sensor\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:57:13+10:00","created_at":"2026-09-01T22:56:31+10:00","vendor":"CYTGOUPER","type":"Ultrasonic Proximity Sensors","tags":["industrial_DE_Aug2026"],"price":10900,"price_min":10900,"price_max":10900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374884548788,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DK54MMT5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JSN‑SR04T 5V Level Sensor Ultrasonic Sensor Waterproof Ultrasonic Distance Sensor with 5 m Range for Horizontal Distance Measurement, Level Indicator Water Tank","public_title":null,"options":["Default Title"],"price":10900,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":"CYTGOUPERoip49y1xzd","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0DK54MMT5.jpg?v=1788267394","\/\/auspowers.com\/cdn\/shop\/files\/41FSFXxNU5L.jpg?v=1788267394","\/\/auspowers.com\/cdn\/shop\/files\/414qKpAXlLL.jpg?v=1788267394","\/\/auspowers.com\/cdn\/shop\/files\/51TiI8jxi1L.jpg?v=1788267394","\/\/auspowers.com\/cdn\/shop\/files\/41-gNcMmzzL.jpg?v=1788267393","\/\/auspowers.com\/cdn\/shop\/files\/41ggKnWCezL.jpg?v=1788267394","\/\/auspowers.com\/cdn\/shop\/files\/51Q8P5VFGrL.jpg?v=1788267394"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0DK54MMT5.jpg?v=1788267394","options":["Title"],"media":[{"alt":null,"id":33272506122420,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DK54MMT5.jpg?v=1788267394"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DK54MMT5.jpg?v=1788267394","width":500},{"alt":null,"id":33272506155188,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41FSFXxNU5L.jpg?v=1788267394"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41FSFXxNU5L.jpg?v=1788267394","width":500},{"alt":null,"id":33272506187956,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/414qKpAXlLL.jpg?v=1788267394"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/414qKpAXlLL.jpg?v=1788267394","width":500},{"alt":null,"id":33272506220724,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51TiI8jxi1L.jpg?v=1788267394"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51TiI8jxi1L.jpg?v=1788267394","width":500},{"alt":null,"id":33272506253492,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41-gNcMmzzL.jpg?v=1788267393"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41-gNcMmzzL.jpg?v=1788267393","width":500},{"alt":null,"id":33272506286260,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41ggKnWCezL.jpg?v=1788267394"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41ggKnWCezL.jpg?v=1788267394","width":500},{"alt":null,"id":33272506319028,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Q8P5VFGrL.jpg?v=1788267394"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Q8P5VFGrL.jpg?v=1788267394","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eJSN‑SR04T 5V Level Sensor Ultrasonic Sensor Waterproof Ultrasonic Distance Sensor with 5 m Range for Horizontal Distance Measurement, Level Indicator Water Tank\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOperating voltage: DC 5 V. Quiescent current: 5 mA. Total current: 30 mA. Wave\ntransmission frequency: 40 kHz. Max. Measuring distance: 5 m. Blind spot: 25\ncm. Size: 28.5 x 41 mm Resolution: approx. 0.5 cm. Angle: \u0026lt;50 degrees.\nOperating temperature: -10°C to 70°C. Storage temperature: -20°C to 80°C.\nWiring: +5 V (power supply positive). Trig (control) RX Echo (reception) TX\nGND (Power Supply Negative) Basic working principle: (1) With the IO port TRIG\nthe measuring distance is triggered, high level signal for at least 10 µS. (2)\nThe module automatically sends eight 40kHz square waves and automatically\ndetects if there is a return signal. (3) If there is a return signal, the IO\nport ECHO outputs a high level. The duration of the high level is the time\nfrom the transmission to the return of the ultrasonic wave. Test distance =\n(time for high level sound speed (340 m\/s))\/2; This module is easy to use. A\nport sends a high level of more than 10 µs and then waits for the output of\nthe high level at the receiving port. The timer is activated as soon as an\noutput occurs, and reads the time when this port reaches a low level, which is\nthe time of this measurement. Use the time to calculate the distance. Through\ncontinuous cycle measurement, you can achieve your mobile readings. The\nultrasonic time chart shows that you only need to provide a pulse trigger\nsignal of more than 10 µs. The module inside sends eight 40 kHz cycle levels\nand detects the return wave. Output an echo signal once the return signal has\nbeen detected. The pulse width of the echo signal is proportional to the\nmeasured distance. Therefore, calculate the distance with the interval between\nsending the signal and receiving the echo signal. Formula: µS\/58 = cm or\nµS\/148 = inches.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh measurement accuracy: the JSN-SR04T ultrasonic sensor delivers precise distance measurements with a resolution of approx. 0.5 cm and a maximum range of 5 m. This ultrasonic sensor is ideal for applications that require accurate and reliable measurement data - perfect as an electronic sensor for industrial control systems. Delivery note: random delivery of new and old versions. AJSR04M is fully compatible with JSNSR04T.\u003c\/li\u003e\n \u003cli\u003eWATERPROOF DESIGN: Thanks to the integrated, wire-encapsulated housing, this Ultrasonic Distance Sensor Module is fully waterproof and suitable for harsh environments. The JSN-SR04T works reliably at temperatures from -10C to 70C - ideal for outdoor applications and humid environments\u003c\/li\u003e\n \u003cli\u003eLow power consumption: With an operating voltage of only 5 V DC and a total current consumption of only 30 mA, this ultrasonic sensor is particularly energy efficient. The ultrasonic sensor is therefore perfect for battery-operated applications and environmentally conscious projects\u003c\/li\u003e\n \u003cli\u003eEASY INTEGRATION: The JSN-SR04T module can be easily integrated into existing systems thanks to the simple trigger echo principle. The electronic sensor requires only a short trigger signal of \u0026gt;10S and delivers precise distance values - plug \u0026amp; play for your level indicator water tank projects\u003c\/li\u003e\n \u003cli\u003eVersatile applications: this ultrasonic sensor module is ideal for level measurement in tanks, obstacle avoidance in robots, automatic control systems and safety applications. The ultrasonic distance sensor is the ideal solution for anyone who needs a reliable and waterproof distance sensor\u003c\/li\u003e\n \u003c\/ul\u003e"}
