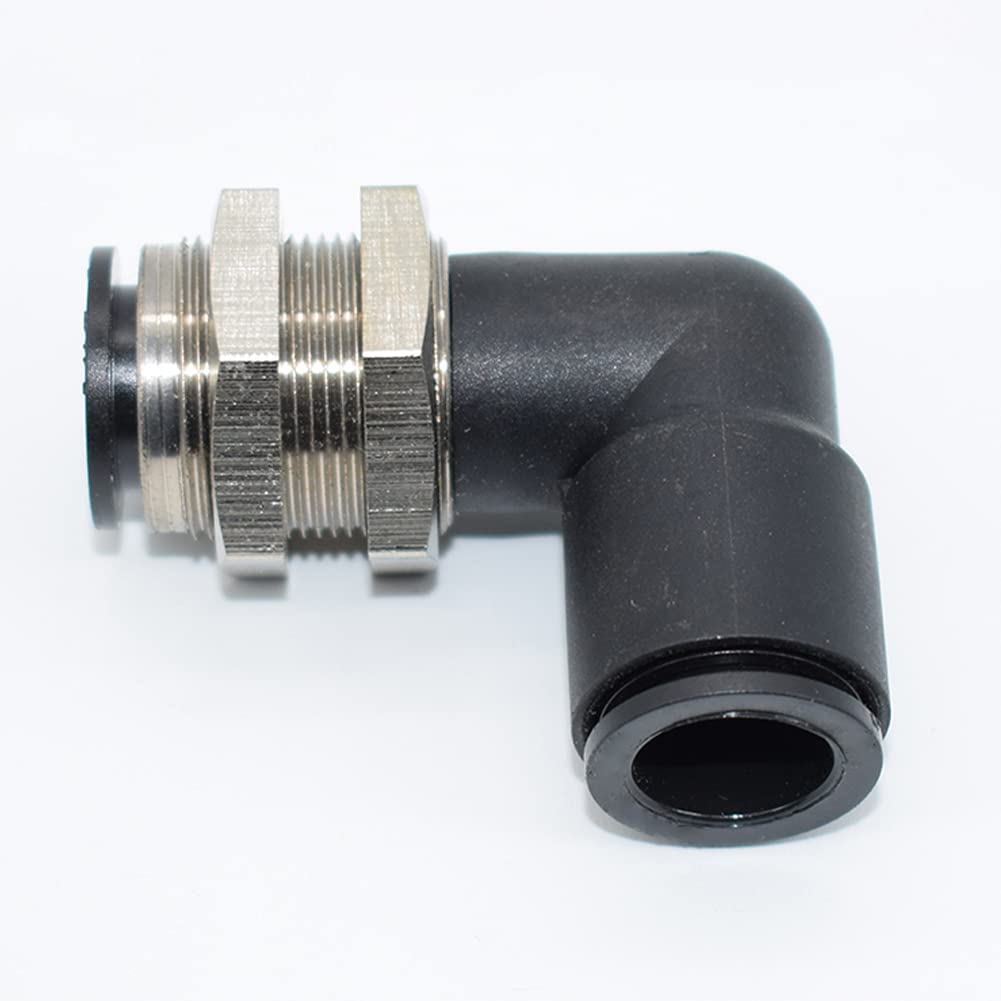

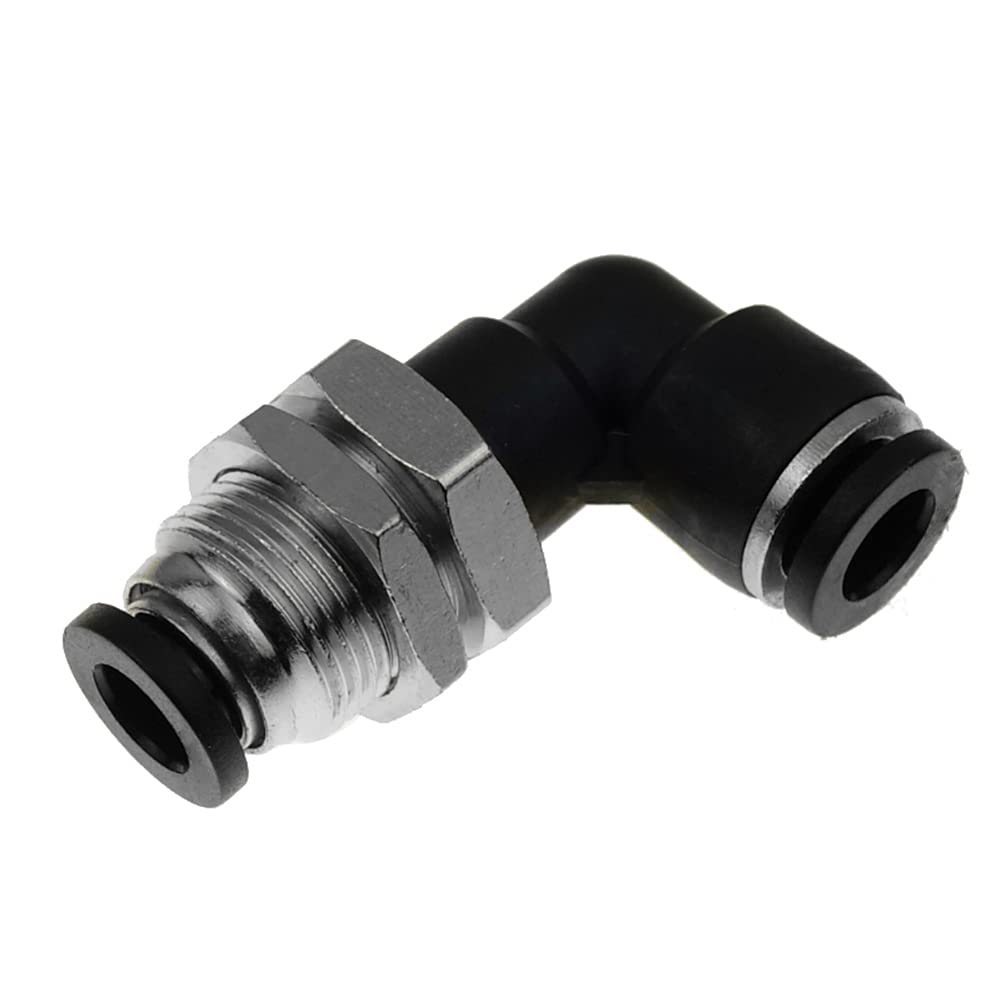

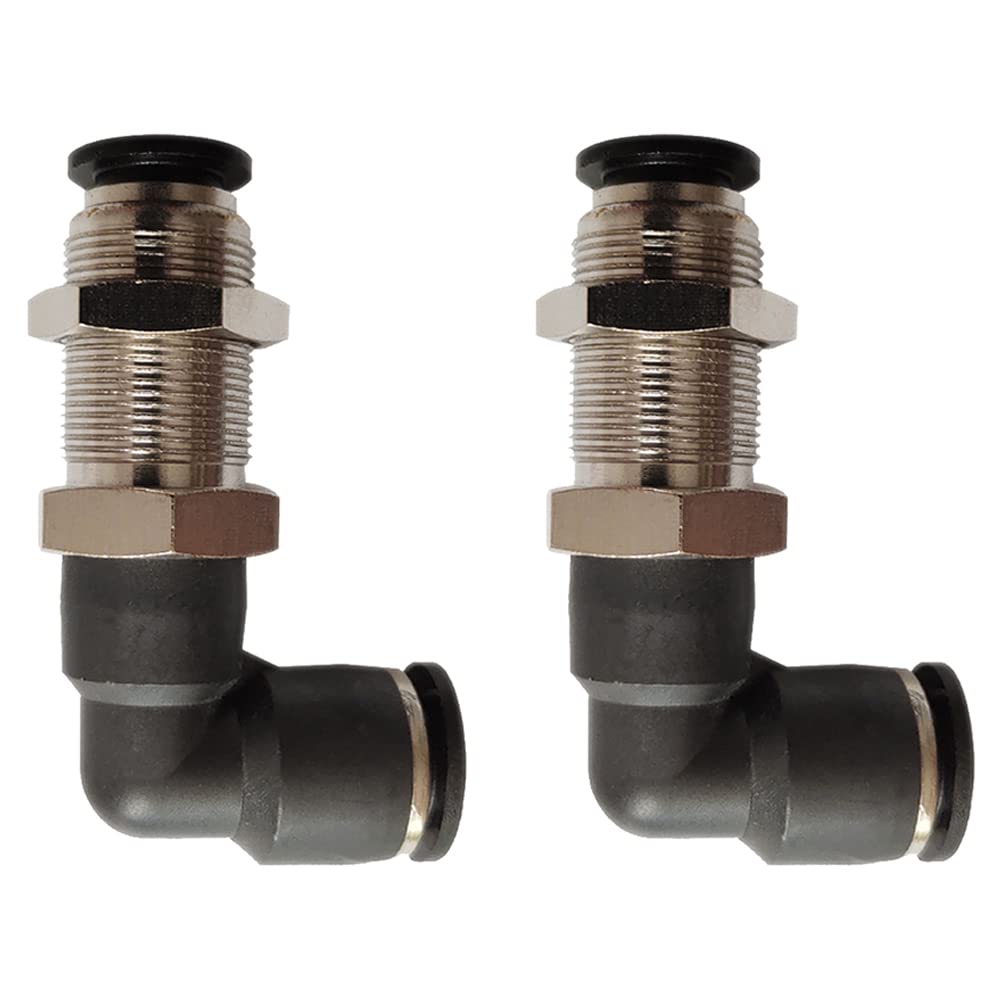

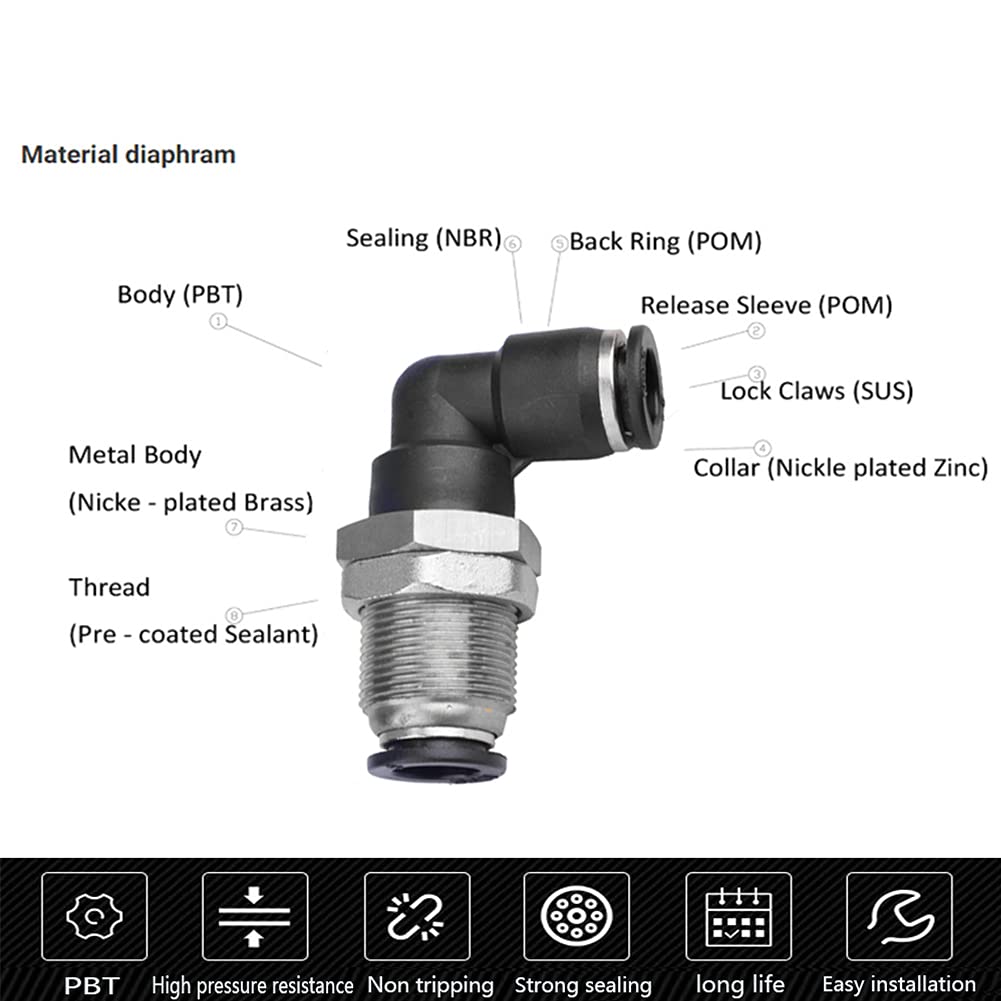

{"id":7143746535604,"title":"Jienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting 1\/2\" OD","handle":"jienk-2packs-bulkhead-elbow-1-2-x-1-2-tube-od-push-to-connect-tube-fitting-plm-1-2-bulkhead-90-degree-elbow-pneumatic-quick-connect-air-fitting-1-2-od","description":"\u003ch3\u003eJienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBulkhead 90-degree union elbow to connect two tubes through a panel and change\ntubing direction by 90 degrees. Specifications： Shape:Elbow Body Material:\nNickel Plated Brass Release Button Material: POM Gripping Ring Material:\nStainless Steel Fluid type: Air, Vacuum Max Working Pressure:1.32Mpa Operating\nPressure: 0~1Mpa(0~145Psi) Negative Pressure: -29.5\"Hg(-750mm Hg) Operating\nTemperature Range: 0-60℃(32～140°F) Applicable Tube:PU tube, Nylon tube , Soft\nPE tube Fits for Tube OD: 1\/2 inch Package Included： 2 x Bulkhead Elbow Push\nto Connect Fittings Notification:(Warnings) Do not use fittings with media\nother than air. Avoid contact with fire sources. Avoid installing with tubing\nunder tension or with excessive bends. Do not use the product where weld\nspatters occur at places where there is excessive rotation or vibration of the\nfittings. Do not use the product where it is directly exposed to fluids such\nas cutting oil, lurbricating oil, and coolant oil. Do not use It in places\nwhere metal powder or sand dust is mixed, such as adhesion of other materials\nmay cause poor work or leakage.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eBulkhead DesignPneumatic Fittings is mainly used for air piping, pneumatic tools, do not need joint tools can realize the pipeline connecting or disconnecting the link. Excellent choice for through wall application.\u003c\/li\u003e\n \u003cli\u003eDurableThe body made of strong thermoplastic (PBT) housings and the ferrule adopts zinc alloy. Operating pressure 0~145 Psi, high pressure resistance, corrosion resistance and a long service life.\u003c\/li\u003e\n \u003cli\u003ePush LockQuick connect fittings easy to install and remove. Just one touch to connect the tube. The release ring adopts ellipse design, removed conveniently.\u003c\/li\u003e\n \u003cli\u003eConvenience360rotation. After installation, the tube direction can be changed easily. Help a lot with the alignment when piping the air line.\u003c\/li\u003e\n \u003cli\u003eApplicationWorking temperature range: 32~140F. Most commonly used in the field for low-pressure hydraulic and pneumatic systems such as Shop Air, General Industrial, Maintenance and Automotive Assembly, Aircraft Controls, Printing, Packaging and Textile. As well as moving parts such as air ride, air horns and air suspension system.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-26T16:20:50+10:00","created_at":"2022-05-26T16:20:59+10:00","vendor":"Jienk","type":"Push-to-Connect Fittings","tags":["industrial"],"price":13800,"price_min":13800,"price_max":13800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41529878511796,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09TKG8QX2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Jienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting 1\/2\" OD","public_title":null,"options":["Default Title"],"price":13800,"weight":80,"compare_at_price":null,"inventory_management":null,"barcode":"8250207229823","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B09TKG8QX2.jpg?v=1653548471","\/\/auspowers.com\/cdn\/shop\/products\/51I8LQ3l4iS.jpg?v=1653546059","\/\/auspowers.com\/cdn\/shop\/products\/51ZRbYddlwS.jpg?v=1653546059","\/\/auspowers.com\/cdn\/shop\/products\/41y1VCRI1wL.jpg?v=1653546059","\/\/auspowers.com\/cdn\/shop\/products\/61ikiA3Wp9S.jpg?v=1653546059","\/\/auspowers.com\/cdn\/shop\/products\/51ZsqyceYsS.jpg?v=1653546059","\/\/auspowers.com\/cdn\/shop\/products\/51-_2UrtkIS.jpg?v=1653546059","\/\/auspowers.com\/cdn\/shop\/products\/61U7WNZhrCL.jpg?v=1653546059"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B09TKG8QX2.jpg?v=1653548471","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Jienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting 1\/2\" OD ","id":25976142168244,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B09TKG8QX2.jpg?v=1653548471"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B09TKG8QX2.jpg?v=1653548471","width":1001},{"alt":"[Australia - AusPower] - Jienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting 1\/2\" OD ","id":25975872028852,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51I8LQ3l4iS.jpg?v=1653546059"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51I8LQ3l4iS.jpg?v=1653546059","width":1001},{"alt":"[Australia - AusPower] - Jienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting 1\/2\" OD ","id":25975872061620,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51ZRbYddlwS.jpg?v=1653546059"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51ZRbYddlwS.jpg?v=1653546059","width":1001},{"alt":"[Australia - AusPower] - Jienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting 1\/2\" OD ","id":25975872094388,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41y1VCRI1wL.jpg?v=1653546059"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41y1VCRI1wL.jpg?v=1653546059","width":1001},{"alt":"[Australia - AusPower] - Jienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting 1\/2\" OD ","id":25975872127156,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61ikiA3Wp9S.jpg?v=1653546059"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61ikiA3Wp9S.jpg?v=1653546059","width":1001},{"alt":"[Australia - AusPower] - Jienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting 1\/2\" OD ","id":25975872159924,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51ZsqyceYsS.jpg?v=1653546059"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51ZsqyceYsS.jpg?v=1653546059","width":1001},{"alt":"[Australia - AusPower] - Jienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting 1\/2\" OD ","id":25975872192692,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51-_2UrtkIS.jpg?v=1653546059"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51-_2UrtkIS.jpg?v=1653546059","width":1001},{"alt":"[Australia - AusPower] - Jienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting 1\/2\" OD ","id":25975872225460,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61U7WNZhrCL.jpg?v=1653546059"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61U7WNZhrCL.jpg?v=1653546059","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eJienk 2Packs Bulkhead Elbow 1\/2\" x 1\/2\" Tube OD Push to Connect Tube Fitting, PLM-1\/2 Bulkhead 90 Degree Elbow Pneumatic Quick Connect Air Fitting\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBulkhead 90-degree union elbow to connect two tubes through a panel and change\ntubing direction by 90 degrees. Specifications： Shape:Elbow Body Material:\nNickel Plated Brass Release Button Material: POM Gripping Ring Material:\nStainless Steel Fluid type: Air, Vacuum Max Working Pressure:1.32Mpa Operating\nPressure: 0~1Mpa(0~145Psi) Negative Pressure: -29.5\"Hg(-750mm Hg) Operating\nTemperature Range: 0-60℃(32～140°F) Applicable Tube:PU tube, Nylon tube , Soft\nPE tube Fits for Tube OD: 1\/2 inch Package Included： 2 x Bulkhead Elbow Push\nto Connect Fittings Notification:(Warnings) Do not use fittings with media\nother than air. Avoid contact with fire sources. Avoid installing with tubing\nunder tension or with excessive bends. Do not use the product where weld\nspatters occur at places where there is excessive rotation or vibration of the\nfittings. Do not use the product where it is directly exposed to fluids such\nas cutting oil, lurbricating oil, and coolant oil. Do not use It in places\nwhere metal powder or sand dust is mixed, such as adhesion of other materials\nmay cause poor work or leakage.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eBulkhead DesignPneumatic Fittings is mainly used for air piping, pneumatic tools, do not need joint tools can realize the pipeline connecting or disconnecting the link. Excellent choice for through wall application.\u003c\/li\u003e\n \u003cli\u003eDurableThe body made of strong thermoplastic (PBT) housings and the ferrule adopts zinc alloy. Operating pressure 0~145 Psi, high pressure resistance, corrosion resistance and a long service life.\u003c\/li\u003e\n \u003cli\u003ePush LockQuick connect fittings easy to install and remove. Just one touch to connect the tube. The release ring adopts ellipse design, removed conveniently.\u003c\/li\u003e\n \u003cli\u003eConvenience360rotation. After installation, the tube direction can be changed easily. Help a lot with the alignment when piping the air line.\u003c\/li\u003e\n \u003cli\u003eApplicationWorking temperature range: 32~140F. Most commonly used in the field for low-pressure hydraulic and pneumatic systems such as Shop Air, General Industrial, Maintenance and Automotive Assembly, Aircraft Controls, Printing, Packaging and Textile. As well as moving parts such as air ride, air horns and air suspension system.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
