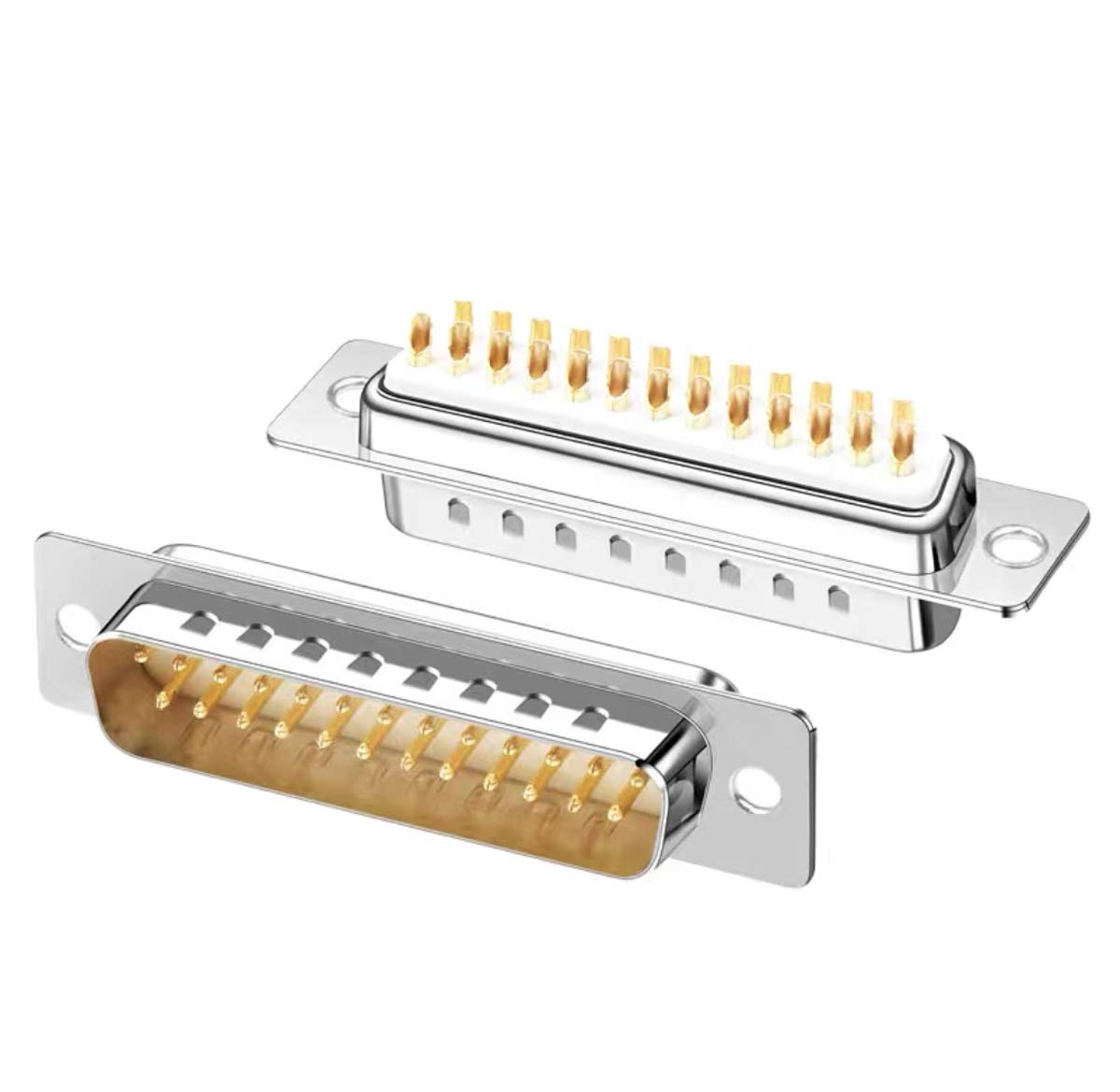

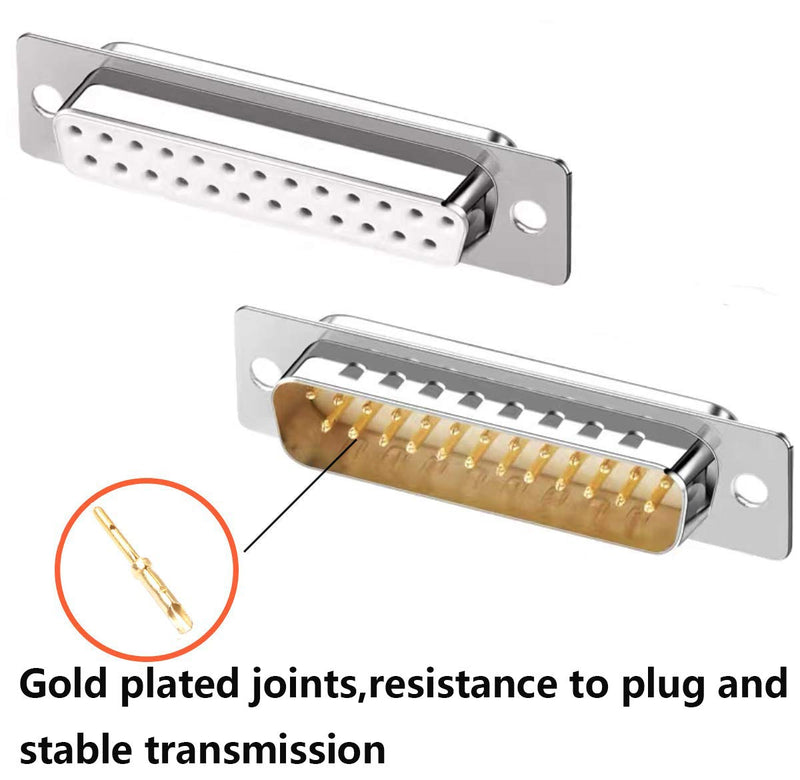

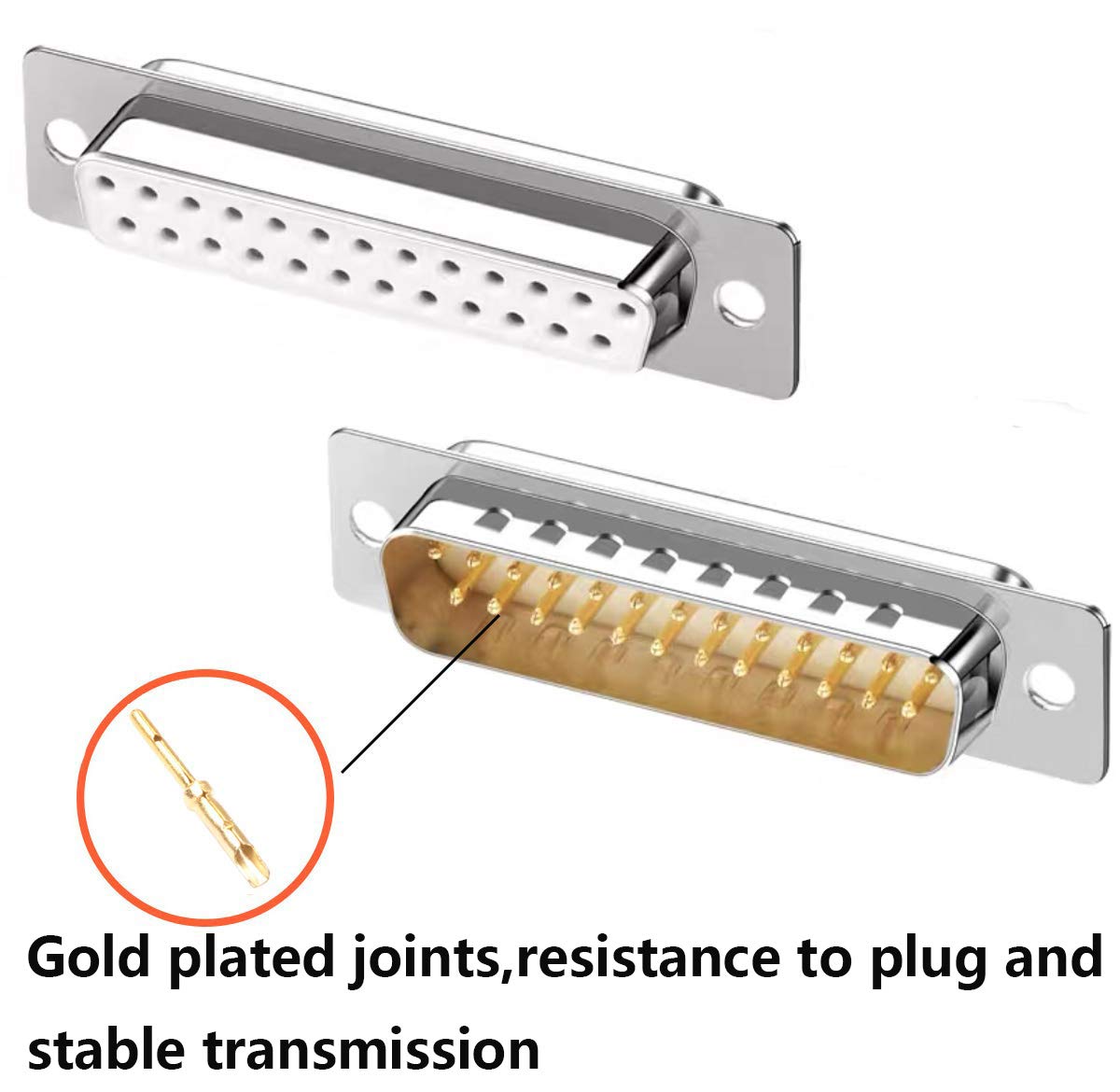

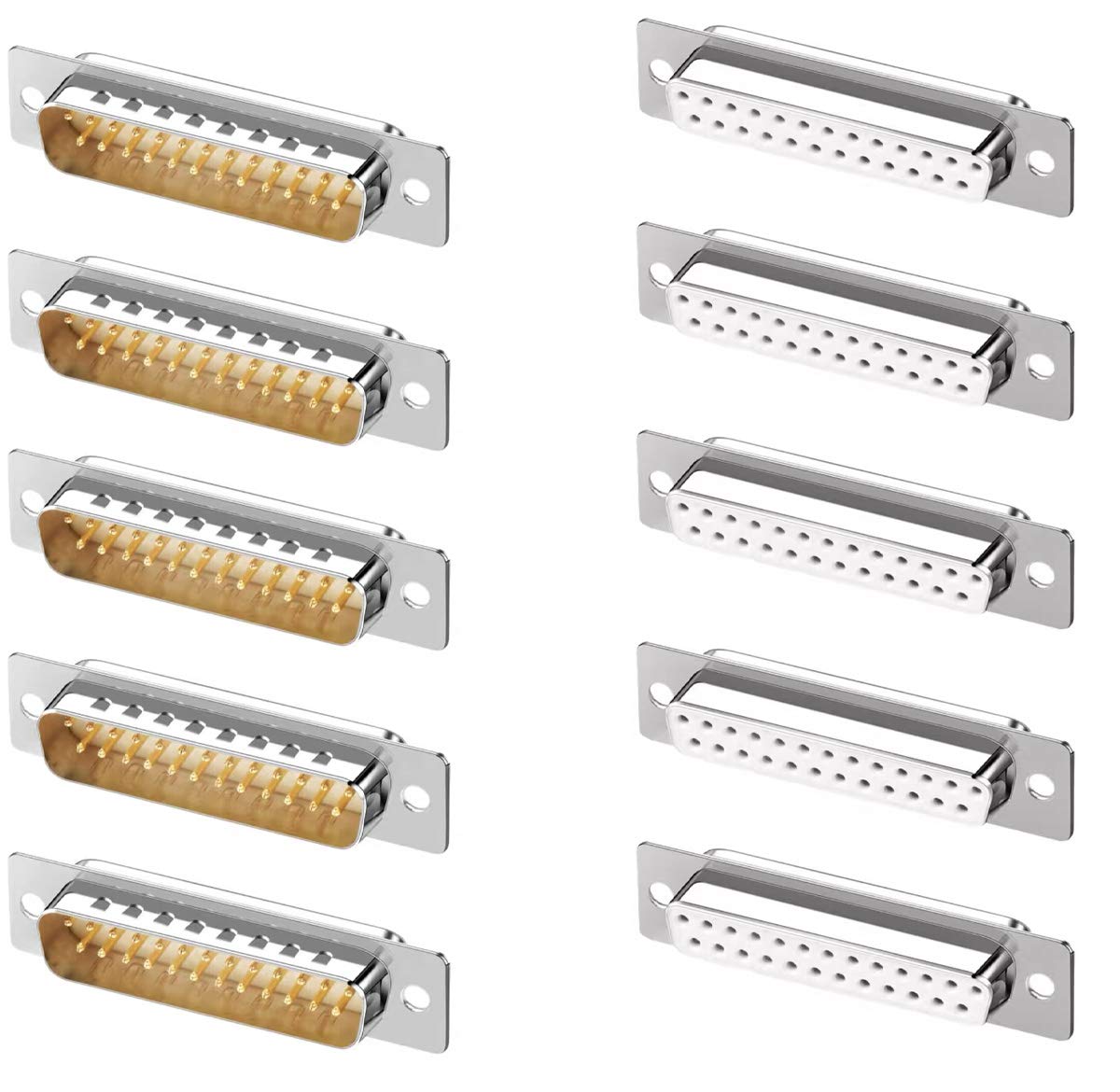

{"id":7239052525748,"title":"Jienk 10PCS DB25 RS232 D-SUB Serial Solder Cup Connectors, Gold Plated Joints RS232 Serial Port 25 Pin D Sub Couplers","handle":"jienk-10pcs-db25-rs232-d-sub-serial-solder-cup-connectors-gold-plated-joints-rs232-serial-port-25-pin-d-sub-couplers","description":" \u003ch1\u003eJienk 10PCS DB25 RS232 D-SUB Serial Solder Cup Connectors, Gold Plated Joints RS232 Serial Port 25 Pin D Sub Couplers\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eSpecifications： Insulator:PBT Contact Material: Gold plated joints Shell:\nNickel plated Type: Welding type Pin: 25 pin Rated Voltage:24V Rated\nCurrent:2A Contact Resistance: 30mΩ Insulation Resistance:100MΩ; Min. AT 500V\nDC Withstand Voltage:1000V AC for 1 minute Min. Operating\ntemperature:-67℉~221℉\/-55℃~105℃ Package Included： 5 X Male DB25 Solder Type\nConnectors 5 X Female DB25 Solder Type Connectors\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eDurable: Solder cup connectors more firm and stable, not easy to break when under tension.\u003c\/li\u003e\n\u003cli\u003eStability: This connector manufactured with precision stamped gold plated contact and nickel plated housing, resistance to plug and stable transmission. White rubber core, high temperature resistant, not easy to melt during welding.\u003c\/li\u003e\n\u003cli\u003eFlexibility: Compact and light weight allows you to make up your own custom cables with DB25 connectors. Solder Cup connectors can be soldered to cable ends or mounted directly to a PCB card edge.\u003c\/li\u003e\n\u003cli\u003eWidely Application: These DB-25 connectors are useful for a wide variety of electronics projects; common applications include I\/O and DAQ equipment, computer parallel ports, and serial ports.\u003c\/li\u003e\n\u003cli\u003eMaximum wire size is 20 AWG\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n ","published_at":"2022-08-27T21:25:31+10:00","created_at":"2022-08-27T21:25:37+10:00","vendor":"Jienk","type":"Serial Adapters","tags":["electronics3"],"price":12500,"price_min":12500,"price_max":12500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41799683506356,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08JLDPTYX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Jienk 10PCS DB25 RS232 D-SUB Serial Solder Cup Connectors, Gold Plated Joints RS232 Serial Port 25 Pin D Sub Couplers","public_title":null,"options":["Default Title"],"price":12500,"weight":91,"compare_at_price":null,"inventory_management":null,"barcode":"JT47-49","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B08JLDPTYX.jpg?v=1661672766","\/\/auspowers.com\/cdn\/shop\/products\/61ei6EROfgL_b79eb21d-028d-468c-a3a4-fc0fb4081e00.jpg?v=1661599537","\/\/auspowers.com\/cdn\/shop\/products\/61irWmbZY_L.jpg?v=1661599537","\/\/auspowers.com\/cdn\/shop\/products\/61Ch-3Jr6hL_1711116a-b3a0-4a01-b839-214554c2b9db.jpg?v=1661599537","\/\/auspowers.com\/cdn\/shop\/products\/61xltCkycvL_4f020929-ac79-4302-a4bb-2daadcd880c5.jpg?v=1661599537"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B08JLDPTYX.jpg?v=1661672766","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Jienk 10PCS DB25 RS232 D-SUB Serial Solder Cup Connectors, Gold Plated Joints RS232 Serial Port 25 Pin D Sub Couplers ","id":26962812305588,"position":1,"preview_image":{"aspect_ratio":1.026,"height":1170,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B08JLDPTYX.jpg?v=1661672766"},"aspect_ratio":1.026,"height":1170,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B08JLDPTYX.jpg?v=1661672766","width":1200},{"alt":"[Australia - AusPower] - Jienk 10PCS DB25 RS232 D-SUB Serial Solder Cup Connectors, Gold Plated Joints RS232 Serial Port 25 Pin D Sub Couplers ","id":26956295995572,"position":2,"preview_image":{"aspect_ratio":1.026,"height":1170,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61ei6EROfgL_b79eb21d-028d-468c-a3a4-fc0fb4081e00.jpg?v=1661599537"},"aspect_ratio":1.026,"height":1170,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61ei6EROfgL_b79eb21d-028d-468c-a3a4-fc0fb4081e00.jpg?v=1661599537","width":1200},{"alt":"[Australia - AusPower] - Jienk 10PCS DB25 RS232 D-SUB Serial Solder Cup Connectors, Gold Plated Joints RS232 Serial Port 25 Pin D Sub Couplers ","id":26956296028340,"position":3,"preview_image":{"aspect_ratio":1.026,"height":1170,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61irWmbZY_L.jpg?v=1661599537"},"aspect_ratio":1.026,"height":1170,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61irWmbZY_L.jpg?v=1661599537","width":1200},{"alt":"[Australia - AusPower] - Jienk 10PCS DB25 RS232 D-SUB Serial Solder Cup Connectors, Gold Plated Joints RS232 Serial Port 25 Pin D Sub Couplers ","id":26956296061108,"position":4,"preview_image":{"aspect_ratio":1.026,"height":1170,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Ch-3Jr6hL_1711116a-b3a0-4a01-b839-214554c2b9db.jpg?v=1661599537"},"aspect_ratio":1.026,"height":1170,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Ch-3Jr6hL_1711116a-b3a0-4a01-b839-214554c2b9db.jpg?v=1661599537","width":1200},{"alt":"[Australia - AusPower] - Jienk 10PCS DB25 RS232 D-SUB Serial Solder Cup Connectors, Gold Plated Joints RS232 Serial Port 25 Pin D Sub Couplers ","id":26956296093876,"position":5,"preview_image":{"aspect_ratio":1.026,"height":1170,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61xltCkycvL_4f020929-ac79-4302-a4bb-2daadcd880c5.jpg?v=1661599537"},"aspect_ratio":1.026,"height":1170,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61xltCkycvL_4f020929-ac79-4302-a4bb-2daadcd880c5.jpg?v=1661599537","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":" \u003ch1\u003eJienk 10PCS DB25 RS232 D-SUB Serial Solder Cup Connectors, Gold Plated Joints RS232 Serial Port 25 Pin D Sub Couplers\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eSpecifications： Insulator:PBT Contact Material: Gold plated joints Shell:\nNickel plated Type: Welding type Pin: 25 pin Rated Voltage:24V Rated\nCurrent:2A Contact Resistance: 30mΩ Insulation Resistance:100MΩ; Min. AT 500V\nDC Withstand Voltage:1000V AC for 1 minute Min. Operating\ntemperature:-67℉~221℉\/-55℃~105℃ Package Included： 5 X Male DB25 Solder Type\nConnectors 5 X Female DB25 Solder Type Connectors\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eDurable: Solder cup connectors more firm and stable, not easy to break when under tension.\u003c\/li\u003e\n\u003cli\u003eStability: This connector manufactured with precision stamped gold plated contact and nickel plated housing, resistance to plug and stable transmission. White rubber core, high temperature resistant, not easy to melt during welding.\u003c\/li\u003e\n\u003cli\u003eFlexibility: Compact and light weight allows you to make up your own custom cables with DB25 connectors. Solder Cup connectors can be soldered to cable ends or mounted directly to a PCB card edge.\u003c\/li\u003e\n\u003cli\u003eWidely Application: These DB-25 connectors are useful for a wide variety of electronics projects; common applications include I\/O and DAQ equipment, computer parallel ports, and serial ports.\u003c\/li\u003e\n\u003cli\u003eMaximum wire size is 20 AWG\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n "}
