irhapsody 5 Pack 40/30 AMP 12V DC Waterproof Relay Kit with Heavy-Duty Pigtail, 5-PIN SPDT Automotive Relay 5 Pack (Standard)

In Stock. Leaves warehouse within 2 - 3 business days

$174.00 AUD
Maximum quantity available reached.
Start shopping today and enjoy free shipping on every purchase.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

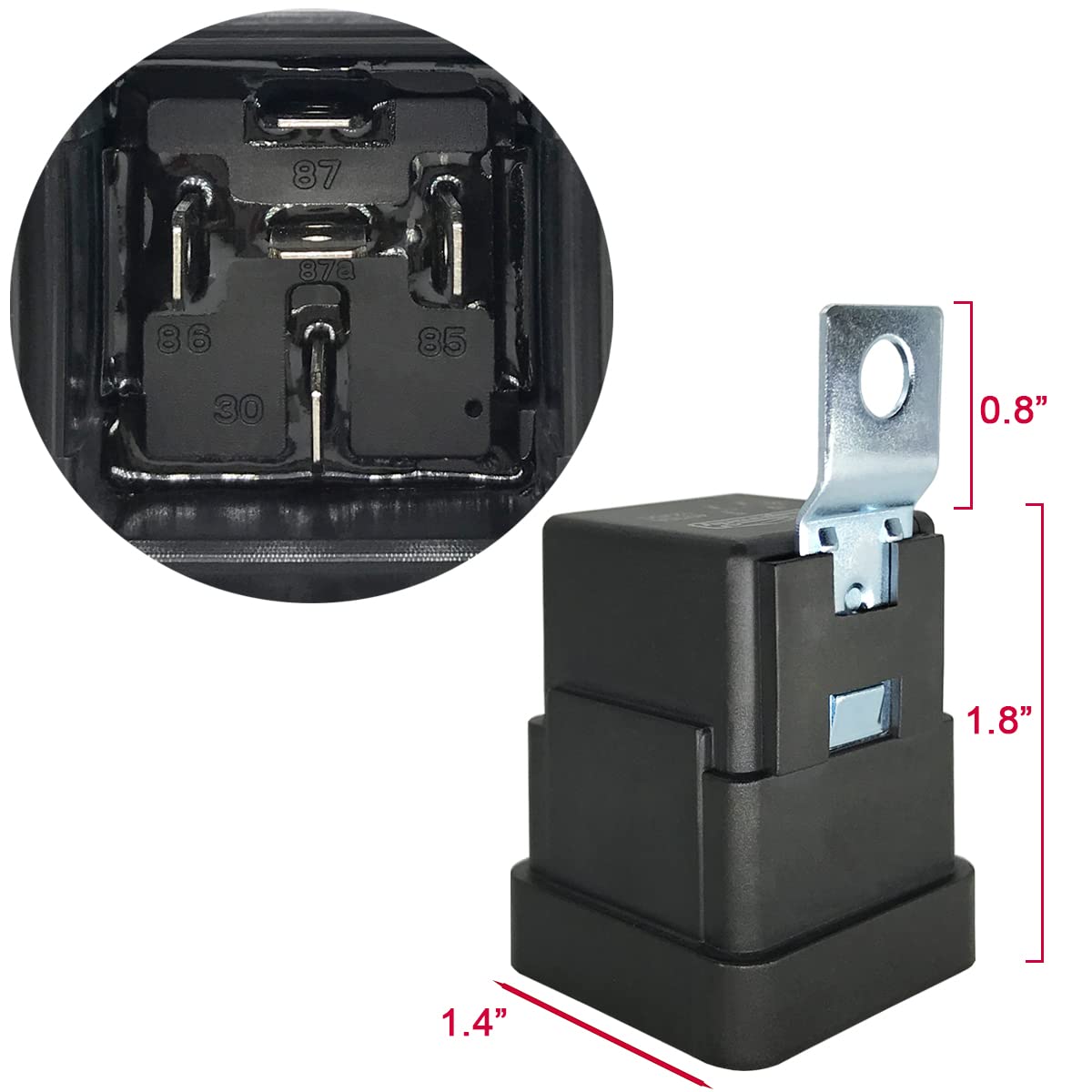

irhapsody 5 Pack 40/30 AMP 12V DC Waterproof Relay Kit with Heavy-Duty Pigtail, 5-PIN SPDT Automotive Relay

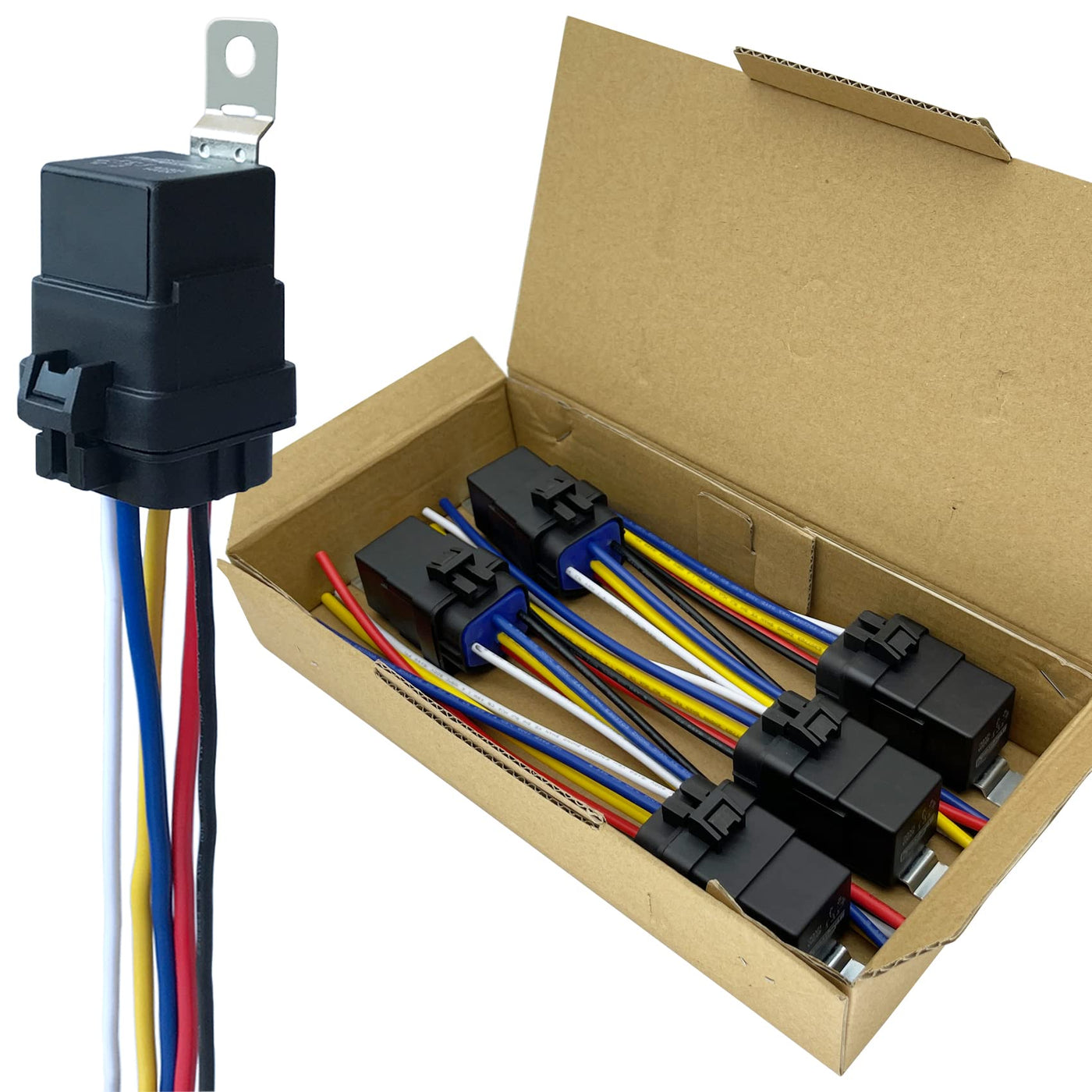

Nominal Coil Voltage: 12 V DC Coil Power: 1.8 W Coil Resistance: 80 Ω Must Operate Voltage: 6~8 V DC Must Release Voltage: 0.6~3.6 V DC Maximum Applied Voltage: 15.6 V DC Contact Ratings: NO 40A 14V DC Contact Resistance: 100mMAX (at6VDC 1A) Max Switching Current: 40A Max Switching Power: 560 W Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute) Life Expectancy Machanical: 10,000,000 Operations Temperature Range: -30 ~ +80 degrees Celsius Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g Hunidity: 40% ~ 85% Insulation Resistance: 100mΩ Min at500VDC Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec) Between Contactw and coil: 750AC (for one minute/sec) Operate Tice: 7ms Release Tice: 5ms Package Content: 5 x 12VDC waterproof relay kit

Product Features

  • Never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for
  • 12-volt 5-prong relay. Excellent water-repellent and dustproof ability, but not using it in water
  • Be careful when inserting the relay into the socket. If you force it, you will bend the female connectors

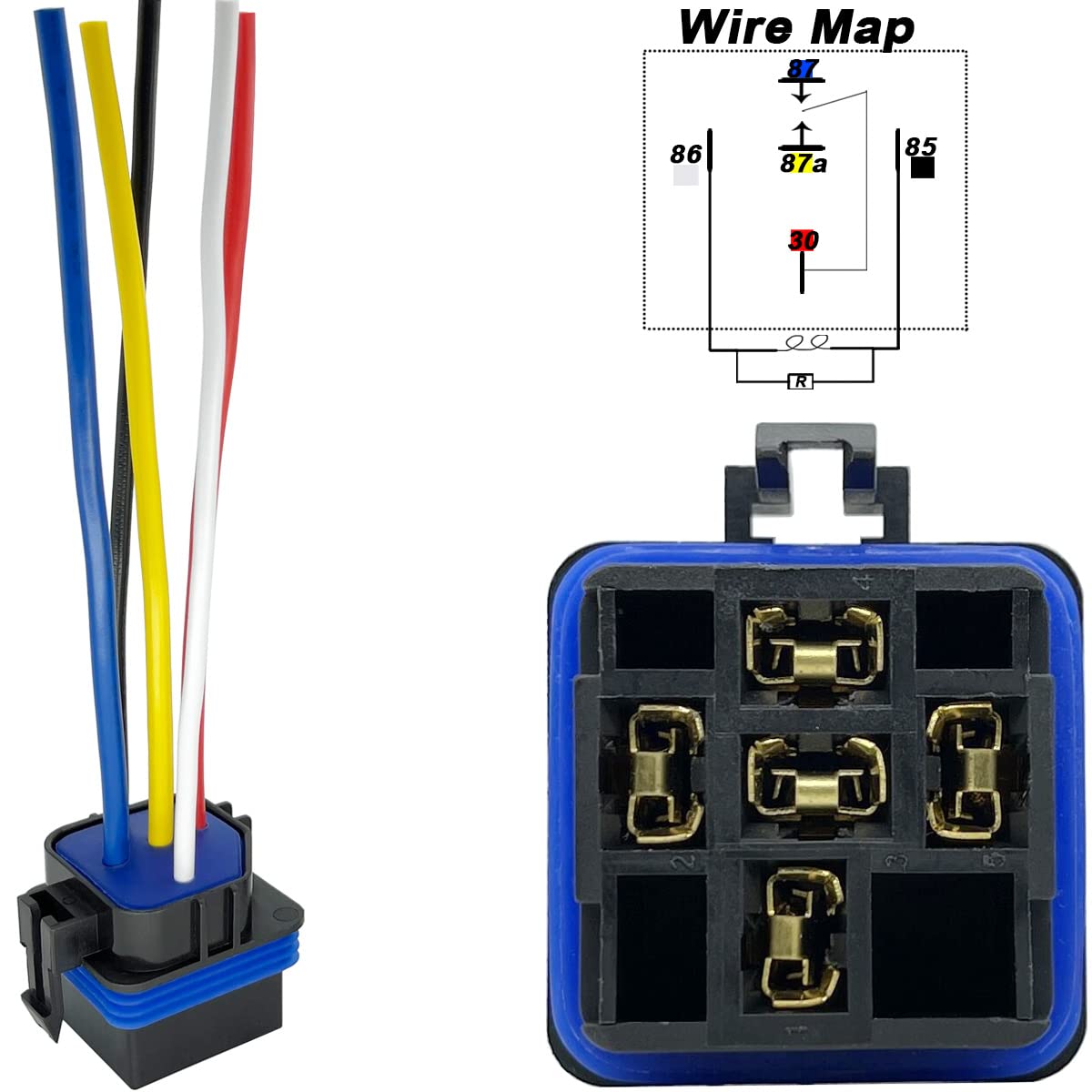

  • Primary leads use 12 a.w.g tinned copper wire. Coil leads use 16 a.w.g
  • Nominal Coil Voltage: 12 V DC; Coil Power: 1.8 W; Coil Resistance: 80 ; Must Operate Voltage: 6~8 V DC; Must Release Voltage: 0.6~3.6 V DC; Maximum Applied Voltage: 15.6 V DC
