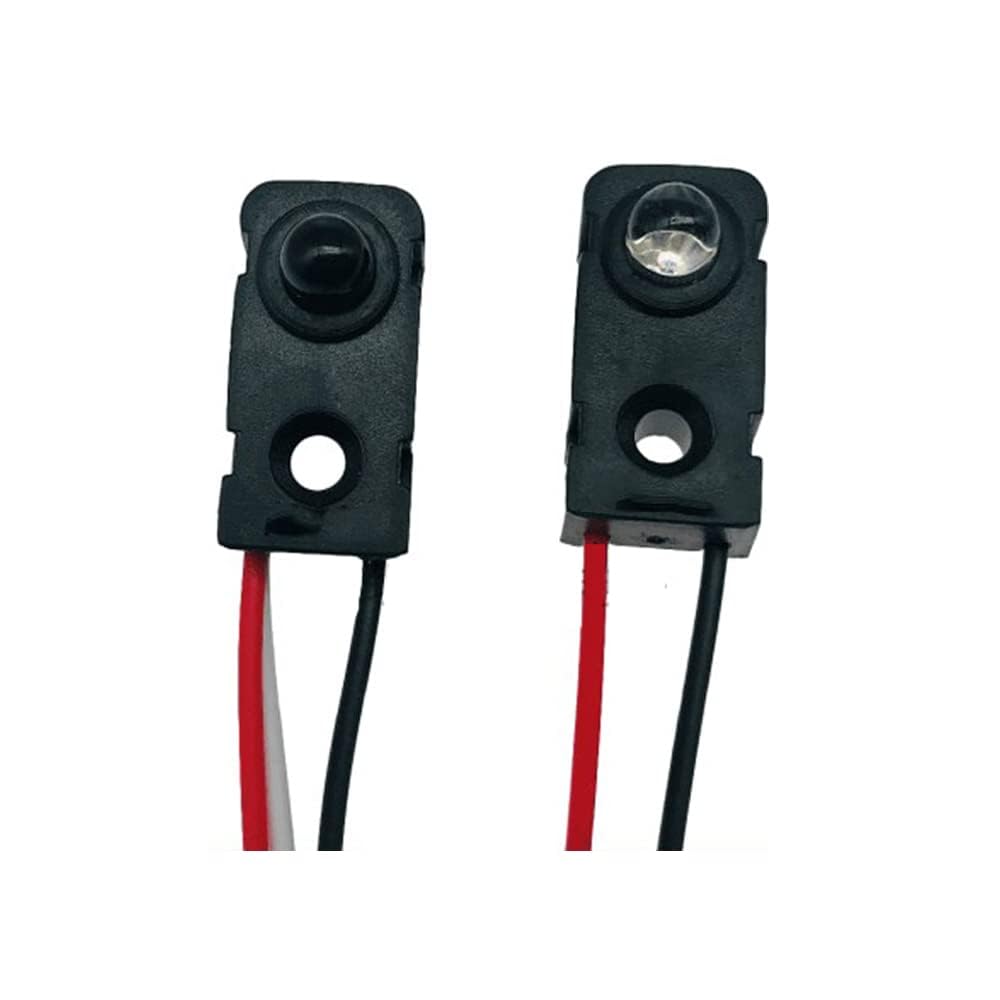

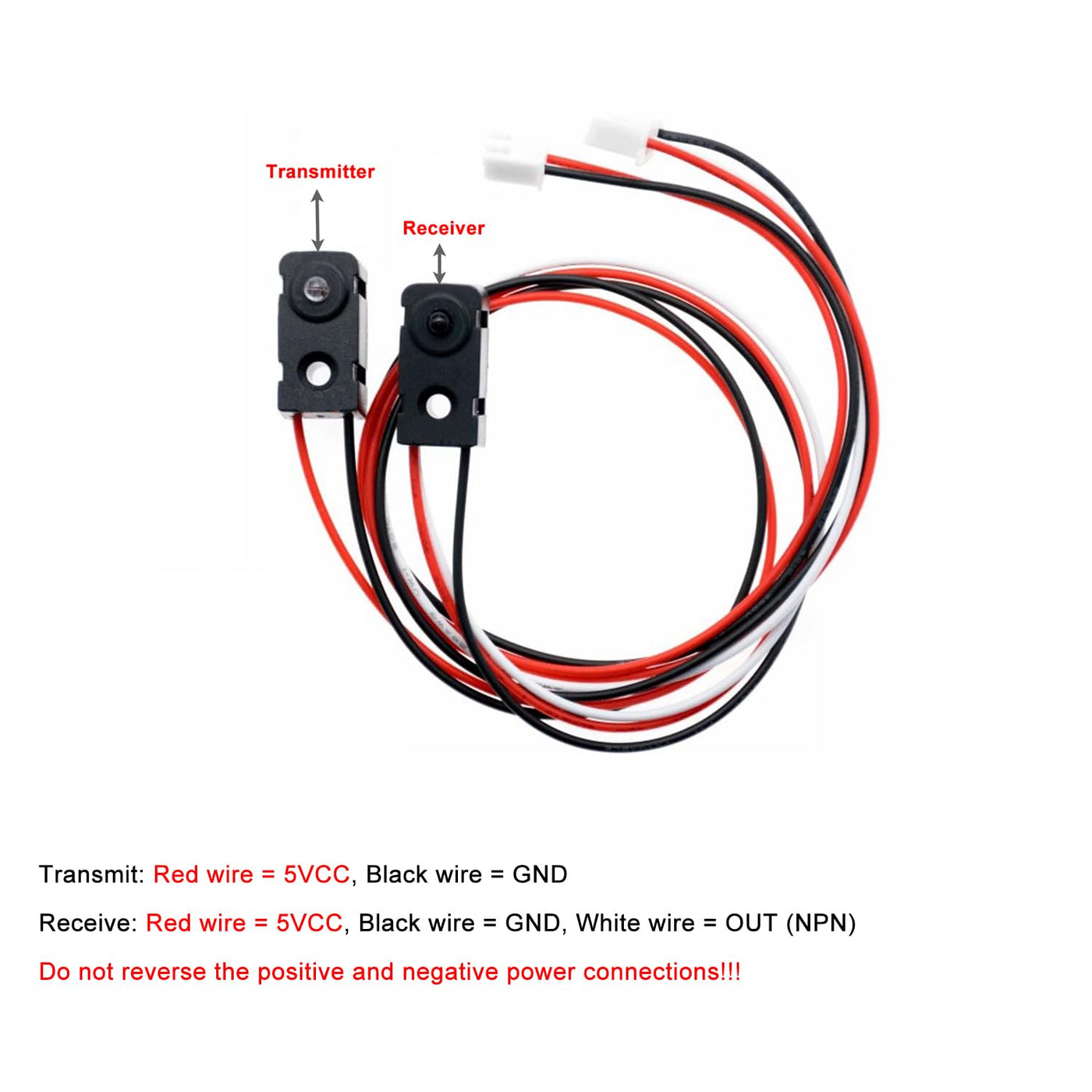

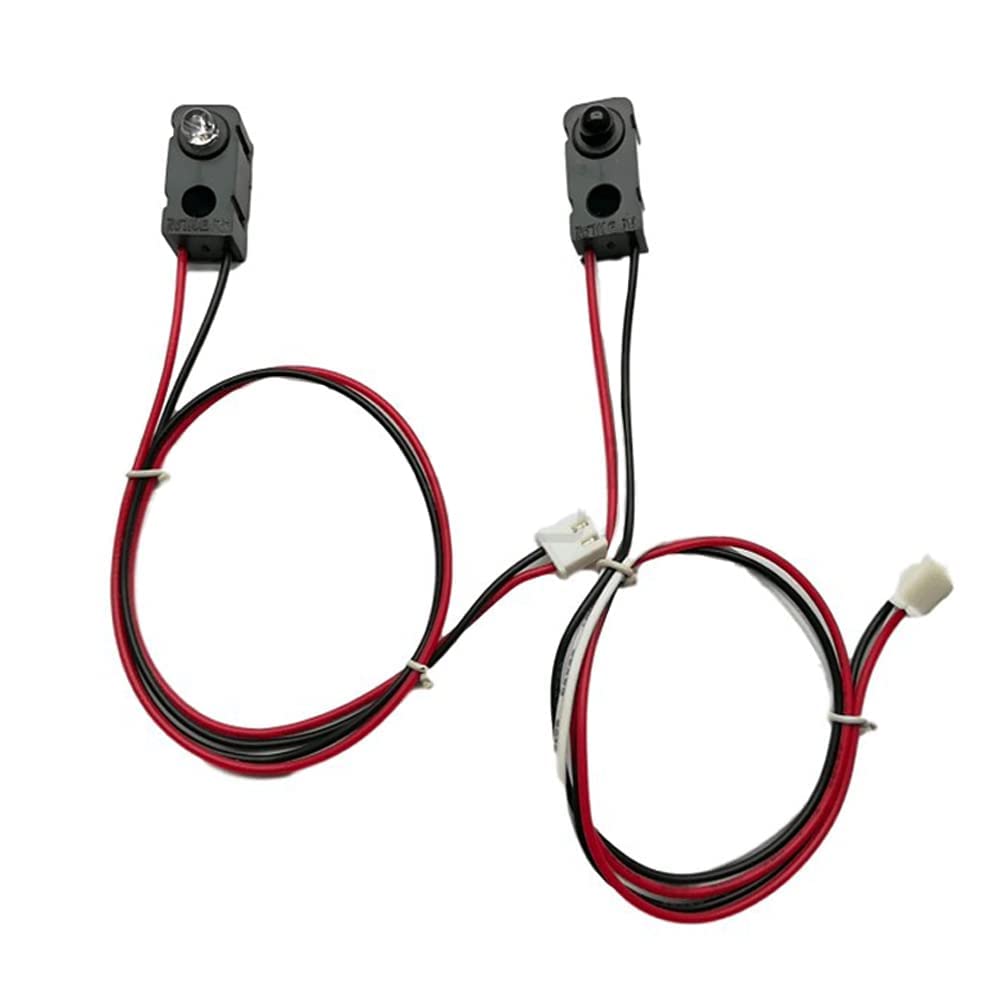

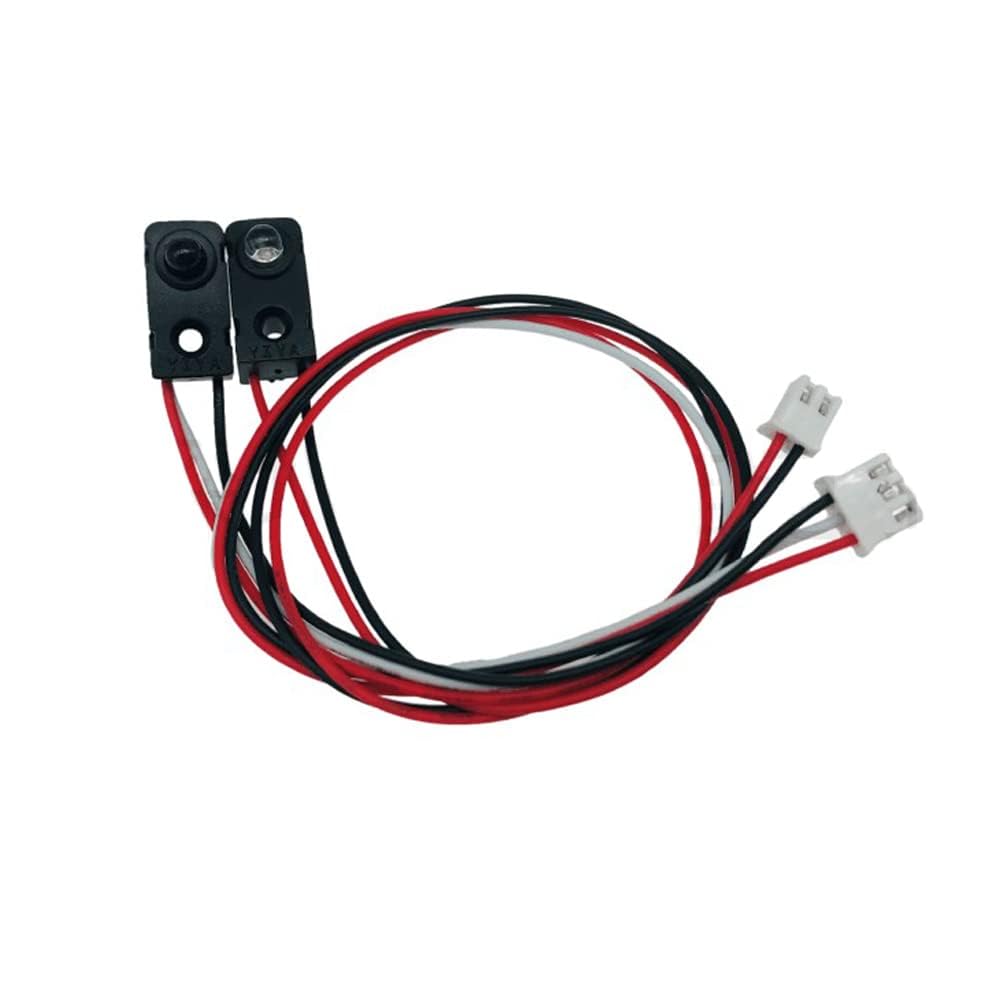

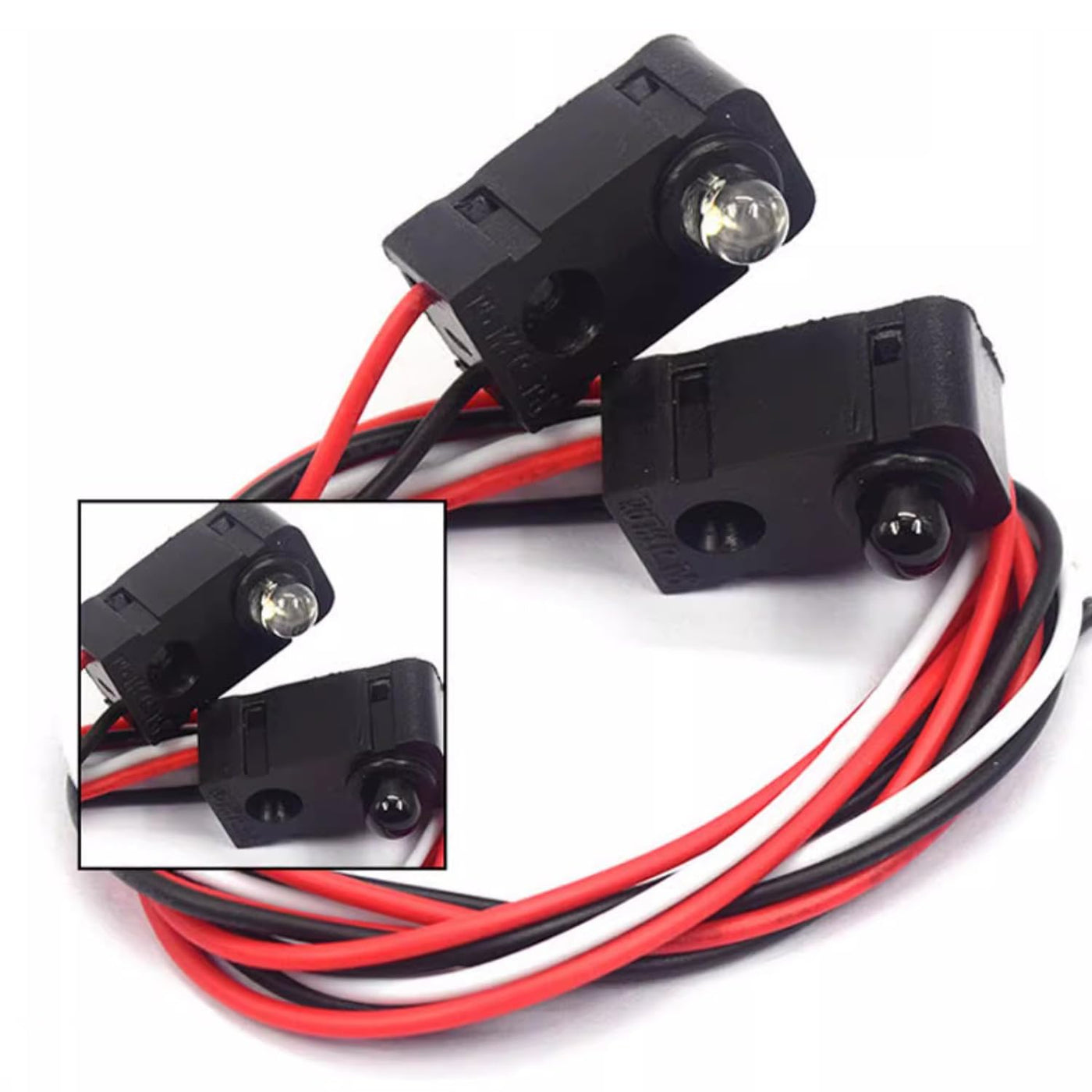

{"id":8034532032692,"title":"IR Break Beam Sensor 3MM LEDs Counting Module Split Through-Beam Photoelectric Switch (50cm Projection Distance) 50cm Projection Distance","handle":"ir-break-beam-sensor-3mm-leds-counting-module-split-through-beam-photoelectric-switch-50cm-projection-distance-50cm-projection-distance","description":"\u003ch3\u003eIR Break Beam Sensor 3MM LEDs Counting Module Split Through-Beam Photoelectric Switch (50cm Projection Distance)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Type: F3 with 2.54 terminal infrared through-beam sensor Lamp:\r\n3MM 850 launch Light hole: 3MM Launch tube power: 20 mA Detection distance:\r\n50cm Line length: 25cm Lighting method: DC light Launch angle: straight\r\nReceiving angle: \u0026lt;10 degrees Detection method: through-beam type Working\r\nvoltage: DC5V Working current: 20A Response time: 2ms Transmitter\/Receiver LED\r\nAngle Working temperature:-25℃-60℃ Output mode: NPN normally open Transmit:\r\nred wire=5VCC black wire=GND Receive: red wire = 5VCC black wire = GND white\r\nwire = OUT (NPN) Note: Do not reverse the positive and negative poles of the\r\npower supply Package includes: 1X IR Break Beam Sensor（50cm）-Receiver 1X IR\r\nBreak Beam Sensor (50cm)-Transmitter\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eHigh sensitivity, with fast and stable response speed;Output mode: NPN normally open, response time: 2ms\u003c\/li\u003e\r\n \u003cli\u003eFaster than a PIR sensor for better control over where you want to detect motion\u003c\/li\u003e\r\n \u003cli\u003eThe sensor can be powered by a voltage of DC 3 ~5 V. It can be used with Arduino for some simple motion detection, speed detection, timing, etc. in smart robot competitions\u003c\/li\u003e\r\n \u003cli\u003eWiring method: Transmitter: red wire positive, black wire negative; Receiver: red wire positive, black wire negative, white wire signal\u003c\/li\u003e\r\n \u003cli\u003eCompatible models: Gaming consoles, smart devices, intelligent cabinets, induction counters, relays, K60, PLCs, 51 microcontrollers, STM32, Arduino, LEGO, Fischertechnik, embedded systems, and more\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T20:11:21+11:00","created_at":"2026-02-28T20:11:18+11:00","vendor":"Treedix","type":"Photoelectric Sensors","tags":["industrial_selected_Nov2025"],"price":10000,"price_min":10000,"price_max":10000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154579845300,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DXT9H7VR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"IR Break Beam Sensor 3MM LEDs Counting Module Split Through-Beam Photoelectric Switch (50cm Projection Distance) 50cm Projection Distance","public_title":null,"options":["Default Title"],"price":10000,"weight":5,"compare_at_price":null,"inventory_management":"shopify","barcode":"644197778252","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0DXT9H7VR.jpg?v=1775787848","\/\/auspowers.com\/cdn\/shop\/files\/51jZovylfoL.jpg?v=1772269880","\/\/auspowers.com\/cdn\/shop\/files\/61UKq1sR1gL.jpg?v=1772269881","\/\/auspowers.com\/cdn\/shop\/files\/61wTNBeXHSL.jpg?v=1772269881","\/\/auspowers.com\/cdn\/shop\/files\/41BbTCAfsAL.jpg?v=1772269880"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0DXT9H7VR.jpg?v=1775787848","options":["Title"],"media":[{"alt":"[Australia - AusPower] - IR Break Beam Sensor 3MM LEDs Counting Module Split Through-Beam Photoelectric Switch (50cm Projection Distance) 50cm Projection Distance ","id":32724407222452,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DXT9H7VR.jpg?v=1775787848"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DXT9H7VR.jpg?v=1775787848","width":1000},{"alt":"[Australia - AusPower] - IR Break Beam Sensor 3MM LEDs Counting Module Split Through-Beam Photoelectric Switch (50cm Projection Distance) 50cm Projection Distance ","id":32724407255220,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51jZovylfoL.jpg?v=1772269880"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51jZovylfoL.jpg?v=1772269880","width":1000},{"alt":"[Australia - AusPower] - IR Break Beam Sensor 3MM LEDs Counting Module Split Through-Beam Photoelectric Switch (50cm Projection Distance) 50cm Projection Distance ","id":32724407287988,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61UKq1sR1gL.jpg?v=1772269881"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61UKq1sR1gL.jpg?v=1772269881","width":1500},{"alt":"[Australia - AusPower] - IR Break Beam Sensor 3MM LEDs Counting Module Split Through-Beam Photoelectric Switch (50cm Projection Distance) 50cm Projection Distance ","id":32724407320756,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61wTNBeXHSL.jpg?v=1772269881"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61wTNBeXHSL.jpg?v=1772269881","width":1500},{"alt":"[Australia - AusPower] - IR Break Beam Sensor 3MM LEDs Counting Module Split Through-Beam Photoelectric Switch (50cm Projection Distance) 50cm Projection Distance ","id":32724407353524,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41BbTCAfsAL.jpg?v=1772269880"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41BbTCAfsAL.jpg?v=1772269880","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eIR Break Beam Sensor 3MM LEDs Counting Module Split Through-Beam Photoelectric Switch (50cm Projection Distance)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Type: F3 with 2.54 terminal infrared through-beam sensor Lamp:\r\n3MM 850 launch Light hole: 3MM Launch tube power: 20 mA Detection distance:\r\n50cm Line length: 25cm Lighting method: DC light Launch angle: straight\r\nReceiving angle: \u0026lt;10 degrees Detection method: through-beam type Working\r\nvoltage: DC5V Working current: 20A Response time: 2ms Transmitter\/Receiver LED\r\nAngle Working temperature:-25℃-60℃ Output mode: NPN normally open Transmit:\r\nred wire=5VCC black wire=GND Receive: red wire = 5VCC black wire = GND white\r\nwire = OUT (NPN) Note: Do not reverse the positive and negative poles of the\r\npower supply Package includes: 1X IR Break Beam Sensor（50cm）-Receiver 1X IR\r\nBreak Beam Sensor (50cm)-Transmitter\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eHigh sensitivity, with fast and stable response speed;Output mode: NPN normally open, response time: 2ms\u003c\/li\u003e\r\n \u003cli\u003eFaster than a PIR sensor for better control over where you want to detect motion\u003c\/li\u003e\r\n \u003cli\u003eThe sensor can be powered by a voltage of DC 3 ~5 V. It can be used with Arduino for some simple motion detection, speed detection, timing, etc. in smart robot competitions\u003c\/li\u003e\r\n \u003cli\u003eWiring method: Transmitter: red wire positive, black wire negative; Receiver: red wire positive, black wire negative, white wire signal\u003c\/li\u003e\r\n \u003cli\u003eCompatible models: Gaming consoles, smart devices, intelligent cabinets, induction counters, relays, K60, PLCs, 51 microcontrollers, STM32, Arduino, LEGO, Fischertechnik, embedded systems, and more\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
