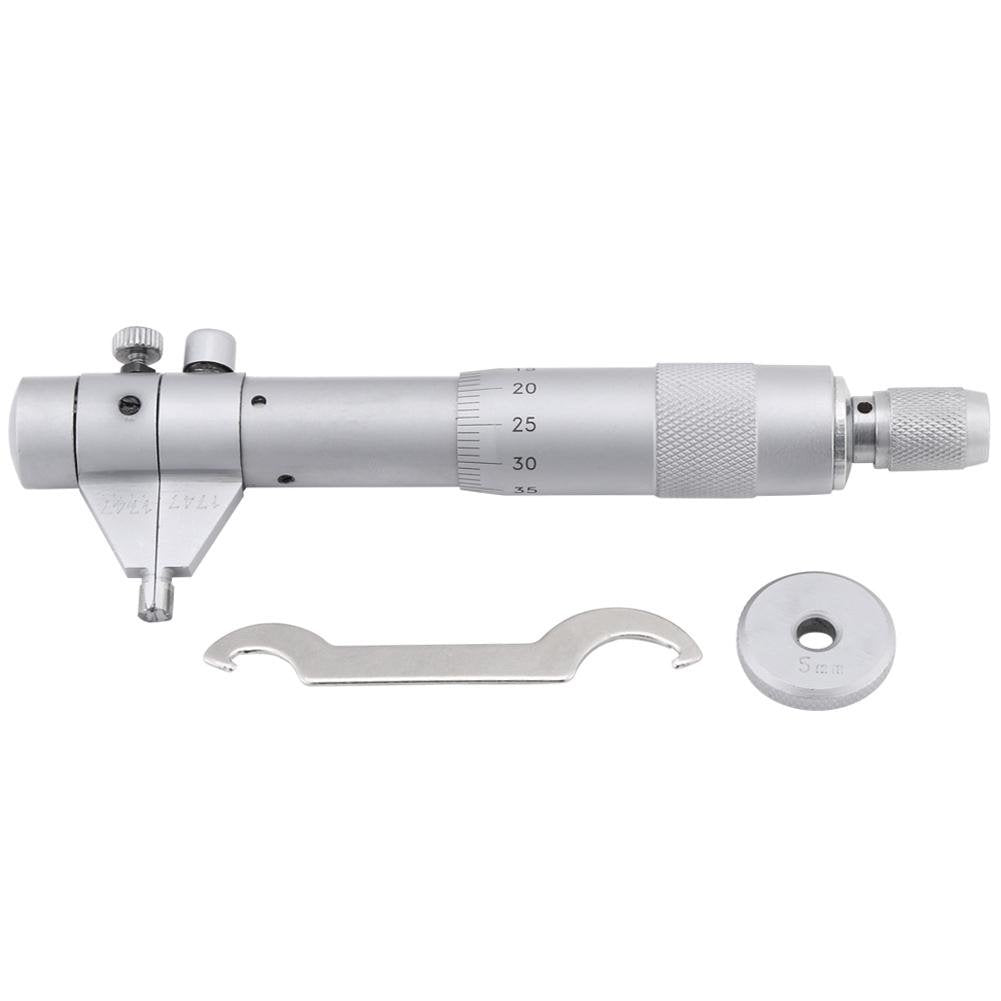

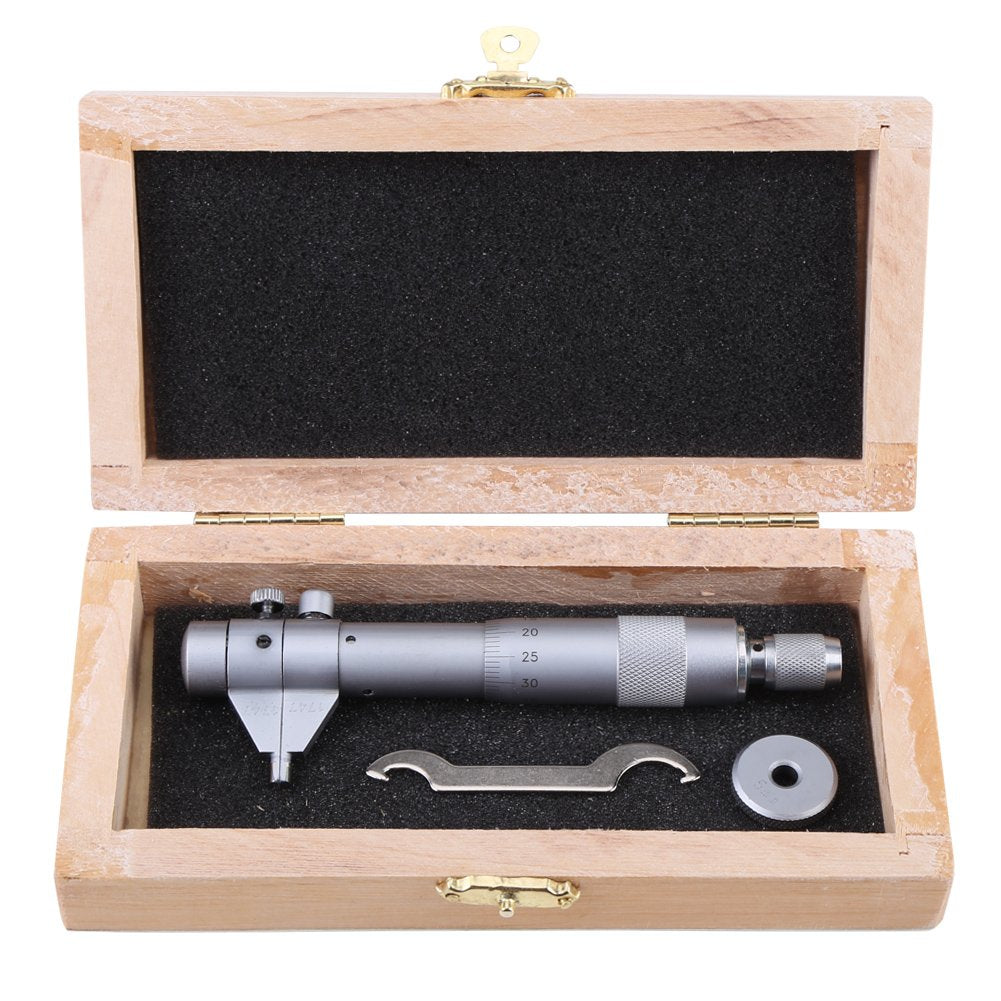

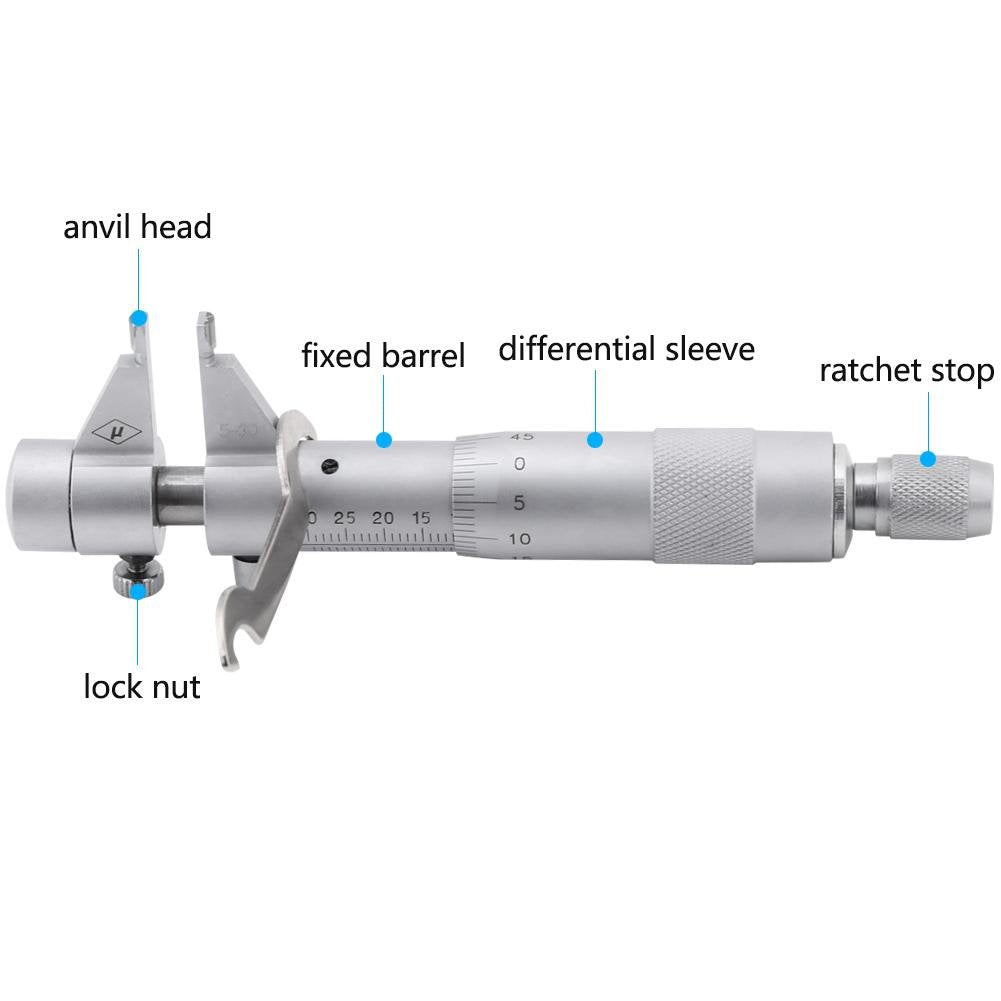

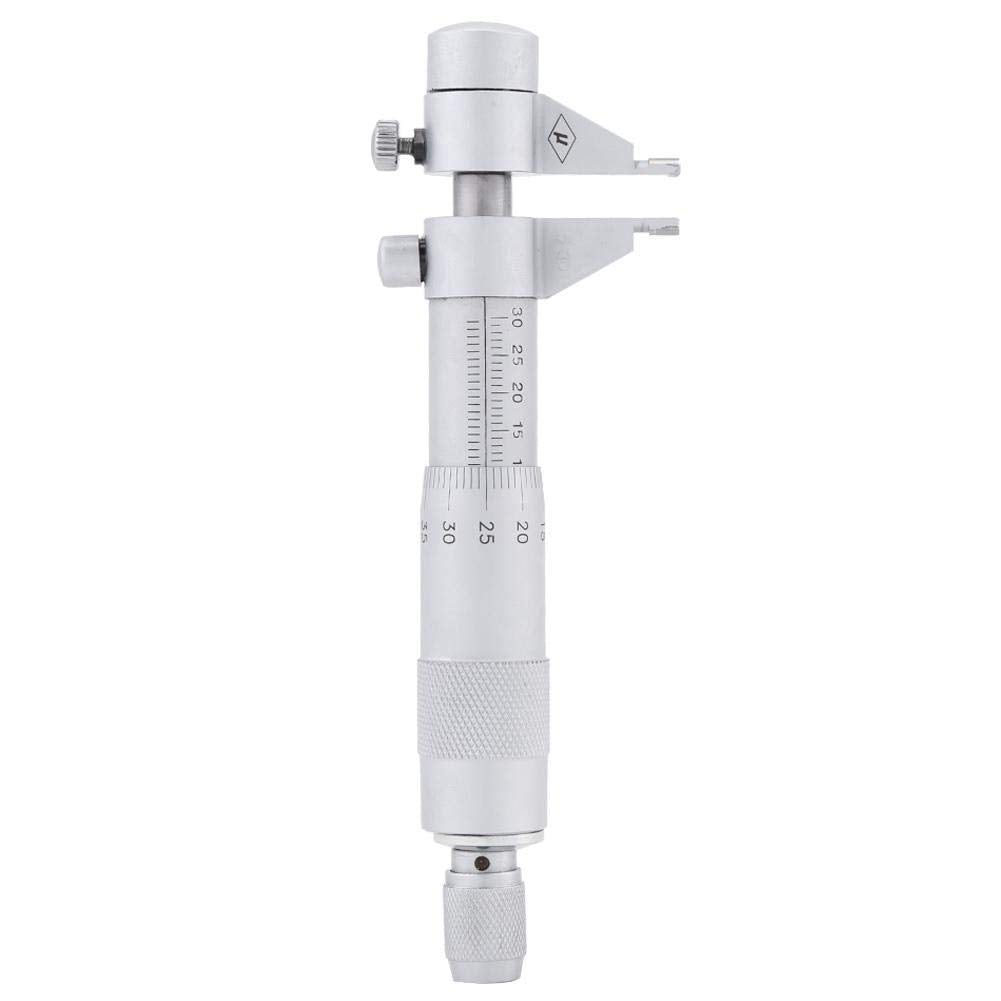

{"id":7991564632244,"title":"Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box","handle":"internal-micrometer-measuring-tools-5-30-mm-measuring-range-0-01-mm-with-wrench-calibration-ring-and-packaging-box","description":"\u003ch3\u003eInternal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Type: Internal Micrometer Measuring range: 5 mm ~ 30 mm.\nMaterial: stainless steel. Precision: 0.01 mm. Weight: 268g (approx.) Zero\nsettings: Clean the surface of the measuring anvil heads with a soft cloth.\nThen turn the gauge to contact two measuring surfaces. If two zero lines of\nthe differential sleeve and fixed cylinder do not align, use the following two\nmethods to adjust. Method I: If the error is less than 0.02 mm (0.001 inches),\nlock the screw with a pawl stop, and then pull the fixed cylinder up to two\nzero lines with the wrench. Method II, if the error is greater than 0.02 mm\n(0.001 inches), Step 1: Use the pawl stop to lock the screw firmly. Then\nloosen the pawl stop with a wrench and remove the differential sleeve. Step 2:\nRe-align zero lines of fixed sleeve and differential sleeve and reattach\ndetent stop. If necessary, fit them again with Method I. Note: The micrometer\ndoes not need to be calibrated during normal use. The micrometer only needs to\nbe calibrated if it is severely worn. Package includes: 1 x internal gauge. 1\nx wrench. 1 x calibration ring. 1 x packaging box.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh-quality alloy measuring heads can be used for various inner size measurements, fine workmanship and burr\u003c\/li\u003e\n \u003cli\u003eClear laser marking line for convenient reading\u003c\/li\u003e\n \u003cli\u003eThe main micrometer housing is made of stainless steel with chrome plated surface, wear-resistant and durable\u003c\/li\u003e\n \u003cli\u003eThe precise machine structure is equipped with a locking device and makes reading more intuitive and convenient\u003c\/li\u003e\n \u003cli\u003eBuilt-in ratchet stop device ensures accurate repeat measurements\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T00:05:51+10:00","created_at":"2025-09-23T00:05:47+10:00","vendor":"Zunate","type":"Outside Micrometres","tags":["industryDE_Sep2025"],"price":31700,"price_min":31700,"price_max":31700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44047719891124,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07KSWRRCF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box","public_title":null,"options":["Default Title"],"price":31700,"weight":246,"compare_at_price":null,"inventory_management":"shopify","barcode":"794419606044","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07KSWRRCF.jpg?v=1775767131","\/\/auspowers.com\/cdn\/shop\/files\/61iK48iUKIL.jpg?v=1758549950","\/\/auspowers.com\/cdn\/shop\/files\/61cXzzcQEXL.jpg?v=1758549950","\/\/auspowers.com\/cdn\/shop\/files\/61WBIBimz4L.jpg?v=1758549950","\/\/auspowers.com\/cdn\/shop\/files\/51K4wTV2LYL.jpg?v=1758549950","\/\/auspowers.com\/cdn\/shop\/files\/51Q0ZNb6L6L.jpg?v=1758549950","\/\/auspowers.com\/cdn\/shop\/files\/51JYnmYg44L.jpg?v=1758549950","\/\/auspowers.com\/cdn\/shop\/files\/511D39uwqPL.jpg?v=1758549950","\/\/auspowers.com\/cdn\/shop\/files\/416bZOfjANL.jpg?v=1758549950"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07KSWRRCF.jpg?v=1775767131","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box ","id":32184505434292,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07KSWRRCF.jpg?v=1775767131"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07KSWRRCF.jpg?v=1775767131","width":1001},{"alt":"[Australia - AusPower] - Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box ","id":32184505467060,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61iK48iUKIL.jpg?v=1758549950"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61iK48iUKIL.jpg?v=1758549950","width":1001},{"alt":"[Australia - AusPower] - Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box ","id":32184505499828,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61cXzzcQEXL.jpg?v=1758549950"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61cXzzcQEXL.jpg?v=1758549950","width":1001},{"alt":"[Australia - AusPower] - Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box ","id":32184505532596,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61WBIBimz4L.jpg?v=1758549950"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61WBIBimz4L.jpg?v=1758549950","width":1001},{"alt":"[Australia - AusPower] - Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box ","id":32184505565364,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51K4wTV2LYL.jpg?v=1758549950"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51K4wTV2LYL.jpg?v=1758549950","width":1001},{"alt":"[Australia - AusPower] - Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box ","id":32184505598132,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Q0ZNb6L6L.jpg?v=1758549950"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Q0ZNb6L6L.jpg?v=1758549950","width":1001},{"alt":"[Australia - AusPower] - Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box ","id":32184505630900,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51JYnmYg44L.jpg?v=1758549950"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51JYnmYg44L.jpg?v=1758549950","width":1001},{"alt":"[Australia - AusPower] - Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box ","id":32184505663668,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/511D39uwqPL.jpg?v=1758549950"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/511D39uwqPL.jpg?v=1758549950","width":1001},{"alt":"[Australia - AusPower] - Internal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box ","id":32184505696436,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/416bZOfjANL.jpg?v=1758549950"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/416bZOfjANL.jpg?v=1758549950","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eInternal Micrometer Measuring Tools 5-30 mm, Measuring Range 0.01 mm, with Wrench Calibration Ring and Packaging Box\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Type: Internal Micrometer Measuring range: 5 mm ~ 30 mm.\nMaterial: stainless steel. Precision: 0.01 mm. Weight: 268g (approx.) Zero\nsettings: Clean the surface of the measuring anvil heads with a soft cloth.\nThen turn the gauge to contact two measuring surfaces. If two zero lines of\nthe differential sleeve and fixed cylinder do not align, use the following two\nmethods to adjust. Method I: If the error is less than 0.02 mm (0.001 inches),\nlock the screw with a pawl stop, and then pull the fixed cylinder up to two\nzero lines with the wrench. Method II, if the error is greater than 0.02 mm\n(0.001 inches), Step 1: Use the pawl stop to lock the screw firmly. Then\nloosen the pawl stop with a wrench and remove the differential sleeve. Step 2:\nRe-align zero lines of fixed sleeve and differential sleeve and reattach\ndetent stop. If necessary, fit them again with Method I. Note: The micrometer\ndoes not need to be calibrated during normal use. The micrometer only needs to\nbe calibrated if it is severely worn. Package includes: 1 x internal gauge. 1\nx wrench. 1 x calibration ring. 1 x packaging box.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh-quality alloy measuring heads can be used for various inner size measurements, fine workmanship and burr\u003c\/li\u003e\n \u003cli\u003eClear laser marking line for convenient reading\u003c\/li\u003e\n \u003cli\u003eThe main micrometer housing is made of stainless steel with chrome plated surface, wear-resistant and durable\u003c\/li\u003e\n \u003cli\u003eThe precise machine structure is equipped with a locking device and makes reading more intuitive and convenient\u003c\/li\u003e\n \u003cli\u003eBuilt-in ratchet stop device ensures accurate repeat measurements\u003c\/li\u003e\n \u003c\/ul\u003e"}
