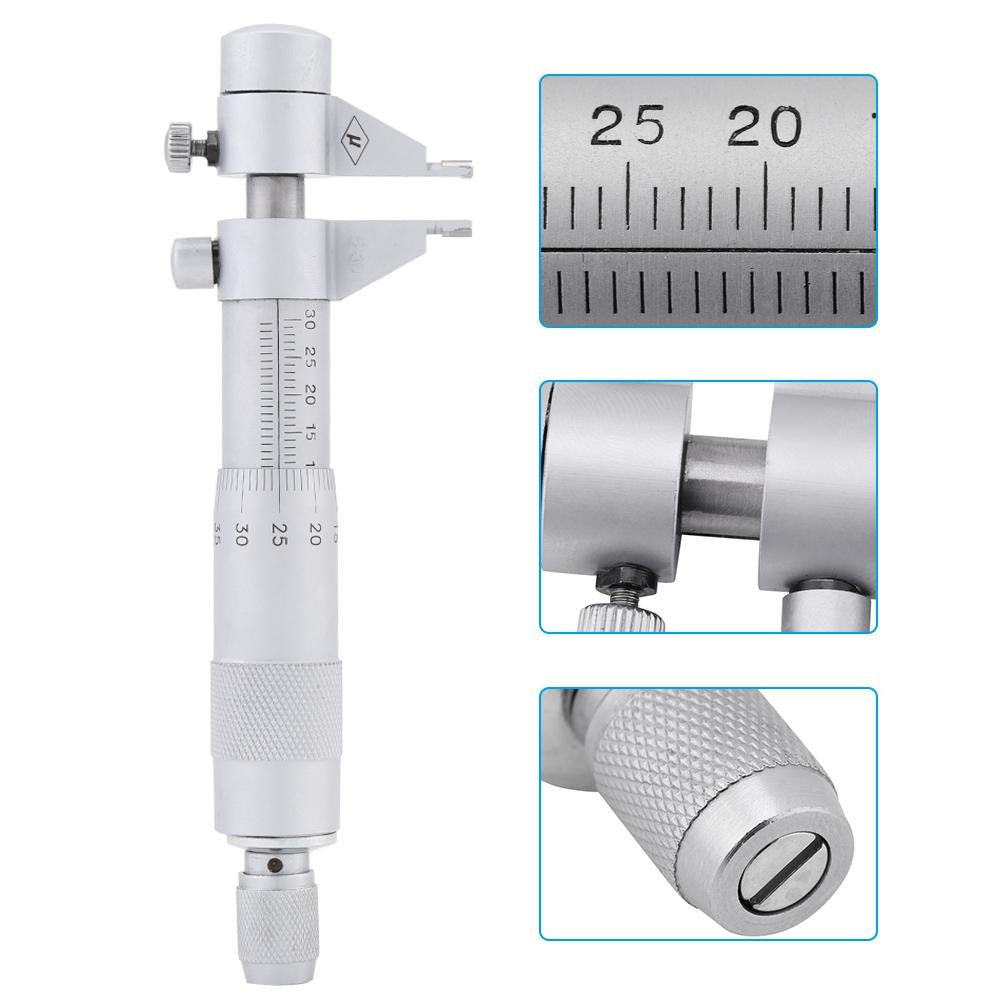

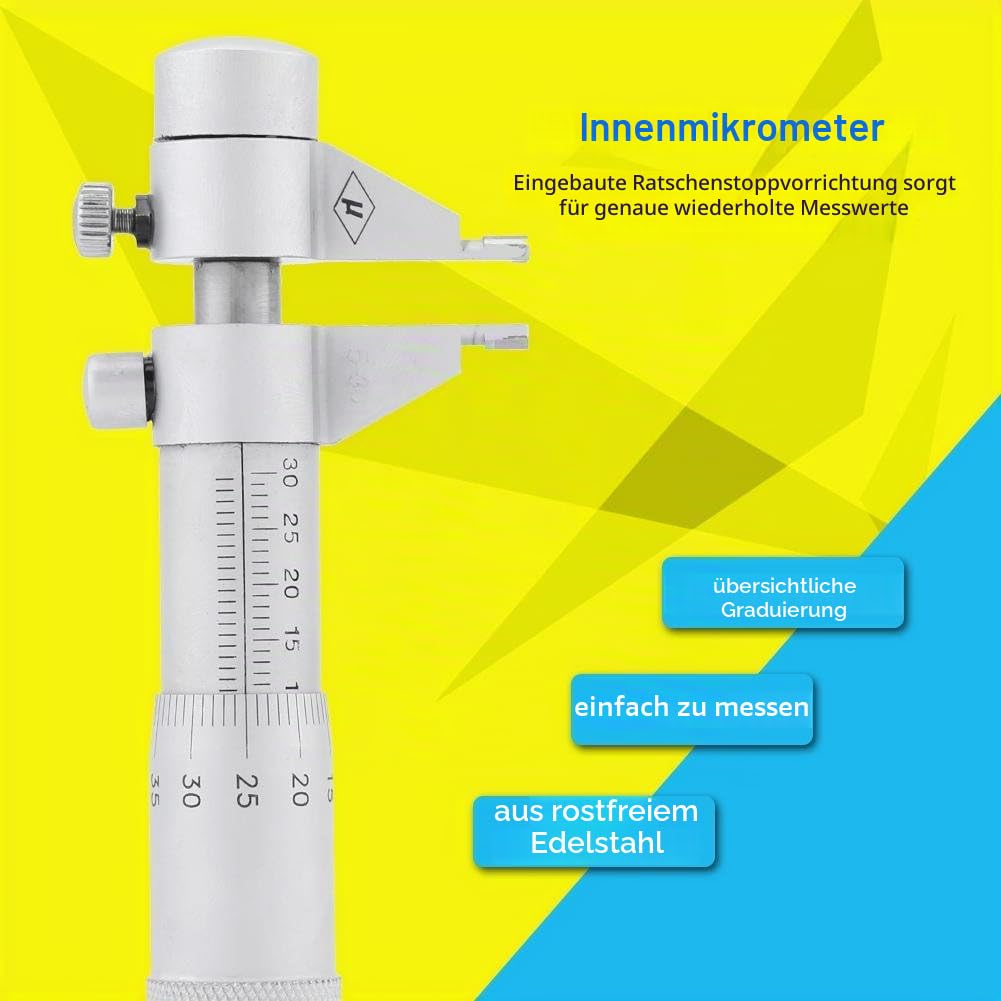

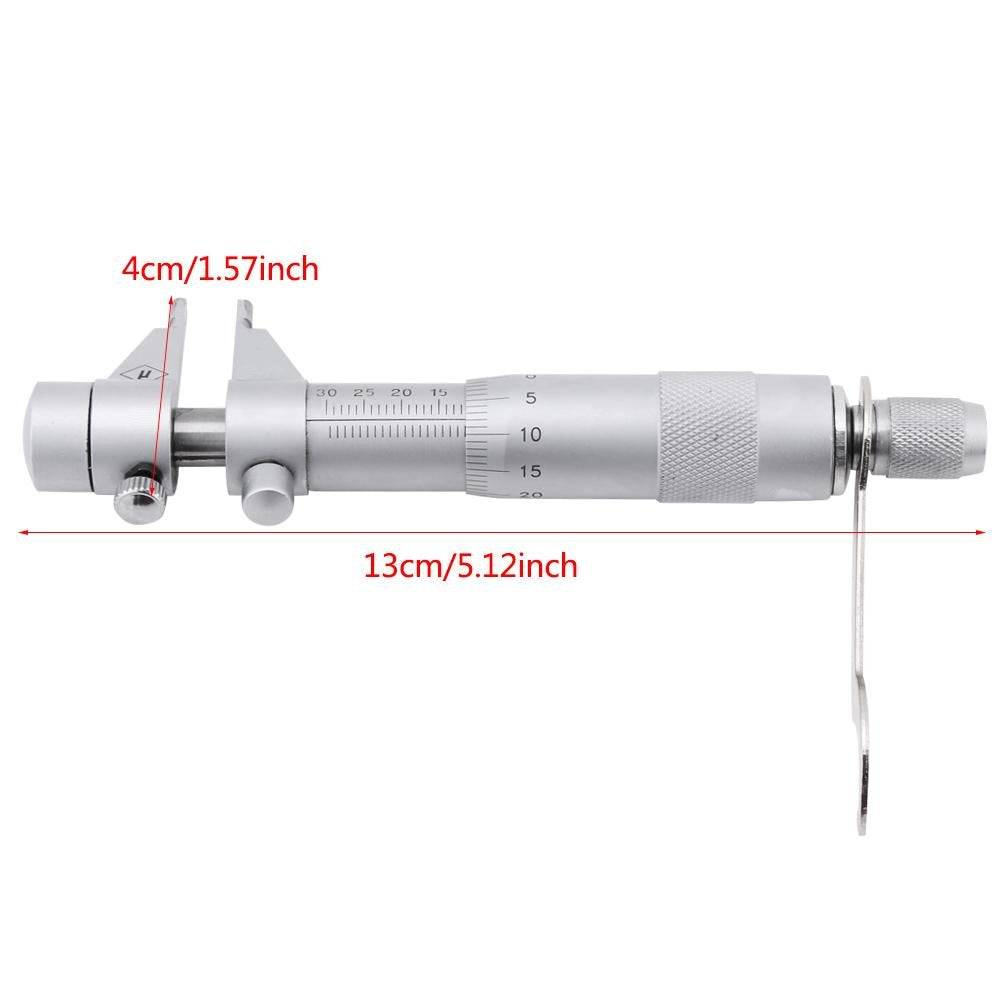

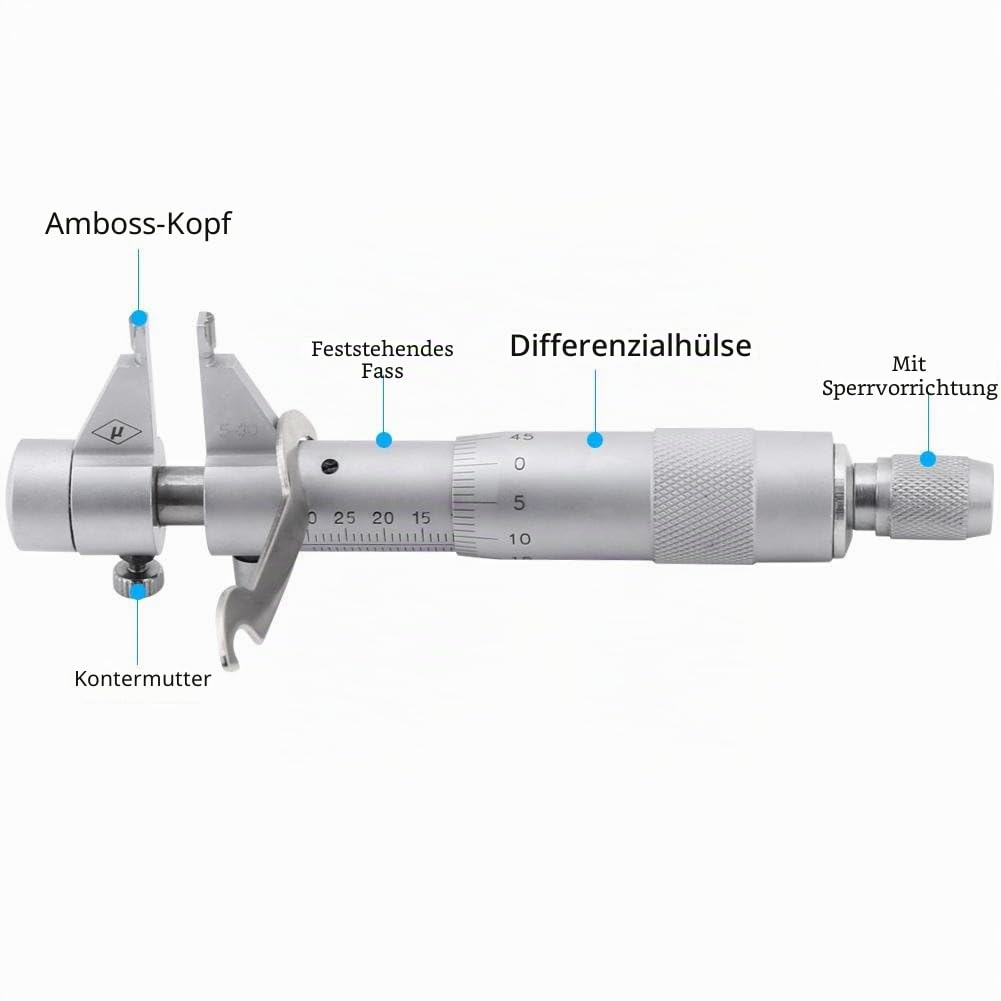

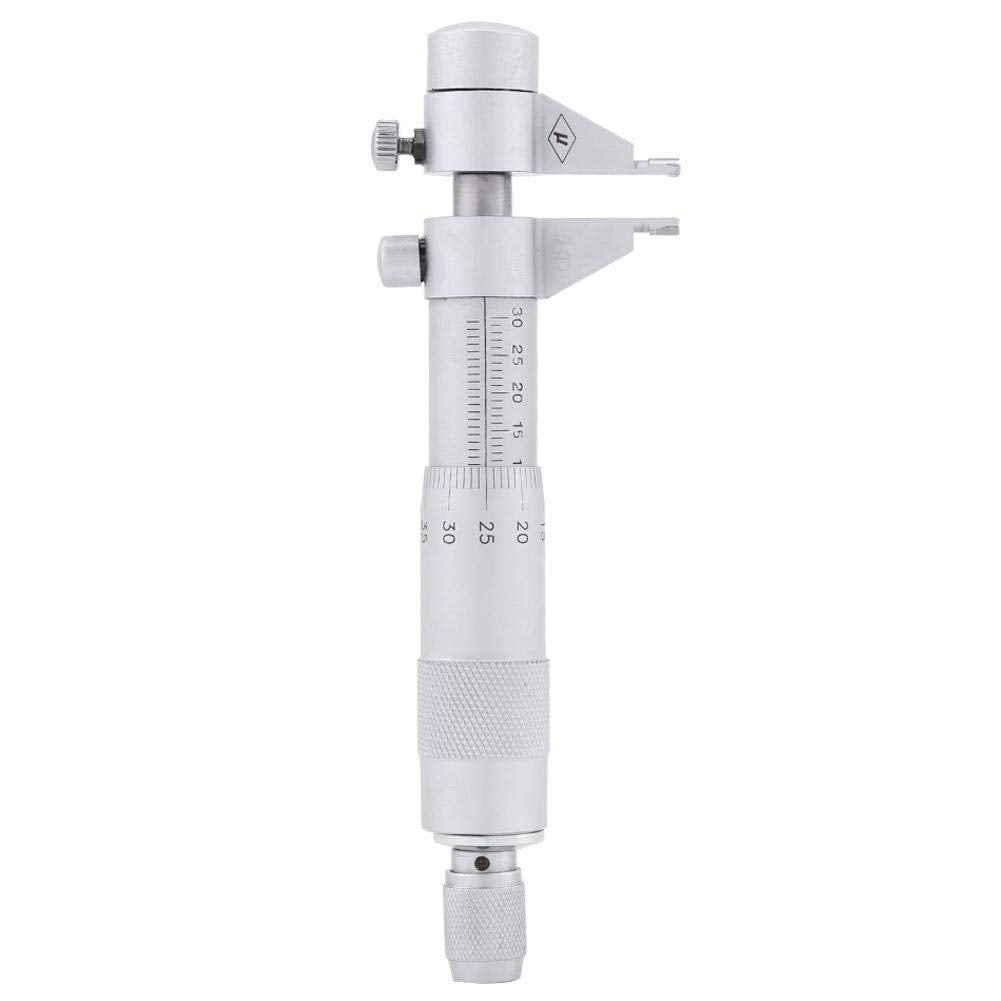

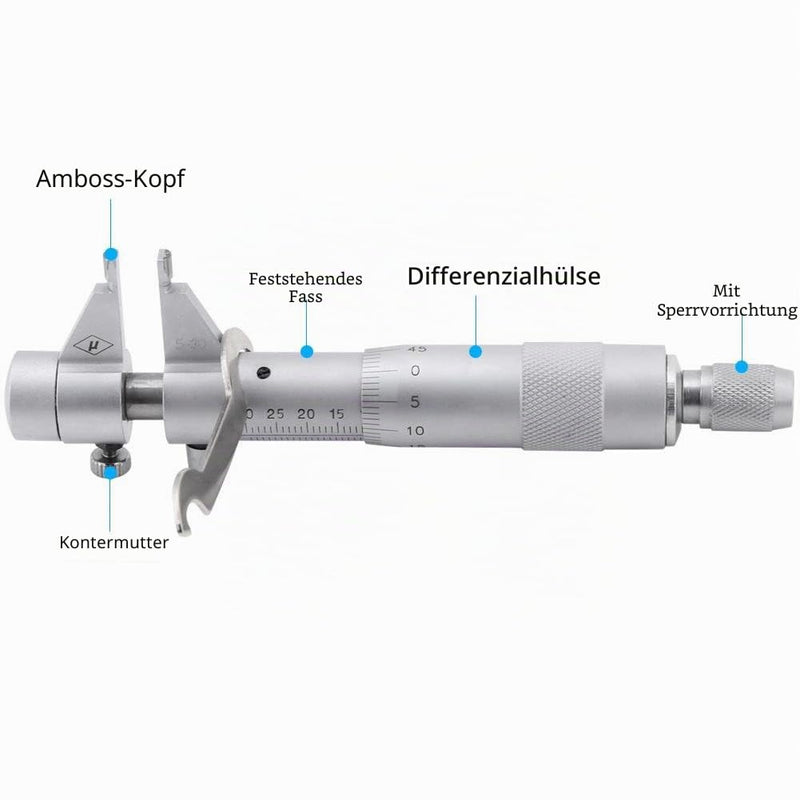

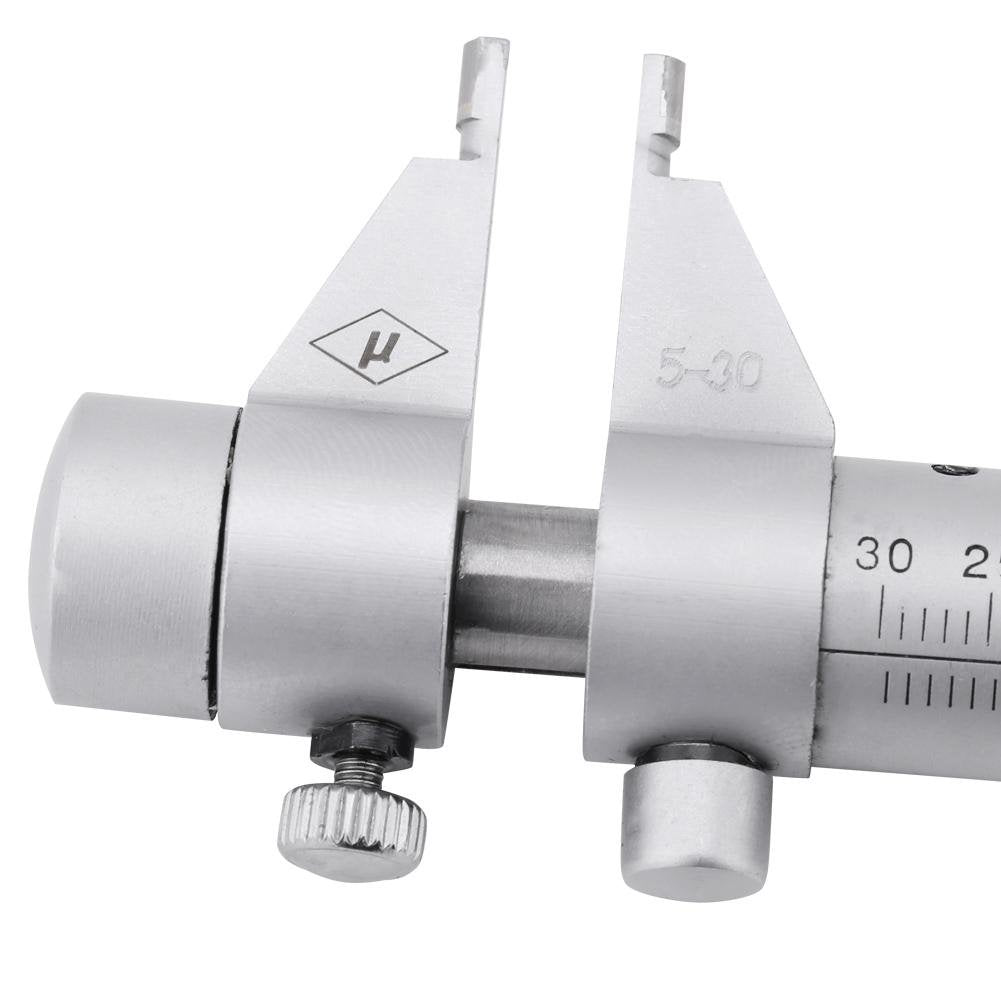

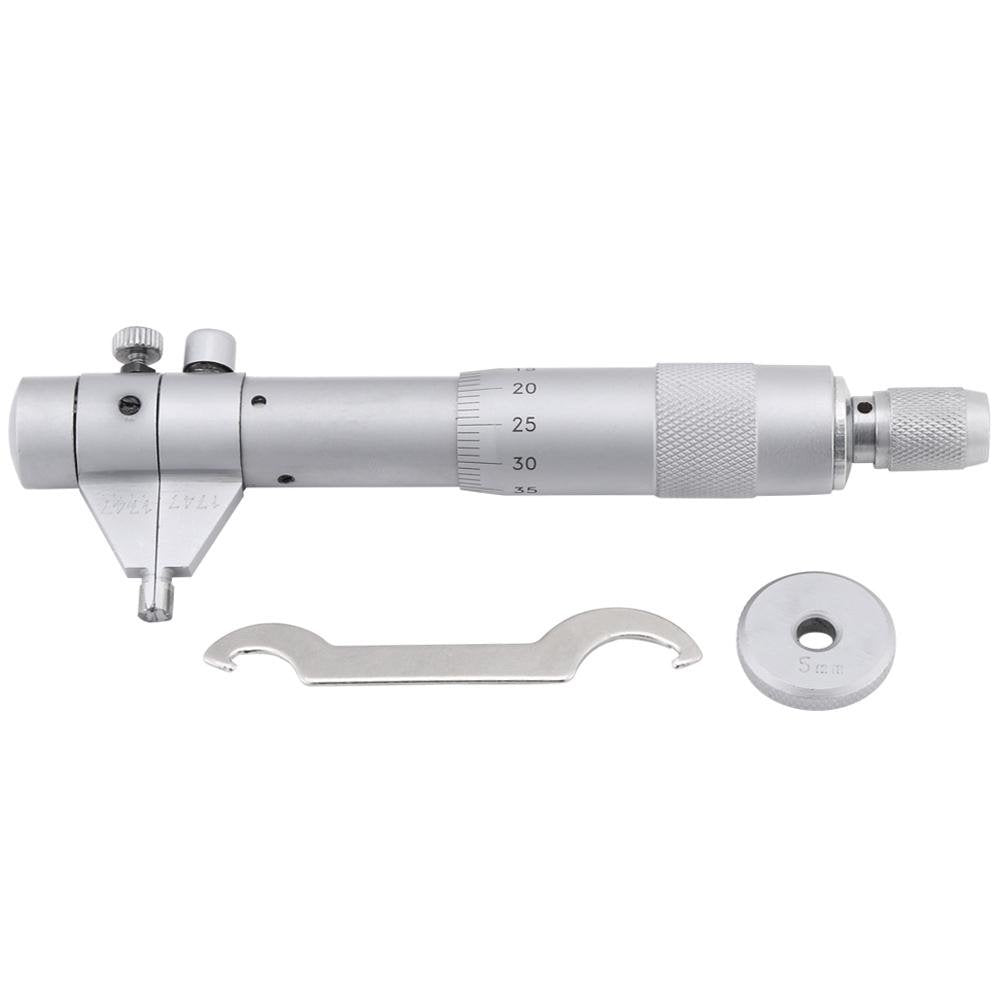

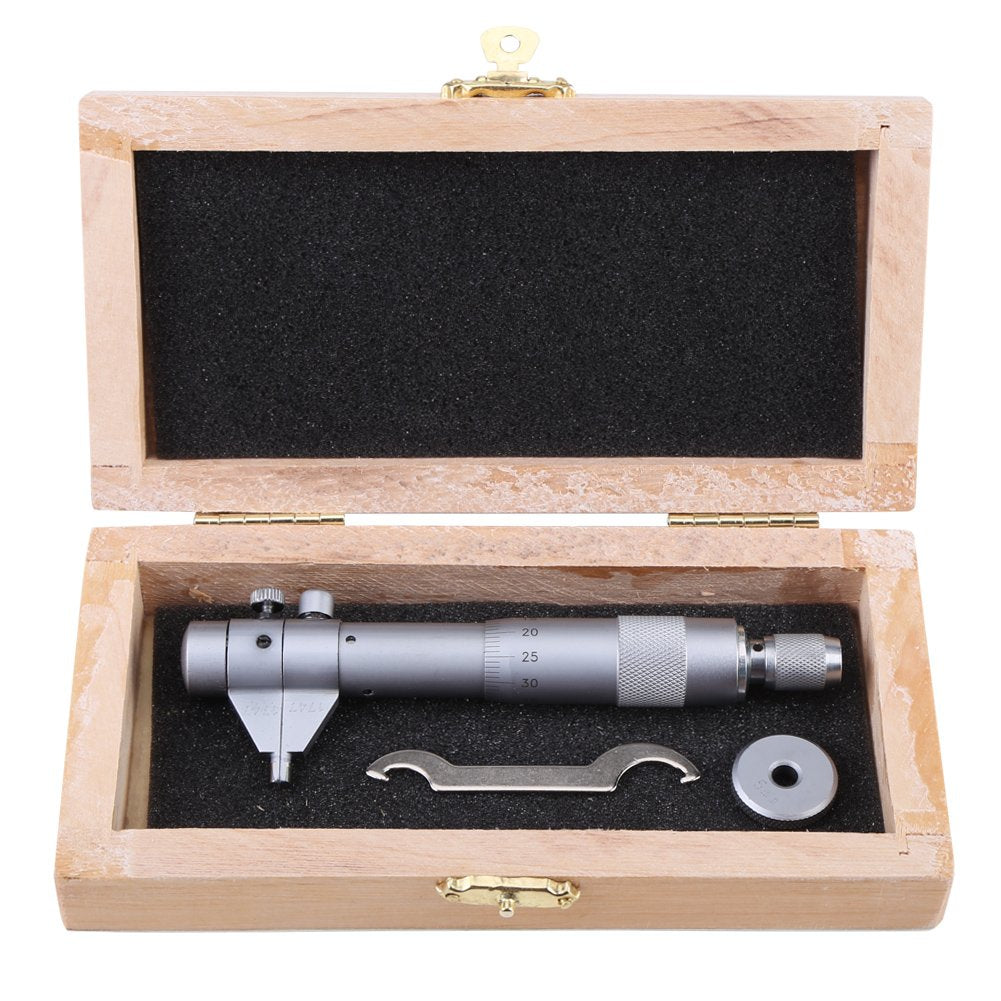

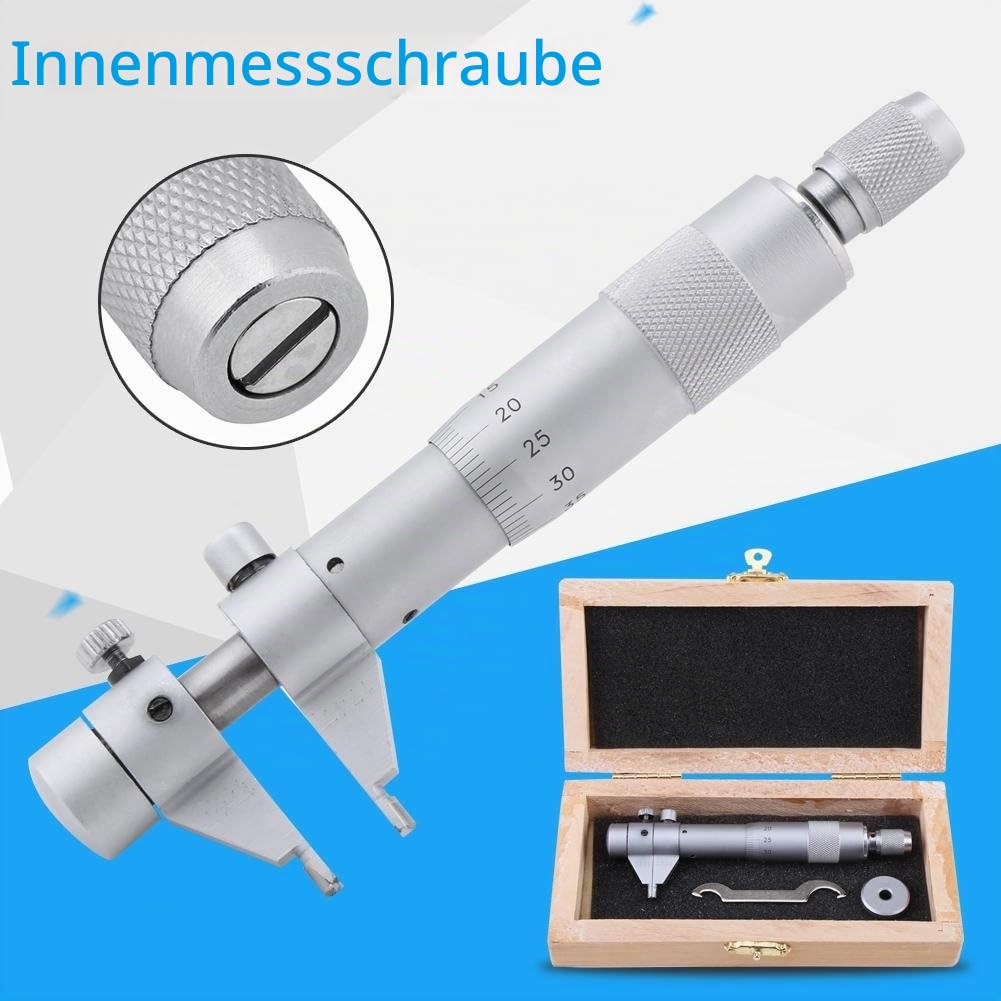

{"id":8115346473140,"title":"Internal Micrometer, 5-30mm 0.01mm Inner Dimension Micrometer Inner Diameter Hole Diameter Precision Gauge","handle":"internal-micrometer-5-30mm-0-01mm-inner-dimension-micrometer-inner-diameter-hole-diameter-precision-gauge","description":"\u003ch3\u003eInternal Micrometer, 5-30mm 0.01mm Inner Dimension Micrometer Inner Diameter Hole Diameter Precision Gauge\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical data: Type: Internal Micrometer Measuring range: 5 mm ~ 30 mm.\nMaterial: stainless steel. Accuracy: 0.01 mm. Weight: approx. 268g Zero\nposition: Clean the surface of the anvil detectors with a soft cloth and then\nrotate the gauge to make two surface measurements. If two neutral axes of the\ndifferential sleeve and a fixed barrel do not align, use the following two\nmethods to adjust. A method that, if the error is less than 0.001 inches, use\na ratchet stop to lock the screw tightly, then use the wrench to pull the\nfixed barrel to two zero lines. Method II, if the error is greater than 0.02\nmm (0.001 inches), Step1, use the ratchet stop to lock the screw tightly, then\nuse keys to loosen the ratchet and remove the differential sleeve. Step2,\nalign zero fixed rod and differential sleeve, then stop the ratchet again.\nAdjust again with Method I if necessary. Note: It is not necessary to\ncalibrate micrometers during the usual use of micrometers only calibration\nwhen it is heavily consumed. Package includes: 1 x Inner Knife 1 x Wrench 1 x\nCalibration Ring 1 x Packing Box\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe measuring heads made of high quality alloy can be used for different inner sizes, fine workmanship and no smudging\u003c\/li\u003e\n \u003cli\u003eClear marking line for convenient reading\u003c\/li\u003e\n \u003cli\u003eThe body of the main micrometer is made of stainless steel with chrome plated surface, wear-resistant and durable\u003c\/li\u003e\n \u003cli\u003eDesigned with locking device, the precise structure of the machine makes it more intuitive and convenient to read\u003c\/li\u003e\n \u003cli\u003eBuilt-in ratchet stop ensures accurate repeat measurements\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T10:50:42+10:00","created_at":"2026-09-02T00:11:43+10:00","vendor":"Zunate","type":"Outside Micrometres","tags":["industrial_DE_Aug2026"],"price":29900,"price_min":29900,"price_max":29900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375073685684,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07KSWRRCF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Internal Micrometer, 5-30mm 0.01mm Inner Dimension Micrometer Inner Diameter Hole Diameter Precision Gauge","public_title":null,"options":["Default Title"],"price":29900,"weight":246,"compare_at_price":null,"inventory_management":"shopify","barcode":"794419606044","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07KSWRRCF_29c9d354-cef6-4bfb-acac-5a12eda71481.jpg?v=1788271905","\/\/auspowers.com\/cdn\/shop\/files\/61BYLX90NUL.jpg?v=1788271905","\/\/auspowers.com\/cdn\/shop\/files\/51Dk6jDgZCL.jpg?v=1788271905","\/\/auspowers.com\/cdn\/shop\/files\/61WBIBimz4L_fae5d3cc-84d4-402c-bfb7-1b29925cd1c3.jpg?v=1788271905","\/\/auspowers.com\/cdn\/shop\/files\/51K4wTV2LYL_7308c4df-0243-4ed3-8e21-f916087e98b6.jpg?v=1788271905","\/\/auspowers.com\/cdn\/shop\/files\/51JbEZam1SL.jpg?v=1788271905","\/\/auspowers.com\/cdn\/shop\/files\/51JYnmYg44L_770225b6-da9d-46ce-887f-685571639e5b.jpg?v=1788271905","\/\/auspowers.com\/cdn\/shop\/files\/511D39uwqPL_eeac3af5-3c9c-4fa2-a037-89c974273c75.jpg?v=1788271905","\/\/auspowers.com\/cdn\/shop\/files\/416bZOfjANL_f9d6413b-340b-4048-be3d-ef7b8ae7e467.jpg?v=1788271905"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07KSWRRCF_29c9d354-cef6-4bfb-acac-5a12eda71481.jpg?v=1788271905","options":["Title"],"media":[{"alt":null,"id":33273619316916,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07KSWRRCF_29c9d354-cef6-4bfb-acac-5a12eda71481.jpg?v=1788271905"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07KSWRRCF_29c9d354-cef6-4bfb-acac-5a12eda71481.jpg?v=1788271905","width":1001},{"alt":null,"id":33273619349684,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61BYLX90NUL.jpg?v=1788271905"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61BYLX90NUL.jpg?v=1788271905","width":1001},{"alt":null,"id":33273619382452,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Dk6jDgZCL.jpg?v=1788271905"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Dk6jDgZCL.jpg?v=1788271905","width":1001},{"alt":null,"id":33273619415220,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61WBIBimz4L_fae5d3cc-84d4-402c-bfb7-1b29925cd1c3.jpg?v=1788271905"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61WBIBimz4L_fae5d3cc-84d4-402c-bfb7-1b29925cd1c3.jpg?v=1788271905","width":1001},{"alt":null,"id":33273619447988,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51K4wTV2LYL_7308c4df-0243-4ed3-8e21-f916087e98b6.jpg?v=1788271905"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51K4wTV2LYL_7308c4df-0243-4ed3-8e21-f916087e98b6.jpg?v=1788271905","width":1001},{"alt":null,"id":33273619480756,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51JbEZam1SL.jpg?v=1788271905"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51JbEZam1SL.jpg?v=1788271905","width":1001},{"alt":null,"id":33273619513524,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51JYnmYg44L_770225b6-da9d-46ce-887f-685571639e5b.jpg?v=1788271905"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51JYnmYg44L_770225b6-da9d-46ce-887f-685571639e5b.jpg?v=1788271905","width":1001},{"alt":null,"id":33273619546292,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/511D39uwqPL_eeac3af5-3c9c-4fa2-a037-89c974273c75.jpg?v=1788271905"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/511D39uwqPL_eeac3af5-3c9c-4fa2-a037-89c974273c75.jpg?v=1788271905","width":1001},{"alt":null,"id":33273619579060,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/416bZOfjANL_f9d6413b-340b-4048-be3d-ef7b8ae7e467.jpg?v=1788271905"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/416bZOfjANL_f9d6413b-340b-4048-be3d-ef7b8ae7e467.jpg?v=1788271905","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eInternal Micrometer, 5-30mm 0.01mm Inner Dimension Micrometer Inner Diameter Hole Diameter Precision Gauge\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical data: Type: Internal Micrometer Measuring range: 5 mm ~ 30 mm.\nMaterial: stainless steel. Accuracy: 0.01 mm. Weight: approx. 268g Zero\nposition: Clean the surface of the anvil detectors with a soft cloth and then\nrotate the gauge to make two surface measurements. If two neutral axes of the\ndifferential sleeve and a fixed barrel do not align, use the following two\nmethods to adjust. A method that, if the error is less than 0.001 inches, use\na ratchet stop to lock the screw tightly, then use the wrench to pull the\nfixed barrel to two zero lines. Method II, if the error is greater than 0.02\nmm (0.001 inches), Step1, use the ratchet stop to lock the screw tightly, then\nuse keys to loosen the ratchet and remove the differential sleeve. Step2,\nalign zero fixed rod and differential sleeve, then stop the ratchet again.\nAdjust again with Method I if necessary. Note: It is not necessary to\ncalibrate micrometers during the usual use of micrometers only calibration\nwhen it is heavily consumed. Package includes: 1 x Inner Knife 1 x Wrench 1 x\nCalibration Ring 1 x Packing Box\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe measuring heads made of high quality alloy can be used for different inner sizes, fine workmanship and no smudging\u003c\/li\u003e\n \u003cli\u003eClear marking line for convenient reading\u003c\/li\u003e\n \u003cli\u003eThe body of the main micrometer is made of stainless steel with chrome plated surface, wear-resistant and durable\u003c\/li\u003e\n \u003cli\u003eDesigned with locking device, the precise structure of the machine makes it more intuitive and convenient to read\u003c\/li\u003e\n \u003cli\u003eBuilt-in ratchet stop ensures accurate repeat measurements\u003c\/li\u003e\n \u003c\/ul\u003e"}
