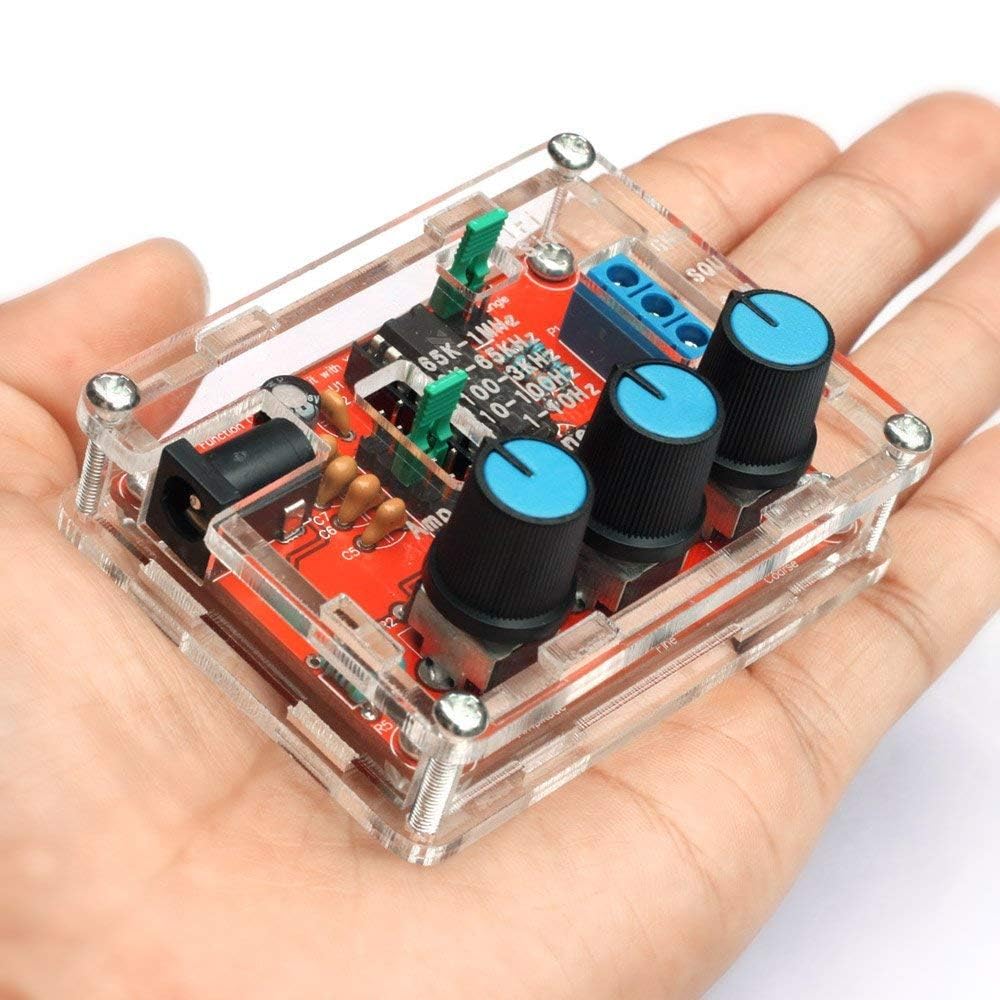

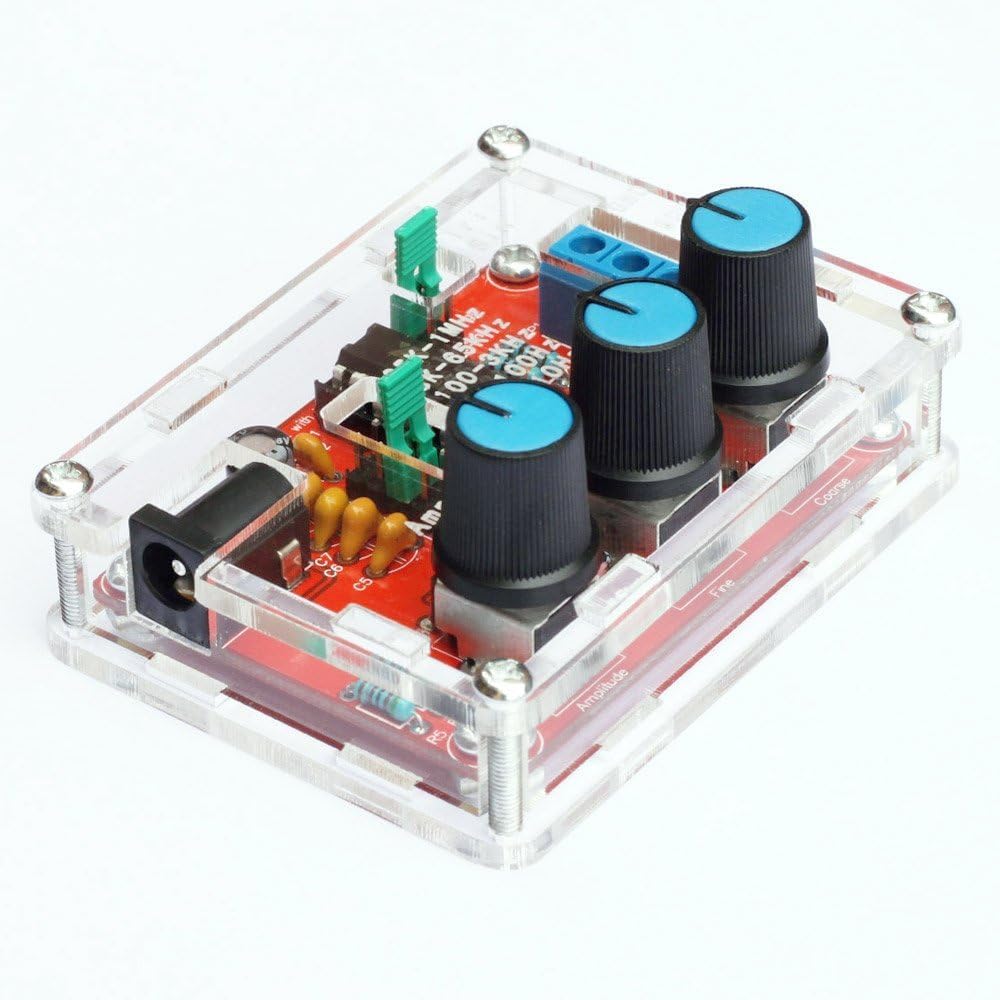

{"id":7992129913012,"title":"ICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude","handle":"icquanzx-xr2206-high-precision-function-signal-generator-diy-kit-sinus-triangle-square-output-1hz-1mhz-adjustable-frequency-amplitude","description":"\u003ch3\u003eICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: High resolution, can produce sine \/ triangle \/ square waveforms\nFrequency range: 1Hz-1MHz Adjustable frequency and amplitude. The frequency\nadjustment allows coarse and fine tuning. Large power supply range, 9-12V\nexternal power supply or 9V battery (not included). All components are through\nholes and easy to install. Specifications: Power supply: 9-12V DC input.\nWaveforms: square, sine and triangle. Impedance: 600 Ohm + 10%. Frequency:\n1Hz-1MHz. SINUS Amplitude: 0-3V @ 9V DC input Distortion: less than 1% (at 1\nkHz). Flatness: +0.05 dB 1 Hz - 100 kHz. Rectangular swing. Amplitude: 8V\n(without load) at 9V DC input Rise Time: Less than 50ns (at 1kHz) Drop time:\nless than 30 ns (at 1 kHz). Symmetry: less than 5% (at 1 kHz). TRIANGLE SHAFT\nAmplitude: 0-3V @ 9V DC input Linearity: less than 1% (up to 100 kHz) 10 mA\nPackage size: approx. 12 x 8 x 2 cm \/ 4.72 x 3.15 x 0.8 inches. Package\nweight: 69 g \/ 2.46 oz. Package list: 1 x signal generator kit. 1 x user\nmanual (English)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh resolution, can produce sine \/ triangle \/ square waveforms\u003c\/li\u003e\n \u003cli\u003eFrequency range: 1Hz-1MHz\u003c\/li\u003e\n \u003cli\u003eThe frequency adjustment allows coarse and fine tuning.\u003c\/li\u003e\n \u003cli\u003eLarge power supply range, 9-12V external power supply or 9V battery (not included).\u003c\/li\u003e\n \u003cli\u003eAdjustable frequency and amplitude.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-25T11:52:34+10:00","created_at":"2025-09-25T11:52:30+10:00","vendor":"ARCELI","type":"Function Generators","tags":["industryDE_Sep2025"],"price":10900,"price_min":10900,"price_max":10900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44052209991860,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07V674HZY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude","public_title":null,"options":["Default Title"],"price":10900,"weight":70,"compare_at_price":null,"inventory_management":"shopify","barcode":"00924","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/61Vrm_paU7L.jpg?v=1758765341","\/\/auspowers.com\/cdn\/shop\/files\/61oebm6JHpL.jpg?v=1758765414","\/\/auspowers.com\/cdn\/shop\/files\/61KT0uAhzML.jpg?v=1758765458","\/\/auspowers.com\/cdn\/shop\/files\/61oCVNPuQWL.jpg?v=1758765458","\/\/auspowers.com\/cdn\/shop\/files\/61ZY0Vs3g7L.jpg?v=1758765341","\/\/auspowers.com\/cdn\/shop\/files\/6148bWRuvPL.jpg?v=1758765414","\/\/auspowers.com\/cdn\/shop\/files\/61DkmkqyJsL.jpg?v=1758765459"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/61Vrm_paU7L.jpg?v=1758765341","options":["Title"],"media":[{"alt":"[Australia - AusPower] - ICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude ","id":32196992663732,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Vrm_paU7L.jpg?v=1758765341"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Vrm_paU7L.jpg?v=1758765341","width":1000},{"alt":"[Australia - AusPower] - ICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude ","id":32196992696500,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61oebm6JHpL.jpg?v=1758765414"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61oebm6JHpL.jpg?v=1758765414","width":1000},{"alt":"[Australia - AusPower] - ICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude ","id":32196992729268,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61KT0uAhzML.jpg?v=1758765458"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61KT0uAhzML.jpg?v=1758765458","width":1000},{"alt":"[Australia - AusPower] - ICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude ","id":32196992762036,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61oCVNPuQWL.jpg?v=1758765458"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61oCVNPuQWL.jpg?v=1758765458","width":1000},{"alt":"[Australia - AusPower] - ICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude ","id":32196992794804,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ZY0Vs3g7L.jpg?v=1758765341"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ZY0Vs3g7L.jpg?v=1758765341","width":1000},{"alt":"[Australia - AusPower] - ICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude ","id":32196992827572,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/6148bWRuvPL.jpg?v=1758765414"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/6148bWRuvPL.jpg?v=1758765414","width":1000},{"alt":"[Australia - AusPower] - ICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude ","id":32196992860340,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61DkmkqyJsL.jpg?v=1758765459"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61DkmkqyJsL.jpg?v=1758765459","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eICQUANZX XR2206 High Precision Function Signal Generator DIY Kit Sinus\/Triangle\/Square Output 1Hz-1MHz Adjustable Frequency Amplitude\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: High resolution, can produce sine \/ triangle \/ square waveforms\nFrequency range: 1Hz-1MHz Adjustable frequency and amplitude. The frequency\nadjustment allows coarse and fine tuning. Large power supply range, 9-12V\nexternal power supply or 9V battery (not included). All components are through\nholes and easy to install. Specifications: Power supply: 9-12V DC input.\nWaveforms: square, sine and triangle. Impedance: 600 Ohm + 10%. Frequency:\n1Hz-1MHz. SINUS Amplitude: 0-3V @ 9V DC input Distortion: less than 1% (at 1\nkHz). Flatness: +0.05 dB 1 Hz - 100 kHz. Rectangular swing. Amplitude: 8V\n(without load) at 9V DC input Rise Time: Less than 50ns (at 1kHz) Drop time:\nless than 30 ns (at 1 kHz). Symmetry: less than 5% (at 1 kHz). TRIANGLE SHAFT\nAmplitude: 0-3V @ 9V DC input Linearity: less than 1% (up to 100 kHz) 10 mA\nPackage size: approx. 12 x 8 x 2 cm \/ 4.72 x 3.15 x 0.8 inches. Package\nweight: 69 g \/ 2.46 oz. Package list: 1 x signal generator kit. 1 x user\nmanual (English)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh resolution, can produce sine \/ triangle \/ square waveforms\u003c\/li\u003e\n \u003cli\u003eFrequency range: 1Hz-1MHz\u003c\/li\u003e\n \u003cli\u003eThe frequency adjustment allows coarse and fine tuning.\u003c\/li\u003e\n \u003cli\u003eLarge power supply range, 9-12V external power supply or 9V battery (not included).\u003c\/li\u003e\n \u003cli\u003eAdjustable frequency and amplitude.\u003c\/li\u003e\n \u003c\/ul\u003e"}
