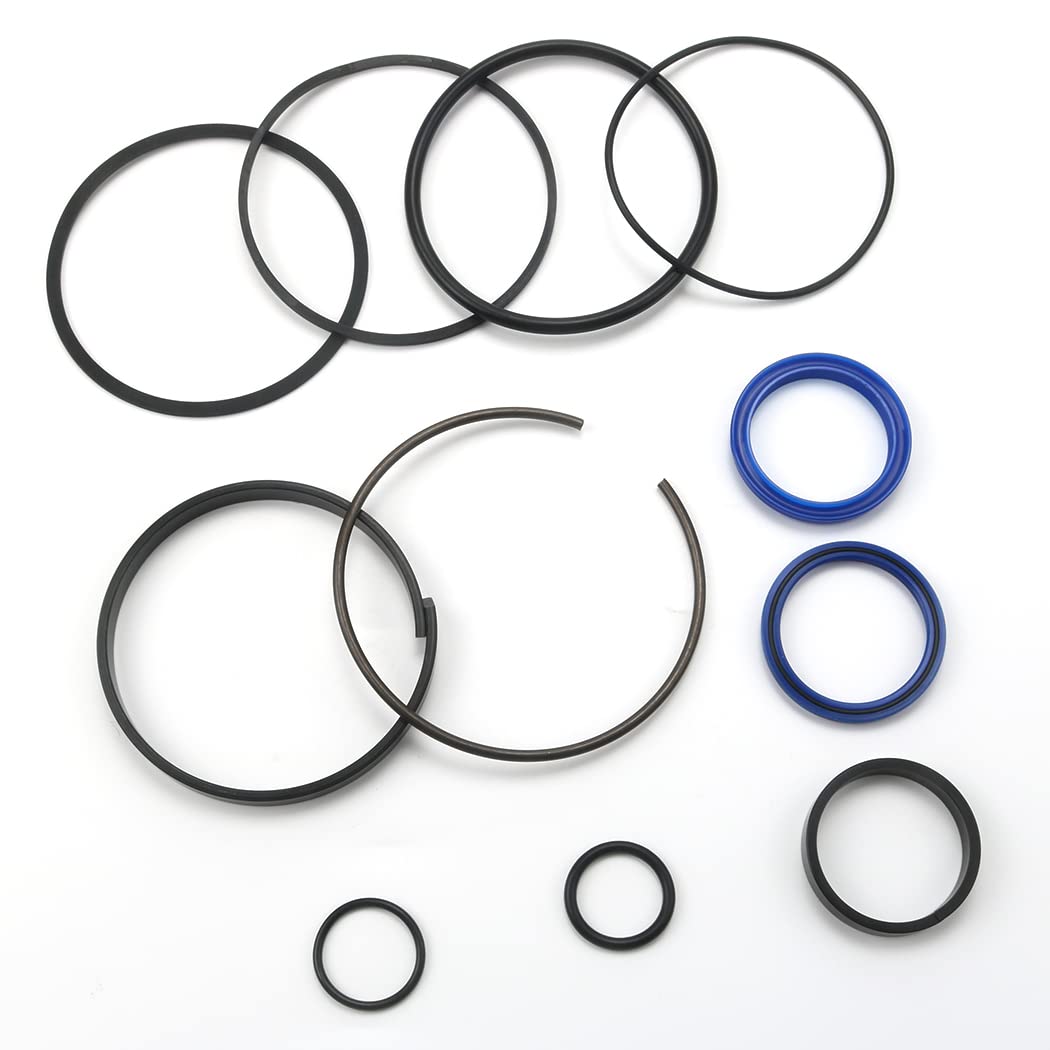

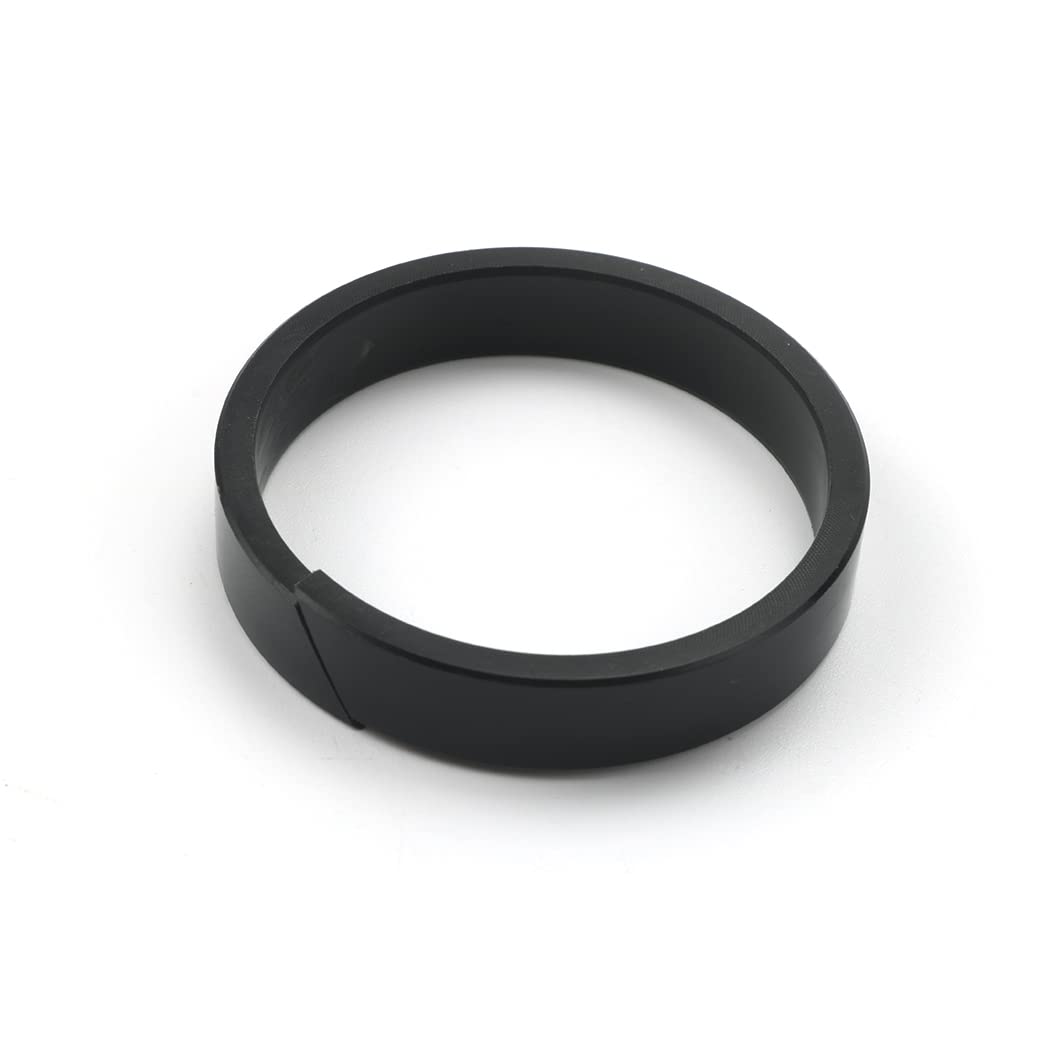

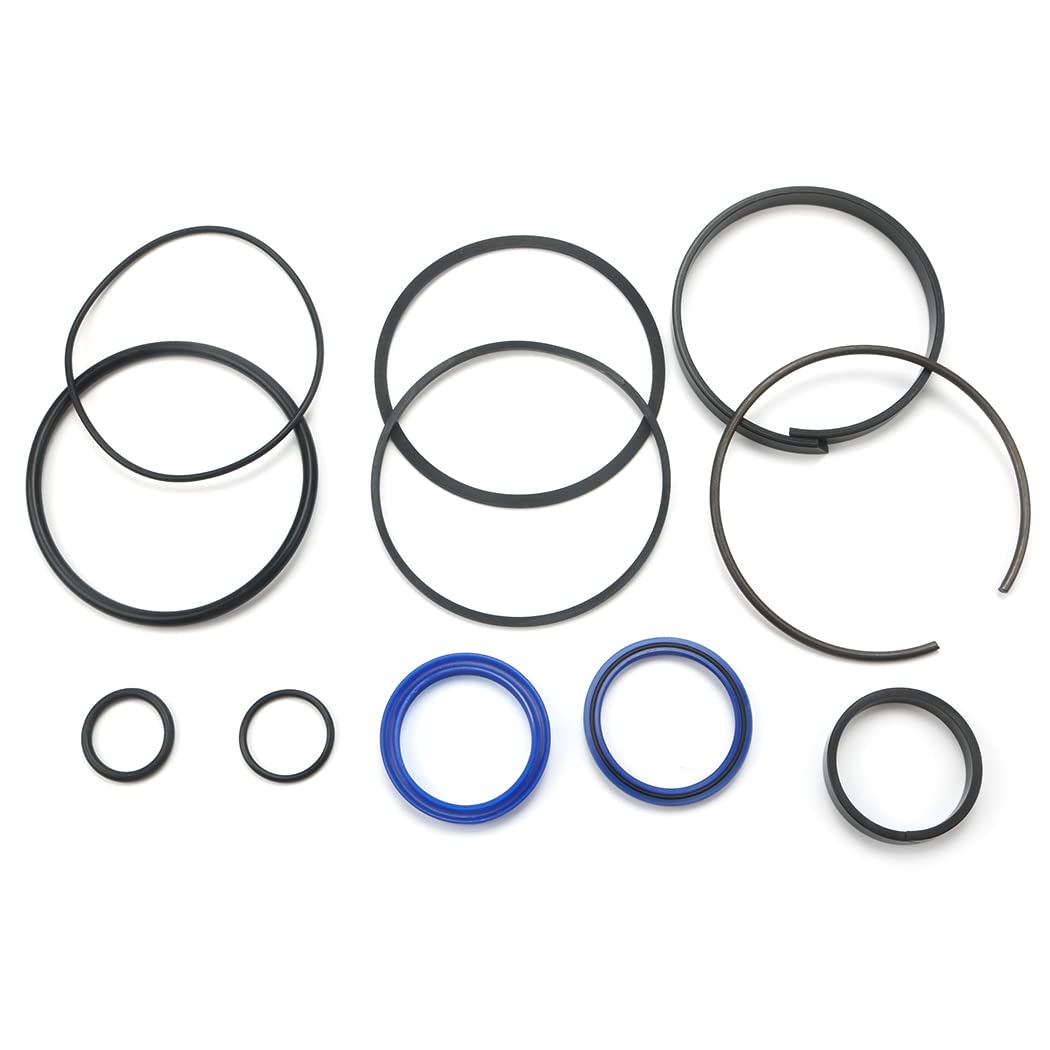

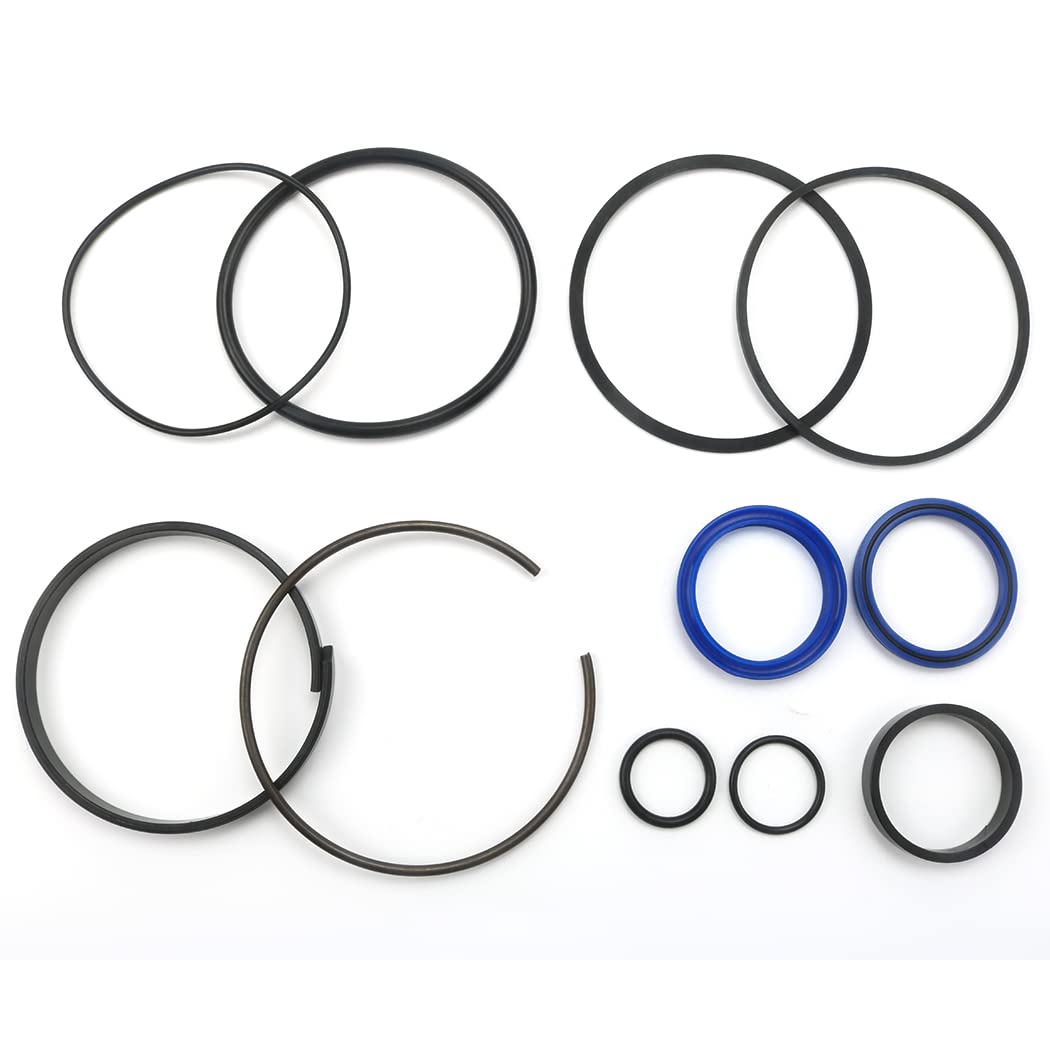

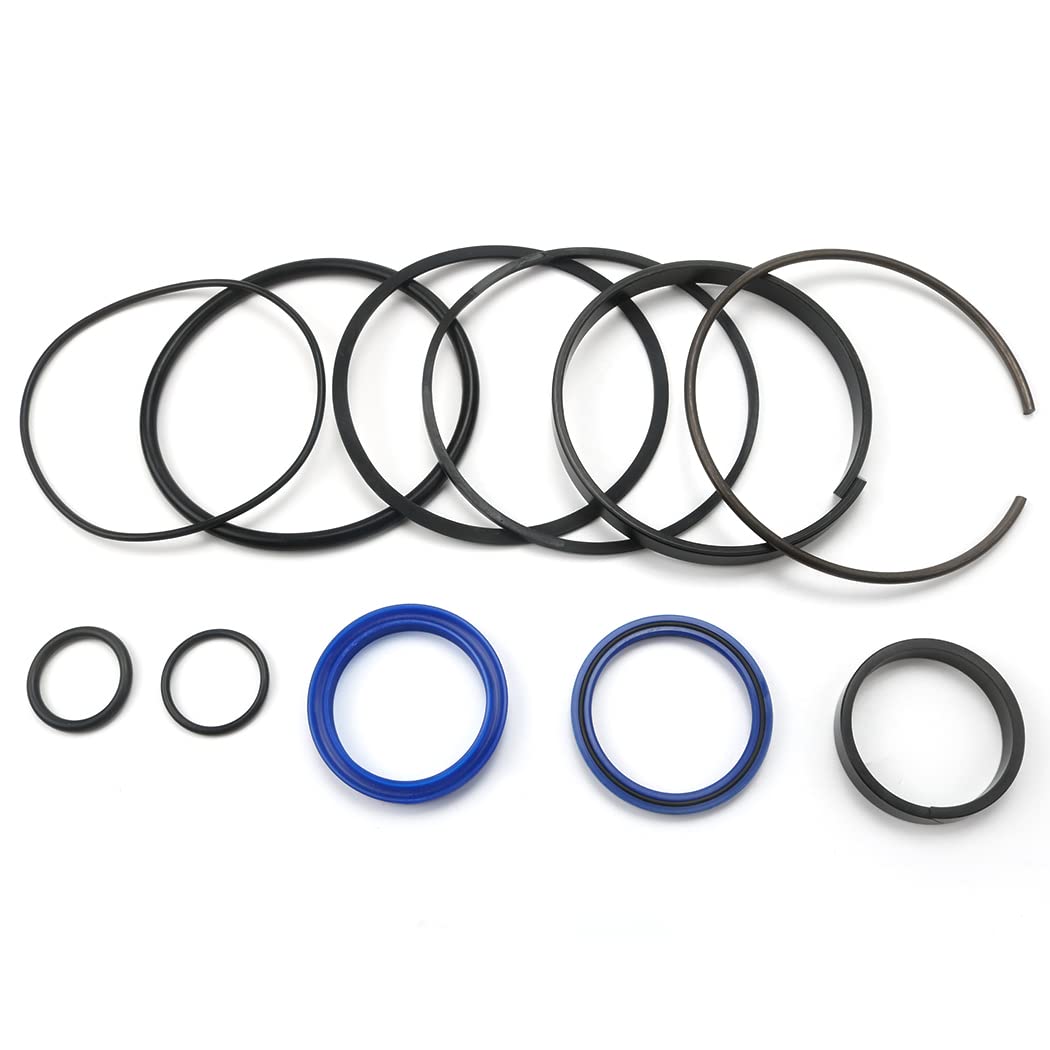

{"id":7358518558900,"title":"Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde","handle":"hydraulic-log-splitter-cylinder-rebuild-seal-kit-for-4-0bore-x-1-75-rod-cylinde","description":"\u003ch3\u003eHydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHydraulic Log splitter cylinder rebuild seal kit for 4.0\"Bore x 1.75\" rod\ncylinder To know whether it fits your cylinder, one good way is to disassemble\nand measure your cylinder to compare with each item specification. Double\ncheck each seal groove is good for our part sitting in. 1. Cylinder tube Bore\n(I.D.) 4.0\" x rod (O.D) 1.75\". Please note some cylinder rod head OD size is\nnot rod size. 2. Wear rings. Piston wear ring : 101.6 mm ( OD 4\") x 95.25mm\n(ID 3.75\") x 9.53mm (0.375\" wide), Nylon Rod wear ring : 44.5mm (ID 1.752\") x\n50.8mm (OD 2”) x 9.53mm (0.375\" wide), Nylon 3. Piston seals 1 square ring and\n1 O-ring. Piston Square ring: D101.6 mm x91.6mm x 3.28mm; O-ring (installed\nunder the square ring): 91.0 mm x 2.65 mm . CPU + NBR 4. Rod O-ring (item 13):\n44.5mm x 54mm x 5mm, CPU. There is O-ring inside. 5. Rod dust ring (Item 12):\n44.5mm x 54mm 5.5mm \/7.3mm, TPU Below is 4.0\"Bore x 1.75\" rod cylinder\nSpecification that OEM made by this seal kit: Retracted (center to center\nbetween rod mountain hole and clevis hole: 32.4” Extended (center to center\nsame as above): 56.4” Stroke: 24±0.05” Dimension from center of clevis hole to\nback face of cylinder: 2.95” Dimension from center of rod end hole to front\nface of rod: 1.06” Dimension from center of rod end hole to front face of\ncylinder: 1.18” Ports: 1\/2\" NPT Dimension from port to port: 25.4” Rod: 1.75\"\nrod Rod end mountain hole: 0.55” Clevis Mountain hole: 1.16” Dimension between\nmountain clevis to clevis: 0.87” Thickness of each mountain clevis: 0.375”\nLength of each mounting clevis: 4.125”\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSeal Size: 4.0\"Bore x 1.75\"\u003c\/li\u003e\n \u003cli\u003eBrand: Aftermarket\u003c\/li\u003e\n \u003cli\u003ePart Type:cylinder rebuild seal kit\u003c\/li\u003e\n \u003cli\u003eUS STOCK with fast shipping\u003c\/li\u003e\n \u003cli\u003eMaterial :Rubber Plastic\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-03-01T20:08:31+11:00","created_at":"2023-03-01T20:08:43+11:00","vendor":"Jetuplusllc","type":"","tags":["industrial_Dec2022"],"price":29200,"price_min":29200,"price_max":29200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42195206996148,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BCFY2TJ6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde","public_title":null,"options":["Default Title"],"price":29200,"weight":68,"compare_at_price":null,"inventory_management":null,"barcode":"4.0\"Bore x 1.75\"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0BCFY2TJ6.jpg?v=1677739793","\/\/auspowers.com\/cdn\/shop\/products\/51a5Y9cb1vL.jpg?v=1677661723","\/\/auspowers.com\/cdn\/shop\/products\/51BwNR862NL.jpg?v=1677661723","\/\/auspowers.com\/cdn\/shop\/products\/41zVCsa-MsL.jpg?v=1677661723","\/\/auspowers.com\/cdn\/shop\/products\/417mgAKPEdL.jpg?v=1677661723","\/\/auspowers.com\/cdn\/shop\/products\/51qW6mxuLCL.jpg?v=1677661723","\/\/auspowers.com\/cdn\/shop\/products\/41Bi9CPJMUL.jpg?v=1677661723","\/\/auspowers.com\/cdn\/shop\/products\/41WdSjWGvKL.jpg?v=1677661723","\/\/auspowers.com\/cdn\/shop\/products\/51e6Ceo2M8L.jpg?v=1677661723"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0BCFY2TJ6.jpg?v=1677739793","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde ","id":28314837287092,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0BCFY2TJ6.jpg?v=1677739793"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0BCFY2TJ6.jpg?v=1677739793","width":1050},{"alt":"[Australia - AusPower] - Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde ","id":28310580854964,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51a5Y9cb1vL.jpg?v=1677661723"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51a5Y9cb1vL.jpg?v=1677661723","width":1050},{"alt":"[Australia - AusPower] - Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde ","id":28310580887732,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51BwNR862NL.jpg?v=1677661723"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51BwNR862NL.jpg?v=1677661723","width":1050},{"alt":"[Australia - AusPower] - Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde ","id":28310580920500,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41zVCsa-MsL.jpg?v=1677661723"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41zVCsa-MsL.jpg?v=1677661723","width":1050},{"alt":"[Australia - AusPower] - Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde ","id":28310580953268,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/products\/417mgAKPEdL.jpg?v=1677661723"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/417mgAKPEdL.jpg?v=1677661723","width":1050},{"alt":"[Australia - AusPower] - Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde ","id":28310580986036,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51qW6mxuLCL.jpg?v=1677661723"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51qW6mxuLCL.jpg?v=1677661723","width":1050},{"alt":"[Australia - AusPower] - Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde ","id":28310581018804,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41Bi9CPJMUL.jpg?v=1677661723"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41Bi9CPJMUL.jpg?v=1677661723","width":1050},{"alt":"[Australia - AusPower] - Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde ","id":28310581051572,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41WdSjWGvKL.jpg?v=1677661723"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41WdSjWGvKL.jpg?v=1677661723","width":1050},{"alt":"[Australia - AusPower] - Hydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde ","id":28310581084340,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51e6Ceo2M8L.jpg?v=1677661723"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51e6Ceo2M8L.jpg?v=1677661723","width":1050}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHydraulic Log Splitter Cylinder Rebuild Seal Kit for 4.0\"Bore x 1.75\" Rod Cylinde\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHydraulic Log splitter cylinder rebuild seal kit for 4.0\"Bore x 1.75\" rod\ncylinder To know whether it fits your cylinder, one good way is to disassemble\nand measure your cylinder to compare with each item specification. Double\ncheck each seal groove is good for our part sitting in. 1. Cylinder tube Bore\n(I.D.) 4.0\" x rod (O.D) 1.75\". Please note some cylinder rod head OD size is\nnot rod size. 2. Wear rings. Piston wear ring : 101.6 mm ( OD 4\") x 95.25mm\n(ID 3.75\") x 9.53mm (0.375\" wide), Nylon Rod wear ring : 44.5mm (ID 1.752\") x\n50.8mm (OD 2”) x 9.53mm (0.375\" wide), Nylon 3. Piston seals 1 square ring and\n1 O-ring. Piston Square ring: D101.6 mm x91.6mm x 3.28mm; O-ring (installed\nunder the square ring): 91.0 mm x 2.65 mm . CPU + NBR 4. Rod O-ring (item 13):\n44.5mm x 54mm x 5mm, CPU. There is O-ring inside. 5. Rod dust ring (Item 12):\n44.5mm x 54mm 5.5mm \/7.3mm, TPU Below is 4.0\"Bore x 1.75\" rod cylinder\nSpecification that OEM made by this seal kit: Retracted (center to center\nbetween rod mountain hole and clevis hole: 32.4” Extended (center to center\nsame as above): 56.4” Stroke: 24±0.05” Dimension from center of clevis hole to\nback face of cylinder: 2.95” Dimension from center of rod end hole to front\nface of rod: 1.06” Dimension from center of rod end hole to front face of\ncylinder: 1.18” Ports: 1\/2\" NPT Dimension from port to port: 25.4” Rod: 1.75\"\nrod Rod end mountain hole: 0.55” Clevis Mountain hole: 1.16” Dimension between\nmountain clevis to clevis: 0.87” Thickness of each mountain clevis: 0.375”\nLength of each mounting clevis: 4.125”\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSeal Size: 4.0\"Bore x 1.75\"\u003c\/li\u003e\n \u003cli\u003eBrand: Aftermarket\u003c\/li\u003e\n \u003cli\u003ePart Type:cylinder rebuild seal kit\u003c\/li\u003e\n \u003cli\u003eUS STOCK with fast shipping\u003c\/li\u003e\n \u003cli\u003eMaterial :Rubber Plastic\u003c\/li\u003e\n \u003c\/ul\u003e"}
