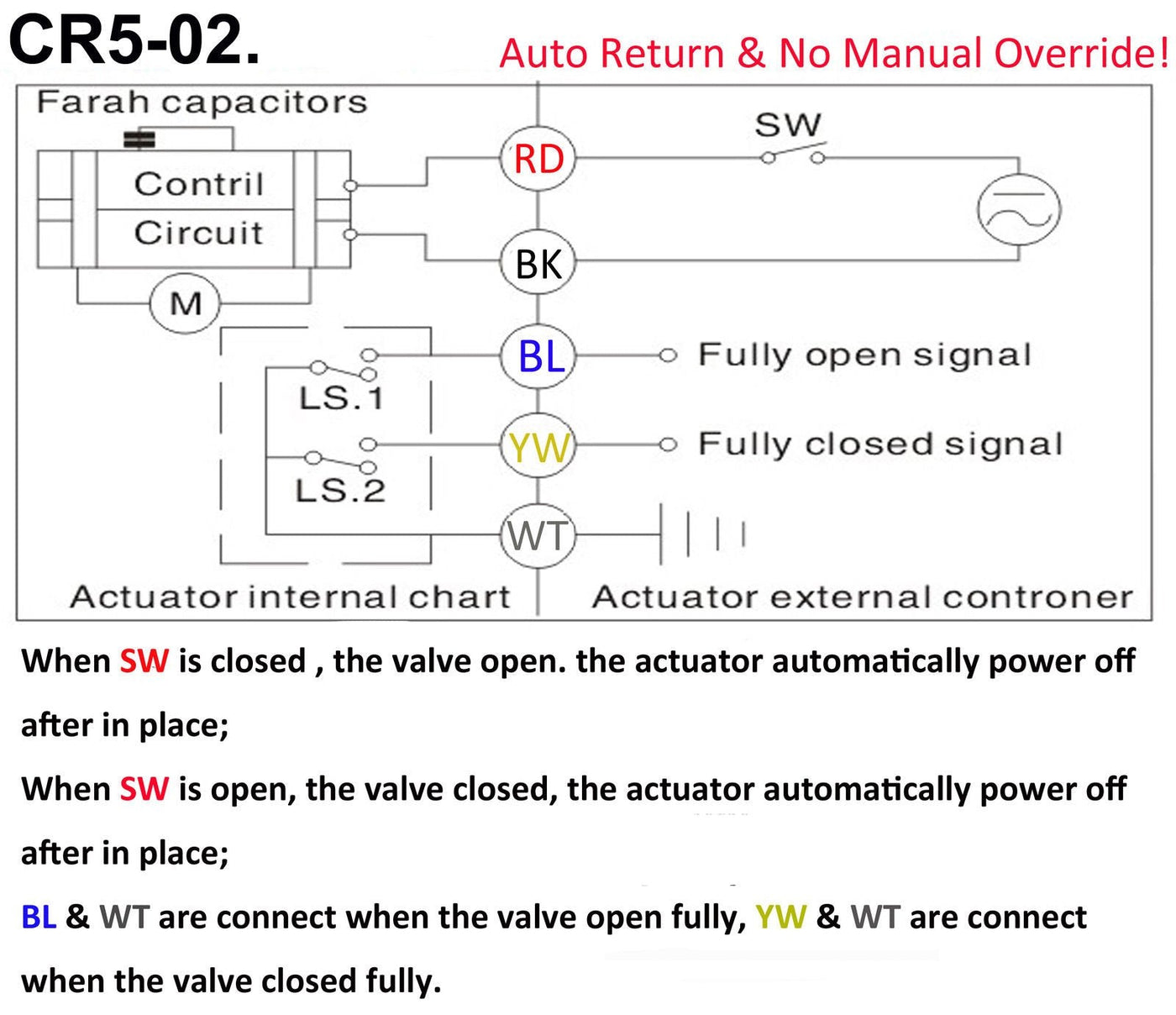

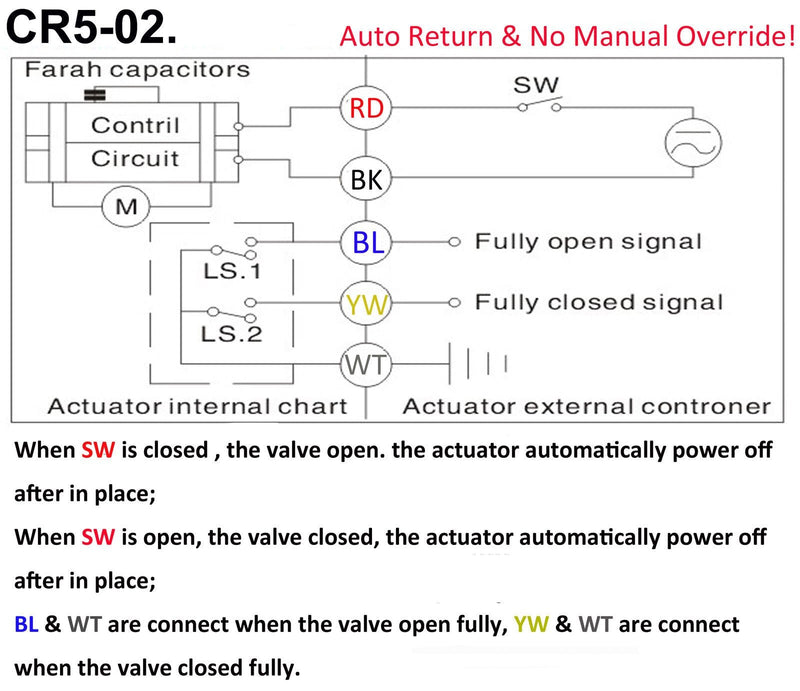

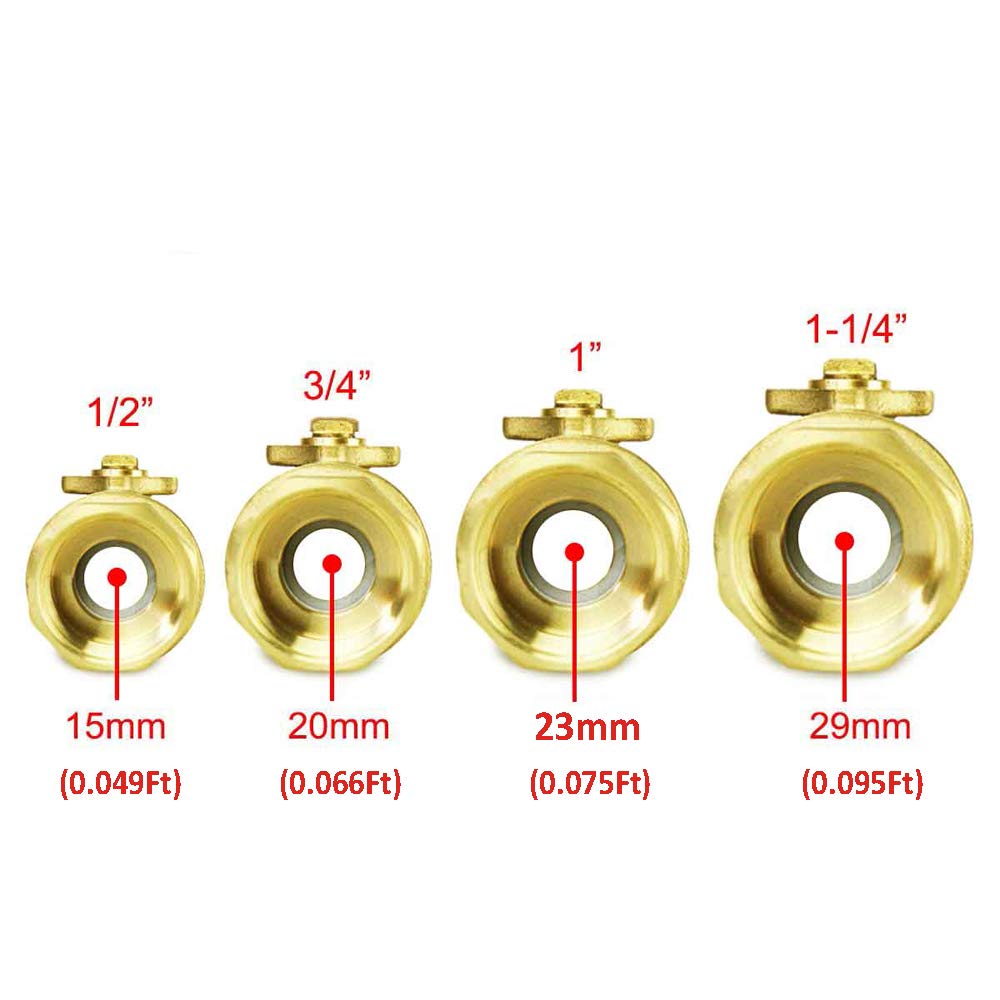

{"id":7134788419764,"title":"HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch) 1\/2 Inch","handle":"hsh-flo-2-way-1-2-3-4-1-1-1-4-12v-24vac-dc-brass-on-off-auto-return-electrical-position-feedback-motorized-ball-valve-1-2-inch-1-2-inch","description":"\u003ch3\u003eHSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical Parameter:◎Model: T15-B2-B;◎Working Voltage: 9-24VAC\/DC;◎Valve\nDimension:1\/2\" NPT Female Thread Connection, 15mm(0.049Ft) Full Bore;◎Wiring\nDiagram:CR5-02(2 Wires Control, Installed With Position Feedback Wires);◎Valve\nBody Material: Brass;◎Actuator Material: Engineering Plastics;◎Open\/Closed\nTime: About 3-5Sec.; ◎Suitable Media: Air, Water, Oil; ◎Power: Max 2\nWatts;◎Manual Override: Yes; ◎Indicator: Yes; ◎Working Current: Max 500Ma When\nAction, Cut Off Current When Arrived At Place; ◎Max. Torque Force For Aucator:\n2 N.M; ◎Cables Length: 0.5 Meters;◎Max Working Pressure:145PSI(1.0MPA);\n◎Liquid Temperature: 32°~212°F (0°~100°C);◎Environment\nTemperature:5~122F(-15°~50°C);Application:◎HVAC;◎Water Treatment;◎Chemical\nProcess;◎Small Industrial Equipment For Automatic Control;◎Replacing Solenoid\nValve, Particularly When Solenoid Cannot Work Reliably;◎Automatic Control\nSystems;◎Efficient Water-Saving, Water Equipment;◎Solar Hot Water\nProject;◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage\nof Air Compressor.Features: ◎Smart Shape, Perform Reliably, Large Output\nTorque, As Long As 50000-100000 Times , Convenience For All Kinds Of\nRequirements;◎Float Ball design, No Leak, Large Flow, The Valve is Bi-\ndirectional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for\nHeavy Dirt and Long Time No Action;◎The Conditions That Solenoid Valve Can Not\nBe Worked;◎High Protection Class, Can Be Worked In Most Conditions;◎POM\nCooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce\nNoise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The\nReliability of The Gear;◎Electrical and Mechanical Limit Integrated Design,\nAccurate Localization ,High consistency , Put an End to Swing of Valve.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e2 Way 1\/2\" NPT Full Bore 15mm(0.049Ft) Brass Valve Body;\u003c\/li\u003e\n \u003cli\u003eWide Range Working Voltage Design, Work From 9-24VAC And 9-36VDC;\u003c\/li\u003e\n \u003cli\u003eLimit Switches Bulid-In, Auto Cut Off Current When Arrived At Place(0Ma);\u003c\/li\u003e\n \u003cli\u003e2 Wires Control Normally Closed Design And Installed With Position Feedback Wires;\u003c\/li\u003e\n \u003cli\u003eBuild In Capacitor Return, Will Return To Original Position When Power Off\/Power Failed;\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-15T21:46:52+10:00","created_at":"2022-05-15T21:47:00+10:00","vendor":"HSH-Flo","type":"Ball Valves","tags":["industrial"],"price":28100,"price_min":28100,"price_max":28100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41498111049908,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00WDPZ26M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch) 1\/2 Inch","public_title":null,"options":["Default Title"],"price":28100,"weight":400,"compare_at_price":null,"inventory_management":null,"barcode":"0606679001586","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B00WDPZ26M.jpg?v=1652686930","\/\/auspowers.com\/cdn\/shop\/products\/51yOrnqs7cL.jpg?v=1652615220","\/\/auspowers.com\/cdn\/shop\/products\/51MMt2N1TDL.jpg?v=1652615220","\/\/auspowers.com\/cdn\/shop\/products\/61T_VmsXjzL.jpg?v=1652615220","\/\/auspowers.com\/cdn\/shop\/products\/61mJ2eCCh2L.jpg?v=1652615220","\/\/auspowers.com\/cdn\/shop\/products\/71babUtoODL.jpg?v=1652615220","\/\/auspowers.com\/cdn\/shop\/products\/61rullI2VmL_a094e546-0e34-4c20-84df-84c2dd0ec2d6.jpg?v=1652615220"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B00WDPZ26M.jpg?v=1652686930","options":["Title"],"media":[{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch) 1\/2 Inch ","id":25875966951604,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B00WDPZ26M.jpg?v=1652686930"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B00WDPZ26M.jpg?v=1652686930","width":1200},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch) 1\/2 Inch ","id":25869151535284,"position":2,"preview_image":{"aspect_ratio":1.124,"height":890,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51yOrnqs7cL.jpg?v=1652615220"},"aspect_ratio":1.124,"height":890,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51yOrnqs7cL.jpg?v=1652615220","width":1000},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch) 1\/2 Inch ","id":25869151568052,"position":3,"preview_image":{"aspect_ratio":1.124,"height":890,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51MMt2N1TDL.jpg?v=1652615220"},"aspect_ratio":1.124,"height":890,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51MMt2N1TDL.jpg?v=1652615220","width":1000},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch) 1\/2 Inch ","id":25869151600820,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61T_VmsXjzL.jpg?v=1652615220"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61T_VmsXjzL.jpg?v=1652615220","width":1200},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch) 1\/2 Inch ","id":25869151633588,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61mJ2eCCh2L.jpg?v=1652615220"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61mJ2eCCh2L.jpg?v=1652615220","width":1200},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch) 1\/2 Inch ","id":25869151666356,"position":6,"preview_image":{"aspect_ratio":1.159,"height":1381,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71babUtoODL.jpg?v=1652615220"},"aspect_ratio":1.159,"height":1381,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71babUtoODL.jpg?v=1652615220","width":1600},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch) 1\/2 Inch ","id":25869151699124,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61rullI2VmL_a094e546-0e34-4c20-84df-84c2dd0ec2d6.jpg?v=1652615220"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61rullI2VmL_a094e546-0e34-4c20-84df-84c2dd0ec2d6.jpg?v=1652615220","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 12V\/24VAC\/DC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1\/2 Inch)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical Parameter:◎Model: T15-B2-B;◎Working Voltage: 9-24VAC\/DC;◎Valve\nDimension:1\/2\" NPT Female Thread Connection, 15mm(0.049Ft) Full Bore;◎Wiring\nDiagram:CR5-02(2 Wires Control, Installed With Position Feedback Wires);◎Valve\nBody Material: Brass;◎Actuator Material: Engineering Plastics;◎Open\/Closed\nTime: About 3-5Sec.; ◎Suitable Media: Air, Water, Oil; ◎Power: Max 2\nWatts;◎Manual Override: Yes; ◎Indicator: Yes; ◎Working Current: Max 500Ma When\nAction, Cut Off Current When Arrived At Place; ◎Max. Torque Force For Aucator:\n2 N.M; ◎Cables Length: 0.5 Meters;◎Max Working Pressure:145PSI(1.0MPA);\n◎Liquid Temperature: 32°~212°F (0°~100°C);◎Environment\nTemperature:5~122F(-15°~50°C);Application:◎HVAC;◎Water Treatment;◎Chemical\nProcess;◎Small Industrial Equipment For Automatic Control;◎Replacing Solenoid\nValve, Particularly When Solenoid Cannot Work Reliably;◎Automatic Control\nSystems;◎Efficient Water-Saving, Water Equipment;◎Solar Hot Water\nProject;◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage\nof Air Compressor.Features: ◎Smart Shape, Perform Reliably, Large Output\nTorque, As Long As 50000-100000 Times , Convenience For All Kinds Of\nRequirements;◎Float Ball design, No Leak, Large Flow, The Valve is Bi-\ndirectional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for\nHeavy Dirt and Long Time No Action;◎The Conditions That Solenoid Valve Can Not\nBe Worked;◎High Protection Class, Can Be Worked In Most Conditions;◎POM\nCooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce\nNoise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The\nReliability of The Gear;◎Electrical and Mechanical Limit Integrated Design,\nAccurate Localization ,High consistency , Put an End to Swing of Valve.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e2 Way 1\/2\" NPT Full Bore 15mm(0.049Ft) Brass Valve Body;\u003c\/li\u003e\n \u003cli\u003eWide Range Working Voltage Design, Work From 9-24VAC And 9-36VDC;\u003c\/li\u003e\n \u003cli\u003eLimit Switches Bulid-In, Auto Cut Off Current When Arrived At Place(0Ma);\u003c\/li\u003e\n \u003cli\u003e2 Wires Control Normally Closed Design And Installed With Position Feedback Wires;\u003c\/li\u003e\n \u003cli\u003eBuild In Capacitor Return, Will Return To Original Position When Power Off\/Power Failed;\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
