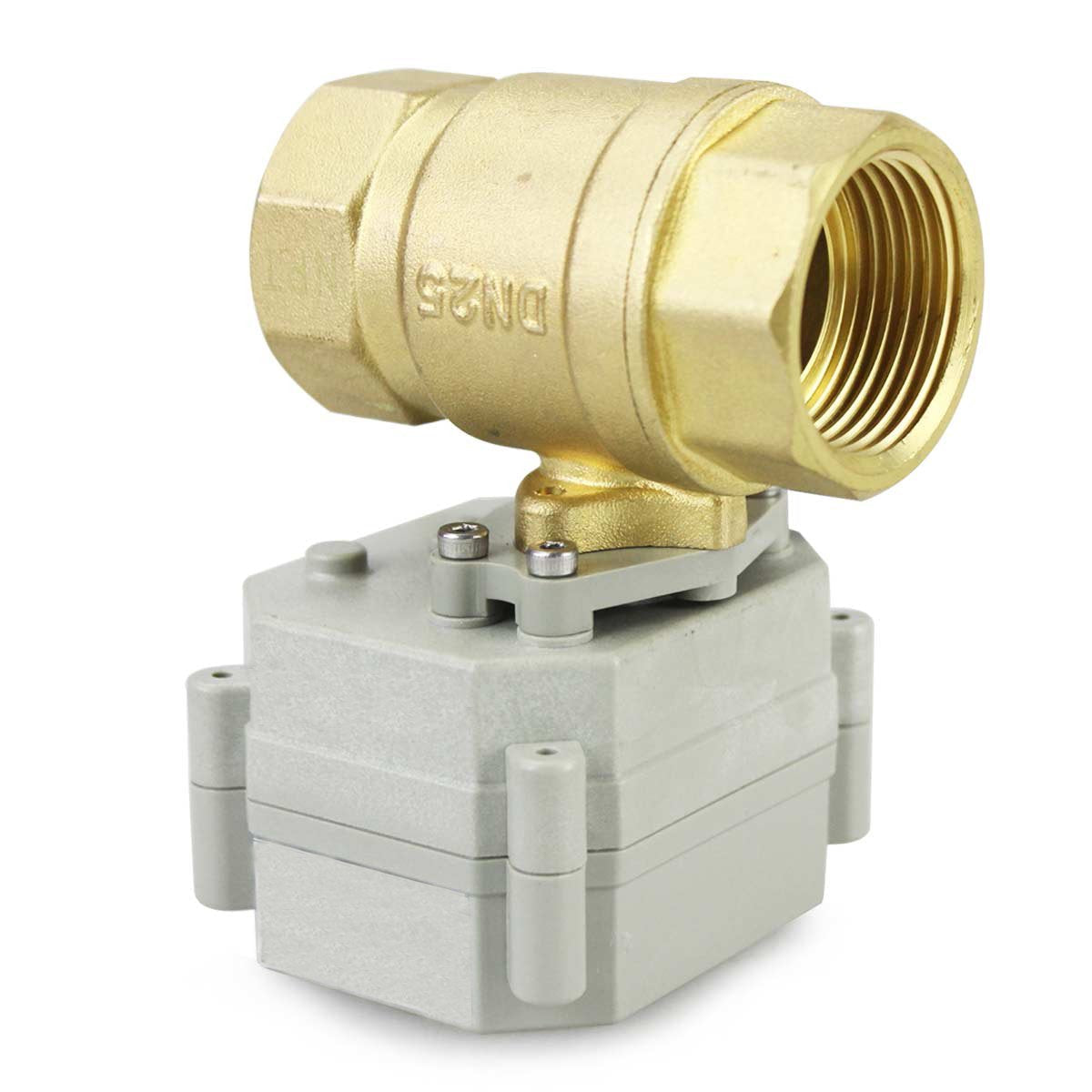

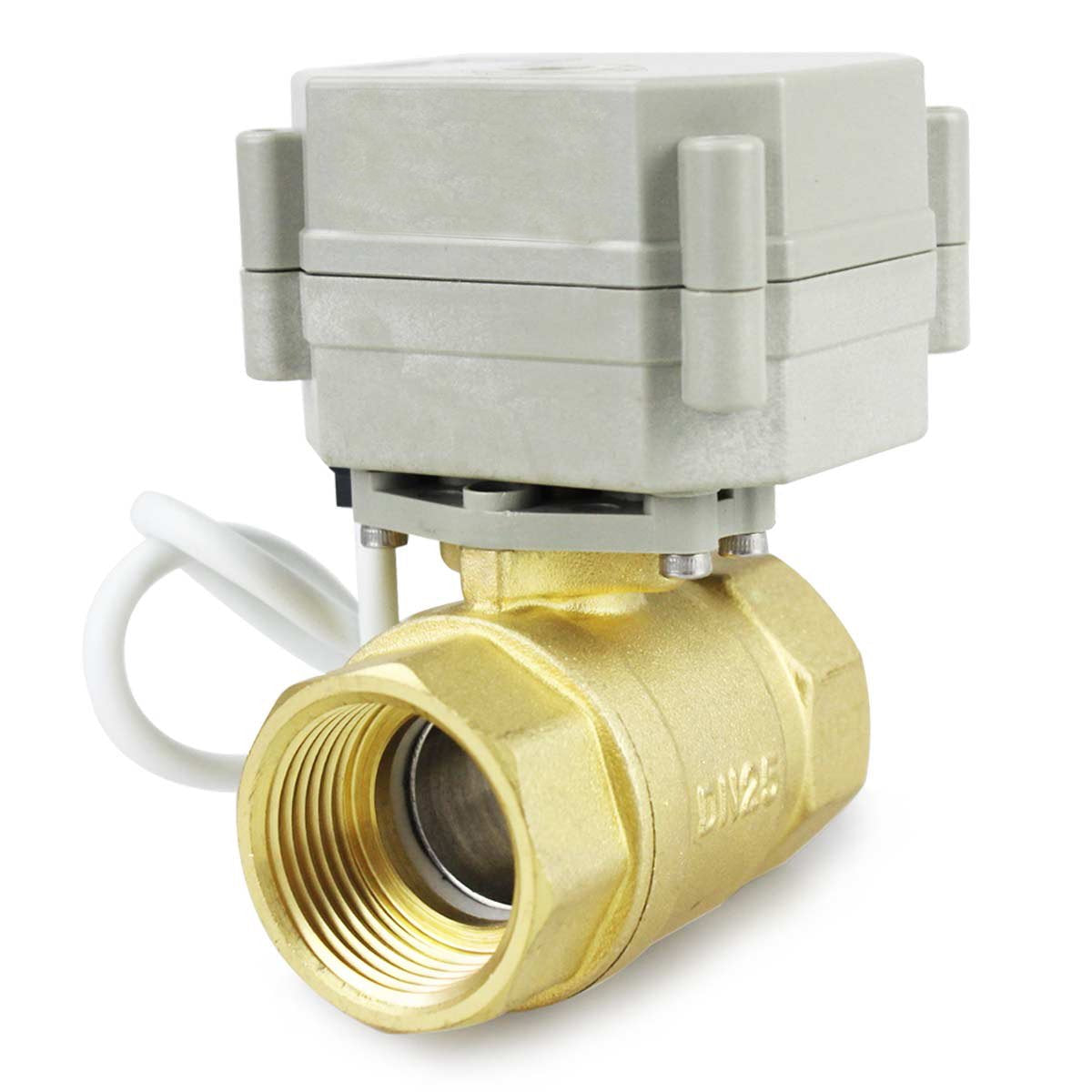

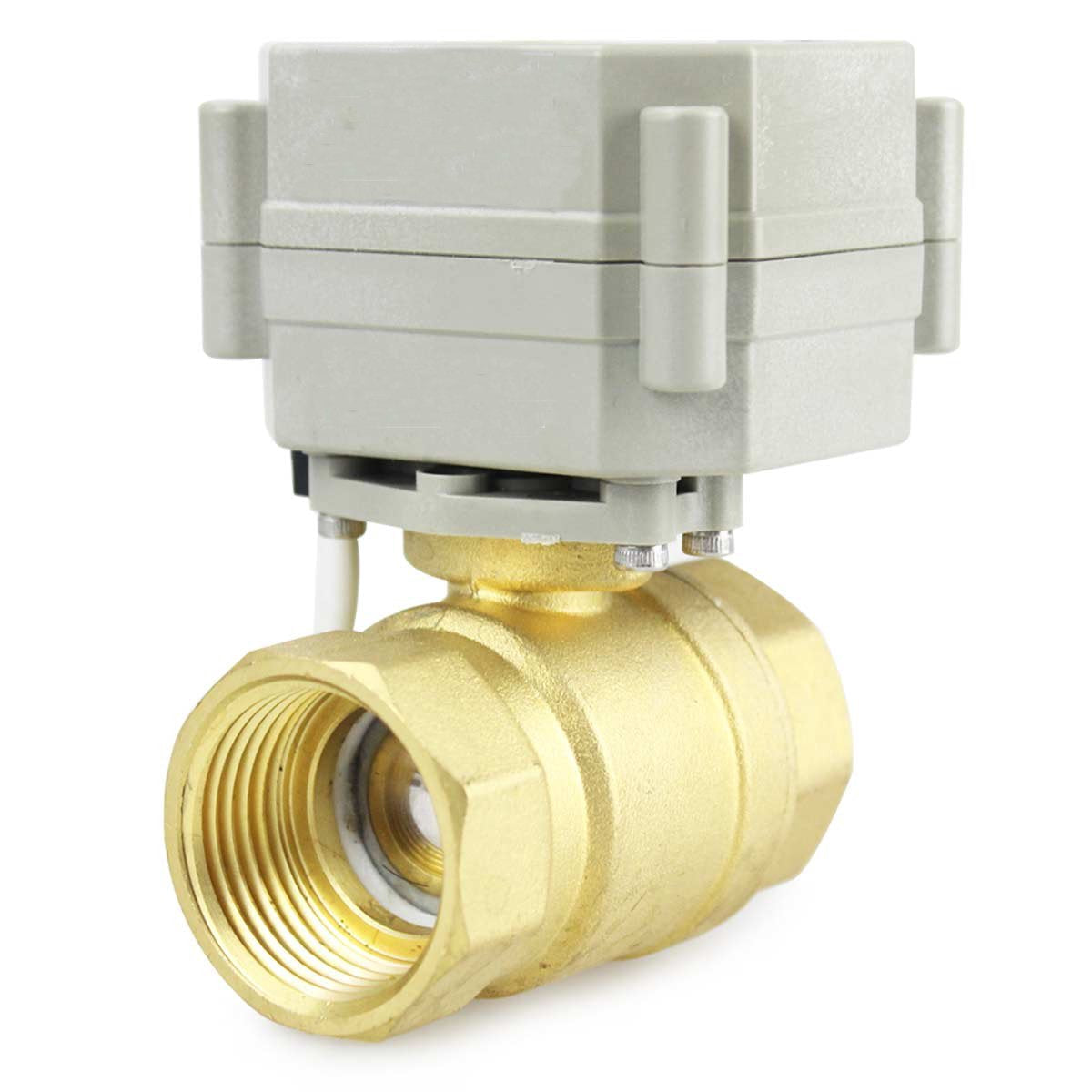

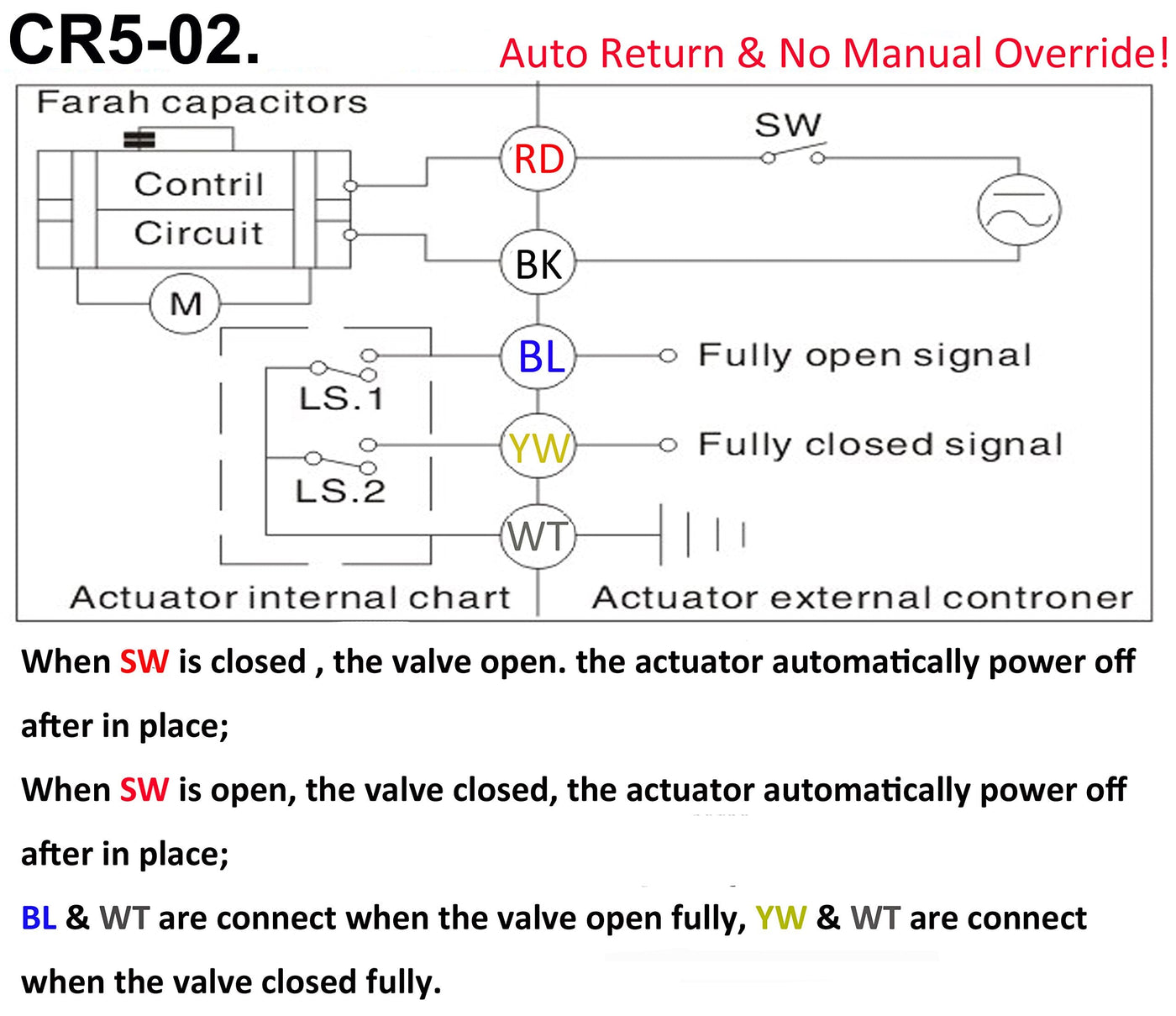

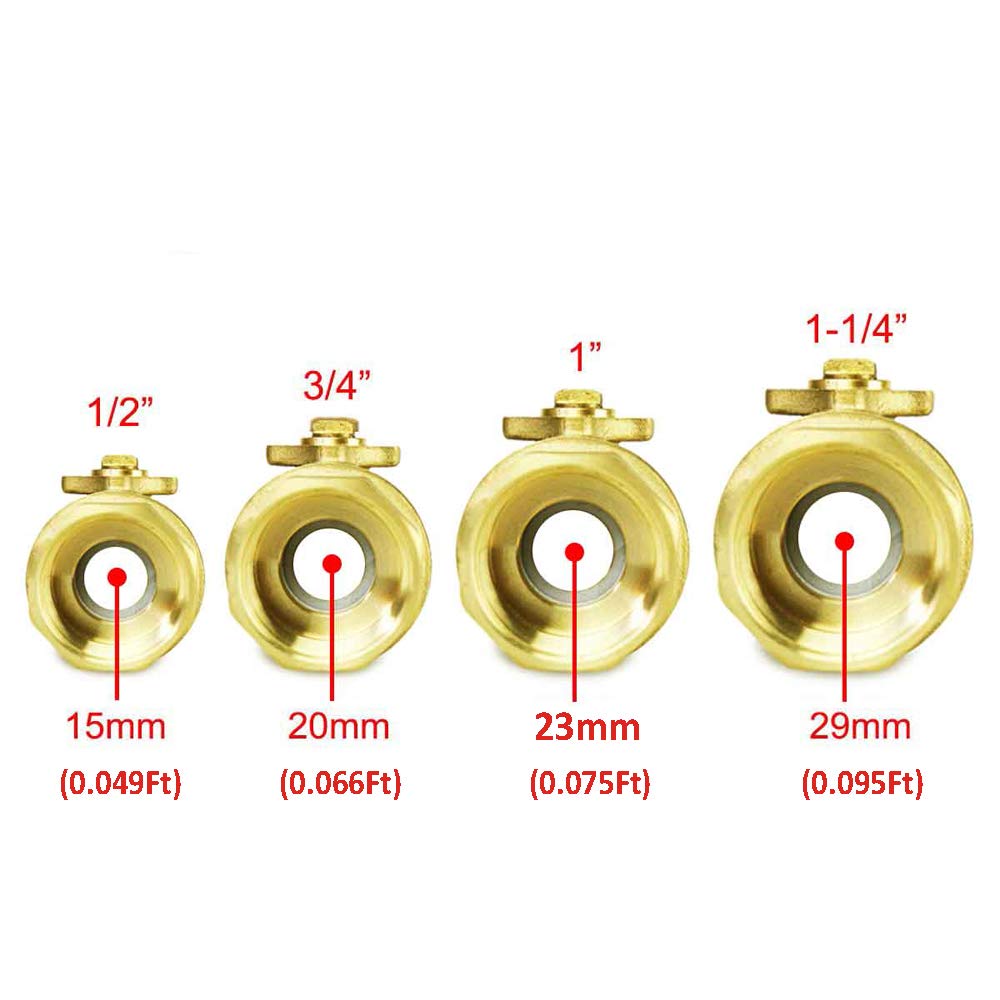

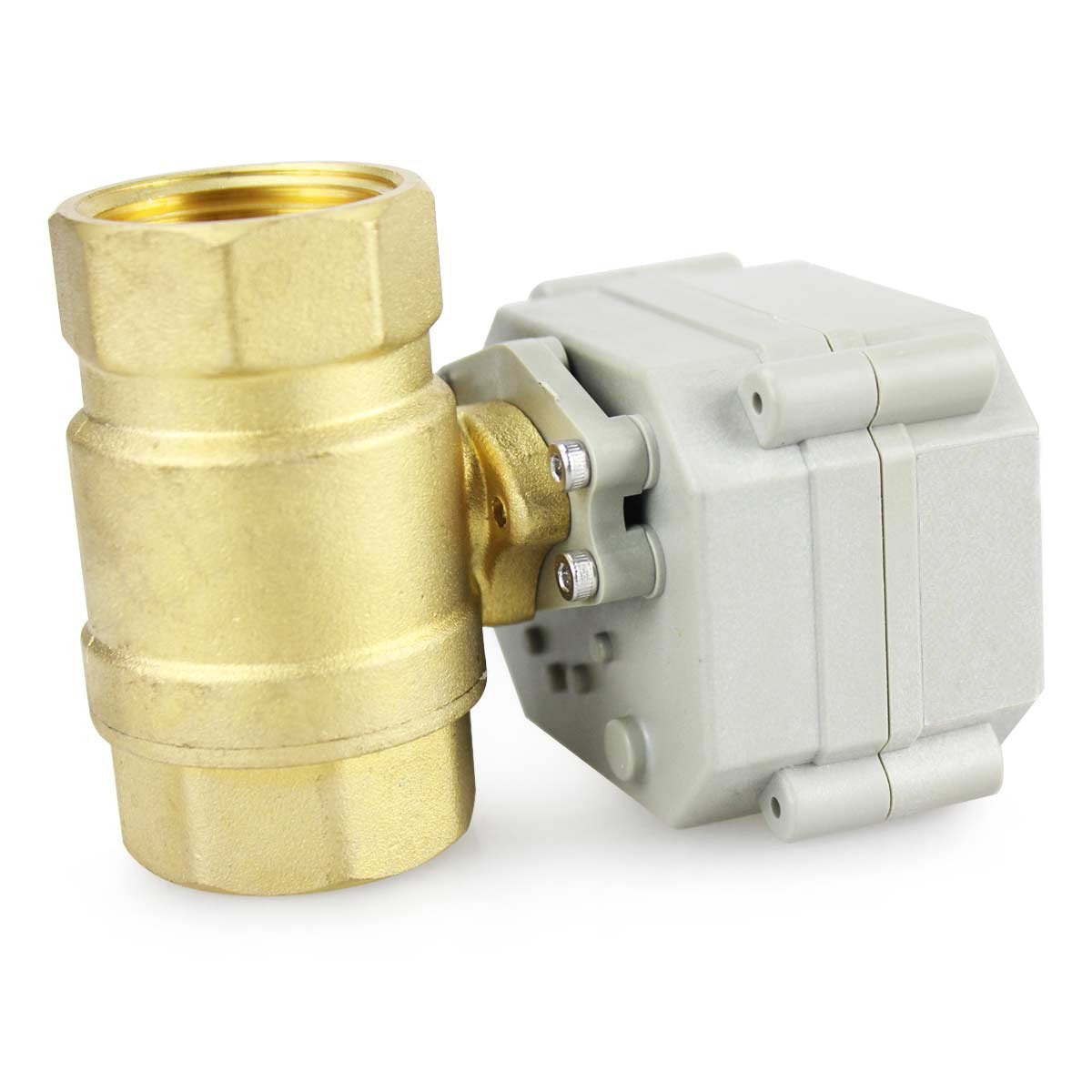

{"id":7133610967220,"title":"HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 110-230VAC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1 Inch) 1 Inch","handle":"hsh-flo-2-way-1-2-3-4-1-1-1-4-110-230vac-brass-on-off-auto-return-electrical-position-feedback-motorized-ball-valve-1-inch-1-inch","description":"\u003ch3\u003eHSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 110-230VAC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1 Inch)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical Parameter:◎Model: T25-B2-C;◎Working Voltage: 110-230VAC Both 50Hz\nand 60Hz;◎Valve Dimension:1\" NPT Female Thread Connection, 23mm(0.91in) Reduce\nBore;◎Wiring Diagram:CR5-02(2 Wires Control, Installed With Position Feedback\nWires);◎Valve Body Material: Brass;◎Actuator Material: Engineering\nPlastics;◎Open\/Closed Time: Less Than 5Sec.; ◎Suitable Media: Air, Water, Oil;\n◎Power: Max 2 Watts;◎Manual Override: No; ◎Indicator: Yes; ◎Working Current:\nMax 500Ma When Action, Cut Off Current When Arrived At Place; ◎Max. Torque\nForce For Aucator: 2 N.M; ◎Cables Length: 0.5 Meters;◎Max Working\nPressure:145PSI(1.0MPA); ◎Liquid Temperature: 32°~212°F\n(0°~100°C);◎Environment Temperature:5~122F(-15°~50°C);Application:◎HVAC;◎Water\nTreatment;◎Chemical Process;◎Small Industrial Equipment For Automatic\nControl;◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work\nReliably;◎Automatic Control Systems;◎Efficient Water-Saving, Water\nEquipment;◎Solar Hot Water Project;◎Regular Watering The Flowers, Timing\nHumidifying, Timing of Drainage of Air Compressor.Features: ◎Smart Shape,\nPerform Reliably, Large Output Torque, As Long As 50000-100000 Times ,\nConvenience For All Kinds Of Requirements;◎Float Ball design, No Leak, Large\nFlow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet\n, Most Suitable for Heavy Dirt and Long Time No Action;◎The Conditions That\nSolenoid Valve Can Not Be Worked;◎High Protection Class, Can Be Worked In Most\nConditions;◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed\nLevel to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade\nTo Ensure The Reliability of The Gear;◎Electrical and Mechanical Limit\nIntegrated Design, Accurate Localization ,High consistency , Put an End to\nSwing of Valve.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e2 Way 1\" NPT Reduce Bore(0.91in) Brass Valve Body;\u003c\/li\u003e\n \u003cli\u003eWide Range Working Voltage Design, Work From 110-230VAC 50\/60Hz;\u003c\/li\u003e\n \u003cli\u003eLimit Switches Bulid-In, Auto Cut Off Current When Arrived At Place(0Ma);\u003c\/li\u003e\n \u003cli\u003e2 Wires Control Normally Closed And Installed With Position Feedback Wires;\u003c\/li\u003e\n \u003cli\u003eBuild In Capacitor Return, Will Return To Original Position When Power Off\/Power Failed;\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-05-13T17:36:25+10:00","created_at":"2022-05-13T17:36:32+10:00","vendor":"HSH-Flo","type":"Ball Valves","tags":["industrial"],"price":33500,"price_min":33500,"price_max":33500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41493805039796,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00WDRM3VC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 110-230VAC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1 Inch) 1 Inch","public_title":null,"options":["Default Title"],"price":33500,"weight":581,"compare_at_price":null,"inventory_management":null,"barcode":"0606679001630","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B00WDRM3VC.jpg?v=1652511132","\/\/auspowers.com\/cdn\/shop\/products\/61iTAxJ_dHL.jpg?v=1652427392","\/\/auspowers.com\/cdn\/shop\/products\/61BziXVftOL.jpg?v=1652427392","\/\/auspowers.com\/cdn\/shop\/products\/61Vo2YfhPqL.jpg?v=1652427392","\/\/auspowers.com\/cdn\/shop\/products\/61rullI2VmL.jpg?v=1652427392","\/\/auspowers.com\/cdn\/shop\/products\/81rkv7YiJRL.jpg?v=1652427392"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B00WDRM3VC.jpg?v=1652511132","options":["Title"],"media":[{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 110-230VAC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1 Inch) 1 Inch ","id":25859519873204,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B00WDRM3VC.jpg?v=1652511132"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B00WDRM3VC.jpg?v=1652511132","width":1200},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 110-230VAC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1 Inch) 1 Inch ","id":25848621891764,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61iTAxJ_dHL.jpg?v=1652427392"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61iTAxJ_dHL.jpg?v=1652427392","width":1200},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 110-230VAC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1 Inch) 1 Inch ","id":25848621924532,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61BziXVftOL.jpg?v=1652427392"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61BziXVftOL.jpg?v=1652427392","width":1200},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 110-230VAC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1 Inch) 1 Inch ","id":25848621957300,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61Vo2YfhPqL.jpg?v=1652427392"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61Vo2YfhPqL.jpg?v=1652427392","width":1200},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 110-230VAC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1 Inch) 1 Inch ","id":25848621990068,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61rullI2VmL.jpg?v=1652427392"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61rullI2VmL.jpg?v=1652427392","width":1000},{"alt":"[Australia - AusPower] - HSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 110-230VAC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1 Inch) 1 Inch ","id":25848622022836,"position":6,"preview_image":{"aspect_ratio":1.158,"height":2210,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81rkv7YiJRL.jpg?v=1652427392"},"aspect_ratio":1.158,"height":2210,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81rkv7YiJRL.jpg?v=1652427392","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHSH-Flo 2 Way 1\/2\" 3\/4\" 1\" 1-1\/4\" 110-230VAC Brass On\/Off Auto Return Electrical Position Feedback Motorized Ball Valve (1 Inch)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical Parameter:◎Model: T25-B2-C;◎Working Voltage: 110-230VAC Both 50Hz\nand 60Hz;◎Valve Dimension:1\" NPT Female Thread Connection, 23mm(0.91in) Reduce\nBore;◎Wiring Diagram:CR5-02(2 Wires Control, Installed With Position Feedback\nWires);◎Valve Body Material: Brass;◎Actuator Material: Engineering\nPlastics;◎Open\/Closed Time: Less Than 5Sec.; ◎Suitable Media: Air, Water, Oil;\n◎Power: Max 2 Watts;◎Manual Override: No; ◎Indicator: Yes; ◎Working Current:\nMax 500Ma When Action, Cut Off Current When Arrived At Place; ◎Max. Torque\nForce For Aucator: 2 N.M; ◎Cables Length: 0.5 Meters;◎Max Working\nPressure:145PSI(1.0MPA); ◎Liquid Temperature: 32°~212°F\n(0°~100°C);◎Environment Temperature:5~122F(-15°~50°C);Application:◎HVAC;◎Water\nTreatment;◎Chemical Process;◎Small Industrial Equipment For Automatic\nControl;◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work\nReliably;◎Automatic Control Systems;◎Efficient Water-Saving, Water\nEquipment;◎Solar Hot Water Project;◎Regular Watering The Flowers, Timing\nHumidifying, Timing of Drainage of Air Compressor.Features: ◎Smart Shape,\nPerform Reliably, Large Output Torque, As Long As 50000-100000 Times ,\nConvenience For All Kinds Of Requirements;◎Float Ball design, No Leak, Large\nFlow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet\n, Most Suitable for Heavy Dirt and Long Time No Action;◎The Conditions That\nSolenoid Valve Can Not Be Worked;◎High Protection Class, Can Be Worked In Most\nConditions;◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed\nLevel to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade\nTo Ensure The Reliability of The Gear;◎Electrical and Mechanical Limit\nIntegrated Design, Accurate Localization ,High consistency , Put an End to\nSwing of Valve.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e2 Way 1\" NPT Reduce Bore(0.91in) Brass Valve Body;\u003c\/li\u003e\n \u003cli\u003eWide Range Working Voltage Design, Work From 110-230VAC 50\/60Hz;\u003c\/li\u003e\n \u003cli\u003eLimit Switches Bulid-In, Auto Cut Off Current When Arrived At Place(0Ma);\u003c\/li\u003e\n \u003cli\u003e2 Wires Control Normally Closed And Installed With Position Feedback Wires;\u003c\/li\u003e\n \u003cli\u003eBuild In Capacitor Return, Will Return To Original Position When Power Off\/Power Failed;\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
