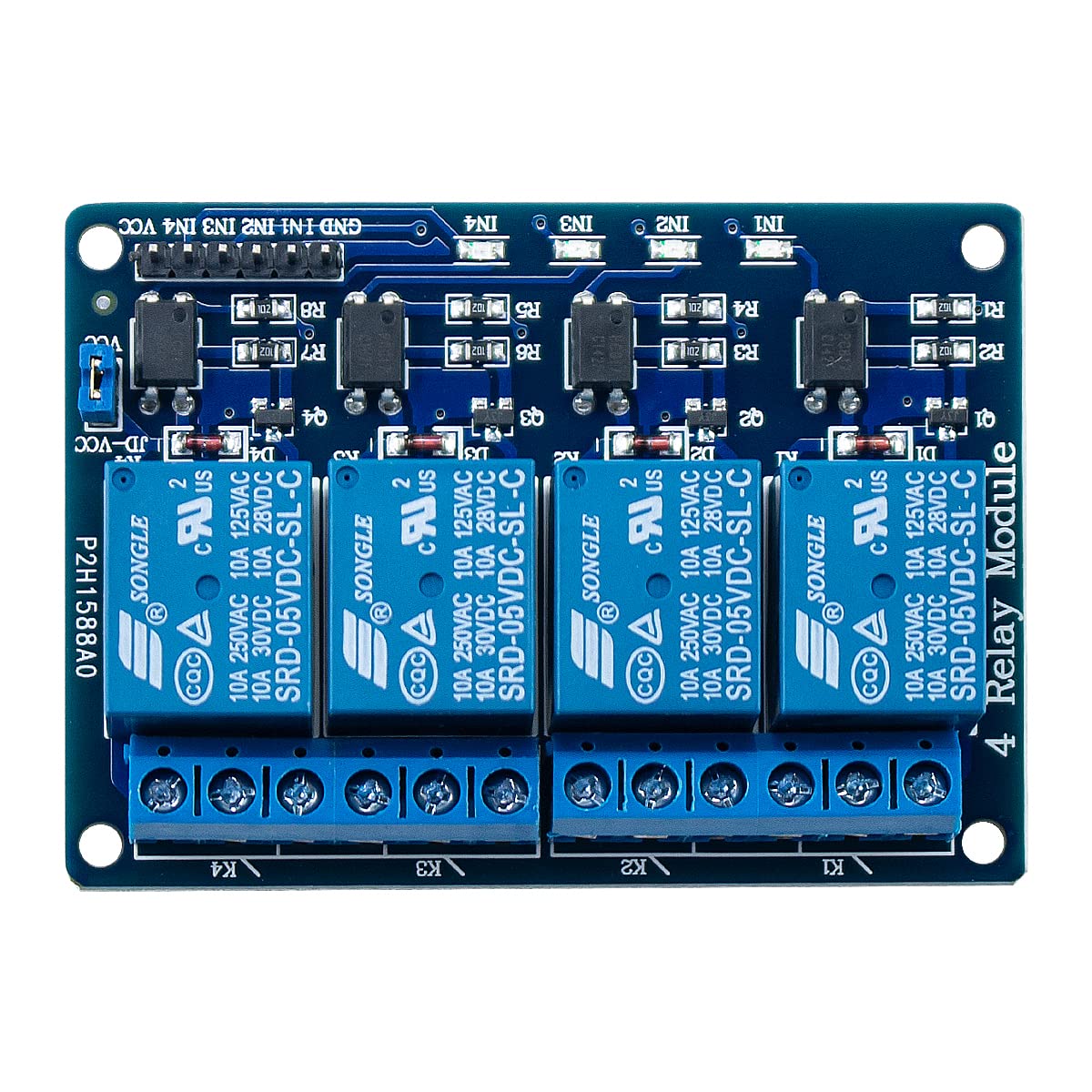

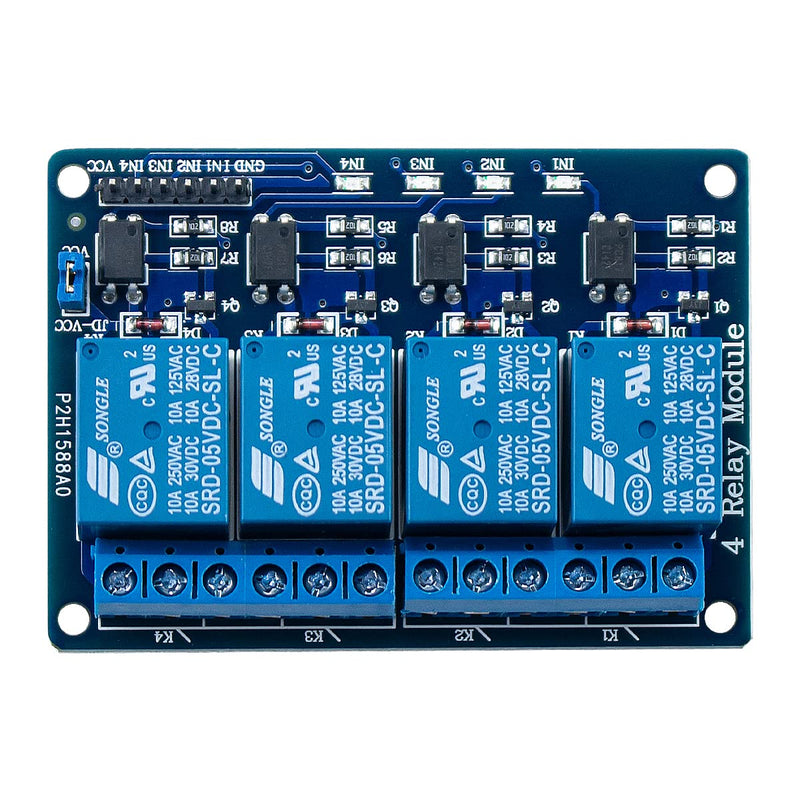

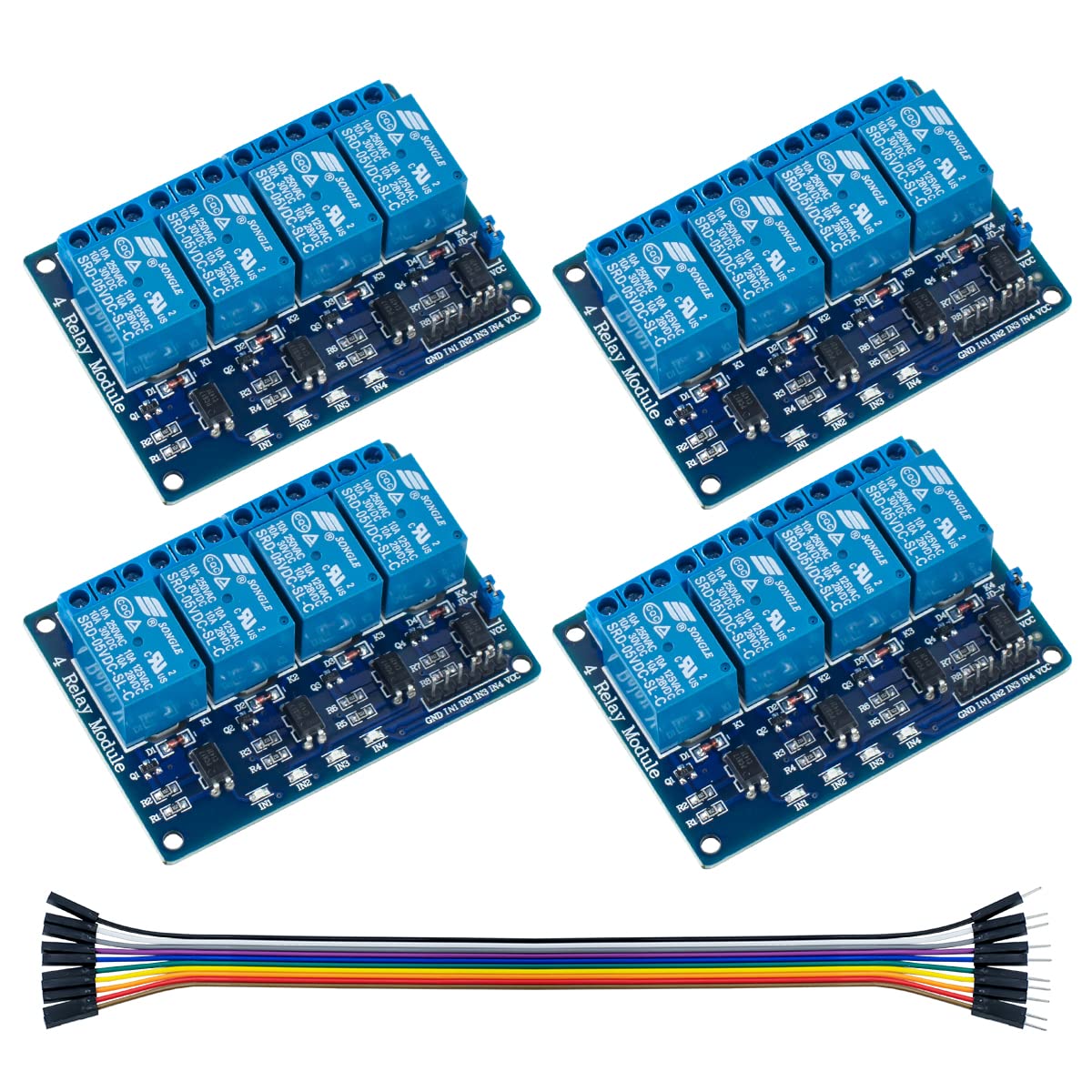

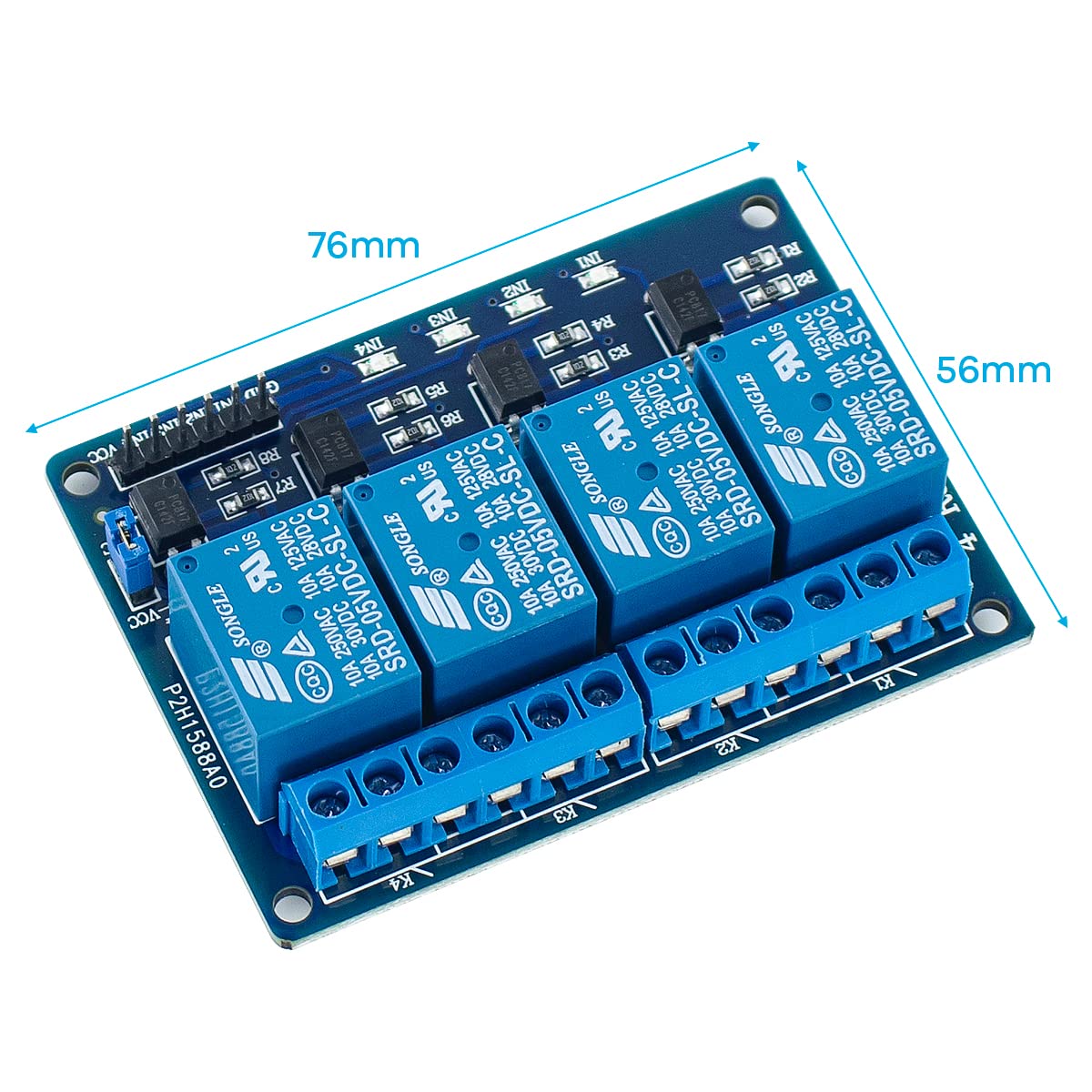

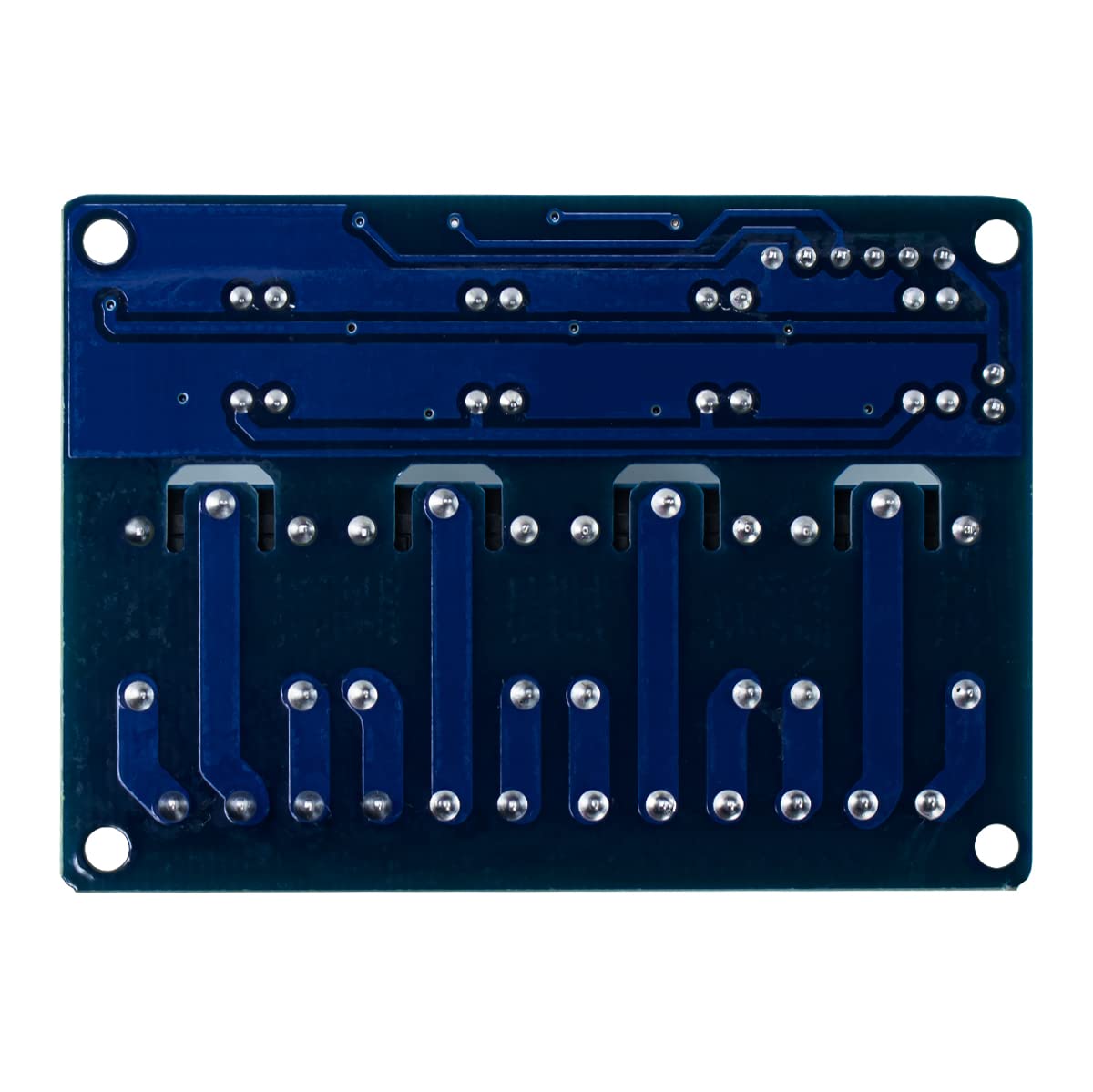

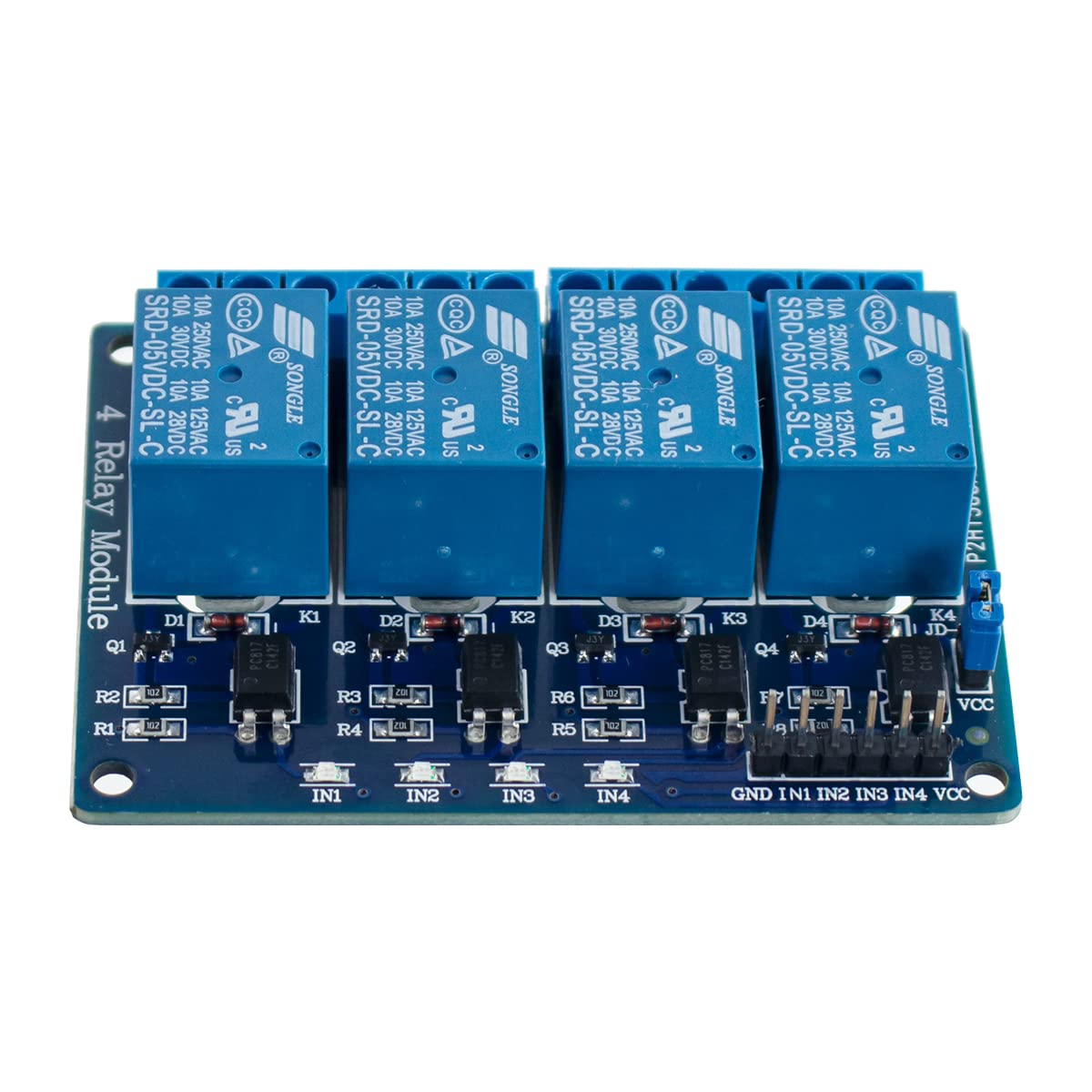

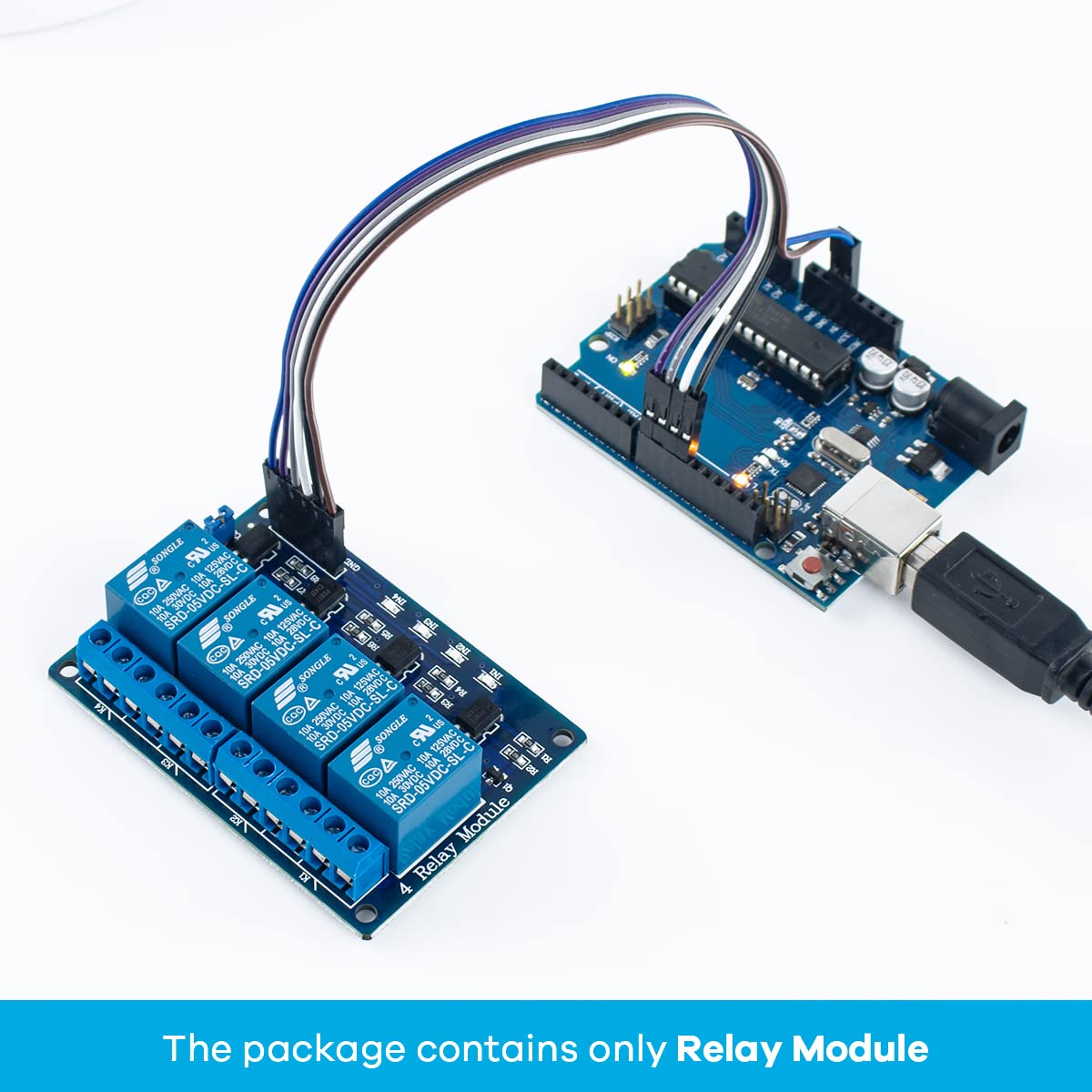

{"id":7410469437620,"title":"Hosyond 4Pack 4 Channel DC 5V Relay Module with Optocoupler Relay Board for Arduino Raspberry Pi MEGA2560","handle":"hosyond-4pack-4-channel-dc-5v-relay-module-with-optocoupler-relay-board-for-arduino-raspberry-pi-mega2560","description":"\u003ch3\u003eHosyond 4Pack 4 Channel DC 5V Relay Module with Optocoupler Relay Board for Arduino Raspberry Pi MEGA2560\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModule parameters: ▪Size: 71.5mm(L)52.7mm(W)18.5(H)mm ▪Single weight: 56g\n▪PCB color: blue ▪There are 4 fixing screw holes around the board, the hole\ndiameter is 3.1mm, which is convenient for installation and fixing ▪High\nquality relays. A common end, a normally open end, and a normally closed end.\n▪Optocoupler isolation, good anti-interference. ▪High Level or Low Level\nTrigger. The status indicator is on when it is engaged, and it is off when it\nis released. ▪VCC is the system power supply, JD_VCC is the relay power\nsupply. Just plug in the jumper cap. ▪Power supply voltage: 5VDC ▪Current:\nmore than 100mA ▪Load: 250V 10A AC or 30V 10A DC Wiring instructions: VCC:\npositive pole of system power supply GND: Negative pole of system power supply\nIN1--IN2: relay control port (Do not reverse the connection to avoid burning\nout) Packing List: 4 x 4 channel relay module 1 x 10pin F-M Dupont wire\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe power supply voltage of the relay module is DC5V. The maximum output load is AC250V 10A and DC30V 10A.\u003c\/li\u003e\n \u003cli\u003eThe relay has a standard interface and can be directly connected to the microcontroller, which is convenient for wiring. Package contains 10pin male to female DuPont wires.\u003c\/li\u003e\n \u003cli\u003eHigh Level or Low Level Trigger. Pull in at low level and release at high level. The status indicator is on when it is pull in, and it is release when it is released.\u003c\/li\u003e\n \u003cli\u003eThe 4 channel relay interface board can directly control Arduino, AVR, PIC, ARM, PLC and other microcomputers, and can also control various high-current electrical appliances and other equipment.\u003c\/li\u003e\n \u003cli\u003eWidely used in all MCU control, industrial fields, PLC control, smart home control.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-08-21T01:12:39+10:00","created_at":"2023-08-21T01:12:47+10:00","vendor":"Hosyond","type":"Single Board Computers","tags":["electronics_new_releases_Aug2023"],"price":15500,"price_min":15500,"price_max":15500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42351506555060,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0C2Z8JF5R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hosyond 4Pack 4 Channel DC 5V Relay Module with Optocoupler Relay Board for Arduino Raspberry Pi MEGA2560","public_title":null,"options":["Default Title"],"price":15500,"weight":240,"compare_at_price":null,"inventory_management":null,"barcode":"732214748170","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0C2Z8JF5R.jpg?v=1692604509","\/\/auspowers.com\/cdn\/shop\/products\/61dbVZYqbdL.jpg?v=1692544367","\/\/auspowers.com\/cdn\/shop\/products\/71ea1snxOML.jpg?v=1692544367","\/\/auspowers.com\/cdn\/shop\/products\/61KgqBaaMEL.jpg?v=1692544367","\/\/auspowers.com\/cdn\/shop\/products\/71QPqC2iOlL.jpg?v=1692544367","\/\/auspowers.com\/cdn\/shop\/products\/61LQTSbpG9L.jpg?v=1692544367"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0C2Z8JF5R.jpg?v=1692604509","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Hosyond 4Pack 4 Channel DC 5V Relay Module with Optocoupler Relay Board for Arduino Raspberry Pi MEGA2560 ","id":28916857372852,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C2Z8JF5R.jpg?v=1692604509"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C2Z8JF5R.jpg?v=1692604509","width":1200},{"alt":"[Australia - AusPower] - Hosyond 4Pack 4 Channel DC 5V Relay Module with Optocoupler Relay Board for Arduino Raspberry Pi MEGA2560 ","id":28916349010100,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61dbVZYqbdL.jpg?v=1692544367"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61dbVZYqbdL.jpg?v=1692544367","width":1200},{"alt":"[Australia - AusPower] - Hosyond 4Pack 4 Channel DC 5V Relay Module with Optocoupler Relay Board for Arduino Raspberry Pi MEGA2560 ","id":28916349042868,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71ea1snxOML.jpg?v=1692544367"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71ea1snxOML.jpg?v=1692544367","width":1200},{"alt":"[Australia - AusPower] - Hosyond 4Pack 4 Channel DC 5V Relay Module with Optocoupler Relay Board for Arduino Raspberry Pi MEGA2560 ","id":28916349075636,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61KgqBaaMEL.jpg?v=1692544367"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61KgqBaaMEL.jpg?v=1692544367","width":1200},{"alt":"[Australia - AusPower] - Hosyond 4Pack 4 Channel DC 5V Relay Module with Optocoupler Relay Board for Arduino Raspberry Pi MEGA2560 ","id":28916349108404,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71QPqC2iOlL.jpg?v=1692544367"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71QPqC2iOlL.jpg?v=1692544367","width":1200},{"alt":"[Australia - AusPower] - Hosyond 4Pack 4 Channel DC 5V Relay Module with Optocoupler Relay Board for Arduino Raspberry Pi MEGA2560 ","id":28916349141172,"position":6,"preview_image":{"aspect_ratio":1.001,"height":1199,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61LQTSbpG9L.jpg?v=1692544367"},"aspect_ratio":1.001,"height":1199,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61LQTSbpG9L.jpg?v=1692544367","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHosyond 4Pack 4 Channel DC 5V Relay Module with Optocoupler Relay Board for Arduino Raspberry Pi MEGA2560\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModule parameters: ▪Size: 71.5mm(L)52.7mm(W)18.5(H)mm ▪Single weight: 56g\n▪PCB color: blue ▪There are 4 fixing screw holes around the board, the hole\ndiameter is 3.1mm, which is convenient for installation and fixing ▪High\nquality relays. A common end, a normally open end, and a normally closed end.\n▪Optocoupler isolation, good anti-interference. ▪High Level or Low Level\nTrigger. The status indicator is on when it is engaged, and it is off when it\nis released. ▪VCC is the system power supply, JD_VCC is the relay power\nsupply. Just plug in the jumper cap. ▪Power supply voltage: 5VDC ▪Current:\nmore than 100mA ▪Load: 250V 10A AC or 30V 10A DC Wiring instructions: VCC:\npositive pole of system power supply GND: Negative pole of system power supply\nIN1--IN2: relay control port (Do not reverse the connection to avoid burning\nout) Packing List: 4 x 4 channel relay module 1 x 10pin F-M Dupont wire\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe power supply voltage of the relay module is DC5V. The maximum output load is AC250V 10A and DC30V 10A.\u003c\/li\u003e\n \u003cli\u003eThe relay has a standard interface and can be directly connected to the microcontroller, which is convenient for wiring. Package contains 10pin male to female DuPont wires.\u003c\/li\u003e\n \u003cli\u003eHigh Level or Low Level Trigger. Pull in at low level and release at high level. The status indicator is on when it is pull in, and it is release when it is released.\u003c\/li\u003e\n \u003cli\u003eThe 4 channel relay interface board can directly control Arduino, AVR, PIC, ARM, PLC and other microcomputers, and can also control various high-current electrical appliances and other equipment.\u003c\/li\u003e\n \u003cli\u003eWidely used in all MCU control, industrial fields, PLC control, smart home control.\u003c\/li\u003e\n \u003c\/ul\u003e"}
