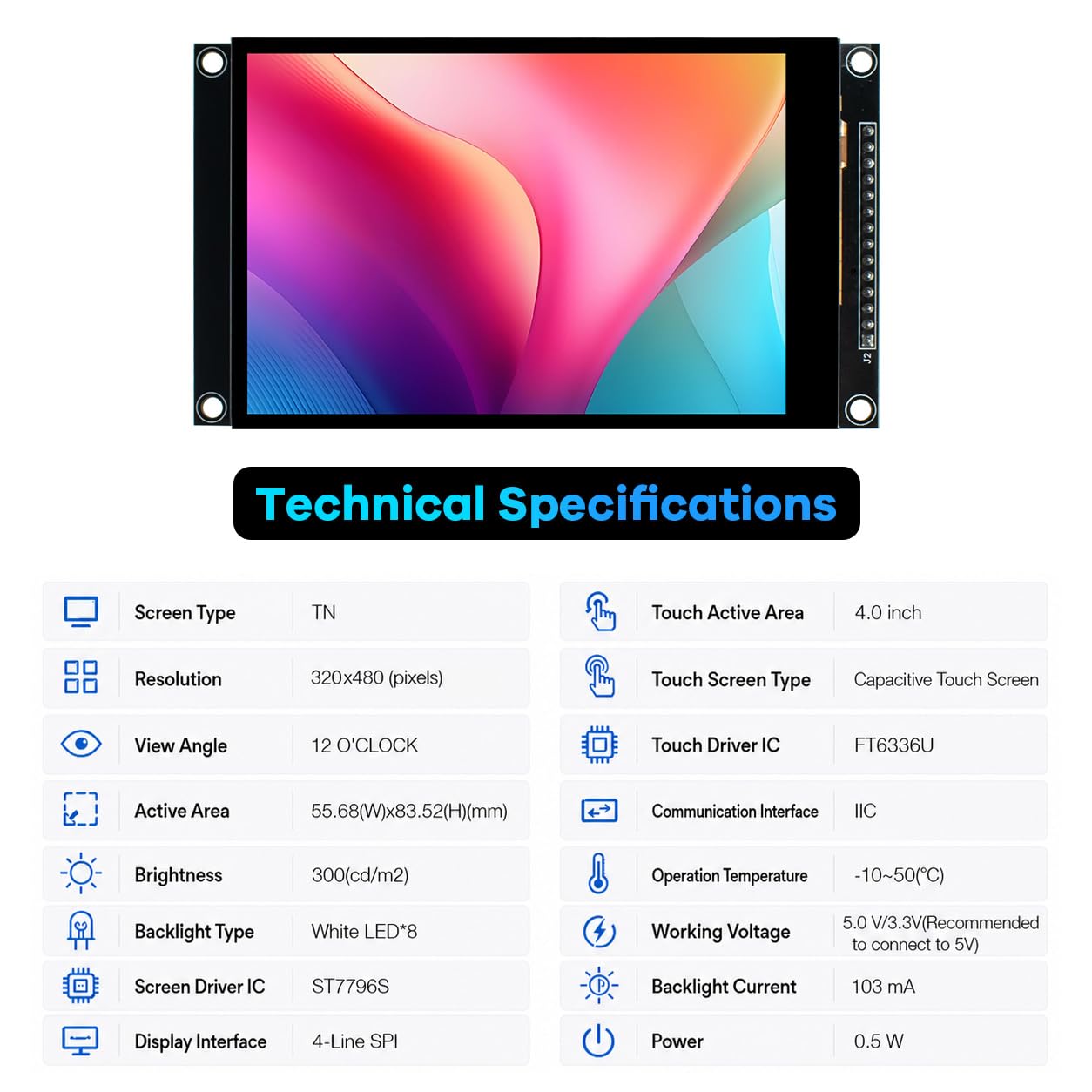

{"id":8115429540020,"title":"Hosyond 4.0 Inch 320x480 TN Capacitive Touch Screen SPI Serial LCD Display Module ST7796S Driver for Arduino R3\/Mega2560\/ESP32","handle":"hosyond-4-0-inch-320x480-tn-capacitive-touch-screen-spi-serial-lcd-display-module-st7796s-driver-for-arduino-r3-mega2560-esp32","description":"\u003ch3\u003eHosyond 4.0 Inch 320x480 TN Capacitive Touch Screen SPI Serial LCD Display Module ST7796S Driver for Arduino R3\/Mega2560\/ESP32\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eLCD parameters: Screen size: 4.0 inches. Screen Type: TN Resolution: 320 x RGB\nx 480 (pixels). Active area (AA range): 55.68 (W) x 83.52 (H) mm Number of\ncolours (max. ): 16.7 million Driver IC: ST7796S Display interface: 4-line SPI\nPixel size: 0.174 (H) x 0.174 mm. Viewing angle: 12 o'clock Brightness (type.\n): 300 cd\/m². Backlight: 8 x white LEDs. Operating temperature: -10 to 50 °C.\nStorage temperature: -20 to 60 °C. Electrical parameters: Operating voltage:\n5.0 V\/3.3 V (recommended connection to 5 V). Backlight current: 103mA Power:\n0.5W Touch Screen Parameters: Active touch surface: 4.0 inches. Touch Screen\nType: Capacitive Touch Screen Touch screen resolution: 320 x 480 pixels Driver\nIC: FT6336U Viewable touch screen area: 55.98 (W) x 83.82 (H) mm Communication\ninterface: IIC Operating temperature: -20 to 70 °C. Storage temperature: -30\nto 80 °C. Size parameters: TFT outline dimensions: 60.88 ± 0.2 (W) x 94.57 ±\n0.2 (H) x 2.5 ± 0.1 (D) mm (without cable and adhesive backing) Touch screen\ndimensions: 60.88 ± 0.1 (W) x 94.57 ± 0.1 (H) x 1.35 (D) mm (without cable and\nadhesive backing). Module dimensions: with touchscreen: 60.88 (W) x 108.0 (H)\nx 14.80 (D) mm (including pin header) Other parameters: Interface: 14 pin\nheader with 2.54mm pitch and FPC socket with 0.5mm pitch Package includes: 1 x\n4.0 inch touch screen. 1 x FPC cable. 1 x plastic protective box.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e4.0 inch capacitive TN touch screen with a resolution of 320 x 480 pixels, 65,000 colours and brilliant colour representation. Backlight brightness (typical value): 300 cd\/m2.\u003c\/li\u003e\n \u003cli\u003eST7796S Driver Built-in level conversion circuit, compatible with 5V and 3.3V microcontrollers. Using a 4-wire SPI serial bus to save I\/O pins.\u003c\/li\u003e\n \u003cli\u003eNewly upgraded to a capacitive touch panel. Compared to resistive screens, it is more comfortable to use and more precise to use.\u003c\/li\u003e\n \u003cli\u003eThis screen module has a 2.54 pin connector and an FPC expansion interface. A micro TF card slot allows easy expansion of storage.\u003c\/li\u003e\n \u003cli\u003eOffer extensive example learning programs (ESP32\/STM32\/Arduino R3 \u0026amp; Mage2560\/C51\/CH32). Ensure technical support for low-level drivers and keep information up to date online.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T10:29:26+10:00","created_at":"2026-09-02T03:25:36+10:00","vendor":"Hosyond","type":"LCD Graphic Displays","tags":["industrial_DE_Aug2026"],"price":15500,"price_min":15500,"price_max":15500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375206592692,"title":"4.0 inch","option1":"4.0 inch","option2":null,"option3":null,"sku":"de-B0GLPDFWQR","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hosyond 4.0 Inch 320x480 TN Capacitive Touch Screen SPI Serial LCD Display Module ST7796S Driver for Arduino R3\/Mega2560\/ESP32 - 4.0 inch","public_title":"4.0 inch","options":["4.0 inch"],"price":15500,"weight":128,"compare_at_price":null,"inventory_management":"shopify","barcode":"712490972070","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0GLPDFWQR.jpg?v=1788283539","\/\/auspowers.com\/cdn\/shop\/files\/61fQcLjKZ-L.jpg?v=1788283539","\/\/auspowers.com\/cdn\/shop\/files\/71zrxtqCqBL.jpg?v=1788283539","\/\/auspowers.com\/cdn\/shop\/files\/61_w9RfpQ_L.jpg?v=1788283539","\/\/auspowers.com\/cdn\/shop\/files\/61V8nhKJZGL.jpg?v=1788283539","\/\/auspowers.com\/cdn\/shop\/files\/71rI021nJDL.jpg?v=1788283539"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0GLPDFWQR.jpg?v=1788283539","options":["Size Name"],"media":[{"alt":null,"id":33274190201012,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0GLPDFWQR.jpg?v=1788283539"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0GLPDFWQR.jpg?v=1788283539","width":1200},{"alt":null,"id":33274190233780,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61fQcLjKZ-L.jpg?v=1788283539"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61fQcLjKZ-L.jpg?v=1788283539","width":1200},{"alt":null,"id":33274190266548,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71zrxtqCqBL.jpg?v=1788283539"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71zrxtqCqBL.jpg?v=1788283539","width":1200},{"alt":null,"id":33274190299316,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1254,"width":1254,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61_w9RfpQ_L.jpg?v=1788283539"},"aspect_ratio":1.0,"height":1254,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61_w9RfpQ_L.jpg?v=1788283539","width":1254},{"alt":null,"id":33274190332084,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61V8nhKJZGL.jpg?v=1788283539"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61V8nhKJZGL.jpg?v=1788283539","width":1200},{"alt":null,"id":33274190364852,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71rI021nJDL.jpg?v=1788283539"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71rI021nJDL.jpg?v=1788283539","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHosyond 4.0 Inch 320x480 TN Capacitive Touch Screen SPI Serial LCD Display Module ST7796S Driver for Arduino R3\/Mega2560\/ESP32\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eLCD parameters: Screen size: 4.0 inches. Screen Type: TN Resolution: 320 x RGB\nx 480 (pixels). Active area (AA range): 55.68 (W) x 83.52 (H) mm Number of\ncolours (max. ): 16.7 million Driver IC: ST7796S Display interface: 4-line SPI\nPixel size: 0.174 (H) x 0.174 mm. Viewing angle: 12 o'clock Brightness (type.\n): 300 cd\/m². Backlight: 8 x white LEDs. Operating temperature: -10 to 50 °C.\nStorage temperature: -20 to 60 °C. Electrical parameters: Operating voltage:\n5.0 V\/3.3 V (recommended connection to 5 V). Backlight current: 103mA Power:\n0.5W Touch Screen Parameters: Active touch surface: 4.0 inches. Touch Screen\nType: Capacitive Touch Screen Touch screen resolution: 320 x 480 pixels Driver\nIC: FT6336U Viewable touch screen area: 55.98 (W) x 83.82 (H) mm Communication\ninterface: IIC Operating temperature: -20 to 70 °C. Storage temperature: -30\nto 80 °C. Size parameters: TFT outline dimensions: 60.88 ± 0.2 (W) x 94.57 ±\n0.2 (H) x 2.5 ± 0.1 (D) mm (without cable and adhesive backing) Touch screen\ndimensions: 60.88 ± 0.1 (W) x 94.57 ± 0.1 (H) x 1.35 (D) mm (without cable and\nadhesive backing). Module dimensions: with touchscreen: 60.88 (W) x 108.0 (H)\nx 14.80 (D) mm (including pin header) Other parameters: Interface: 14 pin\nheader with 2.54mm pitch and FPC socket with 0.5mm pitch Package includes: 1 x\n4.0 inch touch screen. 1 x FPC cable. 1 x plastic protective box.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e4.0 inch capacitive TN touch screen with a resolution of 320 x 480 pixels, 65,000 colours and brilliant colour representation. Backlight brightness (typical value): 300 cd\/m2.\u003c\/li\u003e\n \u003cli\u003eST7796S Driver Built-in level conversion circuit, compatible with 5V and 3.3V microcontrollers. Using a 4-wire SPI serial bus to save I\/O pins.\u003c\/li\u003e\n \u003cli\u003eNewly upgraded to a capacitive touch panel. Compared to resistive screens, it is more comfortable to use and more precise to use.\u003c\/li\u003e\n \u003cli\u003eThis screen module has a 2.54 pin connector and an FPC expansion interface. A micro TF card slot allows easy expansion of storage.\u003c\/li\u003e\n \u003cli\u003eOffer extensive example learning programs (ESP32\/STM32\/Arduino R3 \u0026amp; Mage2560\/C51\/CH32). Ensure technical support for low-level drivers and keep information up to date online.\u003c\/li\u003e\n \u003c\/ul\u003e"}
