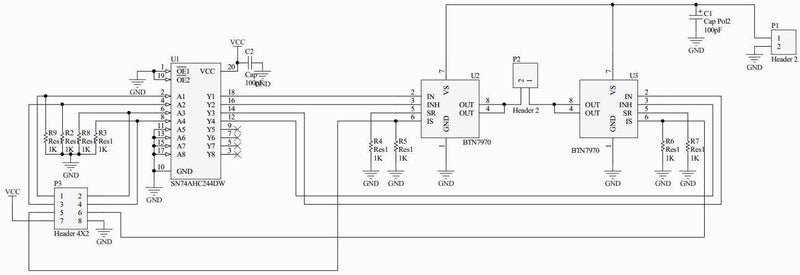

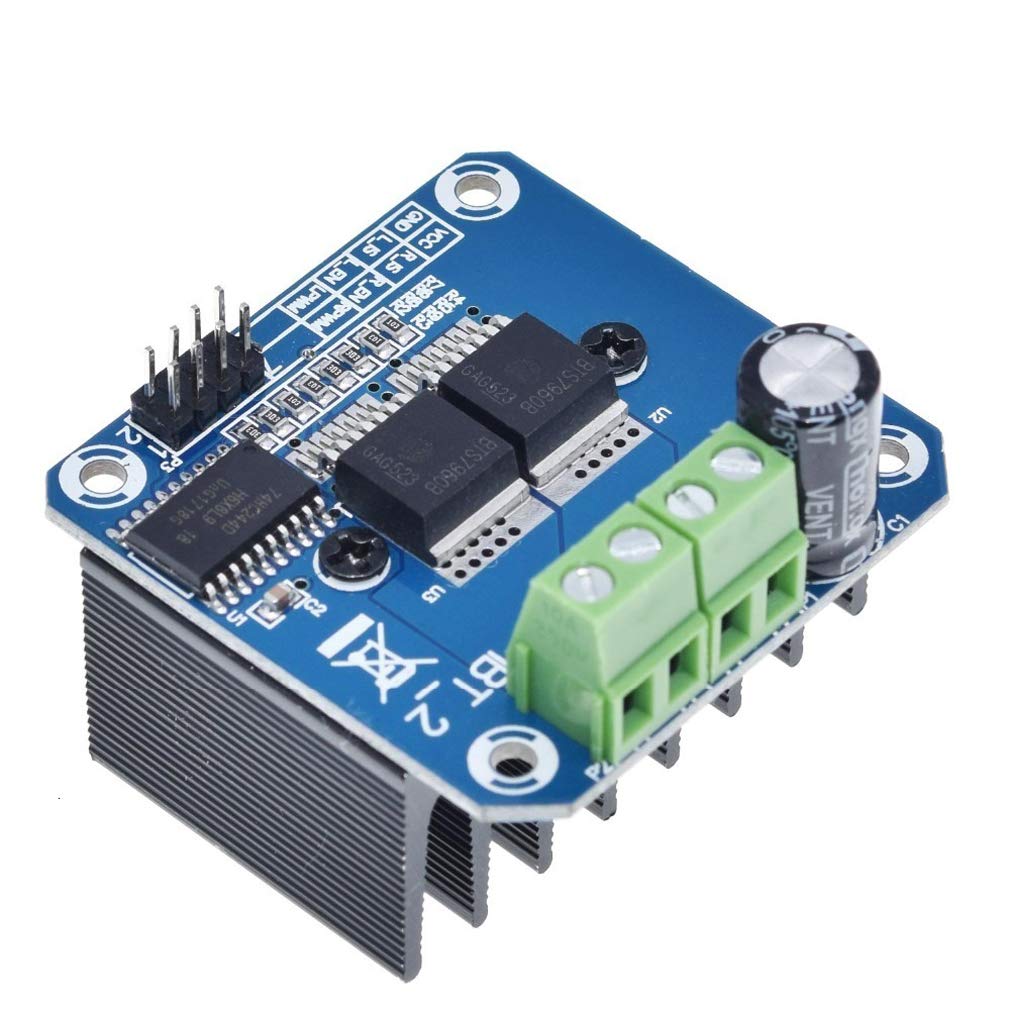

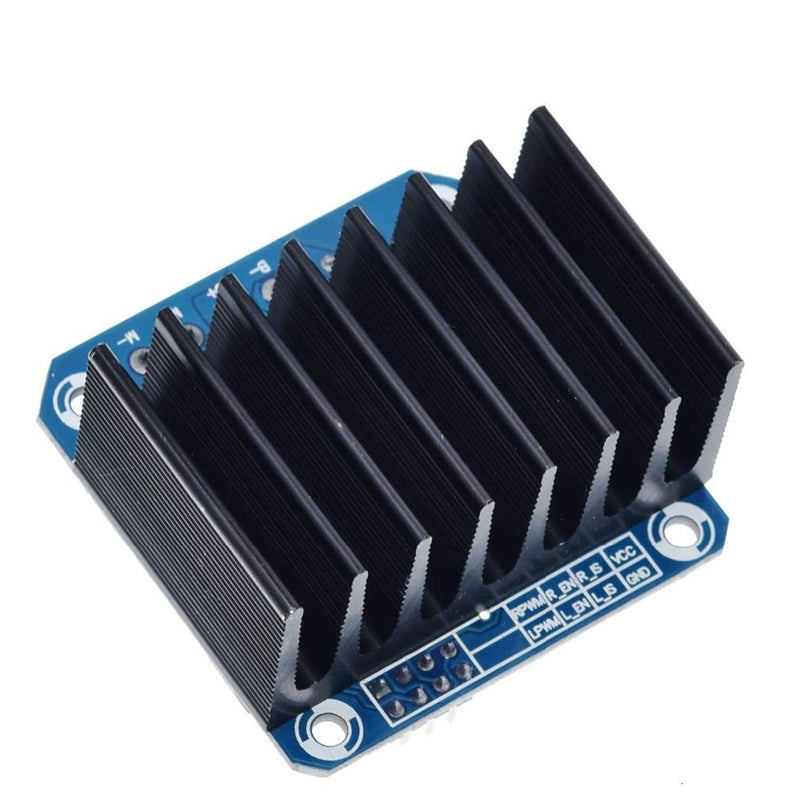

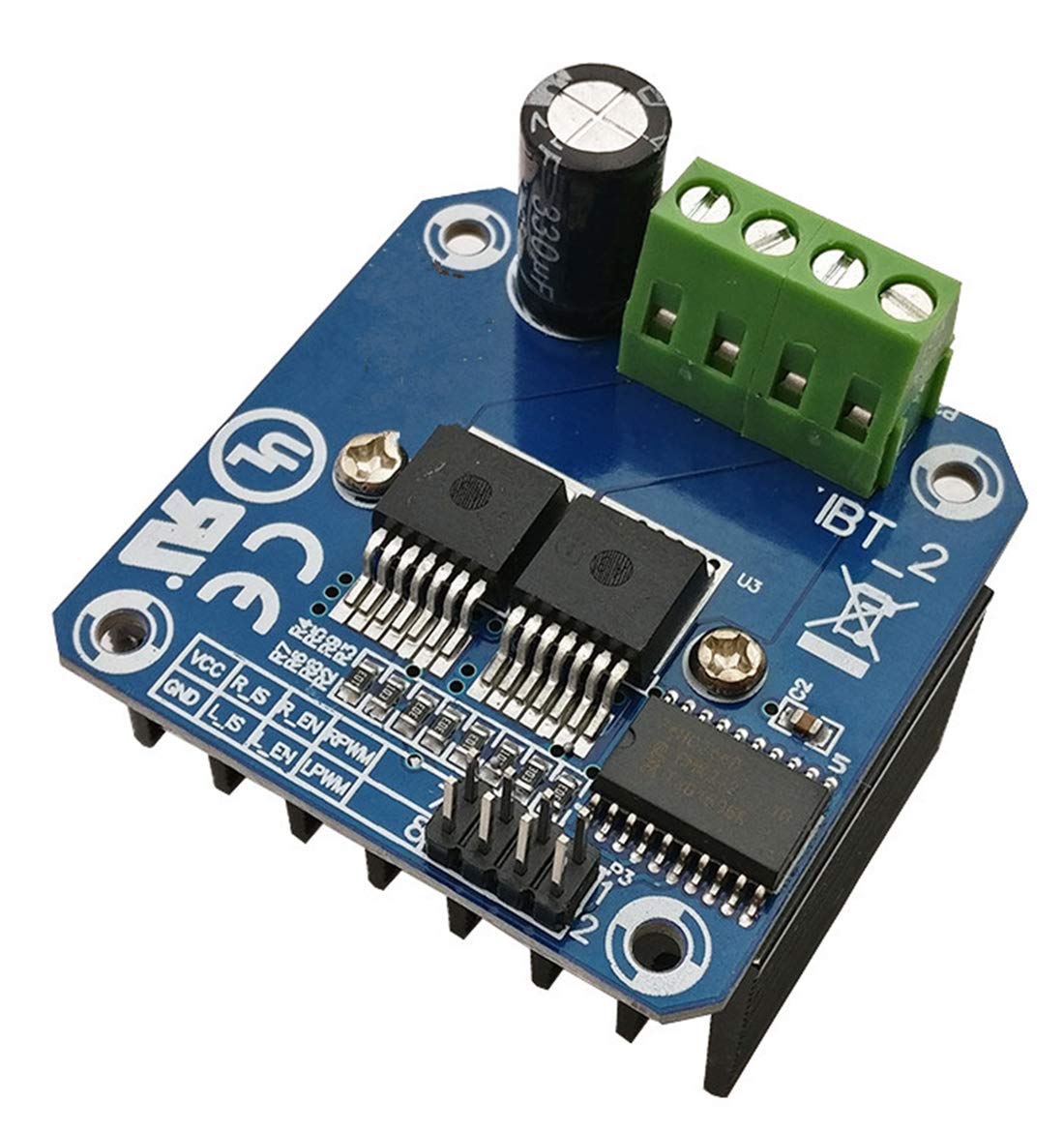

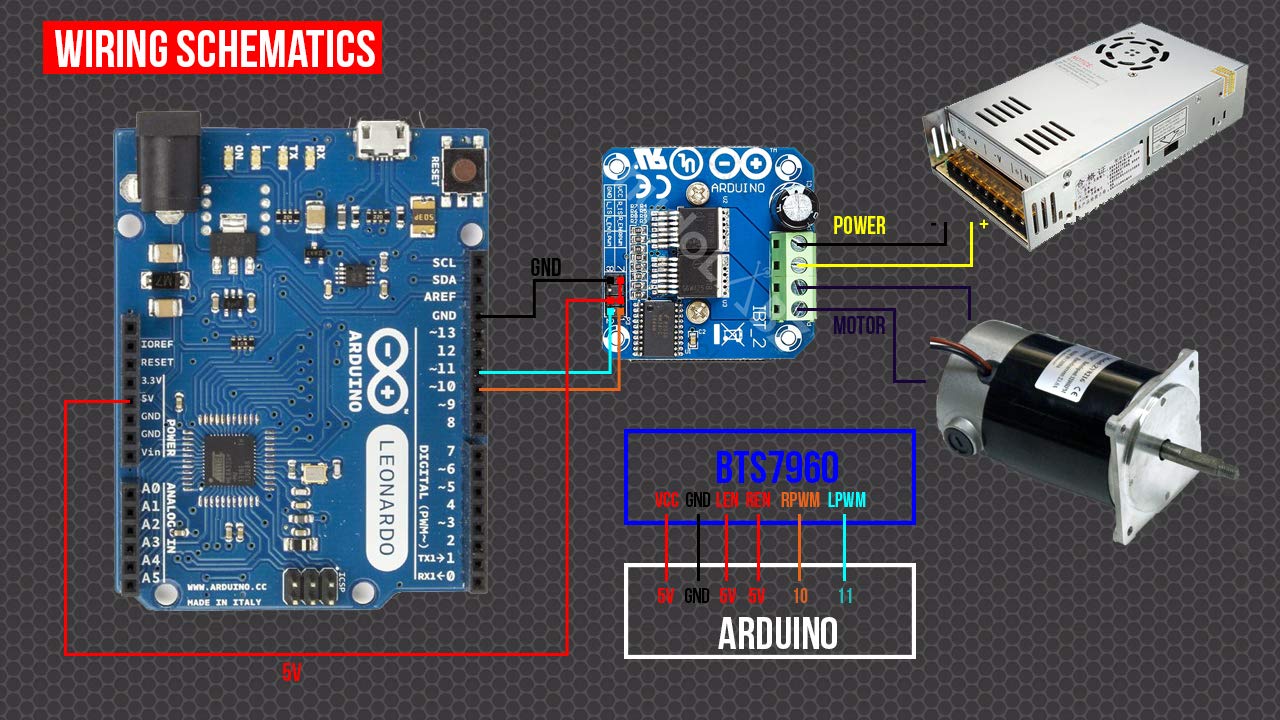

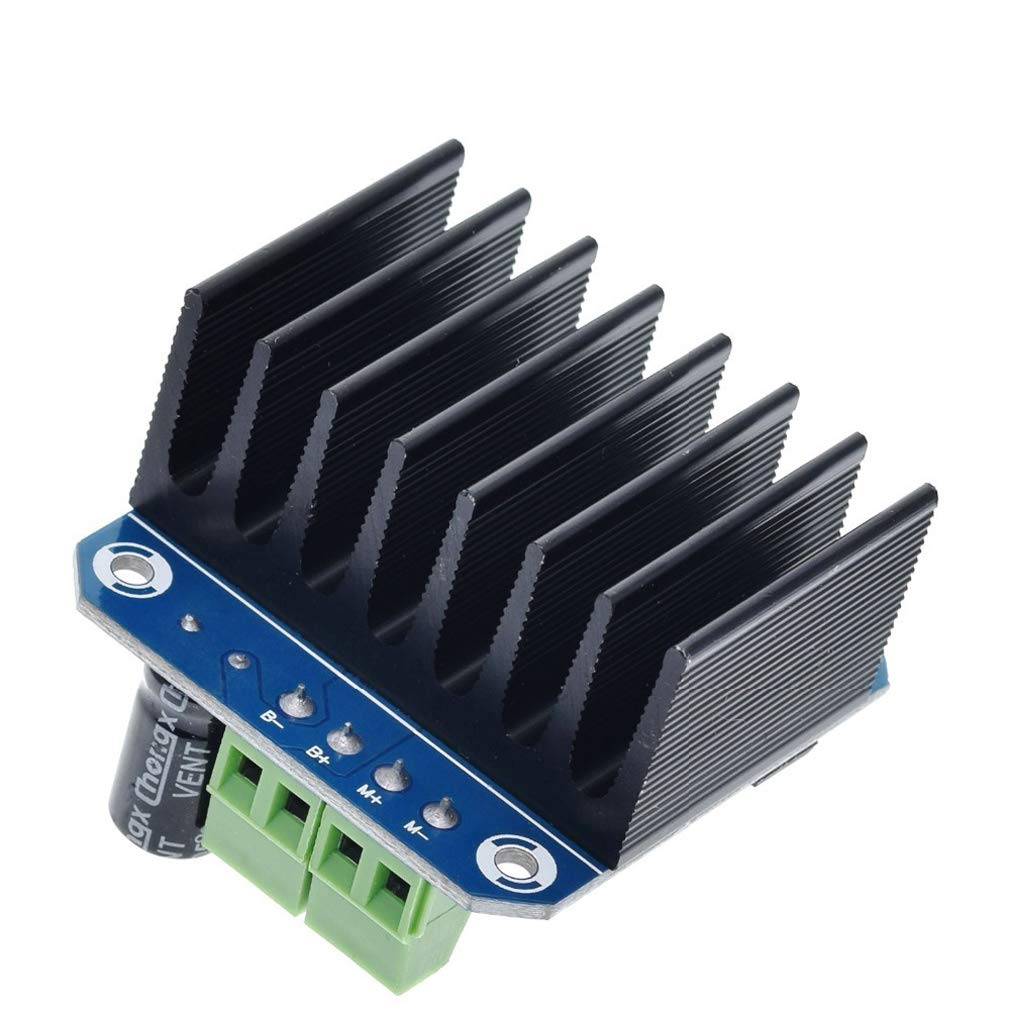

{"id":7170003828916,"title":"HiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit","handle":"hiletgo-bts7960-43a-high-power-motor-driver-module-smart-car-driver-module-for-arduino-current-limit","description":"\u003ch3\u003eHiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInstruction:This driver uses Infineon chips BTS7960 composed of high-power\ndrive full H-bridge driver module with thermal over-current protection. Double\nBTS7960 H-bridge driver circuit, with a strong drive and braking, effectively\nisolating the microcontroller and motor driver! High-current 43A.Electrical\nperformance:Model: IBT-2Input voltage: 6V-27VMaximum current: 43AInput level:\n3.3-5VControl method: PWM or levelDuty cycle: 0-100%Input port:1.RPWM: forward\nlevel or PWM signal input, active high2.LPWM: Reverse level or PWM signal\ninput, active high3.R_EN: forward drive enable input, high-level enable, low\nlevel off4.L_EN: Reverse drive enable input, high-level enable, low level\noff5.R_IS: forward drive current alarm output6.L_IS: Reverse drive current\nalarm output7.VCC: +5 V power output, 5V power supply connection with the\nmicrocontroller8.GND: signal common low endPackage Included:1BTS7960 43A High\nPower Motor Driver Module\/ Smart Car Driver Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e5V isolate with MCU, and effectively protect MCU; 5V power indicator on board.\u003c\/li\u003e\n \u003cli\u003eVoltage indication of motor driver output end; can solder heat sink.\u003c\/li\u003e\n \u003cli\u003eJust need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5 V power supply (can share with MCU 5 V).\u003c\/li\u003e\n \u003cli\u003eAble to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output.\u003c\/li\u003e\n \u003cli\u003eIsolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-26T19:55:20+10:00","created_at":"2022-06-26T19:55:27+10:00","vendor":"HiLetgo","type":"Motor Speed Controllers","tags":["industrial"],"price":11000,"price_min":11000,"price_max":11000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41609543221428,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00WSN98DC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit","public_title":null,"options":["Default Title"],"price":11000,"weight":100,"compare_at_price":null,"inventory_management":null,"barcode":"702949574993","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B00WSN98DC.jpg?v=1656312621","\/\/auspowers.com\/cdn\/shop\/products\/61CR25nB3hL.jpg?v=1656237327","\/\/auspowers.com\/cdn\/shop\/products\/61FalzPE0QL.jpg?v=1656237327","\/\/auspowers.com\/cdn\/shop\/products\/61GlcUekVeL.jpg?v=1656237327","\/\/auspowers.com\/cdn\/shop\/products\/61knTEWBHrL.jpg?v=1656237327","\/\/auspowers.com\/cdn\/shop\/products\/71KIX-CyX5L.jpg?v=1656237327","\/\/auspowers.com\/cdn\/shop\/products\/51_Du5sRIiL_4399a39f-2051-470f-affd-c5f32f966da3.jpg?v=1656237327"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B00WSN98DC.jpg?v=1656312621","options":["Title"],"media":[{"alt":"[Australia - AusPower] - HiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit ","id":26304915439796,"position":1,"preview_image":{"aspect_ratio":0.941,"height":1169,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B00WSN98DC.jpg?v=1656312621"},"aspect_ratio":0.941,"height":1169,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B00WSN98DC.jpg?v=1656312621","width":1100},{"alt":"[Australia - AusPower] - HiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit ","id":26295334469812,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61CR25nB3hL.jpg?v=1656237327"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61CR25nB3hL.jpg?v=1656237327","width":1010},{"alt":"[Australia - AusPower] - HiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit ","id":26295334502580,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61FalzPE0QL.jpg?v=1656237327"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61FalzPE0QL.jpg?v=1656237327","width":1010},{"alt":"[Australia - AusPower] - HiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit ","id":26295334535348,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61GlcUekVeL.jpg?v=1656237327"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61GlcUekVeL.jpg?v=1656237327","width":1010},{"alt":"[Australia - AusPower] - HiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit ","id":26295334568116,"position":5,"preview_image":{"aspect_ratio":2.904,"height":500,"width":1452,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61knTEWBHrL.jpg?v=1656237327"},"aspect_ratio":2.904,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61knTEWBHrL.jpg?v=1656237327","width":1452},{"alt":"[Australia - AusPower] - HiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit ","id":26295334600884,"position":6,"preview_image":{"aspect_ratio":1.778,"height":720,"width":1280,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71KIX-CyX5L.jpg?v=1656237327"},"aspect_ratio":1.778,"height":720,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71KIX-CyX5L.jpg?v=1656237327","width":1280},{"alt":"[Australia - AusPower] - HiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit ","id":26295334633652,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51_Du5sRIiL_4399a39f-2051-470f-affd-c5f32f966da3.jpg?v=1656237327"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51_Du5sRIiL_4399a39f-2051-470f-affd-c5f32f966da3.jpg?v=1656237327","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHiLetgo BTS7960 43A High Power Motor Driver Module\/Smart Car Driver Module for Arduino Current Limit\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInstruction:This driver uses Infineon chips BTS7960 composed of high-power\ndrive full H-bridge driver module with thermal over-current protection. Double\nBTS7960 H-bridge driver circuit, with a strong drive and braking, effectively\nisolating the microcontroller and motor driver! High-current 43A.Electrical\nperformance:Model: IBT-2Input voltage: 6V-27VMaximum current: 43AInput level:\n3.3-5VControl method: PWM or levelDuty cycle: 0-100%Input port:1.RPWM: forward\nlevel or PWM signal input, active high2.LPWM: Reverse level or PWM signal\ninput, active high3.R_EN: forward drive enable input, high-level enable, low\nlevel off4.L_EN: Reverse drive enable input, high-level enable, low level\noff5.R_IS: forward drive current alarm output6.L_IS: Reverse drive current\nalarm output7.VCC: +5 V power output, 5V power supply connection with the\nmicrocontroller8.GND: signal common low endPackage Included:1BTS7960 43A High\nPower Motor Driver Module\/ Smart Car Driver Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e5V isolate with MCU, and effectively protect MCU; 5V power indicator on board.\u003c\/li\u003e\n \u003cli\u003eVoltage indication of motor driver output end; can solder heat sink.\u003c\/li\u003e\n \u003cli\u003eJust need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5 V power supply (can share with MCU 5 V).\u003c\/li\u003e\n \u003cli\u003eAble to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output.\u003c\/li\u003e\n \u003cli\u003eIsolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
